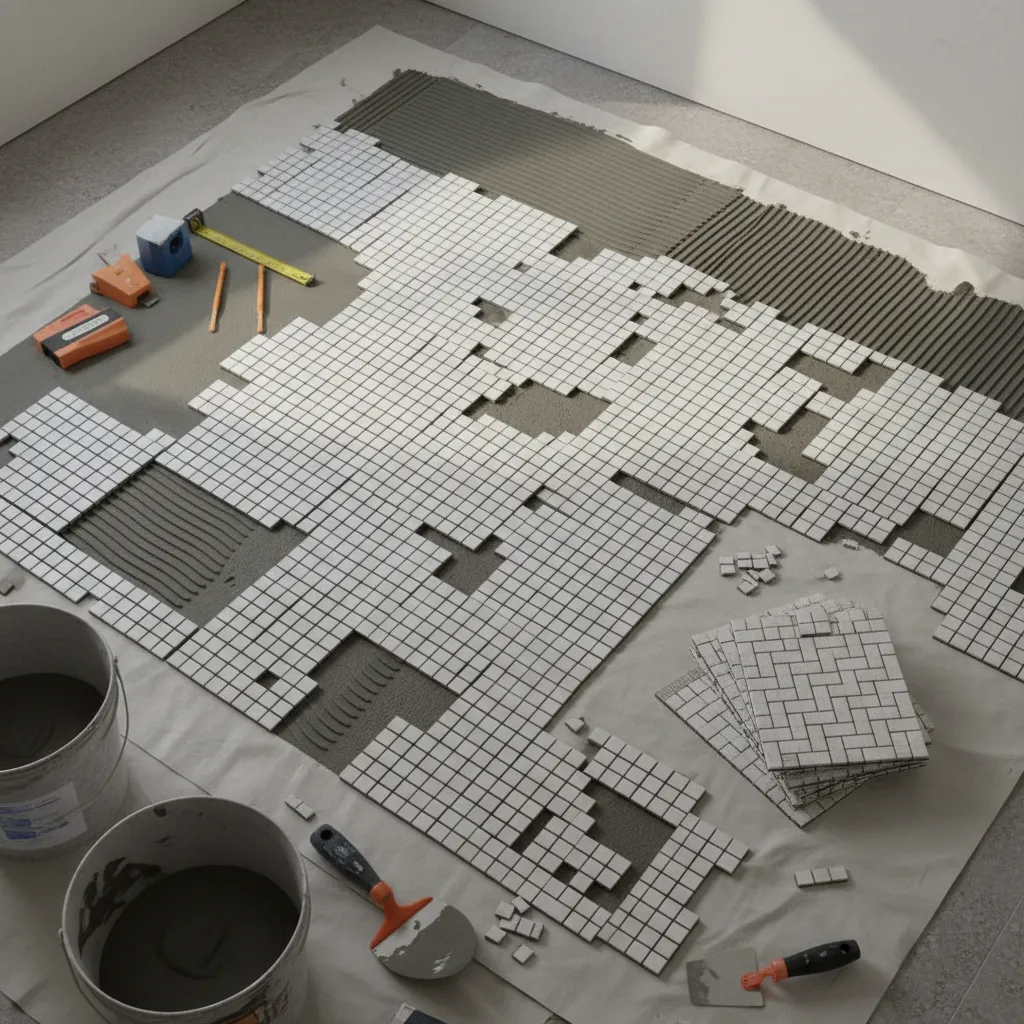

Common Basket Weave Tile Installation Problems and How to Fix Them: A practical troubleshooting guide to fix alignment, spacing, lippage, and grout issues in basket weave tile floors and bathrooms.

Direct Answer

Basket weave tile installation problems usually come from pattern misalignment, uneven subfloors, inconsistent spacing, or grout overflow in the small joints. Because the pattern interlocks multiple small tiles, even minor layout errors become highly visible. Most issues can be prevented with precise layout planning, flat substrate preparation, and careful grout control.

Quick Takeaways

1. Basket weave patterns magnify small layout errors, making careful alignment essential.
2. An uneven subfloor is the most common cause of basket weave tile lippage.
3. Mesh-backed sheets can shift easily during installation if thinset coverage is inconsistent.
4. Grout lines in basket weave tiles require tighter control due to dense joint spacing.
5. Dry‑laying several sheets first dramatically reduces pattern alignment problems.

Introduction

Basket weave tile installation problems show up far more often than people expect. After working on dozens of bathroom and entryway projects over the past decade, I can tell you the pattern looks deceptively simple—but it behaves very differently from standard square tile layouts.

Unlike large format tiles, basket weave patterns are made of multiple tiny pieces linked together. That means if one sheet drifts even a few millimeters, the mistake compounds across the floor. Suddenly the "woven" look turns crooked, grout joints widen, and homeowners start asking what went wrong.

Many of these problems actually start before the first tile is installed. Layout planning, sheet alignment, and substrate flatness determine whether the pattern flows cleanly. If you're still planning a layout, it helps to review examples of how designers plan basket weave tile layouts in real bathroom spacesso you understand how the pattern should visually flow before installation begins.

In this guide, I'll walk through the most common basket weave tile installation problems I see on job sites—and more importantly, how professionals fix or prevent them.

save pin

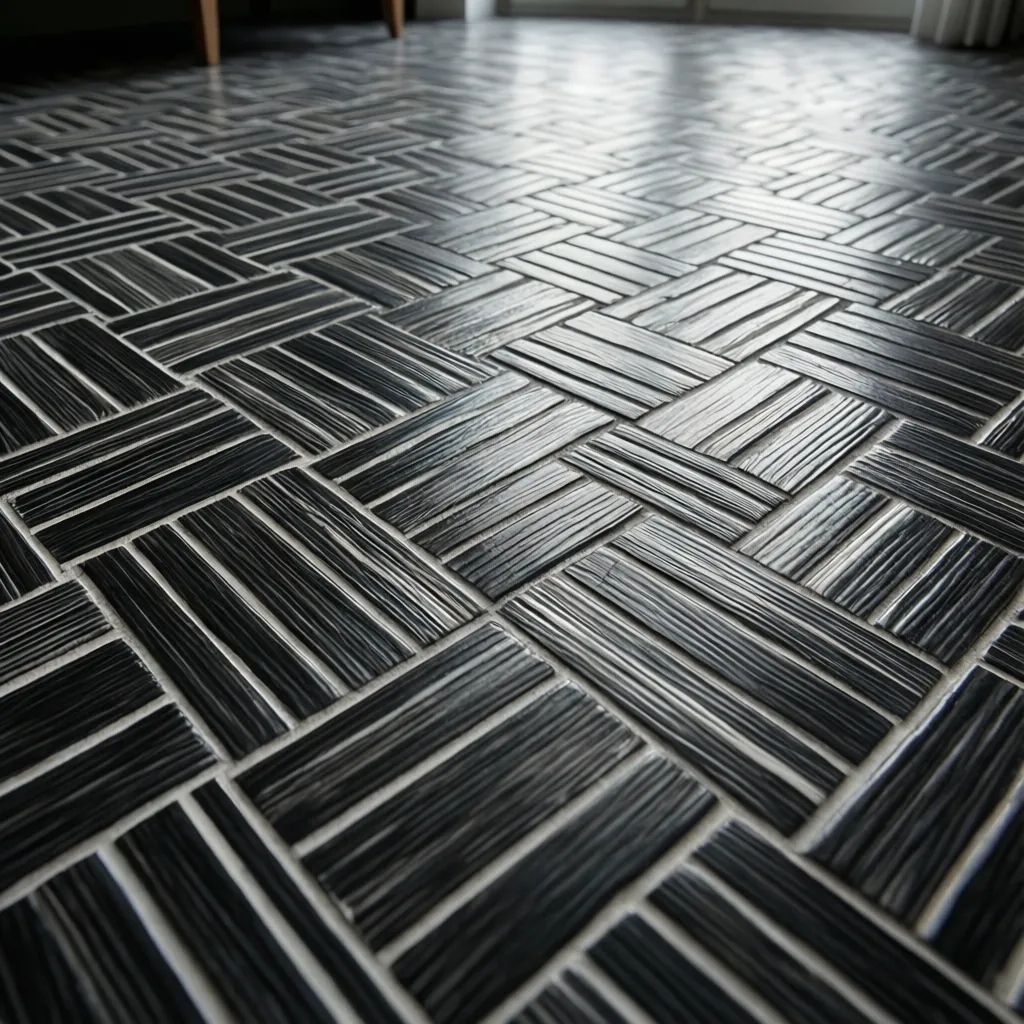

Why Basket Weave Tile Installation Can Be Challenging

Key Insight: Basket weave tiles are difficult because the repeating woven geometry amplifies even tiny alignment or leveling errors.

Most installers are comfortable with straight grid layouts. Basket weave patterns are different because they contain alternating vertical and horizontal elements that visually lock together. When one section shifts, the entire pattern reveals the mistake.

From my experience, three factors make basket weave installation tricky:

1. Mesh sheet flexibility – Many basket weave tiles come pre-mounted, but the mesh allows tiles to move slightly.
2. High joint density – There are far more grout joints than standard tiles.
3. Visual direction – The woven pattern creates strong visual lines that expose misalignment.

The Tile Council of North America (TCNA) installation guidelines emphasize substrate flatness for mosaic tiles—requiring a deviation of no more than 1/8 inch over 10 feet. Basket weave mosaics fall directly into that category.

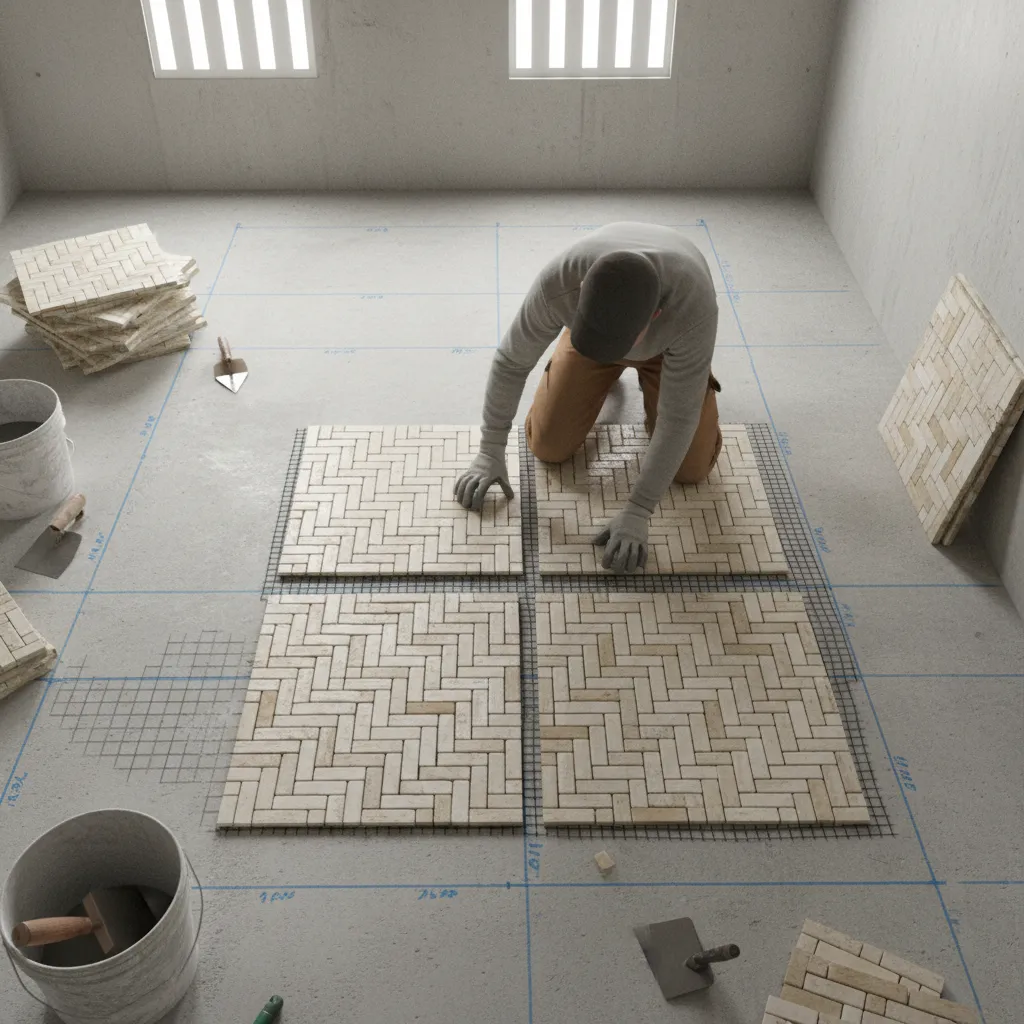

Common Alignment and Spacing Problems

Key Insight: Most basket weave tile pattern alignment issues happen because installers rely too heavily on the factory mesh sheets.

Many people assume the sheets are perfectly spaced. In reality, manufacturers often leave small inconsistencies in the mesh backing. If you simply install sheet by sheet without adjustment, grout lines will begin drifting.

Typical alignment problems include:

1. Visible sheet seams
2. Inconsistent grout line width
3. Pattern drift across the room
4. Misaligned "weave" intersections

Professional Fix:

1. Dry lay at least 6–8 sheets before installation.
2. Cut mesh between tiles if spacing looks tight.
3. Use tile spacers between sheets—not just within them.

This step alone eliminates many basket weave tile installation problems before thinset is ever applied.

save pin

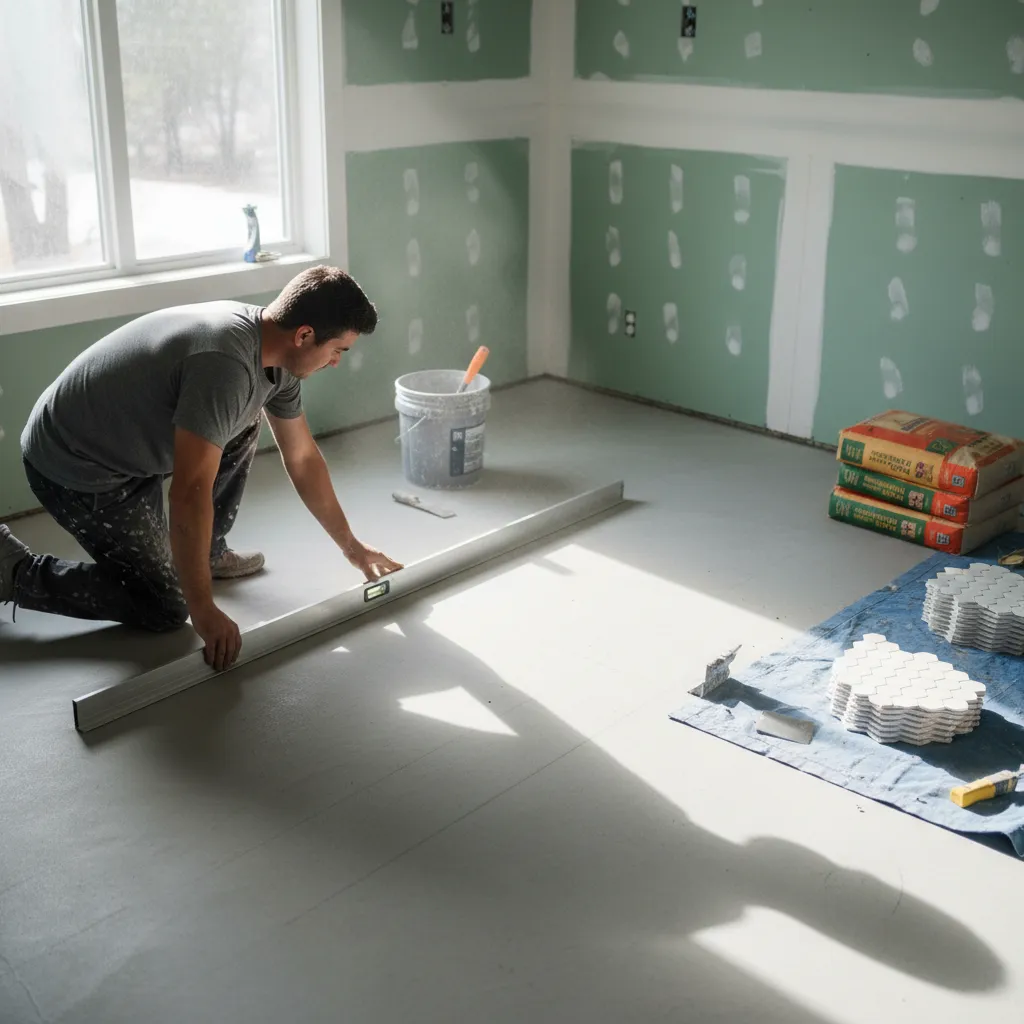

How to Prevent Uneven Basket Weave Patterns

Key Insight: A perfectly flat substrate matters more for mosaics than large tiles.

Small mosaic pieces follow the surface underneath them. If the floor dips slightly, the pattern warps visually.

Before installation, I always check three things:

1. Subfloor flatness – Use a long straightedge.
2. Thinset consistency – Too thick causes tile drift.
3. Sheet compression – Press tiles evenly using a grout float.

Another trick professionals use is visual alignment planning. When homeowners use tools to experiment with tile layouts before installation, it becomes much easier to predict where pattern shifts might occur in the room.

save pin

Fixing Lippage and Tile Height Issues

Key Insight: Lippage in basket weave floors usually comes from uneven thinset distribution rather than tile thickness differences.

Lippage happens when neighboring tiles sit at different heights. Because basket weave tiles are small, even slight variations become noticeable under lighting.

Common causes include:

1. Uneven thinset troweling
2. Inconsistent pressure during sheet placement
3. Subfloor dips or ridges

How installers fix it:

1. Use a smaller notch trowel (often 1/4 x 1/4).
2. Flatten trowel ridges before setting sheets.
3. Tap sheets evenly using a beating block.

According to recommendations from the National Tile Contractors Association (NTCA), flattening thinset ridges before placing mosaic sheets significantly reduces lippage risk.

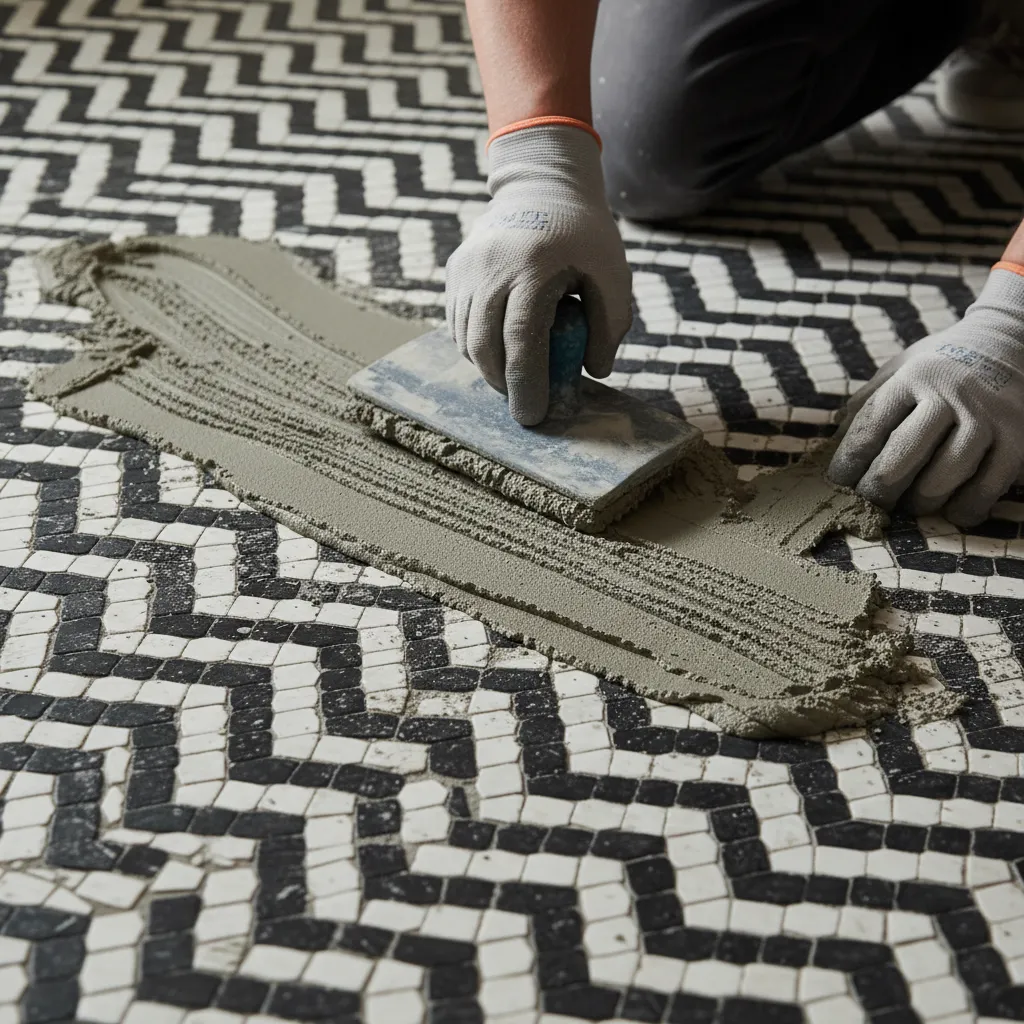

Grouting Problems in Basket Weave Tile Floors

Key Insight: Basket weave tile grouting problems usually come from overfilling joints or uneven grout cleanup.

Because basket weave designs have many tight joints, grout behaves differently than it does with larger tiles.

The most common grout issues include:

1. Grout haze trapped between small tiles
2. Overfilled joints hiding the woven pattern
3. Uneven grout color caused by inconsistent cleaning

Professional grouting process:

1. Work in small sections.
2. Hold the grout float at a 45-degree angle.
3. Clean gently with a barely damp sponge.
4. Do a final microfiber polish after haze forms.

save pin

Tips for Avoiding Installation Mistakes

Key Insight: Most basket weave tile installation problems come from rushing the layout stage.

When I review failed installations, the issue is rarely the tile itself. It's almost always layout planning or substrate preparation.

My go‑to checklist before installing basket weave tile:

1. Dry‑fit several sheets across the room.
2. Mark centerlines to guide pattern flow.
3. Check subfloor flatness carefully.
4. Use spacers between sheets.
5. Adjust mesh backing when needed.

If you're still deciding where basket weave patterns work best, exploring interactive room layout examples for bathroom tile planning can help visualize pattern direction before the first tile is installed.

Answer Box

Most basket weave tile installation problems stem from misaligned mesh sheets, uneven substrates, or improper thinset application. Careful dry‑layout, substrate leveling, and controlled grouting dramatically reduce visible pattern errors.

Final Summary

1. Basket weave tiles magnify small alignment mistakes.
2. Dry‑lay sheets first to prevent pattern drift.
3. Flat substrates reduce lippage in mosaic floors.
4. Controlled grouting preserves the woven pattern.
5. Planning layout direction improves visual balance.

FAQ

Why does my basket weave tile pattern look uneven?

Uneven patterns usually come from mesh sheet misalignment or inconsistent grout spacing. Dry‑laying sheets before installation helps prevent this.

How do you fix uneven basket weave tile after installation?

If the thinset is still fresh, tiles can be lifted and reset. Once cured, fixing uneven basket weave tile often requires replacing affected sheets.

What causes basket weave tile lippage?

Lippage usually occurs when the subfloor is uneven or thinset ridges are not flattened before placing mosaic sheets.

Are basket weave tiles harder to install than regular tiles?

Yes. The woven geometry and high joint density make alignment and spacing more sensitive during installation.

What size trowel works best for basket weave tile?

Most installers use a 1/4 x 1/4 inch square notch trowel for mosaic sheets.

Why do grout lines look different between sheets?

Factory mesh spacing can vary slightly. Installers often adjust tile spacing manually during placement.

Can basket weave tile be used on bathroom floors?

Yes. Basket weave tile floors work well in bathrooms because small tiles provide excellent slip resistance.

How do you prevent basket weave tile grouting problems?

Use controlled grout application, clean joints carefully, and avoid overfilling to preserve the pattern detail.

References

Tile Council of North America (TCNA) Handbook for Ceramic Tile Installation

National Tile Contractors Association (NTCA) Technical Guidelines
