Common Bathroom Chair Rail Installation Problems and How to Fix Them: Real fixes for moisture damage uneven lines and gaps that often appear after bathroom chair rail installation

Direct Answer

Bathroom chair rail installation problems usually come from moisture exposure, uneven wall surfaces, incorrect adhesive, or inaccurate height alignment. Most issues can be fixed by re-securing loose sections, sealing gaps, correcting height lines, and using moisture-resistant materials designed for bathrooms.

In humid environments like bathrooms, even small installation mistakes quickly turn into visible problems such as separation, swelling, or uneven trim lines.

Quick Takeaways

1. Humidity is the number one reason bathroom chair rails fail.
2. PVC or tile rails perform better than untreated wood in bathrooms.
3. Most chair rail gaps are caused by uneven walls rather than poor cutting.
4. Precise height layout prevents the common crooked rail problem.
5. Moisture resistant adhesive dramatically increases installation lifespan.

Introduction

Bathroom chair rail installation problems are more common than most homeowners expect. After working on residential interiors for more than a decade, I've seen perfectly good trim jobs fail within a year simply because bathrooms behave differently from other rooms.

Humidity, temperature swings, and wall moisture constantly stress the materials. A chair rail that would last 20 years in a dining room might start separating in a bathroom within months if the installation wasn't planned for moisture.

Another mistake I frequently see is homeowners focusing on decorative layout while ignoring structural details like adhesive choice, expansion gaps, and surface preparation.

If you're planning a bathroom update, it's worth understanding how trim interacts with layout and wall design. Tools that help visualize trim placement alongside walls and fixtures can prevent alignment mistakes early in the process. For example, many designers now use a visual room layout planning workflow for bathroom remodeling projectsto preview trim heights before installation.

In this guide I'll walk through the most common bathroom chair rail failures I encounter during renovations and how to repair them without tearing out the entire wall.

save pin

Why Bathroom Chair Rail Installations Often Fail

Key Insight: Bathroom chair rail failures rarely come from bad trim pieces. They almost always come from moisture exposure combined with incorrect installation methods.

Most installation guides assume dry environments. Bathrooms are different because humidity can reach 70–90% during showers, which causes expansion, contraction, and adhesive breakdown.

From project inspections I've done over the years, the most frequent failure points include:

1. Standard construction adhesive not rated for humid environments
2. Wood trim installed without sealing the back side
3. Improper fastening into drywall instead of studs
4. Wall surfaces not fully level before installation
5. No expansion allowance where trim meets tile

According to the National Association of Home Builders, moisture is responsible for a large share of interior trim failures in bathrooms and kitchens. Trim installed in these areas must be treated more like wet-zone materials than decorative molding.

The hidden cost many homeowners overlook is repeated repair work. A poorly installed rail might require repainting, caulking, and reattachment every year.

Chair Rail Separating From the Wall in Humid Bathrooms

Key Insight: When a chair rail pulls away from the wall, adhesive failure or wall movement from humidity is usually the root cause.

This is probably the most searched issue: "chair rail coming off wall in bathroom." In almost every case I inspect, the adhesive simply wasn't rated for moisture-heavy environments.

How to fix a loose chair rail:

1. Carefully remove the loose trim section.
2. Scrape away old adhesive completely.
3. Dry the wall surface and inspect for moisture damage.
4. Apply moisture-resistant construction adhesive.
5. Reattach with finish nails into studs if possible.
6. Seal the top edge with paintable bathroom-grade caulk.

For bathrooms with constant humidity, I often recommend switching to PVC trim or tile chair rails rather than wood.

When planning trim placement alongside fixtures and tile zones, visualizing the full wall layout in advance helps prevent attachment conflicts. Many remodelers use tools that simulate trim and tile alignment with a 3D floor layout preview used during bathroom remodel planning.

save pin

Uneven Chair Rail Lines and Height Alignment Issues

Key Insight: Crooked chair rails are usually caused by following an uneven floor line rather than establishing a true level reference line.

This mistake is extremely common in older homes where floors are slightly sloped.

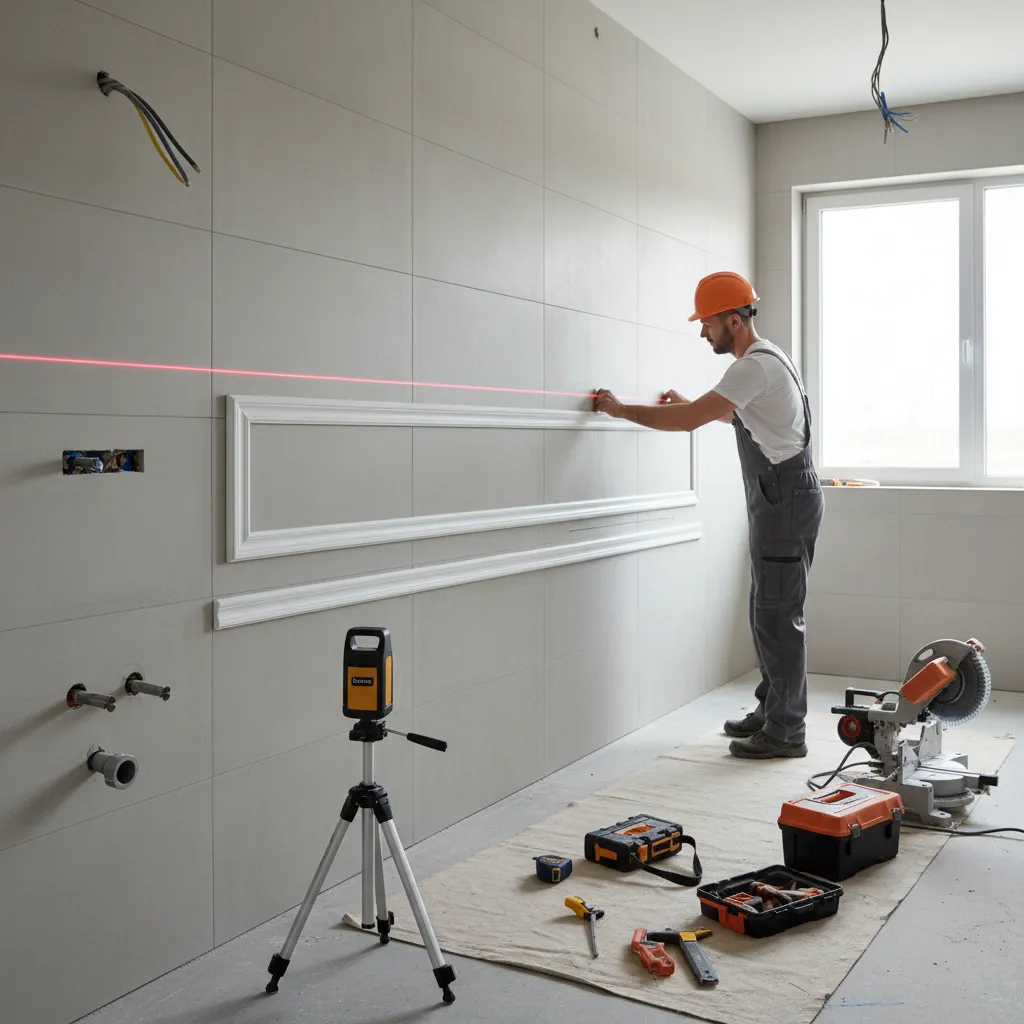

Instead of measuring upward from the floor, professionals always start with a laser level around the room.

Recommended installation workflow:

1. Mark a continuous level line using a laser level.
2. Standard bathroom chair rail height typically ranges from 30–36 inches.
3. Check door trim intersections before finalizing the height.
4. Dry-fit trim sections before adhesive or nails.

A small misalignment becomes very noticeable once paint or tile contrast highlights the trim line.

Interior design guidelines from the American Institute of Architects emphasize consistent horizontal lines as a major factor in perceived room quality. Even a 1/4 inch variation can visually distort the entire wall.

save pin

Water Damage and Swelling in Wooden Chair Rails

Key Insight: Wood chair rails fail in bathrooms when moisture penetrates the backside or unfinished edges.

Even painted wood can absorb moisture through the back surface if it wasn't sealed before installation.

Signs of moisture-damaged chair rails:

1. Visible swelling along the bottom edge
2. Paint cracking or bubbling
3. Trim joints pushing apart
4. Soft or spongy wood sections

Repair options:

1. Light swelling: sand, reseal, repaint.
2. Moderate damage: replace the affected trim section.
3. Severe swelling: replace with PVC or composite molding.

In my projects, bathrooms with poor ventilation experience trim damage far faster than properly ventilated spaces. Exhaust fan performance often matters more than trim material.

Gaps Between Chair Rail and Tile or Paint Lines

Key Insight: Gaps around chair rails usually come from uneven wall surfaces rather than inaccurate cutting.

Walls in many homes are not perfectly flat. When rigid trim is installed across these surfaces, small gaps appear along the edges.

Common gap locations:

1. Where trim meets tile wainscoting
2. Between chair rail and drywall
3. At inside corner joints

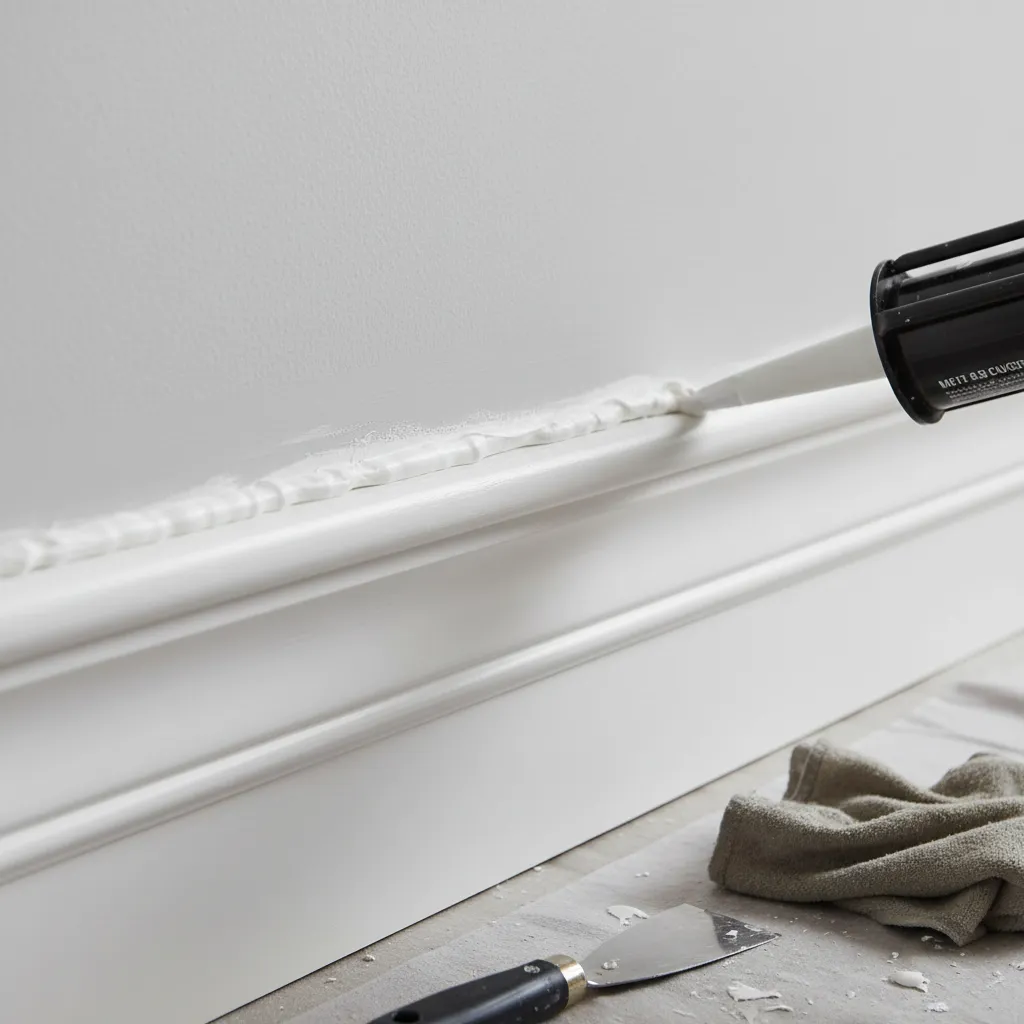

How professionals fix visible gaps:

1. Use flexible paintable caulk for small gaps.
2. Install backer strips behind deeper gaps.
3. Shim trim during installation for uneven surfaces.
4. Repaint after sealing.

One overlooked trick is adjusting wall transitions during design. When planning tile wainscoting and trim together, designers often test multiple heights and tile alignments using a visual bathroom layout planning approach before finalizing trim placement.

save pin

How to Prevent Future Chair Rail Installation Problems

Key Insight: Prevention depends more on moisture management and material choice than installation skill alone.

After years of remodeling bathrooms, I've found that three decisions determine whether a chair rail lasts decades or fails quickly.

Best practices professionals follow:

1. Choose PVC or composite trim in high-humidity bathrooms.
2. Seal the back side of any wood molding before installation.
3. Use adhesive rated for bathrooms or kitchens.
4. Install with both adhesive and finish nails for stability.
5. Run ventilation fans to reduce moisture buildup.

Another overlooked factor is the relationship between trim and tile. Poor alignment between the two often causes stress points and visual defects later.

Answer Box

The most common bathroom chair rail installation problems include moisture damage, trim separating from walls, uneven alignment, and visible gaps. Most can be repaired by replacing adhesive, sealing joints, correcting level lines, and using moisture-resistant materials like PVC trim.

Final Summary

1. Humidity is the leading cause of bathroom chair rail failure.
2. Level reference lines prevent crooked installations.
3. PVC trim performs better than untreated wood.
4. Most gaps come from uneven walls.
5. Moisture resistant adhesives dramatically extend trim lifespan.

FAQ

Why is my bathroom chair rail coming off the wall?

Moisture often weakens standard adhesives. Reinstall the trim using moisture-resistant construction adhesive and secure it with finish nails.

What is the best adhesive for bathroom chair rails?

Use construction adhesive labeled for kitchens and bathrooms. These formulas resist humidity and prevent chair rail separation.

How do you fix uneven chair rail installation?

Remove the trim and reinstall it using a laser level to establish a consistent horizontal reference line around the room.

Can wood chair rails survive in bathrooms?

Yes, but only if all surfaces including the backside are sealed and the bathroom has proper ventilation.

How do you fix chair rail gaps in bathroom walls?

Small gaps can be filled with paintable caulk. Larger gaps may require shimming the trim or adjusting the wall surface.

What height should a bathroom chair rail be installed?

Most bathrooms use a height between 30 and 36 inches, depending on tile layout and wall proportions.

Are PVC chair rails better for bathrooms?

PVC trim resists moisture and swelling, making it one of the most reliable materials for humid bathrooms.

How long should bathroom chair rail installations last?

Properly installed trim using moisture-resistant materials can last decades without major repairs.
