Common Building Service Coordination Problems in Interior Projects: How designers resolve HVAC, electrical, and plumbing conflicts before they derail interior construction

Direct Answer

Building service coordination problems in interior projects occur when HVAC, electrical, plumbing, and architectural elements compete for the same physical space. These conflicts usually appear in ceilings, wall cavities, and service shafts during construction. The most reliable solution is early coordination using BIM models, layered drawings, and cross-discipline reviews before installation begins.

Quick Takeaways

1. Most interior construction delays come from hidden service clashes above ceilings or inside walls.
2. HVAC ducts are the most common source of spatial conflicts in interior design.
3. Early BIM coordination prevents expensive demolition and redesign during construction.
4. Ceiling height decisions should always consider mechanical clearances first.
5. Clear service zoning dramatically reduces coordination problems.

Introduction

After working on interior projects for more than a decade, I can say that building services coordination problems are rarely caused by bad design alone. They usually happen because different systems—HVAC, lighting, plumbing, fire protection, and structural elements—were designed in isolation.

In real projects, the conflict only becomes obvious when installation begins. A ceiling designed at 9 feet suddenly cannot accommodate a supply duct. A lighting layout clashes with sprinkler spacing. Or a bathroom wall hides plumbing that prevents cabinetry installation.

This is where interior designers often get pulled into technical troubleshooting, even though the root issue started earlier in the design process.

On several commercial projects I managed, the fastest way to catch these conflicts was by reviewing spatial layouts alongside service drawings. Even simple visualization tools help teams identify clearance issues before construction begins. Many designers now rely on visual planning tools like a visual layout planning workflow used to test room proportions and service spaceto quickly see where ceiling drops or shafts may interfere with interiors.

This guide walks through the most common coordination problems between interiors and building services, why they happen, and the practical fixes professionals use on real projects.

save pin

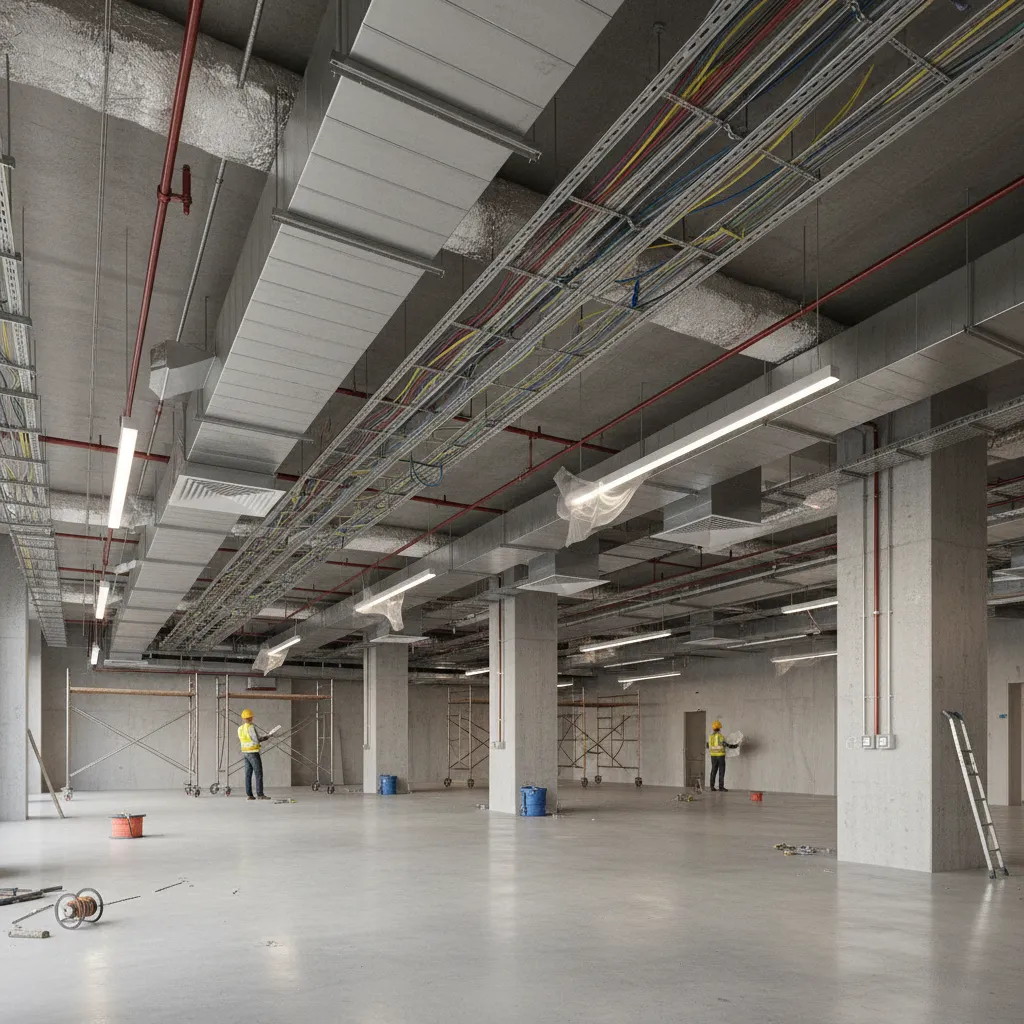

Why Building Service Conflicts Occur in Interior Projects

Key Insight: Most coordination issues happen because architectural layouts are finalized before mechanical and electrical systems are spatially verified.

In many projects, disciplines work sequentially instead of collaboratively. The architect defines the layout, then mechanical and electrical engineers fit their systems afterward. Unfortunately, services require significant physical space.

Typical reasons conflicts appear include:

1. Ceiling heights defined before HVAC routing
2. Lighting layouts created without sprinkler spacing review
3. Interior partitions added after plumbing design
4. Insufficient service shafts or vertical risers
5. Lack of coordinated reflected ceiling plans

One overlooked factor is tolerance space. Engineers often design systems with theoretical dimensions, but real construction needs installation clearance. Without this buffer, even a perfectly sized duct can collide with framing or lighting fixtures.

According to guidance from the American Institute of Architects and ASHRAE coordination practices, early interdisciplinary modeling significantly reduces construction conflicts.

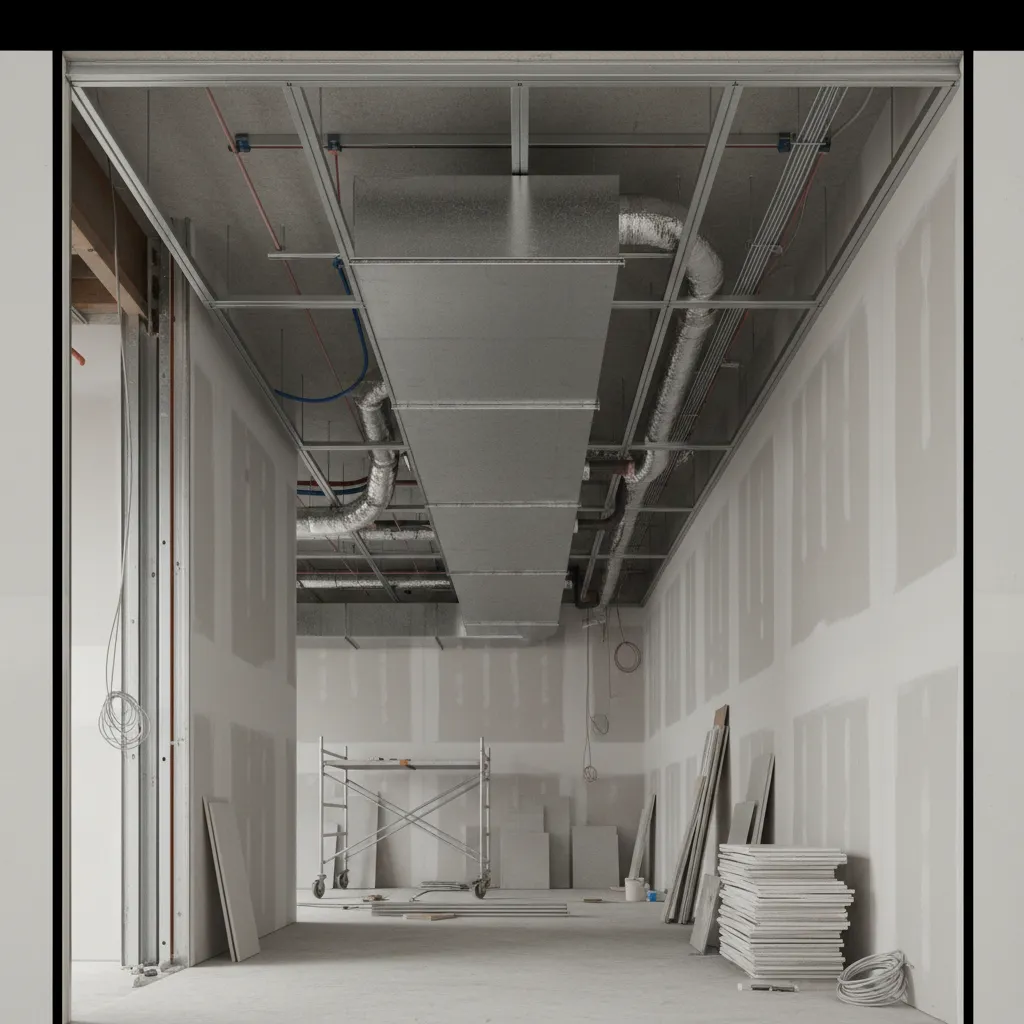

Typical Clashes Between HVAC Ducts and Interior Ceilings

Key Insight: HVAC ducts frequently dictate the minimum ceiling height in interior spaces.

Designers often treat ceiling design as a purely aesthetic decision. In reality, HVAC distribution usually consumes the largest amount of ceiling space.

Common duct-related conflicts include:

1. Main supply ducts cutting through decorative ceiling features
2. Insufficient space for duct insulation
3. Air diffusers misaligned with lighting grids
4. Structural beams blocking duct routing

Typical duct clearance requirements:

1. Main supply ducts: 300–600 mm height
2. Insulation allowance: 25–50 mm
3. Installation clearance: 50–100 mm

When these numbers are ignored, designers are forced to lower ceilings during construction—a costly and frustrating revision.

save pin

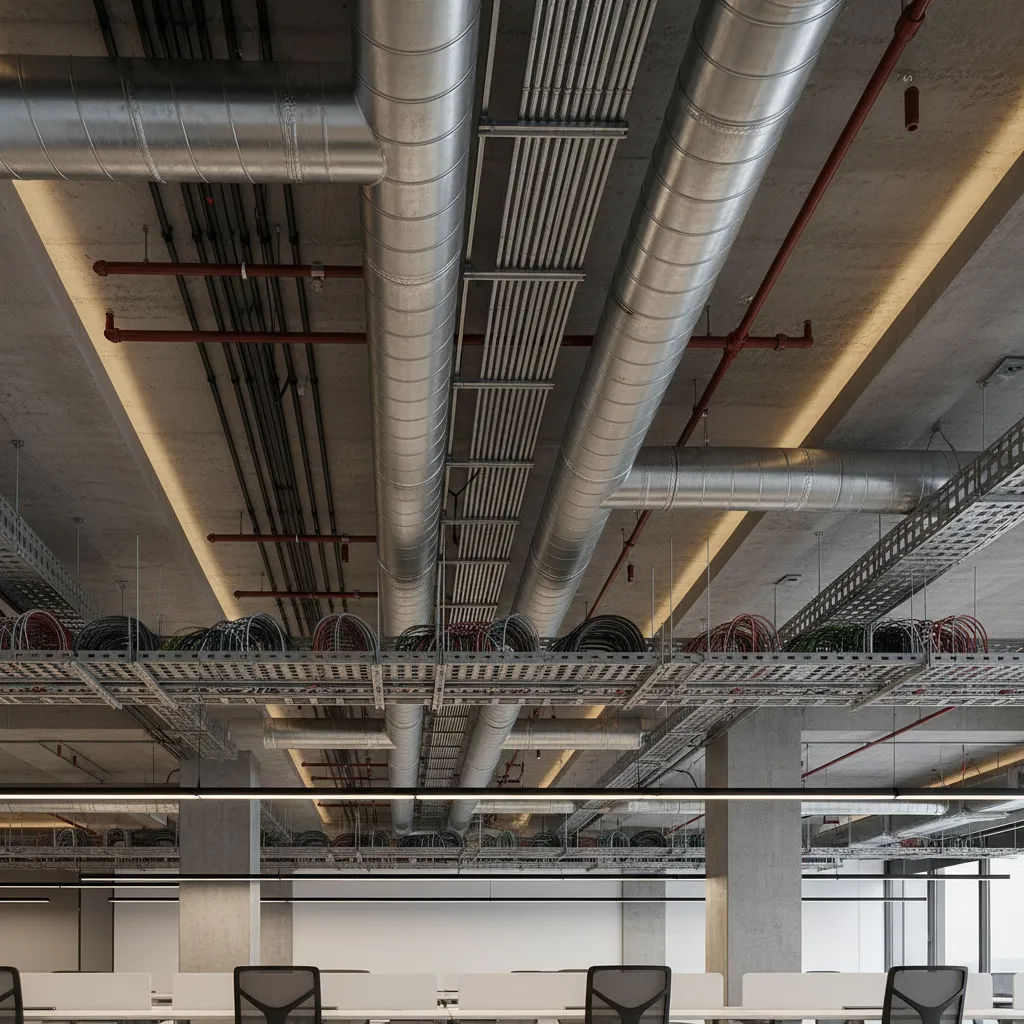

Electrical and Lighting Coordination Issues

Key Insight: Lighting layouts often fail when electrical systems and life-safety equipment share the same ceiling grid.

Interior designers typically focus on visual rhythm and spacing for lighting fixtures. However, ceilings must also accommodate:

1. Fire sprinkler heads
2. Smoke detectors
3. Emergency lights
4. Access panels
5. HVAC diffusers

A frequent mistake is designing lighting grids before checking fire protection requirements. Building codes usually require specific distances between sprinklers and obstacles. If fixtures block spray coverage, the layout must be redesigned.

To prevent this, experienced teams create layered reflected ceiling plans where every ceiling element is mapped together.

When teams simulate ceiling layouts visually, they can quickly detect overcrowded zones. Designers often prototype these arrangements using spatial planning tools similar to an interactive workspace layout simulation used for coordinating lighting and ceiling equipment.

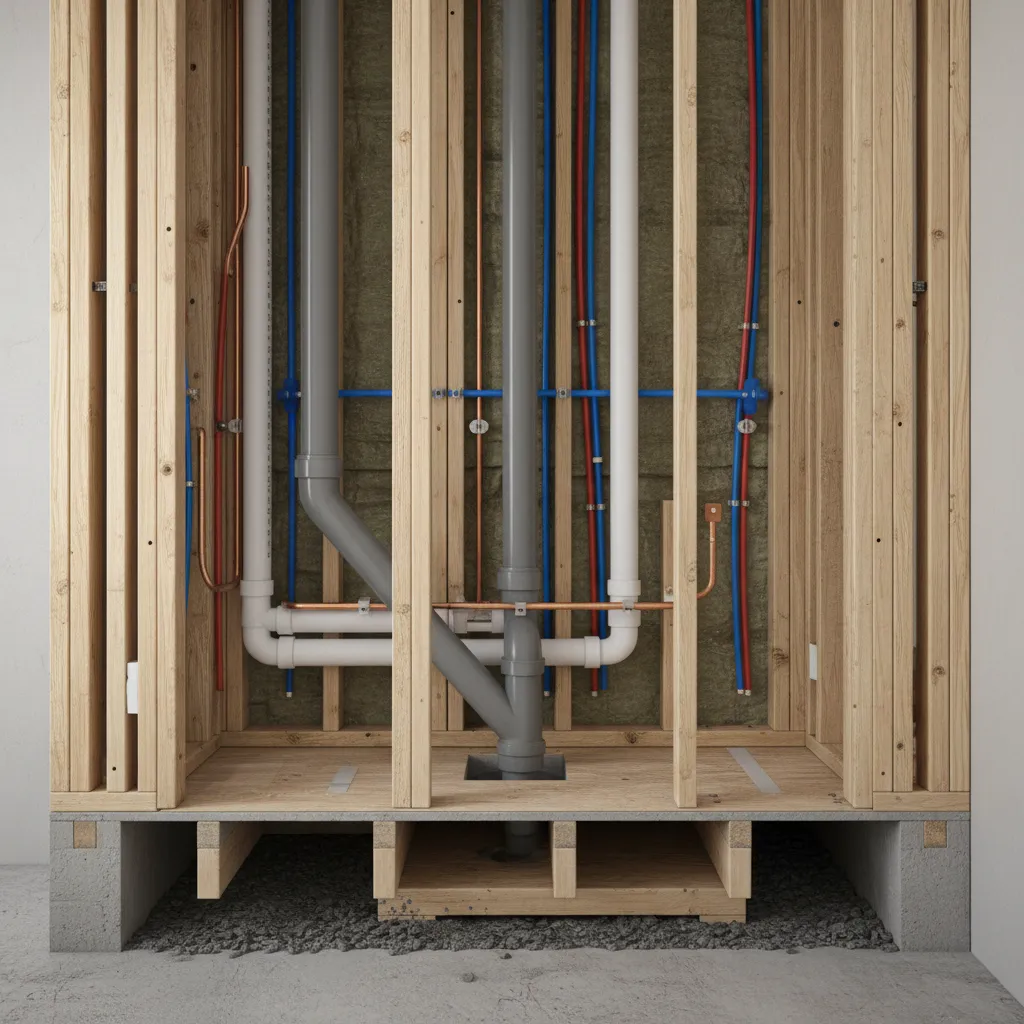

Plumbing Conflicts with Interior Layouts

Key Insight: Plumbing coordination problems usually appear when interior layouts shift after pipe routing has been designed.

Bathrooms, kitchens, and wet areas rely on precise pipe locations. Even a small change to wall positions or cabinet placement can create serious conflicts.

Typical plumbing coordination issues include:

1. Drain pipes intersecting structural beams
2. Insufficient slope for waste pipes
3. Pipe stacks interfering with cabinetry
4. Water supply lines blocking wall finishes

Hidden cost many teams overlook: drainage slope requirements.

Waste pipes typically require a slope of about 1–2%. Over long distances, this means the pipe gradually drops in height, which can collide with ceiling systems below.

save pin

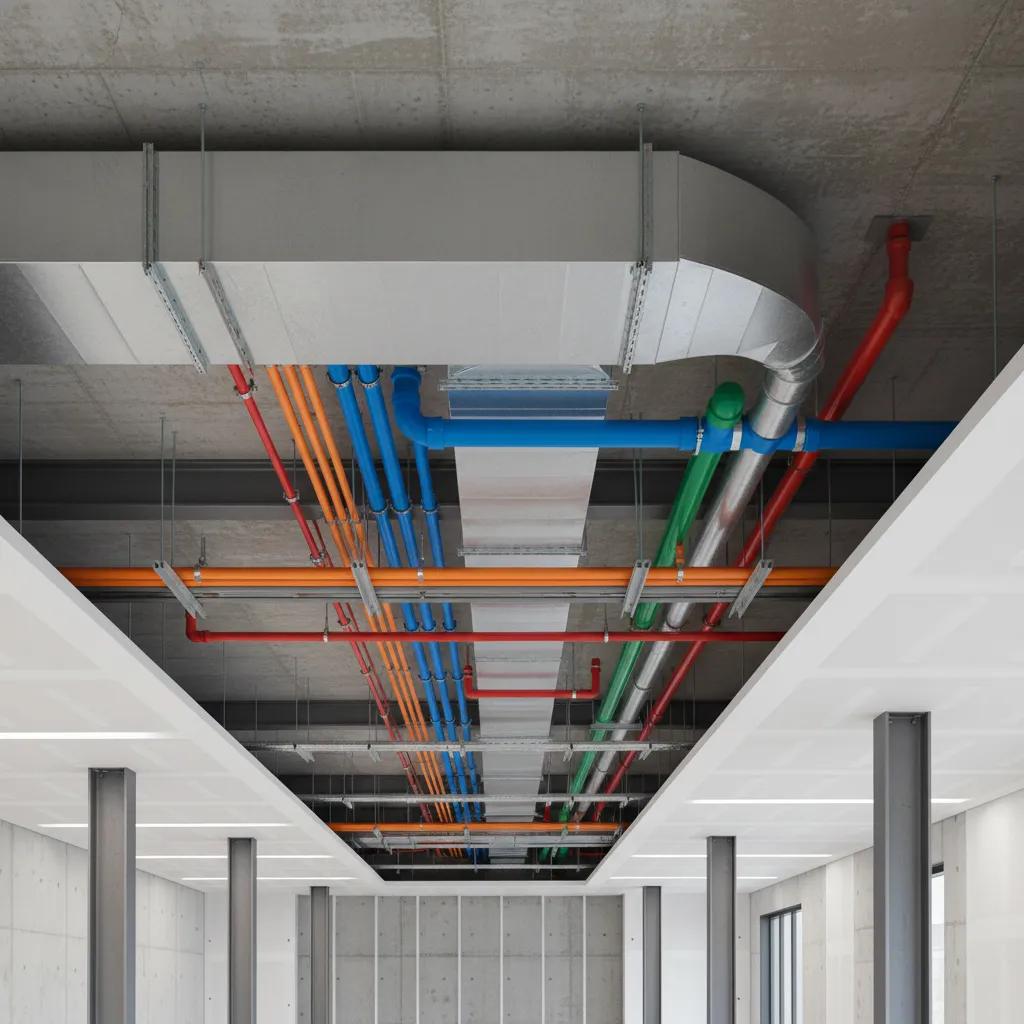

Detection Methods Using BIM and Coordination Drawings

Key Insight: Digital coordination models allow teams to detect service clashes before construction begins.

Modern interior projects increasingly rely on BIM-based coordination to identify conflicts between systems.

Common detection methods include:

1. 3D clash detection between MEP and architecture
2. Overlaying mechanical and reflected ceiling plans
3. Section-based clearance analysis
4. Construction sequencing simulations

One practical workflow I recommend is combining floor planning with visualization. When designers simulate spatial relationships in 3D, service routes become much easier to evaluate.

Many teams prototype these spatial relationships through a 3D visualization process used to preview interior spaces and concealed servicesbefore drawings are finalized.

save pin

Answer Box

The most effective way to resolve building service coordination problems is early cross-discipline modeling. HVAC, electrical, plumbing, and interior layouts must be reviewed together in 3D before construction drawings are finalized.

Practical Solutions to Resolve Service Coordination Problems

Key Insight: Successful coordination relies more on workflow discipline than software tools.

Based on real project experience, the following strategies consistently reduce service clashes.

1. Define service zones early

1. Ceiling mechanical zone
2. Lighting zone
3. Cable tray zone

2. Prioritize system hierarchy

1. Structure first
2. Main HVAC ducts second
3. Sprinklers and drainage third
4. Lighting and electrical last

3. Conduct coordination workshops

1. Architect
2. Interior designer
3. Mechanical engineer
4. Electrical engineer
5. Contractor

4. Freeze ceiling heights late

A common mistake is finalizing ceiling heights too early. Waiting until mechanical routing is verified prevents expensive redesign.

Final Summary

1. Service coordination failures usually appear in ceilings and wall cavities.
2. HVAC systems require the most physical space in interiors.
3. BIM modeling dramatically reduces coordination risks.
4. Ceiling design should always follow mechanical clearances.
5. Cross-discipline collaboration prevents costly construction delays.

FAQ

What are building services in interior design?

Building services include HVAC, electrical systems, plumbing, fire protection, and lighting that support interior functionality.

What causes building services coordination problems?

They usually occur when mechanical, electrical, and architectural drawings are developed separately without spatial coordination.

How do HVAC ducts conflict with interior ceilings?

Large supply ducts often require significant vertical space, forcing ceilings to drop if routing was not considered early.

What is MEP coordination in interiors?

MEP coordination ensures mechanical, electrical, and plumbing systems fit within architectural spaces without conflicts.

How can designers detect service clashes early?

3D BIM modeling and layered coordination drawings allow teams to identify conflicts before construction begins.

Why are plumbing systems difficult to coordinate?

Drainage pipes require slope, which means pipe elevations change across distance and can intersect with ceilings.

Can building services coordination problems delay construction?

Yes. Unresolved clashes often cause demolition, redesign, and schedule delays during installation.

What is the best way to resolve building services coordination problems in interior design?

Early interdisciplinary coordination using BIM models and integrated ceiling plans is the most reliable solution.

References

1. ASHRAE HVAC Design Guidelines
2. American Institute of Architects Project Coordination Standards
3. National Institute of Building Sciences BIM Guidelines
