Common Built-In Cabinet Refrigerator Installation Problems and Fixes: Troubleshoot ventilation, clearance, alignment, and wiring mistakes that cause built‑in refrigerators to perform poorly.

Direct Answer

Most built-in cabinet refrigerator installation problems come from poor ventilation, incorrect cabinet sizing, door alignment mistakes, or improper electrical and water line setup. Fixing these issues usually involves correcting airflow gaps, adjusting cabinet clearances, leveling the unit, or reinstalling door panels and connections properly.

Quick Takeaways

1. Built-in refrigerators fail most often due to restricted ventilation inside cabinetry.
2. Even a half-inch clearance error can cause cooling performance problems.
3. Door panel alignment issues usually come from uneven leveling or hinge tension.
4. Electrical and water connections should always be installed before sliding the unit fully into the cabinet.
5. Planning cabinet layout early prevents expensive retrofitting later.

Introduction

After working on dozens of kitchen renovation projects, I can confidently say the built-in cabinet refrigerator is one of the most misunderstood appliances in modern kitchens. Homeowners love the seamless look—but the installation requirements are far less forgiving than a freestanding fridge.

I’ve seen expensive appliances struggle simply because the cabinet opening was off by an inch or the ventilation path was blocked. When that happens, people assume the refrigerator is defective. In reality, most problems come from installation details.

Many homeowners start planning layouts visually without thinking about airflow, spacing, and door swing. That’s why I often recommend reviewing a step-by-step kitchen layout planning example for appliance placementbefore cabinets are finalized.

In this guide, I’ll walk through the most common built-in cabinet refrigerator installation problems I’ve encountered on real projects—and the practical fixes that actually work.

save pin

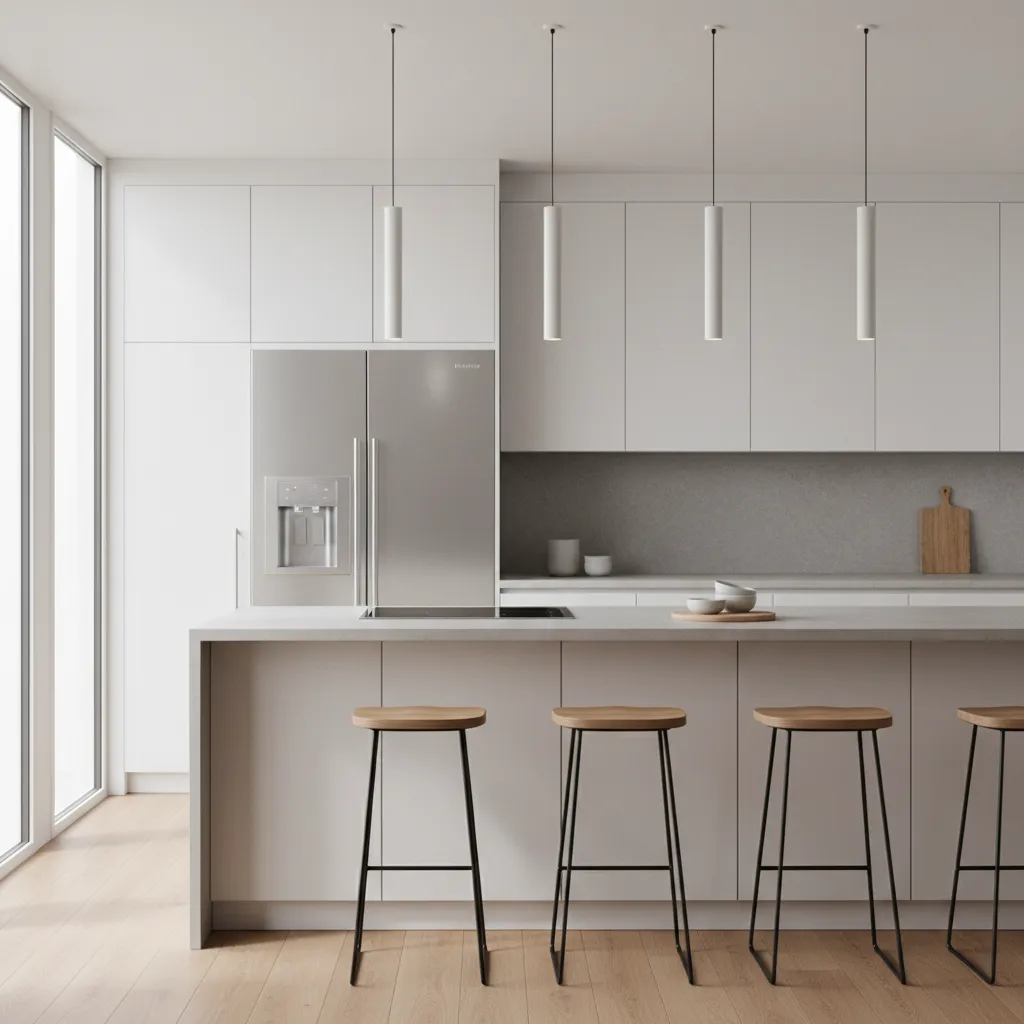

Why Built-In Cabinet Refrigerator Installation Can Be Challenging

Key Insight: Built-in refrigerators demand precise cabinet integration, and small installation errors can quickly affect cooling performance and door operation.

Unlike standard refrigerators that vent heat from the back or sides, built-in models rely on carefully engineered airflow paths. When those paths are blocked by cabinetry, heat accumulates and the compressor works harder.

Three design factors make installation tricky:

1. Tight tolerances: Cabinet openings often allow less than one inch of margin.
2. Front ventilation systems: Many models vent through toe-kicks or top grills.
3. Integrated panels: Panel-ready doors add weight and alignment complexity.

According to appliance installation guidelines from manufacturers like Sub-Zero and Bosch, airflow gaps are essential to maintain proper compressor cooling. When these are ignored, performance issues appear quickly.

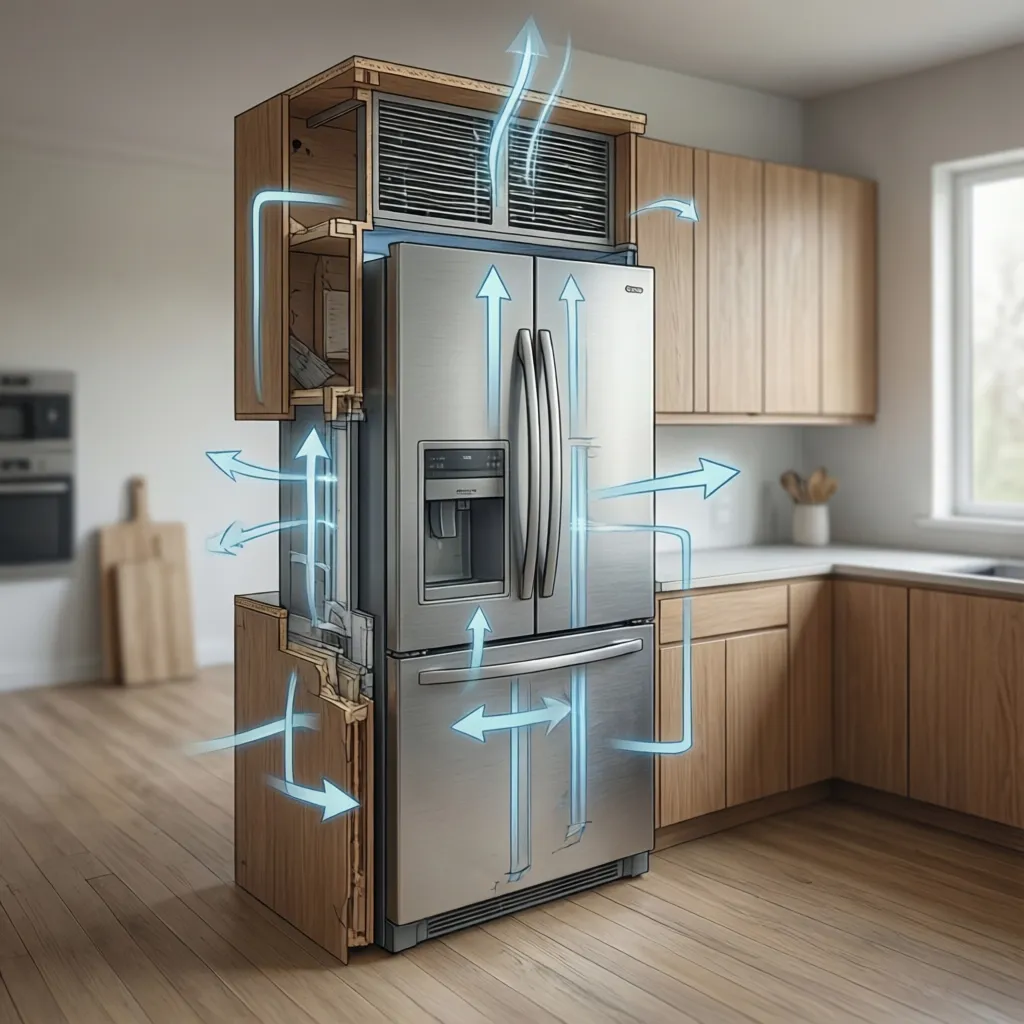

Ventilation Problems That Cause Overheating

Key Insight: The most common built-in refrigerator failure is insufficient ventilation inside cabinetry.

I’ve seen kitchens where a refrigerator constantly runs but never reaches the correct temperature. In most cases, the issue isn’t the appliance—it’s trapped heat.

Typical ventilation mistakes include:

1. No top vent opening above the refrigerator
2. Cabinet panels blocking rear airflow
3. Toe-kick vents accidentally sealed during installation
4. Decorative trim restricting exhaust paths

Recommended ventilation clearances:

1. Top clearance: 1–2 inches depending on manufacturer
2. Rear clearance: at least 1 inch
3. Front ventilation grill: completely unobstructed

Overheating compressors can shorten appliance lifespan dramatically. The U.S. Department of Energy notes that restricted airflow significantly increases refrigerator energy consumption.

save pin

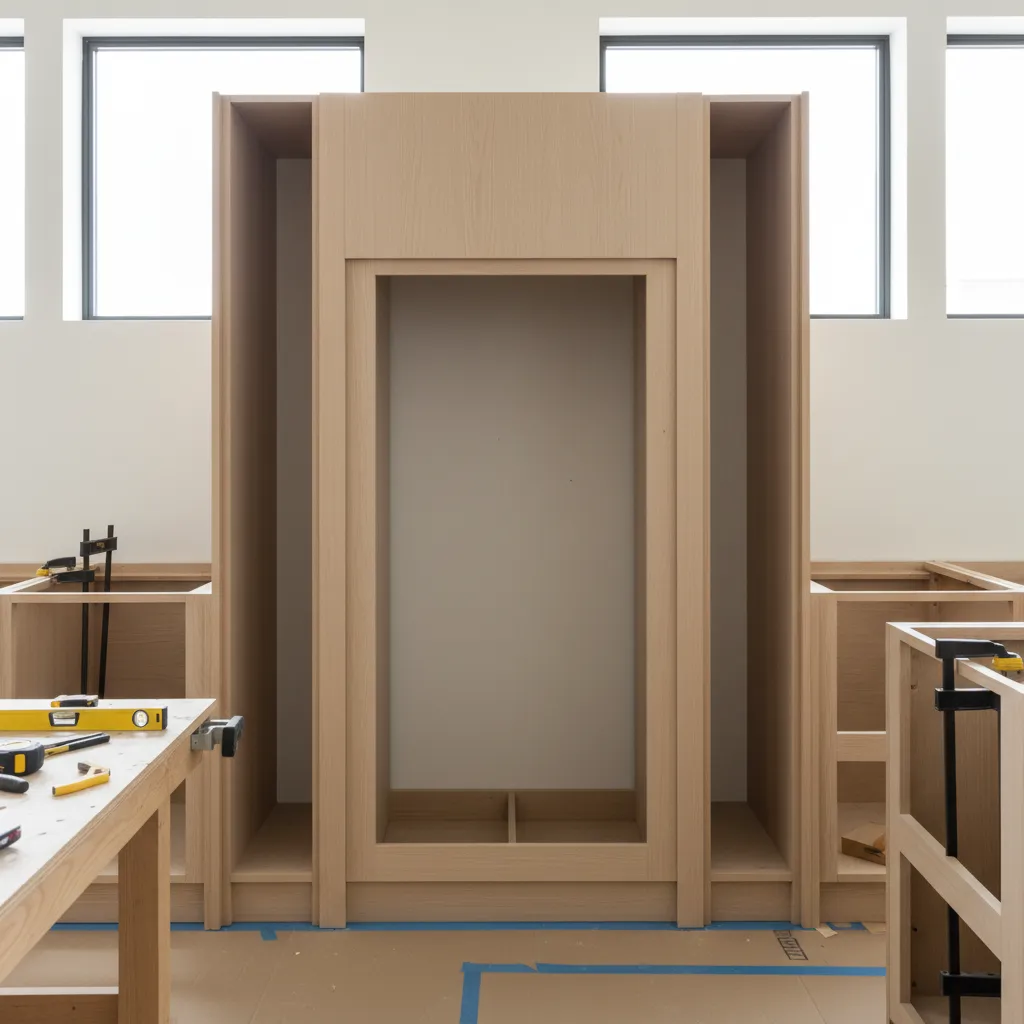

Cabinet Size Mismatch and Clearance Issues

Key Insight: Cabinet openings that are even slightly undersized can prevent proper airflow and make installation unstable.

This problem usually appears when cabinetry is built before the exact appliance model is chosen. Designers often assume all built-in refrigerators follow similar dimensions—but that’s rarely true.

Common clearance mistakes:

1. Cabinet depth too shallow for the compressor housing
2. Side panels pressing against the refrigerator body
3. Insufficient door swing clearance
4. Flooring height changes after appliance measurements

One solution I often recommend during renovations is testing appliance placement using a visual floor plan layout that simulates appliance spacing. It helps identify clearance conflicts before cabinetry is built.

Typical built-in refrigerator spacing requirements:

1. Side clearance: 1/4–1/2 inch
2. Top ventilation gap: 1–2 inches
3. Front door swing clearance: 2–3 inches

save pin

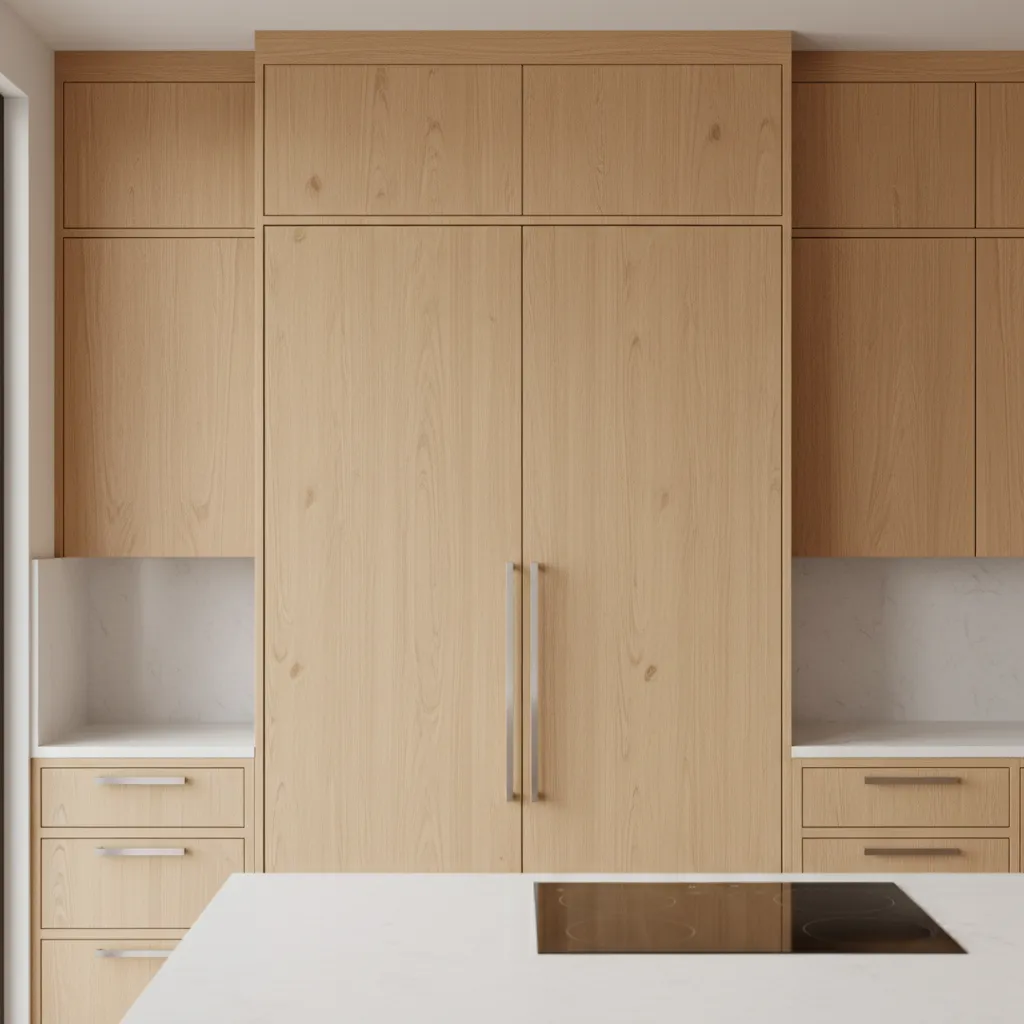

Door Alignment and Panel Installation Problems

Key Insight: Panel-ready refrigerators require extremely precise leveling; otherwise door panels appear crooked or fail to seal properly.

This issue is especially common with integrated kitchens where the refrigerator is designed to disappear behind cabinetry.

Typical panel alignment issues include:

1. Uneven door gaps
2. Panels rubbing cabinet sides
3. Magnetic seals not fully closing
4. Doors drifting open slightly

Most of these problems come from incorrect leveling rather than hinge failure.

Adjustment checklist:

1. Level the refrigerator front-to-back first
2. Adjust height with leveling legs
3. Recheck hinge tension
4. Install door panels only after leveling is complete

Professional installers typically verify alignment with laser levels or digital leveling tools to avoid long-term sealing problems.

Electrical and Water Line Setup Mistakes

Key Insight: Incorrect wiring or water line routing can prevent the refrigerator from sliding fully into the cabinet or functioning correctly.

Built-in units require more planning because connections sit behind tight cabinetry.

The most common mistakes I see during installations:

1. Electrical outlet placed directly behind the compressor
2. Water lines kinked during installation
3. Shut-off valves located where they become inaccessible
4. Improper grounding or extension cord use

Best practice is installing connections in an adjacent cabinet compartment rather than directly behind the refrigerator.

save pin

Answer Box

The majority of built-in cabinet refrigerator issues are caused by ventilation restrictions, cabinet sizing errors, or leveling mistakes. Ensuring proper airflow gaps, accurate cabinet measurements, and correct installation sequencing prevents most performance problems.

How to Fix Common Built-In Refrigerator Installation Issues

Key Insight: Most installation problems can be solved by correcting airflow, leveling the appliance, and adjusting cabinetry clearances.

When troubleshooting a built-in refrigerator installation, I usually follow this order:

1. Verify cabinet opening dimensions.
2. Confirm ventilation paths are unobstructed.
3. Level the refrigerator using adjustable legs.
4. Check door panel alignment and hinge tension.
5. Inspect electrical and water line placement.

If cabinet layout constraints make corrections difficult, reviewing a 3D kitchen layout visualization for appliance spacing can help identify structural conflicts quickly.

Final Summary

1. Ventilation issues are the leading cause of built-in refrigerator overheating.
2. Cabinet measurements must match appliance specifications exactly.
3. Door panel alignment problems usually result from improper leveling.
4. Electrical outlets and water lines should be placed outside the appliance cavity.
5. Planning appliance space early prevents costly cabinet modifications.

FAQ

Why is my built-in refrigerator not cooling properly inside the cabinet?

Restricted ventilation is the most common cause. Built-in refrigerators require airflow gaps around the unit to release heat from the compressor.

How much clearance does a built-in refrigerator need?

Most models require about 1–2 inches of top ventilation and around 1/4–1/2 inch side clearance. Always check manufacturer specifications.

Can a built-in fridge be installed flush with cabinets?

Yes, but internal ventilation channels must remain open. Flush installation without airflow will cause overheating.

Why won’t my panel-ready refrigerator door align correctly?

The refrigerator may not be level. Adjust leveling legs and hinge tension before reinstalling door panels.

Where should the outlet be placed for a built-in refrigerator?

Ideally in an adjacent cabinet compartment. Outlets behind the compressor can block installation depth.

Can poor installation damage a built-in refrigerator?

Yes. Overheating caused by blocked ventilation can shorten compressor lifespan and increase energy usage.

Do built-in refrigerators need special cabinets?

Yes. Cabinets must be designed with correct dimensions, ventilation paths, and door swing space.

How do I fix built-in refrigerator ventilation problems?

Create airflow openings above or below the appliance and ensure front ventilation grills remain unobstructed.

References

1. U.S. Department of Energy – Refrigerator Efficiency Guidelines
2. Sub-Zero Installation Manuals
3. Bosch Built-In Refrigeration Installation Specifications
