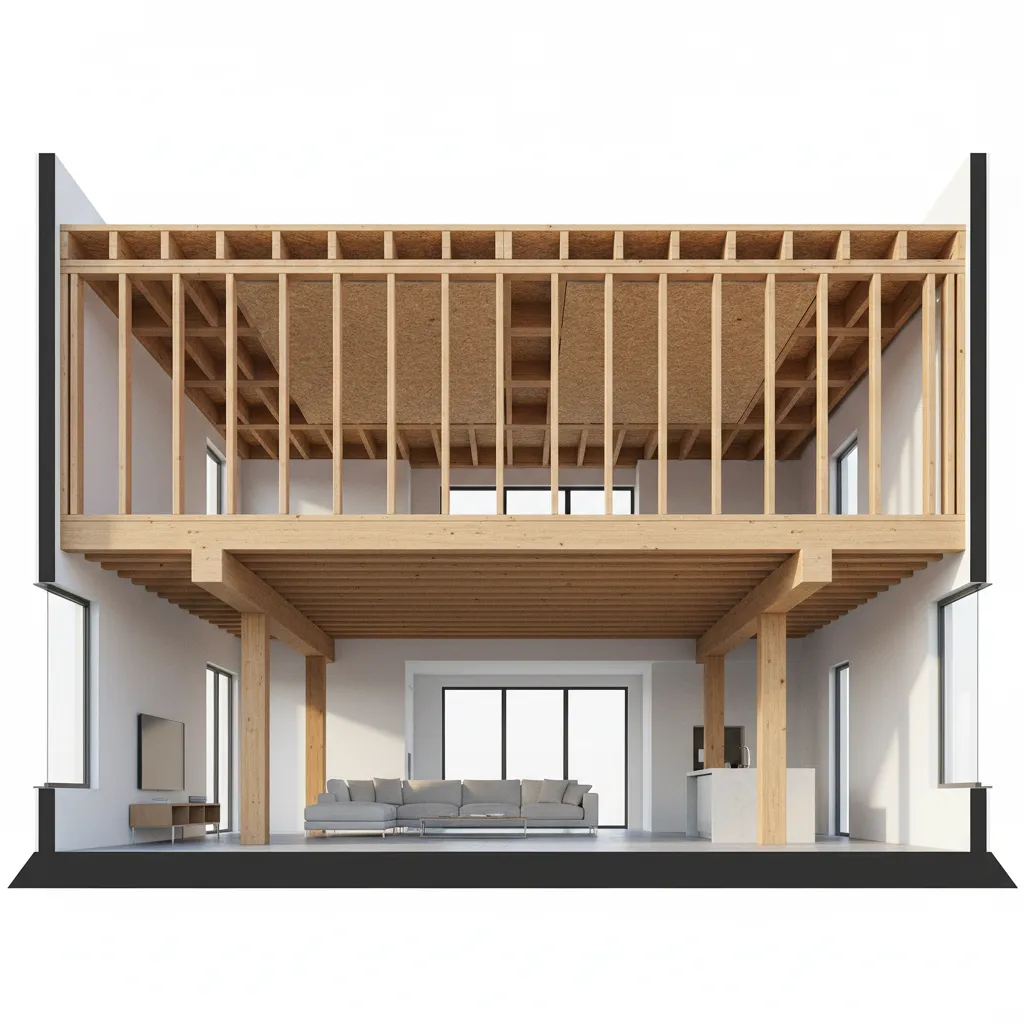

Common Causes of 2nd Floor Shaking in Houses: Understand the structural and mechanical reasons an upstairs floor vibrates when walking—and when it signals a real problem.

Direct Answer

The most common causes of a shaking second floor are flexible joist spans, loose subfloor connections, uneven load distribution, mechanical vibrations from HVAC equipment, or structural support limitations. In many homes the issue is not dangerous, but excessive movement usually means the floor system is undersized, improperly fastened, or carrying loads unevenly.

Quick Takeaways

1. Long joist spans are the most common structural cause of second floor vibration.
2. Loose subfloor panels amplify shaking when people walk across the room.
3. Mechanical equipment like HVAC units can transfer vibration through framing.
4. Uneven load distribution between floors can exaggerate bounce and movement.
5. Foundation or support beam limitations can allow noticeable floor flex.

Introduction

Homeowners often worry when the upstairs moves underfoot. I’ve walked through dozens of renovation projects where clients asked the same question: why does the second floor shake when someone walks across the room?

In many houses—especially wood‑framed construction—some movement is normal. But excessive vibration usually comes down to how the floor structure was designed or assembled. Over the years I’ve seen everything from overly long joist spans to simple fastener mistakes that made an otherwise solid house feel unstable.

One overlooked factor is how the layout distributes weight across framing members. When I evaluate renovation layouts, I often model the floor structure first using a visual layout planning approach that reveals structural load paths. That process quickly shows where large open spaces or heavy rooms may be stressing the framing.

Below are the structural and mechanical principles that most commonly explain second floor movement problems—and how to recognize which one may be affecting your house.

save pin

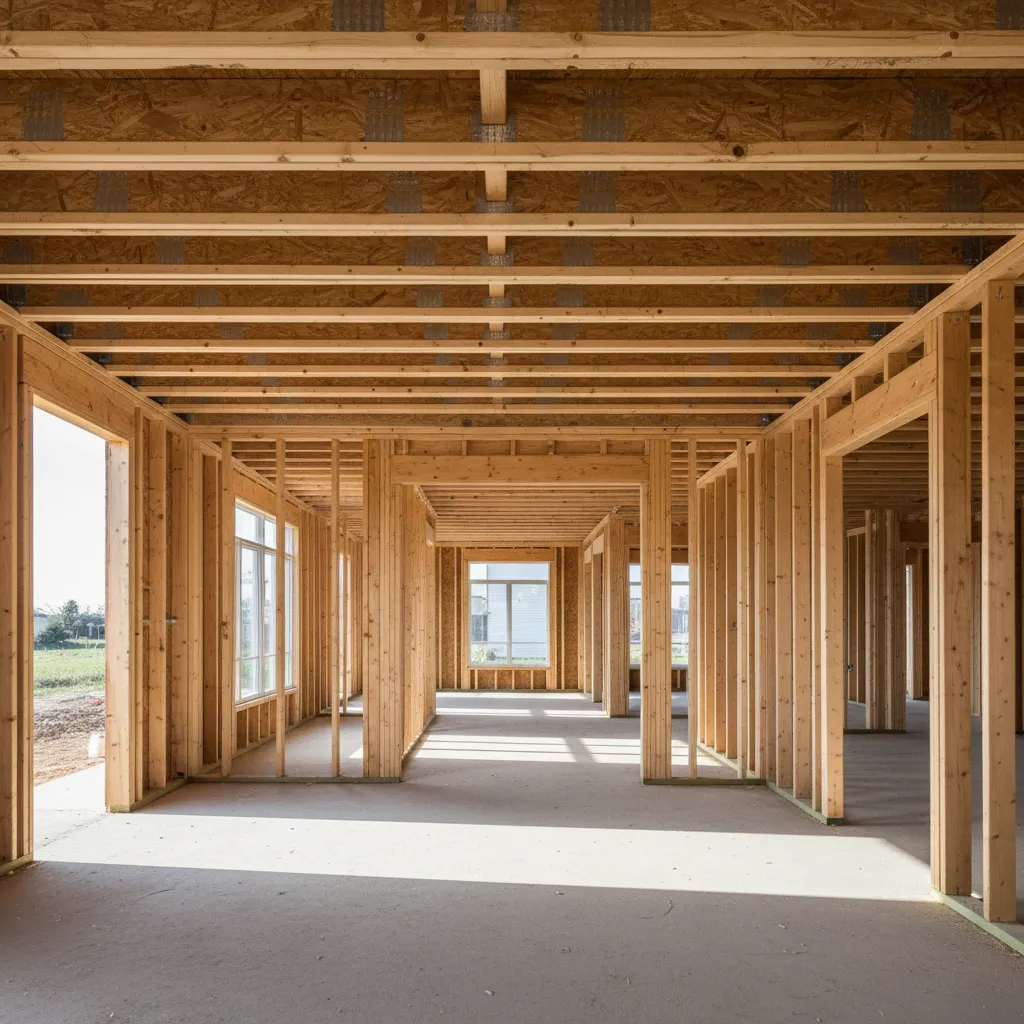

How Floor Framing Systems Work in Multi-Story Homes

Key Insight: Most upstairs floor vibration happens because wood floor systems are designed to flex slightly under load.

In a typical North American home, the second floor is supported by a series of parallel joists that transfer weight to beams and load‑bearing walls. These joists act like small structural bridges. When someone walks across the floor, the joists deflect slightly before springing back.

Small deflection is expected. The problem begins when design limits are stretched.

1. Standard joists: usually 2x8, 2x10, or engineered I‑joists
2. Spacing: typically 16 inches on center
3. Support points: beams or load‑bearing walls below
4. Subfloor layer: plywood or OSB panels

If any component is undersized or spaced too far apart, the floor becomes more flexible and vibrations become noticeable.

According to the American Wood Council, floor systems are commonly designed for strength requirements rather than vibration comfort. That means a floor can technically meet code while still feeling bouncy to occupants.

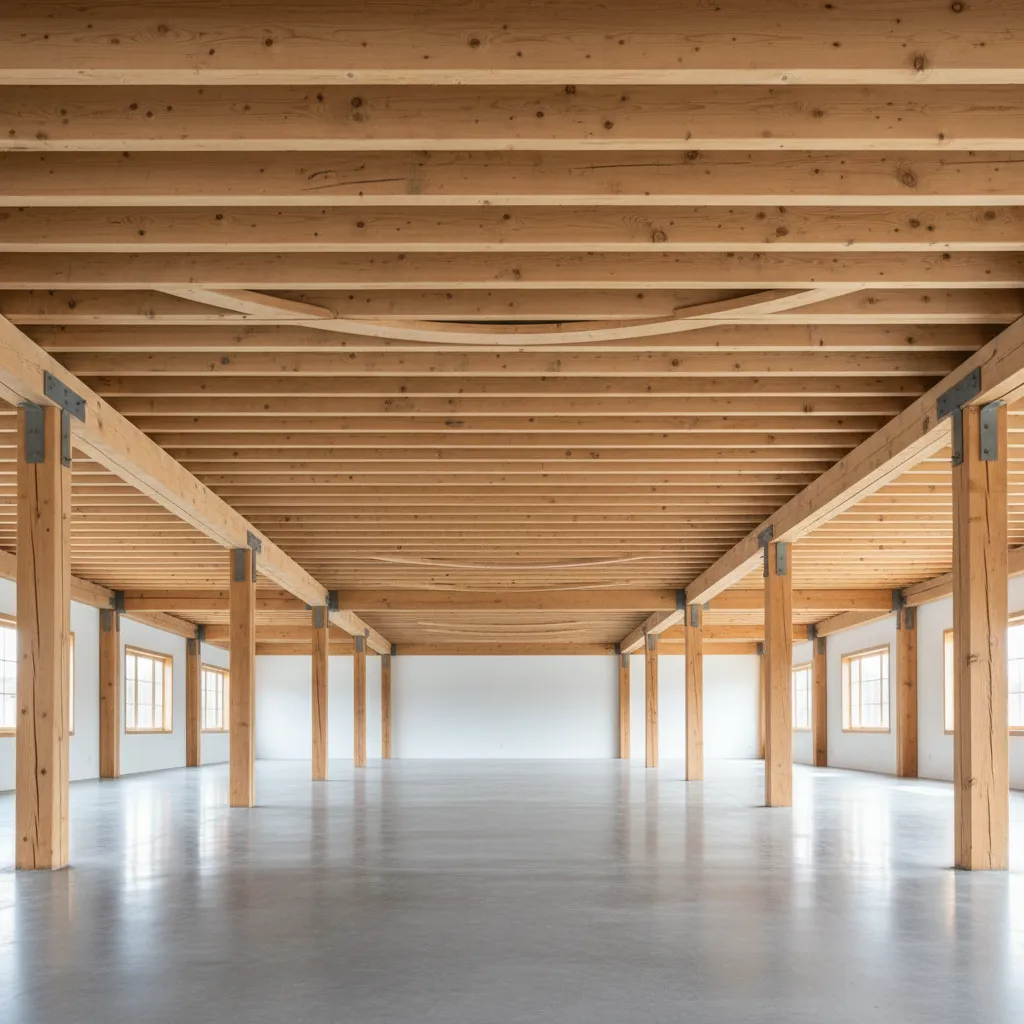

Joist Span and Floor Flexibility

Key Insight: The longer a joist spans between supports, the more the floor will bounce.

This is the number one structural reason for second floor shaking. Long open spaces—like living rooms or open concept layouts—often require joists to span 14–20 feet or more.

Even when the joists meet building code limits, the deflection can create noticeable vibration when people walk.

Typical span effects:

1. Short span (10–12 ft): minimal vibration
2. Medium span (13–16 ft): slight bounce possible
3. Long span (17+ ft): vibration becomes common

In one remodel I worked on in Los Angeles, a homeowner complained the upstairs hallway shook whenever their kids ran across it. The joists spanned nearly 18 feet without intermediate support. Structurally safe—but noticeably flexible.

Adding a support beam below reduced vibration dramatically.

save pin

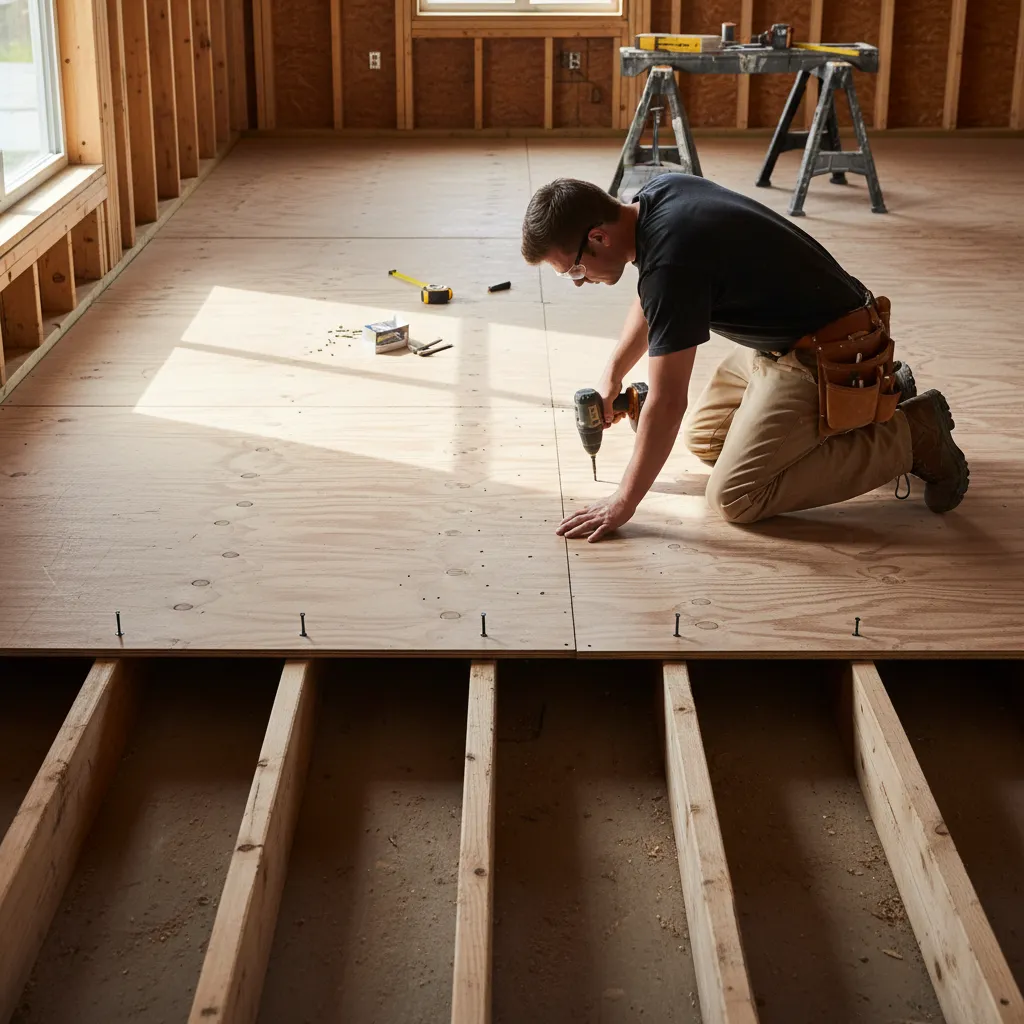

Weak Subfloor or Loose Fasteners

Key Insight: A poorly attached subfloor can amplify vibration even when the joists themselves are strong.

The subfloor connects all joists together into a single structural diaphragm. When it is properly glued and screwed, it stiffens the entire floor.

However, older homes or rushed construction often rely only on nails. Over time those nails loosen, allowing the panels to shift slightly.

Common warning signs:

1. Floor squeaks when walking
2. Movement concentrated in small areas
3. Vibration increases near seams between panels
4. Movement improves when weight spreads across furniture

In practice, this is one of the easiest vibration causes to fix. Contractors often reinforce the subfloor with screws and construction adhesive.

When planning renovations, I usually map the floor structure using a simple structural floor layout planning methodto identify panel seams and high‑traffic zones before reinforcing the floor.

save pin

Answer Box

The most common structural causes of second floor shaking are long joist spans, loose subfloor panels, and uneven load distribution. Mechanical equipment or insufficient support beams can also transmit vibration through the floor framing.

HVAC Systems and Mechanical Vibrations

Key Insight: Mechanical equipment can transmit vibration through framing even when the floor itself is structurally sound.

One overlooked cause of floor vibration is HVAC equipment mounted in ceilings or attic spaces.

When compressors, air handlers, or duct fans operate, they produce small but continuous vibrations. If those systems are attached directly to framing members, the vibration travels through joists and subfloor panels.

Typical mechanical sources include:

1. Air handlers suspended from joists
2. High‑speed ventilation fans
3. Improperly isolated mini‑split compressors
4. Rigid metal duct connections

Mechanical engineers often recommend vibration isolation pads or flexible connectors to prevent this energy from transferring into the structure.

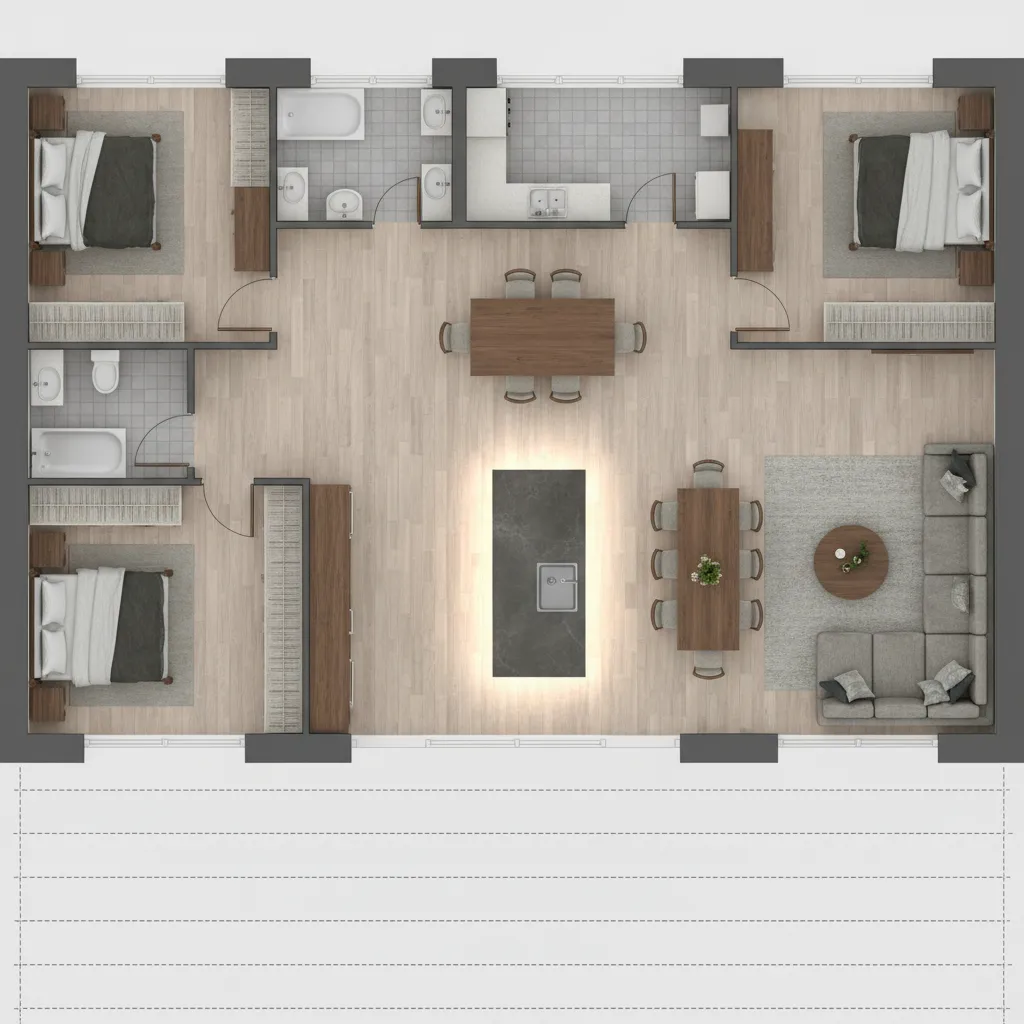

Load Distribution Problems Between Floors

Key Insight: Uneven weight distribution across the floor system can concentrate movement in certain areas.

Floor systems are designed to spread loads across many joists. But certain layouts can unintentionally concentrate weight.

Examples include:

1. Large kitchen islands positioned between joists
2. Heavy tile bathrooms on long spans
3. Grand pianos or aquariums upstairs
4. Large open rooms without supporting partitions

In renovation planning, redistributing these loads often solves vibration complaints without major structural changes.

I frequently evaluate these scenarios using a visual floor planning workflow that helps test load distribution across rooms, which quickly reveals where structural reinforcement might be necessary.

save pin

Foundation and Structural Support Factors

Key Insight: Even when the floor framing is adequate, insufficient support below can create noticeable movement upstairs.

The second floor ultimately depends on the structure beneath it. If beams or foundation elements allow slight deflection, the movement travels upward.

Potential structural contributors:

1. Undersized support beams
2. Long beam spans without columns
3. Foundation settlement
4. Removed load‑bearing walls during remodeling

One hidden mistake I see surprisingly often is homeowners removing walls during open‑concept remodels without realizing those walls were helping distribute loads across the floor system.

The result: a floor that suddenly feels bouncy even though the joists themselves haven't changed.

Final Summary

1. Long joist spans are the most common cause of second floor vibration.
2. Loose subfloor connections can amplify small structural movement.
3. Mechanical equipment can transmit vibration into floor framing.
4. Uneven loads and removed walls often worsen floor bounce.
5. Structural support below the floor plays a critical role in stability.

FAQ

Is it normal for a second floor to shake when walking?

Yes. Light vibration is common in wood‑framed houses. Excessive shaking usually indicates long joist spans or loose subfloor connections.

What causes floor vibration in houses?

Typical causes include long joist spans, weak subfloors, mechanical equipment vibration, uneven loads, or insufficient structural support.

Can long joists cause a bouncy floor?

Yes. Longer spans increase deflection, which can create noticeable bounce when people walk across the floor.

Why does my upstairs floor shake when someone walks?

The motion comes from joists flexing under load. Loose subfloor panels or concentrated weight can make the vibration more noticeable.

Are floor vibrations dangerous?

Most vibrations are not structural failures. However, excessive movement should be evaluated by a structural engineer.

Can HVAC systems cause second floor shaking?

Yes. Air handlers or duct systems attached directly to joists can transmit mechanical vibration through the structure.

How do builders reduce floor bounce?

They use shorter joist spans, engineered beams, glued subfloors, and blocking between joists to stiffen the floor system.

What are the main causes of second floor shaking?

The main causes of second floor shaking include long joist spans, loose subfloor connections, heavy concentrated loads, and structural support limitations.

References

1. American Wood Council – Wood Frame Construction Manual
2. International Residential Code (IRC) Floor Framing Standards
3. Structural Engineering Institute – Floor Vibration Design Guidelines
