Common Chapel Floor Plan Code Violations and How to Fix Them: Practical solutions architects and church planners use to correct chapel layout issues before failing building inspections

Direct Answer

The most common chapel floor plan code violations involve blocked egress paths, incorrect seating spacing, accessibility failures, and improperly placed fire safety equipment. Most problems occur when capacity calculations or circulation routes are added late in the design process. Fixing them usually requires adjusting seating layouts, widening aisles, correcting exit routes, and integrating ADA-compliant access paths.

Quick Takeaways

1. Most chapel inspections fail due to egress width and exit distance violations.
2. Overestimating seating capacity often causes code noncompliance.
3. Accessibility requirements affect entrances, aisles, restrooms, and seating zones.
4. Fire equipment placement must align with clear travel paths and visibility rules.
5. Early layout testing prevents expensive redesign during permit review.

Introduction

In more than a decade of working on religious and community buildings, I’ve seen the same problem repeat itself: a beautiful chapel design gets flagged during inspection because of simple planning mistakes. Chapel floor plan code violations rarely come from dramatic design failures. Most happen because circulation paths, occupancy calculations, and accessibility details are added too late in the design process.

Church committees often focus heavily on aesthetics and seating capacity, which makes sense emotionally. But inspectors evaluate chapels very differently. Their primary concern is life safety. That means exit routes, spacing, visibility, and accessibility will always override layout preferences.

Before submitting a plan for review, I often recommend testing layout options using a visual layout simulator for worship space planning. It quickly exposes circulation conflicts that are hard to catch on paper.

Below are the chapel design issues that inspectors flag most often, along with practical ways to fix them before they delay permits or construction.

save pin

Most Frequent Chapel Layout Violations in Building Inspections

Key Insight: Most chapel inspection failures are not structural problems but circulation and occupancy miscalculations.

When inspectors review a chapel floor plan, they focus on movement patterns during both normal use and emergency evacuation. Designers often underestimate how strict these rules are.

Across projects I’ve reviewed, the most common violations include:

1. Aisles narrower than required minimum widths
2. Exit doors too far from rear seating rows
3. Blocked emergency paths caused by furniture
4. Overestimated seating capacity
5. Missing wheelchair-accessible seating locations

The International Building Code (IBC) treats most chapels as assembly spaces. That means evacuation flow, occupant load, and exit distribution must follow assembly occupancy rules. According to ICC guidance, miscalculated occupant loads are one of the most common permit review corrections in assembly buildings.

A hidden issue many designers overlook is future flexibility. Movable chairs and temporary furniture often change aisle patterns after construction, which can unintentionally violate safety requirements.

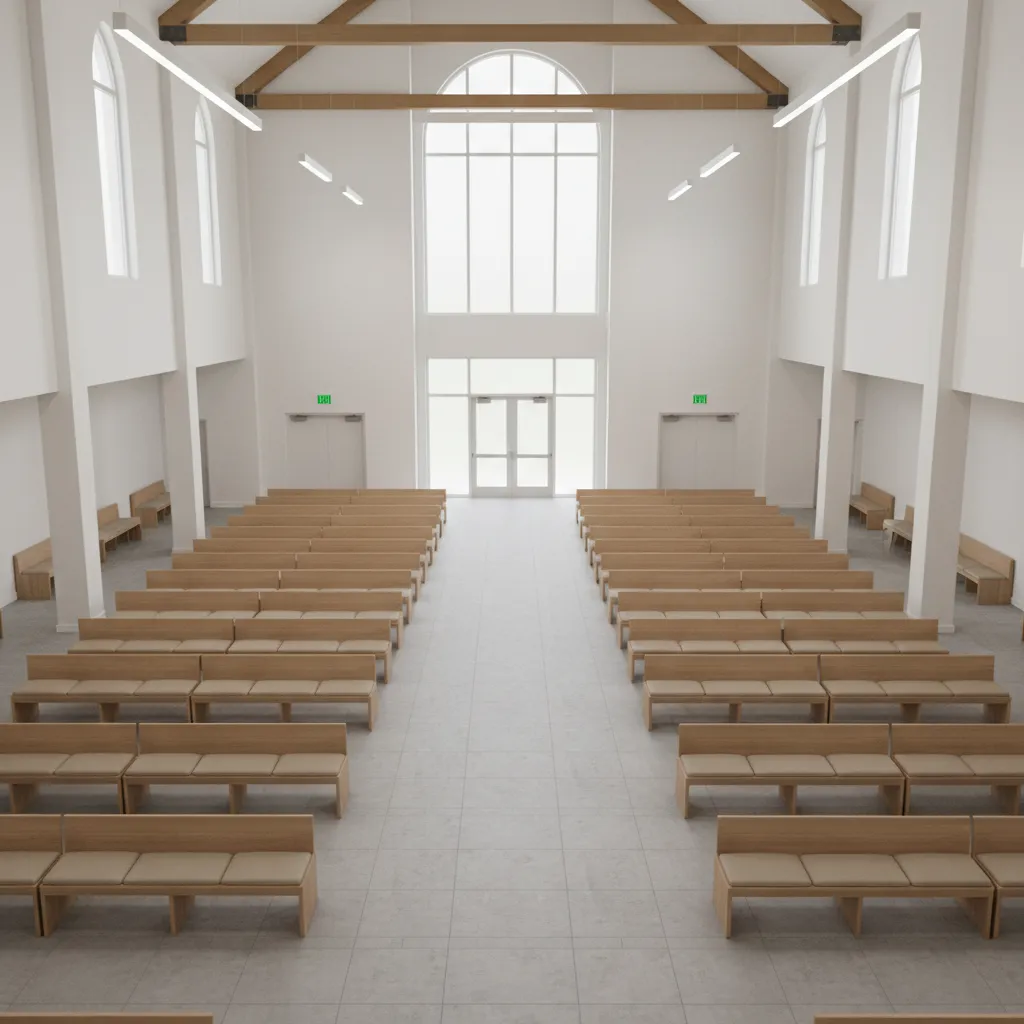

Blocked or Insufficient Egress Paths in Worship Spaces

Key Insight: Egress path violations happen when aisle widths or exit travel distances fail to meet assembly occupancy requirements.

During emergencies, people naturally move toward familiar exits, usually the main entrance. If the layout does not guide occupants toward multiple exits, evacuation becomes inefficient.

Common egress design mistakes include:

1. Main aisle width below required minimums
2. Side aisles interrupted by columns or furniture
3. Exit doors hidden behind stage elements
4. Travel distances exceeding local building code limits

Typical correction steps:

1. Recalculate occupant load based on seat spacing.
2. Confirm aisle width based on occupant flow formulas.
3. Add secondary exits if travel distance exceeds limits.
4. Reposition seating blocks to maintain straight evacuation paths.

In one renovation project I worked on, simply rotating the seating orientation reduced exit travel distance by nearly 30%. No structural changes were required.

save pin

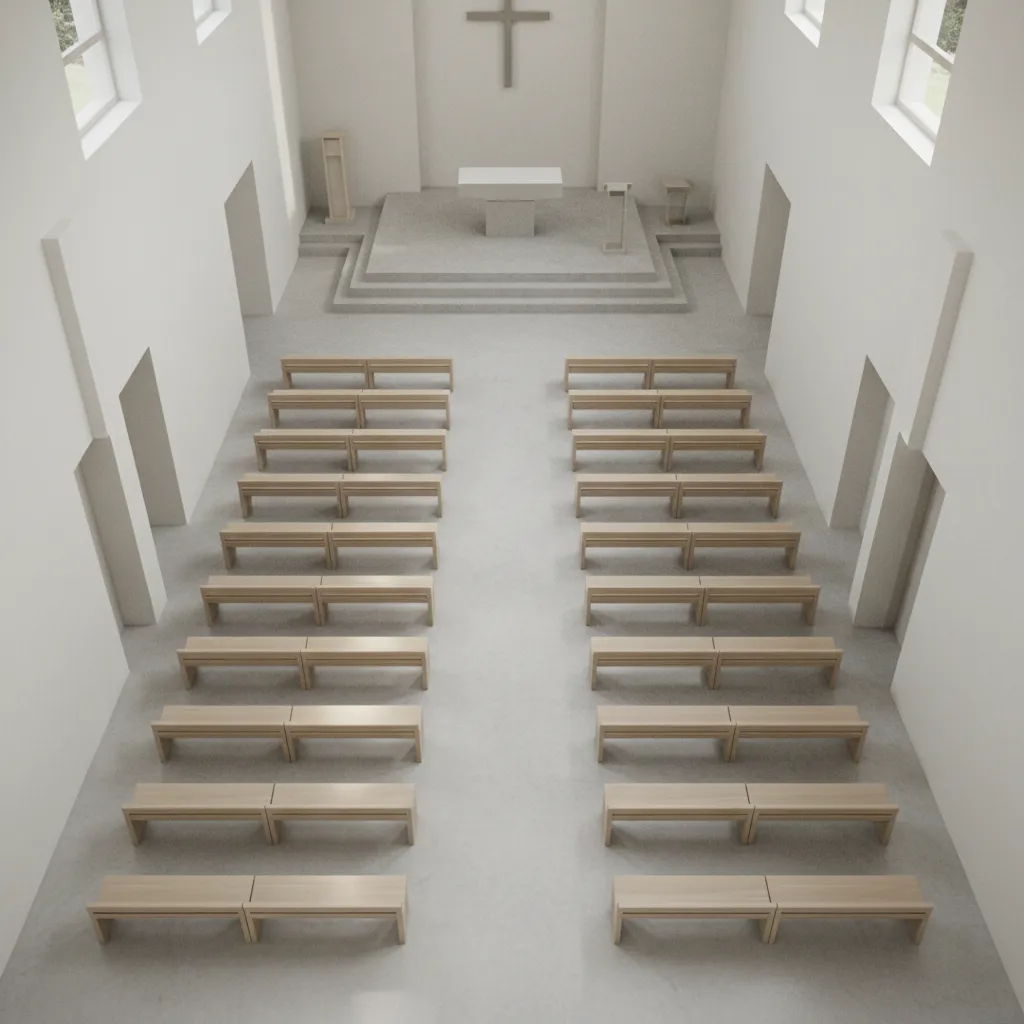

Improper Seating Spacing and Occupancy Miscalculations

Key Insight: Many chapel seating layouts exceed safe occupancy because designers count chairs instead of calculating usable circulation space.

Church committees often push for maximum seating, especially when planning for holidays or large events. Unfortunately, squeezing in extra rows can break several code requirements at once.

Frequent seating layout problems include:

1. Row spacing below minimum clearance
2. Too many seats between aisles
3. Improper wheelchair seating integration
4. Blocked access to side aisles

A reliable correction method is to start with circulation zones first and add seating afterward. When I redesign chapel layouts, I usually follow this sequence:

1. Define required exit paths.
2. Place main and secondary aisles.
3. Allocate accessibility seating locations.
4. Then calculate remaining seating capacity.

Testing different arrangements with a simple layout tool for testing seating arrangementscan reveal capacity issues quickly without redrawing the entire plan.

save pin

Answer Box

The majority of chapel floor plan code violations come from circulation planning errors rather than architectural structure. Fixing aisle widths, exit routes, and seating spacing typically resolves most inspection issues.

Accessibility Compliance Failures in Chapel Layouts

Key Insight: Accessibility problems occur when ADA requirements are treated as add-ons instead of integrated design elements.

In chapel projects, accessibility is often underestimated because many congregations assume wheelchair seating alone satisfies compliance. In reality, accessibility affects multiple design areas.

Key ADA considerations include:

1. Wheelchair seating distributed across viewing areas
2. Accessible routes from entrance to seating
3. Proper ramp slopes and landing areas
4. Accessible restroom proximity

According to ADA guidelines, accessible seating cannot be isolated to a single location. Users must have comparable viewing options to the general audience.

A mistake I frequently see is placing wheelchair spaces only in the rear of the chapel. Inspectors often require redistribution across front, middle, or side sections.

Fire Safety Equipment Placement Errors

Key Insight: Fire safety violations usually happen when extinguishers, alarms, or sprinklers are blocked by furniture or decorative elements.

Chapel interiors often include stage features, decorative walls, and audiovisual equipment. These additions can unintentionally obstruct fire safety components.

Typical issues include:

1. Fire extinguishers hidden behind furniture
2. Blocked alarm pull stations
3. Exit signage obstructed by lighting fixtures
4. Sprinkler coverage affected by ceiling installations

NFPA guidance emphasizes clear visibility and unobstructed access for fire protection devices. Even decorative plants or banners can become violations if they block safety equipment.

Step by Step Process to Correct a Non Compliant Chapel Plan

Key Insight: The fastest way to fix chapel floor plan code violations is to audit circulation, capacity, and safety layers in a structured order.

When correcting noncompliant chapel plans, I typically follow this workflow:

1. Verify occupant load based on seating layout.
2. Map all exit routes and travel distances.
3. Check aisle widths and spacing requirements.
4. Review ADA seating distribution and access routes.
5. Confirm fire safety equipment visibility and spacing.
6. Simulate evacuation flow before resubmitting plans.

Many teams speed up this process by modeling the layout with a digital floor planning environment for rapid compliance testing, which helps detect circulation conflicts before inspection.

Final Summary

1. Chapel inspections fail most often because of circulation and exit path problems.
2. Overcrowded seating layouts commonly cause occupancy violations.
3. Accessibility rules affect far more than wheelchair seating locations.
4. Fire safety devices must remain visible and unobstructed.
5. Early layout testing prevents costly redesign during permit review.

FAQ

What are the most common chapel floor plan code violations?

The most frequent issues include narrow aisles, insufficient exit routes, incorrect seating capacity calculations, missing ADA seating locations, and blocked fire safety equipment.

How wide must chapel aisles be?

Aisle width requirements depend on occupant load and local building codes, but assembly spaces typically require wider central aisles to support evacuation flow.

How do you fix chapel egress problems?

Fixing chapel egress problems usually involves widening aisles, reducing seating density, shortening exit travel distance, or adding additional exit doors.

Can movable chairs affect building code compliance?

Yes. Movable seating can unintentionally block aisles or exits, which may violate assembly occupancy safety rules.

What ADA mistakes are common in chapel design?

Common ADA compliance mistakes in chapel design include isolating wheelchair seating in one area and failing to provide accessible routes through the seating layout.

Do small chapels still need multiple exits?

Often yes. Exit requirements depend on occupant load and travel distance, not just building size.

How is chapel seating capacity calculated?

Capacity is determined using occupant load factors defined in building codes rather than simply counting chairs placed in the room.

What is included in a chapel building safety inspection checklist?

Inspectors usually review exits, aisle widths, accessibility routes, fire safety equipment placement, emergency signage, and occupant load calculations.

References

1. International Code Council Assembly Occupancy Guidelines
2. NFPA Life Safety Code
3. ADA Standards for Accessible Design
