Common Chimney Remodeling Problems and How to Fix Them: Practical solutions homeowners can use when smoke, drafts, cracks, or ventilation issues appear after a chimney remodel

Direct Answer

Common chimney remodeling problems usually come from airflow imbalance, incorrect chimney height, poorly sized flues, or structural stress introduced during renovation. Most issues—such as smoke entering the room, poor draft, or new cracks—can be fixed by correcting ventilation paths, adjusting chimney caps, sealing structural joints, or rebalancing the fireplace system.

In many remodeling projects I’ve reviewed, the chimney itself wasn’t the real problem. The issue was how the renovation changed airflow, pressure, or load distribution around the fireplace.

Quick Takeaways

1. Most chimney remodeling problems come from airflow imbalance rather than faulty materials.
2. Smoke entering a room usually indicates poor draft or an incorrectly sized flue.
3. Modern fireplace upgrades often reduce ventilation without homeowners realizing it.
4. Structural cracks after remodeling usually result from new load paths or exterior changes.
5. Early diagnosis prevents expensive chimney reconstruction later.

Introduction

Chimney remodeling problems often surprise homeowners because everything appears fine immediately after construction. Then a few weeks later the smoke starts drifting into the living room, drafts appear, or cracks show up around the chimney exterior.

After working on renovation planning and interior layout projects for more than a decade, I’ve noticed something interesting: chimney issues rarely come from a single mistake. They usually happen when multiple small changes—new roofing, altered fireplace openings, insulation upgrades, or redesigned interiors—quietly disrupt how the chimney breathes.

I’ve seen beautiful fireplace remodels fail simply because airflow calculations were ignored during design. When planning interior renovations, even layout adjustments can affect how fireplaces function. Tools that help homeowners visualize structural layout changes before remodeling a roomcan sometimes reveal problems early—especially when fireplaces are moved, resized, or integrated into new walls.

In this guide, I’ll walk through the most common chimney remodeling problems I see after renovations and, more importantly, how professionals typically diagnose and fix them.

save pin

Why Chimney Problems Sometimes Appear After Remodeling

Key Insight: Chimney performance depends on airflow balance, and remodeling often disrupts that balance without anyone realizing it.

Many remodeling projects focus on aesthetics—stone veneers, fireplace inserts, modern mantels—but ignore the airflow physics behind the chimney system.

A working chimney depends on three factors:

1. Proper flue diameter
2. Correct chimney height relative to the roof
3. Stable indoor air pressure

When a remodel changes any of these, the chimney can suddenly behave differently.

For example, sealing a home tightly during energy renovations can reduce the amount of replacement air entering the house. The fireplace then struggles to pull air upward, which leads to smoke backing into the room.

According to guidance from the Chimney Safety Institute of America, modern energy-efficient homes are especially prone to draft imbalance after fireplace renovations.

Smoke Entering the Room After a Chimney Redesign

Key Insight: If smoke enters the room after remodeling, the chimney draft is usually too weak for the fireplace opening.

This is one of the most common chimney remodeling problems homeowners report.

Typical causes include:

1. Fireplace opening enlarged without adjusting flue size
2. New chimney cap restricting airflow
3. Flue liner mismatch
4. Lower chimney height after roof reconstruction

Here’s the overlooked design rule: the flue area should be about 1/10 of the fireplace opening for square flues or 1/12 for round flues.

If the fireplace opening grows during a remodel but the flue stays the same size, the chimney simply cannot pull enough air upward.

save pin

Draft Issues Caused by Incorrect Chimney Height or Cap

Key Insight: A chimney that is even slightly too short can destroy draft performance.

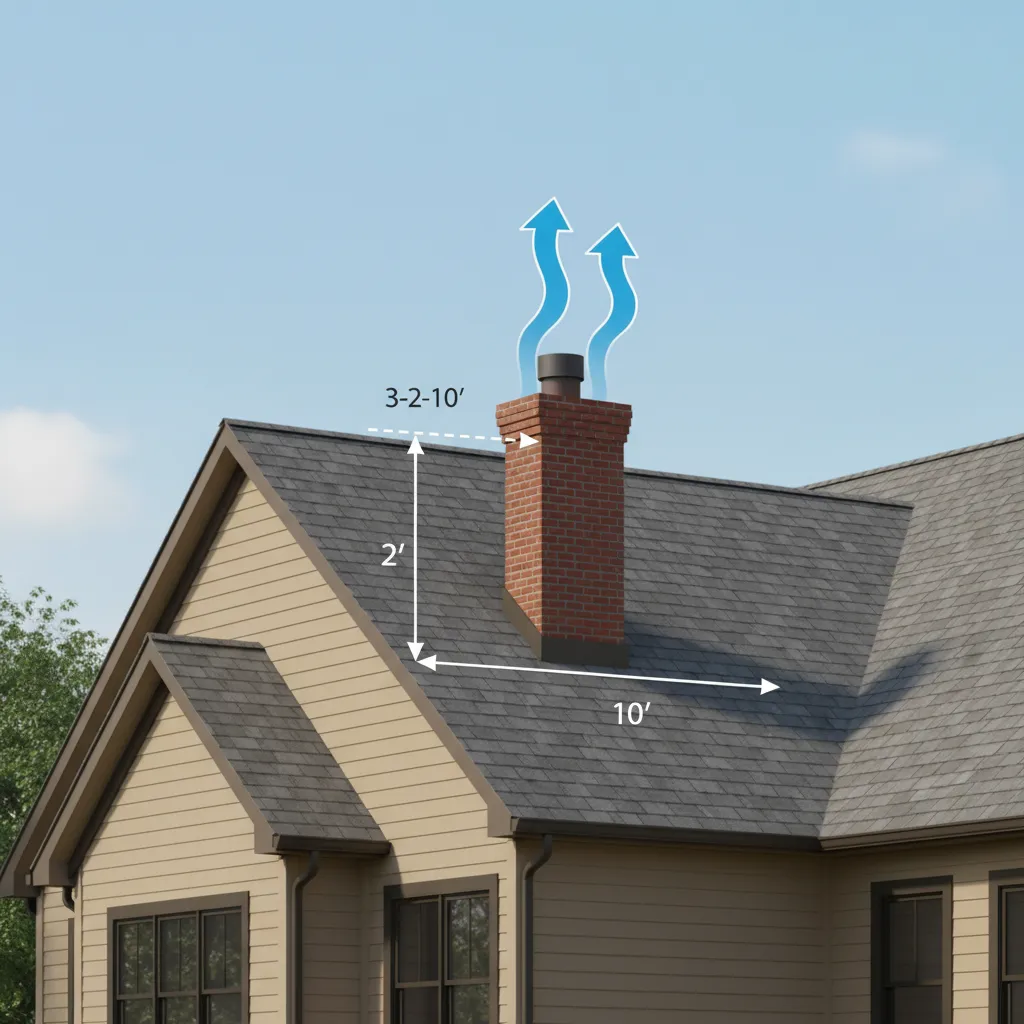

The "3-2-10 rule" used by chimney professionals is simple but critical:

1. The chimney must rise at least 3 feet above the roof penetration.
2. It must be 2 feet taller than anything within 10 feet.

During remodeling, rooflines often change—especially with attic conversions or modern roof extensions. If the chimney height isn't adjusted afterward, wind pressure can push air downward into the flue.

Another surprisingly common issue is decorative chimney caps. Some look great but reduce airflow significantly.

I’ve seen projects where replacing the cap with a proper high-draft model immediately solved a smoke problem.

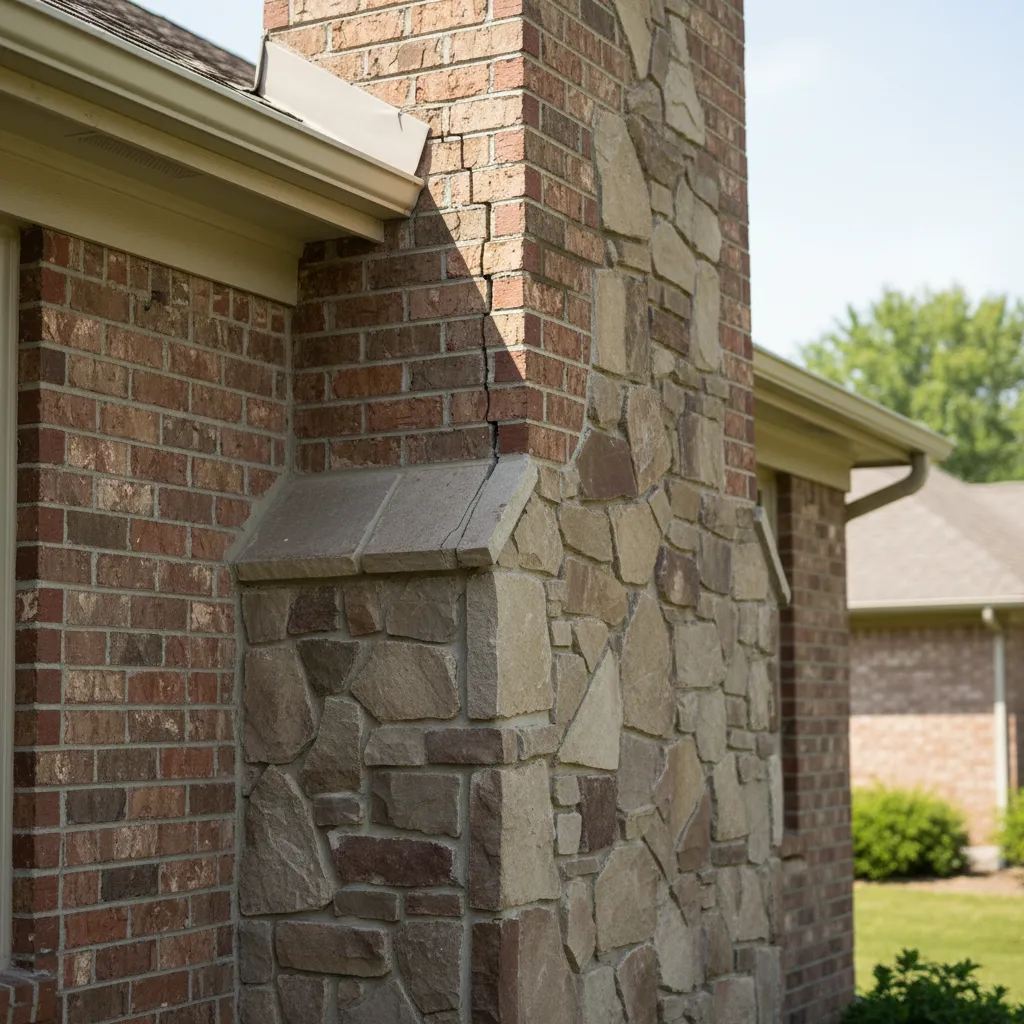

Cracks and Structural Stress After Exterior Changes

Key Insight: Structural cracks after chimney remodeling usually come from new weight loads or temperature expansion differences.

Exterior chimney redesigns often add materials like:

1. Stone veneers
2. Brick extensions
3. New crown structures
4. Exterior insulation layers

If the foundation or original chimney structure wasn't designed to carry that additional load, stress cracks can appear.

Another hidden factor is thermal movement. Modern materials expand differently than older masonry.

When I analyze renovation drawings using tools that help experiment with structural and design changes before renovation begins, mismatched material layers are often easy to spot early.

save pin

Ventilation Problems in Modern Fireplace Conversions

Key Insight: Modern fireplace upgrades often reduce ventilation unintentionally.

When traditional fireplaces are converted into sealed inserts or gas systems, ventilation behavior changes dramatically.

Common conversion mistakes include:

1. Using an old chimney without installing a proper liner
2. Blocking airflow pathways during insulation upgrades
3. Installing inserts that exceed chimney capacity
4. Closing off exterior air intakes

Many homeowners assume a modern insert will automatically perform better than a traditional fireplace. In reality, inserts require carefully matched venting systems.

The National Fire Protection Association recommends full chimney inspections whenever fireplace systems are converted or upgraded.

How to Diagnose Chimney Remodeling Mistakes

Key Insight: Most chimney remodeling problems can be diagnosed by checking airflow, geometry, and structural stress points.

Professional inspections usually follow a structured process:

1. Smoke flow test to analyze draft behavior
2. Flue camera inspection
3. Chimney height verification
4. Structural crack mapping
5. Pressure testing inside the home

Interestingly, layout changes inside the house sometimes reveal hidden airflow problems. When homeowners review their renovation plans with tools that allow them to preview realistic home renovation layouts before construction, it becomes easier to detect potential fireplace airflow conflicts.

save pin

Answer Box

Most chimney remodeling problems stem from airflow imbalance rather than construction defects. Fixing draft height, flue sizing, or ventilation pathways usually resolves smoke, draft, or ventilation issues after renovation.

When to Call a Chimney Professional

Key Insight: If smoke problems persist after simple adjustments, a professional chimney inspection is essential.

You should call a chimney professional if you notice:

1. Persistent smoke entering the room
2. Visible chimney cracks widening
3. Strong downdrafts during windy weather
4. Burning smells from chimney walls
5. Water leaks around the chimney crown

Certified chimney technicians can perform Level 2 inspections using cameras and pressure testing equipment. These inspections often reveal problems that standard home inspections miss.

Final Summary

1. Most chimney remodeling problems come from airflow imbalance.
2. Smoke entering rooms usually indicates weak chimney draft.
3. Incorrect chimney height is a frequent renovation mistake.
4. Structural cracks often result from added exterior weight.
5. Professional inspections prevent long-term chimney damage.

FAQ

Why is my fireplace smoking after chimney remodeling?

Smoke usually means the chimney draft is too weak for the fireplace opening or the chimney height is insufficient.

Can chimney height affect fireplace performance?

Yes. Chimneys that are too short create weak draft and can cause smoke to enter the room.

What causes chimney draft problems after renovation?

Roofline changes, sealed homes, incorrect chimney caps, or flue sizing errors are common causes.

How do I fix a chimney remodel smoke problem solution?

Check chimney height, replace restrictive caps, and confirm the flue size matches the fireplace opening.

Is it normal to see cracks after a chimney remodel?

Small surface cracks may occur, but widening cracks usually indicate structural stress.

Why chimney draft is bad after renovation?

Renovations often change airflow patterns or roof height, which can disrupt chimney draft.

Do modern fireplace inserts cause ventilation issues?

They can if the chimney liner and ventilation system aren't properly upgraded during installation.

Should I inspect my chimney after remodeling?

Yes. A Level 2 chimney inspection is recommended after structural renovations or fireplace conversions.

References

Chimney Safety Institute of America (CSIA)

National Fire Protection Association Fireplace Guidelines

International Residential Code Chimney Standards
