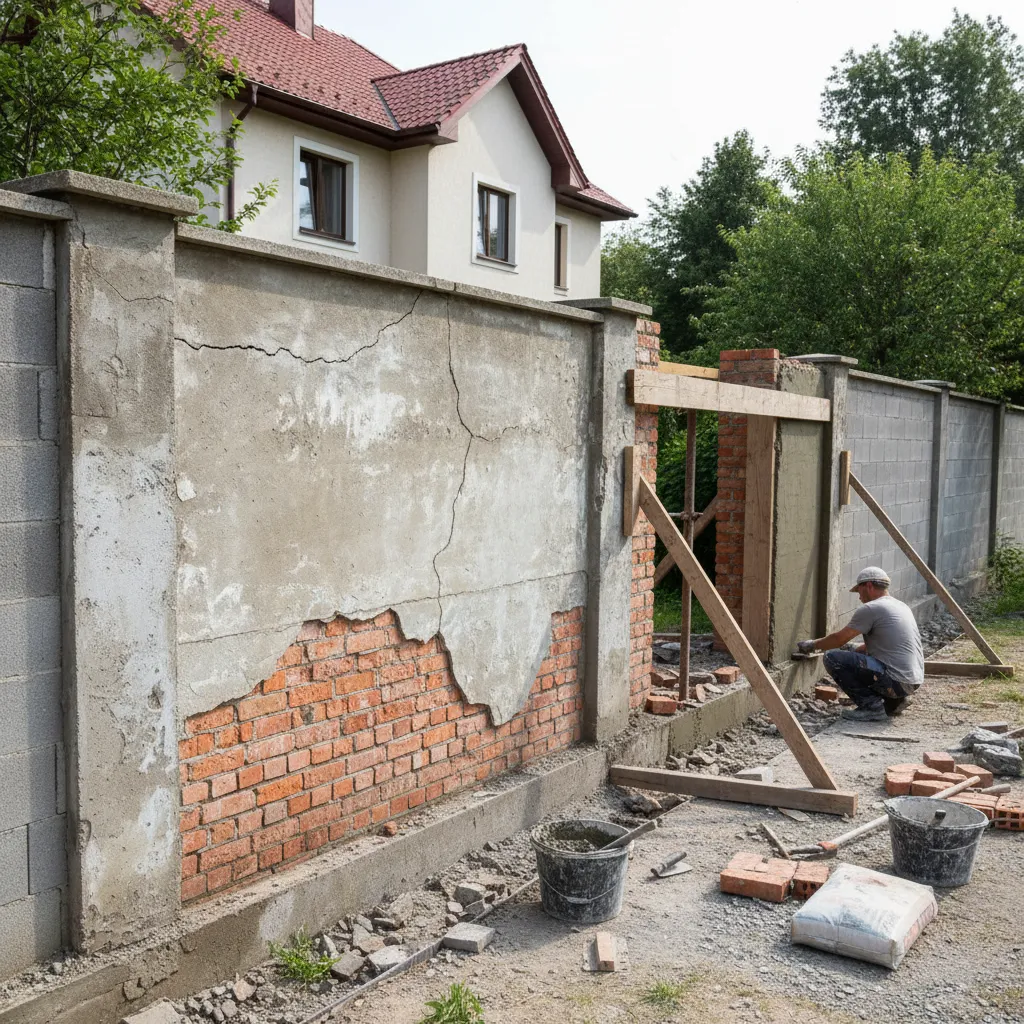

Common Compound Wall Problems and How to Fix Them: Practical repair strategies homeowners can use to fix cracks water damage and structural issues in boundary walls

Direct Answer

Most compound wall problems come from poor drainage, weak foundations, or weather exposure over time. Cracks, water damage, and leaning walls can often be repaired with sealing, reinforcement, or drainage fixes, but severe structural movement may require partial rebuilding.

Identifying the cause early is the key difference between a quick repair and a costly rebuild.

Quick Takeaways

1. Hairline cracks usually come from temperature movement and are easy to seal.
2. Water seepage is the most common hidden cause of compound wall damage.
3. Leaning walls typically indicate foundation settlement or soil pressure.
4. Regular maintenance can double the lifespan of a compound wall.
5. Ignoring small structural issues often leads to expensive reconstruction.

Introduction

In many of the residential projects I've worked on over the past decade, the compound wall ends up being the most neglected structural element. Homeowners focus heavily on interiors, landscaping, and facades, but the boundary wall quietly absorbs rain, soil pressure, and temperature changes year after year.

That is why compound wall problems are surprisingly common. Cracks appear, plaster starts peeling, moisture stains show up, or in more serious cases the entire wall begins leaning outward.

I've inspected dozens of damaged boundary walls during renovation projects, and in most situations the issue was not poor materials. It was drainage, foundation depth, or simple maintenance neglect.

If you are planning upgrades or evaluating your exterior layout, reviewing how walls integrate with the site layout can help. A helpful example is this guide showing how homeowners visualize boundary structures using a step by step floor planning tool for property layout.

In this guide, I will walk through the most common compound wall problems I see in real projects and explain how to fix them before they become structural failures.

save pin

Why Compound Walls Develop Structural Problems

Key Insight: Most compound wall failures are not caused by the wall itself but by soil movement, drainage problems, or foundation design mistakes.

When a boundary wall begins cracking or tilting, homeowners often assume the masonry is weak. In reality, the structure is usually reacting to external pressure.

Based on site inspections I have done, these are the most common causes:

1. Improper foundation depth – shallow footings cannot resist soil expansion.
2. Poor drainage – water accumulation weakens soil stability.
3. Thermal expansion – large walls expand and contract daily.
4. Tree root pressure – roots push foundations over time.
5. Vehicle vibration – common for roadside compound walls.

Engineering studies from structural masonry guidelines consistently show that boundary walls fail most often due to foundation movement rather than wall material weakness.

That means the repair strategy should always address the root cause first, not just patch the visible damage.

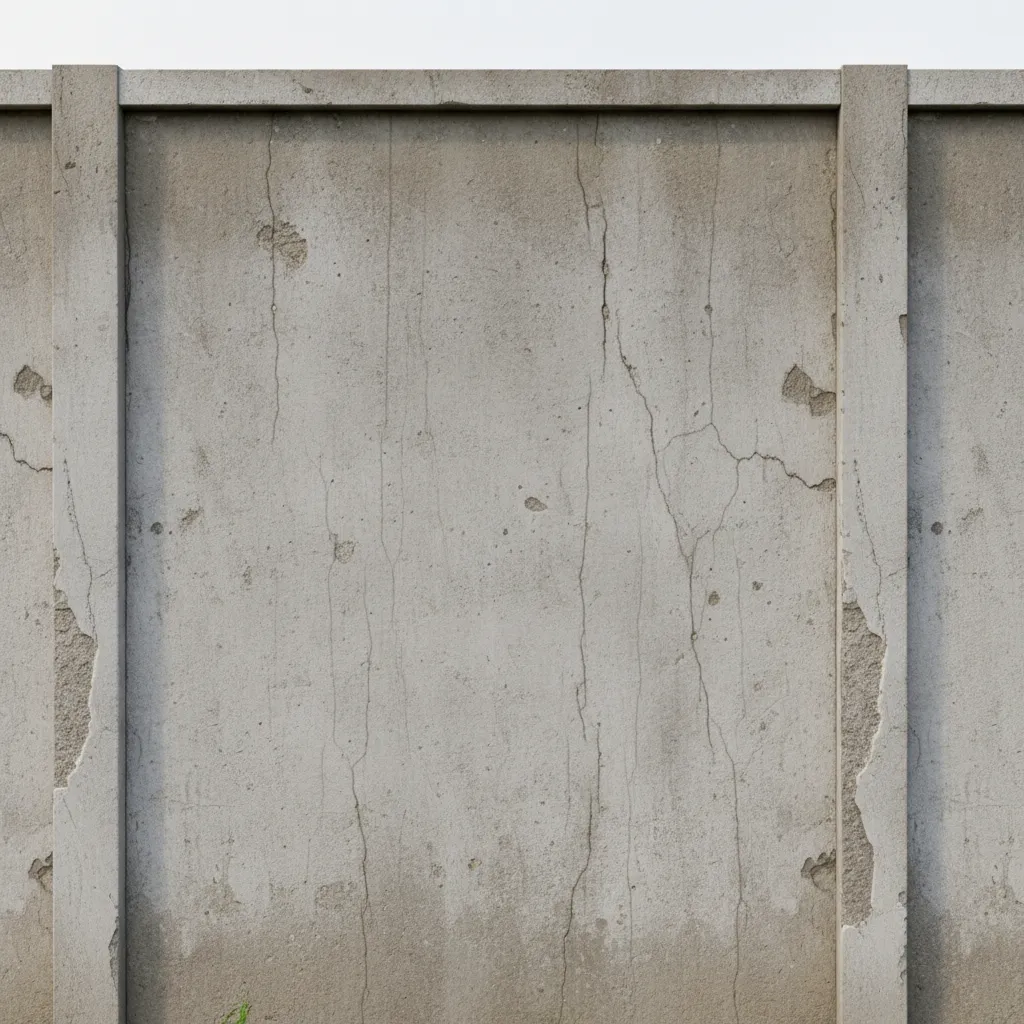

How to Fix Cracks in Concrete or Brick Compound Walls

Key Insight: Not all cracks are dangerous, but understanding the crack pattern determines whether sealing or structural reinforcement is required.

One of the most common questions I hear from homeowners is whether a cracked compound wall is structurally unsafe. In many cases, the cracks are cosmetic.

Here is how I typically classify them during inspections:

1. Hairline cracks under 1 mm usually come from temperature changes.
2. Vertical cracks may indicate slight foundation settlement.
3. Diagonal cracks often signal structural stress.
4. Step cracks along bricks suggest foundation shifting.

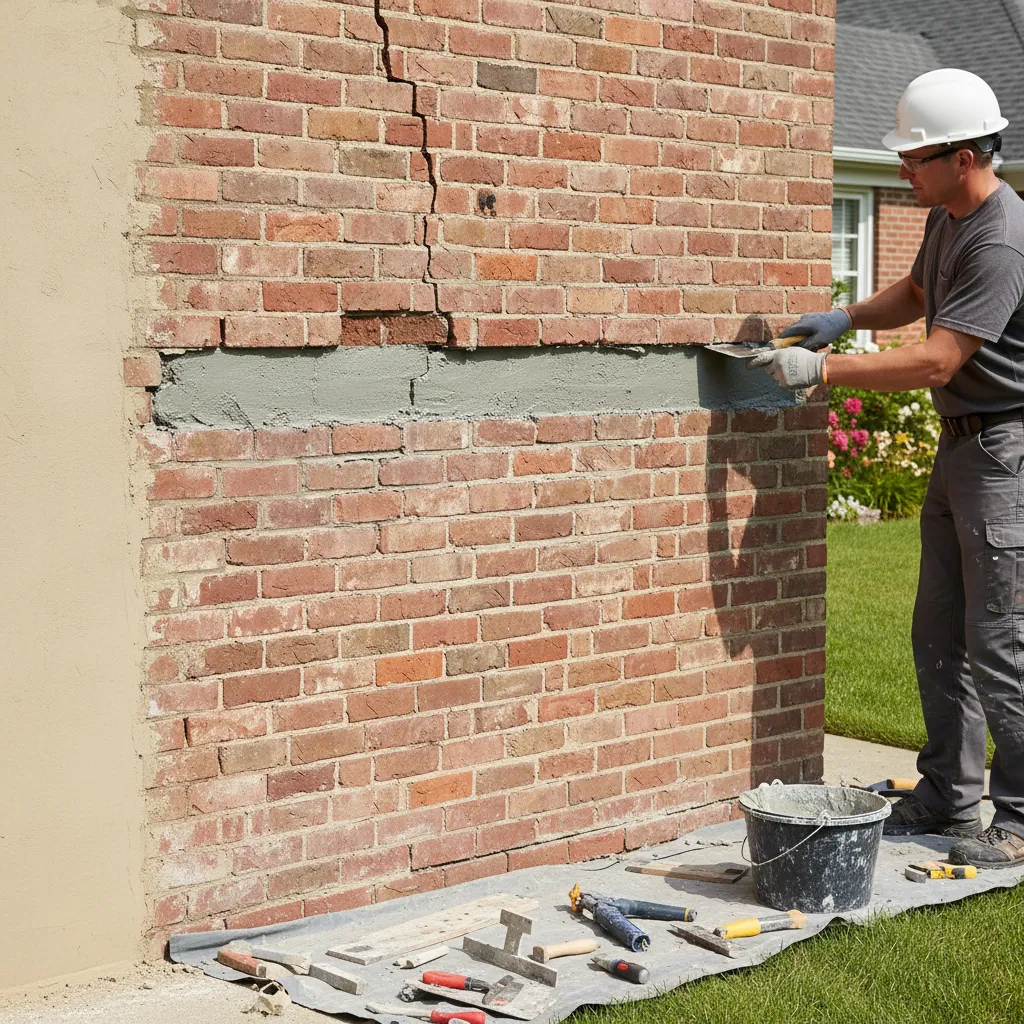

Repair methods depend on the severity:

1. Clean the crack and remove loose plaster.
2. Apply polymer crack filler or epoxy injection.
3. Replaster the surface with waterproof mortar.
4. For structural cracks install steel reinforcement bars.

In restoration projects I usually recommend flexible crack sealants instead of rigid cement filler because they handle thermal movement better.

save pin

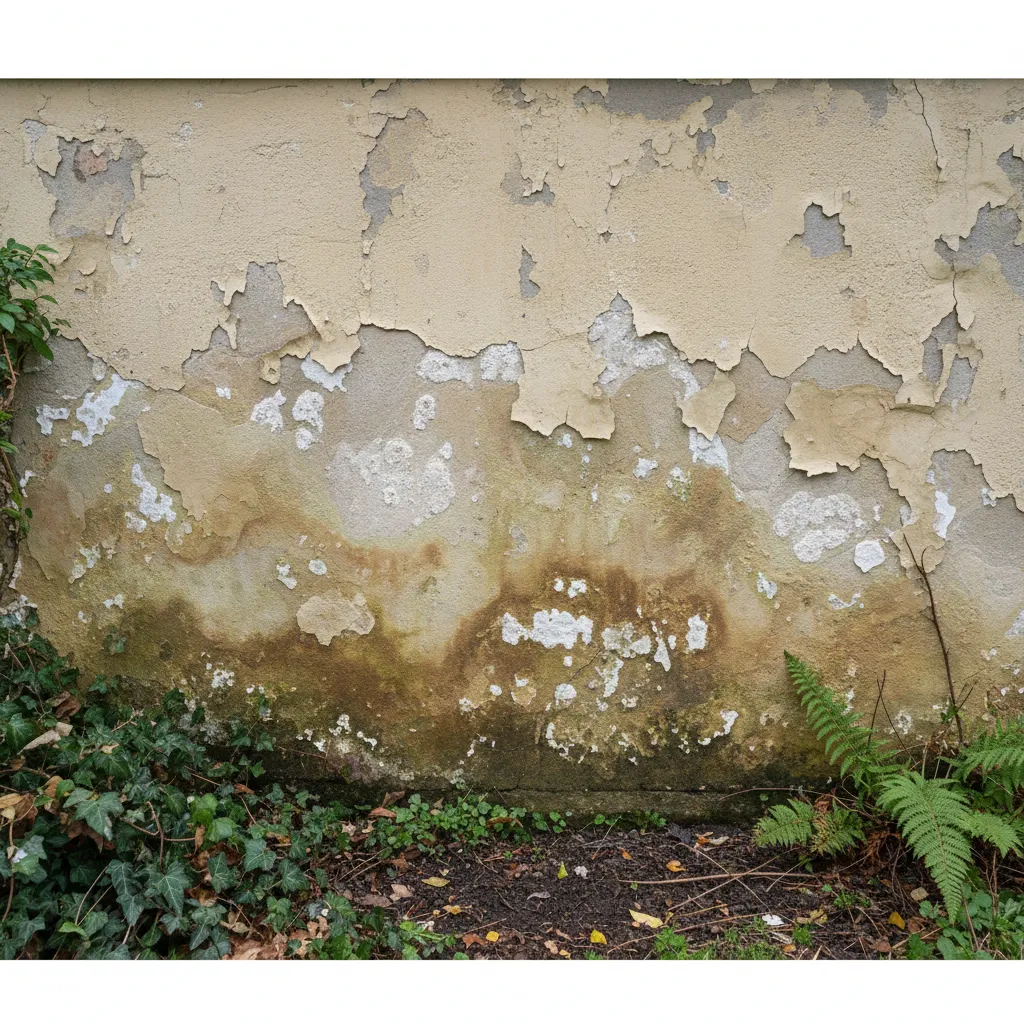

Solutions for Water Damage and Moisture Seepage

Key Insight: Water infiltration is the hidden enemy of compound walls and the primary cause of long term structural deterioration.

Moisture problems often show up as:

1. Peeling paint
2. White salt deposits
3. Damp patches
4. Plaster flaking

What many people miss is that the water often comes from soil buildup against the wall rather than rain hitting the surface.

Effective repair strategies include:

1. Installing proper drainage channels
2. Applying waterproof exterior coatings
3. Adding coping caps on top of walls
4. Lowering soil levels against the boundary

When designing exterior spaces I often test layout solutions using a visual property layout planner for outdoor structuresso drainage slopes and wall alignment are clear before construction begins.

save pin

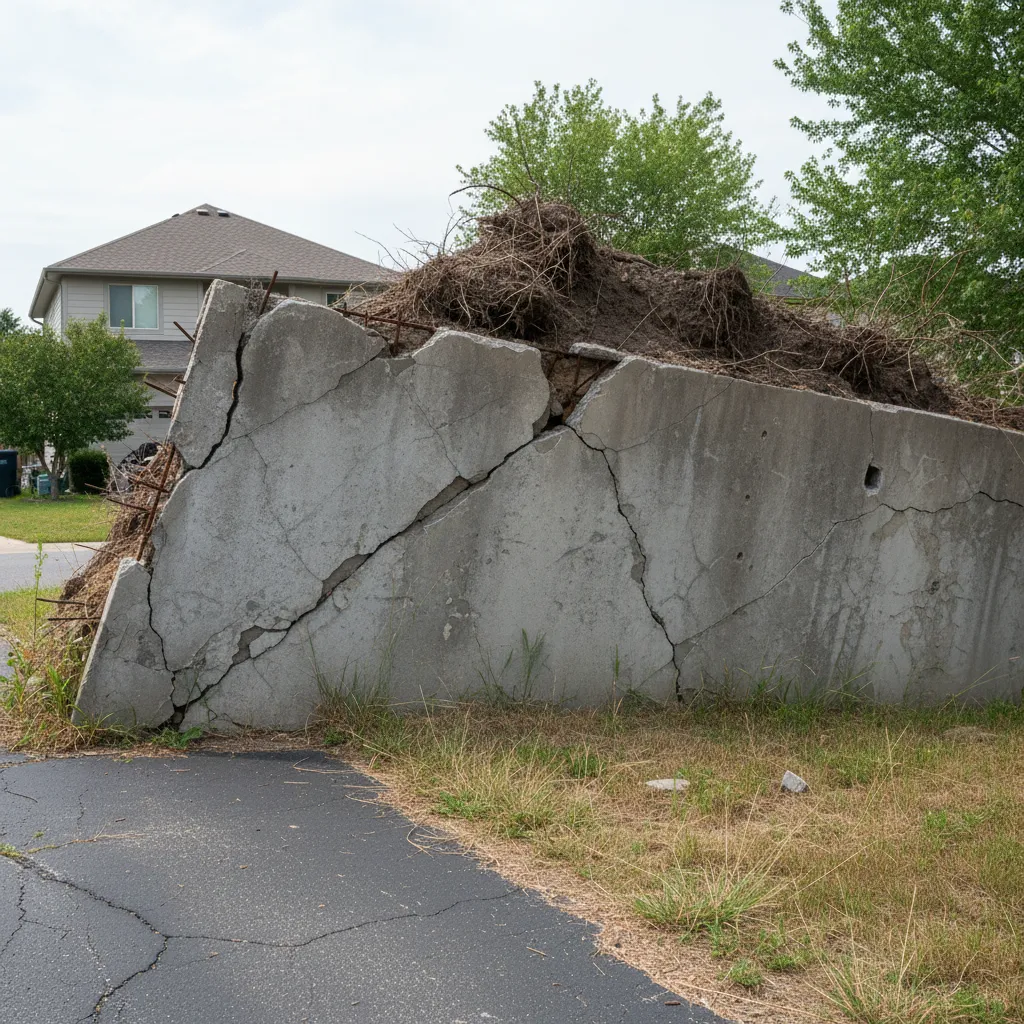

Repairing Leaning or Uneven Boundary Walls

Key Insight: A leaning compound wall almost always indicates foundation movement and requires structural stabilization rather than surface repair.

This is the point where many homeowners make a costly mistake. They try to plaster or repaint the wall instead of correcting the structural issue.

In professional repair work we usually evaluate three factors:

1. Degree of tilt
2. Foundation integrity
3. Soil pressure behind the wall

Typical repair approaches include:

1. Installing concrete buttresses for support
2. Reinforcing with steel columns
3. Underpinning the foundation
4. Rebuilding the affected section

If the wall is leaning more than 3–4 inches across its height, structural engineers usually recommend rebuilding that segment rather than attempting patch repairs.

save pin

Preventing Paint Peeling and Surface Damage

Key Insight: Paint failure on compound walls usually signals moisture problems rather than poor paint quality.

Exterior walls face much harsher environmental exposure than interior surfaces. Sun, rain, and dust gradually break down paint layers.

However, when peeling appears within a year or two, the problem is usually trapped moisture.

Good prevention practices include:

1. Use exterior masonry primer
2. Apply elastomeric waterproof paint
3. Install wall coping stones
4. Repaint every 4–6 years

One overlooked design issue is insufficient wall overhang. Without coping caps, rainwater slowly seeps into plaster layers.

When to Repair vs When to Rebuild a Compound Wall

Key Insight: Repairs work well for localized damage, but widespread structural movement usually means rebuilding is the safer long term choice.

After evaluating many boundary wall failures, I usually apply a simple rule when advising clients.

Repair if:

1. Cracks are localized
2. The wall remains vertical
3. The foundation is stable
4. Damage is mainly cosmetic

Rebuild if:

1. The wall leans significantly
2. Cracks run across multiple sections
3. Foundation settlement is ongoing
4. Reinforcement steel is exposed

If you are redesigning or rebuilding your boundary wall, reviewing different structural layouts can help avoid repeating the same problems. Many homeowners start by exploring visual compound wall design ideas for residential properties to plan structure and materials together.

Answer Box

The most common compound wall problems include cracks, moisture seepage, leaning walls, and paint peeling. Most issues are caused by drainage failures or foundation movement rather than poor materials. Early repair and proper waterproofing can significantly extend the wall's lifespan.

Final Summary

1. Drainage problems are the leading cause of compound wall damage.
2. Hairline cracks are usually cosmetic but structural cracks require reinforcement.
3. Leaning walls often indicate foundation settlement.
4. Waterproof coatings and coping caps prevent long term deterioration.
5. Severely tilted walls are safer to rebuild than repair.

FAQ

What causes cracks in compound walls?

Most cracks occur due to soil movement, thermal expansion, or shallow foundations. Minor cracks can be sealed, but structural cracks may require reinforcement.

How do you repair a cracked brick boundary wall?

Clean the crack, apply epoxy or polymer filler, and replaster with waterproof mortar. For large cracks, steel reinforcement may be necessary.

Is a leaning compound wall dangerous?

Yes. A leaning wall often indicates foundation movement and may collapse if pressure increases. Structural inspection is recommended.

How can I stop water damage in concrete compound walls?

Install drainage channels, apply waterproof coatings, and ensure soil levels do not trap moisture against the wall.

How often should compound walls be maintained?

Basic inspection every year and repainting every 4–6 years helps prevent major repairs.

Can small cracks in compound walls be ignored?

Hairline cracks may be harmless initially, but sealing them early prevents water infiltration.

What is the best paint for boundary walls?

Elastomeric exterior masonry paint performs best because it expands and contracts with temperature changes.

When should a compound wall be rebuilt instead of repaired?

If the wall leans significantly, has multiple structural cracks, or shows foundation settlement, rebuilding is usually safer.
