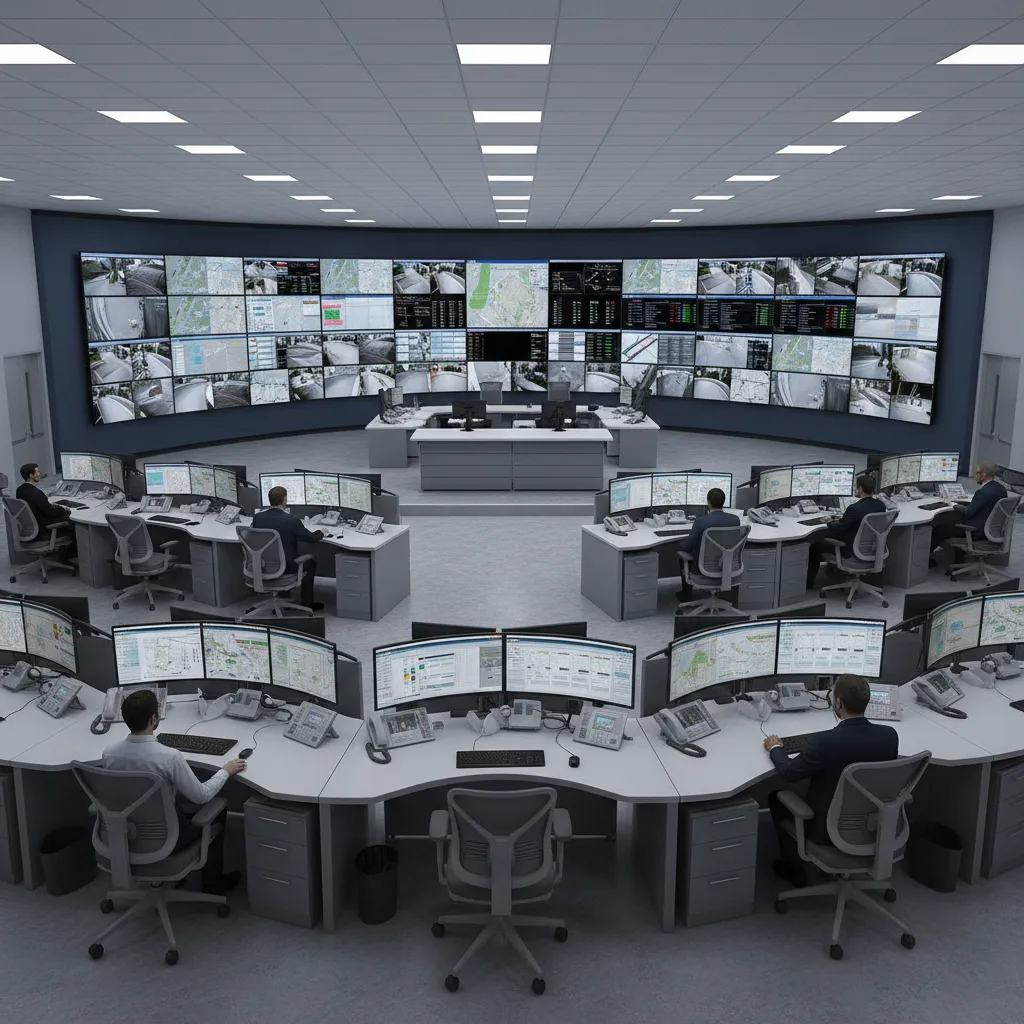

Common Dispatch Room Layout Problems and How to Fix Them: Identify hidden control room design issues and apply practical layout fixes that improve visibility, communication, and operator efficiency.

Direct Answer

Dispatch room layout problems usually stem from poor sightlines, overcrowded workstations, badly positioned video walls, and communication barriers between operators. These issues slow response time and increase operator fatigue. Fixing them typically involves improving line-of-sight to screens, widening workstation spacing, repositioning display walls, and simplifying circulation paths.

Quick Takeaways

1. Most dispatch room inefficiencies come from visibility and communication breakdowns.
2. Operators should see the main screen wall without turning more than 30 degrees.
3. Overcrowded workstations increase fatigue and error rates during long shifts.
4. Small layout adjustments can significantly improve response times.
5. Clear sightlines and circulation paths matter more than decorative design.

Introduction

After working on control centers and emergency operations rooms for more than a decade, I can say that most dispatch room layout problems aren't caused by technology—they're caused by the room itself.

I've walked into beautifully equipped dispatch centers where operators still struggled to respond quickly because screens were out of view, supervisors couldn't monitor teams effectively, or communication required people to physically turn around in their chairs.

The reality is simple: even the best software and monitoring systems cannot compensate for a poorly organized room. Layout determines how quickly people see problems, share information, and act.

If you're currently redesigning or troubleshooting a control space, studying real practical dispatch center layout examples used in real operationscan reveal patterns that work—and common mistakes that slow teams down.

In this guide, I'll break down the most common dispatch room design mistakes I see in projects and how to fix them without always needing a full renovation.

save pin

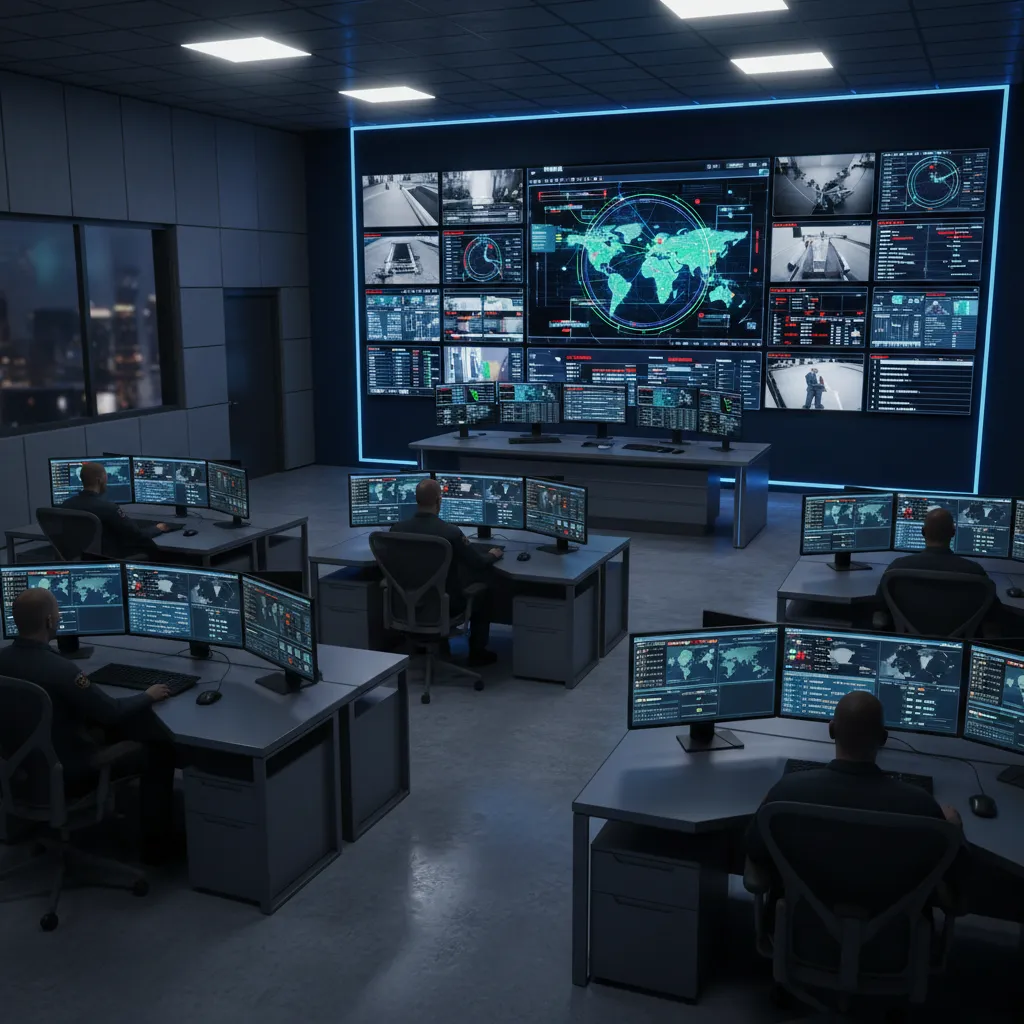

Signs Your Dispatch Room Layout Is Causing Operational Delays

Key Insight: When operators constantly swivel, stand up to view screens, or repeat information verbally, the layout—not the staff—is usually the bottleneck.

In well-designed control rooms, information flows naturally through visibility. Operators should instantly see shared displays, supervisors should oversee teams easily, and communication should happen without physical obstacles.

When layouts fail, delays appear in subtle ways.

1. Operators frequently turn their chairs to view the main display wall
2. Team members repeat information because others cannot see alerts
3. Supervisors walk around the room to monitor activity
4. Staff stand up to check shared dashboards
5. Operators complain about neck strain during long shifts

According to guidance from the International Ergonomics Association and several control room design standards used in utilities and transportation industries, operator visibility and ergonomic alignment directly influence response accuracy and fatigue levels.

In other words, layout problems often show up first as human performance issues.

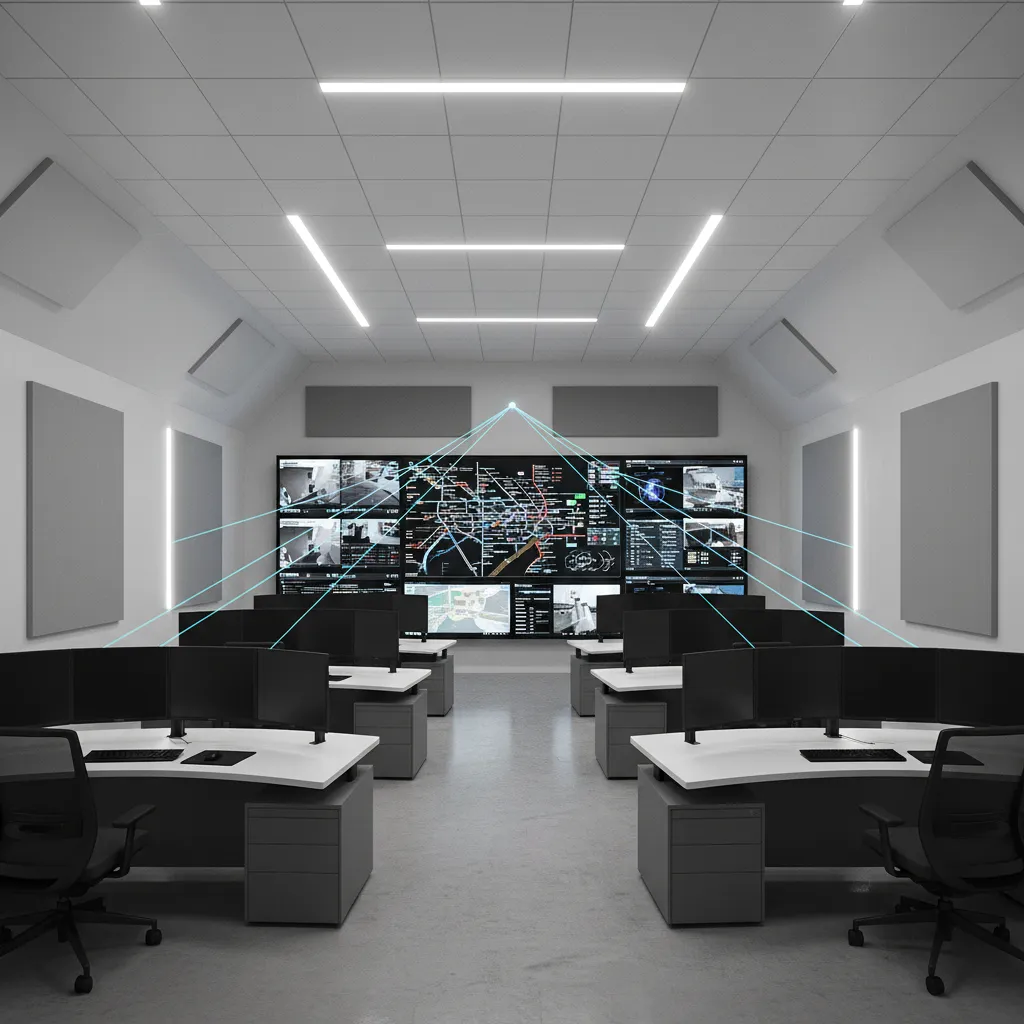

Poor Sightline Design and Monitoring Blind Spots

Key Insight: A dispatch room fails when operators cannot see the most important information without moving.

Sightlines are one of the most underestimated factors in control room design. In many poorly planned rooms, video walls are mounted too high, off-center, or partially blocked by other workstations.

From an operational standpoint, every operator should maintain clear visual access to critical information displays.

Typical sightline mistakes include:

1. Video walls positioned above comfortable viewing angles
2. Columns or structural elements blocking visibility
3. Workstations facing away from shared displays
4. Multiple competing screens across different walls

A practical fix often involves rotating workstation angles toward the display wall rather than keeping desks parallel to walls.

Modern layout simulations using tools like a 3D planning workflow for operational control roomsallow designers to test sightlines before construction, which prevents costly mistakes.

save pin

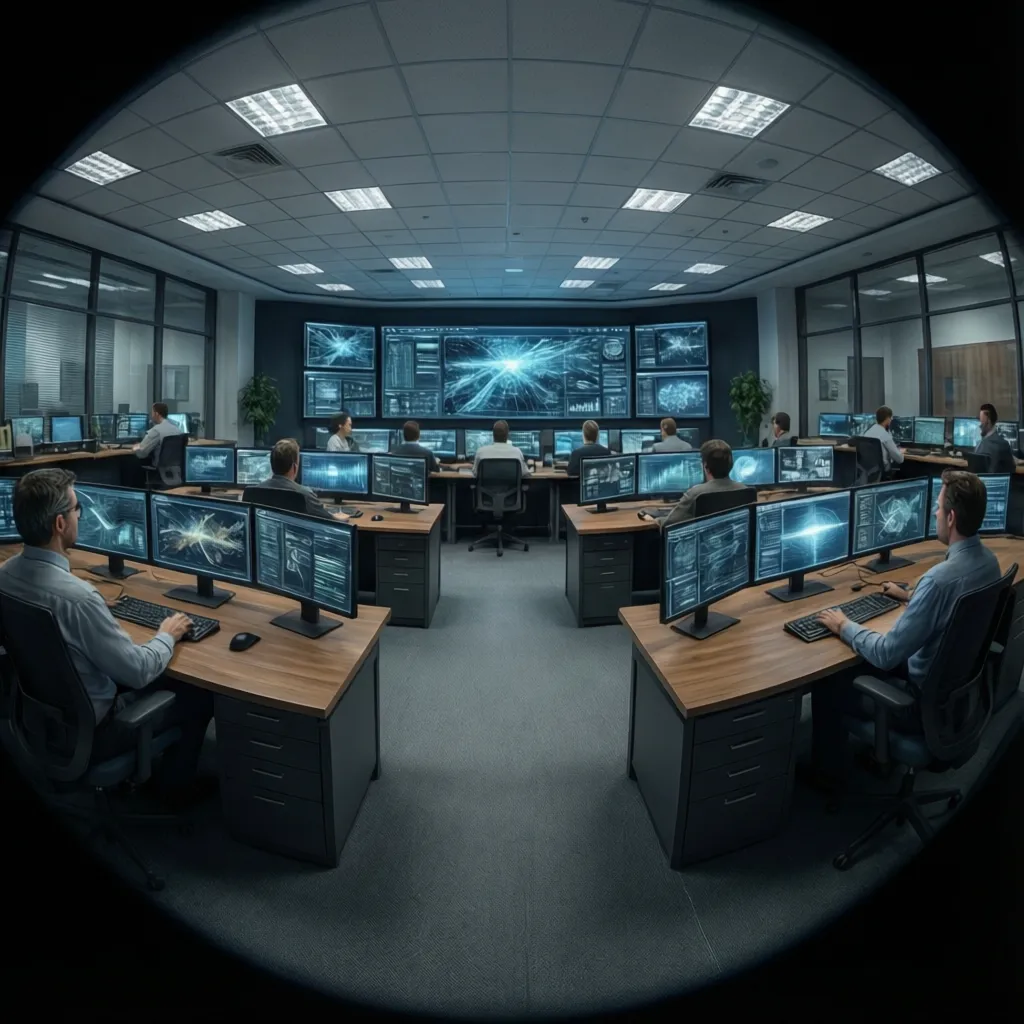

Workstation Spacing Problems and Operator Fatigue

Key Insight: Overcrowded dispatch rooms increase mental load and fatigue even when the technology works perfectly.

Many organizations underestimate how much physical spacing affects cognitive performance. Operators working 8–12 hour shifts need space not just for equipment but also for movement and comfort.

In several redesign projects I've worked on, simply increasing workstation spacing improved team efficiency more than upgrading hardware.

Common spacing mistakes include:

1. Chairs colliding when operators turn
2. Shared walkways running directly behind operators
3. Insufficient space for supervisor circulation
4. Workstations arranged in straight rows instead of angled pods

Most professional control room standards recommend at least:

1. 1200–1500 mm circulation aisles
2. Ergonomic viewing distance of 600–800 mm from primary screens
3. Clear supervisor visibility across the room

These dimensions may sound minor, but they dramatically affect comfort and long-term productivity.

save pin

Communication Barriers Created by Layout Design

Key Insight: Dispatch rooms fail when operators must physically reposition themselves to communicate.

One of the biggest hidden costs of poor layout is communication delay. Teams working emergency operations must exchange information instantly.

Yet I often see layouts where teams responsible for related tasks are seated on opposite sides of the room.

Effective dispatch rooms group operators by workflow rather than department.

Better communication layouts typically include:

1. Clustered workstation pods for related tasks
2. Clear lines of sight between collaborating operators
3. Centralized supervisor desks
4. Noise control zones for high-concentration tasks

Air traffic control centers and emergency management facilities use these clustering strategies extensively because they reduce verbal relay time.

Answer Box

The most effective way to fix dispatch room layout problems is improving sightlines, spacing, and team proximity. Operators should see critical screens without turning, maintain comfortable workstation distances, and communicate directly without physical obstacles.

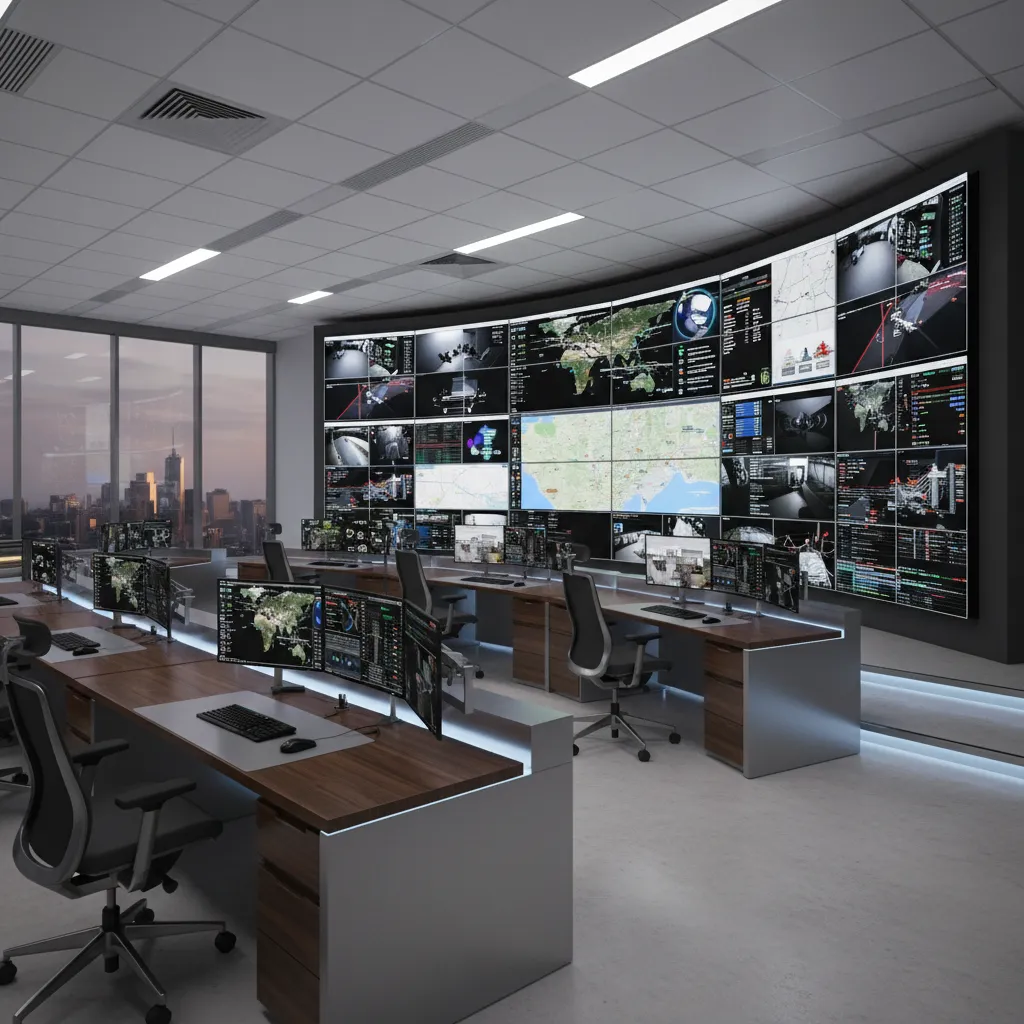

Fixing Inefficient Screen Wall Placement

Key Insight: The video wall should act as the visual anchor of the entire dispatch room.

A surprising number of control rooms treat display walls as decorative features instead of operational tools.

The best-performing dispatch centers design the room around the screen wall—not the other way around.

Effective placement guidelines include:

1. Center the display wall along the primary viewing axis
2. Ensure no workstation exceeds a 30-degree viewing angle
3. Maintain appropriate viewing distance based on screen size
4. Avoid placing doors or walkways between operators and screens

In several emergency response center projects, repositioning the screen wall improved situational awareness more than upgrading monitoring software.

save pin

Quick Layout Improvements Without Full Renovation

Key Insight: Many dispatch room issues can be fixed with small layout adjustments rather than major reconstruction.

Organizations often assume they need a full redesign, but many improvements are surprisingly simple.

Some of the most effective quick fixes include:

1. Rotating workstation orientation toward the main screen wall
2. Removing unused equipment that blocks sightlines
3. Creating clearer walkways between workstation clusters
4. Relocating supervisor desks for better oversight
5. Reorganizing teams into communication pods

Before committing to renovation, it's often useful to simulate potential improvements using a visual planning workflow for control room layouts. Testing layout changes digitally can reveal improvements that aren't obvious on paper.

Final Summary

1. Dispatch room performance depends heavily on visibility and communication.
2. Poor sightlines are the most common layout failure.
3. Overcrowded workstations increase fatigue and slow decision making.
4. Video walls should anchor the entire room layout.
5. Small spatial adjustments can dramatically improve dispatch efficiency.

FAQ

What are the most common dispatch room layout problems?

Typical issues include poor screen visibility, crowded workstations, obstructed sightlines, and poor team grouping. These dispatch room layout problems often slow communication and reduce operational efficiency.

How much space should each dispatch workstation have?

Most control room standards recommend 1200–1500 mm circulation space and enough desk depth for ergonomic monitor distance of 600–800 mm.

Why are sightlines important in control room design?

Clear sightlines ensure operators can instantly see shared data, alerts, and monitoring dashboards without turning or standing.

Can poor layout affect dispatch response times?

Yes. Poorly arranged workstations and obstructed displays force operators to spend extra seconds locating information, which adds delay during critical incidents.

How do you fix an inefficient dispatch center layout?

Start by improving visibility to the main display wall, increasing workstation spacing, grouping related operators together, and simplifying circulation paths.

Where should the video wall be placed in a dispatch room?

Ideally along the central viewing axis where all operators can see it within a 30-degree viewing angle.

Can small layout changes improve dispatch center efficiency?

Yes. Rotating desks, removing obstructions, and reorganizing teams can significantly improve dispatch center efficiency through layout improvements.

Do all dispatch centers need a full redesign?

No. Many operational problems can be solved through minor layout adjustments and improved workstation positioning.

References

1. International Ergonomics Association – Control Room Ergonomics Guidelines
2. ISO 11064 Ergonomic Design of Control Centres
3. Human Factors in Control Room Design – NUREG Technical Reports
