Common DIY Pocket Door Installation Problems and Fixes: Real solutions for stuck, noisy, or misaligned pocket doors based on practical installation experience

Direct Answer

The most common DIY pocket door installation problems come from misaligned tracks, poorly installed rollers, or wall framing that is slightly out of square. These issues typically cause doors to stick, drag, or make grinding noises. The good news is that most problems can be fixed by adjusting the track, leveling the rollers, or correcting minor framing alignment without removing the entire door system.

Quick Takeaways

1. Most pocket door sliding issues come from track alignment rather than the door itself.
2. A door stuck inside the pocket is usually caused by a roller slipping off the track.
3. Grinding noises often mean debris or worn rollers inside the rail.
4. Improper wall framing can cause long‑term pocket door performance issues.
5. Planning the wall layout before installation prevents most DIY mistakes.

Introduction

DIY pocket door installation problems are far more common than people expect. After working on residential renovations for more than a decade, I've seen beautifully finished walls hiding pocket doors that barely move. The frustrating part is that the problem usually isn't the door itself. It's the track alignment, roller positioning, or wall framing that shifts slightly during installation.

In several projects I reviewed for homeowners, the pocket door worked perfectly for the first few weeks and then slowly began sticking or making noise. That delay usually means something in the installation tolerance was just slightly off.

One step that dramatically reduces these issues is planning the wall structure carefully before installation. Mapping the door clearance and wall pocket early using tools that help homeowners visualize wall openings and sliding door clearances in a floor planmakes it much easier to avoid framing mistakes.

Below are the most frequent pocket door failures I see in DIY projects and how to fix them without tearing open the wall.

save pin

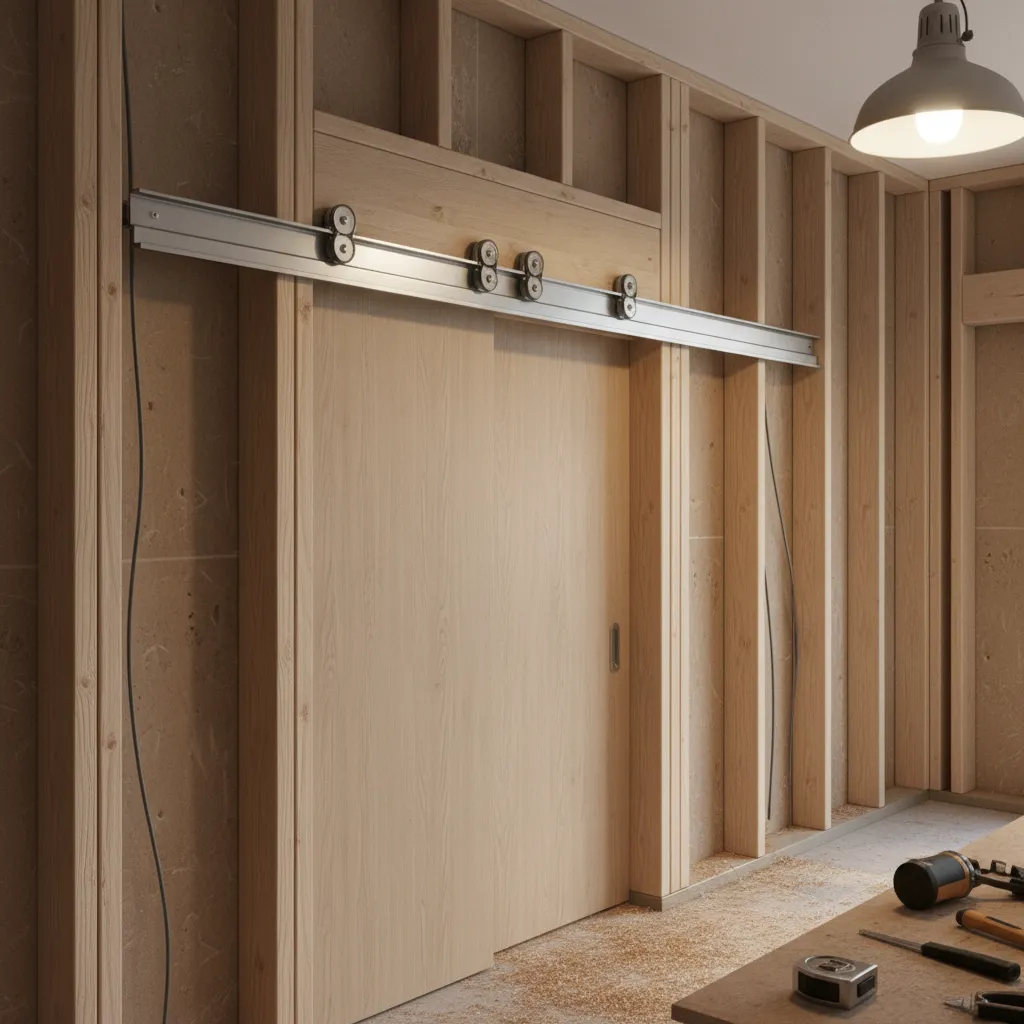

Pocket Door Not Sliding Smoothly

Key Insight: When a pocket door does not slide smoothly, the problem is usually track alignment or roller adjustment rather than the door panel.

In my experience, homeowners often assume the door is warped. In reality, most pocket door systems rely on precision alignment within a few millimeters. Even slight framing shifts can affect the movement.

Common causes include:

1. Track mounted slightly out of level
2. Roller hangers not evenly adjusted
3. Debris inside the track
4. Door panel rubbing against split studs

How to fix it:

1. Remove the door stop trim to access roller adjustment screws.
2. Raise or lower the rollers until the door hangs evenly.
3. Clean the track using compressed air or a narrow vacuum attachment.
4. Check that the door does not rub the pocket framing.

Most manufacturers such as Johnson Hardware note that uneven hanger adjustment is the top reason sliding resistance occurs in pocket door systems.

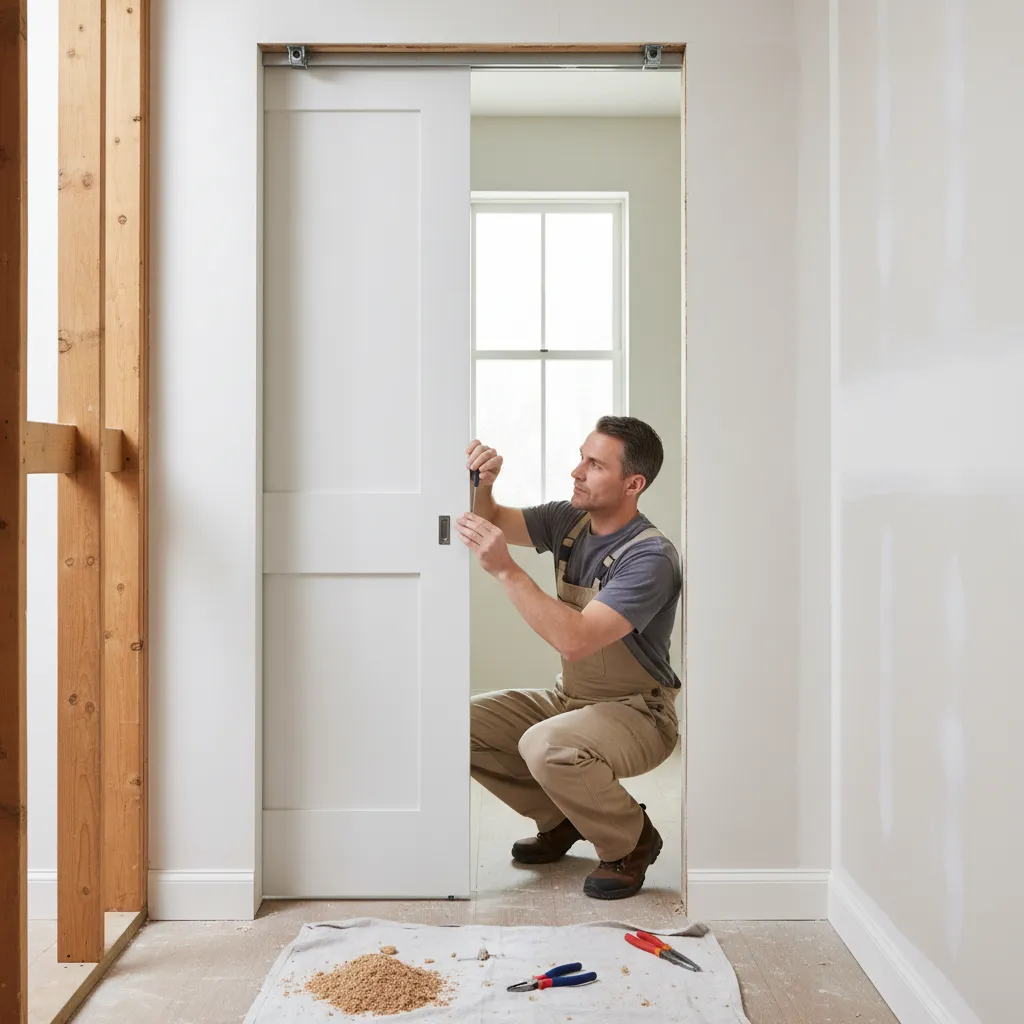

Door Stuck Inside the Wall Pocket

Key Insight: A pocket door stuck inside the wall is typically caused by a roller that slipped off the track or a loose guide at the bottom.

This issue usually happens after the door is slammed or forced when something blocks the track.

Typical signs include:

1. The door moves halfway and stops suddenly
2. You hear a small drop or clunk inside the wall
3. The door tilts when pulled outward

Repair approach:

1. Remove the door casing trim.
2. Lift the door upward to re-engage the rollers.
3. Check that both hangers are correctly seated in the rail.
4. Reinstall a stronger floor guide if necessary.

save pin

Misaligned Pocket Door Track Problems

Key Insight: A misaligned track is the hidden cause behind many DIY pocket door installation problems.

In renovation work, I often see pocket door tracks installed before the surrounding wall framing fully settles. If the studs shift even slightly, the rail can twist.

Warning signs of track misalignment:

1. Door slides fast in one direction but slow in the other
2. Door drifts open on its own
3. Uneven gap along the jamb

Correction methods:

1. Check the rail with a 4-foot level.
2. Loosen mounting screws and re-level the track.
3. Shim the rail if framing is uneven.

When planning sliding doors in tight layouts, I often recommend homeowners test different wall configurations with a digital room layout planner. This helps verify whether the pocket wall actually has enough structural space for the door system.

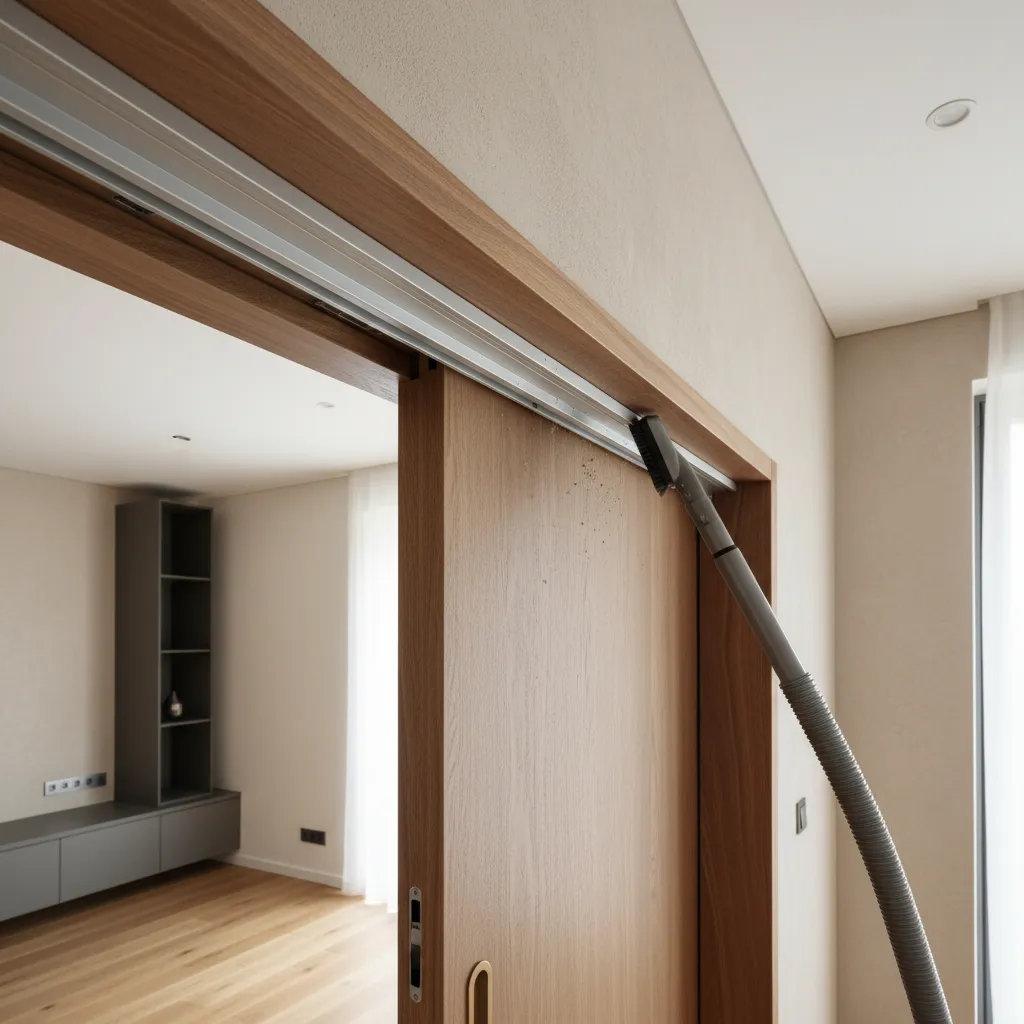

Fixing Noisy or Grinding Pocket Doors

Key Insight: Grinding sounds almost always come from worn rollers or debris trapped in the track.

Unlike hinged doors, pocket doors rely entirely on overhead rollers. If those components wear out, noise appears quickly.

Most common noise sources:

1. Dust or drywall particles inside the track
2. Metal roller bearings wearing down
3. Track screws rubbing the rollers
4. Improper lubrication

Steps to fix noisy pocket doors:

1. Remove the door stop trim.
2. Vacuum the entire track.
3. Apply silicone-based lubricant.
4. Replace worn rollers if grinding persists.

save pin

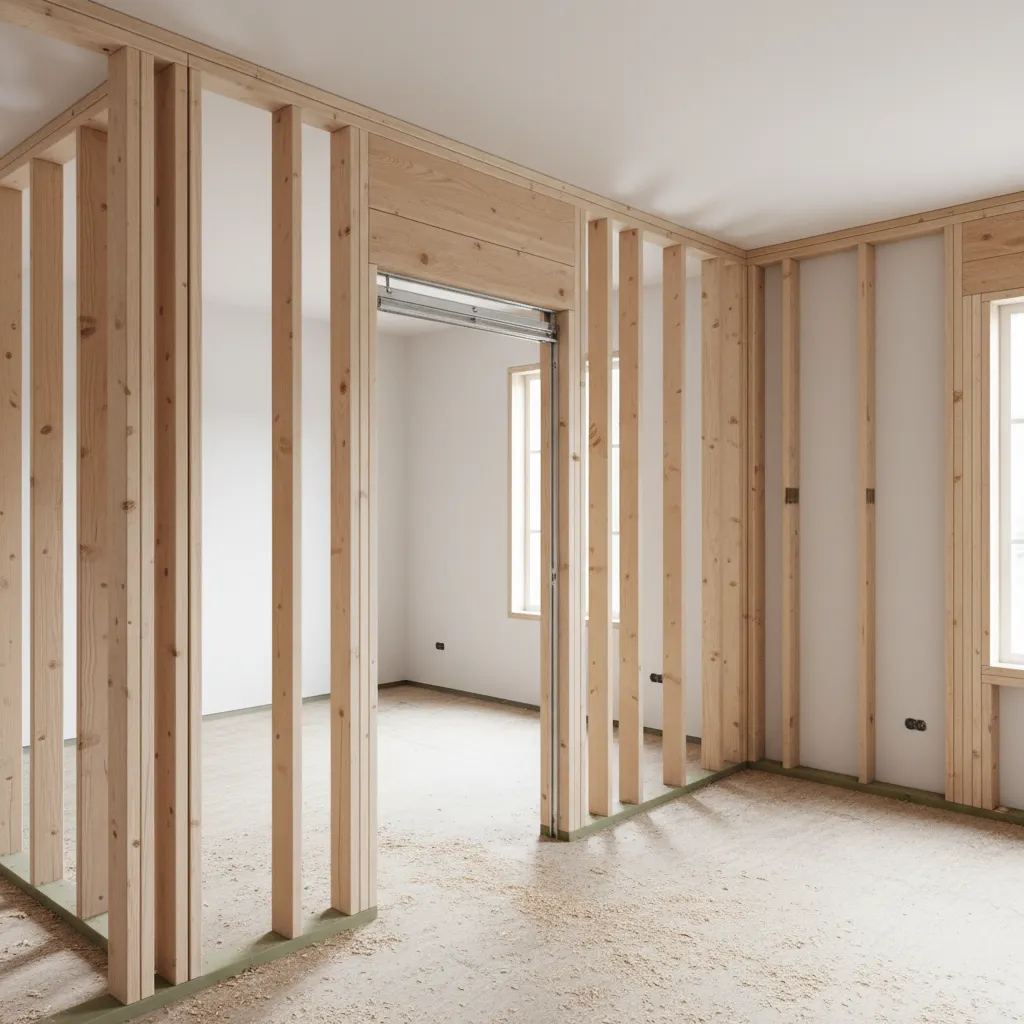

How to Prevent Installation Mistakes

Key Insight: Most pocket door failures originate during framing and layout planning rather than during the door installation itself.

One hidden issue many tutorials ignore is wall thickness tolerance. Pocket door frames require precise clearance to prevent rubbing or track flex.

Installation planning checklist:

1. Ensure wall framing is perfectly square.
2. Confirm pocket cavity is clear of wiring or plumbing.
3. Use a solid header to prevent long-term sag.
4. Check floor level before installing the track.

During design planning, mapping door movement inside the room layout is extremely helpful. Many homeowners first experiment with sliding door layouts in a 3D floor plan environmentto confirm the pocket clearance works with surrounding furniture and walls.

save pin

Answer Box

Most DIY pocket door installation problems come from misaligned tracks, poorly adjusted rollers, or framing that shifts during installation. Correcting the rail alignment and adjusting hanger rollers resolves the majority of sliding, sticking, or noise issues without removing the wall.

Final Summary

1. Track alignment is the most common cause of pocket door failure.
2. Roller adjustments often fix sliding resistance quickly.
3. Grinding noise usually means debris or worn rollers.
4. Wall framing precision determines long‑term performance.
5. Proper layout planning prevents most DIY installation issues.

FAQ

Why is my pocket door not sliding smoothly?

The most common reason is uneven roller adjustment or a slightly misaligned track. Cleaning the rail and adjusting the hanger bolts usually restores smooth movement.

How do I fix a pocket door stuck in the wall?

Remove the trim to access the door hangers and lift the door upward to reconnect the rollers to the track.

What causes DIY pocket door installation problems?

DIY pocket door installation problems usually come from misaligned framing, uneven tracks, or incorrect roller adjustment during installation.

Can pocket door tracks be adjusted after installation?

Yes. Most systems allow adjustment through the hanger bolts located behind the door stop trim.

Why is my pocket door making a grinding sound?

Grinding usually indicates debris inside the track or worn roller bearings.

How long do pocket door rollers last?

High-quality rollers often last 10–20 years depending on usage and weight of the door.

Can a warped door cause sliding issues?

It can, but track alignment problems are far more common than actual door warping.

Are pocket doors hard to repair?

Most pocket door issues can be repaired by accessing the track and rollers through the trim without opening the wall.

References

1. Johnson Hardware Pocket Door Installation Guide
2. National Association of Home Builders Interior Door Standards
3. Architectural Woodwork Institute Door Installation Guidelines
