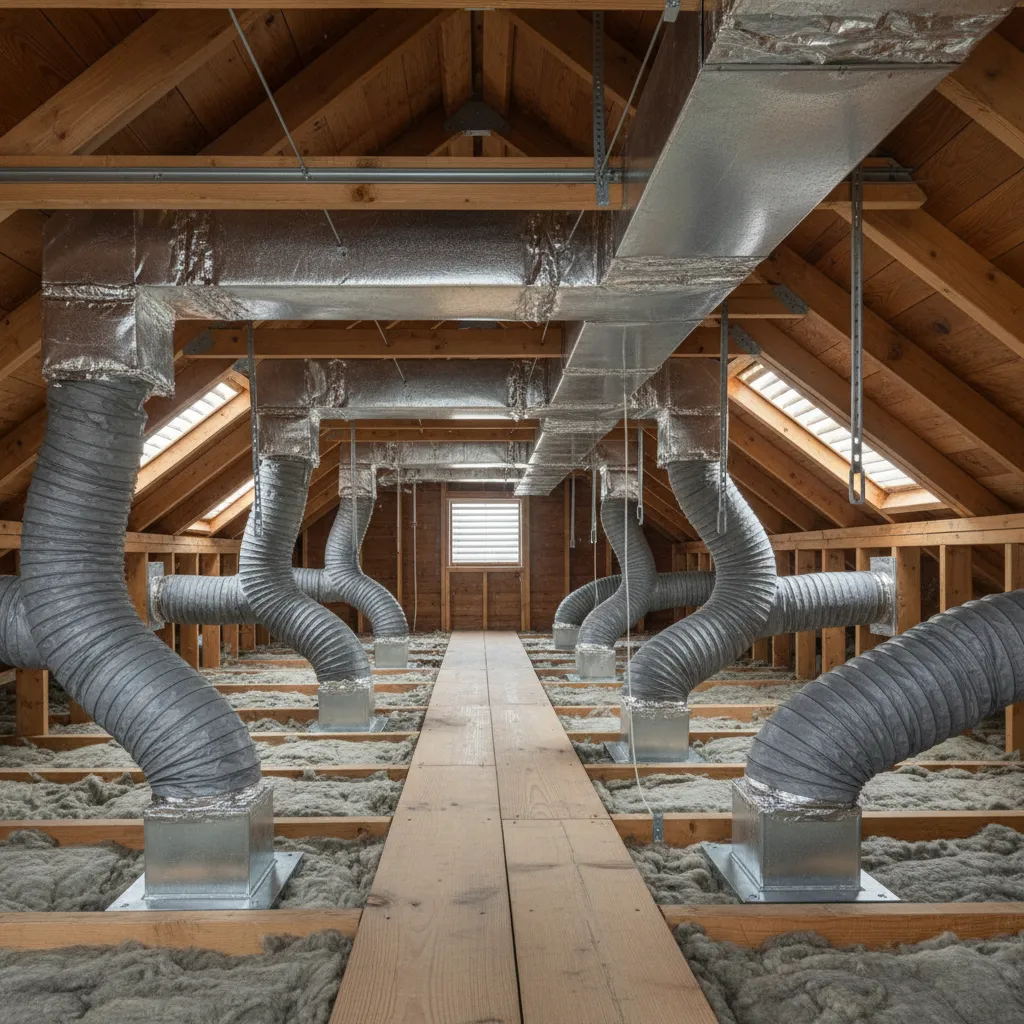

Common Ductwork Layout Problems and How to Fix Them: Learn how to identify duct layout mistakes that cause weak airflow, noisy vents, and uneven room temperatures in real homes.

Direct Answer

Most ductwork layout problems come from long duct runs, poor return air placement, undersized branches, or poorly balanced airflow paths. These design mistakes restrict pressure and prevent conditioned air from reaching certain rooms evenly. Fixing them usually involves shortening runs, improving return air paths, resizing ducts, or redesigning sections of the layout.

Quick Takeaways

1. Uneven room temperatures often indicate airflow imbalance caused by poor duct layout.
2. Long duct runs increase static pressure and weaken airflow in distant rooms.
3. Improper return air placement can choke the entire HVAC system.
4. Noisy ducts frequently result from layout restrictions or sudden direction changes.
5. Many ductwork layout problems start during floor plan design, not HVAC installation.

Introduction

After working on residential projects for more than a decade, I’ve learned that many homeowners assume their HVAC equipment is the problem when rooms feel stuffy, noisy, or unevenly heated. In reality, ductwork layout problems are often the hidden culprit.

I’ve walked into plenty of homes where the furnace was perfectly sized and the AC unit worked fine—but the duct design quietly sabotaged everything. A bedroom at the end of a long hallway barely gets airflow, the living room roars with noisy vents, and someone eventually starts closing registers to "fix" the issue.

In most cases, the problem started earlier in the design stage when the home layout and mechanical layout weren’t planned together. When I review layouts, I often model the floor plan first using tools similar to those used when homeowners map out a full home layout before planning mechanical systems. Once you see the structure clearly, duct problems become much easier to diagnose.

This guide walks through the most common duct design mistakes I see in residential homes, why they happen, and what actually fixes them.

save pin

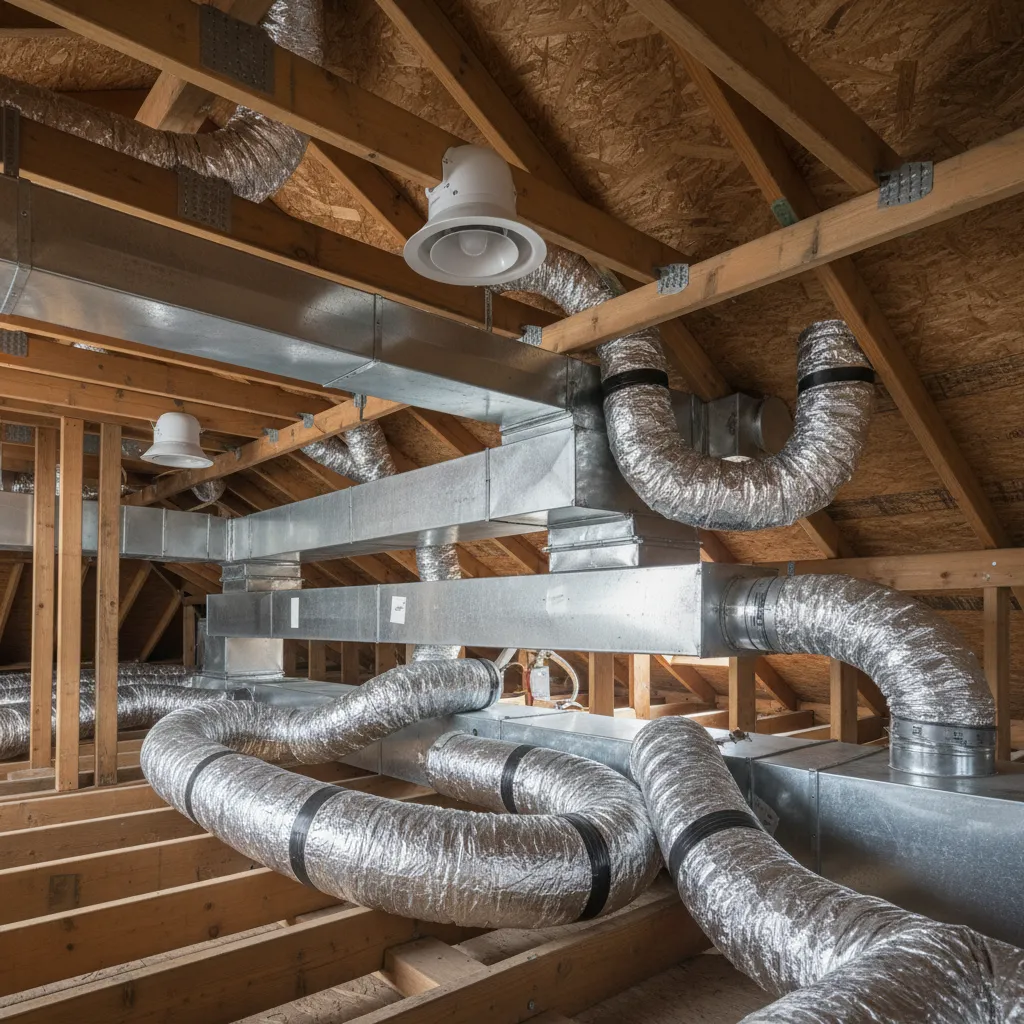

Signs Your Ductwork Layout May Be Problematic

Key Insight: Most duct layout issues reveal themselves through comfort problems long before homeowners realize the ducts are responsible.

Homeowners rarely inspect ductwork directly. Instead, they notice symptoms: rooms that never match the thermostat temperature, vents that whistle or rumble, or airflow that seems strong in one room but weak in another.

Across many home inspections, these warning signs consistently point to layout mistakes rather than equipment failure.

1. Some rooms are always hotter or colder than others
2. Weak airflow from vents far from the air handler
3. Loud rushing air or rattling ducts
4. Registers that barely push air when others are strong
5. High energy bills despite normal HVAC usage

The U.S. Department of Energy notes that duct design and leakage can reduce HVAC efficiency by up to 30% in poorly designed systems. In my experience, layout inefficiencies are often responsible for a large portion of that loss.

Uneven Room Temperatures and Airflow Imbalance

Key Insight: Uneven temperatures usually mean the duct system is delivering air unevenly due to branch sizing or path resistance.

This is the most common complaint I hear: "Why does one room barely get airflow while another feels like a wind tunnel?"

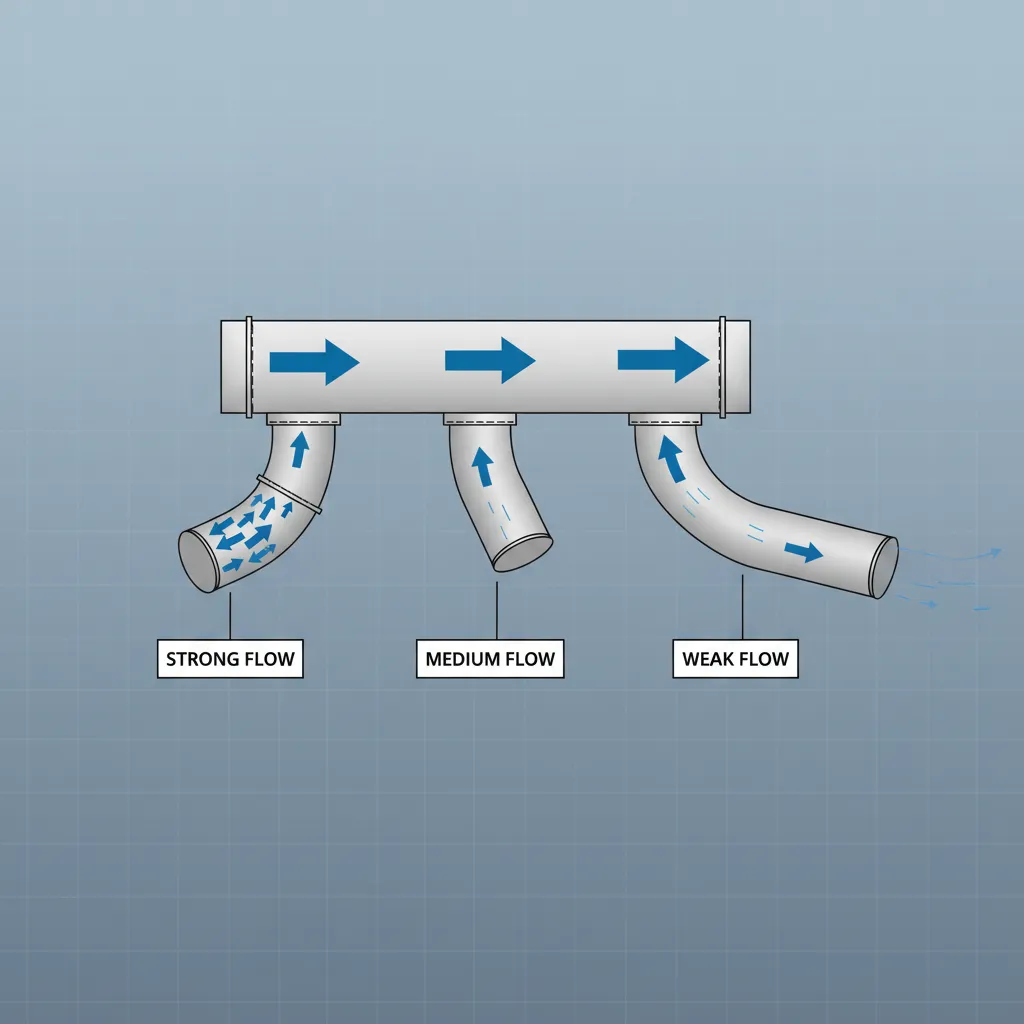

The answer usually lies in how air chooses the easiest path. If two ducts leave the trunk but one has multiple turns, longer distance, or smaller diameter, the shorter path steals most of the airflow.

Typical airflow imbalance causes:

1. Branches with drastically different lengths
2. Undersized branch ducts
3. Too many sharp elbows
4. Poorly balanced supply registers

A practical fix involves balancing airflow:

1. Inspect branch lengths and restrictions
2. Install balancing dampers where needed
3. Increase duct diameter on long runs
4. Reduce unnecessary turns

When I redesign layouts, I often simulate airflow paths alongside the house layout—similar to how designers test circulation when they visualize a home's spatial layout in three dimensions. It quickly reveals which rooms are starved for airflow.

save pin

Long Duct Runs and Pressure Loss Issues

Key Insight: The longer the duct run, the greater the static pressure loss and the weaker the airflow reaching that room.

One of the most overlooked duct design problems is simply distance. Every foot of duct adds resistance to airflow.

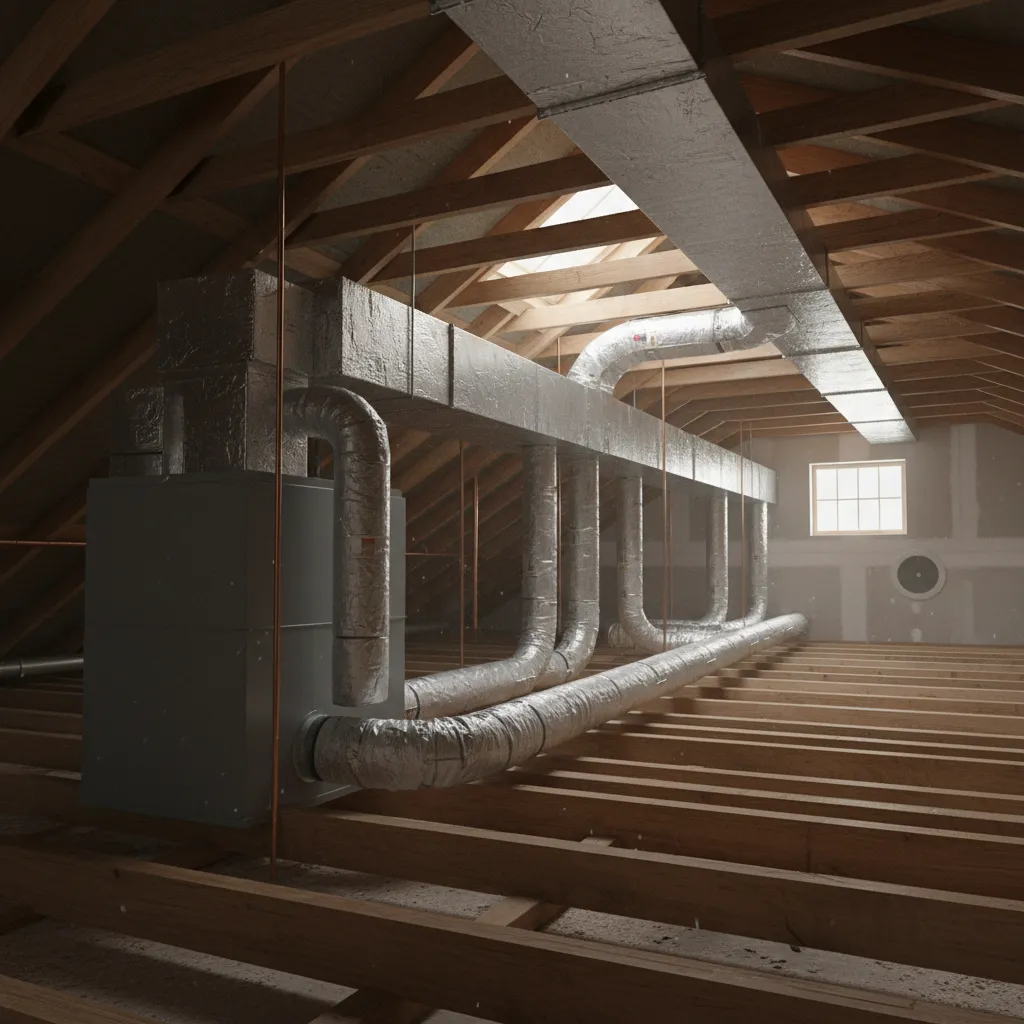

In many two‑story homes I’ve evaluated, a single trunk line snakes through attics or crawlspaces for 40–60 feet before reaching the last bedroom. By the time air arrives, pressure has already dropped significantly.

Common design mistakes:

1. Single trunk feeding distant rooms
2. No intermediate supply branches
3. Undersized main trunks
4. Multiple tight bends increasing friction

Better design solutions include:

1. Adding secondary trunks
2. Increasing trunk diameter
3. Using radial distribution layouts
4. Relocating the air handler closer to the center

ASHRAE duct design guidance consistently emphasizes minimizing friction loss by shortening duct paths and reducing unnecessary fittings.

save pin

Poor Return Air Placement Problems

Key Insight: Even perfectly designed supply ducts fail if return air cannot flow freely back to the HVAC system.

This is one of the most overlooked duct design problems in residential construction.

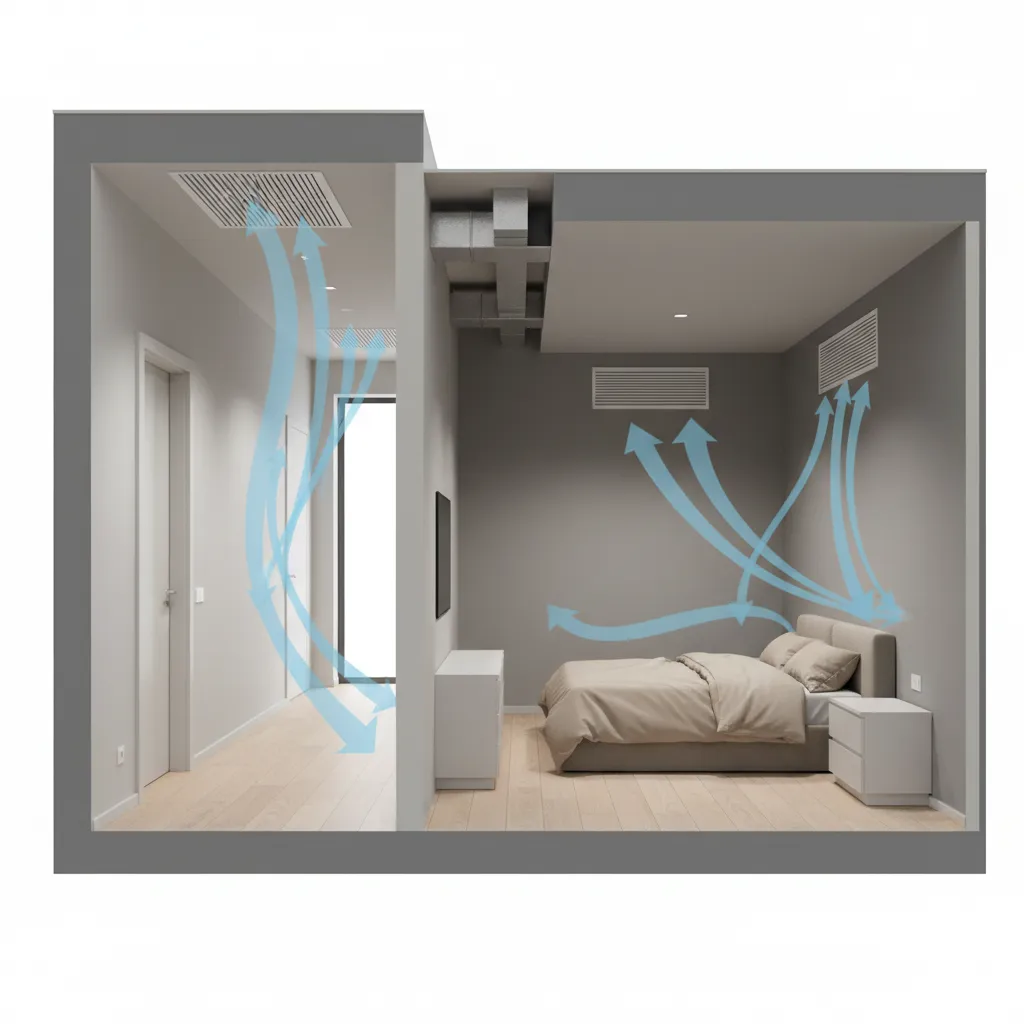

Many homes rely on a single central return grille, often located in a hallway. While this works in theory, closed bedroom doors can trap air inside rooms and prevent proper circulation.

Signs of return air problems:

1. Doors that push or pull when closing
2. Rooms that feel stuffy overnight
3. Airflow drops when doors close

Design improvements often include:

1. Dedicated return ducts for bedrooms
2. Jump ducts above ceilings
3. Transfer grilles between rooms
4. Larger central return vents

Building Science Corporation frequently highlights that pressure imbalances caused by poor return placement are a leading reason for comfort complaints in modern airtight homes.

save pin

Noise and Vibration Caused by Layout Design

Key Insight: Loud ducts usually indicate airflow restriction forcing air through ducts at excessive velocity.

When homeowners hear banging, rumbling, or whistling vents, the instinct is to blame the HVAC unit. But in many houses I inspect, the noise originates from poor duct routing.

Noise often occurs when:

1. Ducts are undersized
2. Air is forced through tight turns
3. Ducts are compressed or kinked
4. Air velocity exceeds design limits

Professional HVAC designers typically aim for supply duct velocities around 700–900 feet per minute in residential systems. When layouts restrict airflow, velocities spike and noise increases dramatically.

Answer Box

The majority of residential ductwork layout problems come from airflow imbalance, long duct paths, and poor return air design. Correcting these structural issues improves comfort, reduces noise, and restores HVAC efficiency without replacing the equipment.

When to Redesign or Modify Your Duct Layout

Key Insight: If airflow problems persist after balancing and sealing ducts, the layout itself usually needs redesign.

Minor adjustments can fix some issues, but structural layout flaws sometimes require larger modifications.

Situations where redesign is usually necessary:

1. Large rooms at the end of very long duct runs
2. Multiple rooms sharing one undersized branch
3. No dedicated returns for bedrooms
4. Major home renovations that changed floor layout

During remodeling projects, I often review both the architecture and mechanical paths together. Tools similar to those used when homeowners experiment with different room layout configurations before construction can help reveal where ducts should realistically run.

Once airflow paths are redesigned around the actual floor plan, most comfort issues disappear.

Final Summary

1. Uneven airflow usually signals duct layout imbalance.
2. Long duct runs reduce pressure and weaken airflow.
3. Poor return air placement disrupts system circulation.
4. Noisy ducts often indicate airflow restriction.
5. Major layout flaws sometimes require duct redesign.

FAQ

What are the most common ductwork layout mistakes?

Long duct runs, undersized branches, poor return air placement, and excessive bends are the most common ductwork layout mistakes in residential HVAC systems.

Why do some rooms have weak airflow?

Weak airflow usually happens when the room is at the end of a long duct run, the branch duct is undersized, or airflow is being diverted to shorter duct paths.

Can duct layout problems increase energy bills?

Yes. Poor duct layout forces HVAC systems to work harder, increasing energy consumption and reducing overall efficiency.

How do I fix uneven airflow in house ducts?

Start with duct balancing and sealing. If problems continue, the duct layout may need resizing or rerouting to reduce pressure loss.

Are noisy air vents caused by duct design?

Often yes. Restricted airflow, tight bends, and undersized ducts can create high velocity air that causes whistling or rumbling sounds.

Do all rooms need return air ducts?

Not always, but bedrooms often benefit from dedicated returns or jump ducts to prevent pressure imbalance.

What are signs of poor HVAC duct layout?

Signs of poor HVAC duct layout include uneven temperatures, weak airflow in distant rooms, loud ducts, and doors that move due to pressure differences.

Is redesigning ductwork expensive?

Costs vary, but targeted modifications—such as adding returns or resizing key ducts—can often solve problems without replacing the entire system.
