Common DXF to 3D Conversion Errors and How to Fix Them: A practical troubleshooting guide to repair DXF geometry, fix extrusion failures, and produce clean 3D models reliably.

Direct Answer

Most DXF to 3D conversion errors happen because the original DXF contains broken geometry, open polylines, incorrect scaling, or unsupported curve types. Fixing these issues usually requires cleaning the file—closing shapes, simplifying splines, correcting layers, and removing stray entities—before attempting 3D extrusion.

When the underlying geometry is clean and properly scaled, DXF files typically convert into stable 3D models without missing walls, distorted surfaces, or failed extrusions.

Quick Takeaways

1. Open polylines are the most common reason a DXF file cannot extrude into 3D.
2. Incorrect units or scale mismatches often cause distorted or unusable 3D models.
3. Complex splines frequently fail during conversion and should be simplified into polylines.
4. Cleaning unused layers and stray geometry significantly improves conversion reliability.
5. Preparing DXF files properly saves far more time than fixing broken 3D models later.

Introduction

After working on dozens of residential and commercial visualization projects, I've noticed a pattern: most dxf to 3d conversion errors aren't caused by the software. They're caused by messy DXF files.

Architects and designers often export DXF drawings directly from CAD without realizing how fragile those files can be once they move into a 3D workflow. Lines don't connect perfectly. Splines behave unpredictably. Units are inconsistent. The result? Walls refuse to extrude, shapes disappear, or the 3D model becomes distorted.

In my own workflow, the difference between a 30‑second conversion and a two‑hour repair job usually comes down to how clean the DXF file is before it reaches the modeling stage. If you're trying to turn 2D drawings into spatial models, seeing how 2D layouts become structured 3D floor plans in a typical conversion workflowhelps illustrate why geometry integrity matters so much.

This guide walks through the most common DXF to 3D conversion errors I see in real projects and, more importantly, the practical fixes that actually work.

save pin

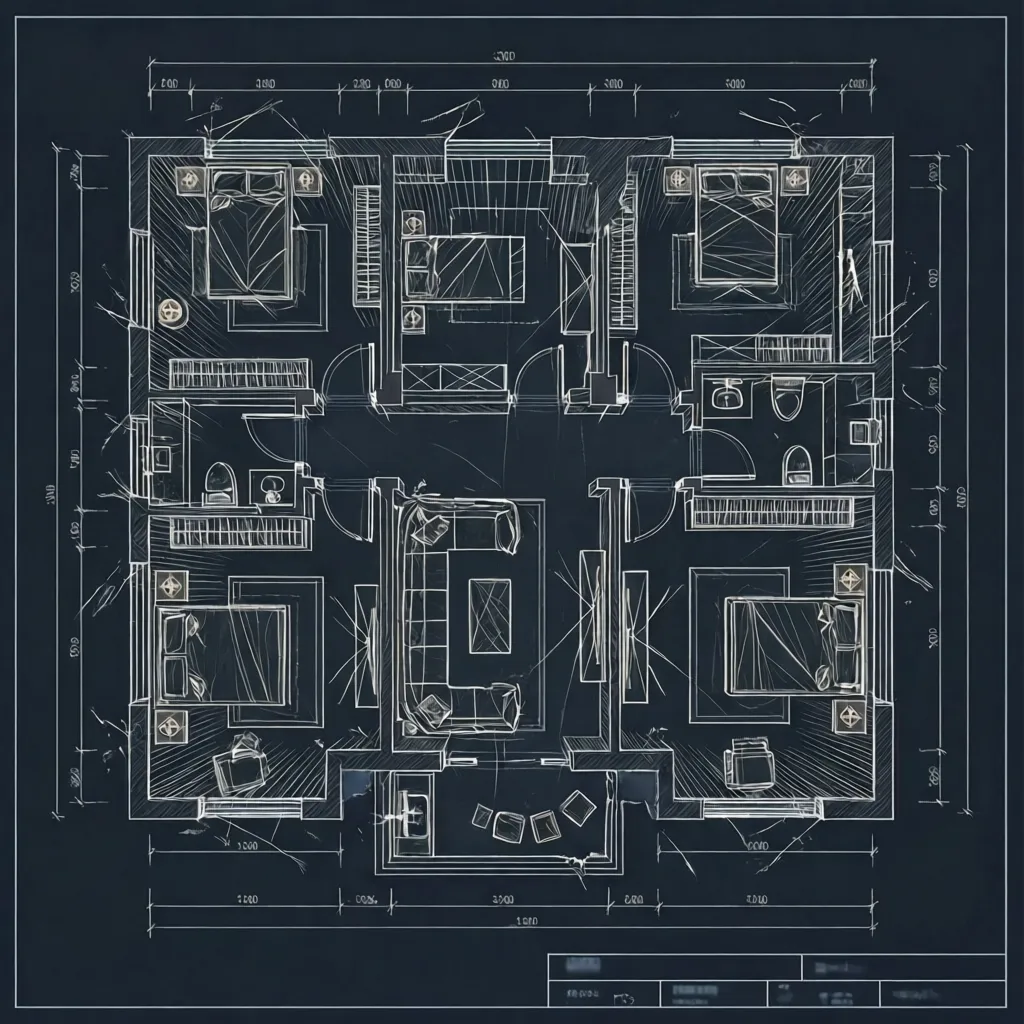

Why DXF Files Fail During 3D Conversion

Key Insight: DXF conversion failures usually originate from geometric inconsistencies that 2D drafting software tolerates but 3D engines cannot interpret.

DXF is an exchange format, not a modeling format. That means many CAD programs allow small inaccuracies—lines slightly overlapping, endpoints that don't perfectly meet, or curves defined with excessive control points. These inconsistencies rarely matter in 2D drawings but become critical in 3D.

Typical failure points include:

1. Open boundary shapes
2. Overlapping lines
3. Duplicate geometry
4. Unsupported curve types
5. Incorrect units or scale

Autodesk documentation on CAD interoperability frequently notes that DXF files are "geometry containers," meaning downstream tools must reinterpret that geometry. If the geometry isn't clean, extrusion and surface generation often fail.

One hidden problem many guides ignore: tiny gaps smaller than 0.01 units can break extrusion. Visually the shape looks closed, but mathematically it isn't.

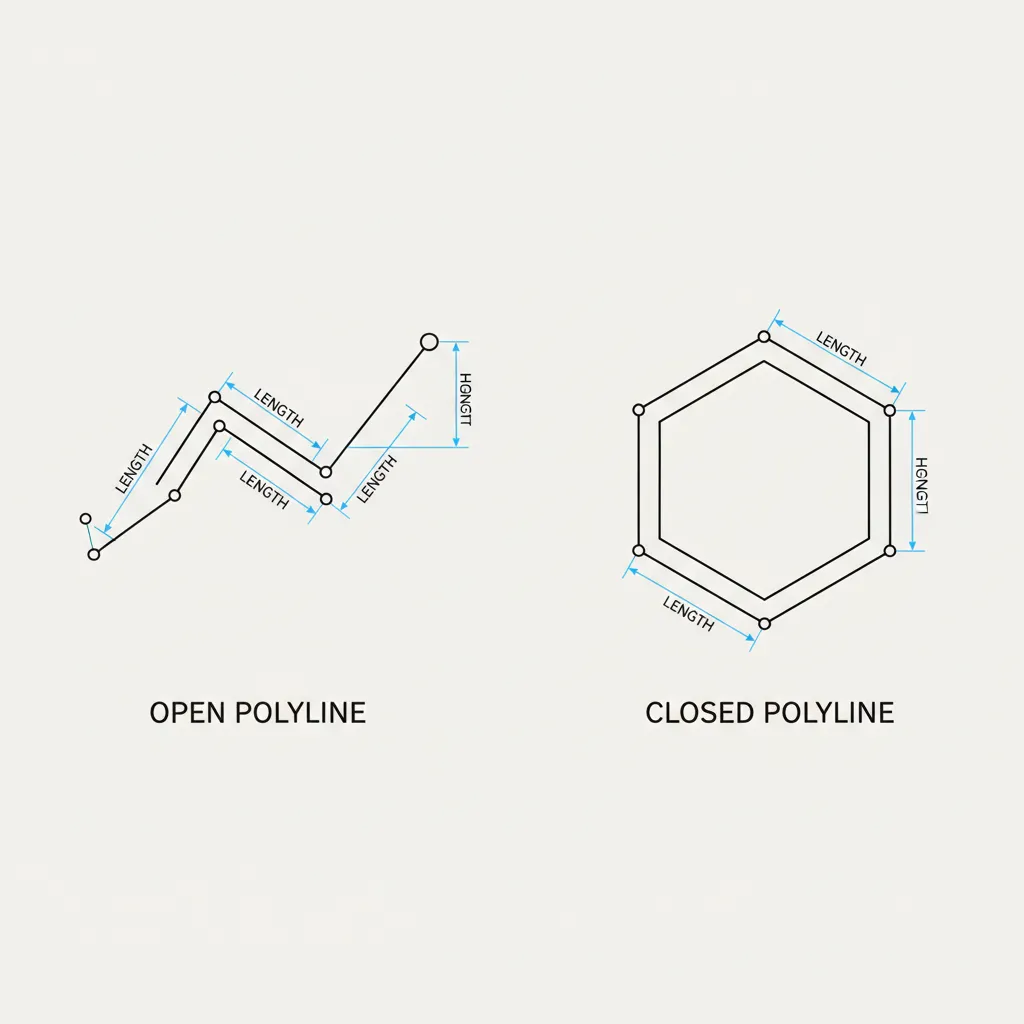

Fixing Broken or Open Polylines

Key Insight: If a DXF file will not extrude, open or fragmented polylines are usually the root cause.

Extrusion requires closed boundaries. When walls, rooms, or shapes are built from disconnected line segments instead of closed polylines, the software cannot determine the interior region.

Steps to repair broken geometry:

1. Use "Join" or "PEDIT" tools in CAD software to merge connected lines.
2. Check endpoints for gaps using object snap tools.
3. Convert splines into polylines when possible.
4. Run "OVERKILL" or similar commands to remove duplicate lines.
5. Verify that shapes report as closed polylines.

In large floor plans, I often run a boundary test: if the software cannot generate a region from a shape, it will likely fail during extrusion as well.

save pin

Resolving Layer and Scaling Problems

Key Insight: Incorrect scale or mixed units can distort the entire 3D model even if the geometry is technically correct.

This is one of the most overlooked DXF to 3D conversion errors. A drawing exported in millimeters may be interpreted as inches or meters by the 3D system.

Symptoms include:

1. Extremely large or microscopic models
2. Walls extruding to unrealistic heights
3. Objects appearing far from the origin

Quick checklist before conversion:

1. Confirm drawing units
2. Reset the base point to (0,0)
3. Delete unused layers
4. Flatten geometry to Z=0

When preparing architectural layouts, I also recommend previewing the geometry in a structured environment similar to a layout system that converts 2D drawings into organized spatial plans. It helps catch scale and alignment issues before extrusion begins.

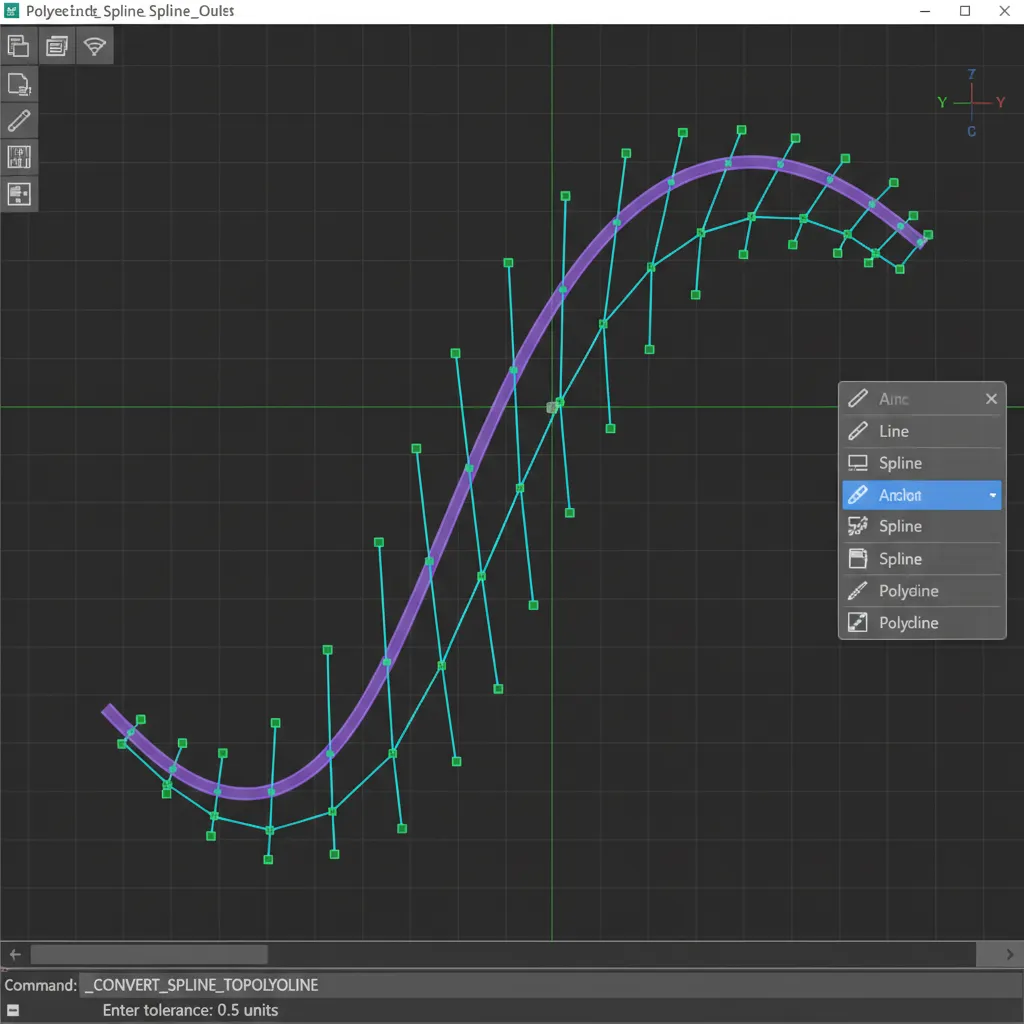

Handling Missing Arcs and Splines

Key Insight: Complex splines often break during DXF conversion because many 3D engines only support simplified curve definitions.

Curves created in advanced CAD environments may contain dozens of control points. During conversion, these curves can collapse, fragment, or disappear entirely.

Best practices:

1. Convert splines to polylines
2. Reduce control points
3. Approximate arcs with segmented curves
4. Avoid unnecessary curve complexity in floor plans

In architectural work, splines are rarely necessary for structural layouts. Simplifying them often improves both file stability and modeling speed.

save pin

Cleaning DXF Files Before 3D Conversion

Key Insight: A properly cleaned DXF file can reduce conversion failures by more than half in real production workflows.

Over the years I've developed a simple "DXF hygiene" routine before every 3D conversion.

Pre‑conversion cleanup checklist:

1. Purge unused layers
2. Delete construction lines
3. Remove duplicate objects
4. Flatten elevation values
5. Merge fragmented wall outlines
6. Verify closed room boundaries

This step takes five minutes but prevents hours of troubleshooting later.

When testing floor plan pipelines, I often validate geometry in environments designed for quickly rebuilding clean floor plans from raw drawings. If the layout imports cleanly there, the DXF structure is usually safe for extrusion.

Answer Box

The fastest way to fix DXF to 3D conversion errors is to repair geometry before extrusion: close all polylines, simplify curves, remove duplicates, and verify scale. Clean DXF files convert far more reliably than complex, unstructured drawings.

Preventing Future Conversion Errors

Key Insight: Preventing DXF problems during drafting is far easier than repairing them after export.

Design teams that work in hybrid 2D–3D pipelines usually follow stricter drafting standards.

Recommended drafting rules:

1. Draw walls as closed polylines
2. Avoid unnecessary splines
3. Maintain consistent units
4. Organize geometry by functional layers
5. Keep floor plans on a single elevation plane

One surprising insight from production workflows: overly detailed CAD drawings often convert worse than simplified ones. Extra decorative geometry may look precise in 2D but introduces conversion instability in 3D.

save pin

Final Summary

1. Most DXF to 3D conversion errors come from broken or open geometry.
2. Scale mismatches frequently distort otherwise valid models.
3. Simplifying splines improves conversion reliability.
4. Cleaning DXF files before extrusion prevents major workflow delays.
5. Consistent drafting standards eliminate many future conversion problems.

FAQ

Why does my DXF file not extrude into 3D?

The most common reason is open polylines. Extrusion requires closed boundaries. Even tiny gaps between lines can prevent surfaces from forming.

What causes DXF to 3D conversion errors?

Broken geometry, duplicate lines, unsupported splines, and unit mismatches are the most frequent causes of dxf to 3d conversion errors.

How do I fix broken DXF geometry before 3D modeling?

Join connected lines, remove duplicates, convert splines to polylines, and verify all shapes are closed before exporting.

Why do arcs disappear after DXF conversion?

Some converters cannot interpret spline‑based arcs. Converting splines into simplified polylines usually resolves the issue.

What units should a DXF file use for 3D modeling?

Millimeters or meters are most common in architecture. The key is consistency between the CAD software and the 3D environment.

Can messy layers cause DXF conversion problems?

Yes. Hidden objects, duplicate geometry, and unused layers often interfere with automated conversion tools.

Is it better to simplify a DXF before converting to 3D?

Absolutely. Simplified drawings convert faster and produce cleaner geometry.

How can I troubleshoot DXF extrusion problems quickly?

Start by checking closed polylines, removing duplicates, flattening the drawing to Z=0, and confirming units.
