Common Edge Pull Installation Problems and How to Fix Them: Practical fixes designers use to solve misalignment, clearance, and drilling mistakes when installing cabinet edge pulls

Direct Answer

Most edge pull installation problems happen because of three issues: inaccurate drilling, insufficient drawer clearance, or poorly aligned mounting positions. The fix usually involves re‑aligning pilot holes, adjusting placement for finger space, or reinforcing the mounting with proper screws and jigs.

When installed carefully with precise measurements and the right tools, edge pulls become one of the cleanest and most reliable cabinet hardware solutions.

Quick Takeaways

1. Edge pull installation problems usually come from measurement errors rather than hardware defects.
2. Misaligned edge pulls can often be corrected without replacing the cabinet front.
3. Drawer clearance and finger space are the most overlooked design details.
4. Using a drilling jig dramatically reduces installation mistakes.
5. Small repair techniques can hide incorrect drill holes effectively.

Introduction

Edge pull installation problems are more common than most homeowners expect. After working on dozens of modern kitchen and wardrobe projects over the past decade, I can say the hardware itself is rarely the problem. The issue almost always appears during installation.

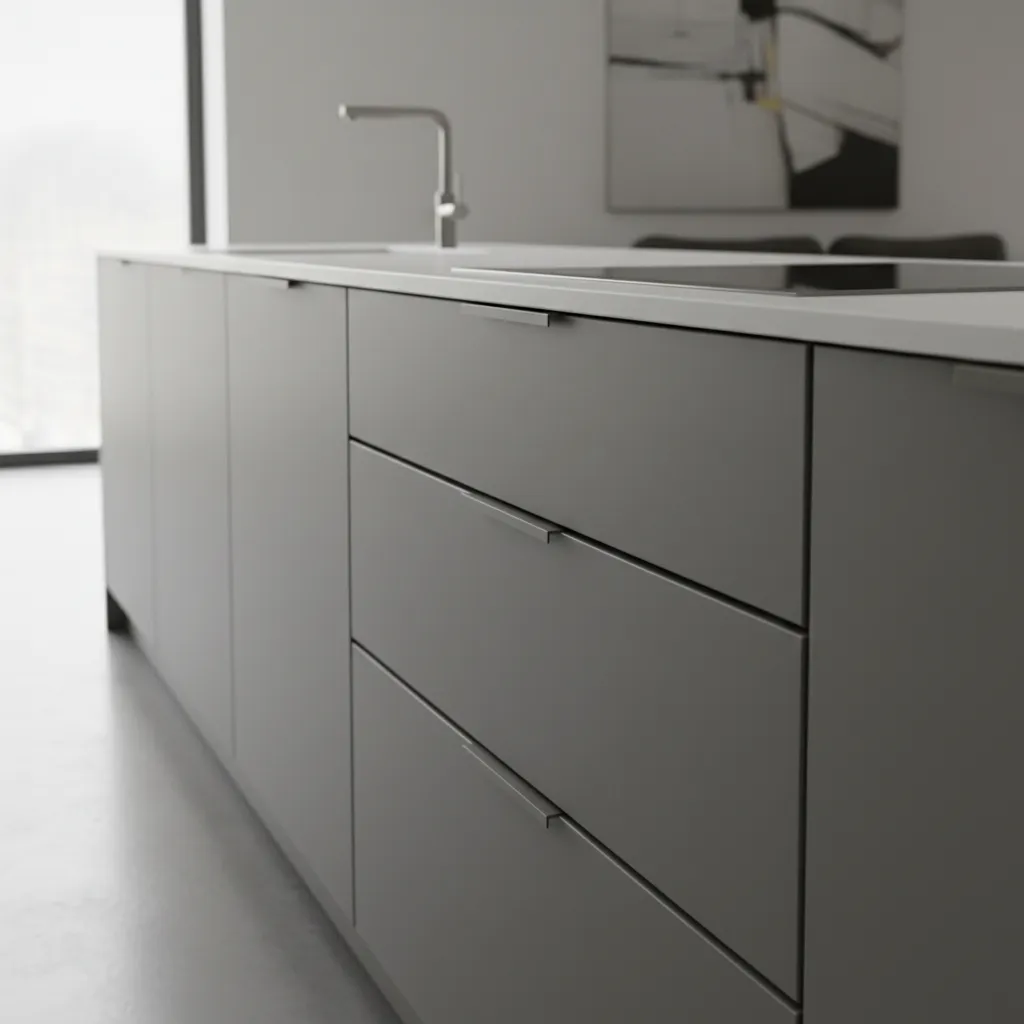

Unlike traditional cabinet handles, edge pulls sit on the top edge or side of a drawer front. That sleek minimalist look leaves almost no room for positioning mistakes. Even a two‑millimeter misalignment can make the handle feel crooked or uncomfortable to grab.

In several kitchen projects I've designed, we actually mocked up layouts digitally before installing hardware to avoid clearance issues. If you're planning cabinetry from scratch, tools that help you experiment with drawer layouts before installing hardwarecan prevent many of these problems entirely.

This guide walks through the most common installation mistakes I see on job sites and the practical fixes that professionals use to solve them without replacing cabinets.

save pin

Why Edge Pull Installation Can Be Tricky

Key Insight: Edge pulls look simple, but their minimal design leaves almost zero tolerance for installation errors.

Traditional cabinet knobs hide small alignment mistakes because they mount through the center of the door. Edge pulls, however, sit along the cabinet edge, making every measurement visible.

There are three technical reasons they cause trouble:

1. Limited mounting surface – the screw holes sit very close to the drawer edge.
2. Visual alignment sensitivity – even slight offsets become noticeable.
3. Functional clearance requirements – fingers must fit comfortably under the pull.

According to recommendations from the National Kitchen & Bath Association (NKBA), hardware placement consistency is one of the most important visual factors in cabinetry. With edge pulls, consistency becomes even more critical because the hardware line visually continues across all drawers.

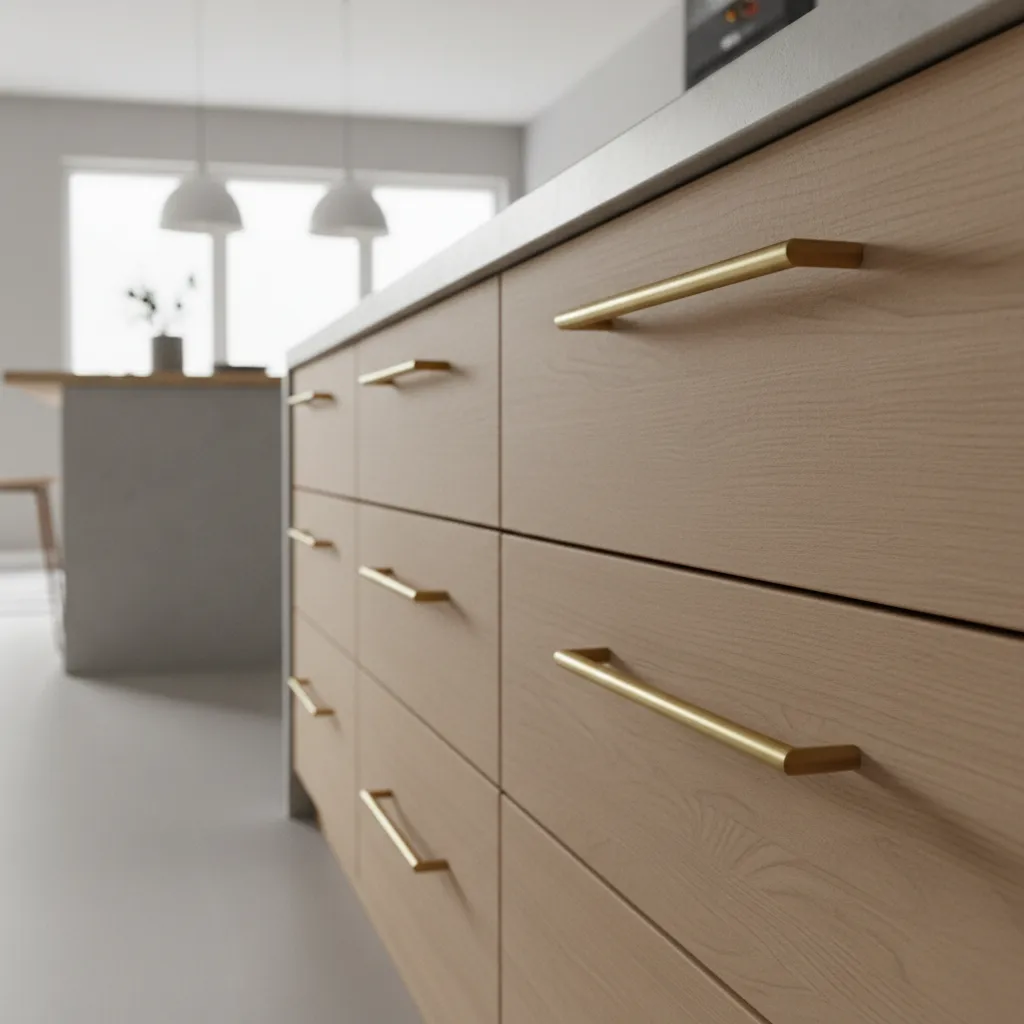

Misaligned Edge Pulls and How to Correct Them

Key Insight: Most misaligned edge pulls can be fixed by slightly enlarging pilot holes and repositioning the handle before tightening.

Misalignment typically happens when installers drill pilot holes without a template or measuring jig.

Here are the professional fixes:

1. Step 1: Remove the pull and inspect the pilot holes.
2. Step 2: Slightly widen the hole using a 1–2 mm larger bit.
3. Step 3: Realign the pull using a straightedge across neighboring drawers.
4. Step 4: Reinstall screws without overtightening.

If the misalignment is severe, wood filler or dowels can plug the old holes before redrilling.

In several modern condo renovations I've worked on, installers used painter's tape lines across the entire cabinet run to keep edge pulls perfectly aligned before drilling.

save pin

Fixing Loose or Wobbly Edge Pull Hardware

Key Insight: A loose edge pull usually indicates stripped pilot holes or screws that are too short.

Because edge pulls mount at the cabinet edge, the screws often bite into a thinner section of material. Over time, that can cause loosening.

Common solutions include:

1. Use slightly longer screws if cabinet thickness allows.
2. Insert wooden toothpicks or dowels with wood glue to tighten stripped holes.
3. Upgrade to machine screws with threaded inserts for heavier drawers.

Professional cabinet installers often reinforce pulls on wide drawers, especially in kitchens where drawer loads can exceed 50 pounds.

Dealing With Drawer Clearance and Finger Space Issues

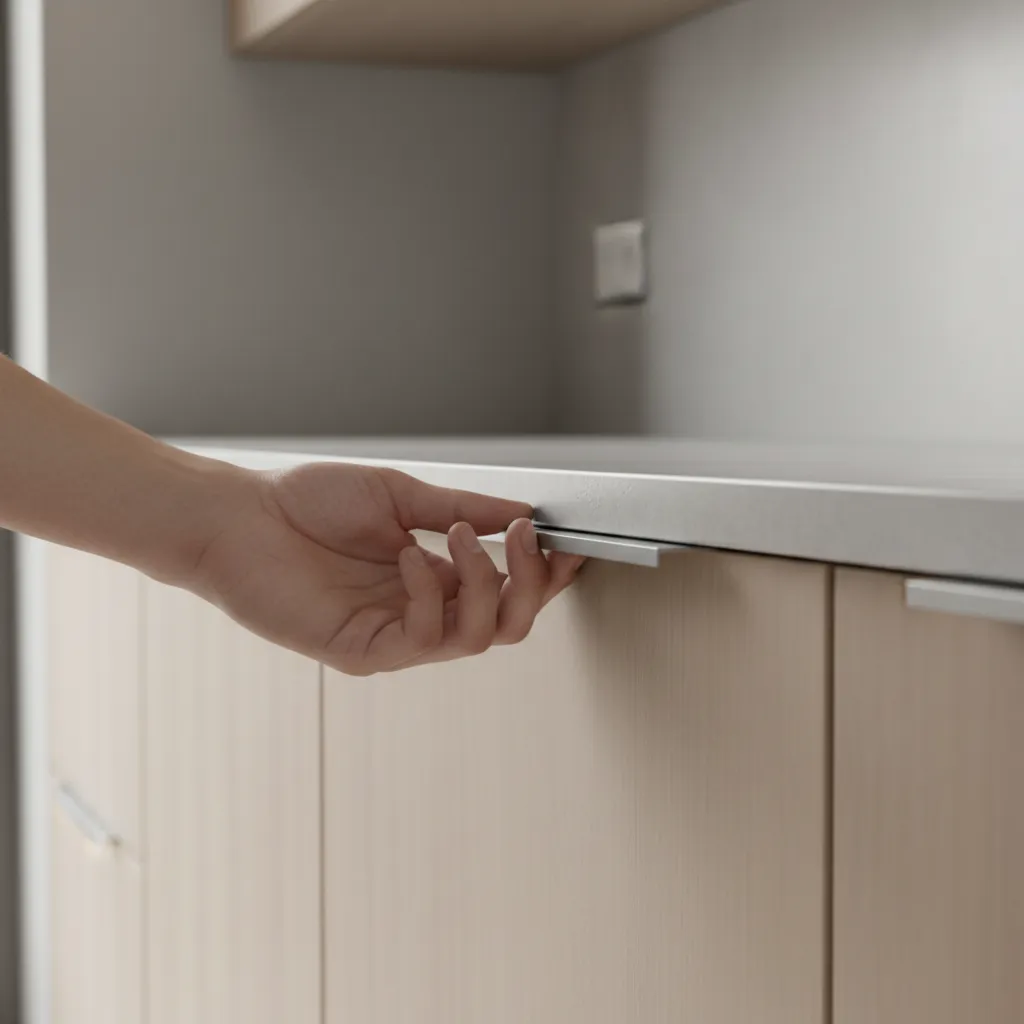

Key Insight: Poor finger clearance is one of the most common but least discussed edge pull installation mistakes.

Many homeowners install edge pulls too close to the cabinet frame, leaving little room to grip the handle.

Recommended spacing guidelines:

1. Minimum finger clearance: 20–25 mm
2. Ideal pull projection: 18–30 mm
3. Consistent reveal across all drawers

In kitchen layouts where drawers sit beneath countertops, the overhang can reduce finger access even further.

When planning cabinetry layouts, it helps to visualize drawer spacing and countertop overhang in a 3D layout previewbefore installation.

save pin

Repairing Cabinets After Incorrect Drill Holes

Key Insight: Incorrect drill holes are repairable in most cabinet materials with simple woodworking techniques.

Drilling mistakes happen frequently during first‑time installations. The good news is that most cabinets can be repaired without replacing the entire drawer front.

Effective repair methods include:

1. Wood filler for painted cabinets
2. Color‑matched wax sticks for laminate surfaces
3. Wood dowel plugs for solid wood fronts

After filling, sand lightly and redrill the pilot hole in the correct position.

Many professional installers actually drill from a jig attached to the cabinet edge to avoid this problem entirely.

Tools and Techniques for Accurate Edge Pull Installation

Key Insight: The easiest way to avoid edge pull installation problems is using positioning jigs and precise measurement techniques.

On most of my projects, installers rely on a small set of specialized tools that dramatically improve accuracy.

Essential tools:

1. Cabinet hardware drilling jig
2. Combination square
3. Painter's tape alignment guide
4. Depth stop drill bit
5. Soft clamp for holding pulls during installation

Planning also matters. Designers often map hardware placement while planning cabinetry layouts. Tools that allow you to test cabinet spacing and storage layouts in a virtual room plan can reveal drawer spacing issues before any drilling happens.

Answer Box

The most common edge pull installation problems are misalignment, loose screws, and insufficient finger clearance. These issues are usually caused by inaccurate drilling or poor layout planning. Using a drilling jig and verifying spacing before installation prevents most problems.

Final Summary

1. Edge pull installation errors usually come from inaccurate drilling.
2. Misaligned pulls can often be corrected without replacing drawers.
3. Finger clearance should be planned before hardware installation.
4. Incorrect holes can be repaired using filler or dowel plugs.
5. Drilling jigs dramatically improve installation accuracy.

FAQ

Why do my cabinet edge pulls feel loose?

Loose edge pulls usually come from stripped pilot holes or short screws. Reinforcing the hole with wood dowels or using longer screws typically solves the problem.

How do you fix misaligned cabinet edge pulls?

Remove the handle, widen the pilot hole slightly, realign the pull using a straightedge, and reinstall the screws. Severe misalignment may require filling and redrilling.

What causes edge pull drawer clearance issues?

Clearance problems happen when pulls are installed too close to cabinet frames or countertops, leaving insufficient finger space.

How much finger space should edge pulls have?

Most designers recommend at least 20–25 mm of finger clearance for comfortable grip access.

Can you repair cabinet holes for edge pull handles?

Yes. Wood filler, dowel plugs, or wax repair sticks can hide incorrect drill holes before redrilling.

Are edge pulls harder to install than regular handles?

Yes. Because they mount on the cabinet edge, precise alignment and spacing are more critical.

What tools help prevent edge pull installation problems?

A cabinet hardware jig, depth‑stop drill bit, and alignment guides help ensure consistent placement.

What is the best way to install edge pulls on kitchen drawers correctly?

Measure carefully, mark consistent reference lines, drill pilot holes using a jig, and test fit before fully tightening screws.
