Common Electrical Floor Plan Drawing Errors and How to Fix Them in Software: A practical guide to spotting electrical layout mistakes early and correcting them efficiently using modern design software.

Direct Answer

The most common electrical floor plan drawing errors include incorrect symbols, broken circuit connections, wrong scaling, missing components, and misconfigured software layers. Most of these issues happen during drafting rather than engineering, and they can usually be fixed by correcting symbol libraries, verifying routing paths, and adjusting CAD software settings.

When designers standardize symbols, lock scale settings, and verify electrical connections before exporting drawings, most electrical floor plan mistakes can be prevented entirely.

Quick Takeaways

1. Incorrect electrical symbols are the most frequent source of confusion in floor plans.
2. Circuit routing mistakes often come from disconnected nodes or overlapping layers.
3. Scaling problems can distort fixture spacing and misrepresent electrical loads.
4. Duplicate or missing components usually appear after copying layouts between rooms.
5. Correct software layer and snap settings prevent many drafting errors.

Introduction

Electrical floor plan drawing errors are surprisingly common, even in projects handled by experienced designers. After working on residential and small commercial interiors for more than a decade, I’ve noticed that most problems don’t come from electrical engineering itself. They come from drafting mistakes inside design software.

Designers often discover issues only after contractors review the drawings. A light switch is connected to the wrong circuit, outlets are duplicated, or the scale makes spacing look incorrect. At that point, fixing the plan can delay construction documentation.

Modern digital tools make this easier to prevent, especially when the layout and visualization workflow are integrated. Many designers now rely on tools that combine planning and visualization so they can visualize lighting layouts and electrical placement in realistic interior scenesbefore finalizing technical drawings.

In this guide, I’ll break down the electrical floor plan drawing mistakes I see most often in real projects and explain how to fix them directly inside design software.

save pin

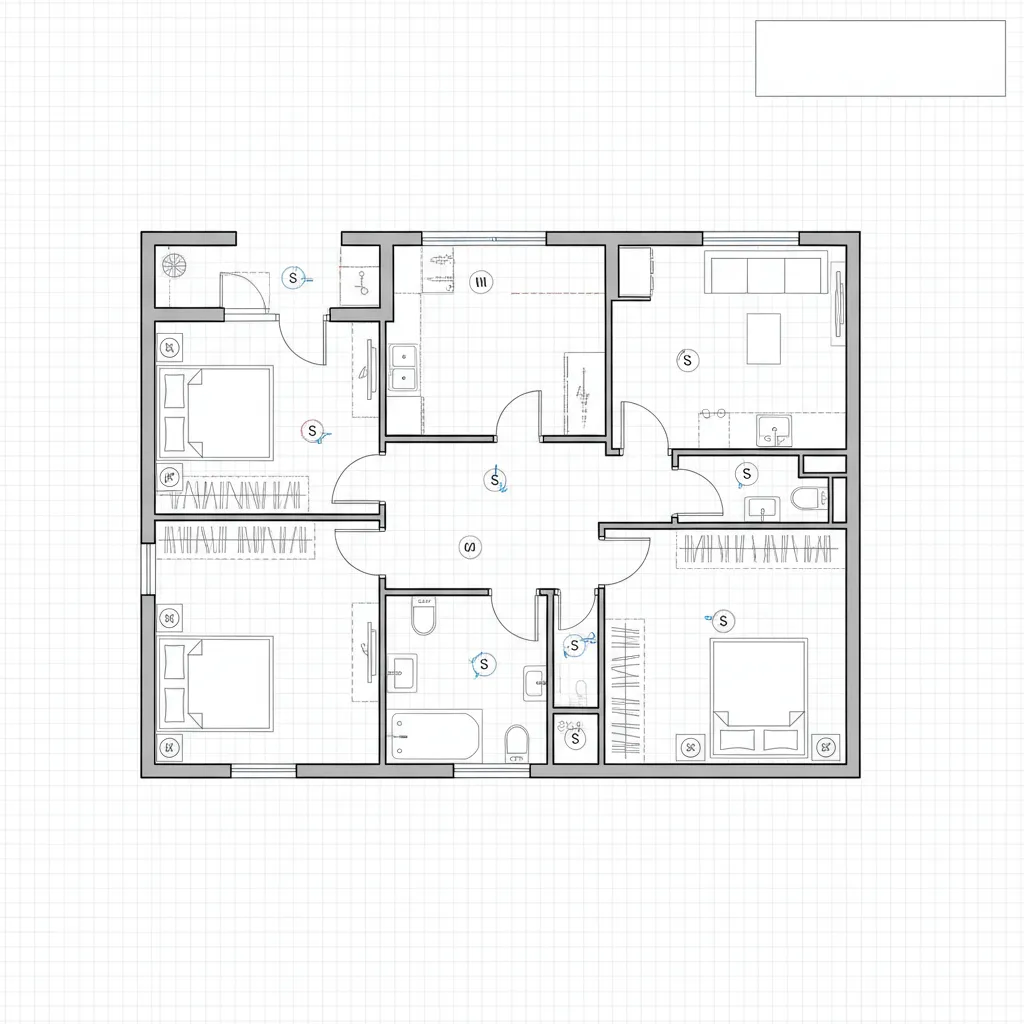

Incorrect Electrical Symbols in Floor Plans

Key Insight: Using inconsistent or outdated electrical symbols is one of the fastest ways to create confusion between designers, electricians, and inspectors.

Electrical drawings rely on standardized symbols to communicate device types. When symbols vary across a project—or when designers import blocks from different libraries—the meaning becomes unclear. I've seen projects where three different outlet symbols were used for the same receptacle.

Many CAD users copy symbols from previous projects without checking the symbol library. Over time, this creates a mix of standards.

How to fix symbol inconsistencies

1. Use one standardized electrical symbol library per project.
2. Check symbol scale before placing components.
3. Label special devices such as GFCI or dedicated circuits.
4. Avoid mixing architectural blocks with electrical blocks.

According to the U.S. National CAD Standard, consistent symbol usage is essential for construction documentation clarity. Even small variations can lead to installation mistakes on site.

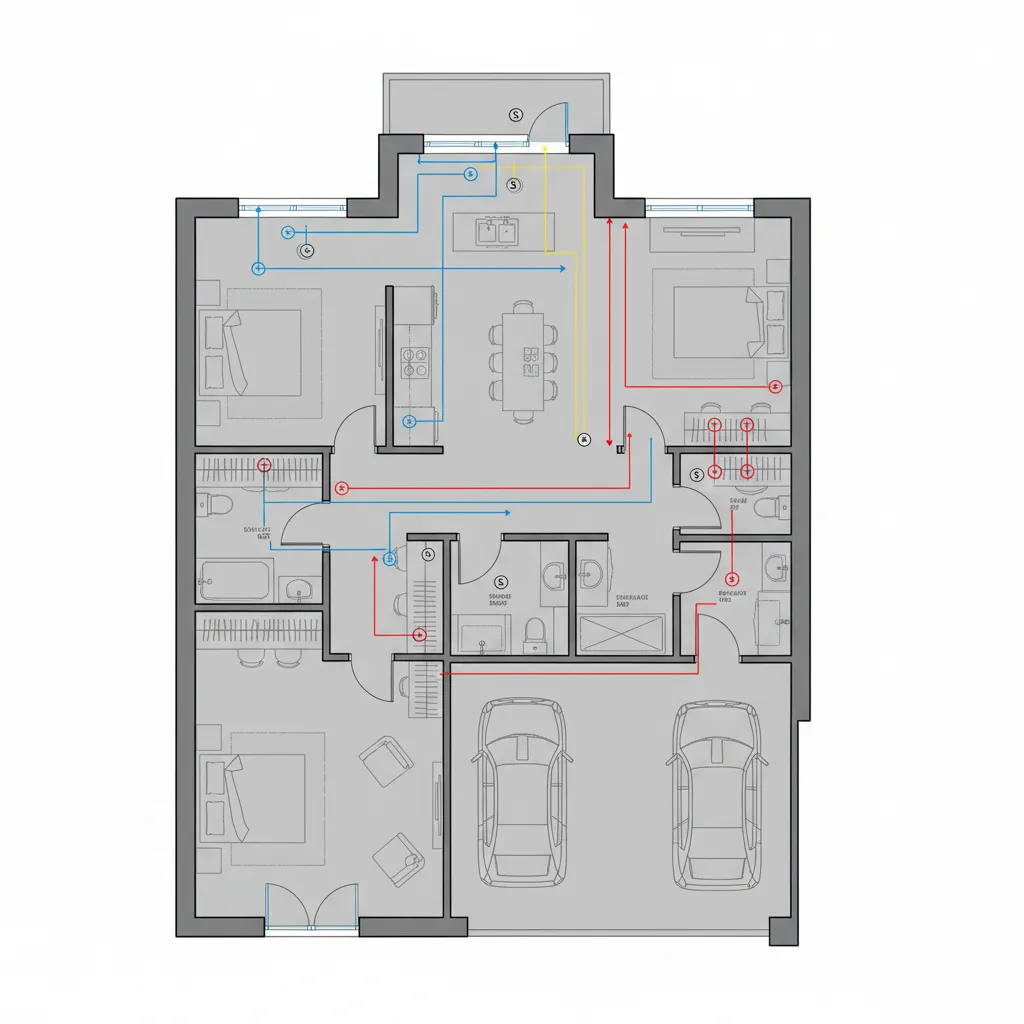

Circuit Routing and Connection Mistakes

Key Insight: Many electrical layout design errors occur because circuits appear connected visually but are not actually linked in the drawing structure.

When routing electrical lines, designers often focus on visual alignment rather than connection logic. In several residential renovation projects I reviewed, circuits crossed walls but were never technically connected to fixtures.

This happens especially when snap settings or connection nodes are disabled.

Typical circuit routing mistakes

1. Disconnected switch-to-light wiring
2. Circuits overlapping without junction points
3. Lines drawn on the wrong layer
4. Misplaced electrical panels

Before exporting drawings, zoom into every connection point and confirm the circuit path is continuous. Some designers now sketch routing during early layout planning using tools that help map room layouts and circulation paths before placing electrical components, which reduces routing conflicts later.

save pin

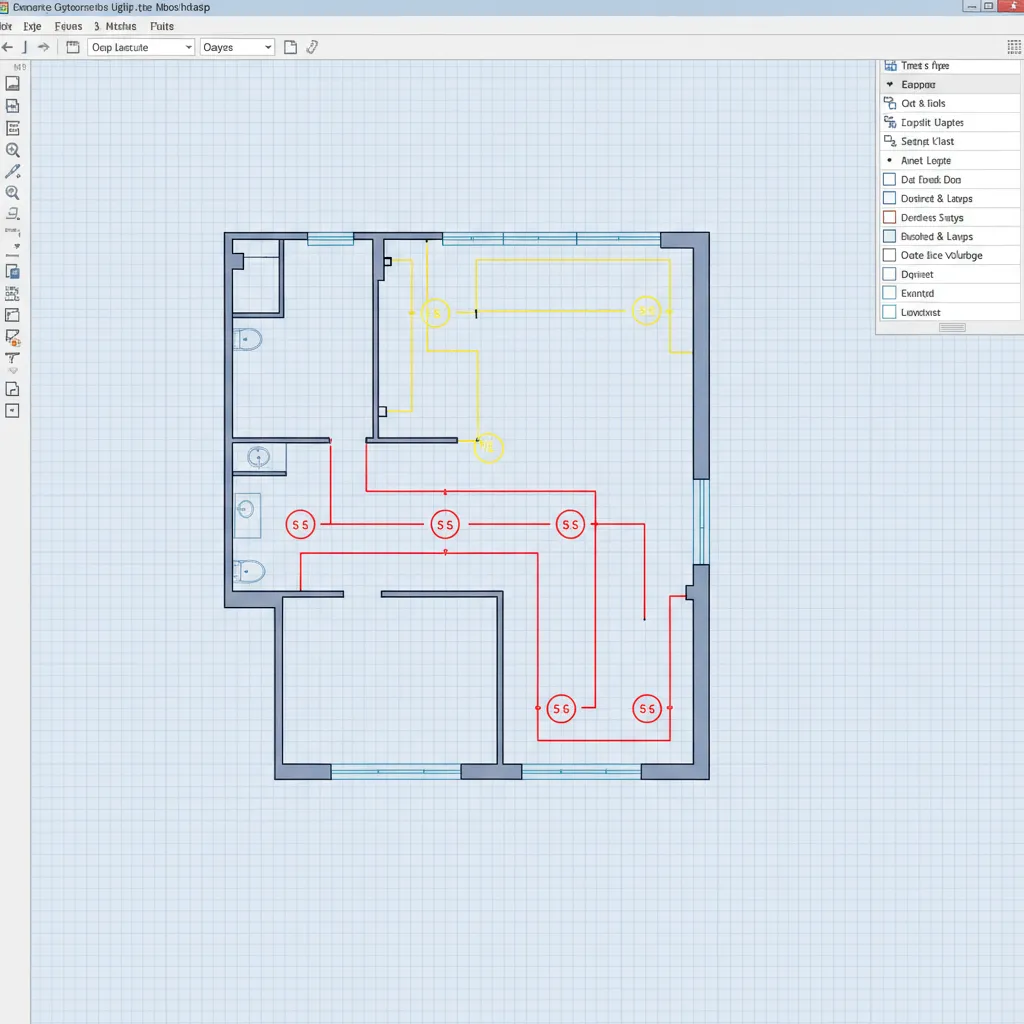

Scaling and Layer Configuration Problems

Key Insight: Incorrect drawing scale or layer setup can make an electrical plan technically correct but practically unusable.

One hidden issue many designers overlook is scale drift. If a project imports furniture or architectural references from another file, the scale may shift slightly. That affects outlet spacing, lighting alignment, and code compliance distances.

Layer configuration is another source of errors. Electrical elements sometimes sit on architectural layers, which causes problems when teams hide or isolate layers during review.

Checklist for fixing scaling and layer issues

1. Confirm the drawing scale immediately after importing files.
2. Assign dedicated layers for lighting, outlets, switches, and wiring.
3. Lock reference layers to avoid accidental edits.
4. Use color coding for quick layer identification.

Industry drafting standards recommend separating electrical elements from architectural geometry to keep documentation readable during coordination reviews.

save pin

Answer Box

Most electrical floor plan drawing errors come from drafting workflow issues rather than technical design mistakes. Standardized symbols, verified circuit connections, and properly configured layers eliminate the majority of problems.

Designers who validate drawings visually and structurally before export significantly reduce installation errors.

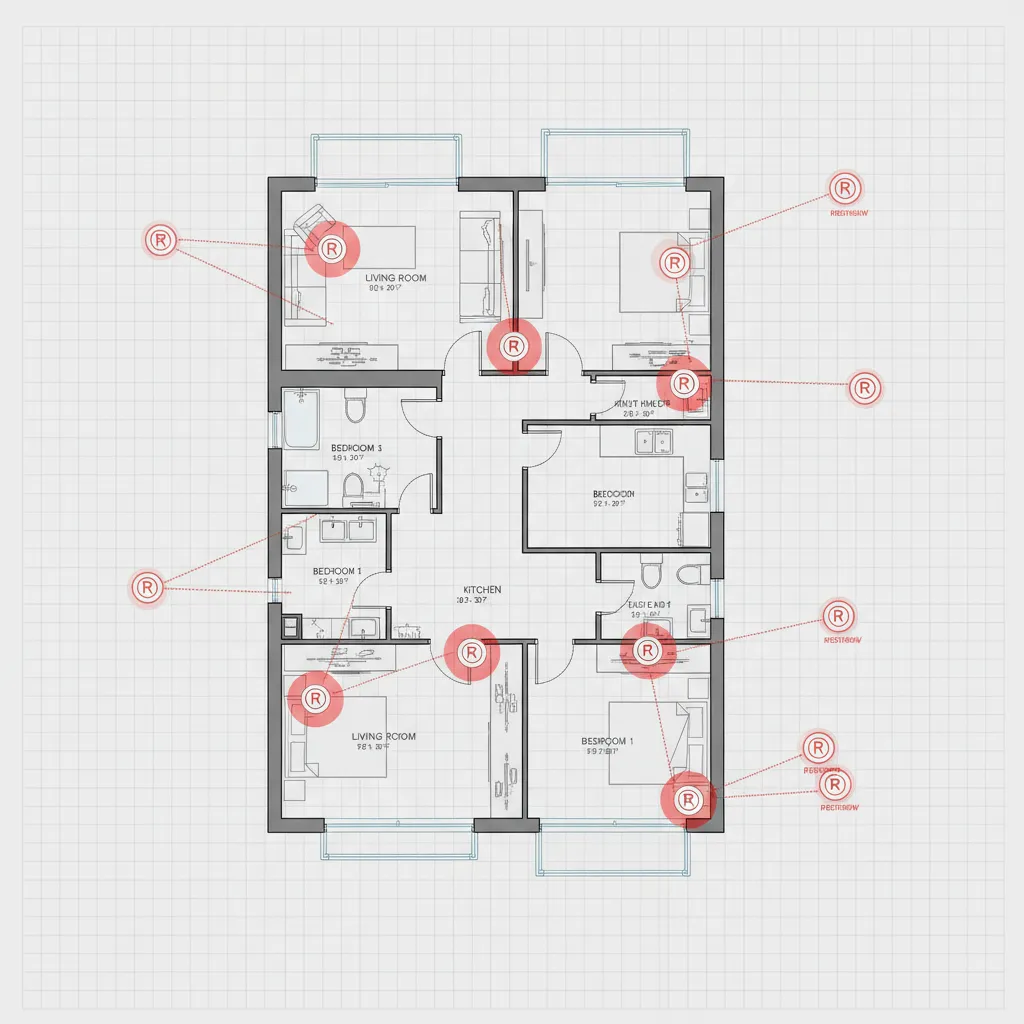

Duplicate or Missing Electrical Components

Key Insight: Copy‑pasting room layouts often creates hidden duplicates or removes critical components.

This is especially common in apartment projects or office layouts where rooms repeat. Designers copy one room's electrical setup and paste it across the floor plan. Over time, outlets or switches may stack on top of each other.

On the other hand, some rooms end up missing essential fixtures entirely.

How to detect these problems

1. Run component count checks for outlets and switches.
2. Use layer isolation to verify each device type.
3. Turn on object selection filters to highlight duplicates.
4. Compare fixture counts with electrical schedules.

Many layout tools now allow designers to quickly generate structured floor plan layouts for residential spaces, which helps maintain consistency when duplicating rooms.

save pin

Software Settings That Cause Drawing Errors

Key Insight: Incorrect software configuration often creates electrical floor plan drawing mistakes even when the design itself is correct.

Several settings inside CAD and planning tools directly affect electrical drafting accuracy.

Settings that frequently cause issues

1. Disabled object snap settings
2. Incorrect unit configuration
3. Grid alignment turned off
4. Auto‑layer assignment disabled

When snaps are disabled, devices appear aligned but may actually sit slightly off grid. This can break circuit connections or create visual inconsistencies.

Before starting a project, configure a template file with predefined layers, units, and snapping behavior. This single step prevents a surprising number of electrical plan errors.

Best Practices to Prevent Electrical Plan Mistakes

Key Insight: Prevention comes from workflow discipline rather than better software.

Over the years, I’ve learned that electrical drafting errors rarely happen during careful planning. They appear during revisions, imports, or quick adjustments late in the project.

Reliable workflow habits

1. Use one symbol library across the entire project.
2. Verify circuit continuity before exporting PDFs.
3. Lock architectural reference layers.
4. Run duplicate component checks before final review.
5. Review the electrical plan in both schematic and visual modes.

One practical technique is switching between technical drawing view and spatial visualization. When designers review lighting placement inside realistic interiors, spacing and alignment issues become much easier to detect.

Final Summary

1. Electrical floor plan drawing errors usually originate from drafting workflow issues.
2. Standardized symbol libraries prevent miscommunication.
3. Verifying circuit connections avoids hidden routing mistakes.
4. Correct scale and layer settings keep electrical drawings reliable.
5. Regular component checks prevent duplicates and missing devices.

FAQ

What are the most common electrical floor plan drawing mistakes?

Incorrect symbols, disconnected circuits, scaling errors, duplicate outlets, and wrong layer settings are the most common electrical floor plan drawing mistakes.

Why do electrical floor plans show wrong connections?

This usually happens when circuit lines are visually connected but not linked through snapping points or nodes in the software.

How do I fix electrical symbols in CAD drawings?

Replace inconsistent blocks with standardized symbols from a single library and verify their scale before placing them across the plan.

How can I detect duplicate outlets in an electrical plan?

Use object filters or selection tools to highlight similar components and check them against the electrical schedule.

Do scaling issues affect electrical layouts?

Yes. Incorrect scale can misrepresent outlet spacing, lighting placement, and clearance distances.

What software settings cause electrical drafting errors?

Disabled object snaps, incorrect units, and layer misconfiguration are frequent causes of drafting mistakes.

How can beginners avoid electrical layout design errors?

Start with a template that includes standard layers, symbols, and snap settings, and always verify circuits before exporting drawings.

How to correct electrical CAD drawings quickly?

Review symbol consistency, validate circuit connections, confirm scale settings, and run duplicate component checks.
