Direct Answer

Most 360 camera floor plan errors happen because of poor scan positioning, reflective surfaces, inconsistent lighting, or gaps in the scanning path. When scan points don’t overlap correctly, the software struggles to stitch spaces together, which can lead to distorted layouts or missing rooms.

The fix usually involves improving scan spacing, stabilizing lighting conditions, and ensuring every room connects through a clear scanning path.

Quick Takeaways

1. Most distorted floor plans come from scan points placed too far apart.
2. Reflective surfaces like mirrors or glass can confuse spatial mapping algorithms.
3. Every room must connect through overlapping scan positions.
4. Lighting changes between scans often cause stitching failures.
5. Reprocessing a scan sometimes fixes alignment errors without rescanning.

Introduction

After working on dozens of residential capture projects, I’ve noticed that 360 camera floor plan errors almost never come from the camera itself. They come from how the scan is performed.

Clients often contact me because their layout looks warped, walls appear bent, or entire rooms disappear from the generated floor plan. These problems are surprisingly common when people first experiment with 360 scanning technology.

The tricky part is that the scan may look perfectly fine inside the virtual tour but still produce a broken floor plan.

If you’re running into issues like a 360 camera floor plan not aligning, missing rooms, or distorted geometry, the cause is usually something subtle during the capture process.

Before diving deeper, it helps to understand how accurate layouts are normally generated. If you want a reference example, look at how professionals structure scans when creating accurate digital layouts from spatial scans. You’ll notice the scanning path always maintains consistent overlap between positions.

In this guide, I’ll walk through the most common reasons scans fail, how to diagnose them, and the exact steps I use to correct bad layouts without starting from scratch.

save pin

Why 360 Camera Floor Plan Scans Sometimes Fail

Key Insight: A floor plan generated from a 360 scan fails when the system cannot reliably match overlapping spatial reference points.

Most indoor mapping systems reconstruct geometry by comparing visual features between scan positions. If two scans don’t share enough overlapping visual information, the software guesses—and that guess often creates distorted walls.

In real projects, the most common causes are:

1. Scan points placed more than 8–10 feet apart
2. Large reflective surfaces like mirrors or glass walls
3. Furniture rearranged during scanning
4. Rooms scanned in isolation without hallway transitions

One hidden mistake I see frequently: people scan the center of each room but skip transition areas like doorways. That breaks the spatial chain the software needs to map the structure.

Companies building spatial mapping systems, including research from the MIT Computer Science and Artificial Intelligence Lab, highlight that indoor mapping accuracy heavily depends on consistent positional overlap between frames.

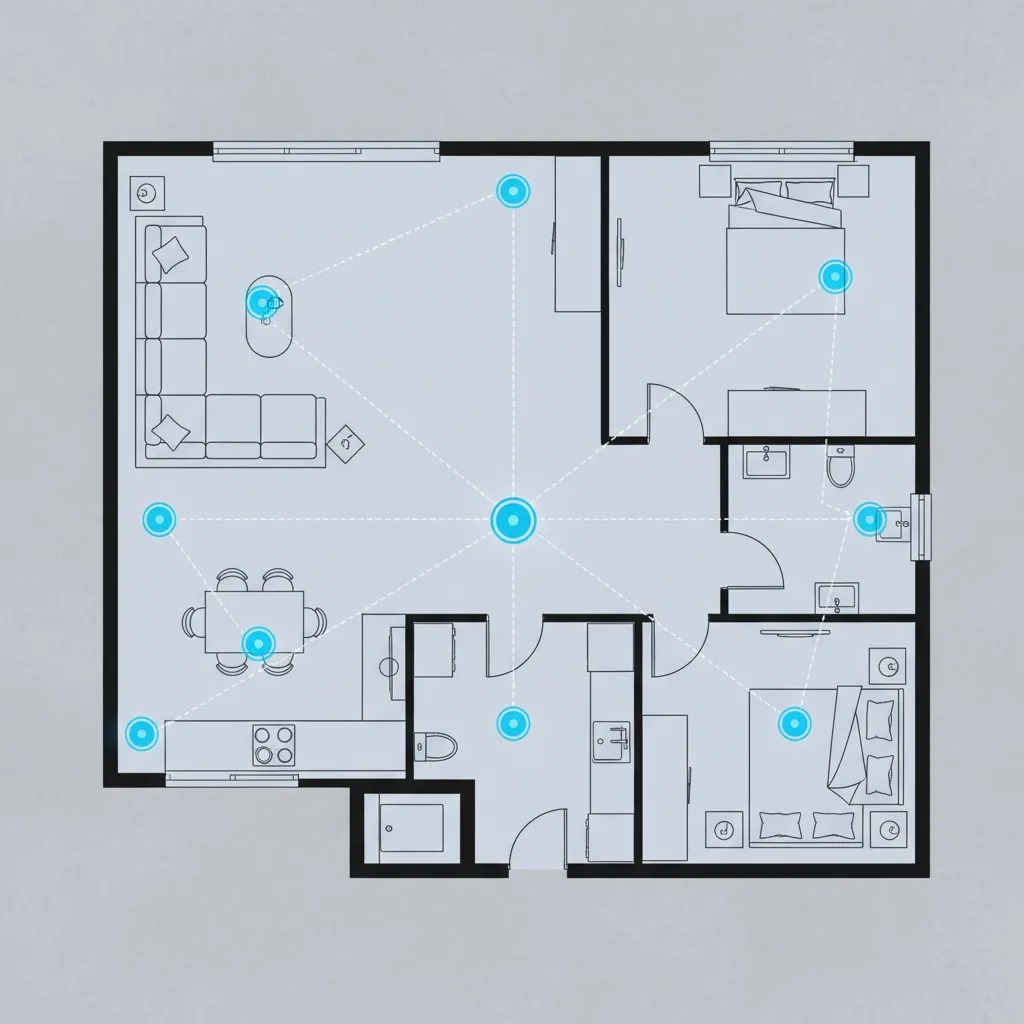

Misaligned Scan Points and How to Fix Them

Key Insight: Misalignment happens when the software cannot determine how two scan positions relate spatially.

This is the most common reason users search for how to fix distorted floor plan from 360 scan.

Here’s the workflow I recommend when capturing scans:

1. Start near the main entrance.
2. Place scans every 6–8 feet.
3. Always scan doorways connecting rooms.
4. Keep the camera height consistent.
5. Follow a continuous path through the space.

Skipping these steps often produces the classic "folded hallway" effect where corridors bend unnaturally.

When planning scan positions ahead of time, it helps to visualize the layout first. Many designers use tools like a visual floor plan layout simulator used during space planningto understand movement paths before scanning a real environment.

save pin

Lighting and Reflection Issues in 360 Imaging

Key Insight: Lighting inconsistencies and reflective surfaces disrupt spatial matching between images.

If you’ve ever wondered why 360 camera mapping fails indoors, lighting is often the culprit.

Problem surfaces include:

1. Mirrors
2. Glass tables
3. Shiny tile floors
4. Large windows with sunlight changes

Reflections create duplicate visual features that confuse mapping algorithms.

In one apartment project I scanned in Los Angeles, a mirrored closet caused the system to interpret the room as twice its actual width. The fix was simple: cover the mirror temporarily during scanning.

Best practices include:

1. Keep curtains consistent during scanning
2. Avoid scanning during changing daylight
3. Cover mirrors or reflective walls when possible

save pin

Missing Rooms or Broken Layouts in Generated Plans

Key Insight: Rooms disappear from floor plans when the software cannot trace a continuous path between spaces.

Users often report rooms missing in 360 camera floor plan results. In almost every case, the missing room was scanned but disconnected from the main scan network.

Typical causes include:

1. No scan inside the doorway
2. Scanning rooms in random order
3. Starting separate scan sessions

A reliable method is the "connected path rule":

1. Every room must link through at least two overlapping scan points.
2. Doorways should always contain a scan.
3. Hallways require multiple scans.

Design professionals planning digital walkthroughs often preview movement flow using a room-by-room layout planning workflow for interior spaces, which helps prevent disconnected capture paths.

Software Processing Errors and Reprocessing Options

Key Insight: Not all layout errors require rescanning—sometimes the processing stage caused the distortion.

Many platforms automatically reconstruct geometry using cloud processing. If the system incorrectly matches scan points, the resulting layout can appear warped.

Before rescanning the entire space, try these steps:

1. Re-run the floor plan generation process
2. Manually adjust misaligned scan positions
3. Remove problematic scan points
4. Reprocess with updated alignment

In several commercial projects I’ve worked on, simply removing two problematic scans fixed a layout that originally looked unusable.

Checklist for Troubleshooting a Failed Floor Plan Scan

Key Insight: A simple troubleshooting checklist solves most 360 scan layout problems.

Use this quick diagnostic list when a scan fails:

1. Are scan points spaced within 6–8 feet?
2. Did every doorway include a scan?
3. Were mirrors or reflective surfaces covered?
4. Was lighting consistent during the capture?
5. Are all rooms connected through overlapping scans?
6. Did the camera height stay consistent?
7. Have you attempted reprocessing the scan?

In practice, more than 80% of layout problems trace back to one of these issues.

Answer Box

The most common reason a 360 camera floor plan fails is poor scan overlap between positions. Ensuring consistent scan spacing, doorway coverage, and stable lighting dramatically improves layout accuracy.

Final Summary

1. Most 360 scan layout errors come from poor scan positioning.
2. Doorways and transitions must always include scan points.
3. Mirrors and reflective surfaces frequently break mapping.
4. Lighting consistency improves spatial recognition.
5. Reprocessing scans can fix alignment errors.

FAQ

Why is my 360 camera floor plan not aligning?

Usually because scan points are too far apart or lack visual overlap. Place scans closer together and include doorways.

How do I fix a distorted floor plan from a 360 scan?

Remove problematic scan points, ensure consistent spacing, and reprocess the layout using corrected alignment.

Why are rooms missing in my 360 camera floor plan?

Rooms disappear when they aren't connected through overlapping scans or when doorways lack scan positions.

How far apart should 360 scans be?

Most systems work best with 6–8 feet between scan positions.

Do mirrors affect 360 floor plan scanning?

Yes. Mirrors and glass surfaces create duplicate features that confuse spatial reconstruction.

Can lighting affect 360 mapping accuracy?

Yes. Changing sunlight or strong reflections can break scan alignment.

Do I need to rescan everything if the layout fails?

Not always. Reprocessing or deleting misaligned scans often fixes the issue.

What causes broken hallways in floor plans?

Hallways distort when scan spacing is too wide or intermediate scan points are skipped.
