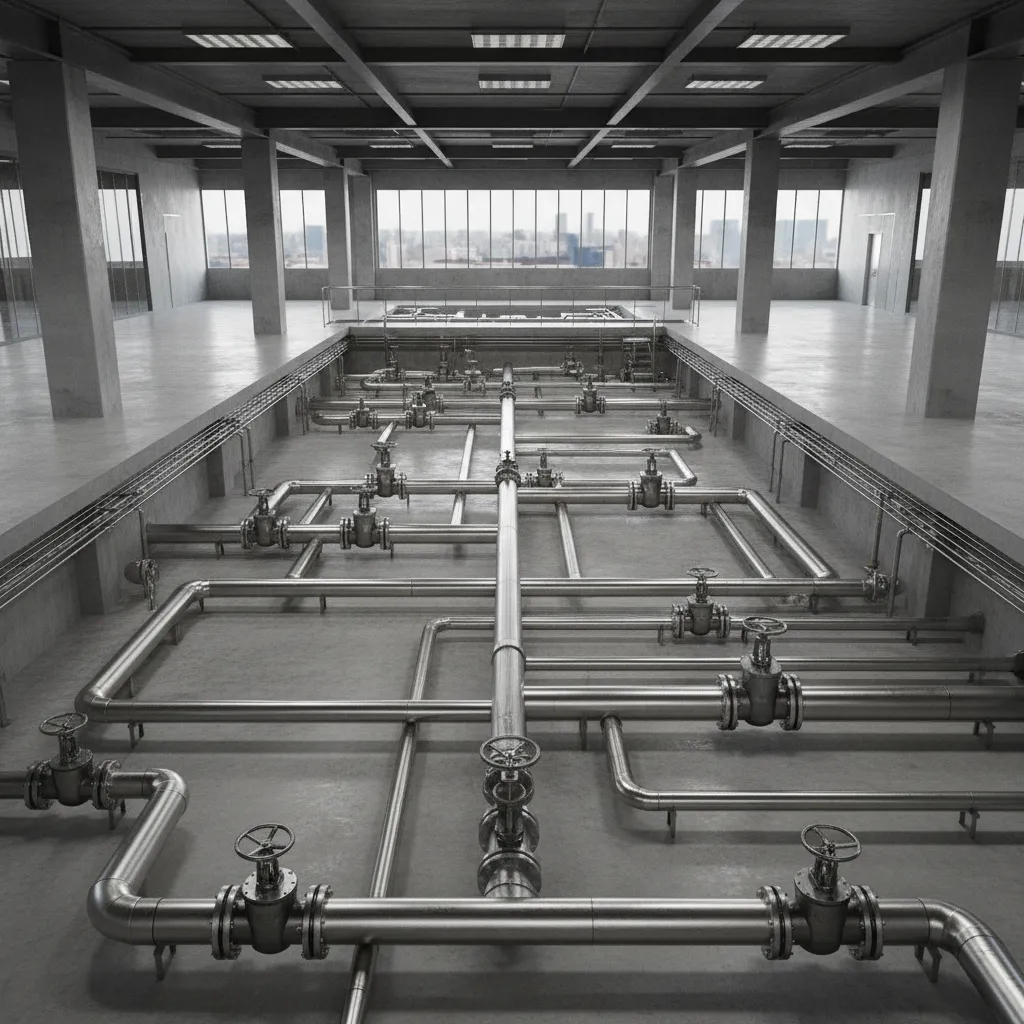

Common Floor Piping Layout Failures and How to Fix Them: Practical troubleshooting insights from real industrial projects to diagnose and correct costly floor piping layout problems

Direct Answer

Most floor piping layout failures come from poor slope planning, inaccessible routing, leak detection blind spots, and maintenance conflicts with surrounding equipment. The fix usually involves correcting drainage gradients, redesigning pipe routes for service access, and improving layout visualization before installation. In industrial facilities, these small layout decisions often determine whether a system runs smoothly for decades or constantly requires emergency repair.

Quick Takeaways

1. Poor drainage slope is the most common hidden cause of floor piping system failures.
2. Pipes routed too close to walls or equipment often become impossible to maintain.
3. Leak detection failures usually stem from layout decisions made during early design.
4. Many industrial piping problems are layout problems rather than material failures.
5. Visualization tools dramatically reduce routing conflicts before construction begins.

Introduction

In more than a decade of working on industrial interiors and facility layouts, I’ve learned that many so‑called “mechanical failures” actually start with a bad floor piping layout. Pumps get blamed. Pipe materials get blamed. But when you open the floor trench or examine the routing drawings, the real issue is usually design logic.

I’ve seen production lines shut down because a drainage pipe ran 6 millimeters too flat. I’ve seen entire maintenance teams struggle for hours because a valve was installed behind equipment with no service clearance. These are not rare cases. They are surprisingly common floor piping layout problems that originate during early planning.

The good news is that most of these failures are predictable. Once you understand the patterns, diagnosing industrial floor piping troubleshooting becomes much easier. Before installation even starts, layout simulations can reveal conflicts. For example, many designers now test routing using a visual floor planning environment that reveals routing conflicts early, allowing adjustments before concrete is poured.

In this guide, I’ll walk through the most common floor piping failures I’ve encountered across manufacturing plants, commercial kitchens, and service facilities—and more importantly, how to fix them.

save pin

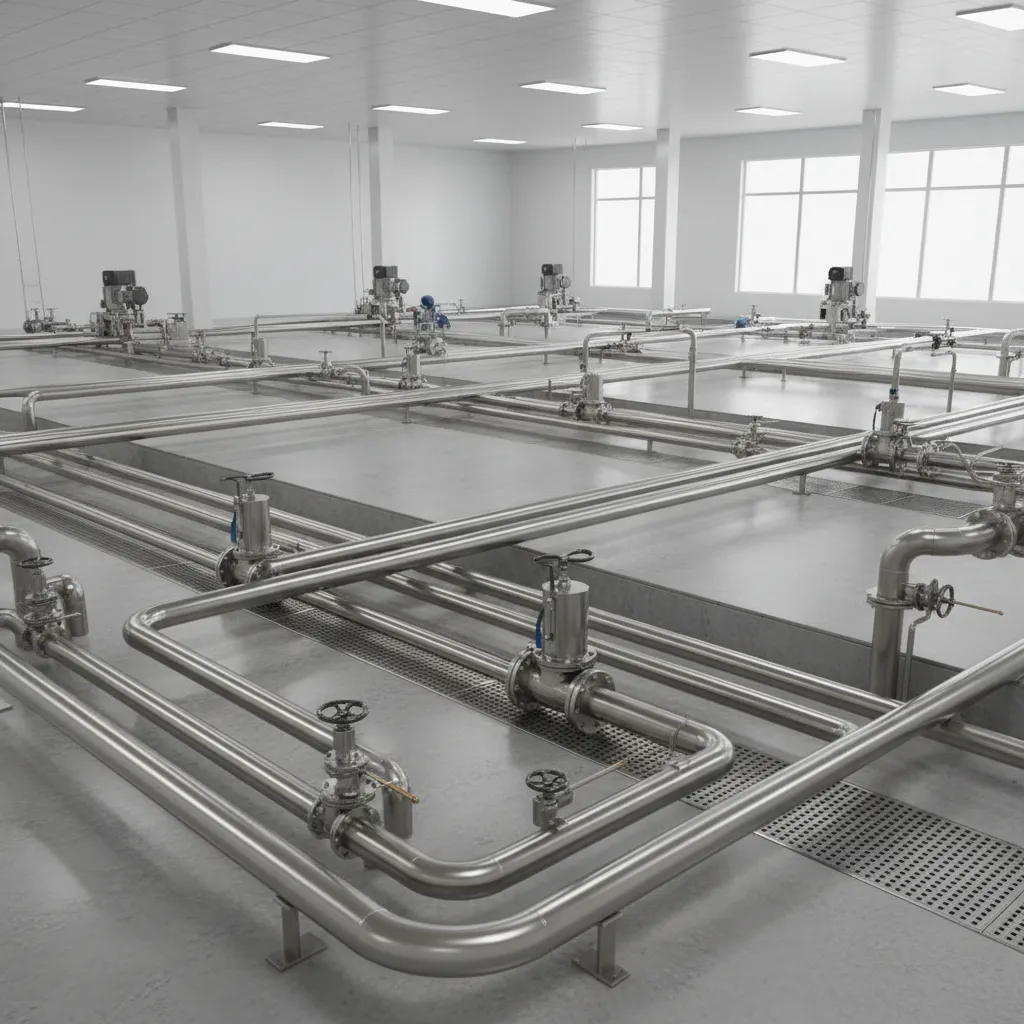

Typical Problems Caused by Poor Floor Piping Layout

Key Insight: Most operational failures in floor piping systems are layout conflicts rather than pipe or material defects.

When floor piping systems fail, people often focus on the pipe itself—corrosion, pressure, or fittings. But in many cases, the underlying issue is routing logic.

Across several factory retrofit projects I worked on, the most expensive problems were not leaks—they were accessibility and routing mistakes embedded into the floor plan.

Common layout failures include:

1. Pipes installed beneath heavy equipment without maintenance access
2. Drain lines that cross walkways and require unnecessary trench covers
3. Routing conflicts between process pipes and utility drains
4. Long horizontal runs with insufficient slope
5. Valves positioned where technicians cannot reach them safely

According to guidance from the American Society of Mechanical Engineers (ASME), maintainability and inspection access are critical design considerations for industrial piping systems. Yet in many facilities, these considerations are overlooked during early layout planning.

The result is a system that technically works—but is extremely difficult to operate.

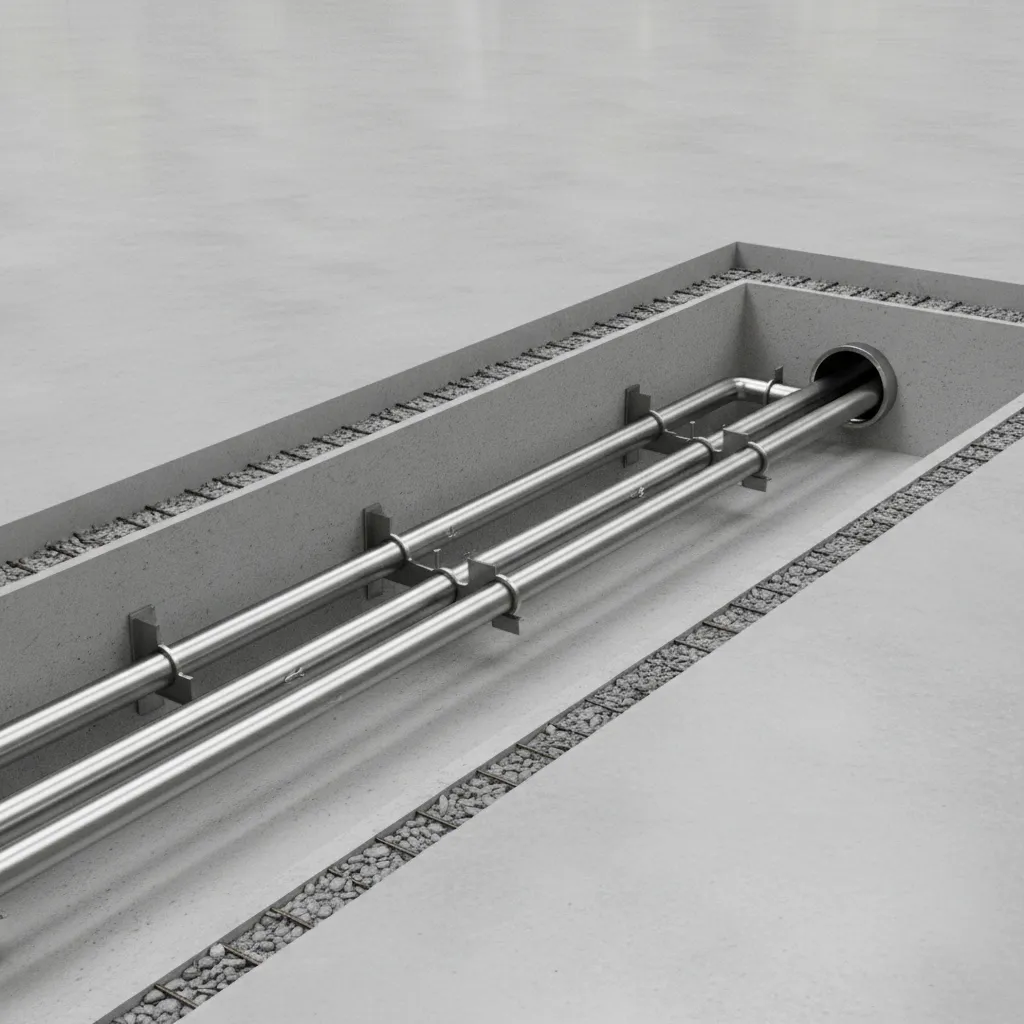

Drainage and Slope Issues in Floor Piping Systems

Key Insight: Inadequate slope is the single most common cause of recurring drainage and blockage issues in floor piping systems.

Drainage failures are often subtle. The system might function during initial operation but gradually develops standing water, residue buildup, or slow discharge.

In industrial piping drainage design, even small slope miscalculations can create long‑term problems.

Typical slope mistakes include:

1. Drain pipes installed nearly level instead of properly graded
2. Slope interruptions caused by structural beams or equipment pads
3. Excessively long horizontal pipe runs
4. Improper drain outlet elevation relative to the main line

Typical recommended drainage slopes:

1. 1–2% slope for most industrial drainage lines
2. Higher slopes for high‑solids wastewater
3. Minimum slope continuity across entire pipe runs

In one beverage facility I consulted on, a persistent floor drain blockage traced back to a design oversight: the pipe lost 12 mm of slope after crossing a concrete beam pocket. The fix required cutting open 8 meters of flooring.

save pin

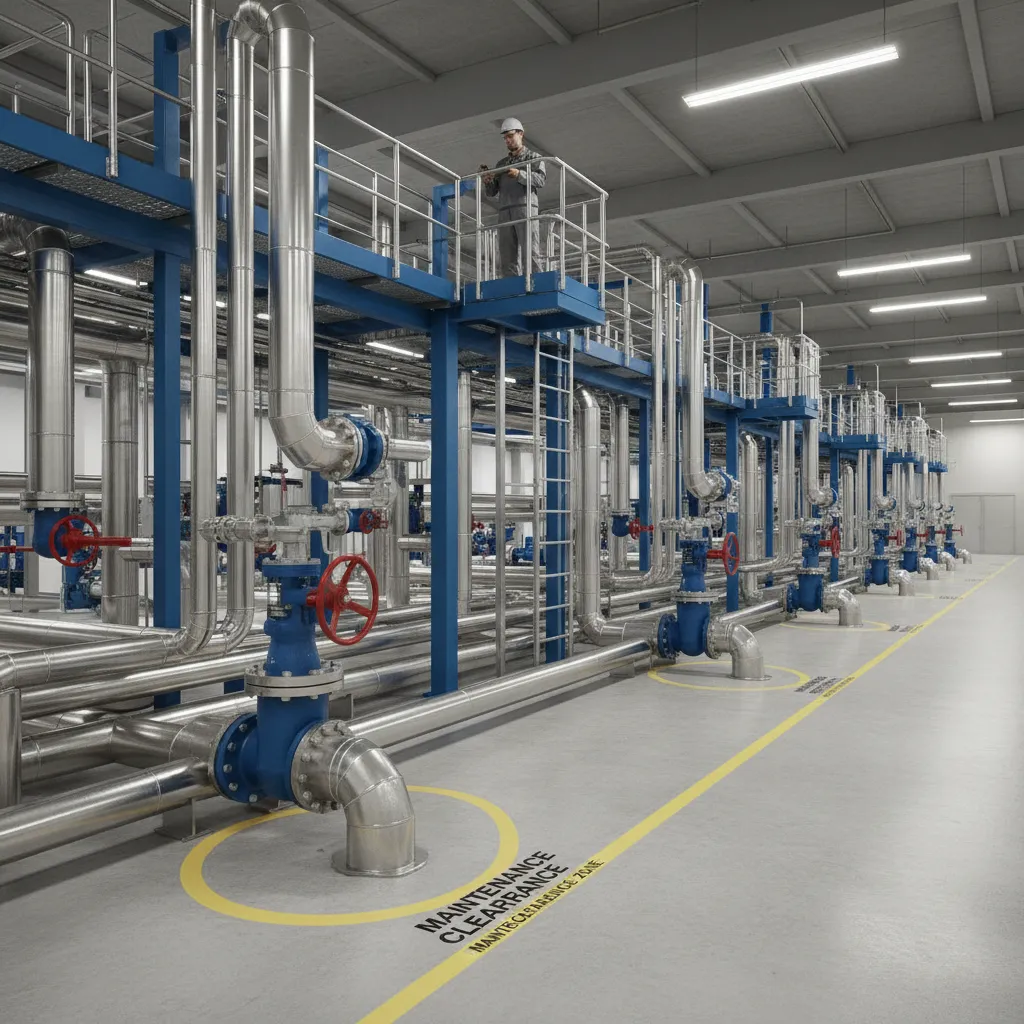

Accessibility Problems During Maintenance

Key Insight: If technicians cannot physically reach a pipe component, the layout has already failed—no matter how efficient it looks on paper.

Maintenance access is one of the most underestimated aspects of industrial piping layout.

I’ve seen plants where replacing a simple valve required dismantling nearby equipment. That isn’t a maintenance issue—it’s a layout mistake.

Critical components that must remain accessible:

1. Isolation valves
2. Clean‑out access points
3. Inspection ports
4. Drain traps
5. Monitoring sensors

One effective strategy is mapping maintenance clearance zones during early planning. Using a visual floor plan environment that highlights service access zoneshelps designers see where technicians actually need space to work.

When access zones are visualized early, layout conflicts become obvious.

save pin

Leak Detection and Containment Challenges

Key Insight: Poor piping layout often hides leaks rather than preventing them, turning minor issues into major operational disruptions.

Leaks are inevitable in any long‑term piping system. What matters is how quickly they can be detected and contained.

Unfortunately, certain layout choices make leak detection extremely difficult.

High‑risk layout conditions include:

1. Pipes embedded directly under sealed flooring
2. Routing beneath sensitive equipment
3. Long runs without inspection points
4. Poorly defined drainage containment zones

The International Facility Management Association (IFMA) emphasizes that early leak detection reduces operational disruption and structural damage.

From experience, the most reliable strategy is combining accessible pipe routing with clear drainage paths that guide leaks toward visible areas rather than hiding them inside the floor structure.

Answer Box

The majority of industrial floor piping troubleshooting cases originate from layout design errors rather than pipe failures. Proper drainage slope, accessible routing, and early visualization dramatically reduce long‑term maintenance problems.

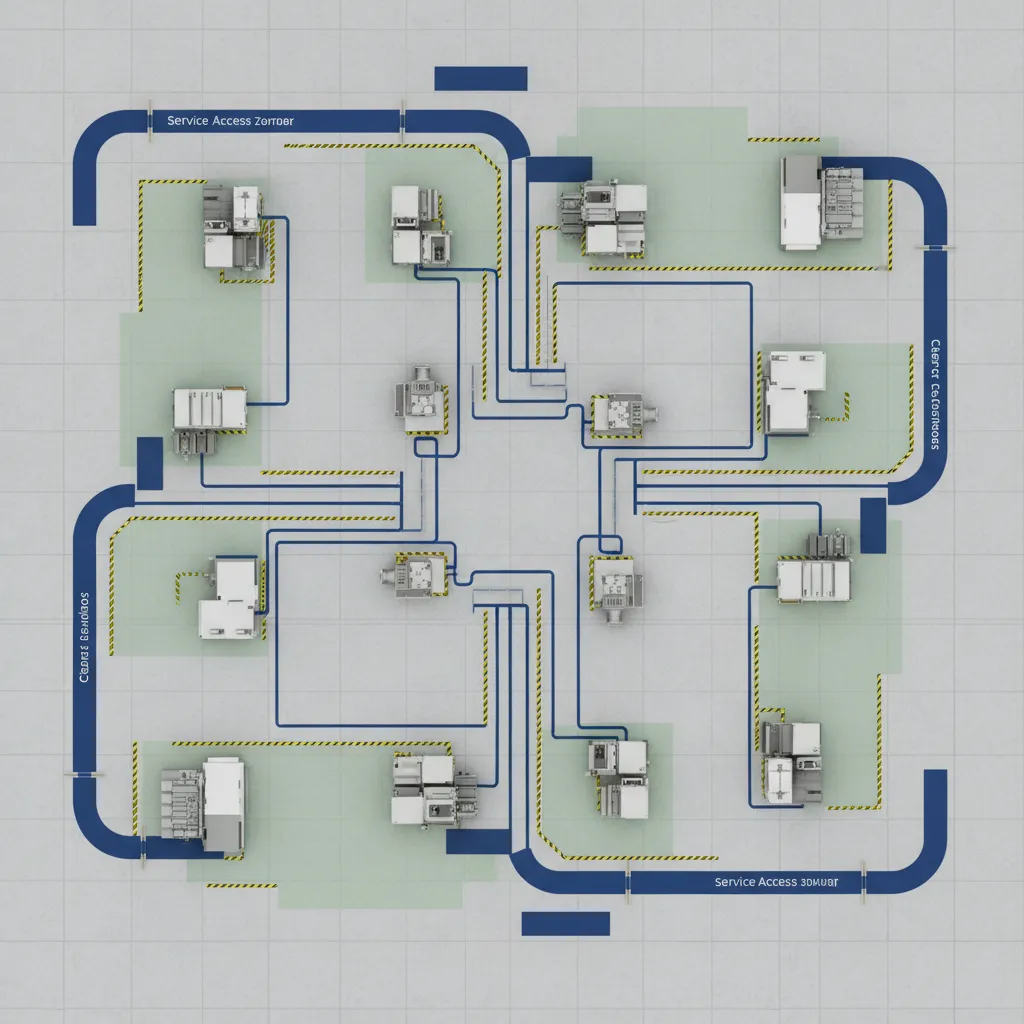

Corrective Redesign Strategies

Key Insight: Fixing poor piping routing usually requires strategic rerouting rather than simply replacing pipe sections.

Once a faulty layout is installed, repairs must focus on system logic—not just damaged components.

Effective redesign strategies include:

1. Shortening long horizontal pipe runs
2. Adding inspection and clean‑out points
3. Rerouting pipes away from equipment foundations
4. Creating dedicated drainage corridors
5. Separating process and wastewater piping paths

When redesigning complex systems, visual simulation becomes essential. Tools that allow engineers to map piping routes alongside equipment and service corridorshelp prevent new conflicts from emerging during redesign.

save pin

Preventive Design Practices for Future Installations

Key Insight: The most effective way to avoid floor piping layout problems is to treat piping as part of spatial planning, not just mechanical engineering.

In modern facility design, piping should be integrated with architectural layout from the beginning.

Best preventive practices include:

1. Model piping routes during early facility layout planning
2. Reserve maintenance corridors and inspection zones
3. Confirm drainage slope across the entire pipe network
4. Separate high‑risk chemical drainage lines
5. Install accessible leak detection points

In recent projects, early spatial simulation reduced routing conflicts by identifying equipment‑piping clashes long before installation began.

The difference between a reliable piping system and a problematic one is rarely the pipe itself. It’s the layout logic behind it.

Final Summary

1. Most floor piping layout problems originate from early design decisions.
2. Improper drainage slope leads to persistent blockage and residue buildup.
3. Maintenance access must be planned during layout design.
4. Leak detection improves when pipes remain visible and accessible.
5. Layout visualization tools reduce routing conflicts before construction.

FAQ

What are the most common floor piping layout problems?

The most common issues include poor drainage slope, inaccessible valves, routing conflicts with equipment, and hidden leak paths within floor structures.

How do you troubleshoot industrial floor piping problems?

Start by checking pipe slope, inspection access points, and routing conflicts with surrounding equipment. Many industrial floor piping troubleshooting cases reveal layout design flaws rather than pipe failure.

What slope is recommended for floor drainage pipes?

Most industrial drainage systems require a 1–2% slope to maintain consistent flow and prevent buildup.

Why do floor pipes clog frequently?

Frequent clogging often results from insufficient pipe slope, long horizontal runs, or improper routing that allows residue accumulation.

How can poor piping routing affect maintenance?

Poor routing can make valves and clean‑out points inaccessible, forcing technicians to dismantle equipment just to reach the system.

Can floor piping layout problems cause leaks?

Yes. Hidden routing and poor containment design can allow leaks to spread undetected within floor structures.

What is the best way to fix poor piping routing on a plant floor?

The most reliable solution is rerouting pipes with proper slope, inspection access, and separation from equipment foundations.

How can new facilities avoid floor piping design mistakes?

Early spatial planning and layout visualization help detect routing conflicts and drainage issues before installation begins.
