Common Floor Plan Mistakes When Drawing Ovens and How to Fix Them: A practical troubleshooting guide to correct oven placement, spacing, and scale issues in kitchen floor plans.

Direct Answer

Most oven placement mistakes in a floor plan happen because designers ignore appliance clearance, cabinet alignment, or real appliance dimensions. Correct oven symbols must match actual size, face the correct direction, and leave safe operating space in front and around the appliance. Fixing these issues improves both visual accuracy and real kitchen usability.

Quick Takeaways

1. Oven placement mistakes usually come from ignoring real appliance dimensions.
2. Incorrect oven orientation can break kitchen workflow and accessibility.
3. Clearance space in front of ovens is often underestimated in layouts.
4. Cabinet alignment errors make ovens look visually wrong in plans.
5. Always verify scale before placing appliances in digital floor plans.

Introduction

One of the most common issues I see when reviewing a kitchen floor plan is incorrect oven placement. After working on residential kitchen layouts for more than a decade, I can tell you that ovens are surprisingly easy to draw incorrectly—even for experienced designers.

The problem isn't just visual accuracy. When oven placement mistakes appear in a floor plan, they usually signal deeper issues: incorrect scale, poor workflow planning, or missing clearance space. In real projects, those mistakes translate into cabinets that can't open properly, unsafe heat zones, or awkward cooking movement.

If you're building or testing a layout using a digital planner, it's helpful to first understand how appliance positioning affects the entire kitchen workflow. I often recommend reviewing a complete step‑by‑step kitchen layout planning examplebefore placing major appliances so the oven integrates naturally with counters, cabinets, and traffic flow.

In this guide I'll break down the most frequent oven placement mistakes I see in kitchen floor plans, explain why they happen, and show how to fix them quickly.

save pin

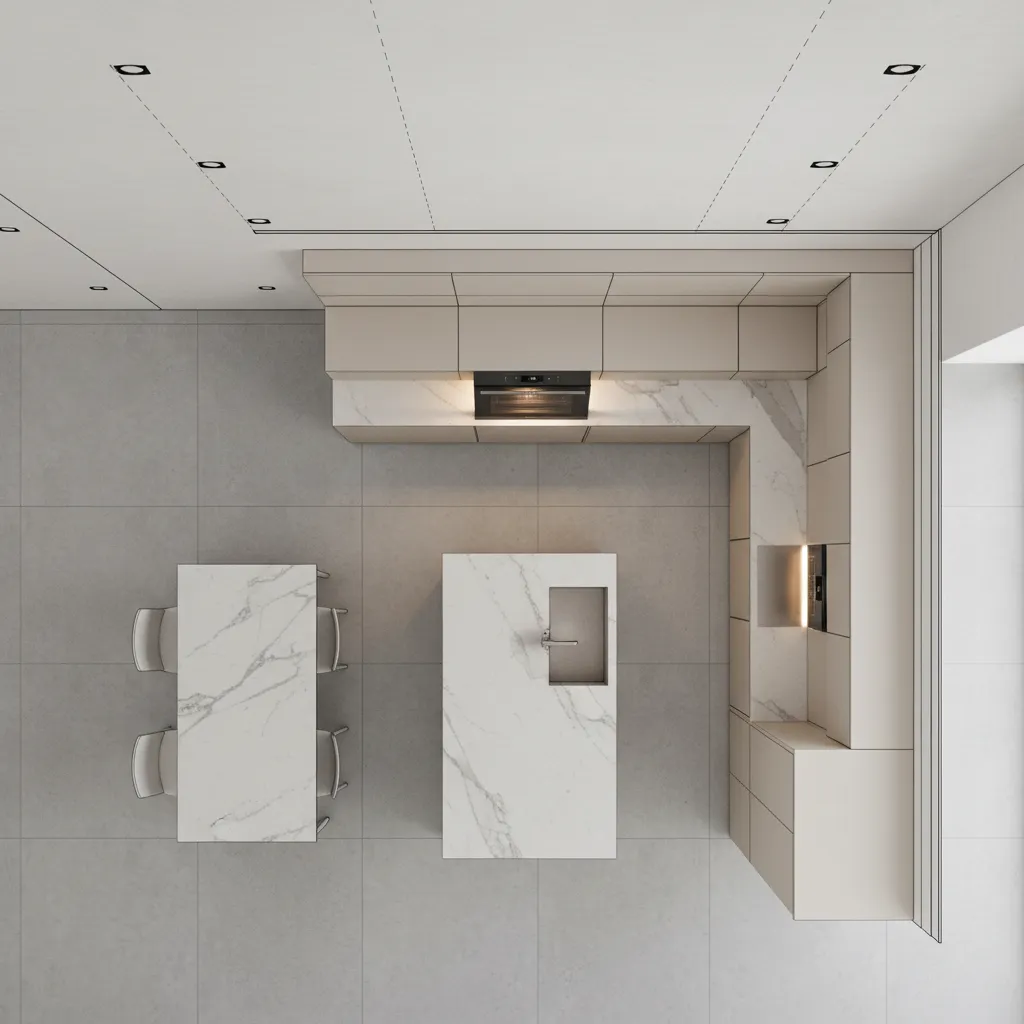

Why Ovens Are Often Misplaced in Kitchen Floor Plans

Key Insight: Oven placement errors usually happen when designers prioritize visual layout instead of functional workflow.

In real kitchen projects, ovens are rarely placed in isolation. They interact with cabinets, counters, and the refrigerator. But many floor plans treat the oven like a simple rectangle rather than a working appliance.

Three common causes appear repeatedly in design reviews:

1. Using symbolic oven icons instead of real appliance dimensions
2. Ignoring door swing and standing space
3. Aligning ovens visually instead of structurally with cabinets

The National Kitchen & Bath Association (NKBA) emphasizes that cooking appliances must maintain safe working zones. These zones include door clearance, landing space, and nearby countertop access. Ignoring these factors produces layouts that look acceptable on screen but fail in real kitchens.

From experience, the biggest hidden issue is workflow interruption. A poorly placed oven often forces users to step backward into traffic areas when opening the door.

Incorrect Oven Orientation in 2D Layouts

Key Insight: An oven symbol facing the wrong direction can completely break usability, even if the position looks correct on the plan.

This mistake happens frequently in 2D floor plans where appliance icons can be rotated freely.

The problem appears when designers rotate the oven symbol to match cabinet orientation but forget how the door actually opens.

Typical orientation mistakes include:

1. Oven doors opening toward a wall or tall cabinet
2. Wall ovens facing narrow circulation paths
3. Double ovens positioned so both doors conflict with island traffic

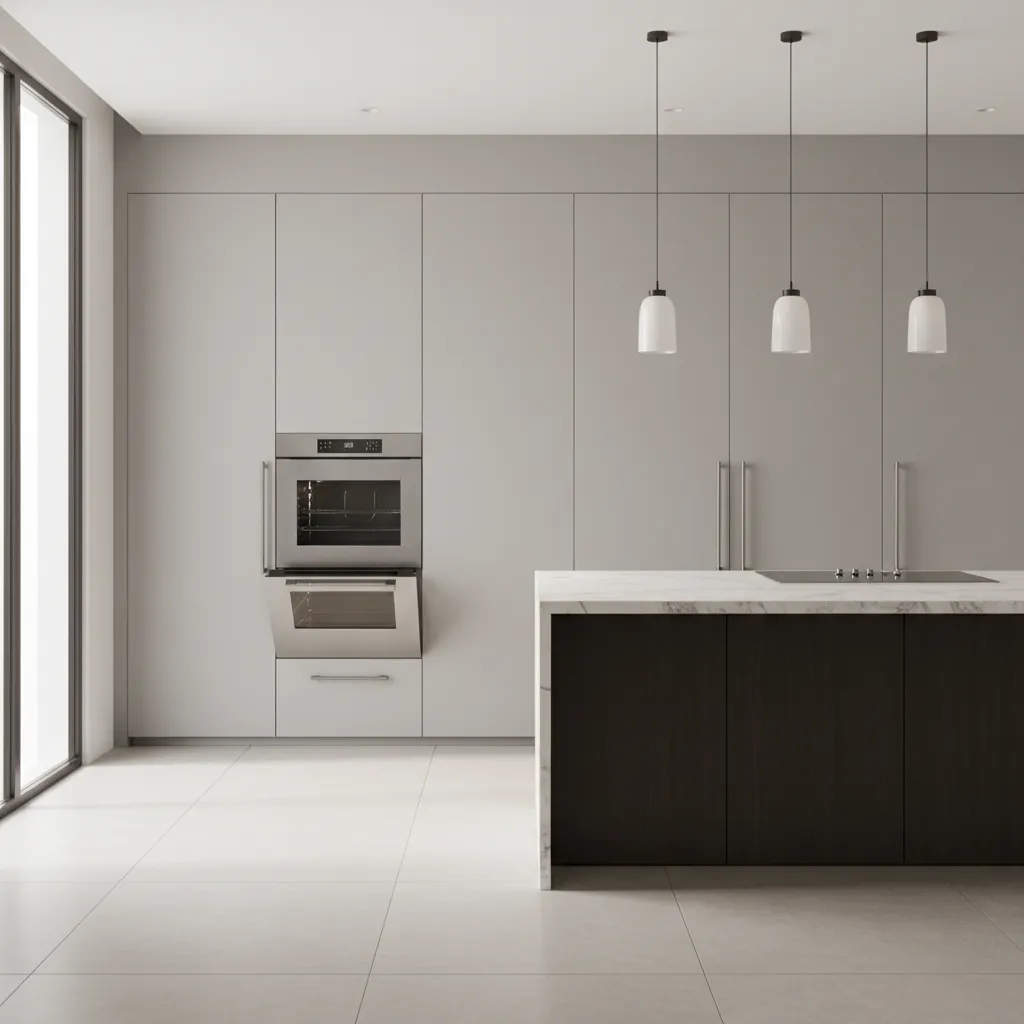

In professional layouts we always test the door swing visually. A simple rule I use in projects:

save pin

1. Minimum comfortable standing depth in front of oven: 40–48 inches
2. Avoid door opening toward major traffic routes
3. Ensure landing space within one step of the oven

These guidelines align with NKBA kitchen planning standards used in professional design studios.

Spacing and Clearance Problems Around Ovens

Key Insight: The most dangerous oven placement mistake is insufficient clearance space for the oven door and user movement.

In compact kitchens, designers often push appliances tightly between cabinets to maximize storage. Unfortunately, ovens need functional space to operate safely.

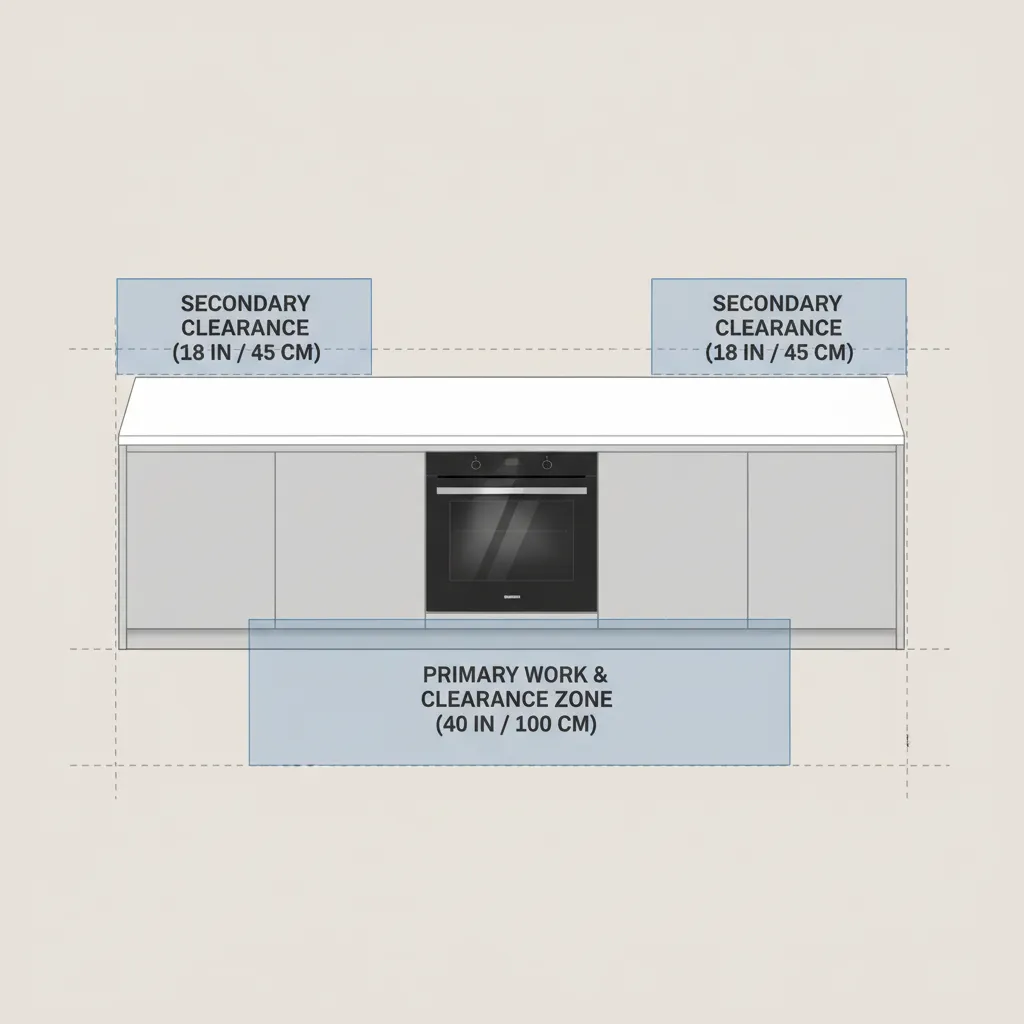

Recommended clearance standards:

1. At least 30–36 inches of landing space near cooking appliances
2. Minimum 40 inches of working aisle in single‑cook kitchens
3. 48 inches preferred for multi‑cook kitchens

One mistake I regularly see in client-submitted plans is an oven placed directly across from an island with less than 36 inches of space. Once the oven door opens, the aisle becomes unusable.

If you're testing spacing digitally, it's easier to validate clearance using a

save pin

visual 3D floor planning layout simulation, which helps reveal door conflicts and workflow problems instantly.

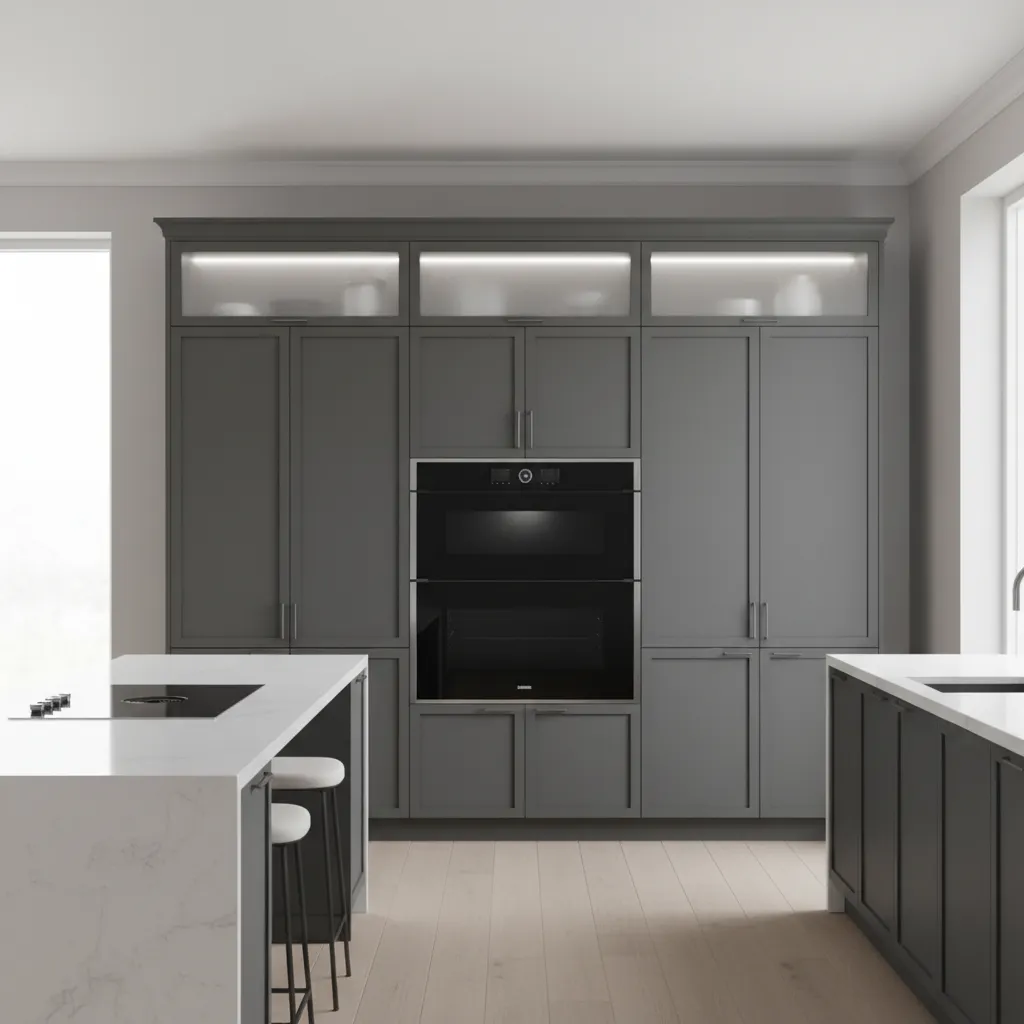

Fixing Cabinet and Oven Alignment Issues

Key Insight: Misaligned cabinets make ovens look incorrectly drawn even when the dimensions are technically correct.

This is a subtle but common issue in digital floor plans.

When base cabinets, wall cabinets, and appliances are placed on different alignment grids, the oven ends up visually drifting from the cabinetry.

Professional designers typically correct this using a simple alignment checklist:

1. Oven width should match cabinet module sizes (24", 27", or 30")
2. Wall ovens align with tall cabinet centerlines
3. Cooktop ovens align with base cabinet grids
4. Appliance edges should match adjacent cabinet face lines

This alignment detail is often missing from beginner layouts, which is why ovens sometimes look slightly "off" even when the measurements are correct.

save pin

Answer Box

The most reliable way to avoid oven placement mistakes in a floor plan is to verify three things: real appliance dimensions, proper door clearance, and cabinet alignment. When these three factors are correct, the oven will appear accurate and function correctly in the kitchen layout.

Correcting Scale Errors in Floor Plan Software

Key Insight: Scale mismatches between appliance libraries and room measurements cause many oven symbols to look wrong.

Some floor plan tools include generic appliance icons that do not match actual appliance dimensions.

Common scale problems include:

1. Oven depth shorter than real appliance depth
2. Appliance icons scaled to cabinet size rather than manufacturer specs
3. Room measurements imported at incorrect unit scales

The safest way to avoid this issue is verifying dimensions before placing appliances.

For example, standard oven sizes typically include:

1. 24 inch compact ovens
2. 27 inch wall ovens
3. 30 inch standard ovens

If your oven symbol doesn't match these modules, it will create alignment errors throughout the kitchen.

Checklist for Verifying Oven Placement in Plans

Key Insight: A quick verification checklist can catch almost every oven placement mistake before a plan is finalized.

When reviewing kitchen layouts in my studio, we run a simple six‑step check before approving appliance placement.

1. Confirm oven width matches cabinet module
2. Check oven door opening direction
3. Verify minimum 40 inch working clearance
4. Ensure nearby landing space for hot dishes
5. Align oven with cabinet centerlines
6. Confirm scale accuracy in the floor plan software

If you're building layouts from scratch, starting with a simple tool to create accurate kitchen floor plans helps ensure appliance modules follow correct dimensions from the beginning.

Final Summary

1. Most oven placement mistakes come from ignoring real appliance dimensions.
2. Door clearance and workflow space are critical in kitchen layouts.
3. Cabinet alignment errors often make oven symbols appear incorrect.
4. Scale mismatches in floor plan software are a common hidden issue.
5. A simple placement checklist prevents most kitchen planning mistakes.

FAQ

Why does my oven symbol look wrong in a floor plan?

Usually the appliance icon does not match real oven dimensions or cabinet modules, causing alignment problems.

What clearance is needed in front of an oven?

Design standards recommend at least 40 inches of working space in front of the oven for safe movement.

Can an oven be placed next to a refrigerator?

Yes, but insulation panels or cabinet buffers are recommended to prevent heat transfer.

What size oven should I use in a floor plan?

Most kitchen floor plans use 24", 27", or 30" ovens depending on cabinet configuration.

How do I fix appliance alignment in floor plans?

Align appliances with cabinet grids and ensure appliance widths match cabinet modules.

Why is oven placement important in a kitchen layout?

Incorrect placement disrupts workflow, reduces safety, and creates clearance conflicts.

What is the most common oven placement mistake floor plan beginners make?

Ignoring oven door swing and user standing space.

How do professionals check oven placement in a kitchen floor plan?

Designers verify appliance dimensions, clearance space, cabinet alignment, and workflow efficiency.

References

National Kitchen & Bath Association Kitchen Planning Guidelines

Residential Kitchen Design Standards, NKBA
