Common Floor Plan Mistakes When Placing Roll-Up Doors: Avoid clearance issues, workflow bottlenecks, and costly layout errors when designing spaces with roll‑up doors.

Direct Answer

The most common roll up door placement mistakes happen when designers ignore clearance space, vehicle turning paths, and nearby structural elements. Poor placement often creates workflow bottlenecks, blocked access, or unusable floor areas. A well‑planned floor layout must account for door operation zones, circulation paths, and structural constraints before construction begins.

Quick Takeaways

1. Roll up doors require more operational clearance than most floor plans initially allocate.
2. Columns and wall structures frequently conflict with door tracks and opening paths.
3. Vehicle turning radius is often underestimated in warehouse and garage layouts.
4. Door placement directly affects workflow efficiency and material movement.
5. Early floor plan simulation prevents expensive redesign during construction.

Introduction

After working on dozens of commercial garages, logistics facilities, and light‑industrial renovations, I’ve noticed that roll up door placement mistakes are rarely obvious during early planning. On paper, the door looks like a simple rectangular opening. In reality, it controls traffic flow, equipment movement, and even how workers navigate the space.

Many layout issues I see today come from designers treating the door as an architectural detail instead of a spatial system. Once forklifts start moving or vehicles begin entering the building, those small miscalculations quickly turn into operational headaches.

Before committing to construction, I always recommend testing layouts using tools that allow you to visualize door clearance and movement in a 3D floor plan simulation. Seeing how doors interact with vehicles, shelving, and walls usually reveals problems that flat drawings miss.

Let’s break down the most common roll up door layout problems—and how to avoid them before they become expensive structural changes.

save pin

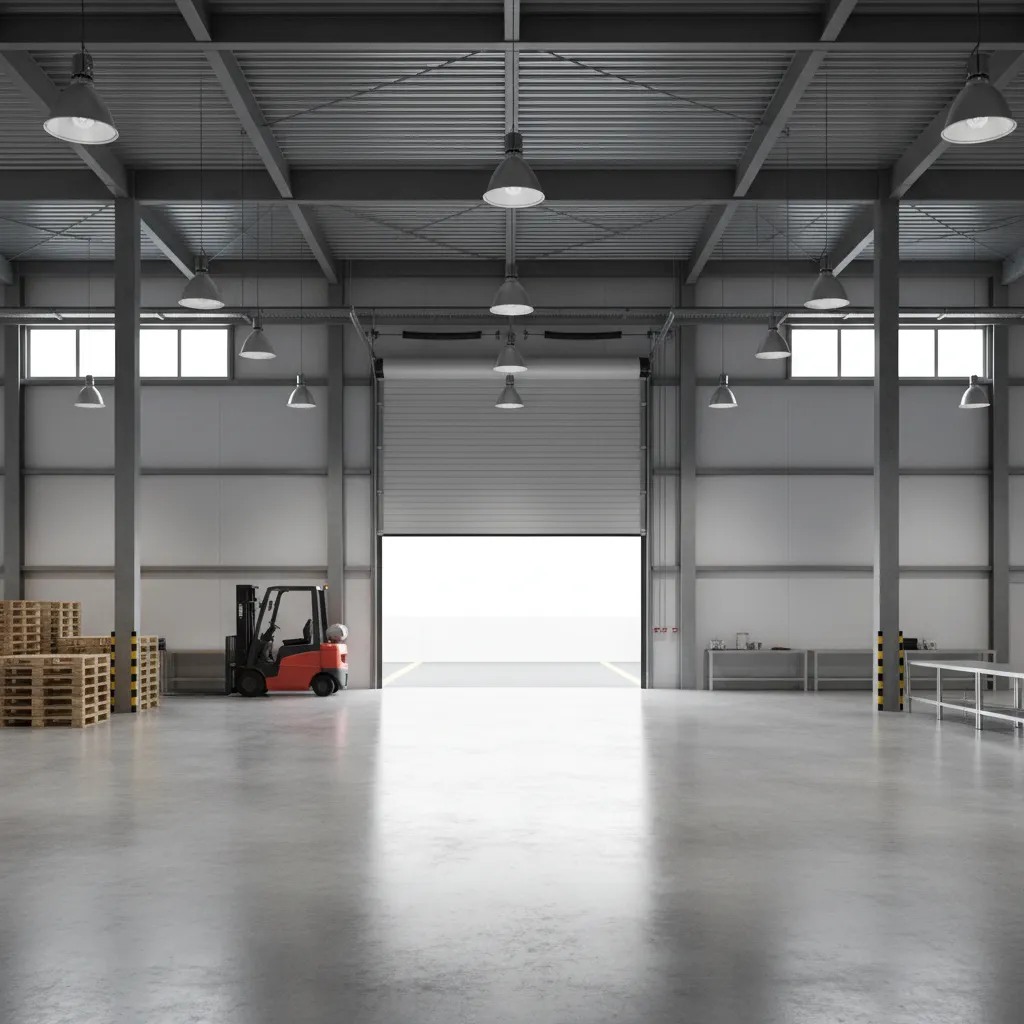

Why Roll-Up Door Placement Often Causes Layout Problems

Key Insight: Roll up doors influence circulation patterns more than almost any other architectural opening.

Unlike standard doors, roll up doors typically serve vehicles, loading equipment, or large material transfers. That means they must support movement, staging space, and safe approach paths.

In many early floor plans, designers allocate only the door width itself. What’s missing is the surrounding operational zone. From experience, that zone can easily be three to five times larger than the door opening.

Common planning oversights include:

1. Not allocating staging space for incoming vehicles
2. Ignoring forklift maneuvering requirements
3. Placing doors too close to interior storage systems
4. Forgetting overhead track and mechanical space

In one warehouse project I consulted on in Los Angeles, two roll up doors were placed directly opposite each other. On paper it looked symmetrical. In practice, forklifts constantly crossed paths, creating congestion and safety concerns.

The takeaway is simple: roll up doors should be planned as movement hubs, not just wall openings.

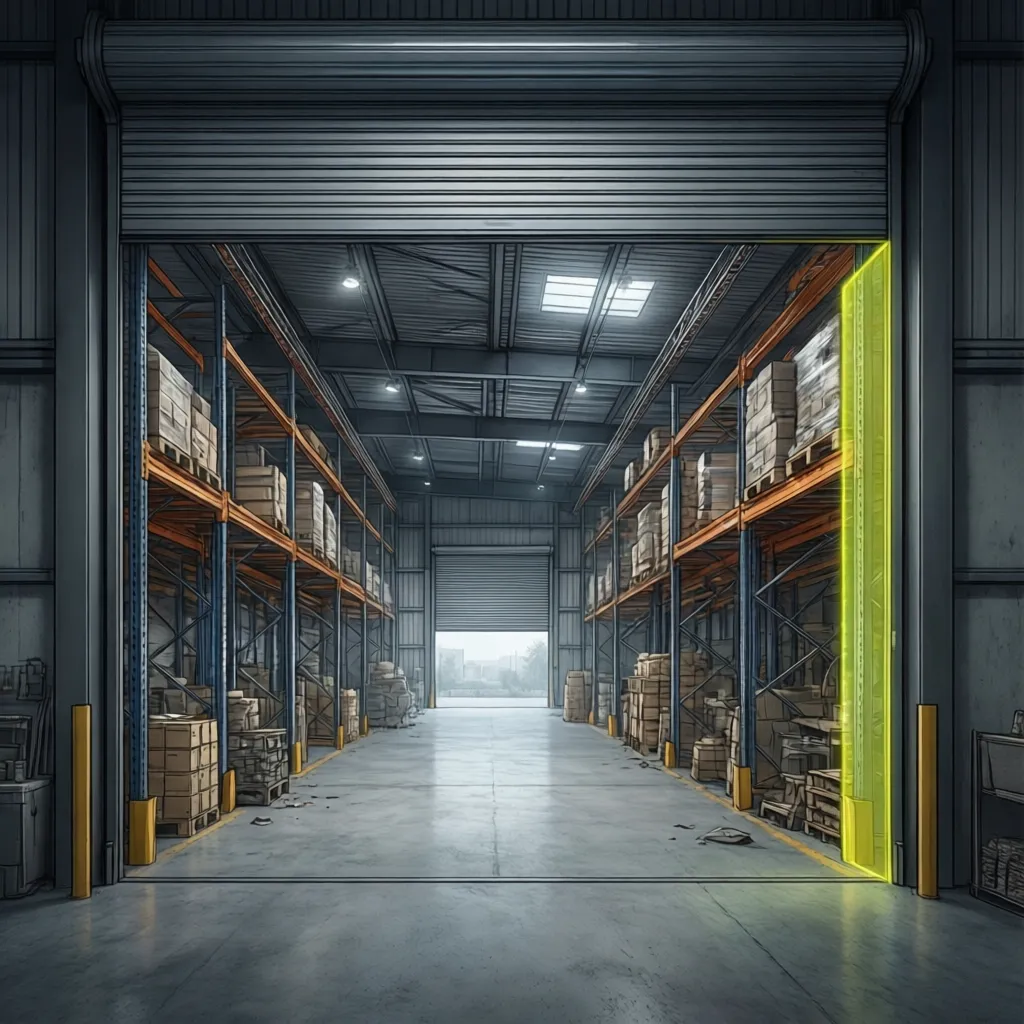

Insufficient Clearance Space in Floor Plans

Key Insight: Clearance problems are the most frequent floor plan problems with rolling doors.

Roll up doors require clearance in three directions:

1. Interior staging area
2. Exterior approach space
3. Overhead mechanical clearance

Design guidelines commonly used in commercial projects recommend the following minimums:

1. Interior staging depth: 1.5× the largest vehicle length
2. Side clearance: at least 2–4 feet on each side
3. Overhead clearance for track systems

A hidden issue many guides overlook is ceiling-mounted infrastructure. Lighting tracks, HVAC ducts, and sprinklers often interfere with roll up door mechanisms.

I’ve had to relocate entire duct systems simply because door clearance wasn’t coordinated during early planning.

save pin

Conflicts With Structural Columns and Walls

Key Insight: Structural columns frequently create invisible constraints that invalidate otherwise functional door locations.

In steel or concrete structures, columns often dictate where doors can realistically be installed. However, many conceptual floor plans place doors without referencing structural grids.

This creates several common roll up door placement mistakes:

1. Door openings overlapping column spacing
2. Track systems colliding with beams
3. Door motors conflicting with structural bracing

Experienced architects usually align door openings between structural bays. A typical workflow looks like this:

1. Identify structural grid spacing
2. Reserve column‑free zones for doors
3. Allocate side clearance for tracks
4. Verify overhead structural depth

If you want to experiment with different layouts quickly, you can test structural spacing and door placement in a flexible digital floor plan creator before committing to construction drawings.

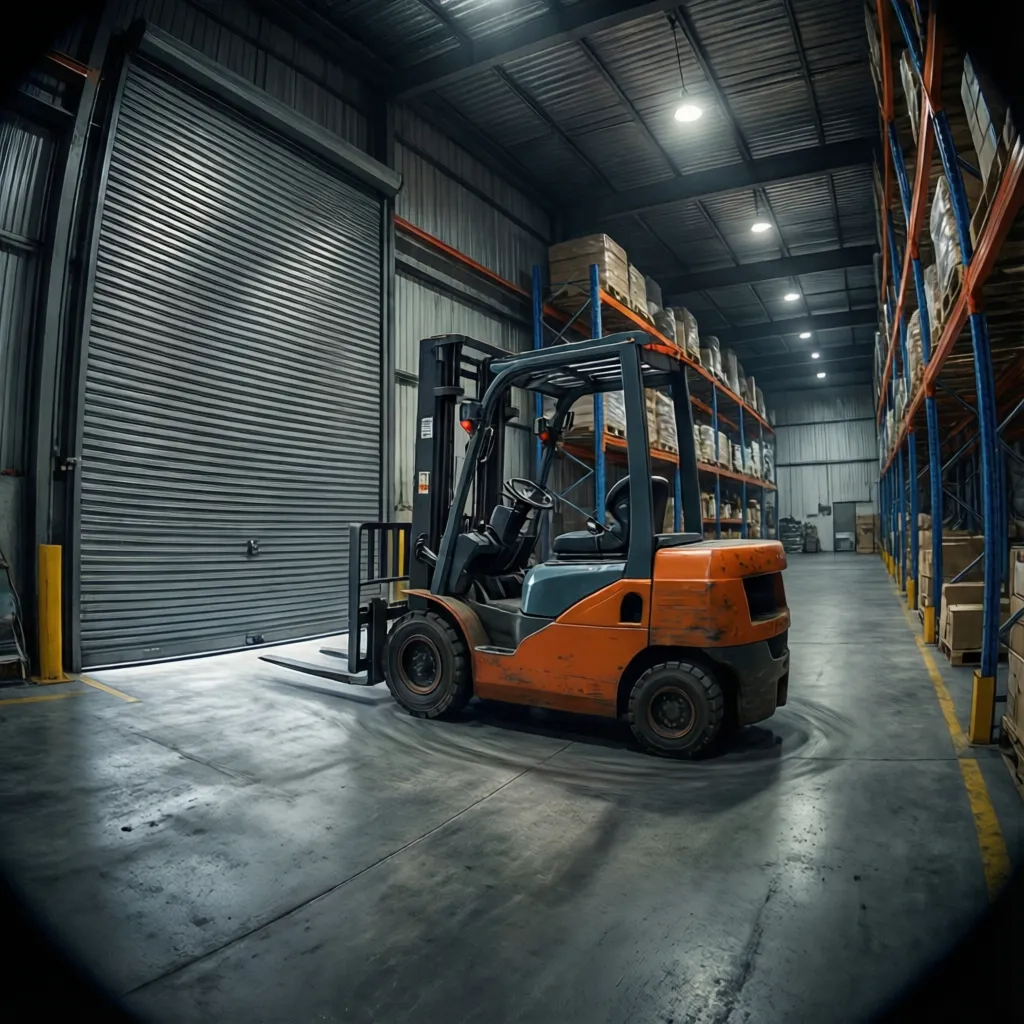

Vehicle Turning Radius Issues Near Doors

Key Insight: Door placement that works for people often fails for vehicles.

This is one of the most underestimated problems in warehouse and garage roll up door layout troubleshooting.

Vehicles rarely approach doors in straight lines. Trucks, forklifts, and delivery vans require turning space that significantly expands the functional footprint around the door.

Typical turning radius guidelines:

1. Forklift: 10–12 ft turning radius
2. Delivery van: 20–25 ft turning radius
3. Medium truck: 30–40 ft turning radius

Ignoring these dimensions often leads to:

1. Repeated multi‑point turns
2. Blocked traffic lanes
3. Damage to walls or racks

In several logistics facilities I’ve worked on, simply rotating the door position by 10–15 degrees relative to circulation lanes dramatically improved vehicle flow.

save pin

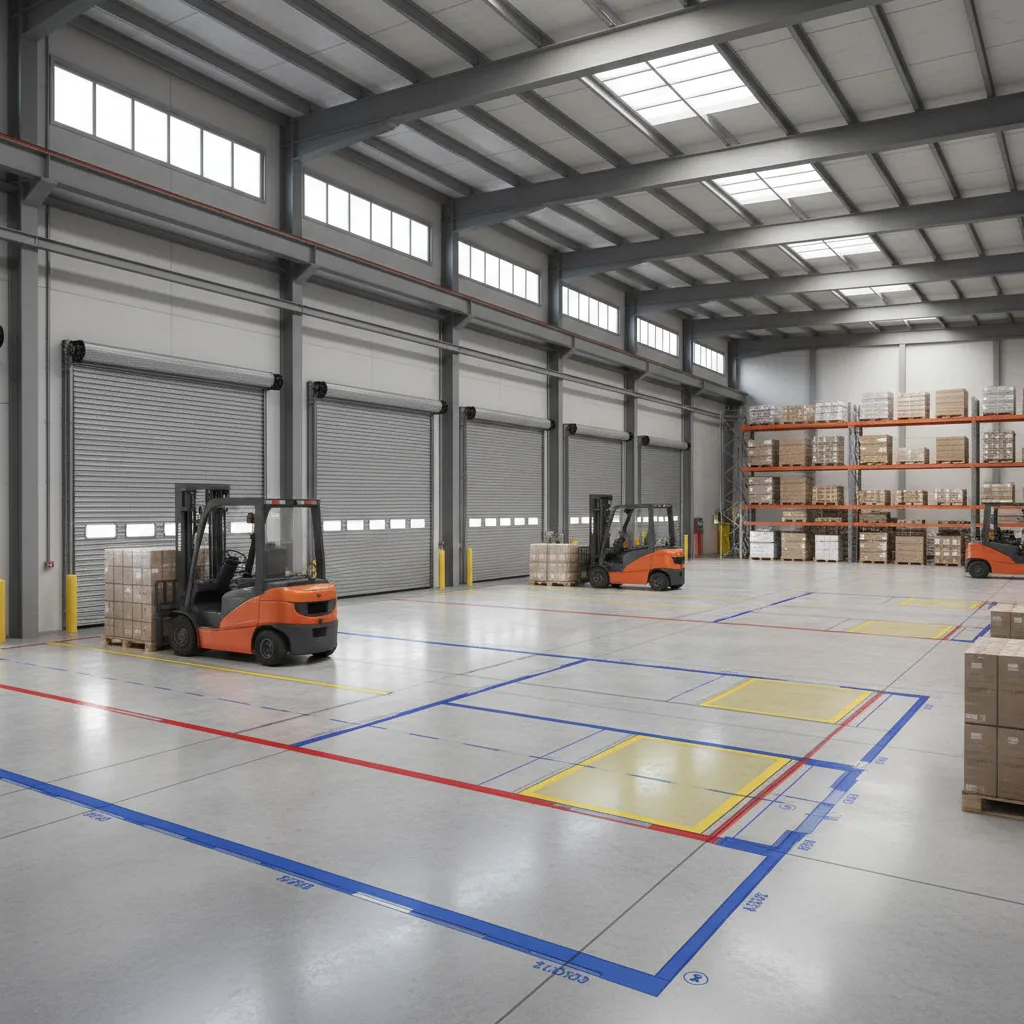

Workflow Bottlenecks Around Access Points

Key Insight: The worst roll up door layouts are not structurally wrong—they disrupt operational flow.

In warehouses, workshops, and service garages, door placement shapes how materials move through the building.

When doors are placed incorrectly, several workflow issues appear:

1. Incoming and outgoing traffic overlap
2. Storage areas block loading zones
3. Employees walk through vehicle paths

A better strategy is to design door zones using a simple movement hierarchy:

1. Primary entry doors for vehicles
2. Secondary service doors
3. Pedestrian pathways separated from loading areas

This separation dramatically reduces congestion and improves safety.

Answer Box

The most critical factor in roll up door floor plans is circulation planning. Proper clearance zones, structural alignment, and vehicle turning paths prevent layout conflicts and improve operational efficiency.

How to Fix Layout Problems in Existing Floor Plans

Key Insight: Most roll up door layout problems can be mitigated without relocating the entire door.

In renovation projects, moving a door can be extremely expensive. Instead, designers often solve problems by adjusting surrounding layouts.

Practical fixes include:

1. Relocating shelving or storage systems
2. Widening circulation lanes
3. Adding angled approach paths
4. Creating dedicated staging zones

Another highly effective technique is re‑testing traffic flow using digital layouts. Many facility managers now rely on tools that allow them to simulate traffic flow and fix roll up door layout problems before redesigning the space.

Even small adjustments—like shifting racks by a few feet—can restore smooth vehicle movement.

Final Summary

1. Roll up door placement directly affects circulation and operational efficiency.
2. Clearance zones must include staging, side spacing, and overhead space.
3. Structural columns frequently limit viable door positions.
4. Vehicle turning radius is critical for warehouses and garages.
5. Many layout problems can be solved without relocating the door.

FAQ

What is the most common roll up door placement mistake?

Insufficient clearance space around the door. Designers often forget staging areas and vehicle maneuvering zones.

How much clearance is needed for a roll up door?

Typically at least 1.5 times the vehicle length for interior staging plus side clearance for tracks and safe maneuvering.

Can structural columns affect roll up door placement?

Yes. Columns and beams often restrict door width and track installation space, which can invalidate a planned door location.

Why do warehouse floor plans struggle with rolling door layouts?

Warehouse traffic is complex. Forklifts, pallets, and delivery vehicles require turning space and staging areas around doors.

What are signs of poor roll up door layout design?

Frequent vehicle reversing, blocked loading areas, and employees walking through vehicle paths are clear indicators.

How can I troubleshoot garage roll up door layout problems?

Review vehicle turning radius, clearance zones, and nearby storage placement to identify circulation conflicts.

Can roll up door layout problems be fixed without moving the door?

Yes. Adjusting storage systems, traffic lanes, or approach angles often solves the issue.

What tool helps visualize door placement in floor plans?

3D planning tools that simulate space usage and vehicle paths help identify door placement errors early.
