Common Floor Plan Modeling Mistakes in 3ds Max and How to Fix Them: A practical troubleshooting guide to fixing wall alignment, spline errors, and messy geometry when modeling architectural floor plans in 3ds Max.

Direct Answer

The most common floor plan modeling mistakes in 3ds Max come from misaligned splines, incorrect wall thickness settings, open shapes, and overlapping geometry. Fixing them usually involves cleaning splines, resetting pivots, ensuring closed shapes, and maintaining consistent wall dimensions before converting shapes to editable geometry.

In practice, most errors appear early in the modeling process but only become obvious once walls extrude or modifiers are applied.

Quick Takeaways

1. Most 3ds Max floor plan errors start with messy spline drawings.
2. Closed shapes are critical before applying extrusion or wall modifiers.
3. Consistent wall thickness prevents later alignment problems.
4. Resetting pivots often fixes strange snapping and alignment issues.
5. Cleaning overlapping vertices keeps geometry stable during rendering.

Introduction

When beginners start architectural modeling, the first real challenge usually appears while building a floor plan in 3ds Max. I have seen this across dozens of residential visualization projects—walls refuse to connect, splines break during extrusion, or geometry suddenly collapses when modifiers are added.

These issues are rarely caused by the software itself. In most cases, they come from small modeling habits that compound into bigger errors later in the pipeline.

Over the years, I’ve had to troubleshoot many messy floor plan files handed over by junior artists. The same patterns repeat again and again: open splines, inconsistent wall thickness, duplicated vertices, or pivots sitting in strange positions.

If you're still learning the basics, it helps to first understand the fundamentals behind how a clean digital floor plan should be structured before modeling walls. Once that foundation is clear, most troubleshooting becomes much easier.

This guide breaks down the most common 3ds max floor plan modeling mistakes and explains how to fix them quickly without rebuilding the entire model.

save pin

Walls Not Aligning Correctly in 3ds Max

Key Insight: When walls fail to align, the root cause is almost always inconsistent spline snapping or vertices that were never welded.

In architectural visualization workflows, walls are typically generated from spline outlines. If those splines are even slightly misaligned, the resulting walls will never meet perfectly.

I often see beginners draw walls quickly without enabling proper vertex snapping. The result is endpoints that look connected but are actually separated by tiny gaps.

How to fix misaligned walls:

1. Enable vertex snapping before drawing splines.
2. Select all vertices and apply "Weld" with a small threshold.
3. Use "Refine" instead of redrawing entire segments.
4. Check alignment in Top View with grid snapping enabled.

According to Autodesk modeling guidelines, keeping spline vertices clean dramatically improves modifier stability in architectural scenes.

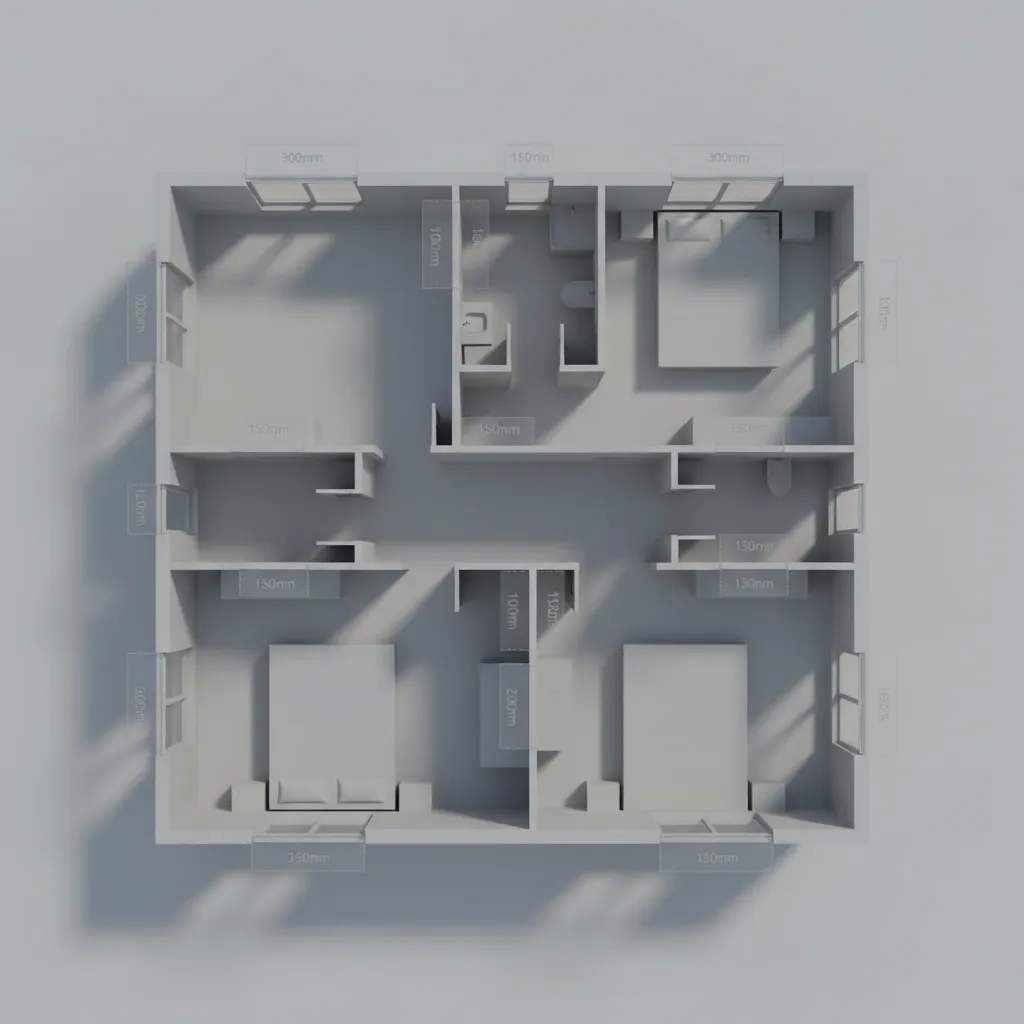

Incorrect Wall Thickness or Dimensions

Key Insight: Wall thickness problems usually come from inconsistent unit settings or applying extrusion before confirming dimensions.

In many beginner projects, walls start with arbitrary values like 5 or 10 generic units instead of real-world measurements.

Once furniture or doors are added, the scale suddenly feels wrong.

Recommended wall thickness standards:

1. Interior walls: 100–120 mm
2. Exterior walls: 200–300 mm
3. Structural walls: 300 mm or more

Steps to correct wall thickness:

1. Set system units to millimeters or centimeters.
2. Adjust spline offsets before applying extrusion.
3. Use the "Outline" tool for precise adjustments.

Fixing this early avoids scaling problems across the entire architectural model.

save pin

Broken Splines and Open Shapes in Floor Plans

Key Insight: Open spline shapes are one of the most common causes of extrusion failure in 3ds Max floor plans.

If a spline loop isn't fully closed, extrusion modifiers may generate missing faces, broken walls, or invisible surfaces.

This typically happens when drawing quickly or importing CAD files.

How to detect broken splines:

1. Select the spline and enable "Show Vertex Numbers".
2. Look for endpoints that are not connected.
3. Use "Close Spline" if only one gap exists.
4. Manually weld endpoints if needed.

When working with CAD imports, it often helps to rebuild the spline outline rather than trying to fix hundreds of small segments.

If you're experimenting with alternative modeling workflows, comparing approaches like automated layout generation used in modern floor planning toolscan also highlight how clean geometry simplifies the entire modeling pipeline.

save pin

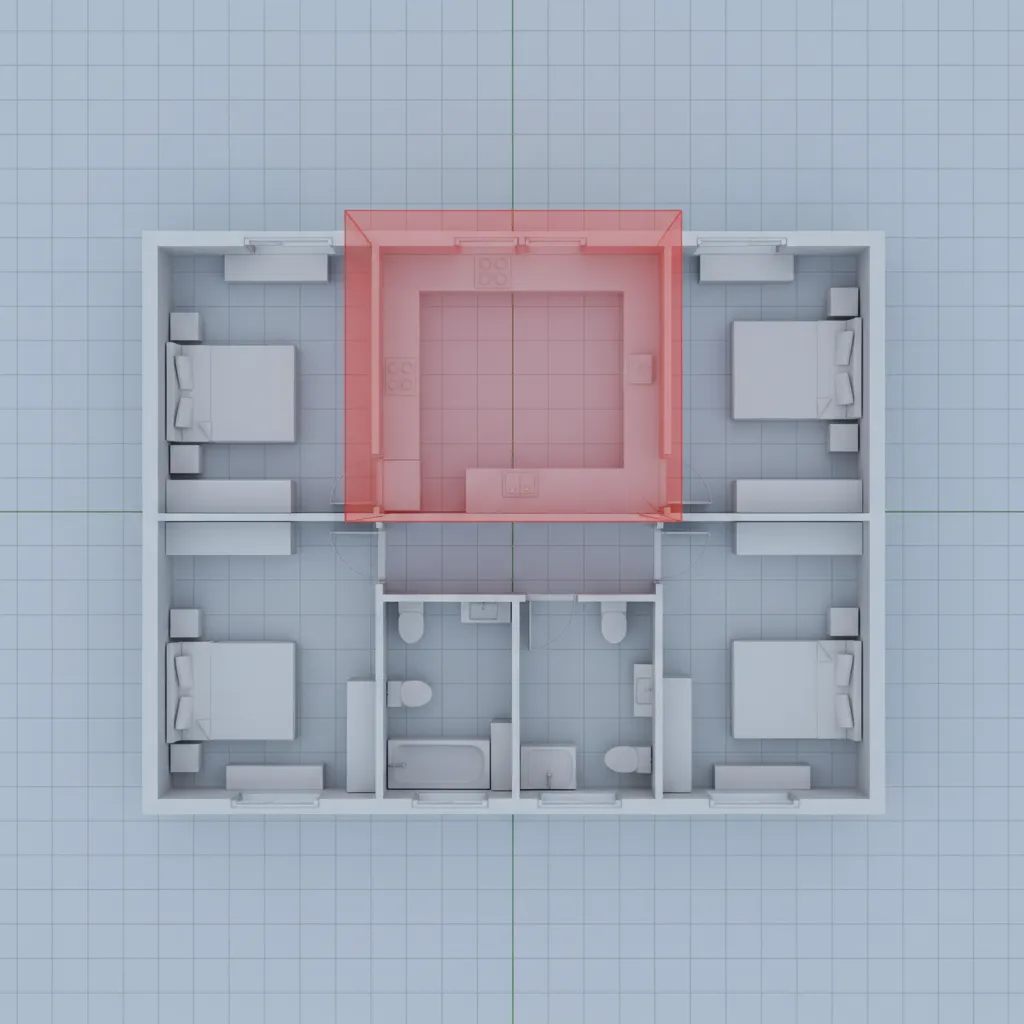

Overlapping Geometry and Mesh Issues

Key Insight: Overlapping geometry silently breaks renders, lighting calculations, and boolean operations.

This problem usually appears after multiple edits to the same floor plan.

Common symptoms include:

1. Flickering walls in renders
2. Z‑fighting surfaces
3. Strange shading artifacts

Quick cleanup checklist:

1. Delete duplicate spline segments.
2. Run "STL Check" modifier.
3. Convert to Editable Poly and remove overlapping faces.
4. Use "Target Weld" for intersecting vertices.

Experienced visualization studios often run automated mesh cleanup scripts before rendering large architectural scenes.

save pin

Fixing Pivot and Alignment Problems

Key Insight: Strange movement, rotation, or snapping errors usually mean the pivot is misplaced.

Pivot problems often happen after importing CAD files or grouping objects.

When pivots are off-center, walls rotate incorrectly or refuse to snap to grids.

Steps to reset pivots:

1. Select the object.
2. Go to Hierarchy panel.
3. Choose "Affect Pivot Only".
4. Click "Center to Object".
5. Align pivot to world axes.

This simple reset often solves snapping and transformation issues immediately.

Best Practices to Prevent Modeling Errors

Key Insight: Clean spline preparation prevents nearly every major 3ds Max floor plan modeling mistake.

After years of working on residential interiors and architectural visualization, I've learned that prevention is far easier than fixing broken models.

My standard floor plan workflow:

1. Import or trace a reference plan.
2. Draw walls using snapped spline vertices.
3. Close all spline loops.
4. Apply consistent wall thickness.
5. Convert to Editable Poly only after verification.

Another overlooked tip: always preview layouts before modeling walls. Many designers now test room proportions using tools that quickly visualize room layouts before committing to full 3D modeling. It reduces geometry revisions later.

Answer Box

The fastest way to fix most 3ds Max floor plan modeling mistakes is to clean your splines first. Ensure shapes are closed, vertices are welded, wall thickness is consistent, and pivots are properly centered before adding modifiers.

Final Summary

1. Most modeling problems originate from messy spline drawings.
2. Closed shapes are essential before extrusion.
3. Consistent wall thickness prevents scaling issues.
4. Pivot resets often fix alignment errors.
5. Clean geometry keeps rendering and lighting stable.

FAQ

Why are my walls not connecting in 3ds Max?

Usually the spline vertices are not welded or snapping was disabled when drawing the floor plan.

What causes broken walls after extrusion?

Open spline shapes are the most common cause. Always ensure splines are closed before extrusion.

How do I fix wall thickness in 3ds Max?

Adjust spline outlines using the Outline tool or edit extrusion values after confirming real-world units.

What are common 3ds max floor plan modeling mistakes?

Open splines, duplicate vertices, inconsistent wall thickness, and overlapping geometry.

Why does my floor plan geometry flicker when rendering?

This usually indicates overlapping surfaces causing Z‑fighting.

Should I convert splines to Editable Poly early?

No. Keep splines editable until wall dimensions and connections are verified.

How do I troubleshoot 3ds max floor plan modeling errors quickly?

Check spline closure, weld vertices, reset pivots, and remove overlapping geometry.

Do CAD imports cause modeling issues?

Yes. Imported CAD lines often contain fragmented segments that require cleanup.
