Common Helmet Modeling Problems and How to Fix Them: A practical troubleshooting guide for fixing topology, shading, and subdivision issues when building helmet models in 3D

Direct Answer

Most helmet modeling problems come from poor topology planning, uneven symmetry, or incorrect smoothing settings. Fixing them usually involves rebuilding edge flow, cleaning topology, correcting normals, and adjusting subdivision control edges. Once those fundamentals are stable, shading and proportions typically resolve quickly.

Quick Takeaways

1. Helmet models fail mainly because of uneven topology and inconsistent edge flow.
2. Shading artifacts usually come from bad normals or uncontrolled smoothing.
3. Symmetry errors often accumulate slowly during manual edits.
4. Subdivision artifacts appear when edge support loops are missing.
5. Clean topology early to avoid complex fixes later.

Introduction

Helmet modeling looks straightforward at first: start with a sphere, cut the visor area, add details, and refine the surface. But after working on dozens of hard surface projects over the years, I can tell you that helmet modeling is where many artists first encounter serious topology problems.

The most common complaints I hear are things like: "why my helmet model looks uneven" or "why the shading looks broken after subdivision." These issues usually appear halfway through the project when the model already feels too complex to rebuild.

The good news is that most helmet 3D model topology problems follow recognizable patterns. Once you know what to look for, fixing them becomes far easier than endlessly tweaking vertices.

If you're still early in the process, it's worth reviewing a structured workflow like this step by step 3D design planning approach for building structured modelsbefore continuing heavy edits.

In this guide I'll walk through the exact helmet modeling errors and solutions I see most often in production work, and how to fix them without rebuilding the entire model.

save pin

Why Helmet Models Often Develop Topology Problems

Key Insight: Helmet models develop topology issues because artists try to force complex curves into simple base meshes.

Helmets combine organic curvature with hard surface precision. That combination is what makes them tricky. Beginners often start with a primitive sphere and begin cutting holes for the visor and vents. The moment those cuts happen, the topology becomes unstable.

Typical topology mistakes include:

1. Large polygons stretched across curved areas
2. Triangles near the visor opening
3. Pole points on high curvature zones
4. Uneven edge density

Professional hard surface artists usually solve this by establishing a clear edge loop structure early. Studios working on game assets often rebuild topology multiple times before final detailing to maintain clean subdivision surfaces.

According to workflows shared by artists at studios like Blizzard and Bungie in GDC talks, maintaining quad-dominant topology is critical for predictable smoothing and deformation.

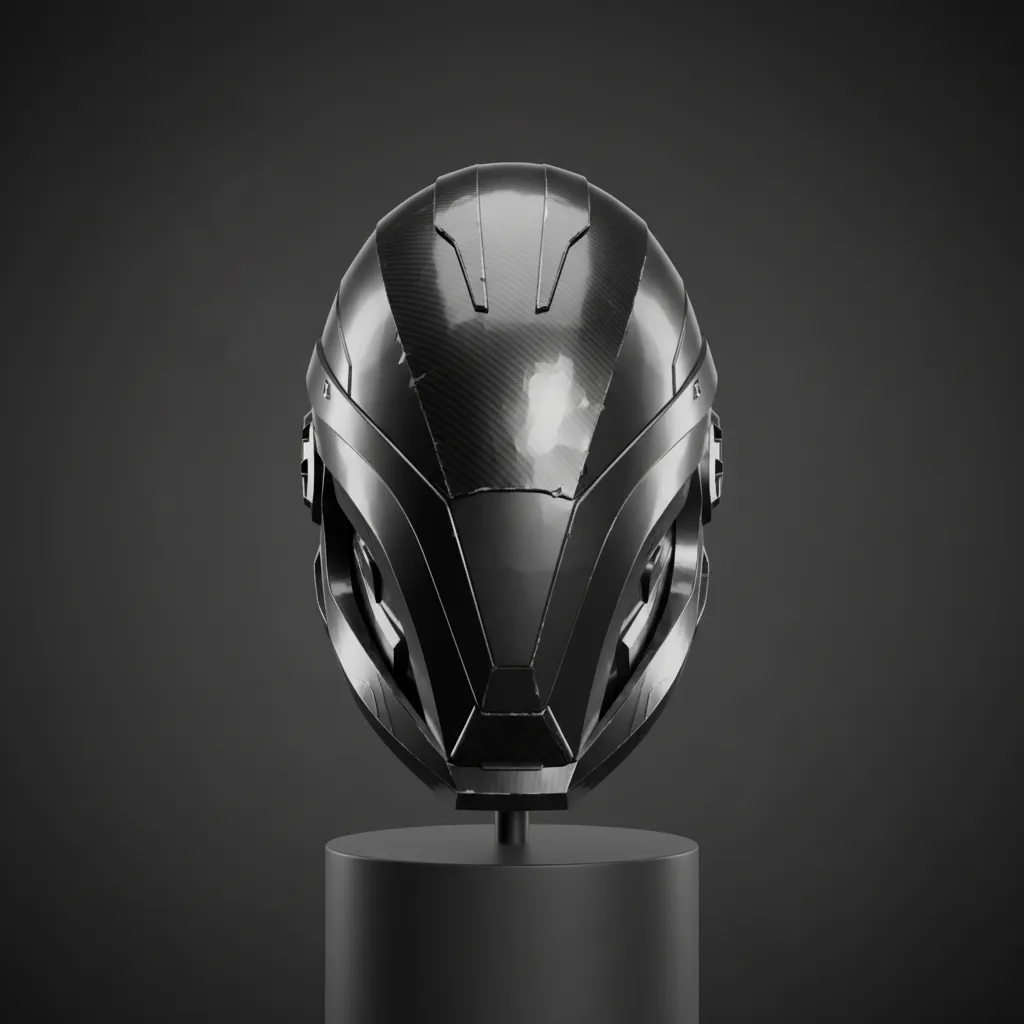

Fixing Shading and Smoothing Errors

Key Insight: Most shading problems in helmet models come from incorrect normals or uncontrolled smoothing groups.

If your helmet looks faceted, blotchy, or uneven under lighting, the geometry might actually be fine. The problem is usually the shading setup.

Common causes of shading artifacts:

1. Flipped or inconsistent normals
2. Auto smoothing set too high or too low
3. Hard edges missing on mechanical transitions
4. Overlapping vertices

Quick troubleshooting workflow:

1. Recalculate normals outside.
2. Enable auto smooth around 30–60 degrees.
3. Mark hard edges along visor cuts.
4. Merge duplicate vertices.

In hard surface modeling pipelines, shading is often previewed under HDR lighting environments because artifacts become easier to detect.

save pin

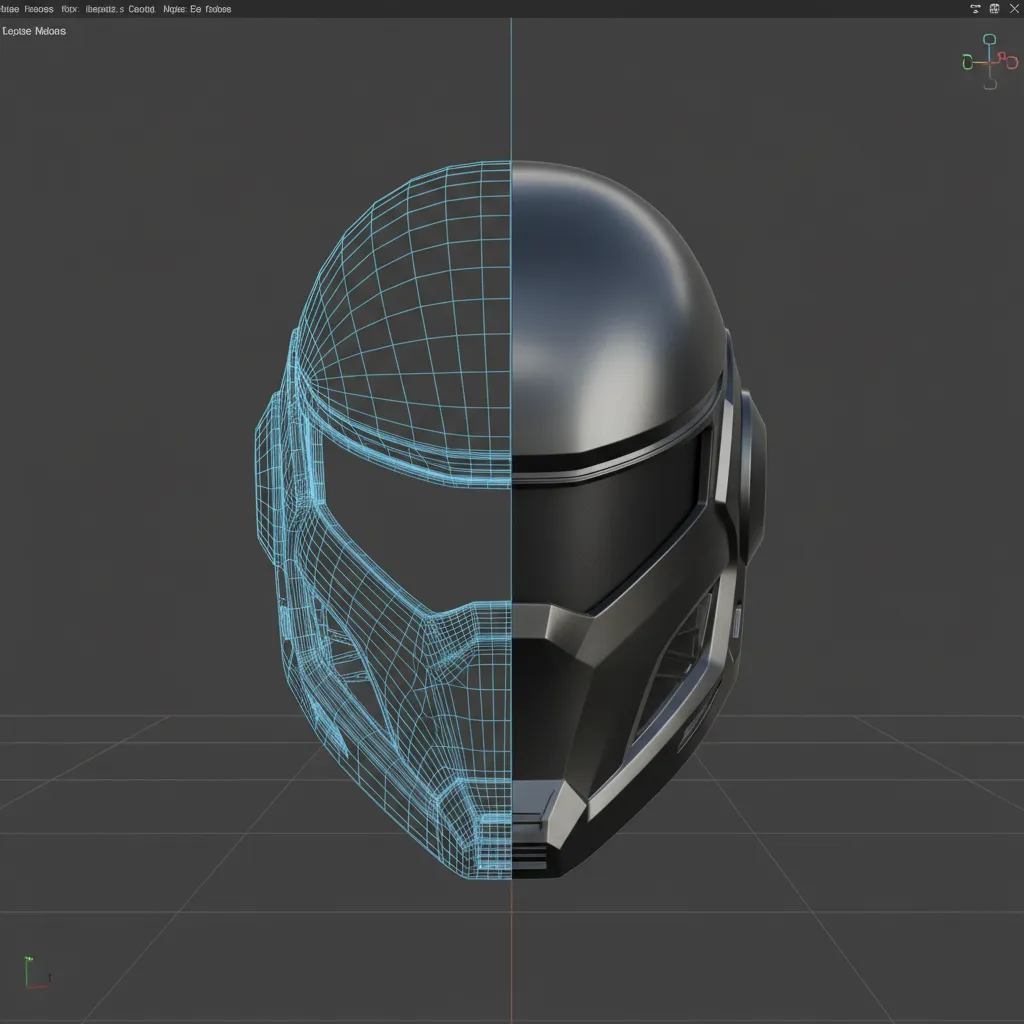

Resolving Symmetry and Proportion Issues

Key Insight: If a helmet looks uneven, the symmetry modifier likely broke earlier in the workflow.

One of the most frustrating helmet modeling errors is when the left and right sides slowly drift apart. This usually happens when symmetry was applied too early or when vertices were accidentally moved off-axis.

Signs symmetry is broken:

1. Visor cut is slightly tilted
2. Side panels don't mirror correctly
3. Subdivision produces asymmetric bumps

Fix process:

1. Delete half the mesh.
2. Re-center the origin.
3. Reapply the mirror modifier.
4. Rebuild missing edge loops.

This may sound drastic, but in production modeling it's actually faster than manually correcting hundreds of vertices.

Maintaining structured spatial planning helps avoid these alignment issues. Many designers practice layout discipline using tools similar to a visual room planning workflow for organizing spatial structure before adding detail layers.

Cleaning Up Bad Topology in Hard Surface Models

Key Insight: The fastest way to fix bad topology is often partial retopology rather than vertex tweaking.

When artists try to repair topology by moving vertices one by one, they usually make things worse. Hard surface models benefit from rebuilding clean edge flow instead.

Effective topology cleanup techniques:

1. Dissolve unnecessary edges
2. Rebuild loops around major shapes
3. Redirect poles to flat regions
4. Convert triangles to quads

Professional modelers frequently use a technique called "topology patching" where only problem areas are rebuilt while the rest of the mesh remains intact.

save pin

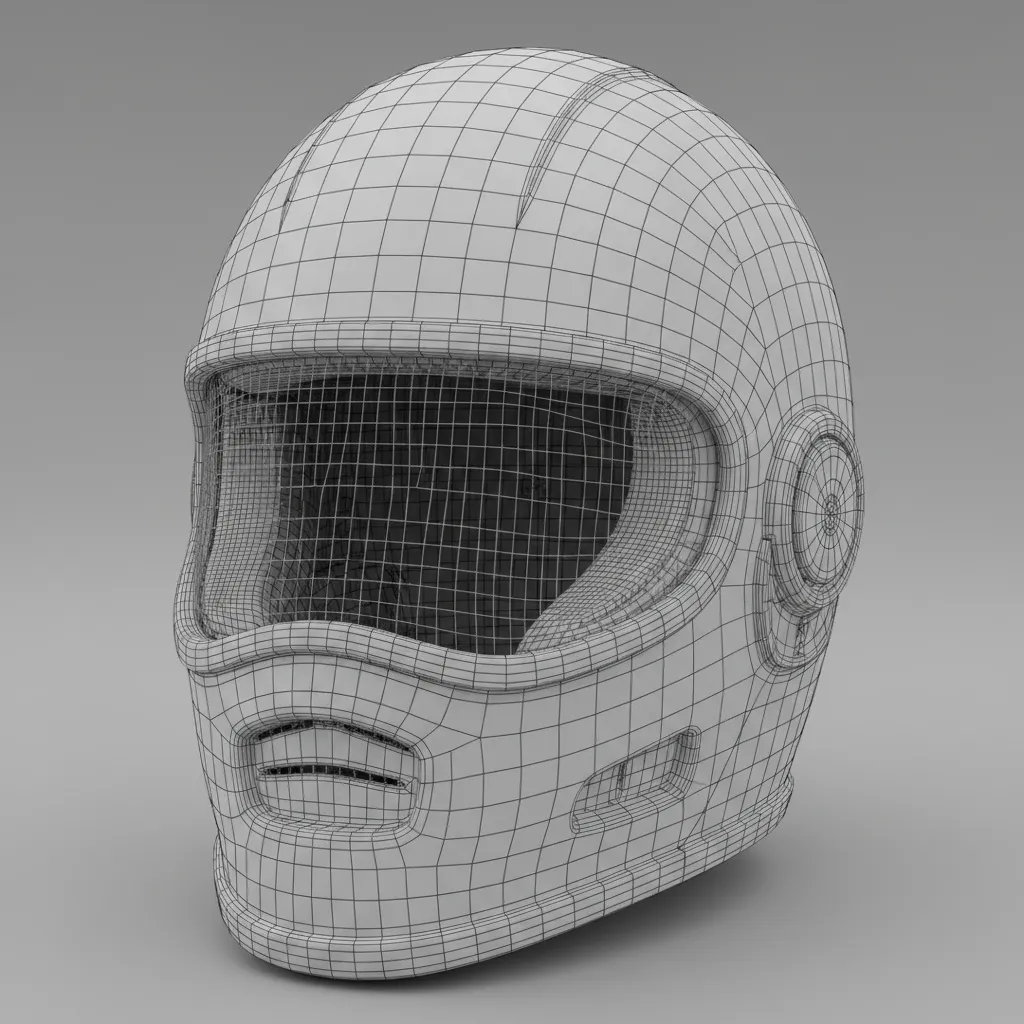

Correcting Edge Flow Around Visors and Curves

Key Insight: The visor opening determines the entire edge flow of a helmet model.

One of the most overlooked design rules is that visor topology should be established before adding vents, ridges, or decorative panels.

If the visor loops are messy, every other feature becomes harder to control.

Clean visor topology usually follows this pattern:

1. A continuous loop around the visor border
2. Supporting loops for sharpness
3. Even spacing along curved surfaces

Game asset pipelines often enforce strict edge spacing because uneven loops create lighting artifacts in real-time engines.

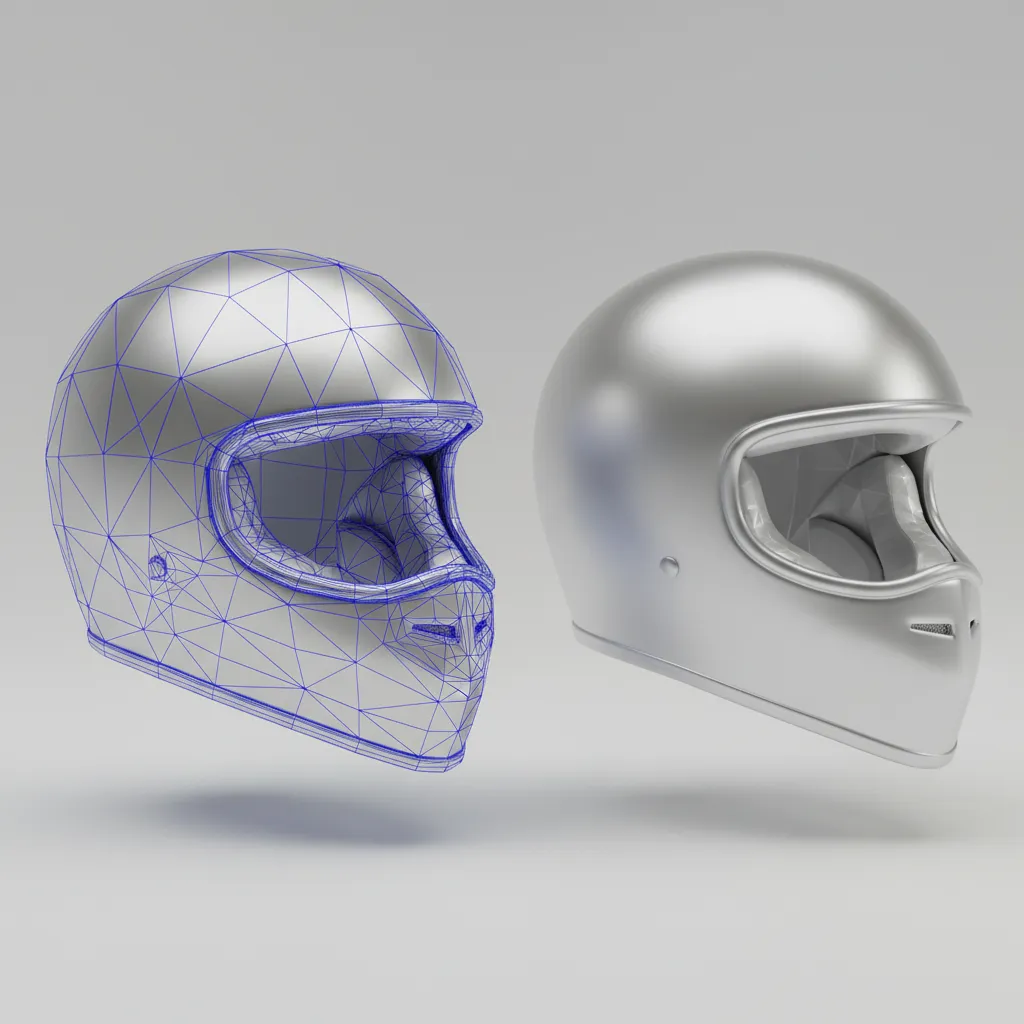

Debugging Subdivision Surface Artifacts

Key Insight: Subdivision surface problems usually reveal hidden topology mistakes.

Subdivision smooths geometry, but it also magnifies topology flaws. When a helmet suddenly develops bumps or pinching after subdivision, the cause is almost always structural.

Typical subdivision problems:

1. Pinching near poles
2. Surface dents near triangles
3. Overly soft edges

Fix strategy:

1. Add support edge loops.
2. Remove triangles near curved surfaces.
3. Maintain even polygon density.
4. Redirect edge flow around poles.

If you plan to export the model into real-time environments later, structured geometry planning becomes even more important. Many artists adopt structured layout workflows similar to those used in a guided spatial planning approach used for building organized layouts before final optimization.

Answer Box

The majority of helmet modeling errors come from topology imbalance, broken symmetry, and poor edge flow around the visor. Fixing these core structural issues resolves most shading and subdivision artifacts automatically.

Final Summary

1. Helmet modeling failures usually originate from poor topology planning.
2. Shading issues often come from normals and smoothing settings.
3. Broken symmetry creates uneven helmet proportions.
4. Clean edge flow around the visor stabilizes the entire model.
5. Subdivision artifacts reveal underlying topology problems.

FAQ

Why does my helmet model look uneven?

Most uneven helmet models come from broken symmetry or vertices drifting off-axis during editing.

What causes helmet 3D model topology problems?

Triangles, poles in curved areas, and inconsistent edge density are the most common causes.

How do I fix bad topology in helmet models?

Use retopology techniques such as dissolving edges, rebuilding loops, and converting triangles to quads.

Why does subdivision break my helmet model?

Subdivision surface problems usually expose hidden topology flaws like poles or uneven loops.

How many edge loops should a helmet visor have?

Typically three to five loops provide enough control for sharp edges without overcomplicating topology.

Can shading errors happen even with clean topology?

Yes. Incorrect normals or smoothing settings can still cause shading artifacts.

Should helmet models be all quads?

Mostly yes. Quad-dominant topology subdivides more predictably and avoids pinching.

What software is best for fixing helmet modeling errors?

Blender, Maya, and ZBrush all provide strong retopology and subdivision tools.
