Common Hospital Floor Plan Design Mistakes and How to Fix Them: A practical guide to diagnosing hospital layout problems and improving patient flow, safety, and operational efficiency

Direct Answer

Hospital floor plan design mistakes usually come from poor circulation planning, incorrect department placement, and overlooked safety requirements. These problems slow patient flow, increase staff workload, and create operational inefficiencies. The good news is that most hospital layout problems can be corrected by restructuring circulation paths, adjusting department adjacency, and reviewing accessibility and safety standards early in the planning phase.

Quick Takeaways

1. Poor circulation design is the most common cause of hospital workflow inefficiency.
2. Incorrect department adjacency increases staff travel time and delays patient care.
3. Many healthcare layouts fail because designers underestimate real operational movement.
4. Early layout testing can reveal hospital floor plan design mistakes before construction begins.
5. Simple circulation adjustments often solve major hospital layout problems.

Introduction

After working on hospital and healthcare facility projects for more than a decade, I've noticed something interesting: most hospital floor plan design mistakes don't come from bad intentions. They usually come from good ideas that were never tested against real hospital operations.

A layout might look perfectly logical on paper, yet once doctors, nurses, patients, and equipment start moving through the space, small inefficiencies become daily operational problems.

This is why experienced planners often simulate movement patterns before locking a layout. Tools that help teams visualize medical facility layouts in three dimensional space before constructionoften reveal circulation conflicts that are almost invisible in traditional drawings.

In this guide, I'll break down the most common hospital floor plan design mistakes I've seen across real projects, explain why they happen, and share practical ways to fix them before they turn into expensive structural problems.

save pin

Why Hospital Floor Plan Mistakes Can Be Costly

Key Insight: Hospital layout errors rarely look serious during design, but they become extremely expensive once operations begin.

Unlike residential or office buildings, hospitals operate as highly complex systems. Every department depends on fast, predictable movement between spaces. When circulation or adjacency fails, the entire system slows down.

In several projects I've reviewed, layout inefficiencies added minutes to every patient transfer. That may sound small, but across hundreds of daily movements, it creates massive operational costs.

Common hidden costs of poor hospital layouts:

1. Longer patient transport times
2. Increased staff walking distance
3. Emergency response delays
4. Equipment transport congestion
5. Operational bottlenecks between departments

According to research published in the Health Environments Research & Design Journal, optimized healthcare layouts can reduce nurse walking distance by up to 30%, which directly impacts staff efficiency and patient response time.

That’s why hospital planning must prioritize workflow before aesthetics or architectural symmetry.

Poor Patient Flow and How to Correct It

Key Insight: Poor patient flow usually happens when designers prioritize room placement over circulation logic.

Many healthcare facility layout errors start with a simple mistake: planning departments as isolated zones instead of connected workflows.

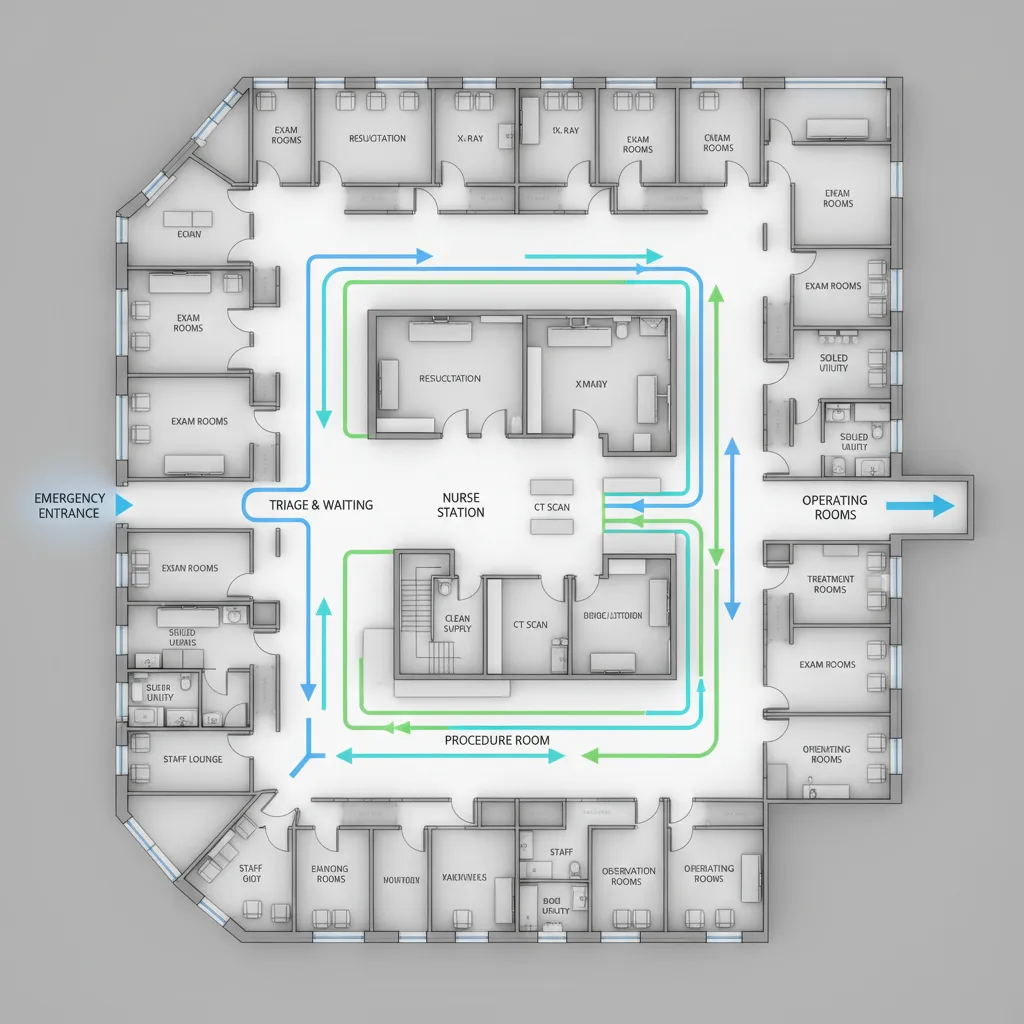

For example, if imaging departments sit far from emergency intake, every emergency patient requiring scans creates unnecessary movement.

Signs of poor patient flow:

1. Patients crossing staff-only corridors
2. Emergency paths intersecting public areas
3. Long transport routes between critical departments
4. Elevator congestion near treatment zones

How to fix poor patient flow in hospital design:

1. Map patient journeys from entry to treatment.
2. Separate public circulation from clinical circulation.
3. Keep high-interaction departments adjacent.
4. Use dedicated transport corridors where possible.

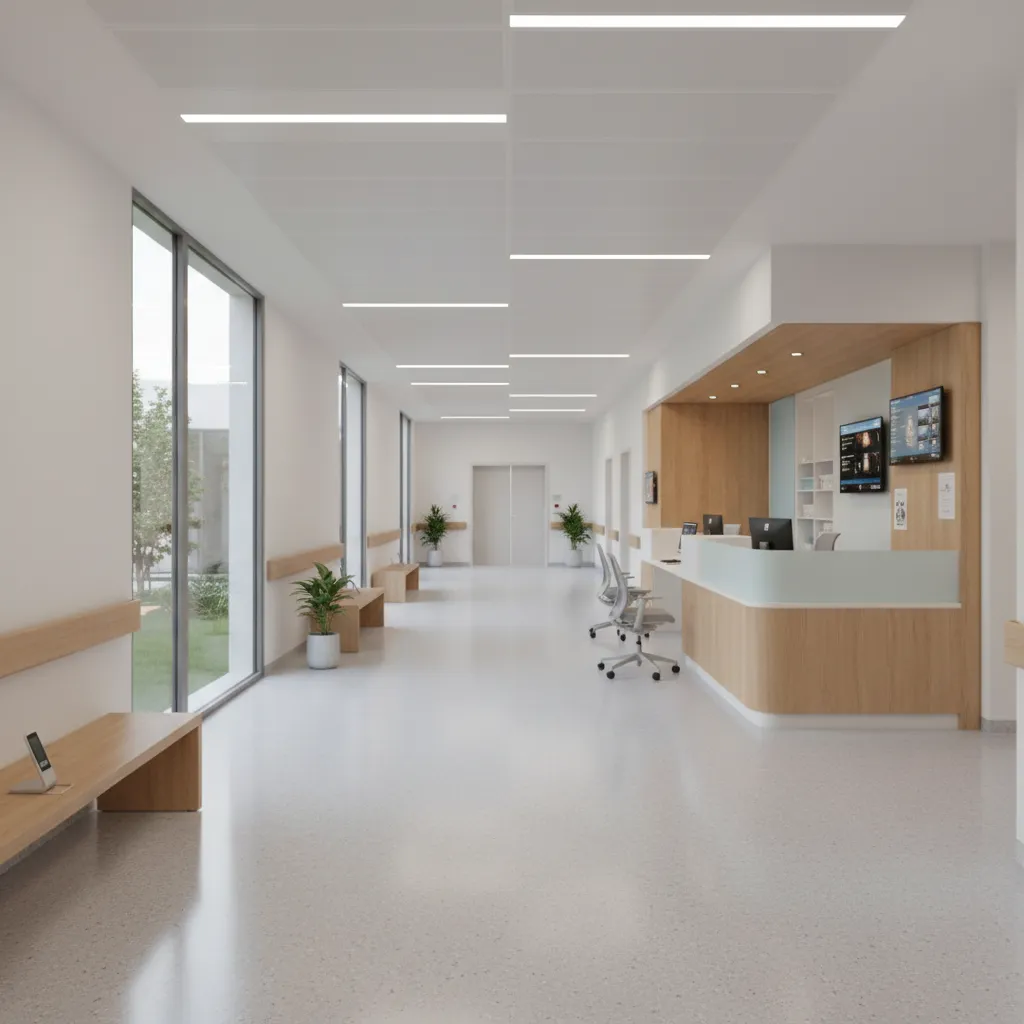

When teams simulate patient and staff movement inside a hospital floor plan, these inefficiencies become immediately visible.

save pin

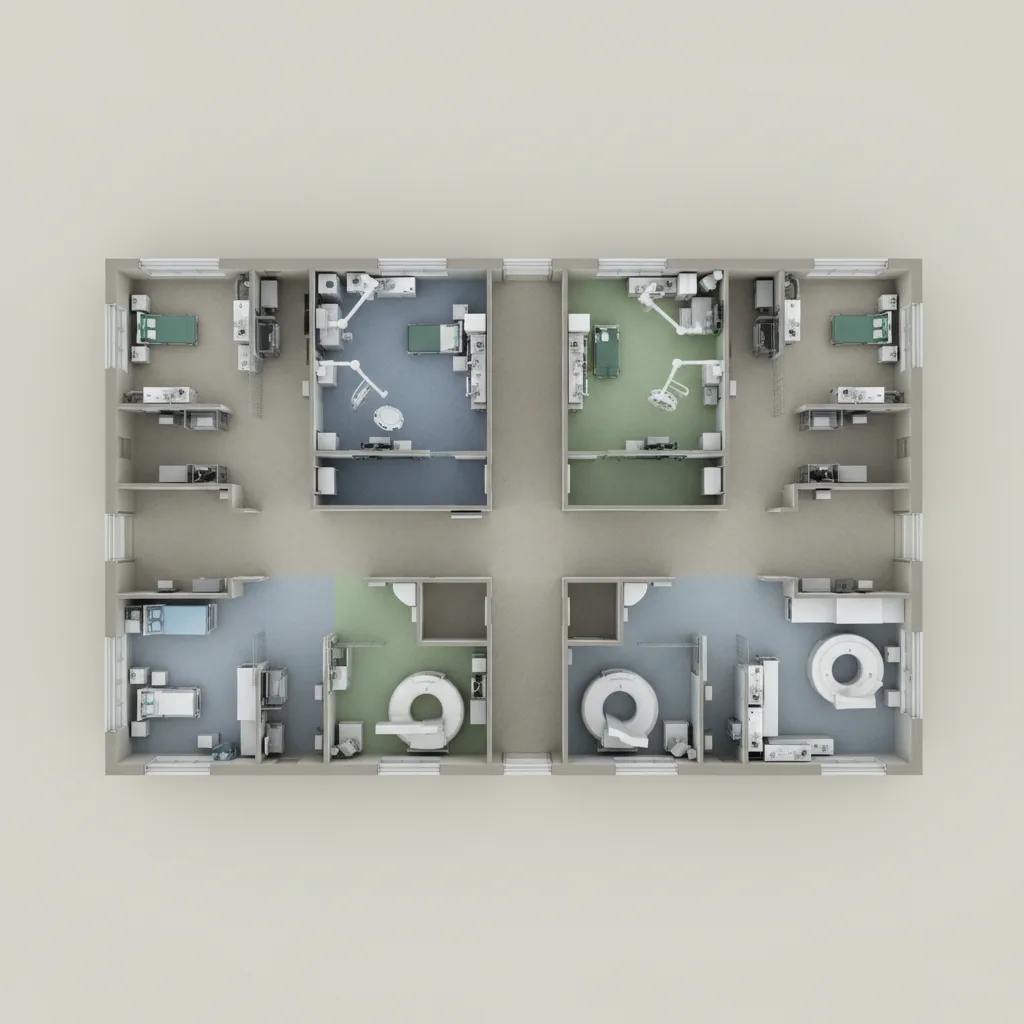

Department Placement Errors in Medical Facilities

Key Insight: Incorrect department adjacency is one of the most expensive hospital planning mistakes to fix after construction.

Hospitals function like ecosystems. Certain departments must sit near each other for operational efficiency.

Yet I frequently see layouts where departments are grouped by building zone instead of medical workflow.

Critical department adjacencies:

1. Emergency → Imaging
2. Emergency → Operating Rooms
3. ICU → Operating Rooms
4. Laboratory → Emergency
5. Pharmacy → Inpatient Units

Common placement mistakes:

1. Operating rooms too far from ICU
2. Diagnostic imaging separated by public corridors
3. Emergency department sharing elevators with visitors
4. Central supply located far from treatment areas

Healthcare architecture studies consistently show that correct adjacency planning dramatically reduces internal transport time and staff fatigue.

save pin

Common Safety and Accessibility Oversights

Key Insight: Many hospital layout problems appear during compliance review because accessibility and safety were treated as late-stage requirements.

Healthcare buildings must meet strict codes related to infection control, emergency access, and universal design.

But in early concept designs, these factors are often underestimated.

Frequent safety oversights in hospital layouts:

1. Insufficient corridor width for patient beds
2. Poor separation between sterile and non-sterile zones
3. Emergency exits located too far from high-risk areas
4. Limited accessibility for wheelchair movement

Key standards designers must consider:

1. FGI Guidelines for Design and Construction of Hospitals
2. ADA accessibility requirements
3. Infection control zoning principles

Ignoring these early often forces costly redesigns later.

Answer Box

The majority of hospital floor plan design mistakes stem from poor circulation planning and incorrect department adjacency. Fixing these early through workflow simulation and layout testing significantly improves operational efficiency and patient safety.

How to Fix Inefficient Circulation Paths

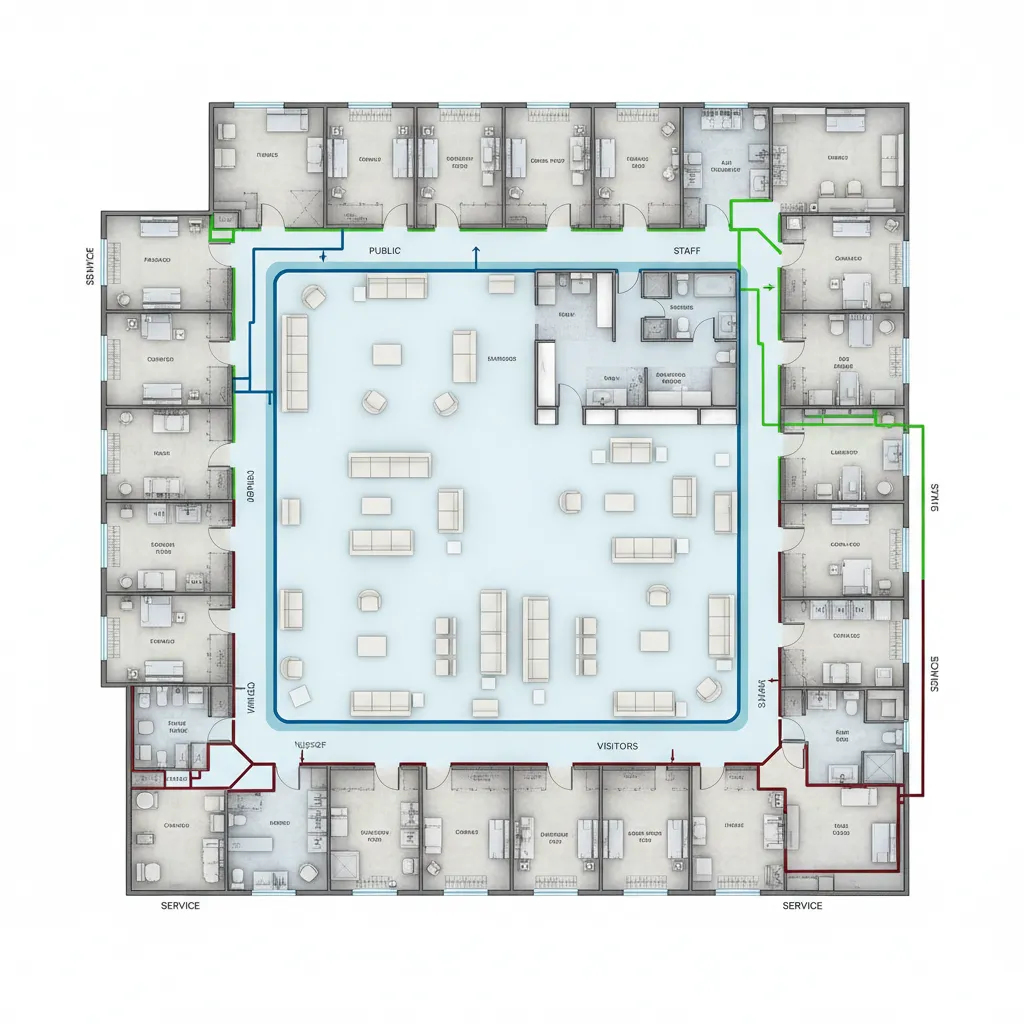

Key Insight: The most effective hospital layouts separate public, clinical, and service circulation paths.

When all movement happens through the same corridors, congestion becomes unavoidable.

Experienced healthcare planners typically design three distinct circulation systems:

1. Public circulation for visitors and outpatients
2. Clinical circulation for doctors and nurses
3. Service circulation for equipment and supplies

Steps to improve hospital circulation:

1. Identify major daily movement routes.
2. Reduce intersections between patient and staff paths.
3. Use dedicated service corridors for equipment.
4. Place vertical circulation near high-traffic zones.

Design teams who test healthcare floor plans with interactive layout planning toolsoften discover circulation conflicts long before construction documents are finalized.

save pin

Checklist for Reviewing a Hospital Layout Before Finalizing

Key Insight: A structured layout review checklist can catch most hospital planning mistakes before construction begins.

Before approving any hospital floor plan, experienced healthcare architects usually run through a structured validation process.

Hospital layout review checklist:

1. Are emergency routes the shortest possible paths?
2. Are high-interaction departments adjacent?
3. Are patient, staff, and service routes separated?
4. Are corridors wide enough for medical equipment?
5. Are vertical transport points located strategically?
6. Does the layout meet healthcare accessibility standards?

This simple review process prevents many of the most common healthcare facility layout errors.

Final Summary

1. Most hospital layout problems come from poor circulation planning.
2. Department adjacency strongly affects operational efficiency.
3. Workflow simulation reveals design issues early.
4. Separating circulation types improves safety and efficiency.
5. Structured layout reviews prevent costly construction changes.

FAQ

What are the most common hospital floor plan design mistakes?

Poor circulation planning, incorrect department adjacency, and inadequate safety compliance are the most frequent hospital floor plan design mistakes.

How can poor patient flow affect hospital operations?

Poor patient flow increases transfer time, delays treatment, and forces staff to travel longer distances throughout the facility.

How do you fix poor patient flow in hospital design?

Map patient journeys, place related departments closer together, and separate public circulation from clinical circulation paths.

What departments should be close in a hospital layout?

Emergency should be close to imaging and operating rooms. ICU should be located near surgical suites.

Why is department adjacency important in healthcare facilities?

Correct adjacency reduces transport time, improves response speed, and helps staff deliver care more efficiently.

How wide should hospital corridors be?

Many guidelines recommend at least 8 feet for primary corridors to accommodate patient beds and equipment.

Can hospital floor plan design mistakes be fixed after construction?

Some circulation improvements are possible, but major department placement errors are expensive to correct after construction.

What is the best way to test a hospital layout before construction?

Simulating workflows and movement patterns inside digital layout models is one of the most effective methods.
