Common Interventional Radiology Room Layout Problems and How to Fix Them: A practical troubleshooting guide for fixing workflow bottlenecks, equipment conflicts, and design mistakes in IR suites

Direct Answer

Most interventional radiology room layout problems come from poor workflow zoning, insufficient equipment clearance, and limited communication between the control room and procedure area. Fixing these issues usually involves reorganizing circulation paths, separating sterile and non‑sterile zones, and allocating dedicated equipment parking space. Even small layout adjustments can significantly improve IR suite workflow, safety, and staff efficiency.

Quick Takeaways

1. IR suite workflow failures often come from circulation paths crossing the sterile procedure zone.
2. Equipment collision issues are usually caused by underestimating clearance for C‑arms and mobile carts.
3. Poor control room visibility slows procedures and increases communication errors.
4. Dedicated equipment parking areas prevent hallway clutter and workflow interruptions.
5. Many interventional radiology room layout problems can be fixed without full reconstruction.

Introduction

In more than a decade working with hospital planning teams, I have seen one pattern repeat itself: interventional radiology room layout problems rarely come from lack of technology. They almost always come from spatial decisions made too early in the planning process.

On paper, an IR suite may meet every technical requirement—correct shielding, enough square footage, compliant clearances. But once the first complex case starts, problems appear. Staff cross the sterile field to reach equipment. Mobile ultrasound units block circulation paths. Technologists squeeze around the C‑arm during repositioning.

These aren't just design inconveniences. Poor layouts create real operational risk: longer procedure times, increased infection risk, and staff fatigue.

Over the years I've helped facilities diagnose these issues using visual workflow simulations and spatial modeling. One of the fastest ways teams identify circulation conflicts is by mapping medical workflow paths inside a 3D floor planning environment, which quickly reveals where staff movement intersects with sterile zones.

Below are the most common IR suite design mistakes I encounter in existing facilities—and practical ways to fix them without necessarily rebuilding the entire room.

save pin

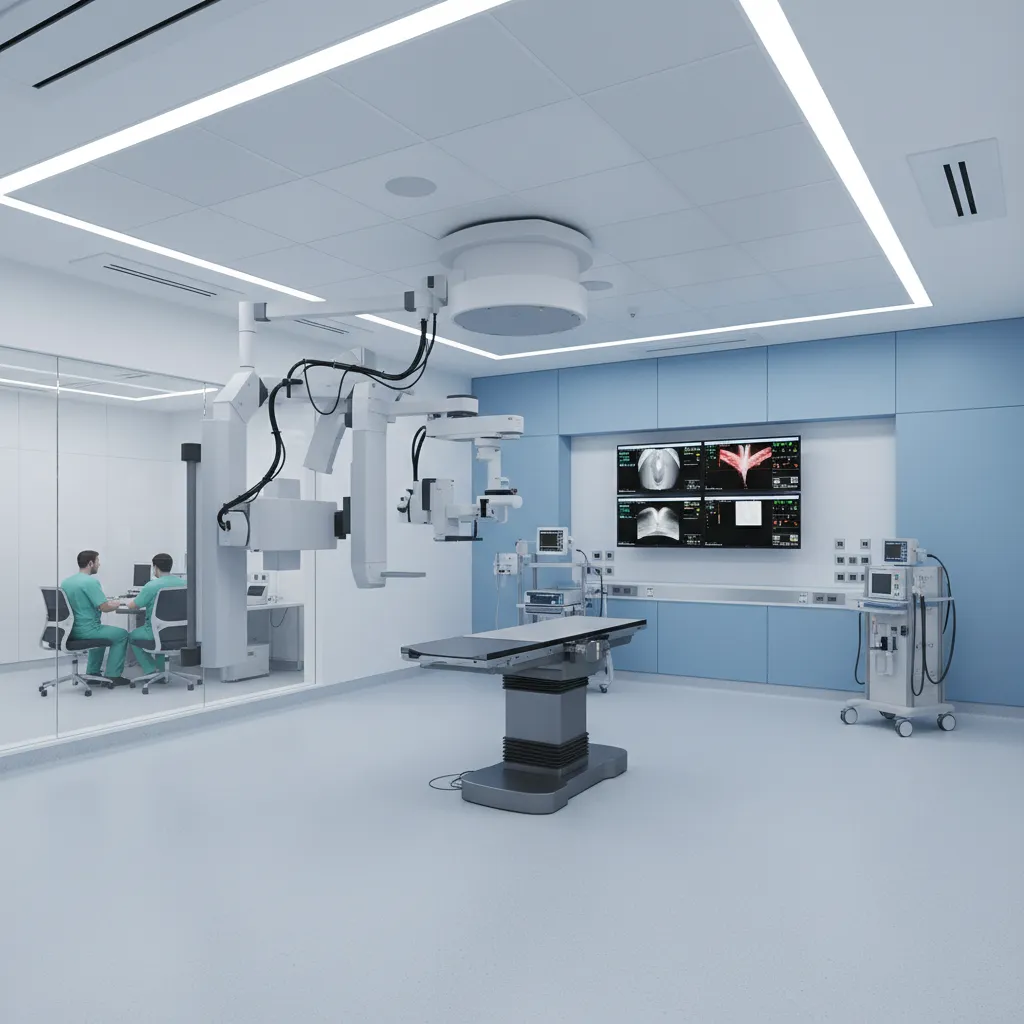

Workflow Bottlenecks Caused by Poor IR Room Layout

Key Insight: Most IR suite workflow bottlenecks occur because staff circulation paths cross the sterile procedure zone.

In many facilities, equipment access, supply cabinets, and documentation stations are located behind or beside the procedure table. That forces technologists and nurses to walk through the central sterile area during procedures.

During high‑complexity interventions—embolizations, vascular repairs, multi‑device procedures—this quickly becomes chaotic.

Common layout mistakes:

1. Supply storage located behind the operator side of the table
2. No dedicated path between equipment storage and imaging consoles
3. Patient entry crossing staff workflow paths
4. Ultrasound and anesthesia equipment stored inside circulation lanes

Practical fixes:

1. Create a "clean corridor" around the sterile table with no through‑traffic.
2. Move supply cabinets toward the room perimeter.
3. Separate patient entry from equipment entry when possible.
4. Reserve one wall for device carts and mobile imaging.

The Society of Interventional Radiology has repeatedly emphasized that clear procedural zoning improves both safety and procedure efficiency.

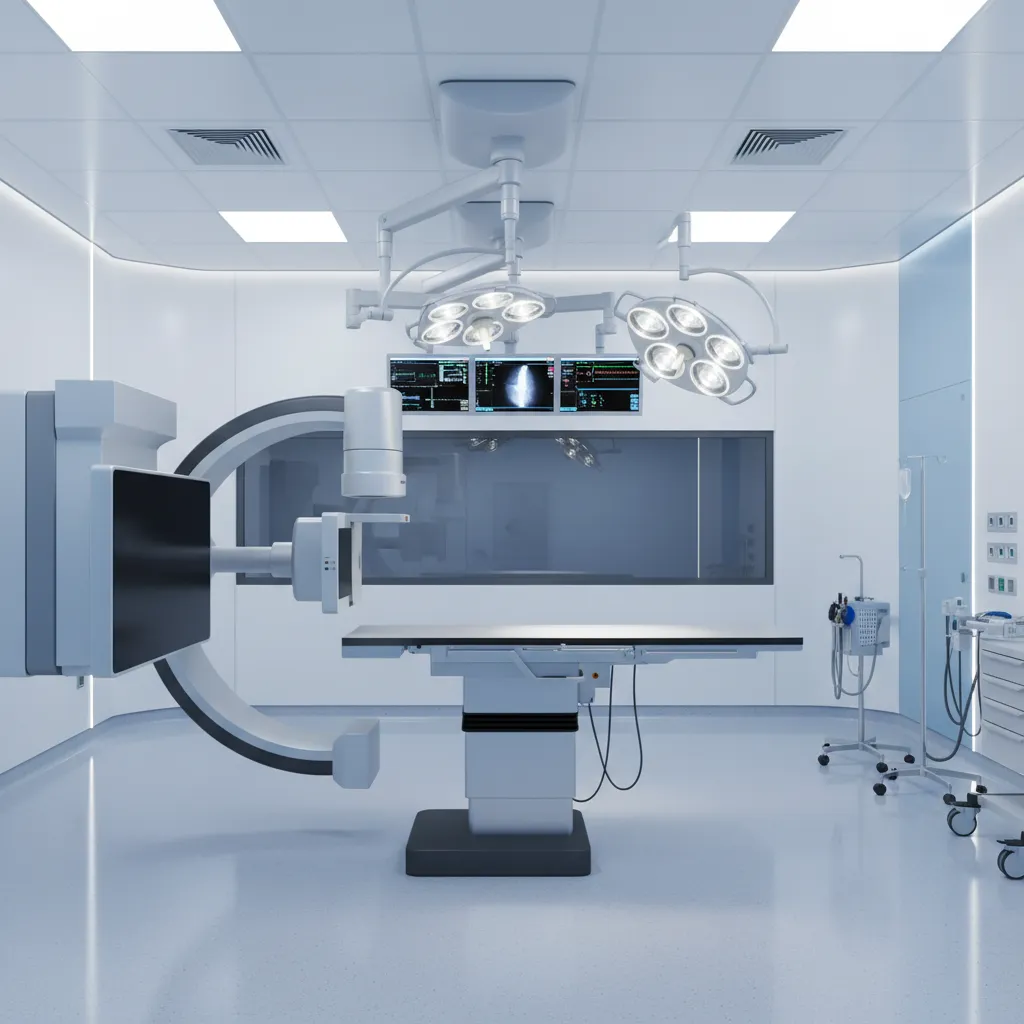

Equipment Collision and Clearance Problems

Key Insight:Clearance planning for C‑arms and ceiling‑mounted equipment is often underestimated during early room layout design.

Modern IR labs contain more moving equipment than almost any other imaging space: C‑arms, ceiling monitors, anesthesia booms, IV poles, ultrasound carts, and contrast injectors.

If the room layout only accounts for static footprints, collisions become inevitable.

save pin

Typical collision scenarios:

1. C‑arm rotation hitting ceiling monitors
2. Ultrasound carts blocking anesthesia access
3. Monitor booms intersecting with lighting arms
4. Staff trapped between equipment during repositioning

Clearance guidelines used in many hospital projects:

1. Minimum 1.2–1.5 m circulation around the procedure table
2. Full C‑arm sweep clearance mapped in plan and elevation
3. Dedicated ultrasound staging zone
4. Separate anesthesia workspace at the head of the table

Running these simulations before construction—or during renovations—helps teams catch interventional radiology lab space planning issues early.

Why Do Control Room Visibility Problems Slow Procedures?

Key Insight: Limited visual connection between the control room and procedure space creates communication delays and coordination errors.

In older IR suites, the control room is often positioned at an angle or behind thick shielding walls with narrow viewing windows. Technologists then rely heavily on verbal communication instead of visual cues.

During complex interventions, even small communication delays can slow down imaging sequences.

Common visibility problems:

1. Control room placed too far from procedure table
2. Window framing blocking the operator view
3. Monitor glare preventing clear observation
4. Acoustic separation reducing voice clarity

Design improvements that work well:

1. Wide lead‑glass observation panels
2. Slightly angled control room alignment with table axis
3. Integrated audio systems
4. Supplementary ceiling cameras for monitoring

Many planning teams now simulate staff sightlines while designing imaging departments using tools that help teams visualize complex workflow relationships in large medical layouts.

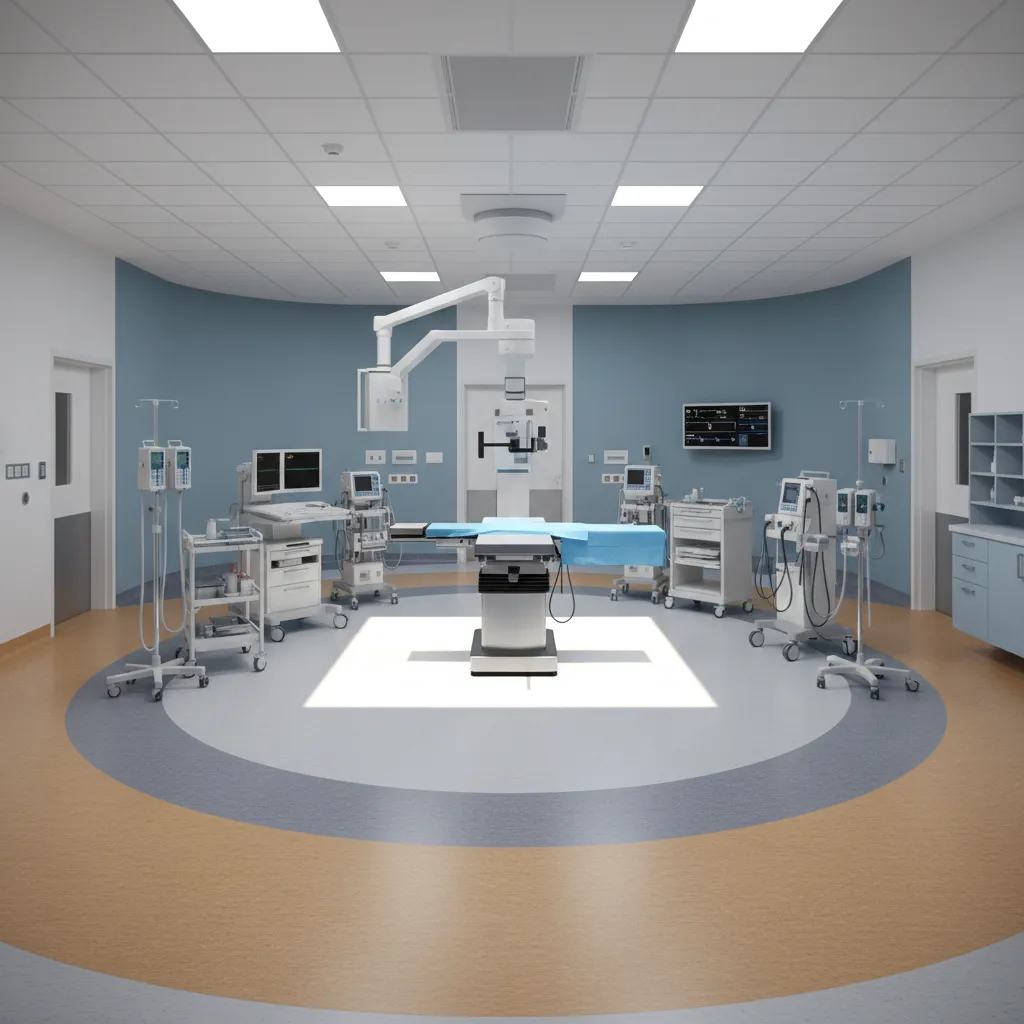

Sterile Field Disruption Due to Layout Constraints

Key Insight:Sterile field breaches often happen not because of protocol failure, but because the room layout forces staff too close to the sterile zone.

When equipment parking, supply cabinets, or documentation stations are located inside the sterile perimeter, staff repeatedly move through restricted areas.

save pin

Hidden layout problems that cause sterile disruption:

1. Device carts stored near the sterile table
2. Wall cabinets opening into sterile zones
3. Waste disposal placed beside the operator area
4. Mobile imaging equipment parked near scrub stations

Recommended zoning strategy:

1. Central sterile zone: procedure table and imaging arc
2. Secondary support zone: ultrasound, anesthesia, device carts
3. Peripheral circulation zone: storage, supply access, and staff movement

This layered zoning approach is now widely recommended in contemporary interventional radiology suite planning.

Insufficient Storage and Equipment Parking Areas

Key Insight: When IR suites lack dedicated equipment parking space, mobile devices inevitably migrate into circulation paths.

This is one of the most overlooked design flaws in existing hospitals. Equipment is purchased over time, but the room layout rarely expands to accommodate it.

Common devices that require dedicated space include:

1. Portable ultrasound units
2. Device preparation carts
3. Contrast injectors
4. Lead apron racks
5. Mobile monitors

Effective storage solutions:

1. Built‑in equipment alcoves
2. Dedicated staging walls
3. Mobile cart parking bays
4. Ceiling‑mounted storage for monitors

Many modern IR rooms now include small side niches specifically designed for parking mobile imaging equipment.

Answer Box

The most common interventional radiology room layout problems are workflow bottlenecks, equipment clearance conflicts, and poorly defined sterile zones. These issues typically come from insufficient circulation planning rather than lack of space. Redesigning movement paths and equipment zones often solves the problem without full reconstruction.

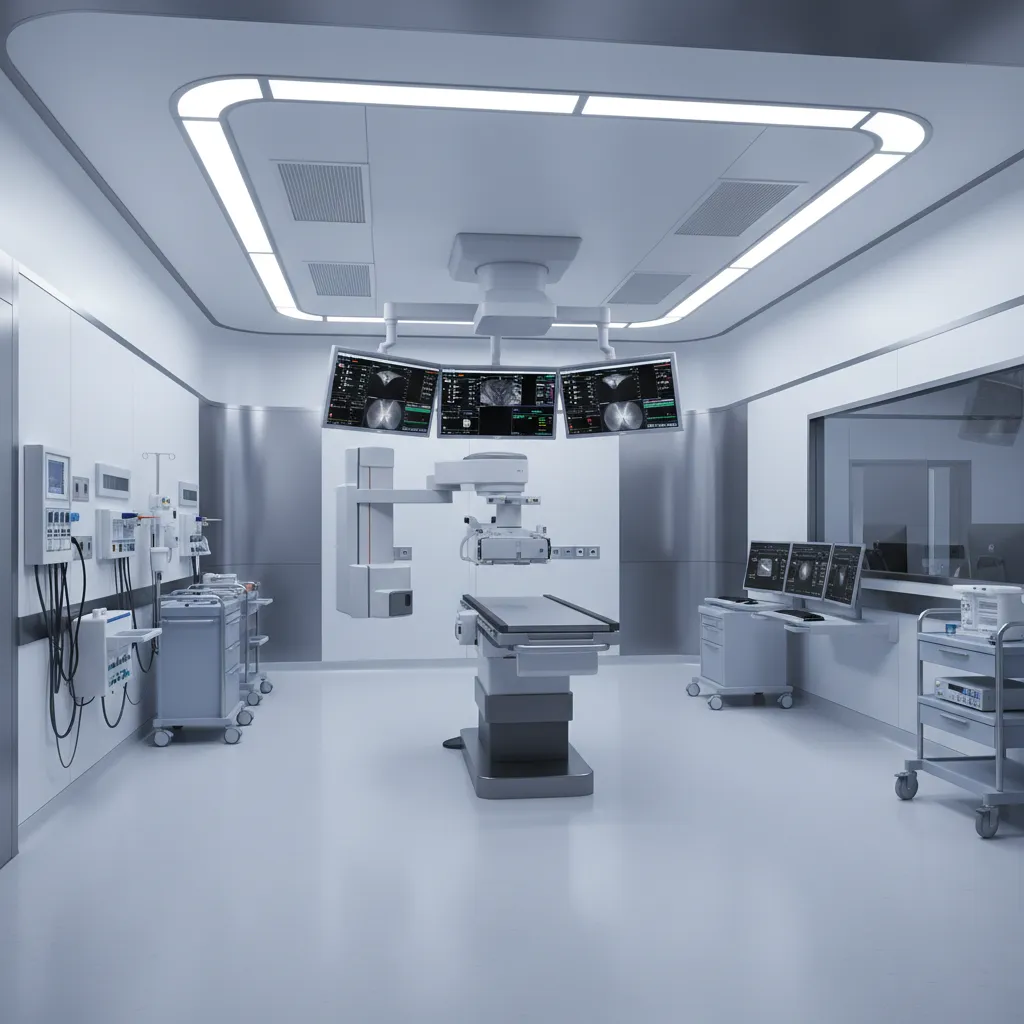

How Can Existing IR Rooms Be Retrofitted for Better Performance?

Key Insight:Many IR suite design mistakes can be corrected through targeted spatial adjustments rather than complete renovation.

Hospitals often assume fixing poor interventional radiology room design requires rebuilding the lab. In reality, several high‑impact improvements are relatively simple.

save pin

High‑impact retrofit strategies:

1. Reposition mobile equipment storage along one wall
2. Install additional ceiling monitor mounts
3. Relocate supply cabinets outside sterile zones
4. Adjust table orientation to improve circulation
5. Add equipment alcoves during minor renovations

Before making structural changes, many hospitals run spatial tests to experiment with alternative equipment layouts and circulation paths. This allows teams to identify improvements before construction begins.

Final Summary

1. Most interventional radiology room layout problems stem from poor workflow zoning.
2. C‑arm clearance and equipment movement must be simulated early.
3. Control room visibility directly affects procedure coordination.
4. Sterile zones fail when circulation paths pass through them.
5. Dedicated equipment parking areas dramatically improve IR suite workflow.

FAQ

What are the most common interventional radiology room layout problems?

Workflow bottlenecks, equipment collisions, poor sterile zoning, and limited storage are the most common issues affecting IR suite performance.

How large should an interventional radiology room be?

Most modern IR labs range from 600–800 square feet to accommodate C‑arm movement, staff circulation, and equipment staging.

Can poor IR suite workflow be fixed without reconstruction?

Yes. Reorganizing equipment zones, relocating storage, and adjusting circulation paths can significantly improve workflow.

Why does equipment collision happen in IR suites?

Many designs account only for equipment footprints, not the full motion range of C‑arms, monitors, and booms.

What causes sterile field disruption in IR labs?

Layout constraints that force staff or equipment through sterile zones often cause repeated contamination risks.

How can hospitals diagnose IR suite workflow bottlenecks?

Mapping staff movement and equipment paths during procedures helps reveal hidden circulation conflicts.

What equipment requires dedicated parking space in an IR suite?

Portable ultrasound systems, device carts, contrast injectors, and mobile monitors typically require dedicated storage zones.

How do you improve an existing interventional radiology room layout?

Reorganizing storage, separating sterile zones, and optimizing equipment positioning can greatly improve an interventional radiology room layout.

References

Society of Interventional Radiology (SIR) Facility Design Guidelines

American College of Radiology Imaging Facility Planning Resources

FGI Guidelines for Design and Construction of Hospitals
