Common Issues When Using Cement Ventilator 3D Models in CAD and Rendering: Practical fixes for import errors, scaling problems, and rendering glitches when working with cement ventilator block models.

Direct Answer

Cement ventilator 3D model issues usually happen because of file format incompatibility, incorrect unit scaling, messy mesh geometry, or missing material definitions. Fixing these problems typically involves cleaning the mesh, confirming software units, and re‑exporting the model in a stable format such as OBJ, SKP, or DWG.

Most import or rendering failures are not caused by the design software itself but by the way the model was exported or structured.

Quick Takeaways

1. Most cement ventilator model import errors come from incompatible file formats.
2. Incorrect units during export often cause severe scaling issues.
3. Messy mesh geometry leads to shading artifacts and rendering glitches.
4. Missing material definitions cause flat or invisible surfaces.
5. Clean topology dramatically improves rendering performance.

Introduction

In the past decade of working on residential and small commercial projects, I've imported hundreds of architectural components into CAD and visualization software. Surprisingly, one of the most common troublemakers is the cement ventilator 3D model. These decorative airflow blocks look simple, but their repeating cutouts often create geometry problems when moved between software platforms.

Designers frequently encounter situations where a ventilator block refuses to import, appears ten times larger than expected, or renders with strange shadows. In many cases, the issue isn't obvious until the model is already inside a scene. I’ve seen this happen in SketchUp, AutoCAD, Revit, and even high‑end rendering pipelines.

If you're building architectural layouts and placing ventilation blocks into wall assemblies, tools that help you visualize architectural layouts with an interactive 3D floor planning workflowcan reveal scaling or placement issues much earlier.

Below are the most frequent problems I see with cement ventilator models and the methods professionals use to fix them quickly.

save pin

Why Cement Ventilator 3D Models Sometimes Fail in CAD

Key Insight: Cement ventilator models often fail because they contain extremely dense geometry created during automated modeling or careless exports.

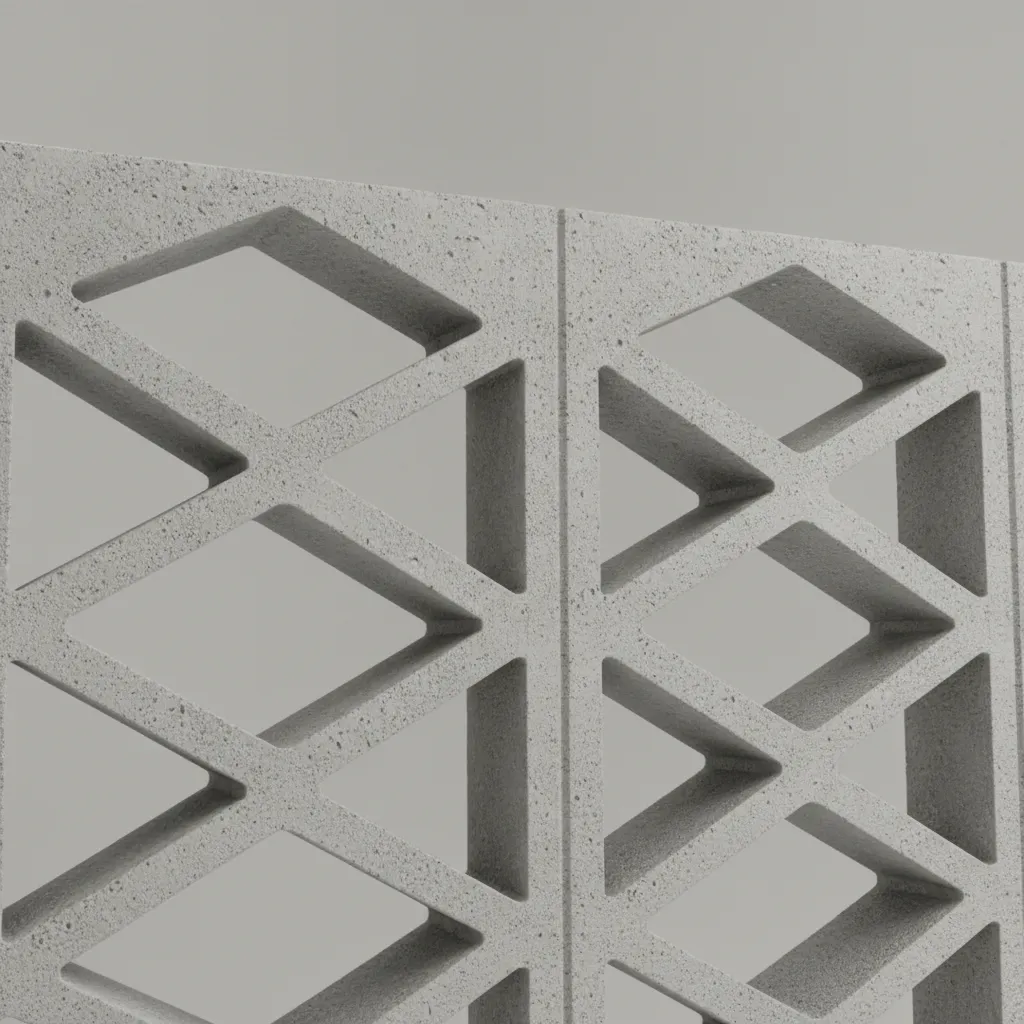

Unlike simple walls or furniture, ventilator blocks include repeated holes, curved cutouts, and thin edges. When these are exported from modeling software, the geometry often becomes unnecessarily complex.

Common causes include:

1. Boolean operations that leave behind hidden faces
2. High polygon counts from subdivision modeling
3. Non‑manifold edges or overlapping surfaces
4. Improper triangulation during export

In practice, I’ve opened ventilator models that contained over 200,000 polygons for a single block. For CAD workflows, that’s excessive and can easily break imports.

The safest approach is to simplify the mesh before exporting.

Recommended preparation steps:

1. Remove hidden faces
2. Merge duplicate vertices
3. Reduce unnecessary subdivisions
4. Export clean quads or simple triangulated geometry

Most modeling applications such as Blender or 3ds Max provide mesh cleanup tools specifically for this purpose.

Import Errors in SketchUp AutoCAD and Revit

Key Insight: Import errors usually happen because the ventilator model was exported in a format the receiving software only partially supports.

Different architectural programs interpret geometry differently.

Typical compatibility problems include:

1. Unsupported mesh modifiers
2. Missing layers or groups
3. Improper unit metadata
4. Non‑solid geometry in BIM software

For example:

1. SketchUp prefers SKP or clean OBJ geometry.
2. AutoCAD works reliably with DWG or DXF solids.
3. Revit performs best with SAT or well‑structured families.

If a cement ventilator 3D model refuses to import, try this quick workflow:

1. Open the file in a neutral modeling tool.
2. Clean the geometry.
3. Re‑export as OBJ or FBX.
4. Reimport into your CAD software.

This conversion step fixes the majority of "cement ventilator 3D model not importing" errors.

Fixing Incorrect Scale and Dimensions

Key Insight: Scale problems almost always originate from mismatched unit systems between modeling and CAD environments.

I frequently see vent blocks imported at 10x or 100x the intended size. The root cause is simple: the original model was built in millimeters but imported into software expecting meters or inches.

Common unit mismatches:

1. Millimeters exported into meter‑based scenes
2. Centimeters interpreted as inches
3. No unit metadata stored in the file

Before exporting a ventilator block:

1. Confirm the modeling units.
2. Check export unit settings.
3. Enable "Preserve Units" if available.

In architectural visualization workflows, accurate scaling becomes even more critical when generating photorealistic scenes using tools that help designers create high quality 3D home renderings from architectural models.

save pin

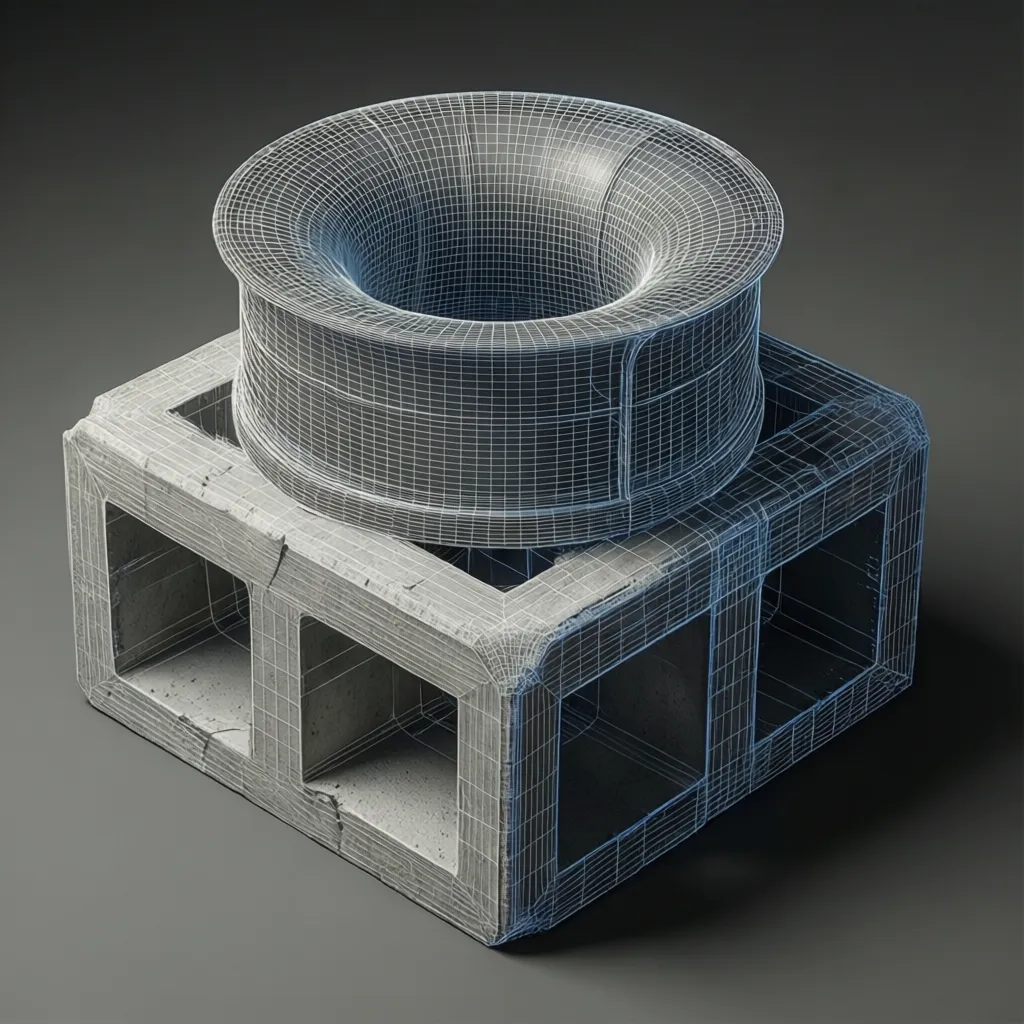

Resolving Mesh and Geometry Problems

Key Insight: Broken mesh topology is the hidden reason many ventilator block rendering problems occur.

Ventilation blocks contain many repeating voids. If the mesh isn't watertight, rendering engines may produce strange shadows or missing surfaces.

Typical mesh errors include:

1. Non‑manifold edges
2. Flipped normals
3. Duplicate surfaces
4. Internal faces

Fixing mesh problems usually involves running cleanup tools.

Recommended repair process:

1. Run "Merge by Distance" or similar vertex cleanup.
2. Recalculate face normals.
3. Delete interior faces.
4. Convert ngons to quads where possible.

Applications like Blender, MeshLab, and Autodesk tools are widely used for repairing architectural meshes.

save pin

Material and Texture Rendering Issues

Key Insight: Rendering problems with cement ventilators often come from missing or incompatible material definitions.

Many downloaded models contain placeholder materials that do not translate between rendering engines.

Common issues:

1. Materials reset to default gray
2. UV coordinates missing
3. Textures linked with broken file paths
4. Normal maps not supported in CAD viewports

Professional workaround:

1. Remove imported materials
2. Create a new concrete or cement shader
3. Reapply texture mapping

This produces far cleaner results and avoids conflicts across rendering engines.

Best Practices for Stable Model Integration

Key Insight: Stable cement ventilator models rely on simple geometry, consistent units, and minimal materials.

After integrating these blocks into dozens of residential and courtyard wall designs, I’ve found that simpler models perform better in every CAD pipeline.

Best practices:

1. Keep polygon counts under 20k per block
2. Use clean quad geometry
3. Apply only one or two materials
4. Export in widely supported formats

If you're planning entire wall layouts using ventilation blocks, platforms that help designers experiment with AI assisted interior design concepts can quickly reveal spacing, lighting, and airflow patterns before committing to detailed modeling.

Answer Box

The most common cement ventilator 3D model issues come from messy geometry, incorrect scaling units, incompatible file formats, and missing materials. Cleaning the mesh, verifying units, and exporting to stable formats like OBJ or FBX solves most problems quickly.

Final Summary

1. Most ventilator model failures originate from poor mesh topology.
2. Incorrect export units are the main cause of scaling problems.
3. File format compatibility matters across CAD software.
4. Clean geometry dramatically improves rendering stability.
5. Simplified models integrate better into architectural scenes.

FAQ

Why is my cement ventilator 3D model not importing?

The file format may be unsupported or the mesh may contain invalid geometry. Converting the model to OBJ or FBX and cleaning the mesh usually fixes the issue.

Why does my ventilator block import at the wrong size?

This happens when export and import units differ. Confirm both programs use the same unit system before exporting.

How do I fix scale issues in vent block 3D models?

Reset the model units in the source software and re‑export with unit metadata enabled.

Why do ventilator blocks render with dark shadows?

The mesh may have flipped normals or overlapping faces. Recalculate normals and remove duplicate surfaces.

What is the best format for a cement ventilator 3D model?

OBJ, FBX, and SKP generally work reliably across most architectural modeling tools.

How do I repair mesh in architectural vent models?

Use mesh cleanup tools like merge vertices, remove internal faces, and fix normals.

Why are textures missing after importing a model?

Texture paths may be broken or unsupported. Reassign materials inside the destination software.

Do high‑poly ventilator models cause performance issues?

Yes. Excessively detailed meshes slow down CAD software and rendering engines.
