Common Kitchen Counter Drawing Mistakes and How to Fix Them: Avoid fabrication delays by spotting the most frequent countertop drawing errors before they reach the workshop.

Direct Answer

Most kitchen countertop drawing mistakes happen when measurements, cutout details, seam placement, or cabinet alignment are unclear or inconsistent. Fixing these issues before fabrication requires verifying dimensions, marking appliance cutouts precisely, and checking how the countertop interacts with cabinets and walls.

In professional practice, even small drafting errors can cause expensive material waste. A careful drawing review process prevents most countertop fabrication problems.

Quick Takeaways

1. Incorrect measurements are the most common cause of countertop fabrication errors.
2. Missing sink or appliance cutouts often force costly on-site modifications.
3. Seam placement should follow slab size, structure, and visual balance.
4. Cabinet and counter dimensions must always be verified together.
5. A pre-fabrication checklist prevents the majority of drawing mistakes.

Introduction

After reviewing hundreds of kitchen countertop drawings over the past decade, I've noticed something interesting: the majority of fabrication problems don't come from complicated designs. They come from small documentation mistakes.

A kitchen countertop drawing looks simple on paper, but it actually carries a lot of technical responsibility. It tells the fabricator where every edge, cutout, seam, and overhang should be. If one element is unclear, the entire slab can be cut incorrectly.

In several residential projects I've worked on, homeowners assumed the contractor would "figure it out" during installation. Unfortunately, stone and quartz fabrication doesn't work that way. Once a slab is cut, there's no undo button.

If you're still learning how these drawings work, it's worth reviewing how designers visualize and plan kitchen layouts before drafting final surfaces. Understanding the layout logic behind the drawing makes troubleshooting far easier.

Below are the mistakes I see most often in countertop plans—and more importantly, how to fix them before the design reaches the fabrication shop.

save pin

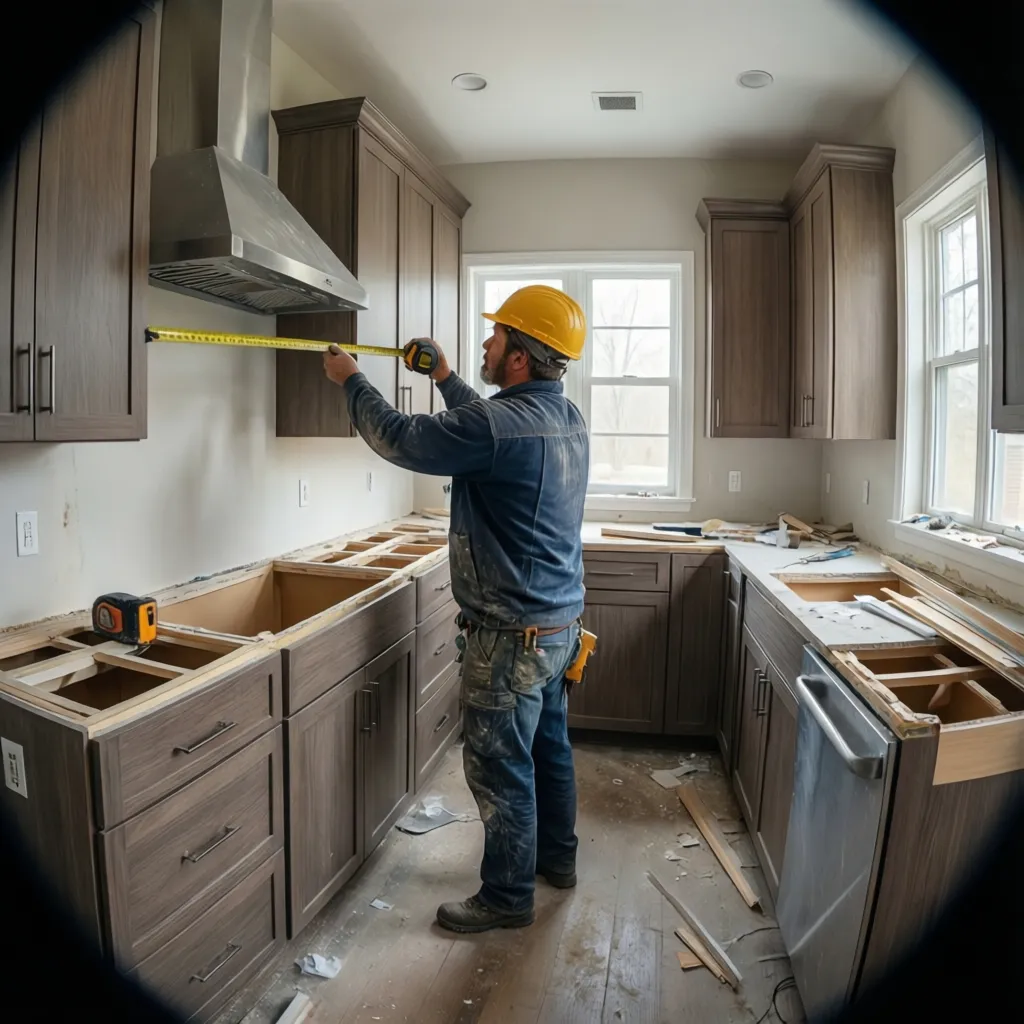

Incorrect Countertop Measurements

Key Insight: Measurement errors in countertop drawings almost always originate from cabinet dimensions that were never verified on site.

One of the most common issues I encounter is designers relying entirely on architectural plans instead of field measurements. Cabinets are rarely installed perfectly according to drawings—walls shift, floors slope, and installers make small adjustments.

If the countertop drawing uses theoretical cabinet dimensions instead of real installed measurements, gaps or overhang issues appear during installation.

Typical measurement mistakes include:

1. Incorrect counter depth due to wall irregularities
2. Missing overhang measurements
3. Ignoring backsplash thickness
4. Failure to account for end panels

How professionals prevent this:

1. Always measure cabinets after installation
2. Include wall-to-wall measurements
3. Specify finished overhang dimensions
4. Mark measurement reference points clearly

Many designers now test their layout visually using tools like a visual floor planning environment that helps verify kitchen proportions before finalizing measurements.

Missing Sink and Appliance Cutout Details

Key Insight: A countertop drawing without precise cutout specifications forces fabricators to guess—and guessing leads to expensive mistakes.

I've seen drawings where the sink is simply labeled "sink here." That might work for conceptual design, but fabrication requires exact geometry.

Fabricators need much more than a general location.

Essential cutout information:

1. Exact sink model number
2. Cutout dimensions
3. Corner radius
4. Mounting type (undermount, drop-in, integrated)
5. Reveal type (positive, flush, negative)

Appliances also require precise spacing. Cooktops, downdraft vents, and pop-up outlets all affect how the slab is cut.

Manufacturers usually publish cutout templates. Professional fabricators rely on those rather than interpreting approximate drawings.

save pin

Improper Edge Profile Notation

Key Insight: Edge profile mistakes are rarely about design preference—they're about unclear notation in the drawing.

Countertop edges affect fabrication time, tooling, and material thickness. When a drawing simply says "rounded edge" or "beveled," the fabricator may interpret it differently than intended.

Common edge profile confusion:

1. Eased edge vs. pencil edge
2. Half bullnose vs. full bullnose
3. Bevel angle not specified
4. Laminated edges missing thickness notes

Best practice for drawings:

1. Label the edge profile clearly
2. Include a small detail diagram
3. Specify finished thickness
4. Mark which edges receive the profile

The Natural Stone Institute recommends adding edge detail diagrams whenever a project includes multiple edge types, which is common in kitchen islands and waterfall countertops.

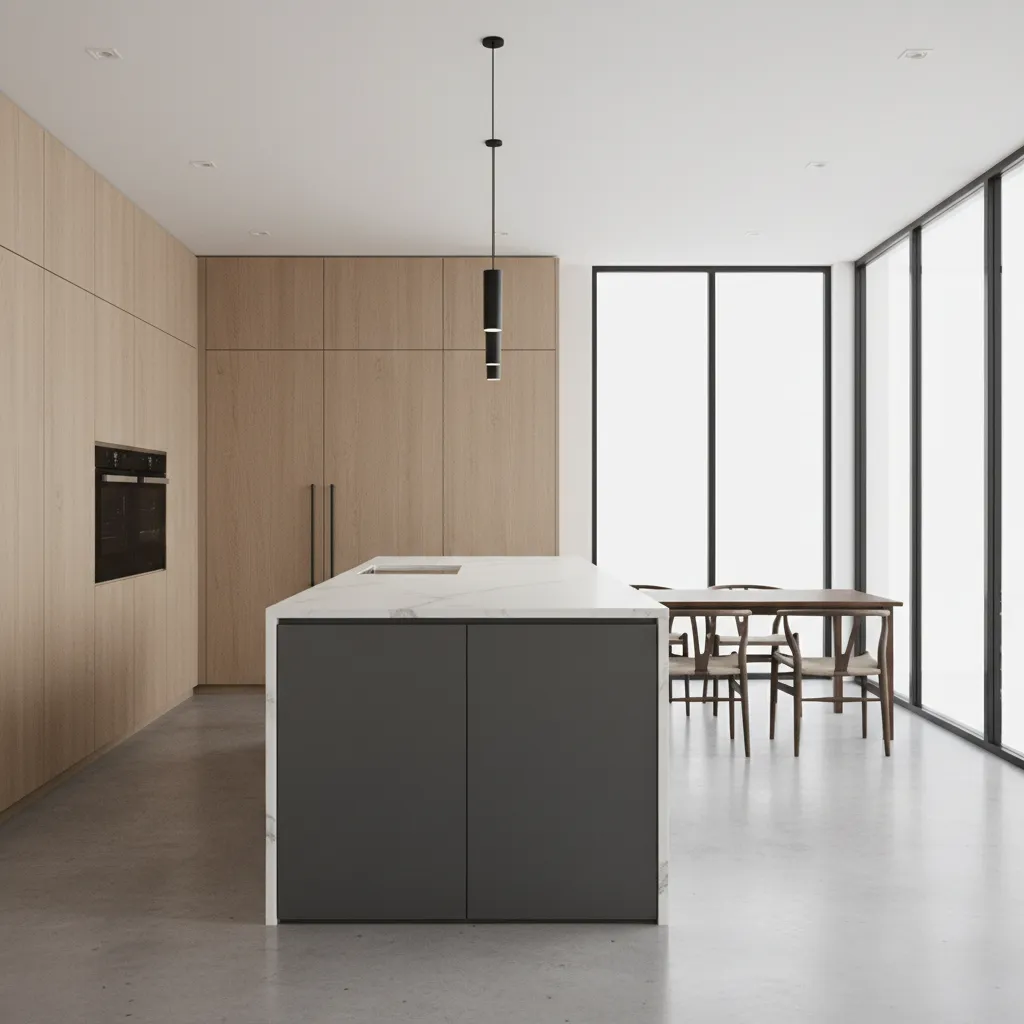

Seam Placement Errors in Drawings

Key Insight: Poor seam planning is both a visual and structural problem.

Many drawings ignore seam placement entirely. Fabricators then decide where seams should go based on slab size or transportation limitations.

This often leads to seams appearing in highly visible areas.

Common seam mistakes:

1. Seams placed across sinks
2. Seams near cooktops
3. Ignoring slab dimensions
4. Visible seams across islands

Smart seam placement guidelines:

1. Place seams near corners or cabinet transitions
2. Avoid seams across cutouts
3. Consider natural stone veining direction
4. Match seams with cabinet support points

In high-end projects, seam placement is planned during the layout phase, often alongside tools used for visual kitchen layout planning and cabinet alignment.

save pin

Misaligned Cabinet and Counter Dimensions

Key Insight: When cabinet drawings and countertop drawings are produced separately, alignment errors become very likely.

This happens frequently in large remodeling projects where architects, cabinet makers, and countertop fabricators all work from different drawings.

Typical alignment issues include:

1. Countertops extending past cabinet ends
2. Misaligned sink bases
3. Islands drawn wider than cabinet support
4. Incorrect overhang on seating areas

A simple coordination checklist:

1. Confirm cabinet widths
2. Verify appliance centerlines
3. Check island seating overhang
4. Align countertop joints with cabinet joints

In my projects, we overlay cabinet shop drawings directly under countertop drawings to catch these conflicts early.

Answer Box

The most reliable way to prevent kitchen countertop drawing mistakes is to verify measurements on site, specify appliance cutouts clearly, plan seam locations early, and align countertop dimensions with cabinet shop drawings before fabrication.

How to Validate a Countertop Drawing Before Fabrication

Key Insight: A structured review checklist can eliminate most countertop drawing problems before they reach the fabrication stage.

Fabricators I collaborate with typically review drawings using a quick validation process.

Countertop fabrication drawing checklist:

1. Confirm all countertop dimensions
2. Verify sink and appliance cutouts
3. Check seam placement
4. Review edge profiles
5. Confirm cabinet alignment
6. Validate backsplash dimensions

This process usually takes less than ten minutes but can prevent days of delay and thousands of dollars in wasted material.

Final Summary

1. Most countertop drawing mistakes come from missing details, not complex design errors.
2. Always measure cabinets after installation.
3. Cutout specifications must include manufacturer details.
4. Seam placement should be planned during the design stage.
5. A final drawing checklist prevents costly fabrication mistakes.

FAQ

1. What is the most common kitchen countertop drawing mistake?

Incorrect measurements are the most common issue. Designers often rely on plan dimensions instead of measuring installed cabinets.

2. Why are seam placements important in countertop drawings?

Poor seam placement affects both structural stability and visual appearance, especially on large islands.

3. What details should be included for sink cutouts?

Include sink model, cutout dimensions, corner radius, mounting type, and reveal style.

4. Can a countertop drawing mistake be fixed after fabrication?

Minor issues can sometimes be adjusted on site, but major errors usually require recutting a new slab.

5. Do fabricators correct drawing mistakes automatically?

Most fabricators will flag obvious issues, but they rely on the designer's drawings for final specifications.

6. How accurate should countertop measurements be?

Measurements should typically be accurate within 1/16 inch for proper fabrication.

7. What causes countertop plan measurement errors?

Using architectural plans instead of field measurements is the main cause.

8. What is a countertop fabrication drawing checklist?

It is a review list that verifies dimensions, seams, cutouts, edge profiles, and cabinet alignment before fabrication begins.
