Common Laser Wavelengths in nm: Differences, Uses, and Performance: A practical comparison of 355 nm, 532 nm, 1064 nm, and 1550 nm lasers and how wavelength affects real‑world performance.

Direct Answer

Common laser wavelengths are measured in nanometers because wavelength defines how laser light interacts with materials, sensors, and optical systems. Frequently used industrial wavelengths include 355 nm (UV), 532 nm (green), 1064 nm (near‑infrared), and 1550 nm (infrared). Each wavelength behaves differently in absorption, penetration depth, and application suitability.

Quick Takeaways

1. Shorter wavelengths such as 355 nm produce finer features and higher surface absorption.
2. 532 nm lasers offer strong visibility and are common in alignment and measurement systems.
3. 1064 nm lasers dominate industrial processing because of power efficiency and material compatibility.
4. 1550 nm lasers are favored for telecom and eye‑safe distance sensing.
5. Material absorption characteristics usually determine the best wavelength choice.

Introduction

When engineers compare laser systems, the first specification they usually check is wavelength. Understanding common laser wavelengths in nm is essential because that single number determines how a beam travels, how materials absorb it, and how efficiently a system performs.

Over the past decade, I have reviewed many optical system specifications while working alongside product designers and manufacturing teams. One pattern appears repeatedly: people often focus on laser power while overlooking wavelength behavior. In reality, the wavelength often determines whether a process works efficiently or fails entirely.

Another frequent issue is misunderstanding how different wavelengths interact with materials. For example, a polymer that absorbs UV extremely well may reflect most infrared energy. That difference alone can change engraving precision, cutting speed, and thermal damage.

If you are new to wavelength terminology, it helps to start with the basics of understanding how light wavelength measurements influence beam behavior in optical systems. Once that foundation is clear, comparing practical laser wavelengths becomes much easier.

This guide compares the most widely used wavelengths—355 nm, 532 nm, 1064 nm, and 1550 nm—focusing on how they behave, where they are used, and how to choose the right one.

save pin

Why Laser Wavelength Is Measured in Nanometers

Key Insight: Nanometers are used because laser wavelengths fall within extremely small ranges of the electromagnetic spectrum.

Light waves are incredibly small. Visible light ranges roughly from 400 to 700 nanometers, while many industrial lasers operate slightly below or above that range. Measuring wavelengths in nanometers provides the precision needed to describe how light interacts with surfaces, optics, and sensors.

From a physics perspective, wavelength determines:

1. Photon energy
2. Material absorption rates
3. Diffraction limits
4. Optical system efficiency

Shorter wavelengths carry higher photon energy, which explains why ultraviolet lasers such as 355 nm can process delicate materials with minimal heat diffusion.

Organizations like the National Institute of Standards and Technology (NIST) standardize wavelength measurements because accurate wavelength control is critical for manufacturing, spectroscopy, and telecommunications.

Overview of Common Laser Wavelengths (355 nm, 532 nm, 1064 nm, 1550 nm)

Key Insight: Most commercial laser systems cluster around a few highly optimized wavelengths that balance power generation and optical efficiency.

Although hundreds of wavelengths exist, only a few dominate real‑world applications due to the physics of common laser media.

1. 355 nm (Ultraviolet)
2. Generated by frequency tripling a 1064 nm laser. Widely used for micro‑processing and semiconductor manufacturing.
3. 532 nm (Green)
4. Created by frequency doubling 1064 nm lasers. Known for high visibility and precision measurement use.
5. 1064 nm (Near‑Infrared)
6. The most common industrial wavelength. Produced by Nd:YAG or fiber lasers for cutting, welding, and marking.
7. 1550 nm (Infrared)
8. Extensively used in telecommunications and LiDAR due to atmospheric transmission and eye‑safety characteristics.

Industry research from SPIE and major photonics manufacturers shows that 1064 nm fiber lasers dominate manufacturing due to their reliability and energy efficiency.

save pin

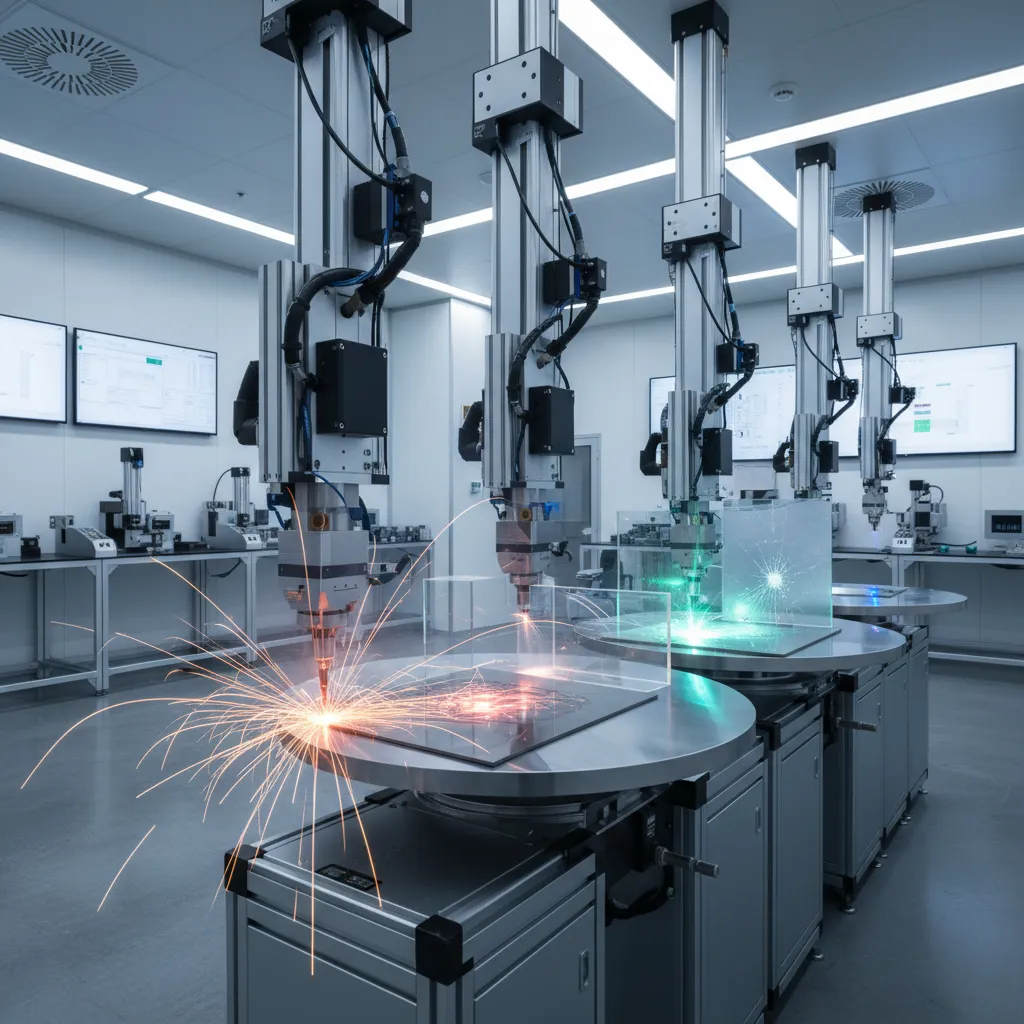

How Different Wavelengths Interact With Materials

Key Insight: Material absorption varies dramatically with wavelength, which directly affects processing precision and heat distribution.

One mistake I frequently see in engineering discussions is assuming that higher power automatically improves cutting or engraving performance. In practice, absorption matters far more than raw power.

For example:

1. UV wavelengths strongly absorb in plastics and glass.
2. Green wavelengths interact well with reflective metals like copper.
3. Near‑infrared wavelengths penetrate deeper into metals.
4. Longer infrared wavelengths travel efficiently through optical fiber.

A simplified comparison:

1. 355 nm → shallow penetration, extremely precise
2. 532 nm → moderate penetration, high visibility
3. 1064 nm → deep penetration, strong industrial performance
4. 1550 nm → excellent atmospheric transmission

If you are comparing beam behavior across optical systems, another useful perspective is how beam structure and path geometry influence system performance in complex environments, which becomes important in scanning and measurement setups.

Performance Differences Between Short and Long Wavelength Beams

Key Insight: Short wavelengths deliver precision, while longer wavelengths typically deliver penetration and transmission stability.

Performance differences appear in several engineering parameters.

1. Spot size
2. Shorter wavelengths produce smaller focused spots, enabling finer machining.
3. Scattering
4. Longer wavelengths scatter less in atmospheric conditions.
5. Thermal effects
6. Infrared lasers tend to produce larger heat‑affected zones.
7. Optical component compatibility
8. Some materials transmit infrared but block UV.

In semiconductor fabrication, UV lasers are often chosen specifically because they minimize thermal damage. Meanwhile, heavy manufacturing often relies on infrared wavelengths where deep energy delivery is beneficial.

save pin

Application-Based Comparison of Laser Wavelengths

Key Insight: Each wavelength dominates specific industries because of material compatibility and system efficiency.

1. 355 nm ApplicationsPCB micro‑drilling
2. Medical device marking
3. Glass processing
4. 532 nm ApplicationsAlignment lasers
5. Biomedical imaging
6. Laser displays
7. 1064 nm ApplicationsMetal cutting
8. Industrial welding
9. Laser marking
10. 1550 nm ApplicationsFiber‑optic communication
11. LiDAR and range finding
12. Eye‑safe sensing systems

Telecommunications standards organizations selected 1550 nm partly because optical fiber has extremely low attenuation at that wavelength.

Choosing the Right Wavelength for a Specific Task

Key Insight: The best laser wavelength is determined primarily by material absorption, precision requirements, and system design constraints.

Engineers typically evaluate three factors when selecting a wavelength.

1. Material absorption spectrum
2. Required feature size
3. System cost and efficiency

A practical selection process usually looks like this:

1. Identify the target material and its absorption spectrum.
2. Determine required processing resolution.
3. Evaluate available laser sources and system cost.
4. Test prototype results under real production conditions.

System designers often also study how system layout and optical path planning influence final performance outcomes, particularly when integrating lasers into automated equipment.

Answer Box

The most widely used laser wavelengths—355 nm, 532 nm, 1064 nm, and 1550 nm—differ primarily in absorption behavior, penetration depth, and system efficiency. UV wavelengths provide precision, while infrared wavelengths offer deeper energy delivery and better transmission in many environments.

Final Summary

1. Laser wavelength determines how energy interacts with materials.
2. 355 nm excels at precision micro‑processing.
3. 532 nm provides visibility and measurement accuracy.
4. 1064 nm dominates industrial manufacturing.
5. 1550 nm is ideal for telecommunications and sensing.

FAQ

What are the most common laser wavelengths?

The most common laser wavelengths include 355 nm, 532 nm, 1064 nm, and 1550 nm. These wavelengths cover ultraviolet, visible, and infrared ranges used across industry.

Why are laser wavelengths measured in nanometers?

Because light waves are extremely small. Nanometers provide the precision needed to describe optical behavior and energy distribution.

Which laser wavelength is best for metals?

1064 nm lasers are widely used for metal processing because metals absorb near‑infrared energy effectively.

What is the difference between infrared and visible laser wavelengths?

Visible wavelengths (400–700 nm) can be seen by the human eye, while infrared wavelengths such as 1064 nm and 1550 nm are invisible.

Why is 355 nm used for precision work?

355 nm UV lasers produce smaller spot sizes and higher surface absorption, enabling fine micro‑machining.

Is 1550 nm safer for the human eye?

Yes. 1550 nm wavelengths are considered more eye‑safe because the cornea absorbs the energy before it reaches the retina.

Do shorter wavelengths always perform better?

No. Short wavelengths improve precision, but longer wavelengths often provide better penetration and energy delivery.

How do engineers compare common laser wavelengths in nm?

Engineers compare absorption properties, beam focus limits, material compatibility, and system efficiency.
