Common Layout Mistakes in 16x40 Tiny Houses and How to Fix Them: Design corrections that make narrow 16x40 tiny homes feel larger, function better, and avoid the layout problems many builders overlook.

Direct Answer

The most common 16x40 tiny house layout mistakes come from treating the home like a scaled‑down traditional house instead of designing specifically for a narrow footprint. Traffic flow, stair placement, storage planning, and kitchen‑bathroom positioning often create hidden inefficiencies. Fixing these issues usually requires reorganizing circulation paths, stacking functions vertically, and designing built‑in storage from the start.

Quick Takeaways

1. Most 16x40 layouts fail because circulation space is ignored.
2. Kitchen and bathroom placement can create costly plumbing conflicts.
3. Oversized stairs often waste more space than the bedroom.
4. Storage must be integrated into walls, stairs, and seating.
5. Redrawing traffic flow often improves a layout more than adding square footage.

Introduction

After working on dozens of compact homes over the past decade, I've noticed the same design failures appear again and again—especially in 16x40 tiny houses. On paper, 640 square feet seems manageable. But the long, narrow footprint quietly introduces spatial problems that most people don't anticipate.

Many homeowners come to me after realizing their plan "looks good" but feels awkward in real life. Hallways are tight, stairs dominate the living room, or the kitchen blocks circulation entirely. These are classic 16x40 tiny house layout mistakes, and they're rarely caused by bad intentions—just by underestimating how narrow homes behave spatially.

If you're currently sketching ideas, it helps to first experiment with different narrow‑home layouts in a 3D floor planning environment. Seeing traffic paths and furniture scale in 3D often reveals problems before construction begins.

In this guide I'll walk through the most common layout failures I see in 16x40 homes, why they happen, and the practical ways designers fix them.

save pin

Why 16x40 Tiny House Layouts Can Create Hidden Space Problems

Key Insight: A 16x40 footprint behaves more like a corridor than a square house, which means circulation dominates the design.

Most people assume tiny homes simply require smaller furniture. In reality, the bigger issue is spatial sequencing. With only 16 feet of width, every zone competes for the same circulation path.

In several projects I've redesigned, the floor plan technically fit everything—but movement through the home felt cramped because the layout ignored how people actually walk through spaces.

Typical hidden issues include:

1. Living areas blocking the only main circulation path
2. Bathrooms forcing awkward hallway detours
3. Kitchen islands narrowing walking space
4. Stairs interrupting natural room transitions

According to residential design guidelines referenced by the National Kitchen and Bath Association, comfortable walkways should remain around 36 inches wide. In narrow homes, even small furniture decisions can break that rule.

The fix usually isn't removing rooms—it’s reorganizing the sequence of spaces along the length of the house.

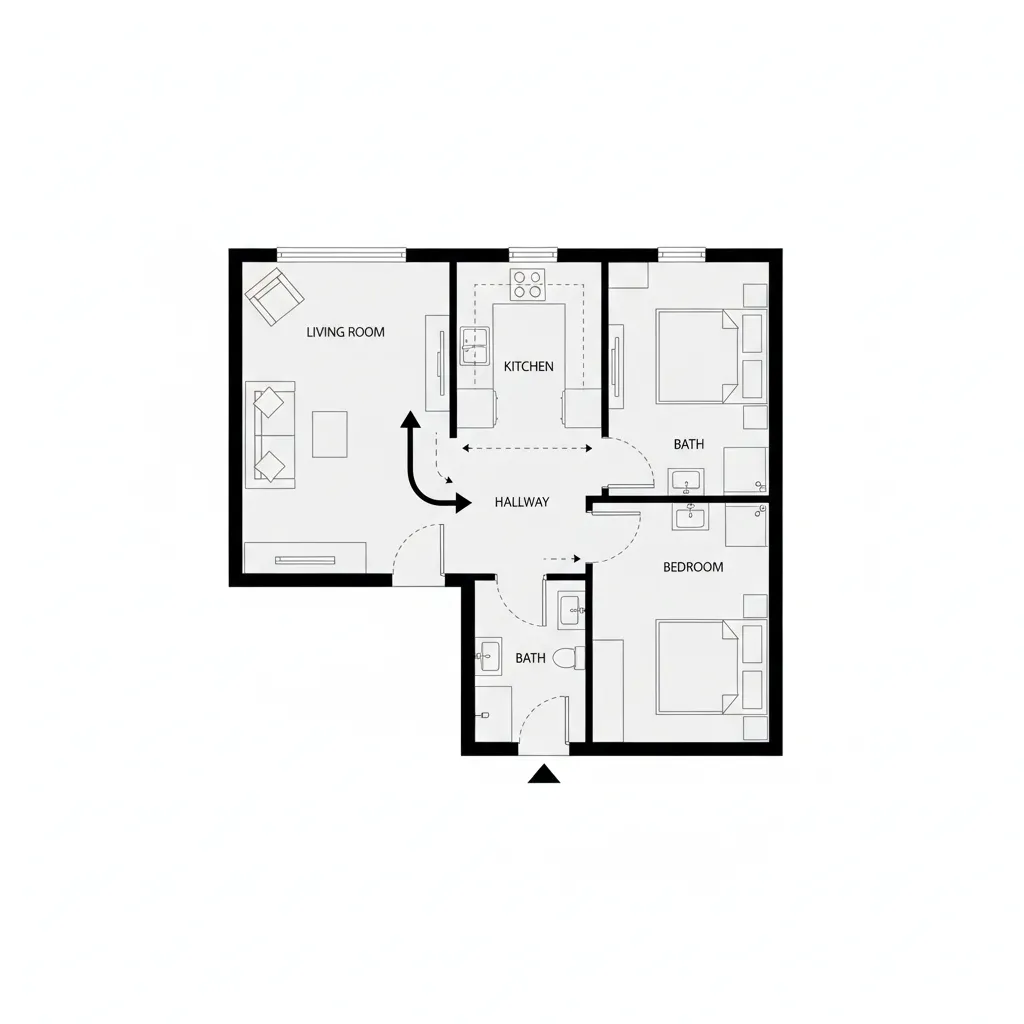

Poor Traffic Flow in Narrow Floor Plans

Key Insight: Traffic flow problems are the number‑one cause of frustration in long tiny homes.

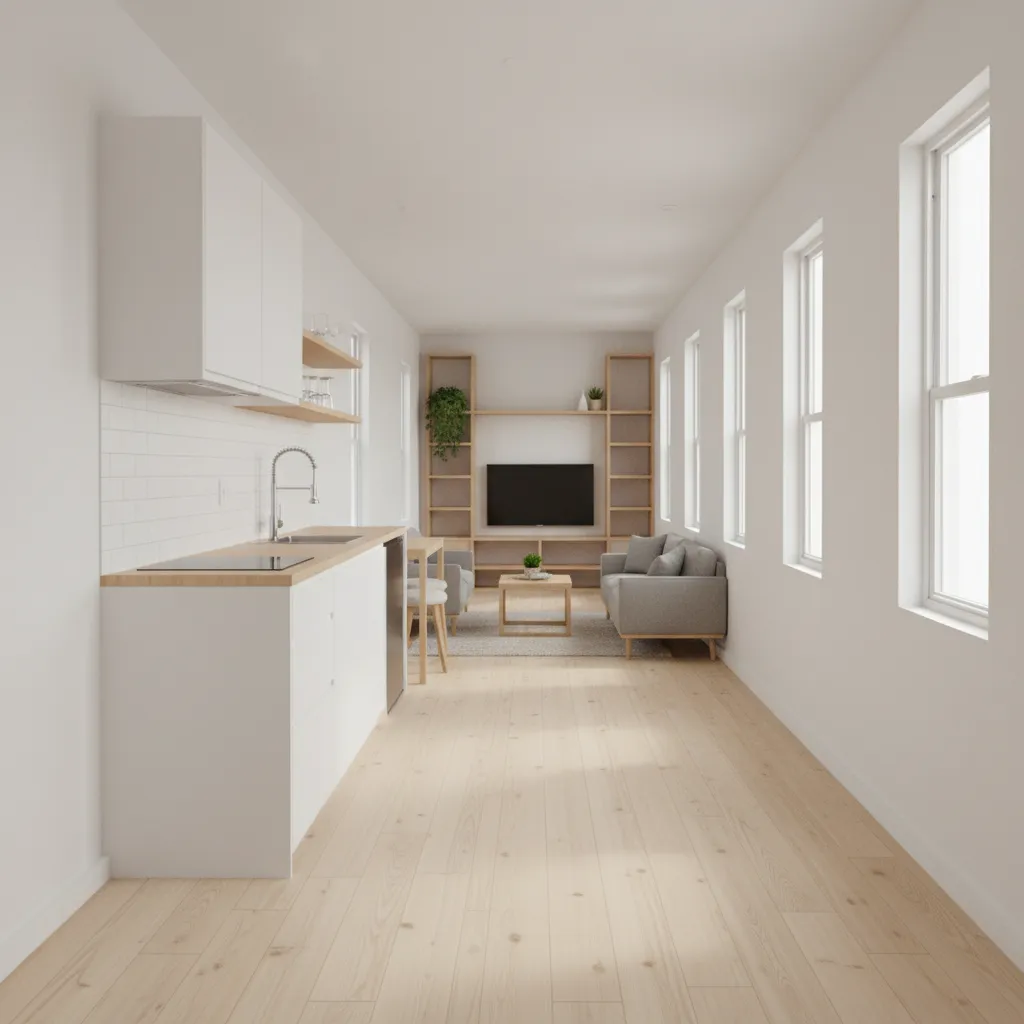

In a 16x40 home, circulation almost always runs lengthwise. But many layouts mistakenly place furniture or stairs directly in that path.

I once worked on a project where the couch and stair structure consumed nearly half the width of the home. The result? Everyone had to squeeze between the sofa and kitchen counter to move through the house.

Common traffic flow mistakes:

1. Placing staircases in the middle of the floor plan
2. Using wide kitchen islands
3. Creating dead‑end hallways
4. Blocking sightlines with tall furniture

Better circulation strategies:

1. Place stairs along a wall rather than in the center.
2. Use galley kitchens instead of islands.
3. Align furniture parallel to the long axis of the home.
4. Keep one clear "movement lane" through the house.

save pin

Kitchen and Bathroom Placement Conflicts

Key Insight: Separating kitchen and bathroom plumbing in a tiny home often increases cost and wastes layout flexibility.

One mistake I see constantly is placing the bathroom at the opposite end of the house from the kitchen. It might feel logical for privacy—but it creates two separate plumbing zones.

In compact homes, clustering wet spaces is almost always smarter.

Why designers group kitchens and bathrooms:

1. Shorter plumbing runs reduce construction cost.
2. Shared walls free up more usable floor area.
3. Mechanical systems stay centralized.

Typical layout solutions include:

1. Back‑to‑back kitchen and bathroom walls
2. Stacked loft bathroom above kitchen plumbing
3. Compact "wet core" design in the center of the home

These configurations may seem technical, but they frequently unlock an extra 10–20 square feet of usable living space—significant in a tiny house.

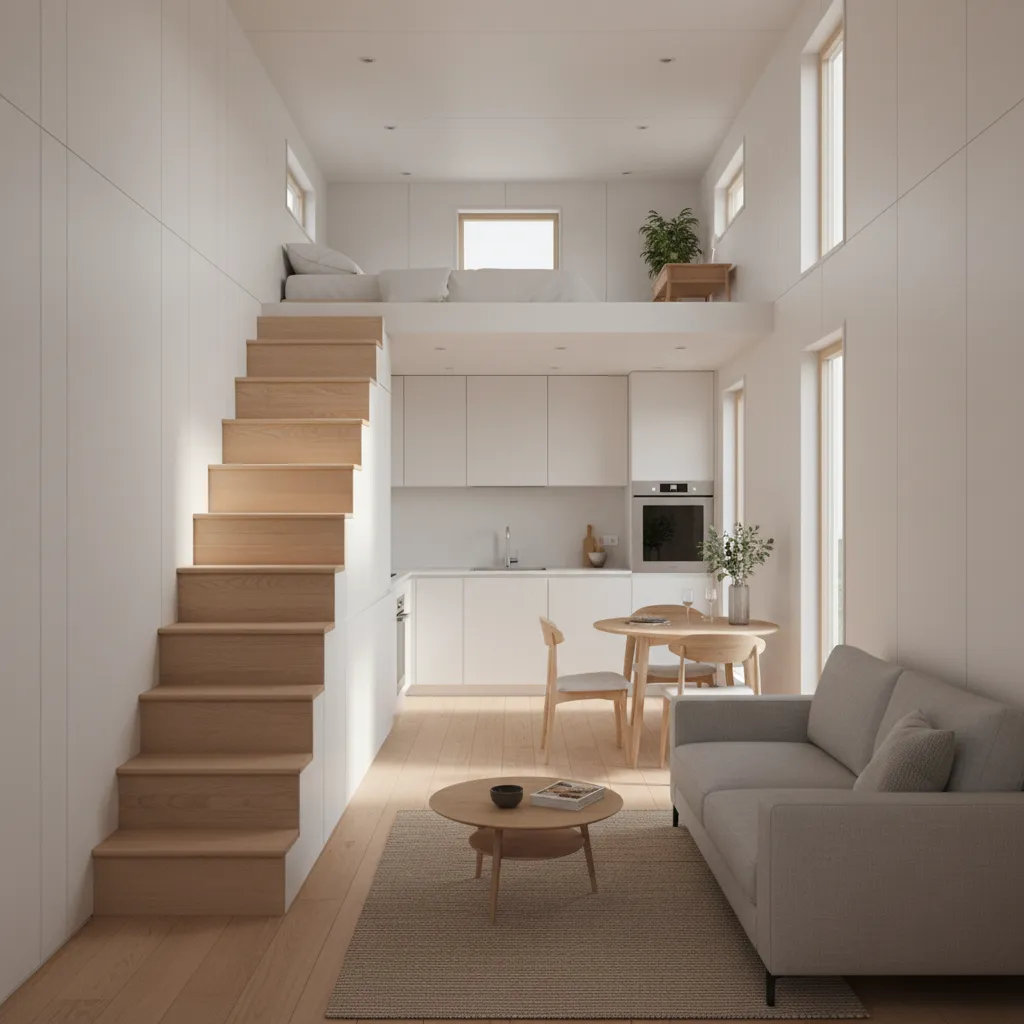

Loft Access and Stair Design Mistakes

Key Insight: Oversized stairs can consume up to 15% of a 16x40 floor plan.

Many DIY designs install a full traditional staircase without realizing how much space it occupies.

In a narrow home, stairs should serve multiple purposes.

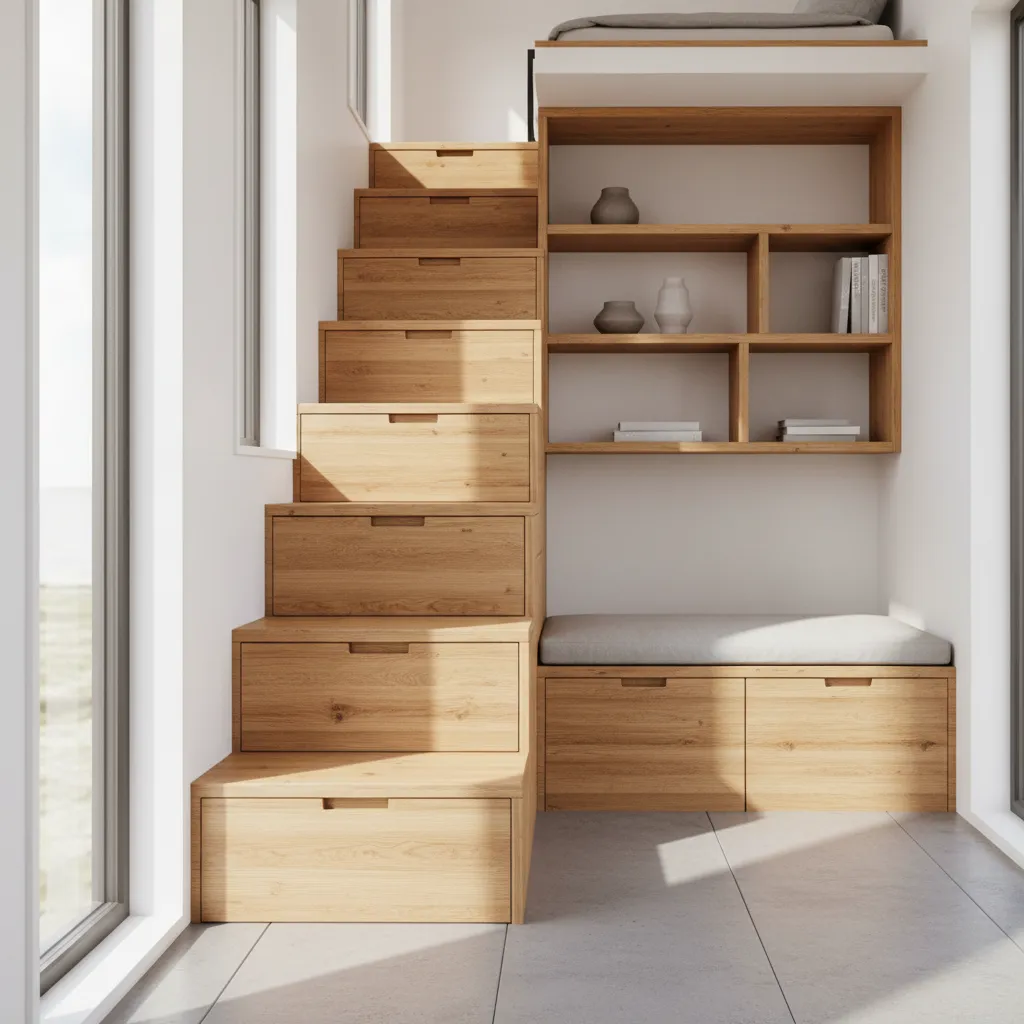

Efficient stair strategies include:

1. Storage stairs with integrated drawers
2. L‑shaped stairs tucked into corners
3. Alternating tread stairs for loft access
4. Staircases integrated with shelving

When clients redesign layouts, I often recommend first visualizing how the stair volume interacts with the rest of the home. Many people are surprised to discover the stair block is larger than their kitchen.

Using a visual room layout simulator for compact homescan quickly reveal whether your stair design overwhelms the available space.

save pin

Insufficient Storage Planning

Key Insight: Storage must be designed into the structure itself, not added afterward.

One hidden problem with narrow tiny homes is that traditional closets rarely fit efficiently.

Instead, the best tiny house layouts hide storage inside architectural elements.

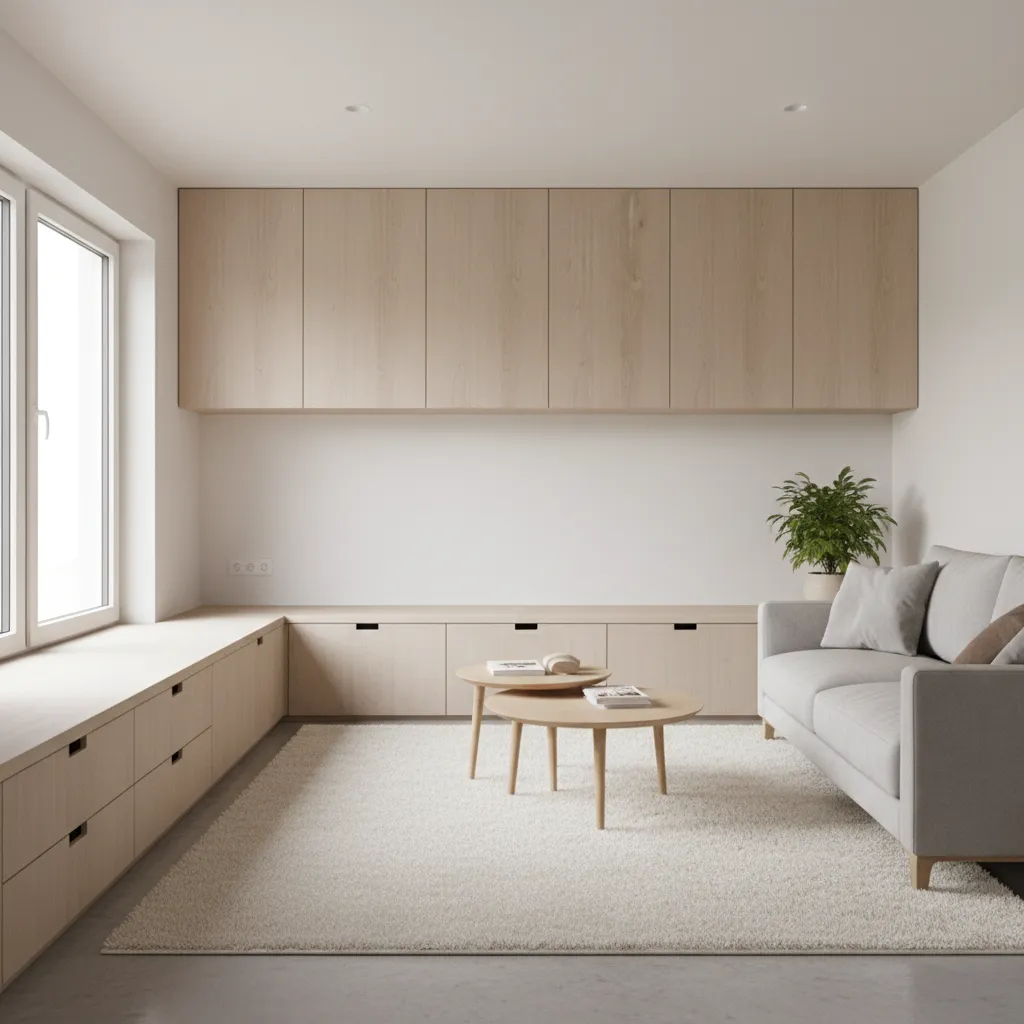

Smart storage zones designers use:

1. Under‑stair cabinetry
2. Window bench seating with storage
3. Wall‑depth wardrobes
4. Loft edge shelving
5. Toe‑kick drawers in kitchens

In small homes, these built‑ins often add more storage than a full closet while using zero extra floor space.

save pin

How to Redesign an Inefficient 16x40 Layout

Key Insight: Most tiny house layout problems are solved by reorganizing zones rather than shrinking rooms.

When I redesign a problematic layout, I follow a very consistent sequence.

Step‑by‑step redesign process:

1. Map the main circulation path first.
2. Place kitchen and bathroom along a shared wall.
3. Locate stairs along the perimeter.
4. Position the living space in the widest visual zone.
5. Integrate storage into structural elements.

Before committing to construction, it's worth testing multiple narrow‑home floor plan variations quickly. Even small shifts in stair placement or bathroom location can dramatically improve the layout.

Answer Box

The majority of 16x40 tiny house layout mistakes come from ignoring circulation, oversizing stairs, and separating plumbing zones. A successful layout prioritizes movement paths, compact stair solutions, and integrated storage.

Checklist for Fixing Small Home Floor Plan Issues

Key Insight: A quick layout audit often reveals inefficiencies before expensive construction changes are required.

1. Maintain at least 36 inches for main walkways.
2. Avoid placing stairs in the center of the floor plan.
3. Group kitchen and bathroom plumbing.
4. Keep one continuous circulation path through the home.
5. Use multifunctional furniture and built‑ins.
6. Check sightlines from entry to windows.

Final Summary

1. Narrow homes fail when circulation space isn't planned.
2. Oversized stairs often waste valuable floor area.
3. Cluster kitchen and bathroom plumbing whenever possible.
4. Integrated storage is essential in tiny homes.
5. Testing layouts early prevents costly design mistakes.

FAQ

What are the most common 16x40 tiny house layout mistakes?

Poor traffic flow, oversized staircases, separated plumbing zones, and insufficient storage planning are the most common issues.

Is 16x40 a good size for a tiny house?

Yes. At 640 square feet, it offers enough room for a full kitchen, bathroom, and loft. The challenge is designing the narrow layout efficiently.

How do you fix traffic flow problems in a tiny house?

Align furniture with the length of the home, keep one clear circulation lane, and avoid placing stairs or islands in the middle.

Why do narrow tiny houses feel cramped?

Even when square footage is adequate, poor circulation and blocked sightlines can make a 16x40 home feel smaller than it actually is.

What stair type works best in tiny houses?

Storage stairs or compact L‑shaped stairs usually balance safety and space efficiency better than full straight staircases.

How much storage should a 16x40 tiny home have?

Designers typically integrate storage into stairs, seating, and walls rather than relying on traditional closets.

Can bad tiny house layouts be fixed?

Yes. Most tiny house floor plan troubleshooting involves relocating stairs, consolidating plumbing, and improving circulation paths.

Do layout mistakes increase construction costs?

Absolutely. Poor placement of kitchens, bathrooms, and stairs can increase plumbing, structural, and material costs significantly.
