Common Lighting Design Problems in UAE Projects and How Engineers Solve Them: Real engineering fixes for glare, simulation errors, and architectural conflicts in modern UAE construction projects.

Direct Answer

Lighting design problems in construction projects usually come from glare, inaccurate simulations, poor coordination with architecture, or conflicts between energy targets and visual comfort. Experienced lighting engineers solve them through iterative simulations, mockups, fixture repositioning, and close coordination with architects and interior designers.

In UAE projects, the scale of buildings, strong daylight conditions, and strict energy regulations make these issues especially common.

Quick Takeaways

1. Glare is the most frequent lighting design problem in large commercial buildings.
2. Simulation results often fail because material reflectance values are incorrect.
3. Energy regulations in the UAE can conflict with visual comfort and design intent.
4. Coordination between lighting engineers and architects determines project success.
5. Mockups and iterative testing are the fastest way to solve lighting performance issues.

Introduction

After working on commercial towers, retail centers, and hospitality projects across the Middle East, I've seen how quickly lighting design problems in construction projects can derail an otherwise beautiful design.

The UAE is an especially demanding environment. Buildings are large, ceilings are high, glass facades dominate architecture, and clients expect both luxury aesthetics and strict energy efficiency. On paper, lighting plans often look perfect. But once construction begins, issues appear: glare in office workspaces, uneven brightness in retail areas, or simulations that don’t match the real space.

One of the most common causes is poor spatial visualization during the early planning phase. When teams rely only on drawings instead of spatial modeling, fixture placement and beam spread are frequently misjudged. That’s why many studios now prototype layouts using tools that allow teams to visualize lighting layouts directly within a 3D floor planning workflowbefore finalizing specifications.

In this guide, I’ll break down the real issues lighting engineers encounter on UAE construction projects and how experienced teams actually fix them.

save pin

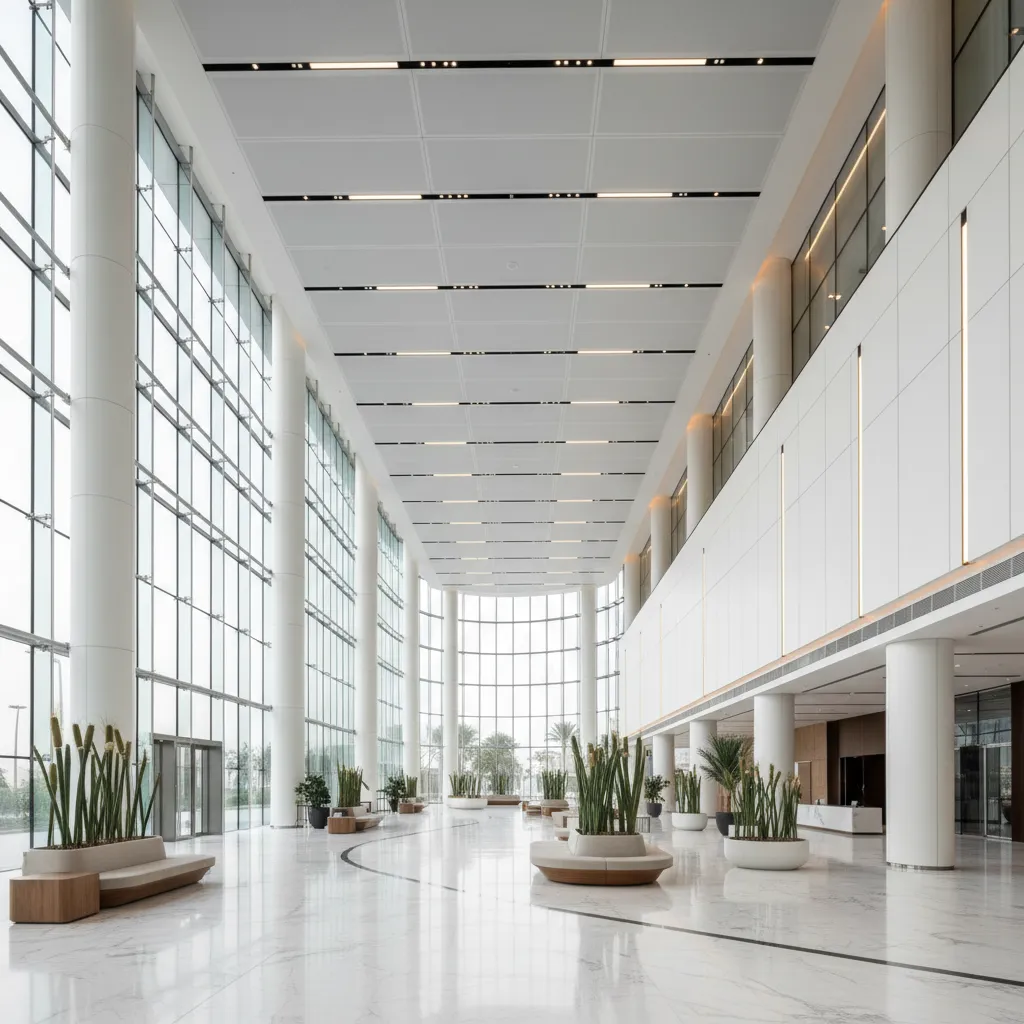

Typical Lighting Design Challenges in UAE Construction Projects

Key Insight: The biggest lighting challenges in UAE buildings come from scale, daylight intensity, and coordination gaps between engineering and architecture.

Compared with many regions, UAE buildings often feature expansive atriums, floor‑to‑ceiling glazing, and luxury material palettes. While these elements look impressive, they introduce complex lighting variables.

From a technical standpoint, the most frequent issues include:

1. Excessive contrast caused by strong natural daylight
2. Glare from reflective marble or polished stone
3. Uneven lighting in high‑ceiling lobbies
4. Fixture visibility problems in minimalist interiors
5. Energy code limits affecting fixture output

The Illuminating Engineering Society (IES) recommends carefully balancing luminance ratios in large spaces to avoid visual fatigue. In practice, that means adjusting not only fixture power but also surface reflectance and beam angles.

In several hospitality projects I worked on in Dubai, we had to redesign entire ceiling lighting grids because architectural finishes changed late in the project. The reflectivity shift completely altered the lighting balance.

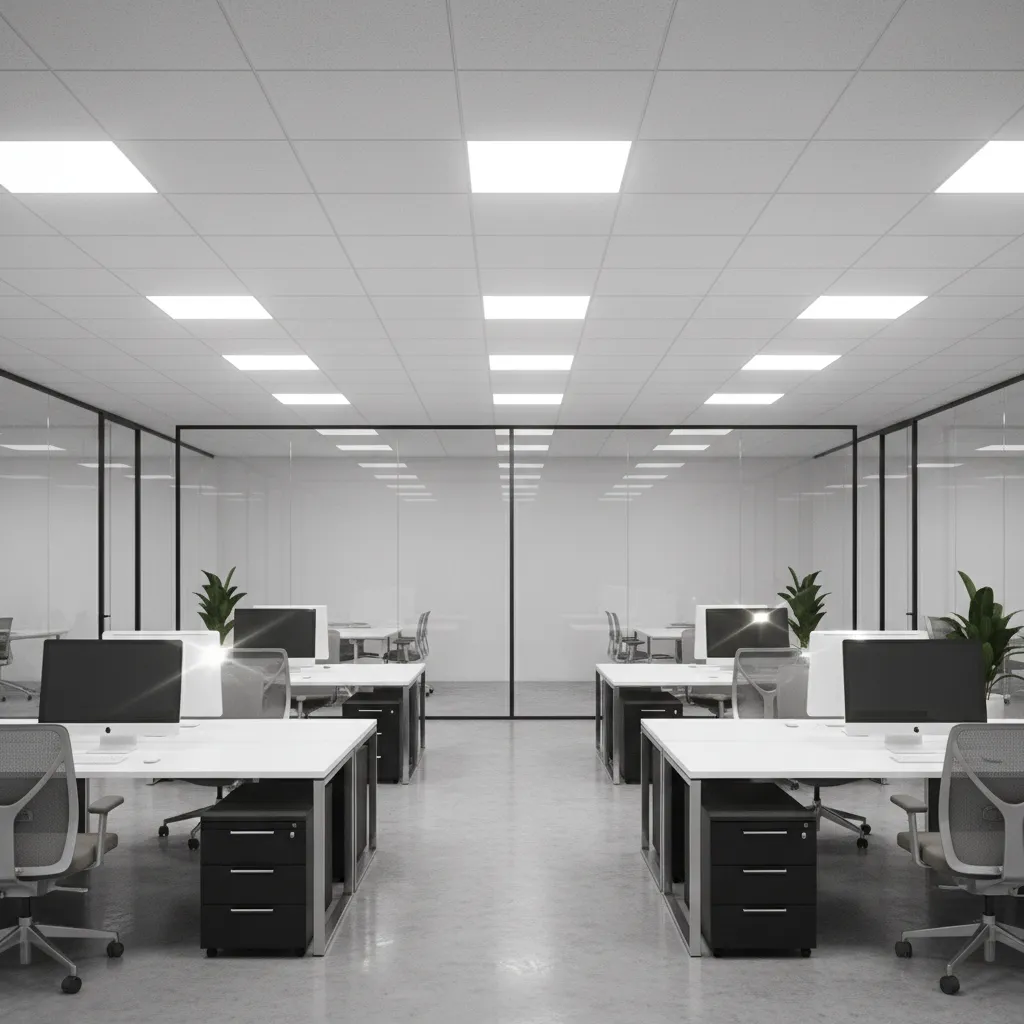

Glare and Over-Illumination Problems in Commercial Spaces

Key Insight: Glare usually occurs not because fixtures are too bright, but because they are placed in the wrong viewing angles.

Office towers, malls, and airports in the UAE frequently suffer from glare issues. The combination of glossy materials and powerful LED luminaires can easily exceed comfortable luminance levels.

The most common glare causes include:

1. Direct view of exposed LED sources
2. Incorrect beam angles for ceiling height
3. Reflective flooring amplifying brightness
4. Excessive downlight density

Typical engineering fixes involve:

1. Switching to deep-recessed fixtures
2. Using micro‑prismatic diffusers
3. Reducing beam angles in tall spaces
4. Adding indirect lighting layers

According to research published by the Lighting Research Center at Rensselaer Polytechnic Institute, controlling Unified Glare Rating (UGR) below 19 is essential for office environments. Yet many early design submissions exceed this level until adjustments are made during engineering review.

save pin

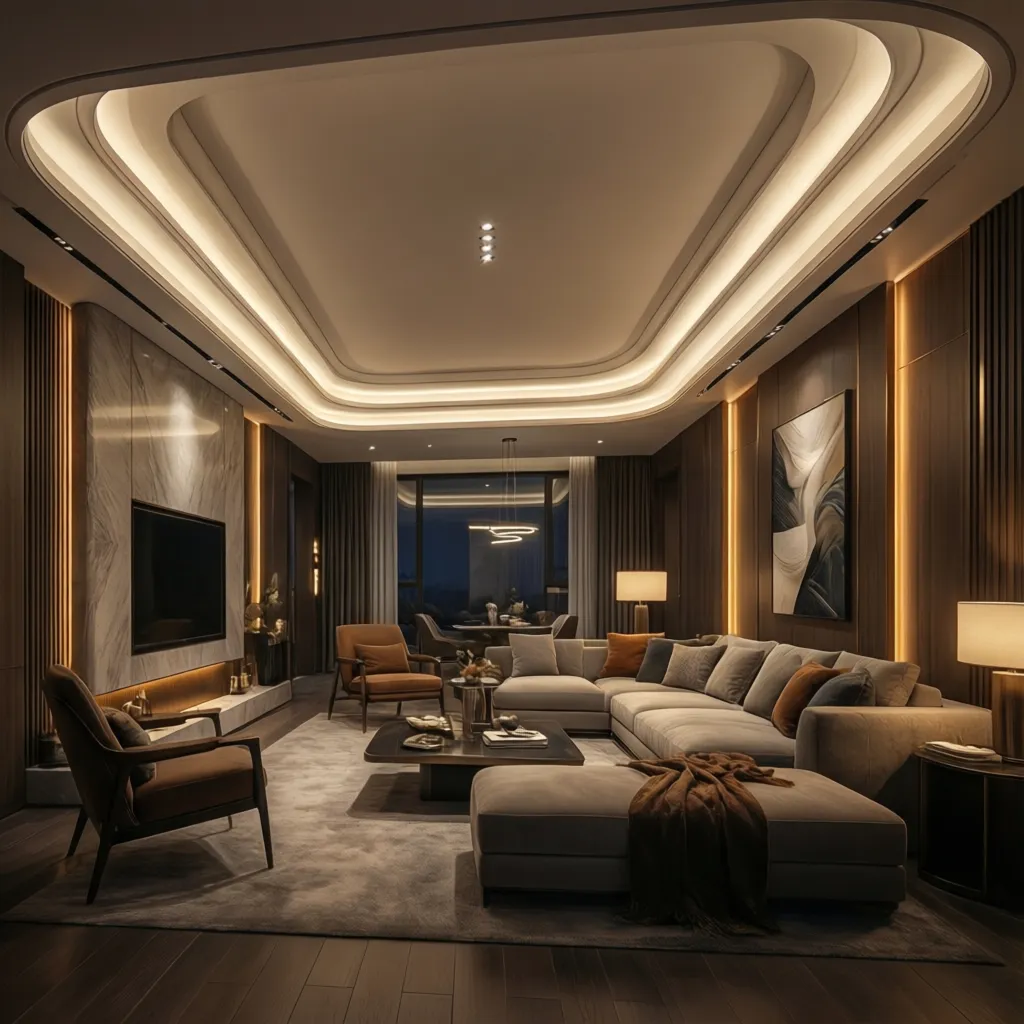

Energy Efficiency Conflicts with Aesthetic Lighting Design

Key Insight: Energy targets often force lighting engineers to redesign visually dramatic concepts into layered, lower-power solutions.

UAE green building standards such as Estidama and Dubai Green Building Regulations set strict limits on lighting power density (LPD). Designers frequently discover that visually striking lighting schemes exceed those limits.

This leads to a common trade-off between:

1. Architectural drama
2. Energy compliance

Experienced engineers usually solve this by replacing high-output fixtures with layered lighting strategies:

1. Indirect cove lighting for ambient illumination
2. Targeted accent lighting for focal areas
3. Lower-wattage fixtures distributed more strategically

Many teams now test these layered strategies early by creating digital mockups where designers can experiment with lighting concepts while previewing realistic interior environments. This helps identify energy conflicts before construction documentation begins.

save pin

Integration Issues with Architecture and Interior Design

Key Insight: Most lighting failures are coordination problems, not technology problems.

Lighting plans often break down when architectural design evolves late in the project.

Typical coordination conflicts include:

1. Ceiling height reductions affecting beam spread
2. HVAC ducts blocking fixture placement
3. Decorative ceiling features conflicting with lighting grids
4. Material changes altering reflectance levels

The best-performing projects follow a coordinated workflow:

1. Early lighting concept integrated with architecture
2. 3D coordination with mechanical and structural teams
3. Lighting simulation updates after design changes
4. On-site mockups before full installation

In recent projects, visualization workflows that allow teams to generate realistic architectural lighting previews before constructionhave dramatically reduced these coordination failures.

save pin

Simulation Errors in Lighting Calculation Software

Key Insight: Lighting simulation errors are usually caused by incorrect assumptions rather than faulty software.

Lighting engineers rely heavily on simulation tools such as Dialux or Relux. However, inaccurate input values can make results misleading.

Common simulation mistakes include:

1. Incorrect material reflectance values
2. Ignoring daylight contribution
3. Using outdated fixture photometric files
4. Simplifying complex architectural geometry

To avoid these problems, experienced engineers follow a validation process:

1. Verify reflectance values with interior designers
2. Confirm fixture IES files from manufacturers
3. Run multiple simulation scenarios
4. Compare simulation results with mockup measurements

When simulations are validated this way, real-world results usually match predicted illuminance levels within a small margin.

Answer Box

The most common lighting design problems in UAE construction projects are glare, simulation inaccuracies, energy compliance conflicts, and coordination failures with architecture. Skilled lighting engineers solve them through iterative simulations, layered lighting strategies, and early collaboration with design teams.

Practical Troubleshooting Workflow Used by Lighting Engineers

Key Insight: Professional lighting engineers rely on a structured troubleshooting process rather than ad‑hoc adjustments.

When lighting problems appear during construction or commissioning, engineers typically follow a repeatable workflow.

Step-by-step troubleshooting process:

1. Identify the visual problem (glare, uneven lighting, shadows).
2. Measure illuminance and luminance levels on site.
3. Compare results with simulation predictions.
4. Adjust fixture angles, lenses, or placement.
5. Test alternative beam spreads or diffusers.
6. Re-run simulation with updated parameters.

This iterative method allows engineers to correct most lighting performance issues without major redesigns.

Final Summary

1. Glare is the most frequent lighting issue in large UAE commercial spaces.
2. Incorrect simulation inputs often cause misleading lighting calculations.
3. Energy regulations force designers to rethink high-power lighting concepts.
4. Early coordination between architecture and lighting prevents major redesigns.
5. Mockups and real measurements remain essential for reliable lighting performance.

FAQ

What are the most common lighting design problems in construction projects?

Glare, uneven illumination, incorrect simulations, and conflicts with architecture are the most frequent lighting design problems in construction projects.

Why does glare occur in office lighting?

Glare often happens when fixtures are placed within direct sightlines or when reflective surfaces amplify brightness levels.

How do lighting engineers solve glare issues?

They use recessed fixtures, diffusers, beam angle adjustments, and indirect lighting layers to reduce direct light exposure.

Why are lighting simulations sometimes inaccurate?

Incorrect reflectance values, outdated photometric files, or simplified geometry can cause simulation results to differ from real conditions.

Do UAE buildings have special lighting challenges?

Yes. Strong daylight, large atriums, and luxury reflective materials create unique lighting engineering challenges in UAE buildings.

What software do lighting engineers use for simulations?

Common tools include Dialux, Relux, and BIM-based visualization platforms used during architectural coordination.

Can lighting design problems be fixed after installation?

Many issues can be solved through fixture repositioning, lens changes, or dimming adjustments without replacing the entire system.

How important is coordination in lighting design?

It is critical. Most lighting failures occur because architectural and engineering teams design systems separately.
