Common Low Voltage Landscape Lighting Problems and Fixes: Diagnose dim lights, flickering fixtures, and transformer overloads with practical fixes used by professional lighting designers.

Direct Answer

Most low voltage landscape lighting problems—such as dim lights, flickering fixtures, or system shutdowns—are caused by transformer overload, voltage drop across long cable runs, or wiring connection issues. The fix usually involves recalculating total wattage, redistributing fixtures across cable runs, or correcting loose or corroded wiring connections.

In real installations, these issues rarely come from the fixtures themselves. They almost always come from how the system was planned and wired.

Quick Takeaways

1. Dim landscape lights are usually caused by voltage drop or overloaded transformers.
2. Flickering lights often indicate loose wiring or inconsistent voltage delivery.
3. Long cable runs without proper gauge wire create uneven brightness.
4. Transformer capacity should exceed total fixture wattage by at least 20 percent.
5. System planning prevents most landscape lighting failures.

Introduction

Low voltage landscape lighting is designed to be simple, safe, and energy‑efficient. But after working on dozens of residential lighting projects over the past decade, I can tell you that many systems fail for surprisingly predictable reasons.

Homeowners usually notice the same symptoms: lights that look dim at night, fixtures that flicker randomly, or a transformer that suddenly shuts off after adding a few new lights.

The problem isn't usually the fixtures. It's the system design.

I’ve inspected installations where beautiful lighting layouts were ruined by a single mistake—like running 150 feet of cable with the wrong wire gauge or connecting too many fixtures to a small transformer.

Before troubleshooting electrical issues, it actually helps to visualize how fixtures are distributed across your yard. I often recommend mapping lighting positions using a simple planning layout like this visual layout tool for planning outdoor lighting zonesso you can see where cable runs and loads are concentrated.

In this guide, I’ll walk through the most common low voltage landscape lighting problems, how to diagnose them quickly, and what fixes actually work in real installations.

save pin

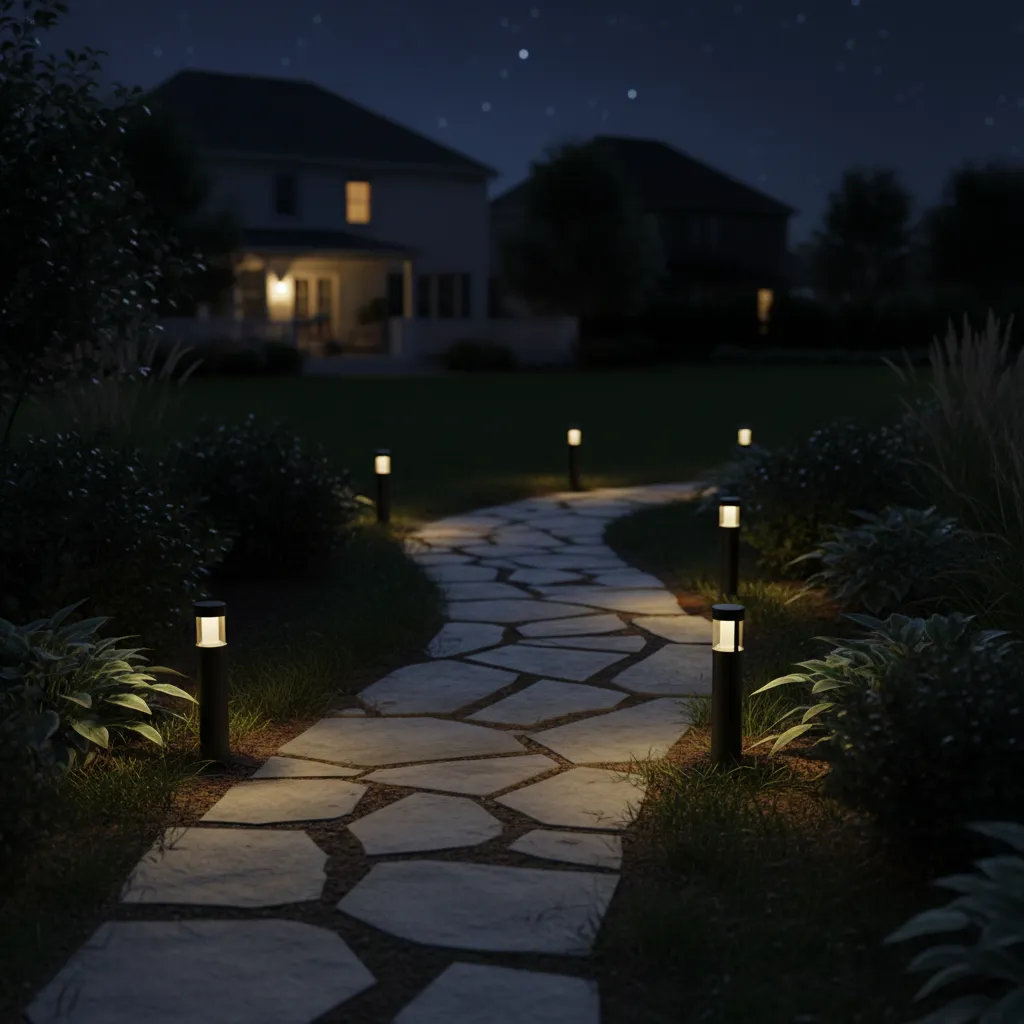

Why Landscape Lights Appear Dim at Night

Key Insight: Dim landscape lights are most commonly caused by voltage drop rather than weak bulbs.

When I evaluate a dim lighting system, the first thing I check is voltage at the fixture. Many homeowners assume the bulb is failing, but the real issue is usually that the fixture isn't receiving the full 12 volts.

This happens when electricity travels too far through cable or when too many lights share the same line.

Common causes of dim landscape lights:

1. Long cable runs over 100–150 feet
2. Wire gauge too small for the load
3. Too many fixtures on a single branch
4. Transformer output set too low

Typical voltage behavior:

1. 12V at transformer
2. 10.5–11V mid‑run
3. 9–10V at final fixture

LED landscape lights can operate at lower voltages than halogen fixtures, but once voltage drops below about 9 volts, brightness becomes noticeably weaker.

Professional installers often solve this by splitting the lighting layout into multiple cable runs rather than one long chain.

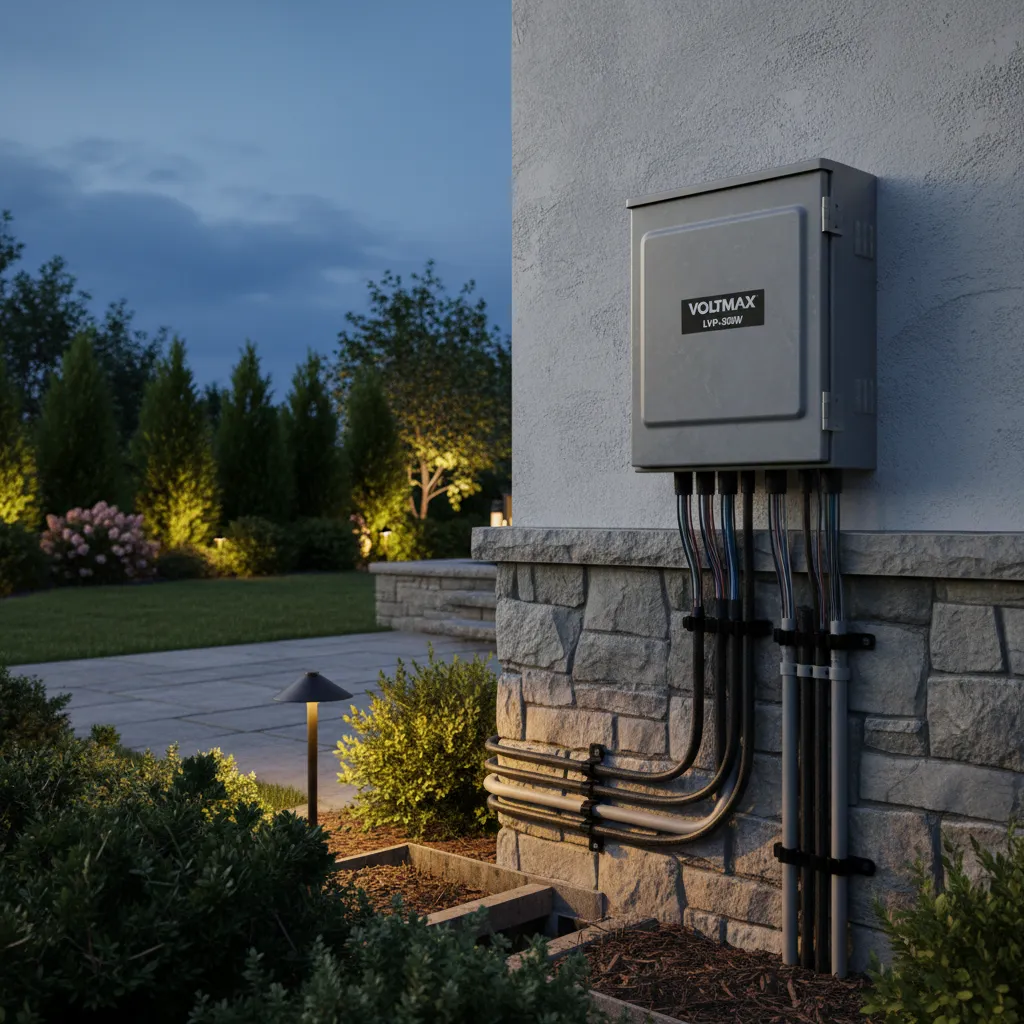

Transformer Overload from Too Many Watts

Key Insight: When total fixture wattage exceeds transformer capacity, lights dim, flicker, or the system shuts off.

This is one of the most common installation mistakes I see. A homeowner installs a 100‑watt transformer and gradually adds fixtures until the system begins behaving unpredictably.

Symptoms of transformer overload:

1. Lights turning off after several minutes
2. Transformer overheating
3. Brightness fluctuating across fixtures
4. Breaker repeatedly tripping

Safe transformer sizing rule:

1. Total fixture wattage should stay below 80% of transformer capacity

Example:

1. 150W transformer → maximum recommended load: 120W

This buffer prevents overheating and extends transformer life.

save pin

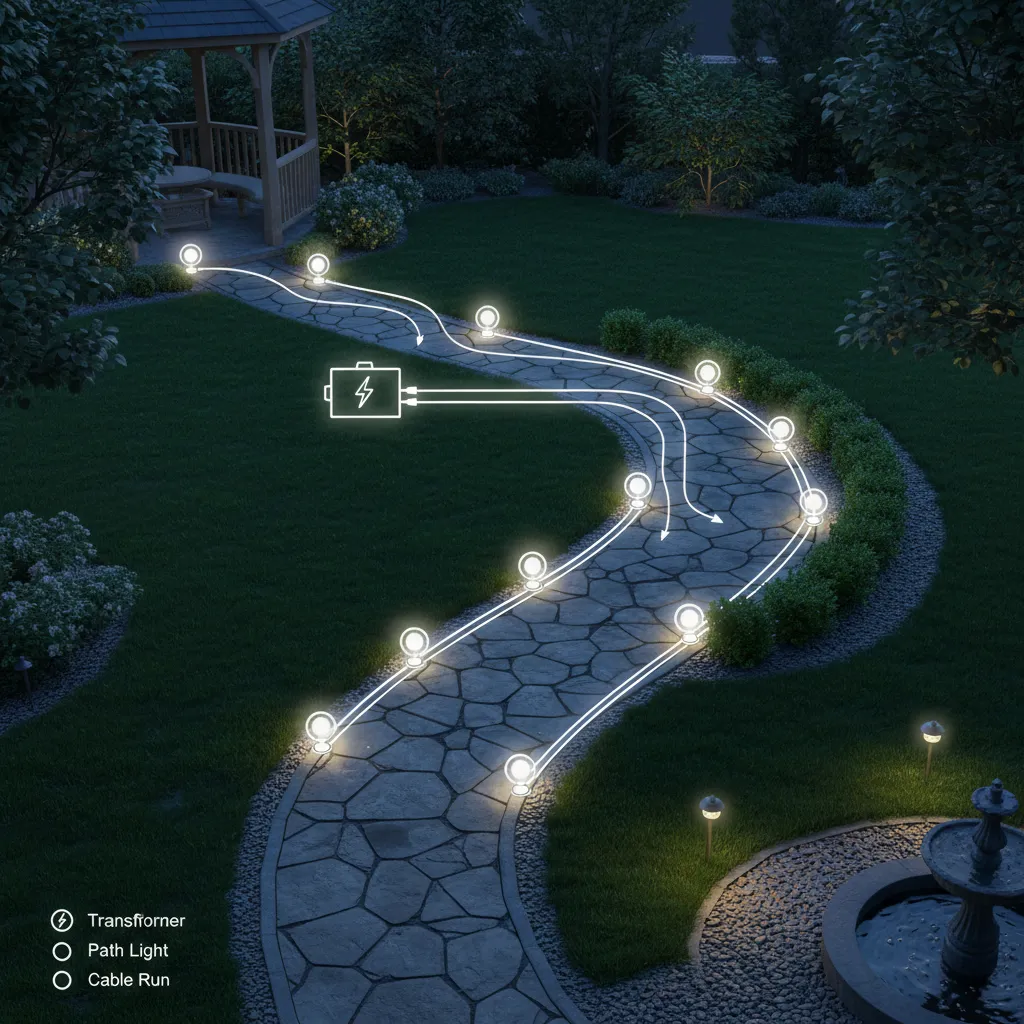

Voltage Drop in Long Cable Runs

Key Insight: The longer the wire run, the more voltage is lost before electricity reaches the fixture.

Voltage drop is the hidden problem behind many uneven lighting systems. I've inspected yards where the first fixture is perfectly bright while the last one barely glows.

The physics is simple: resistance increases with wire length.

Factors that increase voltage drop:

1. Long cable runs
2. High total wattage
3. Thin wire gauge

Professional wiring strategies:

1. T‑method wiring
2. Hub method layout
3. Loop wiring configuration

In larger yards, designers often plan fixture groups before installation. A simple planning layout—similar to how designers map pathways using a 3D layout visualization for outdoor lighting placement—helps distribute loads more evenly.

save pin

Flickering or Inconsistent Landscape Lights

Key Insight: Flickering landscape lights almost always indicate wiring connection problems or unstable voltage delivery.

In the field, I rarely see flickering caused by faulty fixtures. It's usually one of these:

1. Loose wire connectors
2. Corroded underground connections
3. Cheap clip‑on connectors losing contact
4. Water intrusion into splice points

Steps to fix flickering lights:

1. Turn off the transformer.
2. Inspect every wire splice.
3. Replace clip connectors with waterproof gel connectors.
4. Check fixture leads for corrosion.

Professional installers often replace factory connectors immediately because long‑term outdoor exposure tends to weaken them.

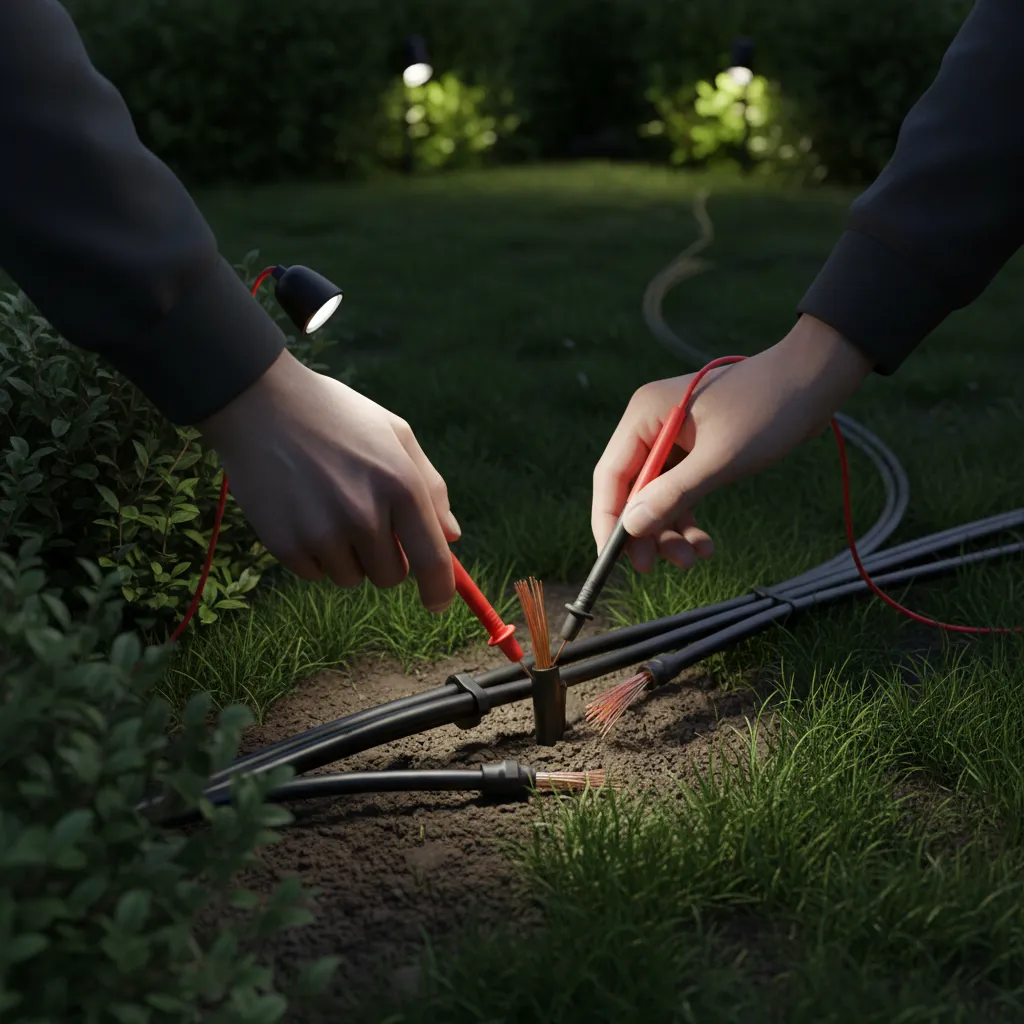

How to Diagnose Wiring and Load Problems

Key Insight: The fastest way to troubleshoot landscape lighting is to test voltage at the transformer, mid‑run, and final fixture.

Most electrical issues become obvious once you measure voltage across the system.

Simple diagnostic workflow:

1. Measure voltage at the transformer output.
2. Measure voltage halfway through the cable run.
3. Measure voltage at the last fixture.

If the drop exceeds about 2 volts between transformer and final fixture, the cable layout needs adjustment.

save pin

Answer Box

The majority of low voltage landscape lighting issues come from system design rather than defective fixtures. Overloaded transformers, excessive cable length, and poor wiring connections account for most dim or flickering lights. Correct load planning and proper wiring layouts prevent nearly all of these problems.

Preventing Future Landscape Lighting Failures

Key Insight: Planning lighting zones before installation eliminates most troubleshooting later.

After designing many outdoor lighting systems, I've learned that prevention is far easier than repair.

Best practices used by professional installers:

1. Use thicker 10–12 gauge wire for long runs
2. Keep runs under 100 feet when possible
3. Distribute fixtures across multiple branches
4. Leave 20–30% transformer capacity unused
5. Use waterproof connectors for every splice

When mapping larger lighting layouts, designers often organize fixture zones first—similar to how planners test layout flow using an interactive space planning layout for outdoor zones before installing fixtures.

Final Summary

1. Most landscape lighting failures come from transformer overload or voltage drop.
2. Dim lights usually indicate power loss across long cable runs.
3. Flickering fixtures often result from loose or corroded wiring.
4. Proper transformer sizing prevents system shutdowns.
5. Planning lighting zones avoids expensive troubleshooting later.

FAQ

Why are my low voltage landscape lights dim?

Dim lights usually result from voltage drop, overloaded transformers, or excessive cable length in the lighting system.

How do I fix flickering landscape lights?

Check for loose wire connectors, corroded splice points, or unstable voltage supply. Replacing connectors with waterproof ones often fixes the issue.

What causes transformer overload in landscape lighting?

Transformer overload happens when total fixture wattage exceeds the transformer's rated capacity.

How many lights can a landscape lighting transformer support?

It depends on wattage. Keep total fixture wattage under about 80% of the transformer rating.

What is voltage drop in landscape lighting?

Voltage drop occurs when electrical resistance reduces power as electricity travels through long cable runs.

Can wire gauge affect landscape lighting brightness?

Yes. Thin wires increase resistance, causing voltage drop and dimmer lights.

How far can low voltage landscape lighting run?

Most systems perform best when cable runs stay under 100–150 feet without voltage balancing strategies.

Do LED landscape lights reduce voltage drop problems?

LED fixtures use less power, which reduces voltage drop and improves overall system efficiency.
