Common Medical Floor Plan Design Mistakes and How to Fix Them: Diagnose workflow, patient flow, and compliance issues in healthcare layouts—and learn practical ways to correct them.

Direct Answer

Common medical floor plan design mistakes usually involve poor patient flow, overcrowded waiting areas, inefficient staff circulation, and overlooked compliance requirements. These problems slow down care delivery and increase operational stress. Fixing them typically requires rebalancing room distribution, separating traffic paths, and redesigning workflow zones around real clinical processes.

Quick Takeaways

1. Most inefficient clinics suffer from mixed patient and staff circulation paths.
2. Too many exam rooms without support space creates hidden workflow delays.
3. Waiting areas often fail because scheduling patterns are ignored in design.
4. Accessibility and code compliance mistakes can force expensive renovations later.
5. Small layout adjustments often solve problems without a full redesign.

Introduction

After working on healthcare interiors for more than a decade, I’ve noticed something surprising: most medical floor plan problems are not caused by lack of space. They’re caused by layouts that ignore how clinics actually operate.

A medical floor plan might look efficient on paper but fail the moment patients, nurses, and doctors start moving through it. Hallways clog. Staff walk twice the distance they should. Exam rooms sit empty while waiting rooms overflow.

I’ve seen this happen in brand‑new facilities as often as in older clinics. In many cases, the issue isn’t the building—it’s the workflow embedded into the layout.

If you're evaluating a clinic layout or planning improvements, experimenting with different room relationships using a visual planning tool for testing medical space layoutscan quickly reveal where bottlenecks form.

In this guide, I’ll break down the most common medical clinic layout mistakes, explain why they happen, and show practical ways to fix them before they turn into expensive renovations.

save pin

Signs Your Medical Facility Floor Plan Is Inefficient

Key Insight: The clearest signal of a bad medical layout is excessive movement—patients, staff, and equipment traveling farther than necessary.

In well-designed clinics, movement follows predictable loops. Patients move from reception to exam rooms, staff circulate behind the scenes, and supply routes stay separate. When those paths overlap, inefficiency spreads quickly.

Common warning signs include:

1. Staff repeatedly crossing public hallways
2. Long walking distances between exam rooms and nurse stations
3. Patients getting lost or asking for directions
4. Frequent hallway congestion near treatment zones
5. Medical carts parked in circulation areas

The Facility Guidelines Institute (FGI), which publishes healthcare design standards used across the U.S., emphasizes minimizing unnecessary travel distances in clinical environments because it directly impacts safety and staff fatigue.

In several outpatient projects I’ve worked on, simply relocating supply storage closer to exam rooms reduced nurse walking time by nearly 30%.

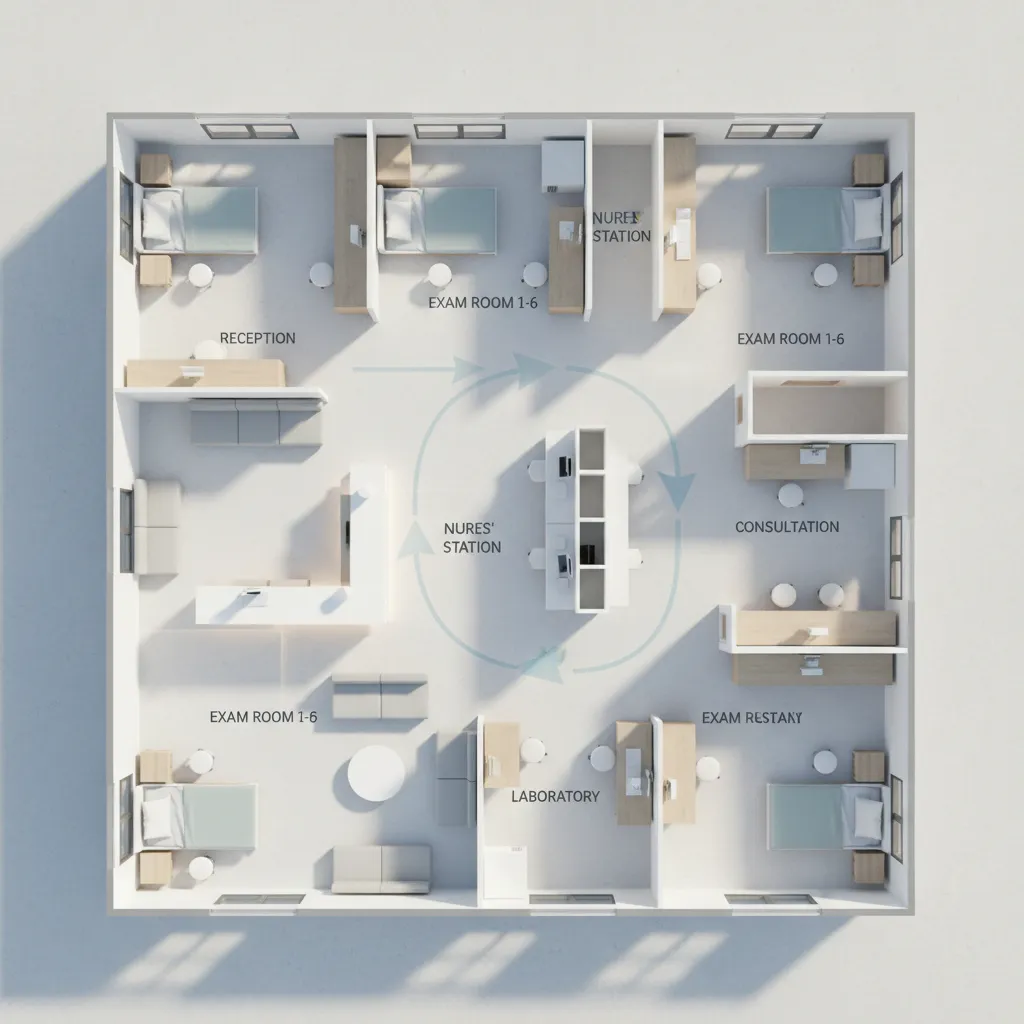

Poor Patient Flow and Congestion Issues

Key Insight: Patient flow problems usually occur when public circulation overlaps with clinical workflows.

Many clinics accidentally design a single "universal corridor" where patients, doctors, and equipment all move through the same space. It feels efficient during planning but quickly becomes chaotic in practice.

Typical congestion points include:

1. Reception and check‑in areas
2. Transitions between waiting rooms and exam corridors
3. Diagnostic rooms located in patient hallways
4. Shared entry points for staff and patients

Better healthcare layouts separate traffic into three circulation types:

1. Patient circulation
2. Staff circulation
3. Service and supply circulation

Large hospitals often implement "racetrack" corridors or dual hallway systems to prevent conflicts. Smaller clinics can achieve similar results by placing staff work cores behind exam rooms rather than in public corridors.

save pin

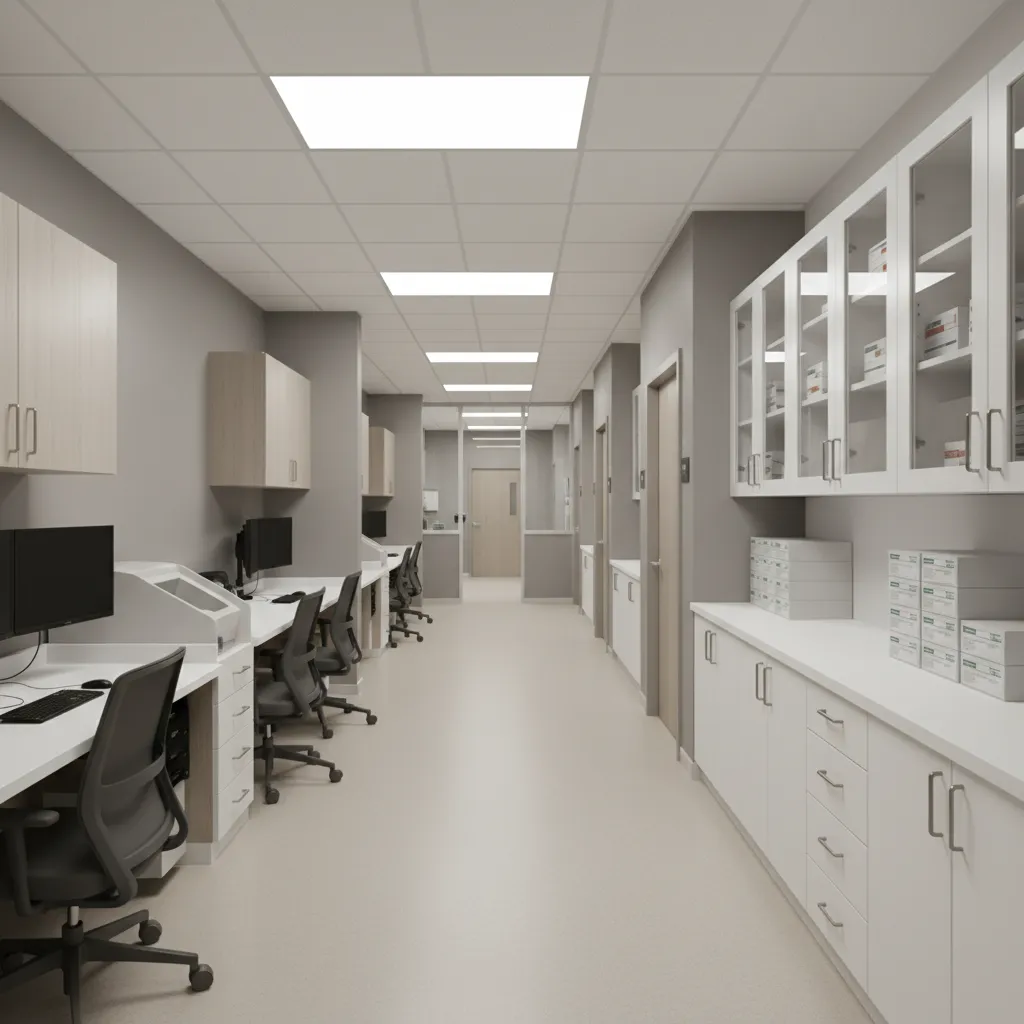

Staff Workflow Bottlenecks in Clinical Layouts

Key Insight: Exam room placement alone doesn't determine efficiency—support spaces around them do.

One hidden mistake I see constantly is the "exam room overload" problem. Developers push for more exam rooms to increase capacity, but they forget to expand nurse stations, charting areas, medication rooms, and storage.

The result is staff crowding and workflow slowdowns.

A balanced clinical zone typically includes:

1. Exam rooms
2. Nurse workstations
3. Supply storage
4. Medication preparation rooms
5. Clean and soiled utility rooms

If these support spaces are centralized too far from exam rooms, staff lose time walking back and forth.

When analyzing layouts, I often test staff movement patterns using a digital room layout simulator for interior workflow planning to visualize circulation distances before any construction changes are made.

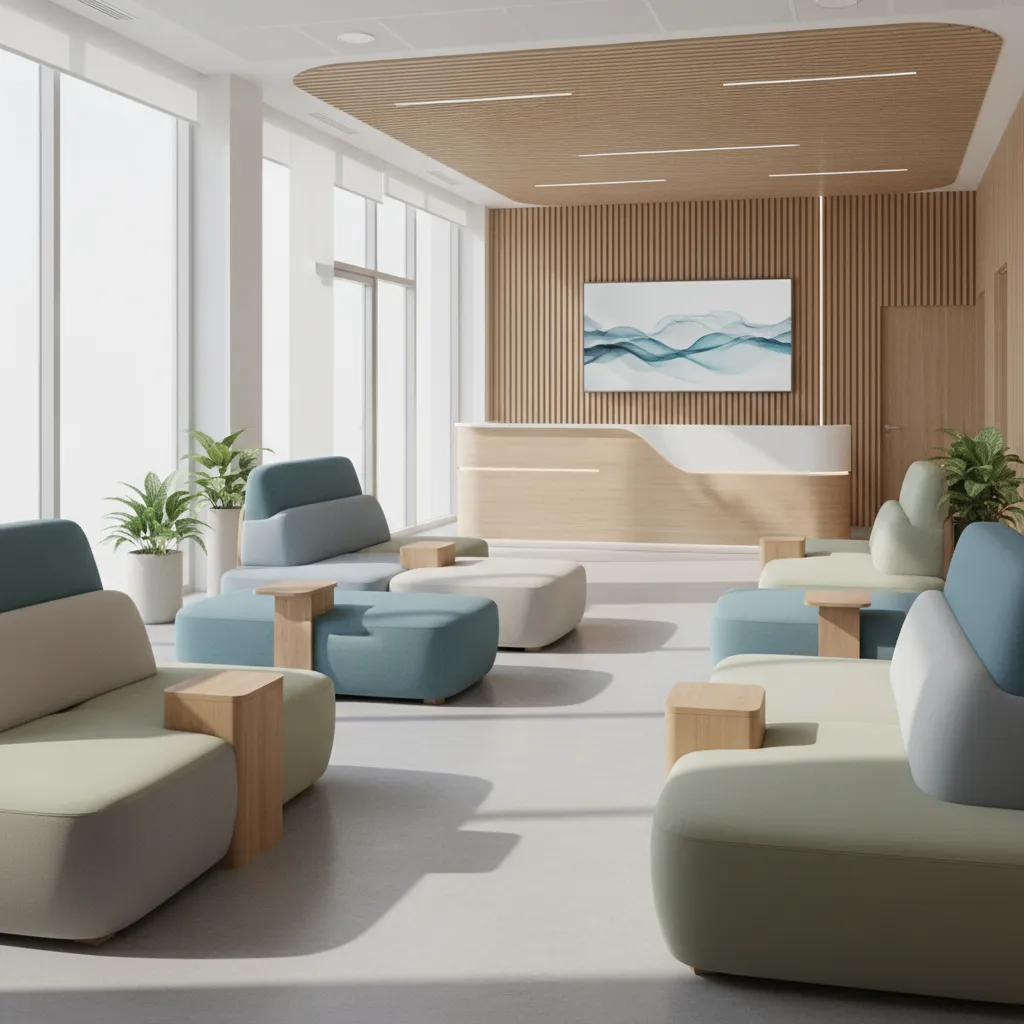

Waiting Area and Exam Room Imbalance

Key Insight: Waiting room size should reflect scheduling patterns—not just building square footage.

Many healthcare facilities oversize waiting rooms while underestimating exam room turnover time. This creates a strange paradox: a crowded waiting room even when exam rooms are available.

Designers should analyze three operational factors:

1. Average appointment duration
2. Doctor scheduling patterns
3. Patient arrival clustering

For example, pediatric clinics often need larger waiting zones because parents arrive early and bring siblings. Dermatology clinics, by contrast, usually require faster exam room turnover but smaller waiting areas.

save pin

Compliance and Accessibility Mistakes

Key Insight: Compliance errors are often invisible during early design but extremely expensive after construction.

Healthcare facilities must comply with ADA accessibility requirements, state health department rules, and FGI guidelines.

Common compliance mistakes include:

1. Exam rooms without proper wheelchair turning radius
2. Insufficient corridor width for gurneys
3. Restrooms placed too far from waiting areas
4. Improper separation of clean and dirty workflows
5. Inadequate medical gas or equipment clearances

These issues may seem minor during planning, but inspectors often require corrections before licensing approvals are granted.

Practical Ways to Redesign Problem Areas

Key Insight: Many layout problems can be solved with targeted zoning adjustments instead of full reconstruction.

Here are redesign strategies that frequently work:

1. Relocate nurse stations closer to exam room clusters
2. Create separate staff corridors behind exam rooms
3. Add decentralized supply cabinets
4. Split large waiting rooms into smaller zones
5. Move diagnostic rooms away from main patient circulation

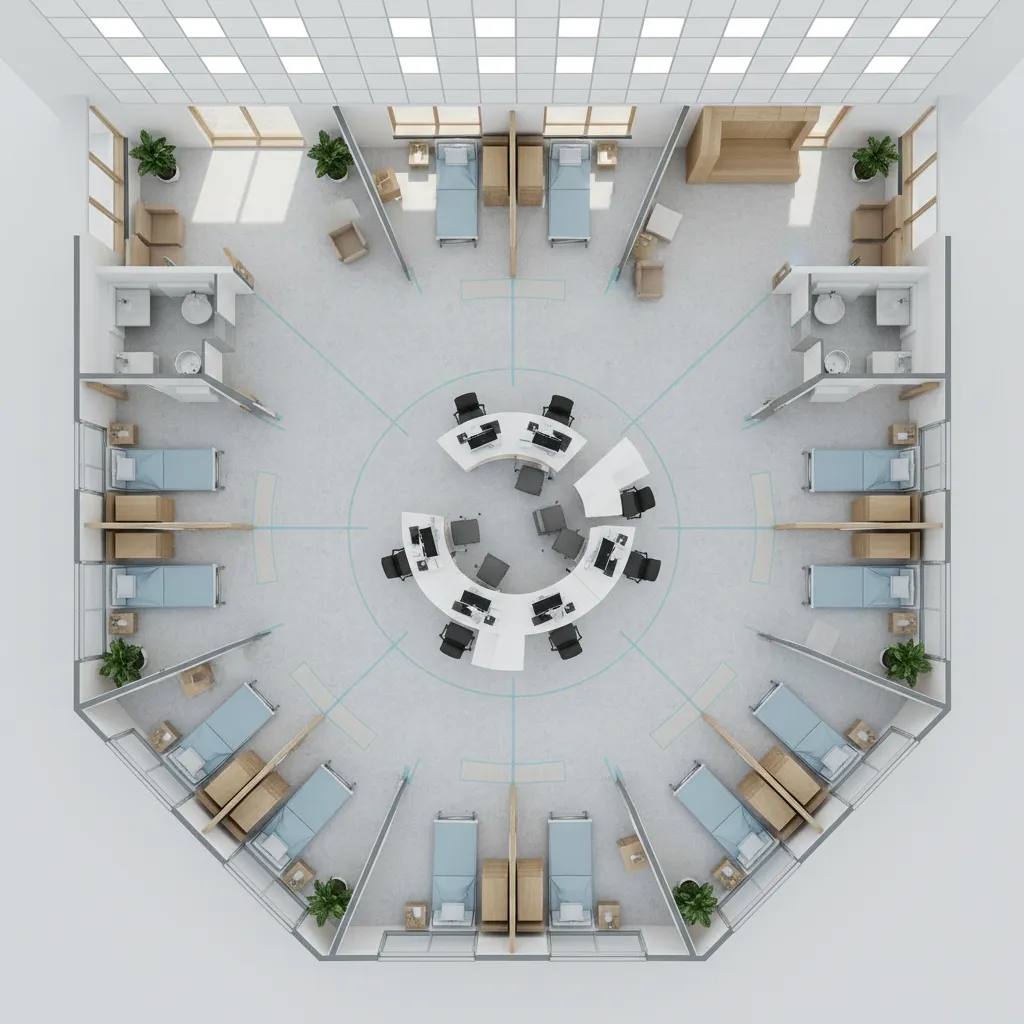

Testing alternative layouts using a 3D visualization workflow for redesigning clinical floor plansallows teams to evaluate improvements before committing to physical changes.

save pin

Answer Box: The Core Fix for Most Medical Layout Problems

The majority of medical floor plan problems come from mixing patient, staff, and service circulation paths. Separating these flows—while keeping exam rooms close to support spaces—usually solves the biggest operational bottlenecks.

When a Full Floor Plan Redesign Is Necessary

Key Insight: Some layouts cannot be fixed through minor adjustments because their structural circulation logic is flawed.

A full redesign may be necessary when:

1. Patient corridors double as staff work zones
2. Structural walls block efficient circulation
3. Exam rooms are too small for accessibility compliance
4. Mechanical infrastructure prevents relocation of critical rooms
5. The clinic has expanded beyond its original capacity

In those situations, a redesigned medical office layout often improves operational efficiency far more than incremental fixes.

Final Summary

1. Most healthcare layout problems come from poor circulation planning.
2. Staff workflow efficiency depends heavily on support space placement.
3. Waiting room size must match scheduling patterns.
4. Compliance mistakes are costly to correct after construction.
5. Testing layouts digitally helps detect problems early.

FAQ

What are the most common medical clinic layout mistakes?

Poor patient flow, overcrowded waiting rooms, inadequate staff work areas, and missing accessibility clearances are the most common medical clinic layout mistakes.

How can I fix patient flow problems in clinics?

Separate patient and staff circulation routes, reduce hallway intersections, and locate exam rooms near nurse stations to fix patient flow problems in clinics.

Why do waiting rooms become overcrowded even in large clinics?

Scheduling patterns and patient arrival timing often create surges that layouts were not designed to handle.

How many exam rooms should a medical office have?

Most outpatient clinics plan two to three exam rooms per physician, depending on specialty and appointment duration.

What causes inefficient hospital floor plan problems?

Inefficient hospital floor plan problems usually stem from long travel distances, centralized supplies, and overlapping circulation routes.

Do small clinics really need separate staff corridors?

Not always, but even partial separation—like back‑of‑house supply zones—can significantly improve workflow.

How wide should medical facility corridors be?

Healthcare corridors typically range from 6 to 8 feet wide, depending on equipment and regulatory standards.

When should a clinic consider a full layout redesign?

When structural constraints prevent improving circulation or compliance requirements cannot be met with minor changes.

References

1. Facility Guidelines Institute (FGI) – Guidelines for Design and Construction of Hospitals
2. American Institute of Architects – Healthcare Design Standards
3. U.S. ADA Accessibility Guidelines
