Common Mistakes When Calculating Metal Roof Panels: Why panel estimates go wrong and how experienced builders correct measurement errors before ordering metal roofing.

Direct Answer

The most common mistakes when calculating metal roof panels come from using total panel width instead of effective coverage width, ignoring roof pitch, and forgetting trim areas like ridges and valleys. These errors can easily cause estimates to be off by 10–25%. Correct calculations require measuring the true roof slope, using manufacturer coverage specifications, and adding realistic waste allowances.

Quick Takeaways

1. Using panel width instead of coverage width is the most frequent estimating mistake.
2. Roof pitch increases actual panel length required compared with flat measurements.
3. Ridges, valleys, and trim pieces require extra material many DIY estimates ignore.
4. A 5–15% waste allowance is typical for most residential metal roofs.
5. Recalculating after an error starts with verifying slope length and coverage width.

Introduction

After working on dozens of residential renovation projects, I can tell you that metal roof panel calculations are where many otherwise careful DIY builds go sideways. The math seems simple at first—measure the roof, divide by panel width, order panels. But in practice, metal roof panel calculation mistakes are incredibly common.

I’ve seen homeowners order thousands of dollars in panels only to realize their estimate was short by an entire roof section. Most of the time, the problem isn’t complicated math. It’s a misunderstanding of how metal roofing systems actually cover a roof.

Accurate estimates start with accurate geometry. If you're still mapping out the roof layout, using a visual planning tool can help you map your roof structure with a precise digital layout before calculating materials. Seeing the slopes, ridges, and valleys clearly often reveals measurement gaps people miss on paper.

In this guide, I’ll break down the most frequent metal roof panel estimating errors I see in real projects—and how to fix them before placing an order.

save pin

Why Metal Roof Panel Calculations Often Go Wrong

Key Insight: Most metal roof estimating errors happen because people calculate the roof as a flat rectangle instead of a 3D sloped surface.

In theory, calculating metal panels seems straightforward: measure the roof area and divide by panel width. In reality, roofing systems involve slope length, overlapping seams, trim components, and panel coverage specifications that vary by manufacturer.

From a design perspective, roofing behaves more like architectural geometry than simple surface math. When slope and overlapping seams are ignored, the estimate becomes inaccurate very quickly.

Typical sources of calculation errors include:

1. Using horizontal roof width instead of slope width
2. Ignoring panel seam overlap
3. Forgetting ridge and valley coverage
4. Misreading manufacturer panel specs
5. Underestimating installation waste

The National Roofing Contractors Association consistently emphasizes that metal roofing systems must be measured along the slope—not the plan view—because slope length directly determines panel size.

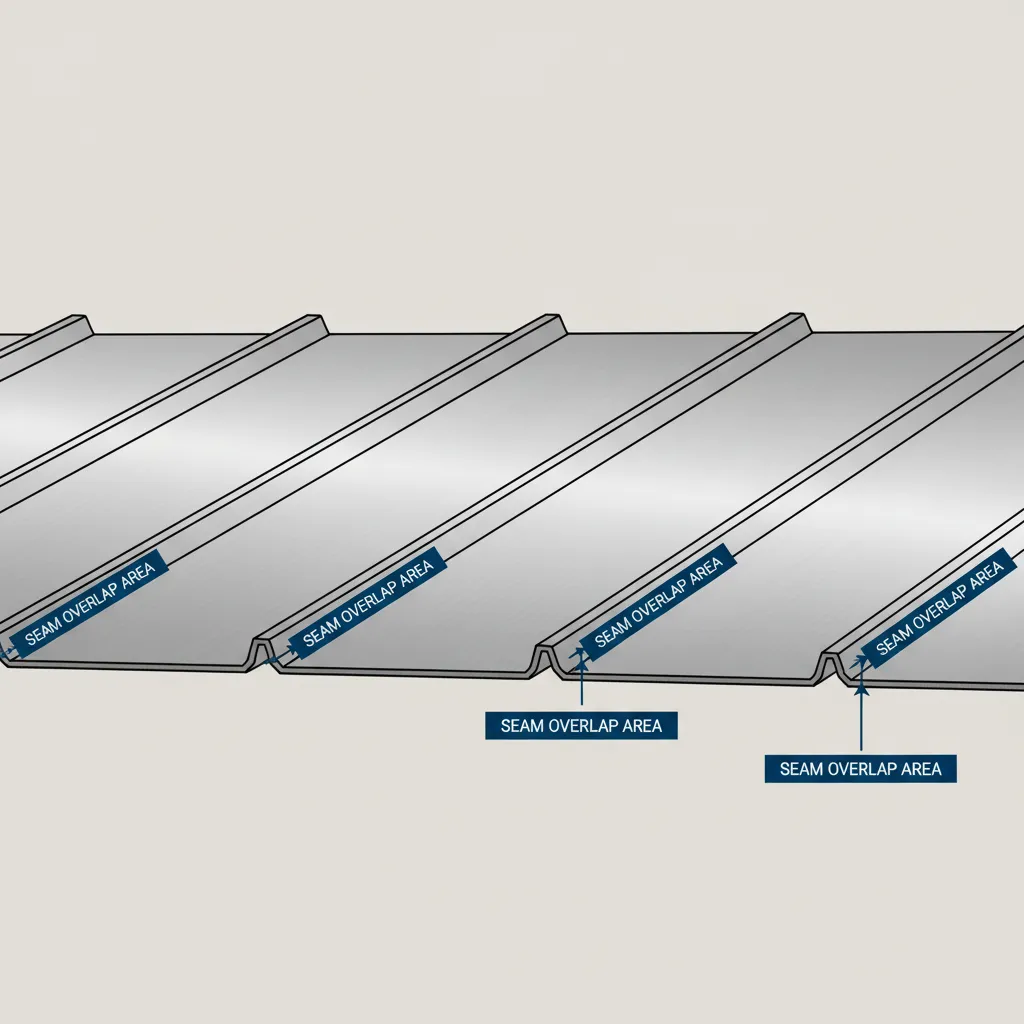

Ignoring Effective Panel Coverage Width

Key Insight: Metal panels overlap at the seams, meaning their usable coverage width is smaller than the physical panel width.

This is probably the single most common metal roof coverage miscalculation. Many people divide roof width by the panel's full width listed in product specs. But metal panels overlap where they lock together.

That means the effective coverage width is always smaller.

Example comparison:

1. Corrugated panel total width: 36 inches
2. Effective coverage width: about 34 inches
3. Standing seam panel width: 18 inches
4. Coverage width after seams: around 16 inches

That difference may seem small, but across a 40‑foot roof section it can change the panel count by several pieces.

A practical approach I recommend on projects is to visualize layout spacing before calculating materials. Many builders use tools that visualize structural layouts in 3D to confirm spacing and alignment. Even though they’re often used for interiors, the same principle helps verify panel spacing across roof sections.

save pin

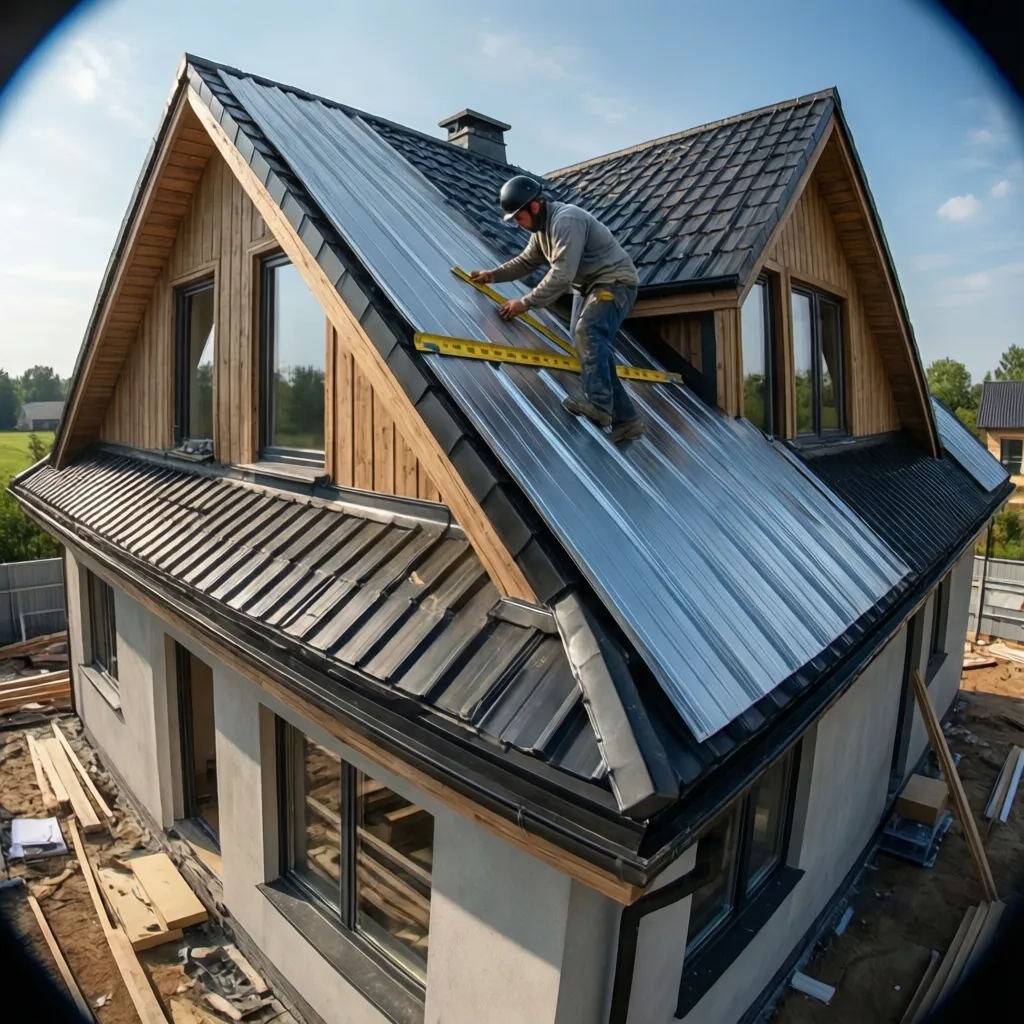

Forgetting Roof Pitch and Slope Adjustments

Key Insight: Roof slope length—not horizontal building width—determines the real metal panel length required.

When someone measures a house from wall to ridge in a straight horizontal line, they’re measuring the run, not the slope. The panel must follow the angled roof surface.

For example:

1. House width: 30 feet
2. Roof pitch: 6:12
3. Actual slope length: about 33.5 feet

If panels were ordered at 30 feet, they would fall several feet short of the ridge.

Roof slope can be calculated using the formula:

1. Slope length = √(run² + rise²)

Many roofing suppliers provide slope multipliers for common pitches, which simplify the calculation process.

Answer Box

The biggest causes of incorrect metal roof panel estimates are ignoring panel coverage width, failing to measure slope length, and forgetting trim areas. Correcting these three factors typically resolves most panel calculation errors.

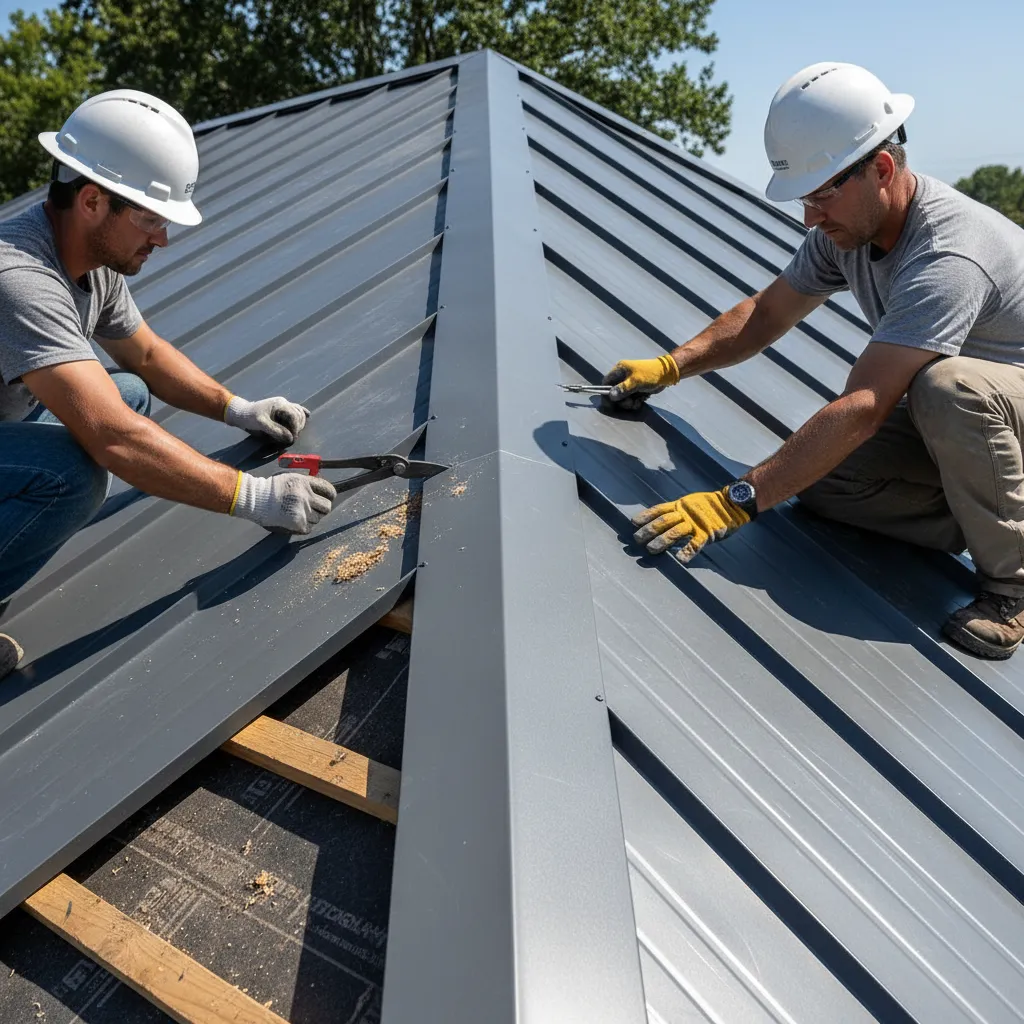

Not Accounting for Ridge, Valley, and Trim Areas

Key Insight: Roofing systems require multiple trim components that consume additional panel material or alter layout spacing.

A roof isn’t just a field of panels. It includes architectural junctions where panels stop or change direction.

Common trim components include:

1. Ridge caps
2. Hip caps
3. Valley flashing
4. Gable trim
5. Eave trim

Each of these areas affects panel layout. For instance, valley areas often require panel cuts that increase waste.

In more complex roof shapes, I recommend creating a scaled diagram first. Tools that generate structured layout diagrams from measurementsmake it much easier to visualize where panels terminate or intersect.

save pin

Underestimating Waste and Overlap Allowances

Key Insight: A realistic waste allowance is essential because cutting panels around roof features always produces offcuts.

Many first‑time installers calculate the exact number of panels required and order that amount. That almost never works.

Typical waste allowances:

1. Simple gable roof: 5–8%
2. Moderate complexity roof: 8–12%
3. Complex roofs with valleys: 12–15%

Waste occurs from:

1. Valley cuts
2. Skylight openings
3. Vent penetrations
4. Starter panel trimming
5. Alignment corrections

Metal Construction Association installation guides consistently recommend ordering additional panels rather than attempting exact coverage calculations.

save pin

How to Recalculate Panels After a Measurement Error

Key Insight: Correcting a metal roof estimate requires verifying three measurements: slope length, coverage width, and roof section segmentation.

If your initial estimate is wrong, don’t just add random panels. Recalculate systematically.

Step‑by‑step recalculation process:

1. Measure slope length from ridge to eave.
2. Confirm manufacturer coverage width for the panel model.
3. Divide roof section width by coverage width.
4. Round up to the next full panel.
5. Add 5–15% waste allowance.

This method typically brings panel estimates within a few percent of contractor‑level calculations.

Final Summary

1. Most metal roof panel calculation mistakes come from ignoring slope geometry.
2. Always use effective coverage width, not total panel width.
3. Roof pitch increases required panel length.
4. Trim components and valleys significantly affect material estimates.
5. A 5–15% waste allowance prevents costly reorder delays.

FAQ

Why is my metal roof panel estimate wrong?

Most incorrect estimates happen because panel coverage width and roof slope were not considered during measurement.

What is the difference between panel width and coverage width?

Panel width is the full sheet size, while coverage width is the usable width after seam overlap.

How much extra metal roofing should I order?

Most contractors recommend ordering 5–15% extra panels depending on roof complexity.

Do valleys increase metal roof panel waste?

Yes. Valleys require diagonal panel cuts that often create unusable offcuts.

How do I fix a metal roof panel calculation mistake?

Recalculate using slope length, coverage width, and roof section divisions. This corrects most metal roof panel calculation mistakes.

Does roof pitch affect panel length?

Yes. The steeper the pitch, the longer the actual slope measurement required for panels.

What causes metal roof coverage miscalculation?

Common causes include ignoring seam overlap, measuring horizontal distance instead of slope, and forgetting trim areas.

Can I reuse panels if I ordered the wrong size?

Sometimes shorter panels can be used on smaller roof sections, but ridge‑to‑eave panels must match the full slope length.

References

National Roofing Contractors Association (NRCA) Roofing Manual

Metal Construction Association Installation Guidelines

U.S. Department of Energy – Cool Roofing and Metal Roof Systems
