Common Mistakes When Drawing Fences on Floor Plans (And How to Fix Them): Avoid boundary errors, symbol confusion, and scaling issues when adding fences to architectural floor plans.

Direct Answer

The most common mistakes when drawing fences on floor plans are incorrect boundary placement, inconsistent line symbols, and scale mismatches. These issues often occur when designers treat fences as decorative elements instead of structural boundaries tied to property lines. Fixing them usually involves verifying property measurements, standardizing symbols, and adjusting the fence layout without rebuilding the entire plan.

Quick Takeaways

1. Fence lines must follow property boundaries, not visual edges of the building layout.
2. Using inconsistent line weights or symbols makes fence elements difficult to interpret.
3. Scale errors often occur when fences are drawn after the main floor plan is finalized.
4. Many fence problems can be corrected by adjusting reference points rather than redrawing the whole plan.

Introduction

After reviewing hundreds of residential layouts over the past decade, I can say that fence details are one of the most commonly overlooked parts of a floor plan. Designers usually focus on walls, rooms, and circulation first. The fence gets added later as a quick boundary sketch, and that is exactly where problems begin.

In many projects I audit, the fence line looks visually correct but technically wrong. It may sit slightly outside the property line, use inconsistent symbols, or scale incorrectly when the plan is exported. These small drafting mistakes can cause real issues during permitting, construction planning, or landscape design.

One thing I recommend early in the planning process is sketching the boundary layout using a dedicated planning workflow like this step‑by‑step guide for creating accurate property layouts before detailing structures. Establishing boundaries first prevents most fence mistakes later.

In this guide, I’ll walk through the most common fence drawing mistakes I see in professional plans, why they happen, and how to correct them without starting the drawing from scratch.

save pin

Why Fence Drawings Often Cause Confusion in Floor Plans

Key Insight: Fence elements cause confusion because they sit at the intersection of architectural plans, landscape plans, and property surveys.

Unlike interior walls, fences are tied to property boundaries rather than building geometry. Many designers copy wall‑drawing habits when drafting fences, which leads to misalignment with survey data.

In practice, a fence is closer to a site‑planning element than an architectural one. That difference matters.

Typical causes of confusion include:

1. Mixing architectural symbols with landscape plan symbols
2. Drawing fences relative to buildings instead of property lines
3. Using inconsistent line weights across sheets
4. Exporting plans where fence lines disappear at small scales

The American Society of Landscape Architects notes that boundary features should always reference survey coordinates or measured offsets from the property line rather than the structure itself.

In projects where the building footprint changes during design development, fence lines drawn relative to the house often end up drifting into incorrect positions.

Incorrect Fence Placement Along Property Boundaries

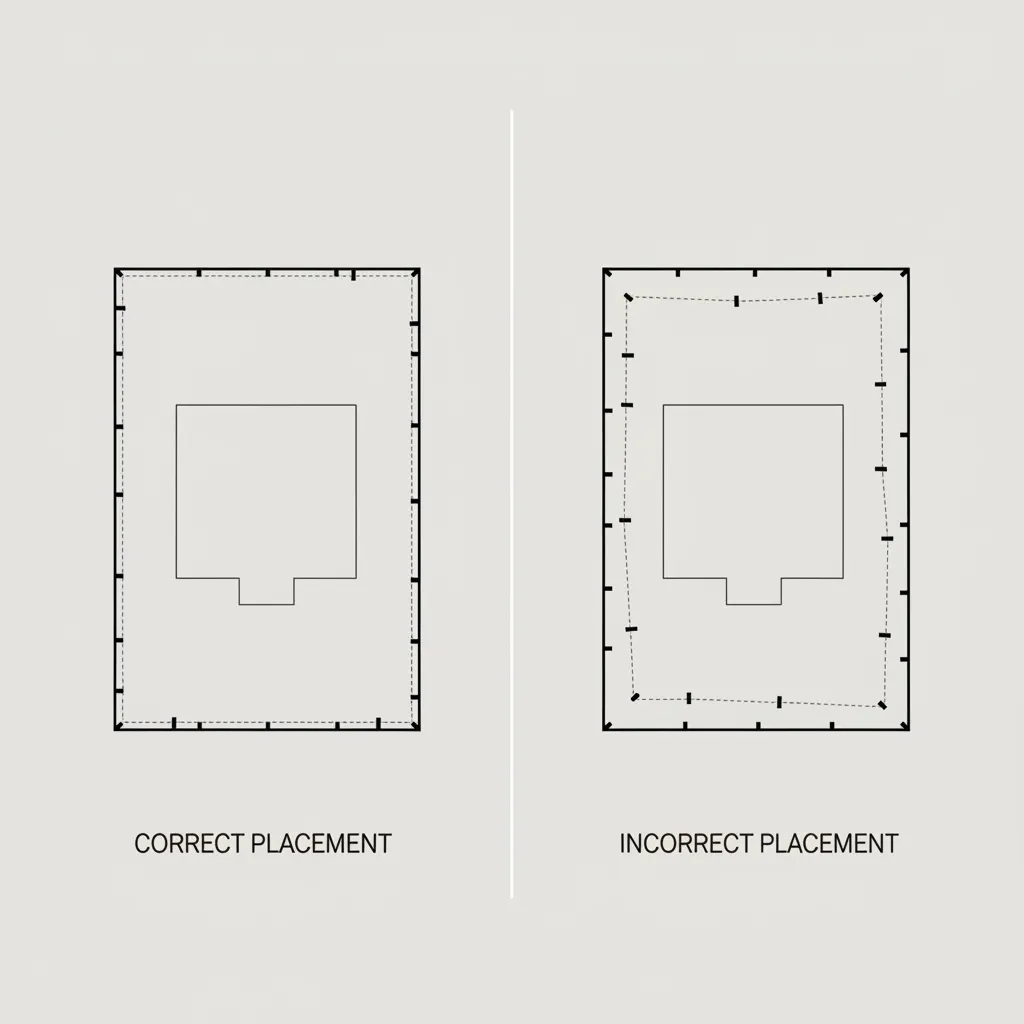

Key Insight: The most frequent fence error is anchoring the fence to the building layout instead of the property boundary.

I see this in residential renovation projects all the time. A designer aligns the fence visually with the backyard patio or deck, but the official property line sits several feet away.

This mistake usually happens when survey data is not imported into the drawing environment early enough.

To check fence placement, I recommend this quick verification process:

1. Locate the official property line layer in the site plan
2. Measure fence offsets from the boundary, not the building
3. Confirm corner coordinates or distances between fence posts
4. Cross‑check with the site survey document

When teams collaborate on digital layouts, reviewing the boundary structure using a visual planning environment such as this interactive 3D layout environment for verifying property boundarieshelps identify misaligned fence segments before construction documentation is finalized.

save pin

Using the Wrong Line Types or Symbols

Key Insight: Fence symbols should remain visually distinct from walls, retaining walls, and landscape edging.

One subtle but serious drafting issue is symbol confusion. When fences use the same line weight as exterior walls, contractors may misinterpret them as structural elements.

Common symbol mistakes include:

1. Solid wall lines used instead of dashed or patterned fence lines
2. Missing gate indicators
3. Inconsistent fence post spacing markers
4. Fence drawn as landscape edging

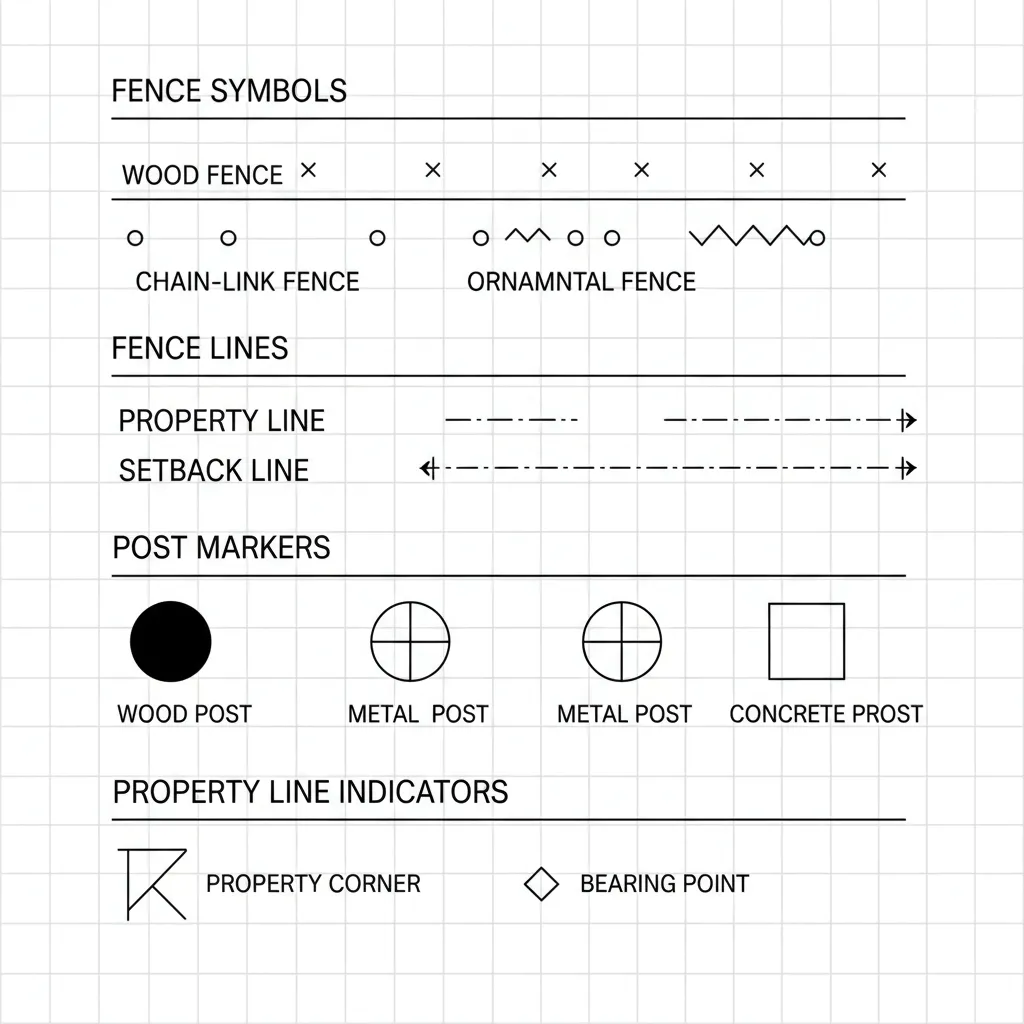

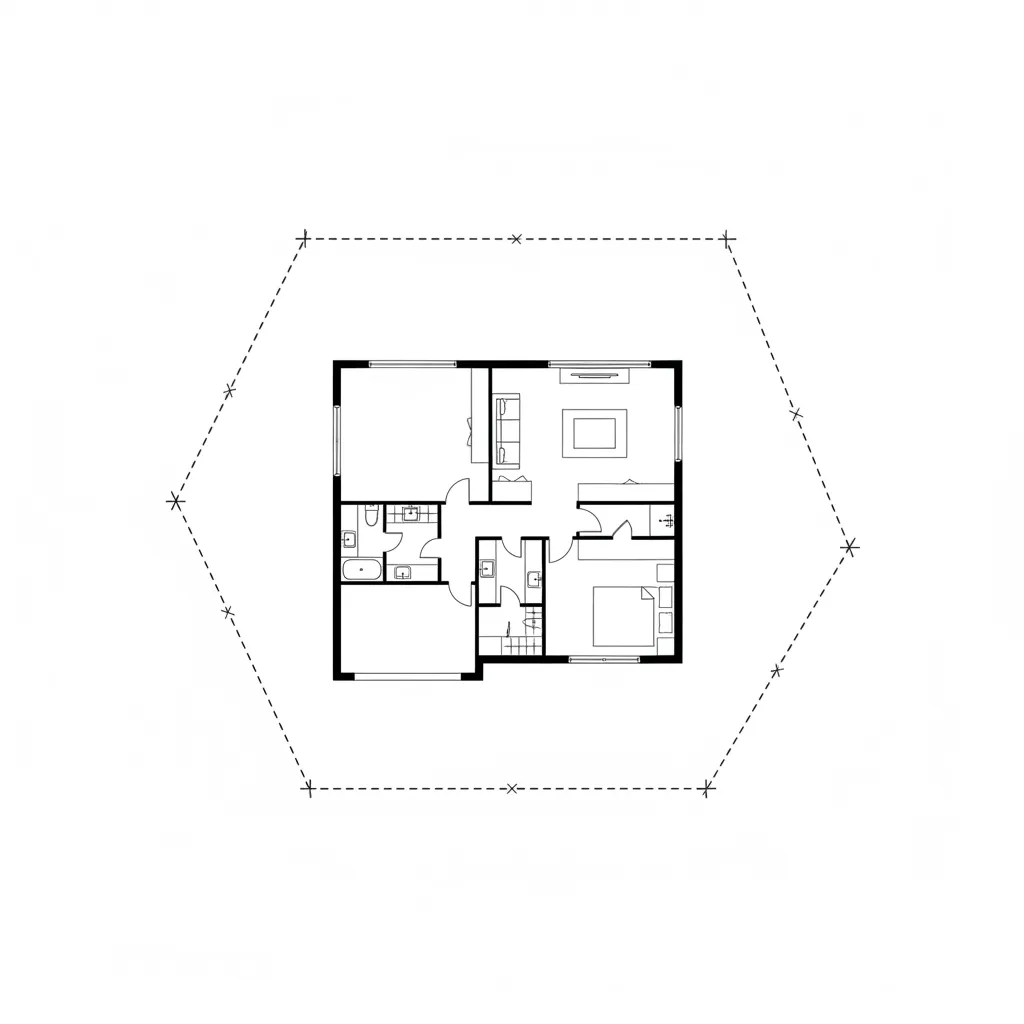

Typical drafting conventions separate elements like this:

1. Exterior walls: thick solid lines
2. Interior walls: medium solid lines
3. Fences: dashed or post‑marker lines
4. Property lines: long dash patterns

The National CAD Standard recommends that site features maintain distinct line types to prevent misinterpretation during documentation review.

Scale and Measurement Errors in Fence Layouts

Key Insight: Fence errors frequently come from drawing them after the plan scale is locked.

Many designers finish the building layout at a specific drawing scale, then sketch fence elements quickly on top of it. If snapping or measurement references are disabled, the fence can drift off accurate dimensions.

Typical scale problems include:

1. Fence posts spaced inconsistently
2. Gate widths not matching real dimensions
3. Fence segments slightly off angle from property lines
4. Measurements rounded instead of precise

A practical correction workflow:

1. Turn on measurement snapping
2. Trace fence lines directly from boundary coordinates
3. Insert posts at measured intervals
4. Recalculate total perimeter length

Modern planning workflows make this easier when the layout system automatically tracks measurements. Many designers now verify fence spacing through tools used for automatically aligning site features with measured layout grids.

save pin

How to Correct Fence Drawings Without Redrawing the Plan

Key Insight: Most fence errors can be corrected by adjusting reference layers instead of rebuilding the drawing.

Redrawing the entire site plan is rarely necessary. In most cases, the issue lies in how the fence references other layers in the drawing.

Efficient correction methods include:

1. Realigning the fence layer to the property boundary layer
2. Updating line types globally
3. Adjusting post spacing through pattern editing
4. Re‑anchoring gate elements to measured coordinates

On large residential projects, this adjustment process can take less than 10 minutes once the correct reference layer is identified.

Answer Box

The majority of fence drawing mistakes come from treating fences as decorative elements rather than boundary structures. Accurate fences require proper property alignment, consistent symbols, and scale‑verified measurements.

Checklist for Reviewing Fence Elements in a Plan

Key Insight: A simple review checklist catches most fence drafting errors before the plan reaches contractors or permit reviewers.

Before finalizing a drawing set, I usually run through this quick fence verification checklist:

1. Fence aligns exactly with property line or defined setback
2. Fence symbol is visually distinct from walls
3. Gate locations and swing directions are labeled
4. Fence post spacing is consistent
5. Fence dimensions match the site measurement scale
6. No fence segment overlaps the building footprint

This type of review may sound minor, but it prevents many real‑world construction misunderstandings.

Final Summary

1. Fence lines must reference property boundaries, not building edges.
2. Clear symbols prevent fences from being mistaken for structural walls.
3. Scale errors often appear when fences are added late in the design process.
4. Most fence mistakes can be corrected through layer alignment adjustments.
5. A quick checklist review prevents documentation errors before construction.

FAQ

Why does my fence line look wrong in a floor plan?

The fence may be aligned to building edges instead of the property boundary. Always verify placement using survey coordinates or property line measurements.

What symbol should represent a fence on a floor plan?

Most drafting standards use dashed lines or post markers to represent fences so they remain visually different from structural walls.

What causes common fence drawing mistakes in floor plans?

Common fence drawing mistakes floor plan layouts include incorrect boundary references, inconsistent symbols, and scale mismatches.

Can a fence be shown on an architectural floor plan?

Yes, but it is usually referenced as a site element. Detailed fence documentation often appears on site or landscape plans.

How do you fix fence placement on an architectural drawing?

Fix fence placement by aligning the fence layer with the property boundary layer and verifying distances with the site survey.

Why do fence symbols disappear in scaled drawings?

Thin line weights or incorrect export scaling can cause fence symbols to disappear when drawings are reduced in size.

Are fence layouts part of architectural or landscape plans?

They often appear in both. Architectural drawings show context while landscape or site plans provide detailed fence layouts.

How do you troubleshoot fence layout drawings quickly?

Start by verifying property boundaries, checking symbol standards, and confirming measurement accuracy before adjusting the fence layer.
