Common Mistakes When Modeling a Baseball Field in 3D and How to Fix Them: Practical fixes for scale, layout, and geometry errors when building an accurate 3D baseball field model.

Direct Answer

The most common problems in a 3D baseball field model are incorrect scale, misaligned bases, distorted infield geometry, and poor surface mapping. These errors usually happen when modelers rely on visual guesses instead of verified field dimensions. Fixing them requires using regulation measurements, correct reference layouts, and clean topology.

Quick Takeaways

1. Most baseball field modeling errors come from incorrect scaling early in the project.
2. Bases and the pitcher’s mound must follow precise geometric relationships, not visual alignment.
3. Infield arcs and outfield curves often distort if reference guides are missing.
4. Texture stretching usually indicates poor UV layout or uneven topology.
5. Always validate your model using official field dimensions before rendering.

Introduction

After working on multiple sports facility visualizations over the past decade, I’ve noticed something interesting: building a 3D baseball field model looks deceptively simple. A diamond, some grass, a mound—done, right? In reality, it’s one of those projects where small measurement mistakes quickly snowball into obvious visual problems.

Many designers start by eyeballing the diamond or stretching a square plane until it "looks right." That approach almost always leads to scale inconsistencies—bases too close together, an oversized mound, or an infield arc that feels strangely flat.

If you're still planning the layout phase, studying a structured planning workflow like building accurate sports layouts with a structured 3D floor planning workflowcan prevent many of these issues before modeling even begins.

In this guide, I’ll walk through the mistakes I see most often when reviewing sports field models, explain why they happen, and show practical ways to fix them so your baseball field holds up under close inspection.

save pin

Incorrect Baseball Field Dimensions and Scale Issues

Key Insight: Most baseball field modeling errors originate from using approximate dimensions instead of regulation measurements.

A regulation baseball diamond has strict proportions. Once the base path distance is wrong—even by a few feet—the entire layout becomes visually inaccurate. I’ve reviewed models where the bases were scaled correctly but the infield arc radius was guessed, which completely broke the geometry.

Official baseline dimensions (MLB standard):

1. Base path: 90 feet
2. Pitcher's mound distance to home plate: 60 ft 6 in
3. Pitcher mound diameter: 18 feet
4. Infield arc radius: 95 feet from mound center

Practical fix workflow:

1. Create a measurement grid in real-world units.
2. Place bases first using exact coordinates.
3. Generate arcs using geometric constraints rather than manual curves.
4. Scale surrounding stadium elements afterward.

According to MLB facility guidelines and NCAA field planning documents, consistent scaling is critical because even minor errors affect player sightlines and camera angles. The same applies in digital visualization.

Misaligned Bases and Pitcher's Mound Placement

Key Insight:Bases must form a perfect square, while the pitcher’s mound sits on a precise centerline between second base and home plate.

One subtle mistake I frequently see is artists placing the mound visually centered inside the diamond. In reality, its placement is mathematically defined relative to home plate and second base.

save pin

Correct geometric relationships:

1. All four bases form a 90‑foot square.
2. The pitcher’s plate sits 60 ft 6 in from home plate.
3. The mound center lies along the line between home plate and second base.

Common hidden mistake:

Some modelers align the mound with the geometric center of the square. That location is incorrect and shifts the entire infield arc.

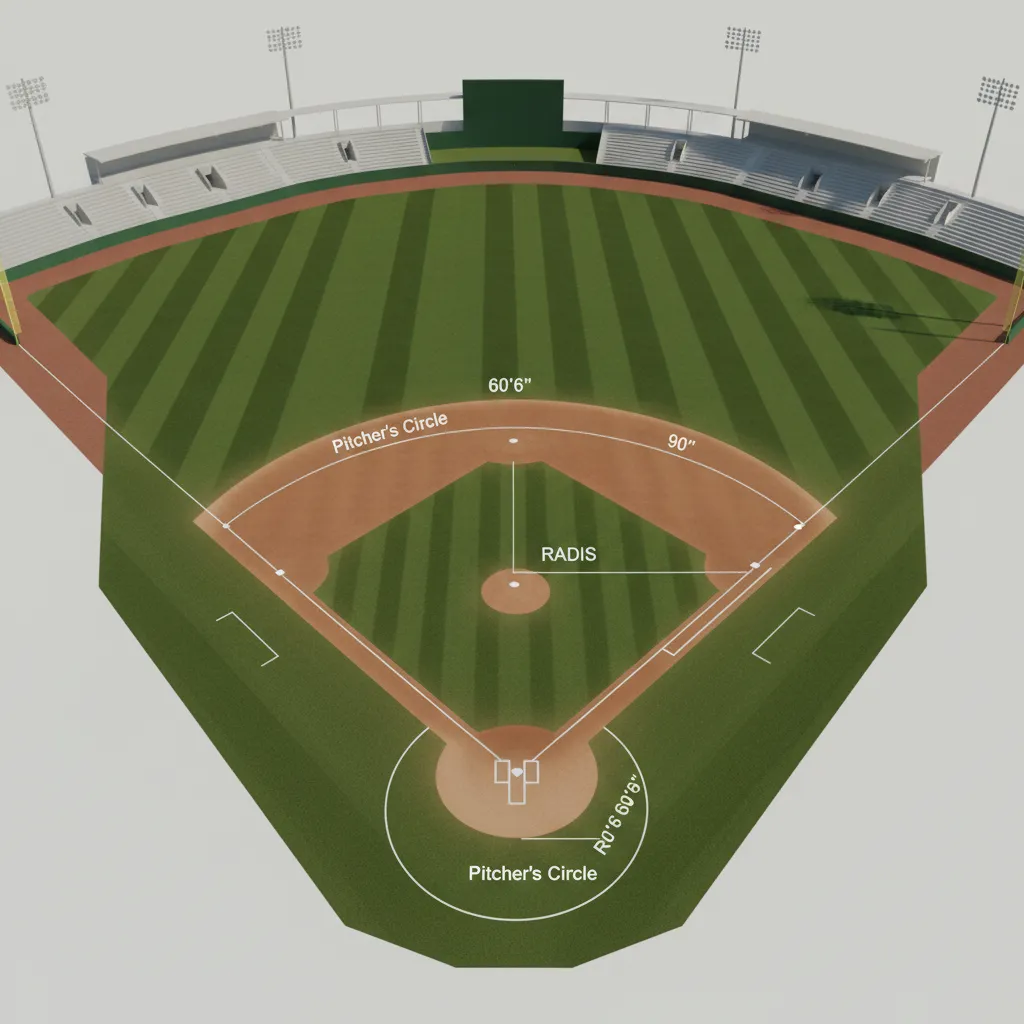

To avoid alignment issues, I often recommend laying out the diamond using reference guides first. Tools used for mapping precise outdoor layouts before modeling begins can help lock measurements before geometry is built.

Problems with Infield and Outfield Geometry

Key Insight: Infield and outfield shapes should be generated from arcs and splines based on field measurements—not hand‑drawn curves.

The infield dirt arc is especially easy to get wrong. When it’s drawn manually, it often becomes elliptical rather than circular.

Typical geometry issues:

1. Flattened infield arcs
2. Asymmetric foul lines
3. Outfield walls with inconsistent curvature

Better modeling approach:

1. Create a circle centered on the mound.
2. Use the correct radius for the infield cut.
3. Trim the arc between foul lines.
4. Extrude surfaces after curves are finalized.

In large stadium projects I’ve worked on, designers often build the entire field from 2D curves first. Only after those curves are mathematically correct do we convert them into surfaces.

save pin

Texture Stretching on Grass and Dirt Surfaces

Key Insight: Texture stretching usually signals uneven UV scaling or non‑uniform mesh density.

Grass patterns and dirt textures quickly expose modeling mistakes because repeating patterns reveal distortions that might otherwise go unnoticed.

Common causes:

1. Large polygons across curved surfaces
2. Unwrapped UV islands with inconsistent scale
3. Overlapping texture coordinates

Fix checklist:

1. Use evenly spaced topology on curved field areas
2. Apply planar projection for large surfaces
3. Normalize UV island scaling
4. Test textures early before final rendering

If you’re building the full stadium environment, reviewing examples of high‑quality 3D rendering workflows for large environments helps ensure textures remain consistent across wide surfaces.

Fixing Topology Problems in Sports Field Models

Key Insight: Clean topology ensures smooth shading, efficient rendering, and easier edits later.

Sports fields are deceptively large surfaces. If topology becomes chaotic—especially around curves—render artifacts appear quickly.

Topology issues I see frequently:

1. Triangles scattered across curved arcs
2. Uneven polygon density between infield and outfield
3. Edge loops breaking at foul lines

Topology cleanup steps:

1. Retopologize curved arcs using quad loops.
2. Keep polygon density consistent.
3. Avoid unnecessary subdivisions on flat grass areas.
4. Maintain edge flow along field boundaries.

Answer Box

The fastest way to fix a flawed 3D baseball field model is to rebuild the diamond using official measurements and reference curves. Once the geometry is accurate, texture mapping and topology issues become much easier to correct.

How to Validate Your Baseball Field Model for Accuracy

Key Insight: Validation is the step most artists skip—but it’s what separates a believable sports model from an amateur one.

Before exporting or rendering, I always run a quick validation pass.

Simple validation checklist:

1. Confirm base path distances equal 90 feet.
2. Measure mound distance from home plate.
3. Check symmetry across foul lines.
4. Overlay reference diagrams.
5. Test camera angles used in broadcast views.

Professional stadium visualization teams often overlay official field diagrams directly on top of their models to confirm every measurement.

Final Summary

1. Accurate measurements are the foundation of every successful baseball field model.
2. Bases and mound placement must follow precise geometric relationships.
3. Infield arcs should always be generated from measured curves.
4. Clean topology and UV mapping prevent visual artifacts.
5. Validation ensures your model matches real‑world field standards.

FAQ

What causes scale problems in a 3D baseball field model?

Scale issues usually happen when artists estimate base distances instead of using the official 90‑foot measurement.

How far is the pitcher’s mound from home plate?

In a regulation field, the pitching rubber sits 60 feet 6 inches from home plate.

Why does my baseball diamond look distorted in 3D?

This usually means the bases don’t form a perfect square or the infield arc was drawn manually instead of using a measured radius.

What is the correct shape of the infield dirt arc?

The infield arc is a circular arc centered on the pitcher’s mound with a radius typically around 95 feet.

How do I fix stretched grass textures?

Adjust UV mapping, ensure even mesh density, and avoid extremely large polygons across the field surface.

Do professional stadium models follow exact measurements?

Yes. Accurate field dimensions are essential for broadcast visualization, simulation, and architectural planning.

What software is best for building a 3D baseball field model?

Blender, Maya, and SketchUp are commonly used depending on whether the goal is visualization, animation, or architectural planning.

How can I check if my 3D baseball field layout is correct?

Overlay official baseball field diagrams and measure distances directly inside your modeling software.
