Common Mistakes When Practicing 2D Floor Plans in Feet and Inches: How to spot measurement, scaling, and alignment errors before they ruin your floor plan layout

Direct Answer

The most common mistakes when practicing 2D floor plans in feet and inches involve incorrect unit conversion, misreading architectural tick marks, and scaling inconsistencies. These errors often cause room dimensions to stop adding up or walls to misalign. Fixing them requires careful dimension checks, consistent measurement notation, and verifying scale before drawing.

Quick Takeaways

1. Most floor plan errors come from mixing inches and feet during dimension conversion.
2. Architectural tick marks often confuse beginners and lead to misread dimensions.
3. Incorrect drawing scale causes rooms to appear accurate but measure incorrectly.
4. Wall alignment mistakes usually come from dimension chains that were never verified.
5. A simple dimension-check workflow can catch most drafting mistakes early.

Introduction

When beginners start practicing 2D floor plans in feet and inches, the biggest frustration is simple: the numbers stop making sense. A wall that should be 12 feet suddenly measures 11'-10" on paper, or two adjacent rooms refuse to line up. After working on residential layouts for more than a decade, I can tell you this happens constantly—even to design interns in professional studios.

The issue isn't usually creativity or drafting skill. It's measurement discipline. Imperial dimensions introduce tiny errors that compound quickly across a floor plan. One misread tick mark or incorrect conversion can throw off an entire layout.

When I train junior designers, I often start them with digital practice tools so they can visualize dimensions and spacing more clearly. A good example is experimenting with layouts using an interactive beginner‑friendly floor plan creator for testing room measurements. Seeing dimensions adjust automatically helps reveal where manual drawing mistakes usually happen.

In this guide, I'll walk through the most common drafting mistakes I see when people practice floor plans using feet and inches—and more importantly, how to diagnose and fix them before they derail your drawing.

save pin

Why Beginners Struggle with Feet and Inches in Floor Plans

Key Insight: Imperial measurements introduce layered units—feet, inches, and fractions—which makes small drafting errors almost inevitable for beginners.

Unlike metric systems, architectural drawings in the U.S. rely on mixed units. A single wall dimension might read 10'-7 1/2". That means your brain must track feet, inches, and fractions simultaneously while maintaining drawing scale.

In real projects I've reviewed, most beginner errors happen because the person mentally converts everything into inches halfway through the drawing, then switches back to feet later.

Typical confusion points include:

1. Forgetting that 12 inches equals 1 foot when stacking dimensions
2. Ignoring fractional inches like 1/4" or 1/2"
3. Rounding dimensions while sketching
4. Mixing decimal and architectural notation

Professional drafting guidelines from the American Institute of Architects emphasize consistent notation because inconsistent units are one of the most frequent sources of architectural drawing errors.

Incorrect Dimension Conversion Problems

Key Insight: Conversion mistakes happen when designers switch between inches and feet during layout planning.

Here's a simple example I often show interns.

A bedroom width of 11'-6" equals 138 inches. If someone incorrectly converts that to 136 inches, the wall becomes 2 inches shorter on the drawing. Multiply that across several rooms, and the entire layout shifts.

Common conversion mistakes include:

1. Forgetting to multiply feet by 12 before adding inches
2. Rounding fractional inches incorrectly
3. Mixing decimal inches with fractional inches
4. Using calculator rounding during scaling

A reliable workflow is:

1. Convert all measurements to inches during layout planning.
2. Complete the room layout.
3. Convert dimensions back to feet and inches only for labeling.

This method dramatically reduces floor plan dimension mistakes in feet and inches.

save pin

Misreading Architectural Symbols and Tick Marks

Key Insight: Many measurement mistakes come from misunderstanding dimension tick marks and extension lines rather than the numbers themselves.

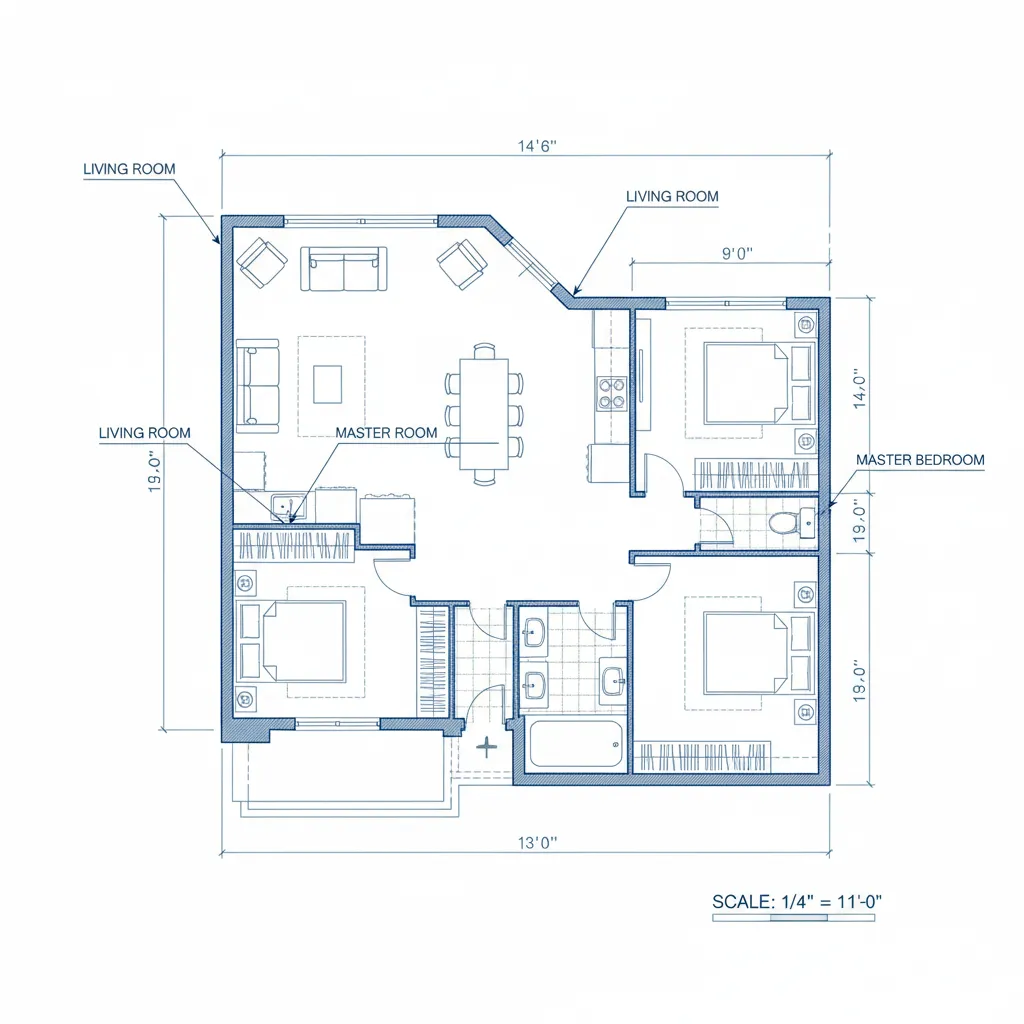

Architectural drawings use a specific system of symbols:

1. Dimension lines show the measured distance.
2. Tick marks indicate where measurement starts and ends.
3. Extension lines connect the dimension to walls.

Beginners often measure between the wrong tick marks. I've seen trainees measure from wall edges instead of the extension lines, which changes the dimension entirely.

Typical symbol-reading mistakes:

1. Measuring from drywall face instead of framing centerline
2. Ignoring double dimension chains
3. Confusing window or door symbols with dimension markers

Architecture schools teach a simple rule: always read dimensions first—never estimate from the drawing scale.

Scaling Errors in Practice Floor Plan Drawings

Key Insight: A floor plan can look visually correct but still be dimensionally wrong if the drawing scale was misapplied.

Typical architectural scales include:

1. 1/4" = 1'-0" (common residential plans)
2. 1/8" = 1'-0" (large layouts)
3. 1/2" = 1'-0" (detailed plans)

Scaling mistakes usually occur when:

1. Designers change scale mid‑drawing
2. Printed drawings are resized
3. Manual rulers are misread

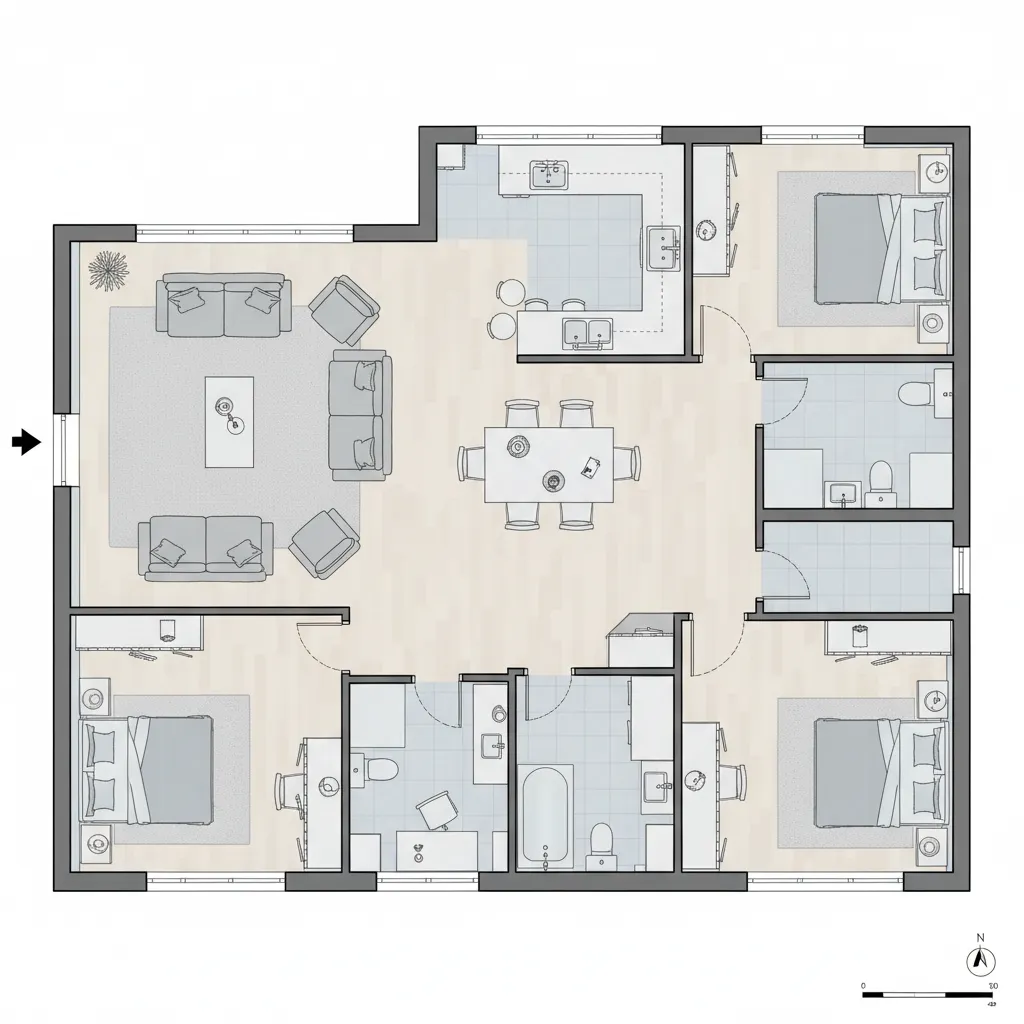

This is one reason many designers now validate their layouts digitally before finalizing drawings. Running a quick check inside a visual floor layout simulator that converts plans into 3Dmakes scale inconsistencies obvious because furniture and walls suddenly appear unrealistic.

When a sofa can't physically fit in a room that "looked" correct on paper, a scale problem is usually the culprit.

save pin

Alignment Problems Between Rooms and Walls

Key Insight: Misaligned walls usually come from broken dimension chains rather than drawing errors.

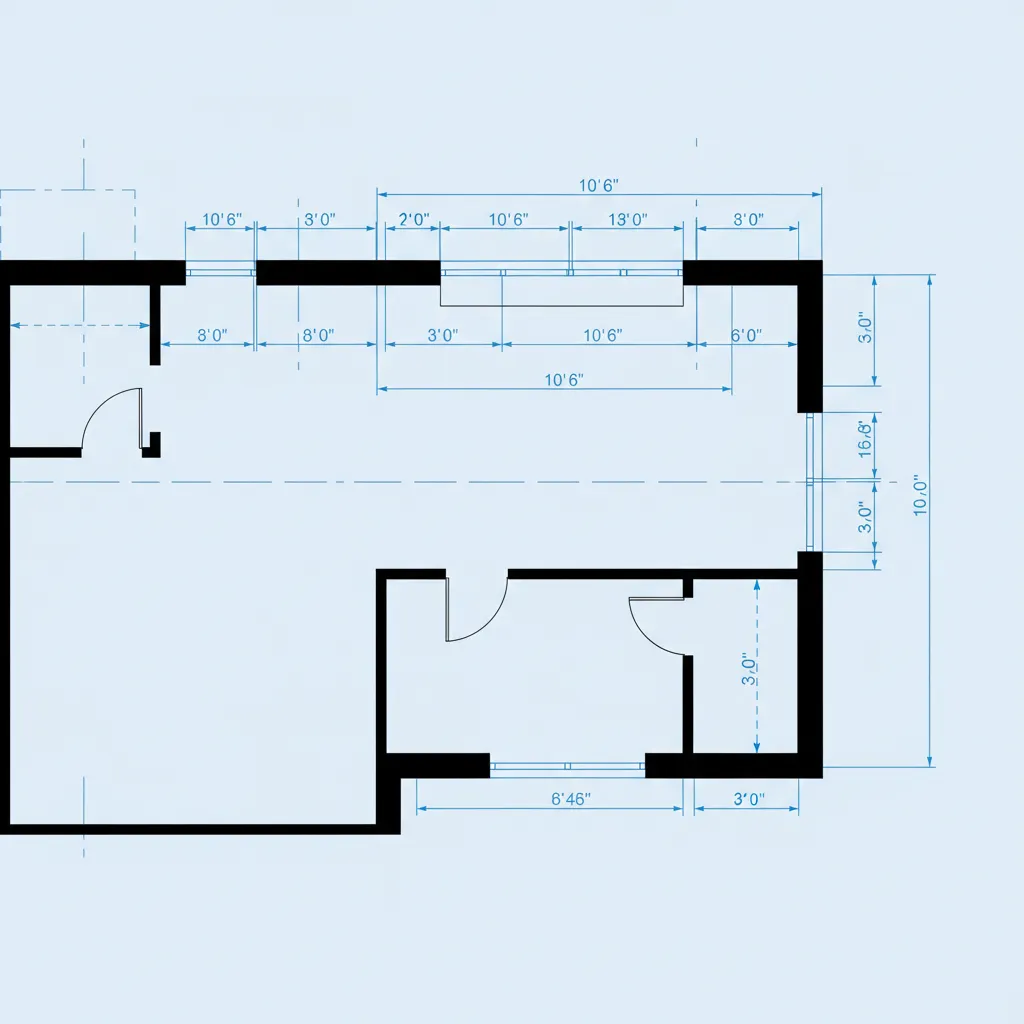

Dimension chains show how smaller measurements add up to larger totals. When one dimension is wrong, the entire chain collapses.

Example:

1. Hallway: 3'-6"
2. Bedroom wall: 11'-0"
3. Closet: 2'-6"

Total should equal 17'-0". If the exterior wall dimension reads 16'-10", something inside the chain is wrong.

Common causes include:

1. Wall thickness not included
2. Interior walls drawn off‑grid
3. Dimensions measured to finish surfaces instead of framing

A fast alignment check method:

1. Add every interior dimension.
2. Compare with the exterior wall dimension.
3. Locate the mismatch before continuing the drawing.

save pin

Answer Box

The fastest way to troubleshoot floor plan dimension problems is to verify unit conversion, confirm drawing scale, and check dimension chains. If the interior dimensions don't equal the exterior dimension, a measurement error exists somewhere in the plan.

How to Check Your Floor Plan Dimensions for Accuracy

Key Insight: Professional designers rarely trust a floor plan until they've verified dimensions through a structured checking process.

In our studio, every junior designer learns a simple five‑step verification workflow.

Floor plan accuracy checklist:

1. Confirm drawing scale before measuring anything.
2. Convert all dimensions to inches during layout planning.
3. Verify that interior dimension chains match exterior walls.
4. Check that door and window openings align with walls.
5. Place furniture to confirm realistic spacing.

A surprisingly effective trick is testing the layout with a digital simulation. Using an AI-assisted layout generator that instantly checks room proportions can highlight spacing errors that are easy to miss in a flat drawing.

When furniture placement looks awkward or circulation paths feel cramped, it's often a hidden measurement mistake rather than a design problem.

Final Summary

1. Most floor plan mistakes come from mixing feet and inches during conversion.
2. Misread tick marks often cause incorrect dimension interpretation.
3. Incorrect scale can make accurate drawings produce wrong measurements.
4. Broken dimension chains lead to misaligned walls and rooms.
5. A structured dimension‑checking workflow prevents most drafting errors.

FAQ

Why do my floor plan dimensions not add up?

Usually because one dimension in the chain was misread or converted incorrectly. Verify that interior dimensions add up to the exterior wall measurement.

What is the most common floor plan dimension mistake?

Mixing inches and feet during calculation. For example, forgetting that 11'-6" equals 138 inches.

Should beginners draw floor plans in inches or feet?

Many designers calculate in inches first, then convert to feet and inches for labeling. This reduces imperial measurement mistakes in house plans.

Why do my rooms look correct but measure wrong?

This usually indicates a scaling problem in the drawing rather than a layout mistake.

How do architects avoid measurement errors?

They use dimension chains, standardized notation, and verification checks before finalizing drawings.

What scale is best for residential floor plans?

1/4" = 1'-0" is the most common scale used for residential floor plan drawings.

Can software prevent floor plan measurement mistakes?

Yes. Digital tools automatically maintain scale and dimension consistency, reducing drafting errors.

What causes imperial measurement mistakes in house plans?

Most issues come from incorrect conversions, rounding errors, and misreading dimension symbols.
