Common Mistakes When Rendering a Floor Plan by Hand and How to Fix Them: A practical troubleshooting guide to fix flat drawings, bad shading, line weight issues, and scale errors in hand‑rendered floor plans.

Direct Answer

The most common mistakes in floor plan hand rendering come from inconsistent line weights, flat shading, incorrect proportions, and cluttered textures. These problems usually appear when beginners rush detailing before establishing hierarchy and scale. The good news: each issue can be corrected with a few structural drawing habits used by professional designers.

Quick Takeaways

1. Most flat-looking plans come from missing line weight hierarchy.
2. Shading should suggest depth, not decorate surfaces.
3. Scale mistakes often start with furniture drawn before the room grid.
4. Clean drawings depend more on erasing strategy than drawing skill.
5. Simple textures communicate materials better than detailed patterns.

Introduction

In my early years working in residential design studios, I reviewed hundreds of student and junior designer drawings. One pattern appeared again and again: the floor plan hand rendering mistakes were rarely about talent. They were almost always about drawing order and visual hierarchy.

Beginners often focus on beautiful furniture or shading effects before the structural logic of the plan is established. That leads to drawings that feel flat, confusing, or slightly "off" even when the lines are technically correct.

If you're learning architectural drawing, it's worth seeing how professionals structure their workflow. Before getting into manual techniques, you can also explore how modern designers visualize layouts using a step‑by‑step AI assisted floor layout planning workflow. It reveals the same hierarchy principles we apply when sketching by hand.

In this guide I'll walk through the most common errors I see in hand-rendered plans—and more importantly, how to fix them quickly.

Many of these insights come directly from studio critiques and real project documentation where clarity matters far more than artistic style.

save pin

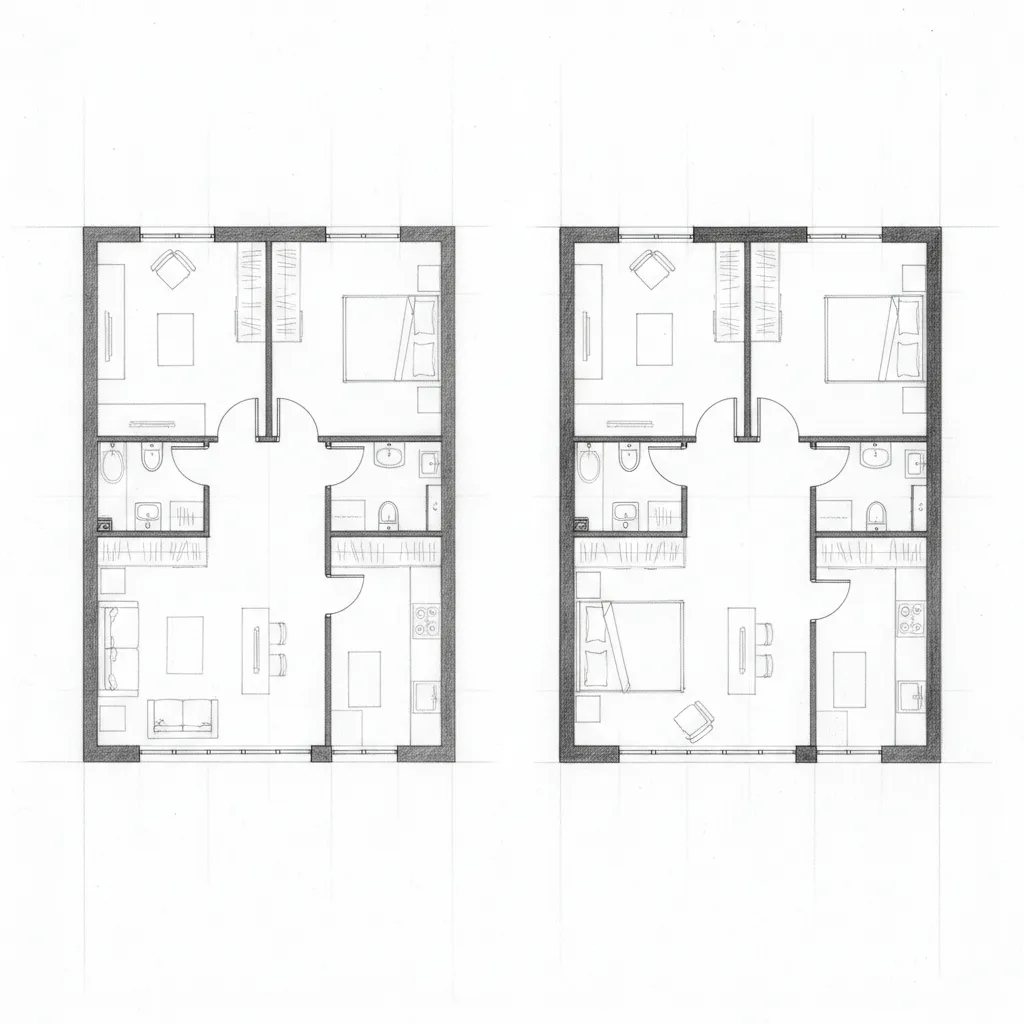

Why Floor Plan Renderings Often Look Flat

Key Insight: A floor plan looks flat when every line has the same visual weight and the drawing lacks a hierarchy of importance.

In architectural graphics, hierarchy communicates spatial logic. Walls, openings, furniture, and textures should never compete equally for attention.

When beginners render plans, they often draw everything with identical pencil pressure. The result is a diagram that technically works but visually collapses.

How professionals create depth in a flat plan:

1. Primary walls: darkest line weight
2. Interior partitions: medium weight
3. Furniture outlines: lighter weight
4. Surface textures: very light
5. Dimension lines and annotations: thin technical lines

During studio reviews, I often ask students to squint at their drawing. If everything fades evenly, the hierarchy is missing.

Architectural graphics professor Francis Ching frequently emphasizes that line weight is the "language" of drawings. Without it, information becomes visually ambiguous.

Fixing Inconsistent Line Weights in Floor Plans

Key Insight: Consistent line weights are not about drawing skill—they come from drawing in layers rather than finishing objects individually.

A common mistake is completing each object before moving to the next. Professionals instead draw the entire plan in stages.

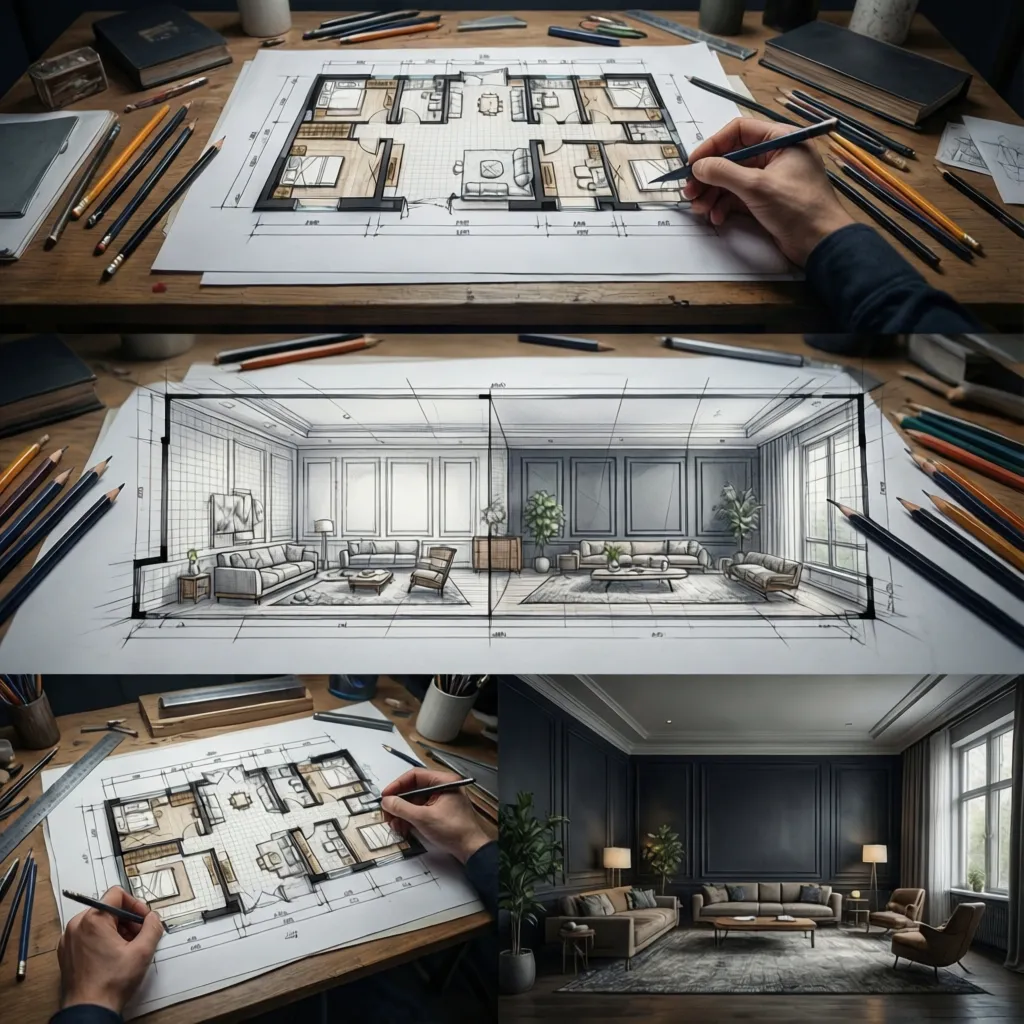

Recommended drawing workflow:

1. Light construction grid
2. Exterior walls
3. Interior partitions
4. Doors and windows
5. Furniture blocks
6. Final line weight pass

This approach prevents the "patchwork" effect where different areas of the drawing feel unrelated.

If you're practicing layout clarity, studying examples from a professional 3D floor plan visualization workflow used in real projectscan also help. Those visualizations rely on the same hierarchy logic used in hand drawings.

save pin

Correcting Poor Shading and Depth Problems

Key Insight: Shading in architectural floor plans should communicate material and depth—not decorate empty space.

Many beginners shade entire rooms evenly. That actually removes spatial clarity instead of improving it.

Better shading techniques:

1. Use light directional shading to indicate light source.
2. Add darker poche inside wall thickness.
3. Use subtle hatching for materials like tile or wood.
4. Leave circulation areas mostly clean.

Common shading mistakes:

1. Over-darkening rooms
2. Random shading direction
3. Ignoring wall thickness
4. Adding texture everywhere

Professional construction drawings usually remain surprisingly minimal. Clarity always wins over artistic shading.

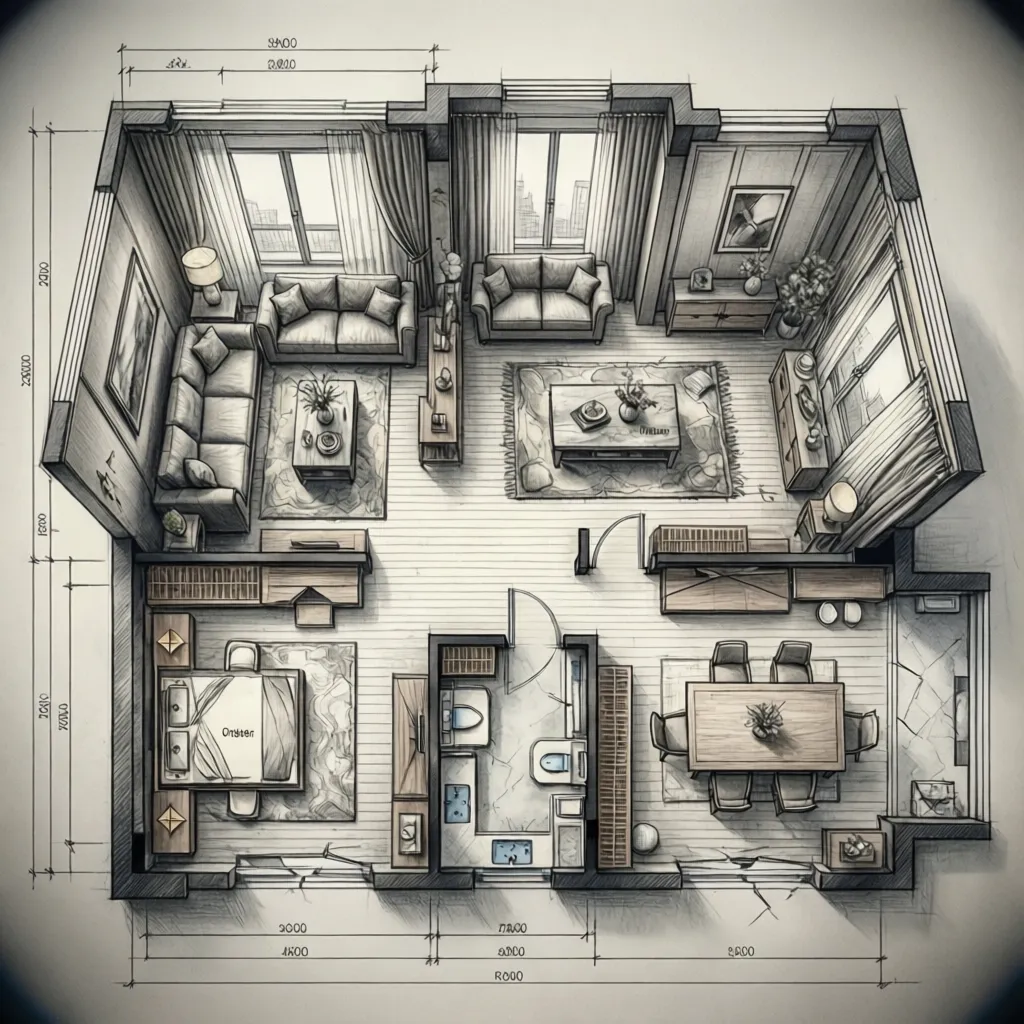

Avoiding Proportion and Scale Errors

Key Insight: Scale problems happen when furniture is drawn from memory rather than measured references.

Even experienced designers occasionally fall into this trap during quick sketches.

Reliable reference dimensions:

1. Standard sofa: 84–96 inches
2. Dining chair width: 18–20 inches
3. Queen bed: 60 x 80 inches
4. Kitchen counter depth: 24 inches

A good practice is creating a small "furniture scale library" on scrap paper before starting the final drawing.

Many designers today cross-check proportions using digital layout references like a simple online tool for generating accurate room dimensions before sketching. It helps prevent proportion drift during manual rendering.

save pin

How to Repair Smudges and Pencil Mistakes

Key Insight: Clean architectural drawings depend more on erasing technique than drawing technique.

Pencil smudges are unavoidable when working with graphite, but professionals manage them with a few simple habits.

Techniques used in architecture studios:

1. Use a kneaded eraser for lifting graphite without damaging paper.
2. Place tracing paper under your drawing hand.
3. Erase in one direction instead of circular motion.
4. Do a final "clean pass" before adding dark line weights.

One overlooked trick: complete all erasing before the final wall outlines. Dark graphite traps smudges permanently.

Improving Clarity in Furniture and Texture Details

Key Insight: Furniture symbols should communicate function instantly, not showcase artistic detail.

Over-detailed furniture is a surprisingly common problem in student drawings. When every object includes shading, stitching, and texture, the plan becomes visually noisy.

Better symbol strategy:

1. Use simplified outlines for furniture.
2. Add minimal interior lines.
3. Keep textures consistent across the drawing.
4. Prioritize circulation clarity over decoration.

In professional design documentation, the goal is immediate comprehension. Someone should understand the layout within three seconds of looking at the plan.

Answer Box

The fastest way to fix hand rendered floor plans is to establish line hierarchy, simplify shading, and verify furniture scale before adding detail. Most visual problems in architectural drawings come from drawing objects individually instead of building the plan in structured layers.

Final Summary

1. Line weight hierarchy is the foundation of clear floor plans.
2. Shading should support spatial depth, not fill empty areas.
3. Furniture scale mistakes are the most common beginner error.
4. Clean drawings require controlled erasing techniques.
5. Simplified symbols improve readability dramatically.

FAQ

Why does my floor plan rendering look flat?

Flat drawings usually lack line weight hierarchy. Walls, furniture, and textures need different visual weights.

What are the most common floor plan hand rendering mistakes?

Typical mistakes include inconsistent line weights, incorrect furniture scale, messy shading, and over-detailed textures.

How do architects choose line weights?

Primary structural elements get the darkest lines, secondary partitions medium lines, and furniture lighter outlines.

How can I fix shading in architectural floor plans?

Use light directional shading and emphasize wall poche instead of shading entire rooms.

What pencil is best for floor plan rendering?

Most architects use HB or 2H for construction lines and 2B for final line weights.

Why are my furniture drawings out of scale?

Furniture often looks wrong when drawn from memory instead of measured references.

Should floor plans include detailed textures?

Usually no. Simple hatching communicates materials more clearly than complex patterns.

How do professionals keep drawings clean?

They control smudging with tracing paper guards, kneaded erasers, and a final cleanup pass.
