Common Pass Through Kitchen Window Problems and How to Fix Them: Real design and installation fixes for leaks drafts bugs and other issues homeowners face with pass through kitchen windows

Direct Answer

The most common pass through kitchen window problems are air leaks, sticking frames, insect entry, condensation, and structural stress in larger openings. Most issues come from installation details rather than the window itself, and they can usually be fixed with better sealing, hardware adjustment, insect screening, or structural reinforcement.

Quick Takeaways

1. Most pass through kitchen window leaks come from poor flashing or missing exterior sealing.
2. Windows that stick are usually caused by frame movement or misaligned hardware.
3. Insect issues almost always mean the screen design was overlooked.
4. Condensation signals insulation or ventilation problems around the opening.
5. Large serving windows sometimes need additional structural support.

Introduction

After working on dozens of remodels that included a pass through kitchen window, I can say one thing clearly: the window itself is rarely the problem. What causes trouble is the installation detail around it.

Homeowners usually reach out a few months after installation with questions like: Why is my pass through window leaking? Why does it suddenly stick when opening? Or why are bugs getting inside during summer barbecues?

These issues show up more often than most design blogs admit. A pass through opening connects interior and exterior environments, which means it deals with weather, temperature changes, and movement in ways normal windows don't.

If you're still planning your layout, it's worth exploring how designers position and size these openings before construction. This guide on planning an efficient kitchen layout for cooking and serving flowexplains why placement affects performance later.

Below are the most common pass through kitchen window issues I've encountered in real projects, along with practical fixes that actually work.

save pin

Why Pass Through Kitchen Windows Sometimes Leak or Draft

Key Insight: Leaks and drafts usually come from poor exterior flashing and sealing, not from the window unit itself.

A pass through window sits in a high‑risk location: right above counters, often opening to patios or outdoor kitchens. Wind-driven rain hits these areas more directly than typical windows.

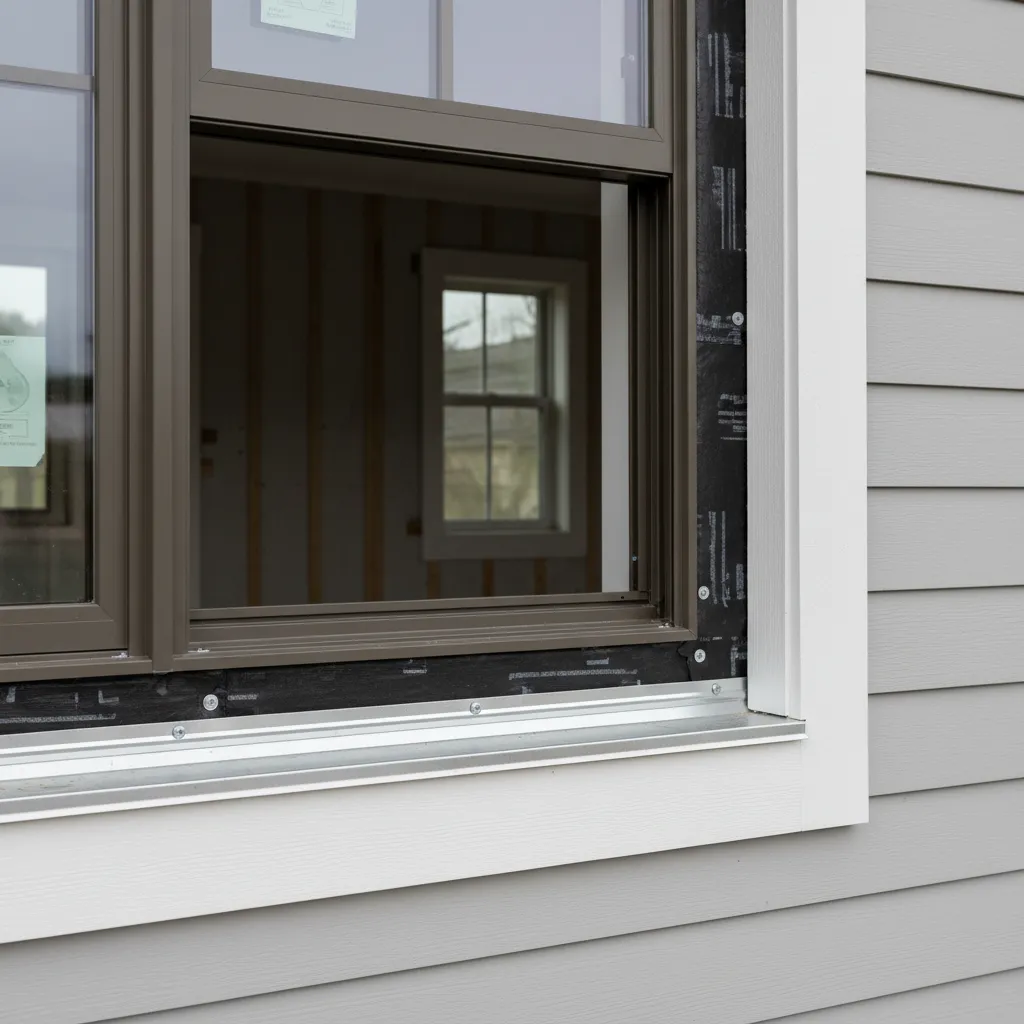

In many remodels I inspect, the installer skipped one critical detail—layered flashing around the opening.

Common causes of leaks

1. Missing flashing tape behind the siding
2. Improper slope on the sill
3. Exterior caulk gaps after seasonal movement
4. No weather stripping on folding or sliding panels

How to fix it

1. Remove exterior trim and install proper flashing membrane
2. Add a sloped sill pan to direct water outward
3. Replace deteriorated caulk with exterior-grade sealant
4. Install compressible weather stripping along frame edges

According to guidance from the U.S. Department of Energy, air leaks around window frames are one of the largest contributors to home energy loss, especially around large openings.

save pin

Fixing Sticking or Hard to Open Pass Through Windows

Key Insight: A pass through window that sticks usually means the frame has shifted slightly due to structural movement or moisture.

Many homeowners assume the track is dirty. Sometimes that's true—but in kitchen pass-throughs the bigger cause is subtle wall movement.

Large openings weaken the rigidity of the wall if they aren't framed properly.

Quick troubleshooting checklist

1. Clean and lubricate sliding tracks
2. Check if screws securing the frame have loosened
3. Inspect rollers for wear
4. Verify the header beam above the window hasn't sagged

If the window worked well initially and became harder to open later, structural settling is often the culprit.

In larger renovation projects, visualizing framing and wall openings early with a simple floor plan tool for testing structural openings helps avoid these alignment problems later.

How to Prevent Bugs and Insects from Entering

Key Insight: Most pass through kitchen windows fail to include proper insect screening, which makes them magnets for bugs during outdoor dining.

This is one of the most overlooked design details.

Many popular pass-through styles—especially gas strut or folding windows—don't include built-in screens.

Effective solutions

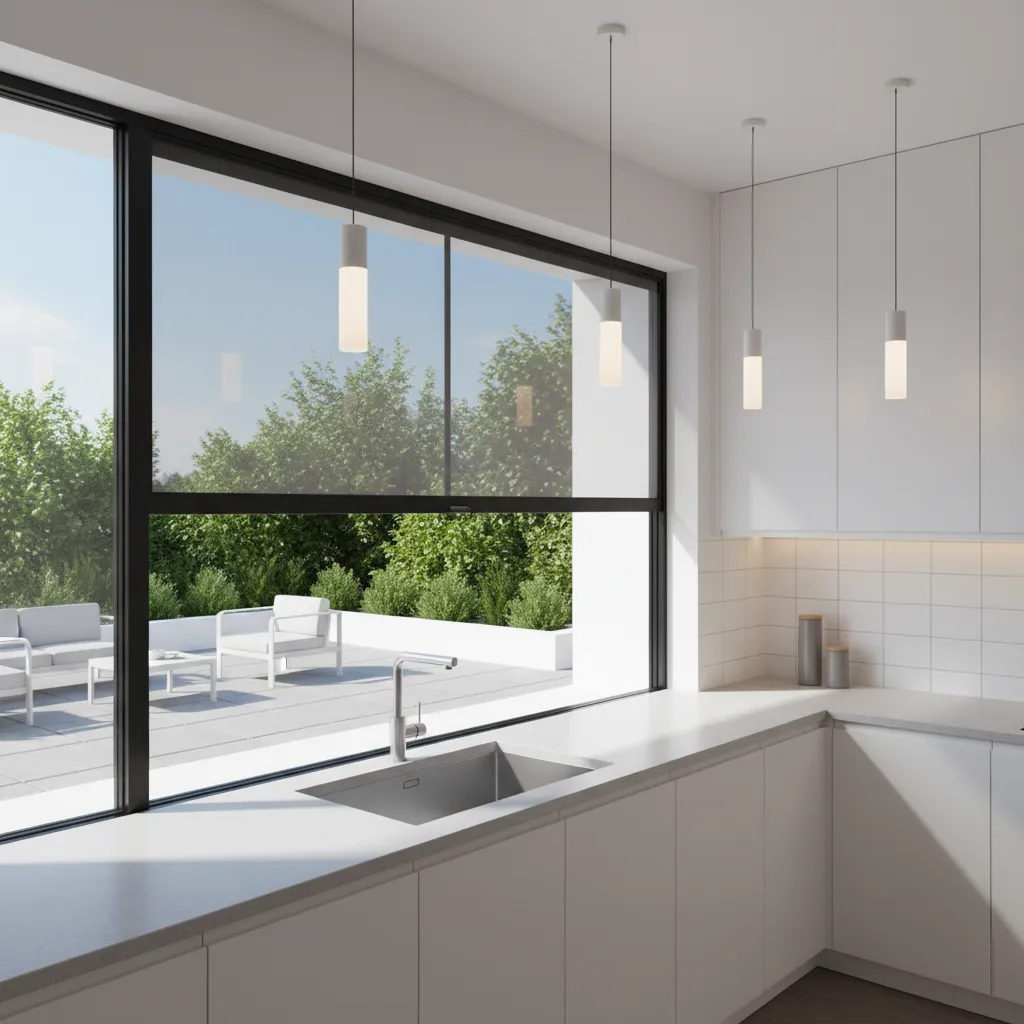

1. Retractable horizontal screens
2. Magnetic removable screens
3. Sliding insect panels behind the main window
4. Outdoor ceiling fans to disrupt insect flight patterns

In outdoor kitchen projects I often specify retractable screens hidden in the frame. They disappear when not needed but instantly solve the insect problem.

save pin

Condensation and Moisture Problems Around Pass Through Windows

Key Insight: Condensation usually means warm kitchen air is hitting a poorly insulated window frame or exterior sill.

Kitchens produce humidity from cooking, dishwashers, and boiling water. When that moisture hits a cold glass surface, condensation forms.

Pass-through windows amplify the issue because the exterior side is often shaded by patios or overhangs.

Ways to reduce condensation

1. Upgrade to double or triple-pane glass
2. Add insulation around the window framing cavity
3. Improve kitchen ventilation with a stronger range hood
4. Use thermally broken aluminum frames

The Environmental Protection Agency notes that controlling indoor humidity between 30–50 percent dramatically reduces condensation and mold risk.

Structural Support Issues in Large Kitchen Windows

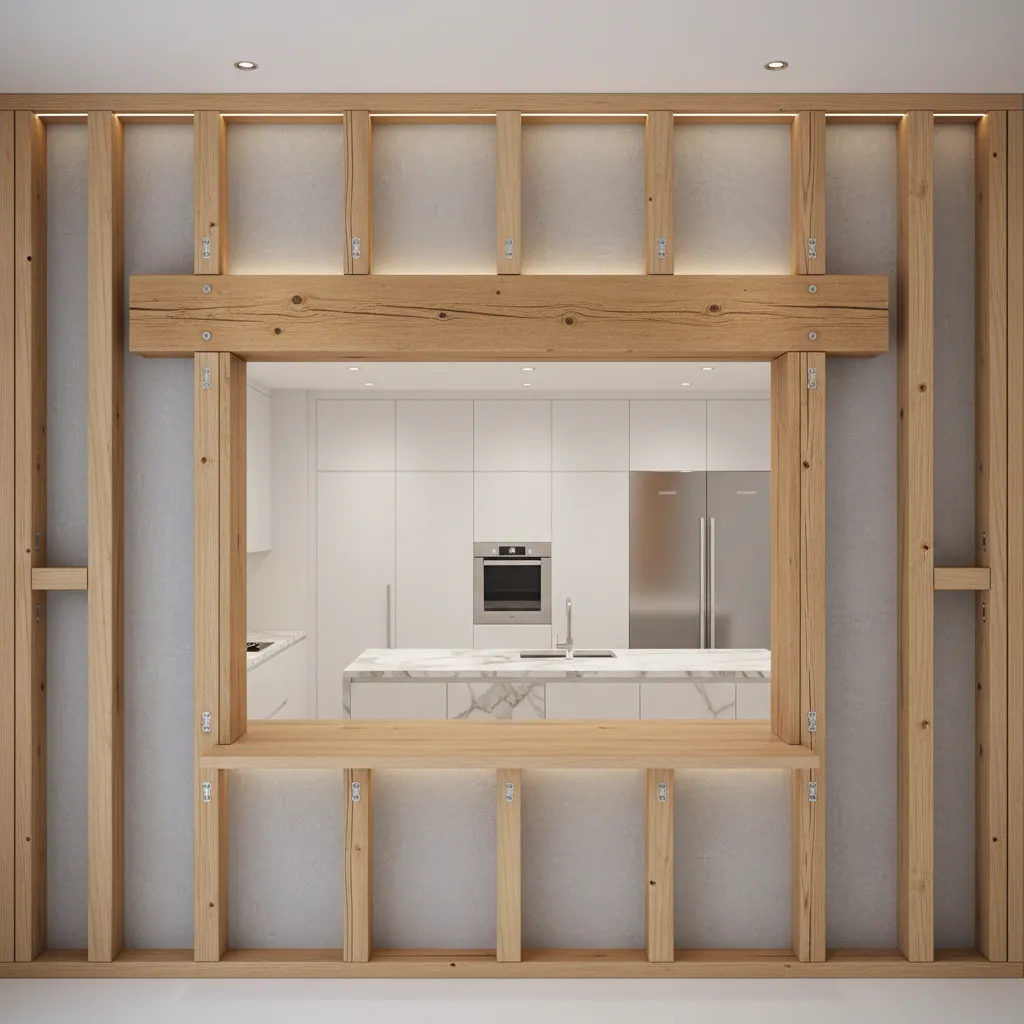

Key Insight: Large pass through openings often require stronger headers than standard windows.

Design magazines love showing huge wall openings between kitchens and patios, but they rarely mention the structural engineering behind them.

A wide serving window removes a significant portion of load‑bearing wall.

Typical structural solutions

1. Laminated veneer lumber headers
2. Steel support beams hidden in the wall
3. Additional jack studs on each side
4. Integrated exterior support columns

Before committing to a large opening, I often show homeowners visual previews using a photorealistic home rendering that previews large window openings. Seeing the structure early helps avoid expensive framing changes later.

save pin

Answer Box

The majority of pass through kitchen window issues come from installation details rather than product defects. Proper flashing, structural framing, insect screening, and humidity control solve most long‑term problems.

When to Repair vs Replace a Pass Through Window

Key Insight: Repair makes sense when problems involve sealing or hardware, but structural or frame damage often requires full replacement.

Here's a simple rule I give clients.

Repair if the issue is:

1. Minor leaks
2. Hardware failure
3. Track alignment problems
4. Screen or seal replacement

Replace if the issue is:

1. Warped frame
2. Rotting sill or structure
3. Major energy loss
4. Improperly sized opening

In many remodels, replacement becomes the smarter long‑term choice because modern window systems include better weather sealing and insulation.

Final Summary

1. Most pass through window leaks come from poor flashing installation.
2. Sticky windows often signal frame movement or misaligned hardware.
3. Insect problems require dedicated retractable screen solutions.
4. Condensation is usually a humidity and insulation issue.
5. Large serving windows may require upgraded structural headers.

FAQ

Why is my pass through kitchen window leaking during rain?

Most leaks happen because flashing or exterior sealant around the frame failed. Water enters through small gaps between siding and the window frame.

Why does my pass through window stick when opening?

The most common reason is frame movement or worn rollers. Cleaning tracks and adjusting hardware usually solves the problem.

How do I seal a pass through kitchen window?

Use exterior-grade silicone or polyurethane sealant around the frame and install weather stripping along movable panels.

What is the best screen for a pass through kitchen window?

Retractable horizontal screens work best because they stay hidden but block insects when the window is open.

Why does condensation form on my pass through window?

Warm kitchen air hitting cold glass causes condensation. Improving ventilation and using insulated glass units helps reduce it.

Are large pass through windows structurally safe?

Yes, if the wall includes proper headers or steel beams designed to carry the load above the opening.

Can I retrofit a pass through kitchen window into an existing wall?

Yes, but the wall structure must be evaluated first to ensure proper support.

Are pass through kitchen windows energy efficient?

Modern pass through kitchen window systems with double glazing and proper sealing can perform similarly to standard windows.
