Common Problems After Replacing a Two Way Light Switch and How to Fix Them: Troubleshoot wiring mistakes, traveler issues, and power problems when a newly installed two way light switch does not work.

Direct Answer

If a two-way light switch stops working after replacement, the most common causes are misconnected traveler wires, a loose common wire, or installing the wrong switch type. Checking wire placement, confirming voltage, and tightening connections usually restores normal operation. If power readings are inconsistent or wires appear damaged, the safest step is to consult a licensed electrician.

Quick Takeaways

1. Most two-way switch failures come from traveler wires placed on the wrong terminals.
2. A light working in only one switch position usually indicates a swapped common wire.
3. Loose terminal screws can interrupt the circuit even if wiring is technically correct.
4. A voltage tester is the fastest way to confirm whether power is reaching the switch.
5. If breaker trips or wires overheat, stop immediately and call an electrician.

Introduction

I have replaced hundreds of switches during renovation projects, and the same problem shows up again and again: a homeowner installs a new two-way light switch, flips it on, and nothing happens. Or worse, the light works from one switch but not the other.

The frustrating part is that the wiring often looks "correct" at first glance. In reality, small details like the common terminal, traveler wire placement, or a slightly loose screw can break the circuit. A two-way light switch system depends on precise wiring between both switches, so even one misplaced conductor can stop the whole system from functioning.

When planning larger remodels, I often recommend visualizing electrical layouts along with room layouts using tools that help homeowners map room layouts and circulation before renovation. It prevents many electrical planning mistakes before drywall ever goes up.

In this guide I'll walk through the most common problems after replacing a two-way light switch, why they happen, and the practical fixes I use on real projects.

save pin

Light Not Turning On After Switch Replacement

Key Insight: When a new two-way light switch does not turn on the light at all, the common wire is usually connected to the wrong terminal.

The common terminal carries the line or load that completes the circuit. Many modern switches label it with a darker screw (often black). During replacement, people frequently move wires one-by-one without noting which terminal the common wire originally used.

If the common wire is placed on a traveler terminal, the circuit path becomes incomplete.

How to check and fix it:

1. Turn off the breaker completely.
2. Remove the switch plate and pull the switch out.
3. Identify the common terminal (usually darker screw).
4. Find the wire that was connected to the common on the previous switch.
5. Reconnect it correctly and tighten the terminal screw.

According to guidance from the National Electrical Code and multiple manufacturer installation manuals, identifying the common terminal is the single most important step when replacing multi-location switches.

Switch Works in Only One Position

Key Insight: If the light only turns on when one switch is in a certain position, the traveler wires are likely reversed or one traveler connection is loose.

Two-way switching works by alternating which traveler wire completes the circuit. When travelers are miswired, one switch can interrupt the circuit regardless of the other switch's position.

Typical symptoms:

1. One switch works normally
2. The second switch only works when the first switch stays in a specific position
3. The light flickers during switching

Steps to troubleshoot:

1. Turn off the breaker.
2. Verify both traveler wires are attached to traveler terminals.
3. Check that screws are tight and wires are not partially exposed.
4. Repeat the check on the second switch.

In my renovation projects, this issue appears most often when people replace only one of the two switches and assume the wiring order is identical.

save pin

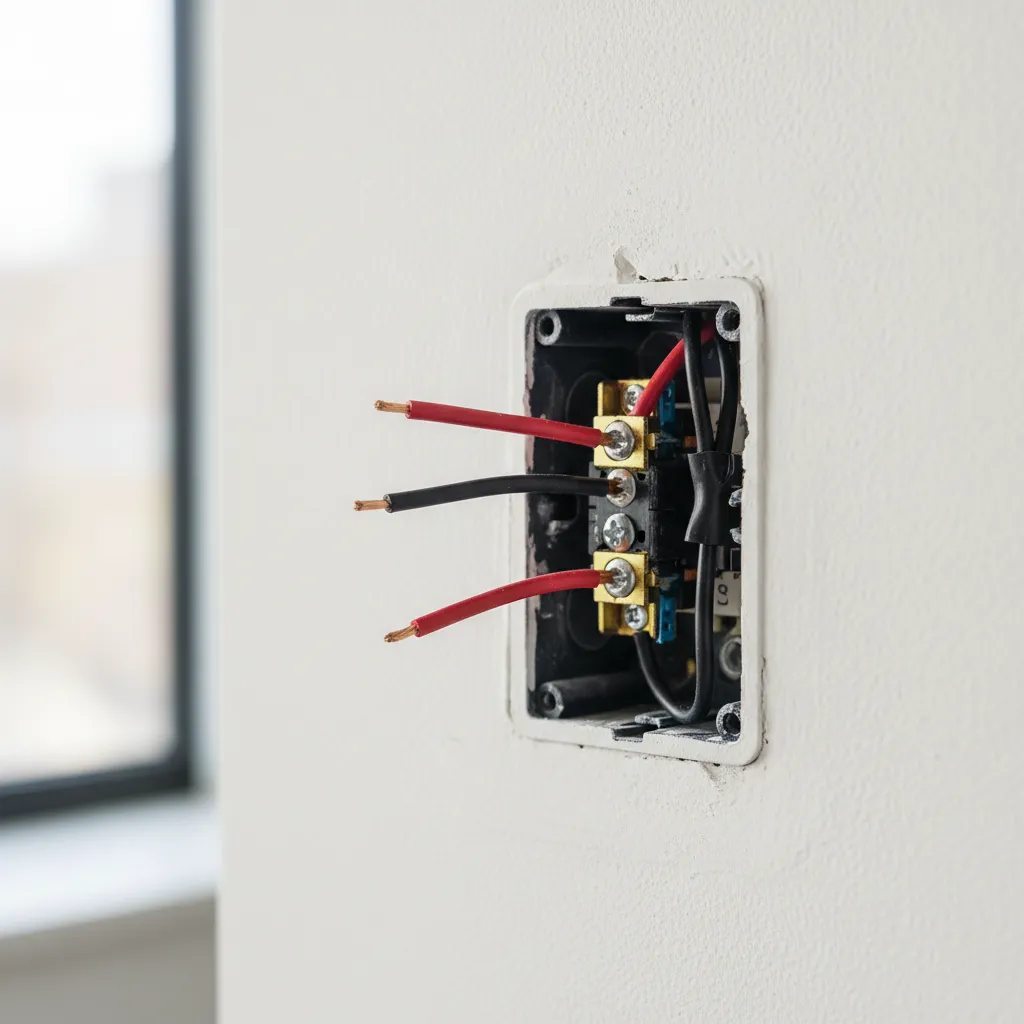

Incorrect Traveler Wire Connections

Key Insight: Mixing up the traveler wires with the common wire is the most frequent wiring error in two-way switch installations.

Many older homes do not follow modern color conventions. For example, travelers may be red and white, or even two black wires. Without labeling them during removal, it's easy to reconnect them incorrectly.

Correct wiring structure:

1. 1 common wire connected to the dark terminal
2. 2 traveler wires connected to brass terminals
3. Ground wire attached to the green screw

A good habit during replacement is photographing the original wiring before disconnecting anything. I insist on this step during client walkthroughs because it eliminates guesswork later.

When redesigning rooms or adjusting lighting zones, many homeowners also visualize fixture placement using tools that help plan furniture and lighting positions inside a room. Mapping switch locations early prevents awkward wiring runs and switch placement problems.

save pin

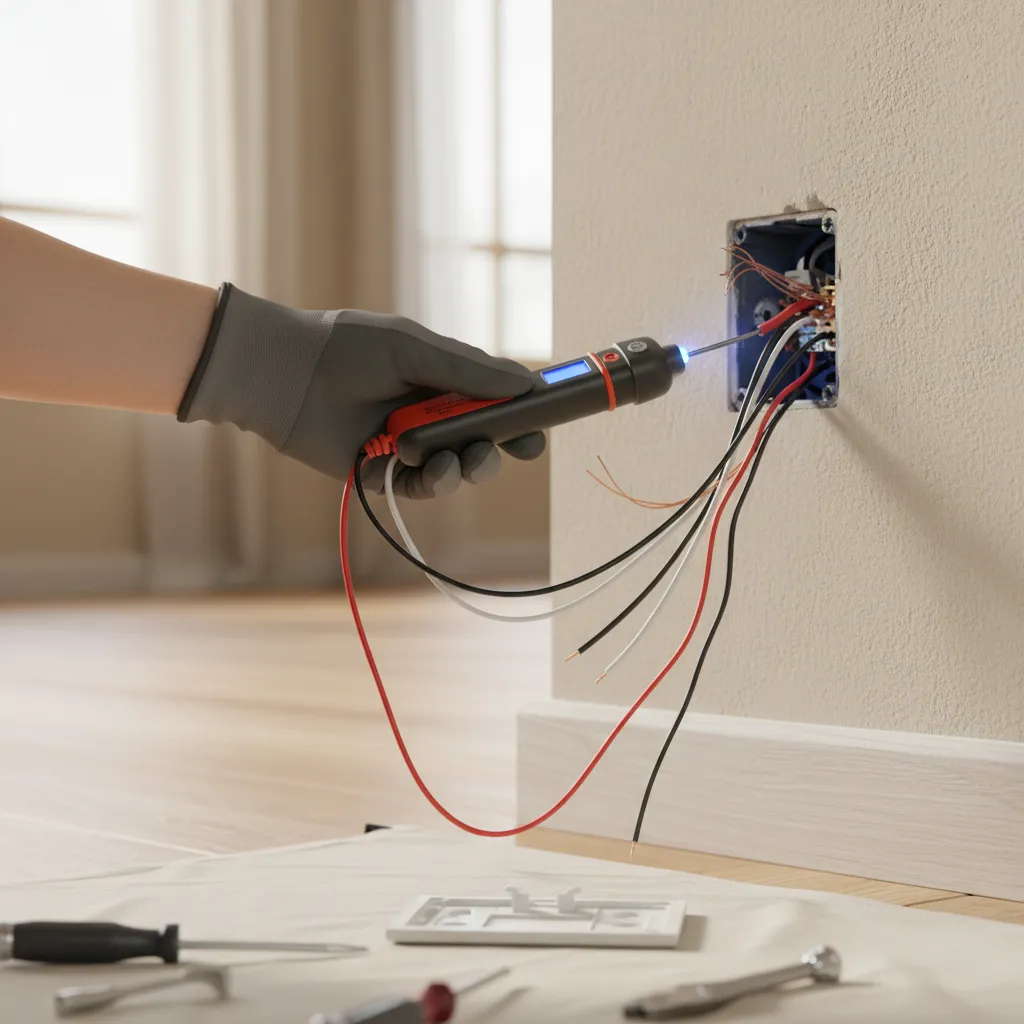

How to Test the Circuit With a Voltage Tester

Key Insight: A voltage tester quickly reveals whether power is reaching the switch and helps isolate wiring mistakes safely.

Guessing at wiring is risky. A non-contact voltage tester or multimeter provides immediate confirmation of power flow.

Basic testing process:

1. Turn the breaker on.
2. Hold the tester near the common wire.
3. Confirm voltage presence.
4. Toggle both switches while testing traveler terminals.
5. Identify which wire carries the line voltage.

Expected result:

1. One wire should consistently show line voltage.
2. Traveler wires alternate depending on switch position.

If no voltage appears at the switch box, the issue may actually be upstream at the breaker panel or junction box.

Answer Box

The majority of two-way light switch problems after replacement come from incorrect common or traveler wire placement. Confirming the common terminal, tightening connections, and testing voltage resolves most failures in minutes.

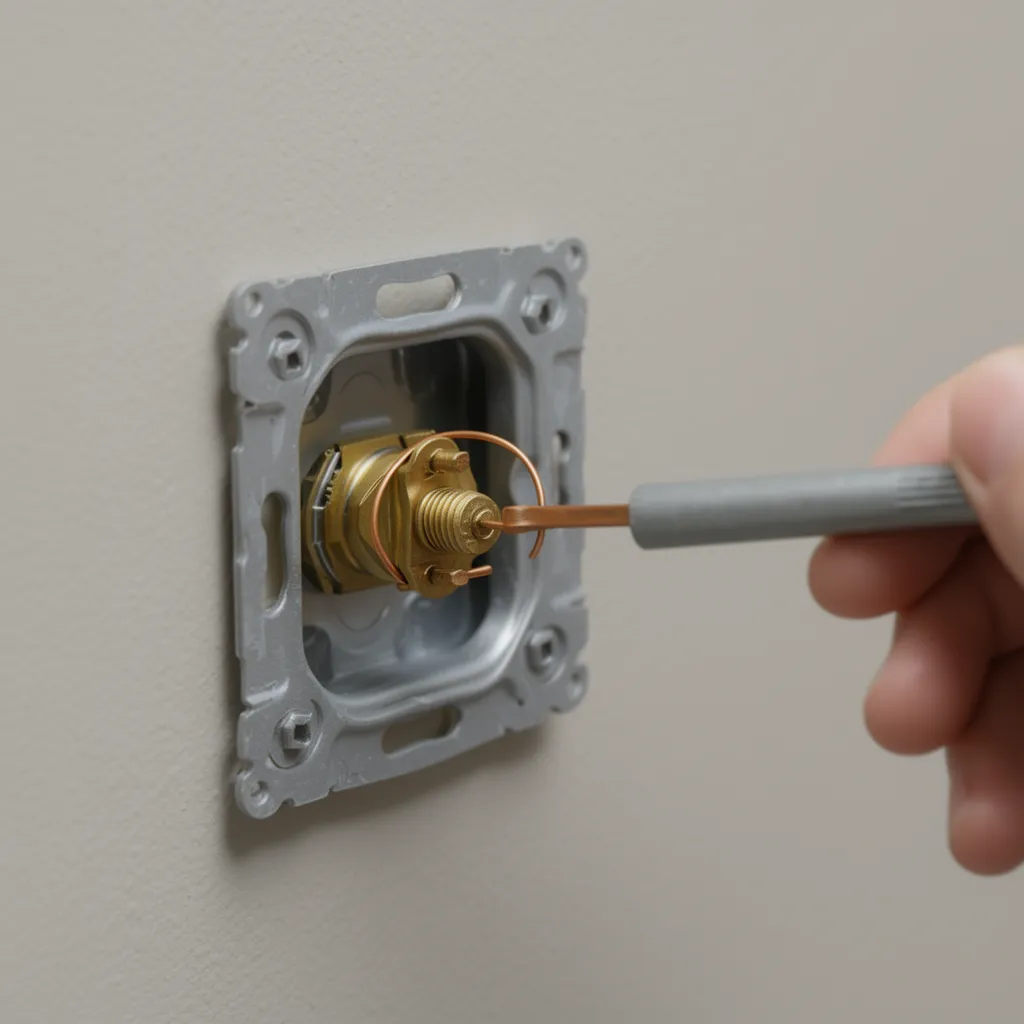

Fixing Loose or Misplaced Wires

Key Insight: Even correctly wired switches fail if terminal screws are loose or wires are poorly seated.

In older electrical boxes, wires may become stiff or slightly shortened after years of use. When reinstalled, they sometimes sit shallowly under the terminal screw, creating an intermittent connection.

Common wiring mistakes I frequently see:

1. Insulation trapped under terminal screws
2. Backstab connections instead of screw terminals
3. Wires bent in the wrong direction around the screw
4. Overcrowded electrical boxes pushing wires loose

Reliable fix:

1. Strip about 3/4 inch of insulation.
2. Bend the wire into a clockwise hook.
3. Tighten firmly under the terminal screw.
4. Gently fold wires back into the box.

Professional electricians almost always prefer screw terminals instead of push-in connections for this reason.

save pin

When to Call a Qualified Electrician

Key Insight: If troubleshooting reveals inconsistent voltage, damaged wires, or tripping breakers, professional repair is the safest solution.

Some wiring problems extend beyond the switch box. I have encountered cases where hidden junction boxes or incorrectly wired circuits caused switch failures that no amount of switch replacement could fix.

Warning signs that require professional help:

1. Breaker trips immediately after installation
2. Burn marks on wires or terminals
3. No voltage reaching the switch
4. Lights flicker or dim unpredictably

When planning broader electrical upgrades or lighting redesigns, homeowners often explore layout planning tools that help experiment with different room configurations before renovation. Seeing switch locations and traffic paths together often prevents wiring redesign mistakes later.

Final Summary

1. Incorrect common wire placement causes most two-way switch failures.
2. Traveler wire confusion often makes the switch work in only one position.
3. Voltage testers quickly identify power and wiring problems.
4. Loose terminal connections frequently interrupt the circuit.
5. Serious electrical symptoms require a licensed electrician.

FAQ

Why is my two-way light switch not working after replacement?

The most common reason is the common wire connected to the wrong terminal. Check the darker screw terminal and confirm the correct wire is attached.

Why does my light switch only work in one direction?

This usually indicates a traveler wire problem. One traveler may be connected incorrectly or loose on the switch terminal.

How do I identify the common wire on a two-way switch?

The common wire connects to the darker screw terminal. It may carry incoming power or connect to the light fixture.

Can a faulty switch cause the light not to turn on?

Yes, although it's less common. If wiring is correct and voltage is present, the switch itself may be defective.

Do traveler wires have specific colors?

Not always. Modern wiring often uses red and black travelers, but older homes may use different colors.

Should both switches be replaced together?

It is not required, but replacing both switches reduces compatibility and wear issues.

Is it dangerous if a new light switch does not work?

It can be if wires are loose or misconnected. Turn off the breaker before inspecting the wiring.

How do I diagnose a faulty two-way light switch?

Use a voltage tester to confirm power on the common terminal and check traveler continuity while toggling the switch.
