Common Problems Caused by Oversized or Undersized AC Units: How incorrect AC sizing leads to weak cooling, humidity issues, and rising energy bills—and how to diagnose the problem quickly.

Direct Answer

Oversized or undersized AC units create comfort and efficiency problems because the system cannot match the cooling load of the home. An undersized AC runs constantly and still struggles to cool, while an oversized system cools too quickly but fails to control humidity. Both situations lead to higher energy bills, uneven temperatures, and premature equipment wear.

Quick Takeaways

1. An undersized AC unit runs almost nonstop yet never reaches the desired temperature.
2. Oversized air conditioners cool quickly but shut off before removing enough humidity.
3. Incorrect AC sizing often increases energy bills despite poor comfort.
4. Short cycling is the most common warning sign of an oversized air conditioner.
5. Professional load calculations—not room guesses—determine correct AC size.

Introduction

Oversized or undersized AC units are one of the most common causes of cooling complaints I see in residential projects. After working on hundreds of HVAC‑related design consultations, I’ve learned that many homeowners assume poor cooling means their air conditioner is old or low quality. In reality, the bigger issue is often incorrect system sizing.

In smaller homes—especially around 900 square feet—even a half‑ton difference in capacity can create noticeable problems. I’ve seen systems that run nonstop all day, and others that cool a room quickly but leave the air damp and uncomfortable. Both situations usually point to the same root cause: the AC unit doesn't match the home’s actual cooling load.

Before replacing equipment, it's worth analyzing layout, insulation, and airflow. A simple layout evaluation using a tool that helps visualize your home's cooling layout and room dimensionscan reveal whether airflow and space planning contribute to the issue.

In this guide, I’ll break down the real‑world symptoms I see when AC units are too large or too small, why those problems happen, and how to confirm if incorrect sizing is the real culprit.

save pin

Signs Your AC Unit Is Too Small for Your Home

Key Insight: If your air conditioner runs constantly but struggles to reach the set temperature, the system is likely undersized.

An undersized AC unit simply cannot remove heat fast enough. I see this most often in homes where renovations increased the cooling load—such as adding windows, expanding living areas, or converting garages.

Typical symptoms include:

1. AC runs almost nonstop during warm weather
2. Indoor temperature never reaches thermostat setting
3. Warm spots in certain rooms
4. Higher electricity bills despite weak cooling
5. Air coming from vents feels mild rather than cold

One subtle sign many homeowners miss is late‑night cooling recovery. A properly sized system should quickly restore comfort after sunset. If the house takes hours to cool down, the capacity is probably insufficient.

According to ACCA Manual J sizing standards used by HVAC professionals, cooling capacity must match calculated heat gain—not just square footage.

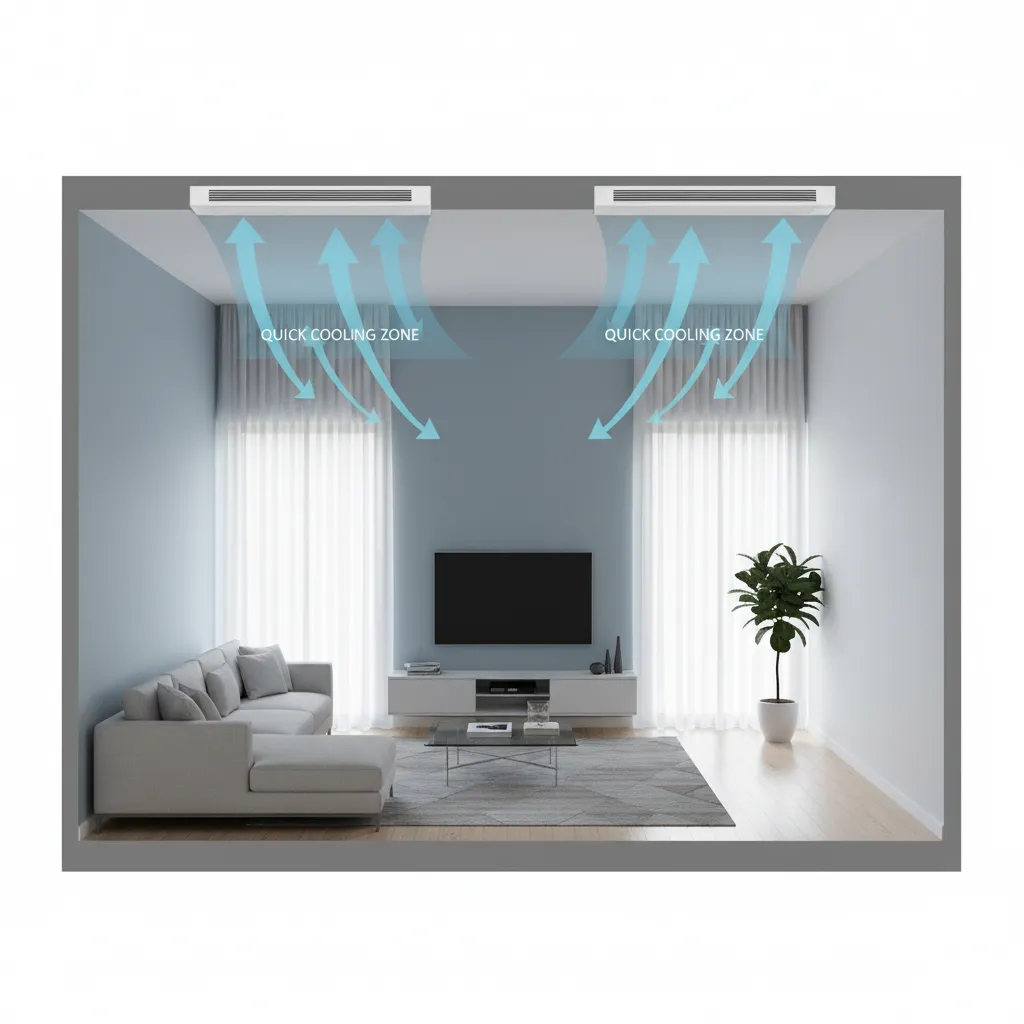

Symptoms of an Oversized Air Conditioner

Key Insight: Oversized air conditioners cool rooms too quickly, causing frequent on‑off cycles known as short cycling.

Many people assume bigger AC units perform better. In practice, oversized systems often create more comfort issues than undersized ones.

Common symptoms include:

1. AC turns on and off every 5–10 minutes
2. Rooms feel cool but slightly damp
3. Noticeable temperature swings
4. Higher humidity indoors
5. Premature compressor wear

Short cycling also prevents the evaporator coil from staying cold long enough to remove moisture. The system cools the air quickly, satisfies the thermostat, and shuts off before proper dehumidification occurs.

This issue appears frequently in small homes where contractors install oversized units "for safety." In reality, that shortcut often reduces comfort.

save pin

Why Incorrect AC Sizing Causes High Energy Bills

Key Insight: Both oversized and undersized AC systems waste energy because they operate inefficiently relative to the home's cooling load.

Energy efficiency problems appear differently depending on the sizing mistake.

Undersized systems:

1. Run continuously during hot days
2. Operate near maximum capacity
3. Use more electricity over long run times

Oversized systems:

1. Start and stop frequently
2. Consume high startup energy repeatedly
3. Reduce compressor lifespan

Startup cycles are particularly energy intensive. A system that short cycles 6–8 times per hour can consume significantly more power than a properly sized unit running steady cooling cycles.

Another factor is airflow design. When layouts restrict airflow, the system behaves like it’s undersized even if the capacity is technically correct. I often recommend mapping airflow paths using a 3D layout visualization for analyzing airflow and cooling distribution to identify blocked vents, poor duct placement, or isolated rooms.

Humidity Problems Linked to Oversized Systems

Key Insight: Oversized AC units frequently create humidity problems because they cool air faster than they remove moisture.

Humidity control is a critical but often overlooked function of air conditioning. Proper systems run long enough for moisture to condense on the evaporator coil.

When the system shuts off too quickly:

1. Moisture removal is incomplete
2. Indoor air feels sticky
3. Mold risk increases in humid climates
4. Thermostat readings become misleading

In coastal or humid regions, this issue can be worse than weak cooling. I've worked on homes where temperatures were technically comfortable, but occupants still felt uncomfortable because humidity stayed above 60%.

save pin

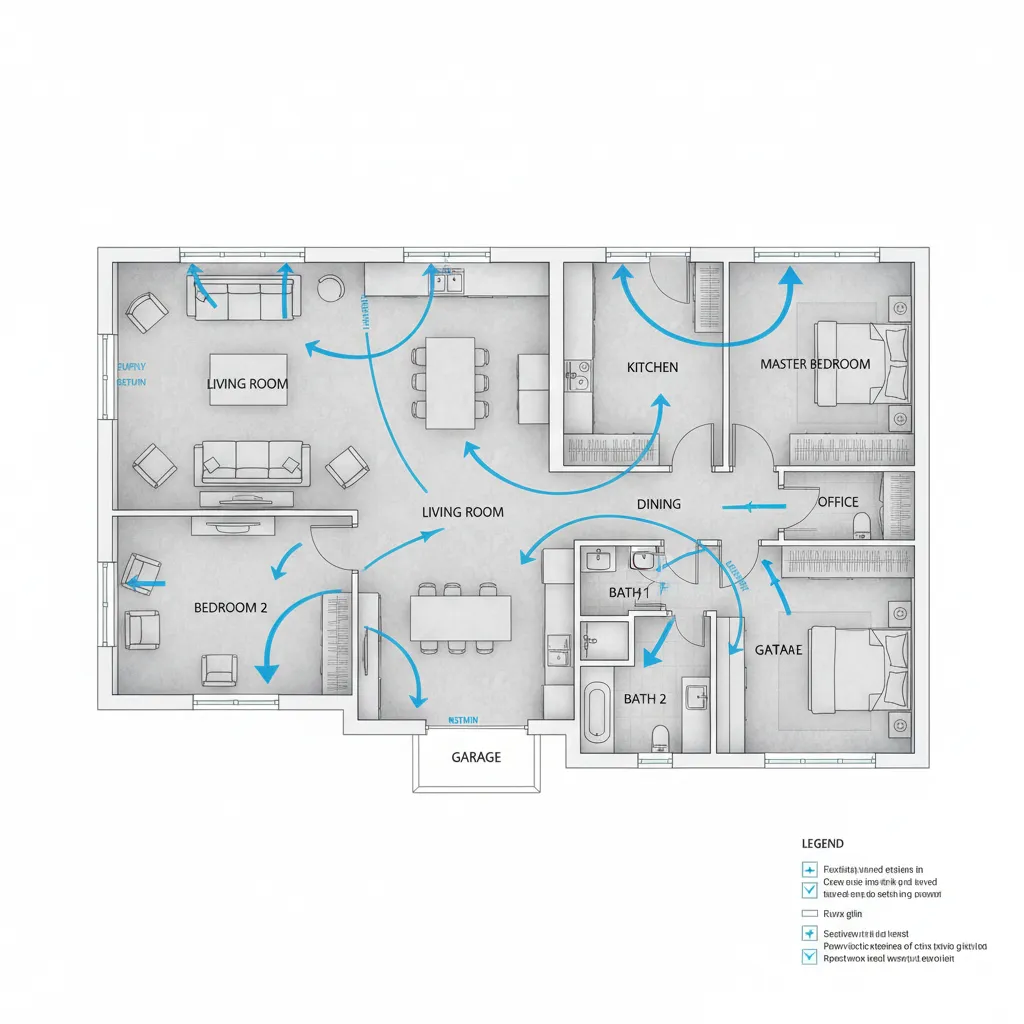

How to Confirm If Your AC Capacity Is Wrong

Key Insight: The only reliable way to verify AC sizing is through a professional cooling load calculation.

Many installers still rely on rough rules like "tons per square foot." That shortcut ignores key variables.

Professionals evaluate factors such as:

1. Home orientation and sun exposure
2. Window size and glazing type
3. Insulation levels
4. Ceiling height
5. Air leakage and duct losses
6. Room layout and airflow paths

If you're diagnosing cooling problems, start by mapping your interior spaces with a simple room layout planner that shows airflow paths and room proportions. This often reveals blocked vents or isolated rooms that distort cooling performance.

However, a proper Manual J calculation performed by an HVAC professional remains the gold standard.

Steps to Fix an Incorrectly Sized AC System

Key Insight: Fixing incorrect AC sizing may involve airflow improvements, duct modifications, or full system replacement depending on the severity.

Possible solutions include:

1. Improve airflow first

1. Open blocked vents
2. Clean ducts and filters
3. Adjust dampers

2. Upgrade insulation

1. Reduce cooling load
2. Improve temperature stability

3. Modify ductwork

1. Balance airflow across rooms
2. Improve return air circulation

4. Replace the AC system

1. Necessary when capacity is significantly incorrect
2. Often the only fix for extreme short cycling

In my experience, airflow and duct adjustments can solve roughly a third of comfort complaints without replacing equipment. But when capacity mismatch is severe, a properly sized system becomes the long‑term solution.

save pin

Answer Box

Oversized AC units cause short cycling and humidity issues, while undersized systems run continuously and struggle to cool. Both conditions increase energy costs and reduce comfort. A professional load calculation is the most reliable way to confirm whether AC capacity matches the home's cooling needs.

Final Summary

1. Incorrect AC sizing is a major cause of cooling inefficiency.
2. Undersized units run constantly but fail to cool properly.
3. Oversized systems short cycle and leave excess humidity.
4. Energy bills often rise when system capacity is incorrect.
5. Manual load calculations provide the most accurate sizing.

FAQ

1. What happens if an AC unit is too big?

An oversized AC cools the space too quickly and shuts off before removing humidity. This leads to short cycling, uneven temperatures, and higher energy consumption.

2. What are the signs an AC unit is too small for a house?

Common signs an AC unit is too small for a house include nonstop operation, weak airflow cooling, and indoor temperatures that never reach the thermostat setting.

3. Why does my AC run constantly in a 900 sq ft house?

If your AC runs constantly in a 900 sq ft house, the unit may be undersized, the insulation may be poor, or airflow could be restricted.

4. Can an oversized air conditioner cause humidity problems?

Yes. Oversized systems often shut off before removing enough moisture, leaving indoor humidity high.

5. Does AC size affect electricity bills?

Yes. Both oversized and undersized AC units use more electricity due to inefficient cycling or continuous operation.

6. How do professionals determine the right AC size?

HVAC professionals use Manual J load calculations that evaluate insulation, windows, orientation, room size, and air leakage.

7. Is short cycling always caused by oversized AC units?

Not always. Dirty filters, thermostat placement, or refrigerant issues can also cause short cycling.

8. Can duct problems mimic incorrect AC sizing?

Yes. Poor duct design can restrict airflow, making a correctly sized AC behave like it’s undersized.

References

1. ACCA Manual J Residential Load Calculation Standard
2. U.S. Department of Energy – Air Conditioner Efficiency Guidelines
3. ENERGY STAR HVAC Design Recommendations
