Common Problems Caused by Thin Mobile Home Exterior Walls: Why thin manufactured home walls lead to drafts, moisture, and comfort issues—and what homeowners can realistically do about them

Direct Answer

Thin mobile home exterior walls commonly cause temperature swings, drafts, condensation, and weak sound insulation. Because many manufactured homes use 2x3 or lightly insulated wall assemblies, heat and air move through them much faster than in traditional homes.

These structural limitations don't always require a full rebuild, but they do demand targeted fixes such as air sealing, insulation upgrades, and smarter wall retrofits.

Quick Takeaways

1. Thin mobile home walls allow heat to escape faster than standard residential walls.
2. Air leakage through seams and outlets is often a bigger problem than insulation itself.
3. Condensation inside walls can occur when insulation and vapor control are poorly balanced.
4. Sound travels easily through thinner wall assemblies.
5. Several affordable upgrades can reduce problems without full wall reconstruction.

Introduction

After working on dozens of manufactured home renovation projects over the past decade, one pattern shows up again and again: homeowners blame the HVAC system when the real problem is the walls.

Thin mobile home exterior walls simply don't behave like conventional residential construction. Many older units were built with minimal insulation and narrower framing cavities, which means heat, air, and moisture move through the wall system much more easily.

If you've ever noticed cold walls in winter, hot rooms in summer, or mysterious condensation forming near outlets and window trim, you're likely dealing with one of several classic mobile home thin wall problems.

Before jumping into expensive remodeling, it helps to understand the structural limitations first. If you're unfamiliar with how manufactured homes are built, this explanation of how wall thickness affects interior space planning and structural layoutsoffers useful context.

Below, I'll break down the most common issues caused by thin mobile home exterior walls—and the practical ways homeowners address them in real-world renovations.

save pin

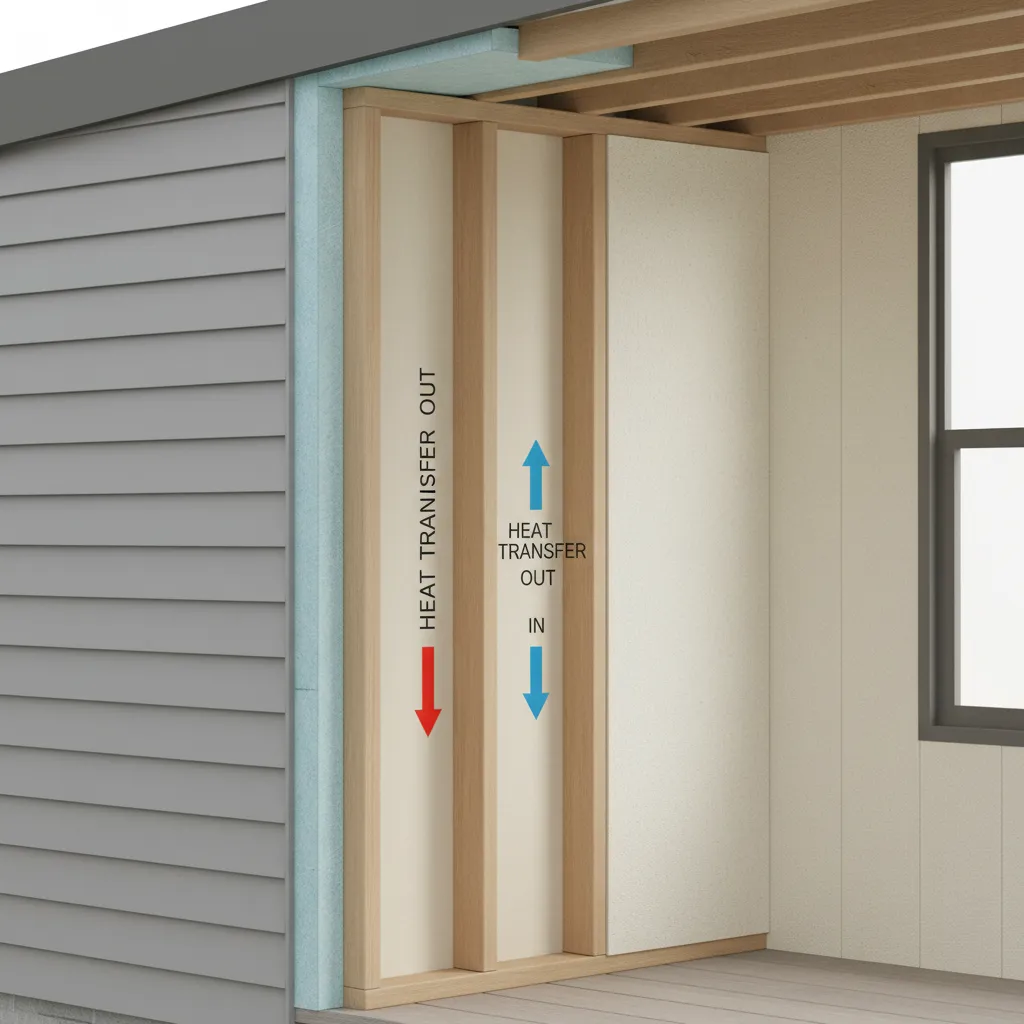

Why Thin Walls Cause Temperature Fluctuations

Key Insight: Thin wall cavities limit insulation depth, which dramatically reduces thermal resistance.

Most traditional houses use 2x4 or 2x6 exterior framing. Many manufactured homes, especially older models, use 2x3 framing. That difference sounds small but it significantly reduces the space available for insulation.

In practical terms, this means exterior temperature transfers more quickly through the wall assembly.

Typical insulation comparison:

1. 2x6 wall cavity: around R‑19 to R‑21 insulation
2. 2x4 wall cavity: around R‑13 insulation
3. 2x3 mobile home wall cavity: often R‑9 to R‑11

When insulation levels drop this low, the indoor temperature becomes more sensitive to outdoor changes.

In colder climates, homeowners often report:

1. Walls feeling physically cold to the touch
2. Rooms losing heat quickly overnight
3. HVAC systems running almost continuously

The U.S. Department of Energy has long noted that inadequate wall insulation is one of the primary contributors to residential heat loss.

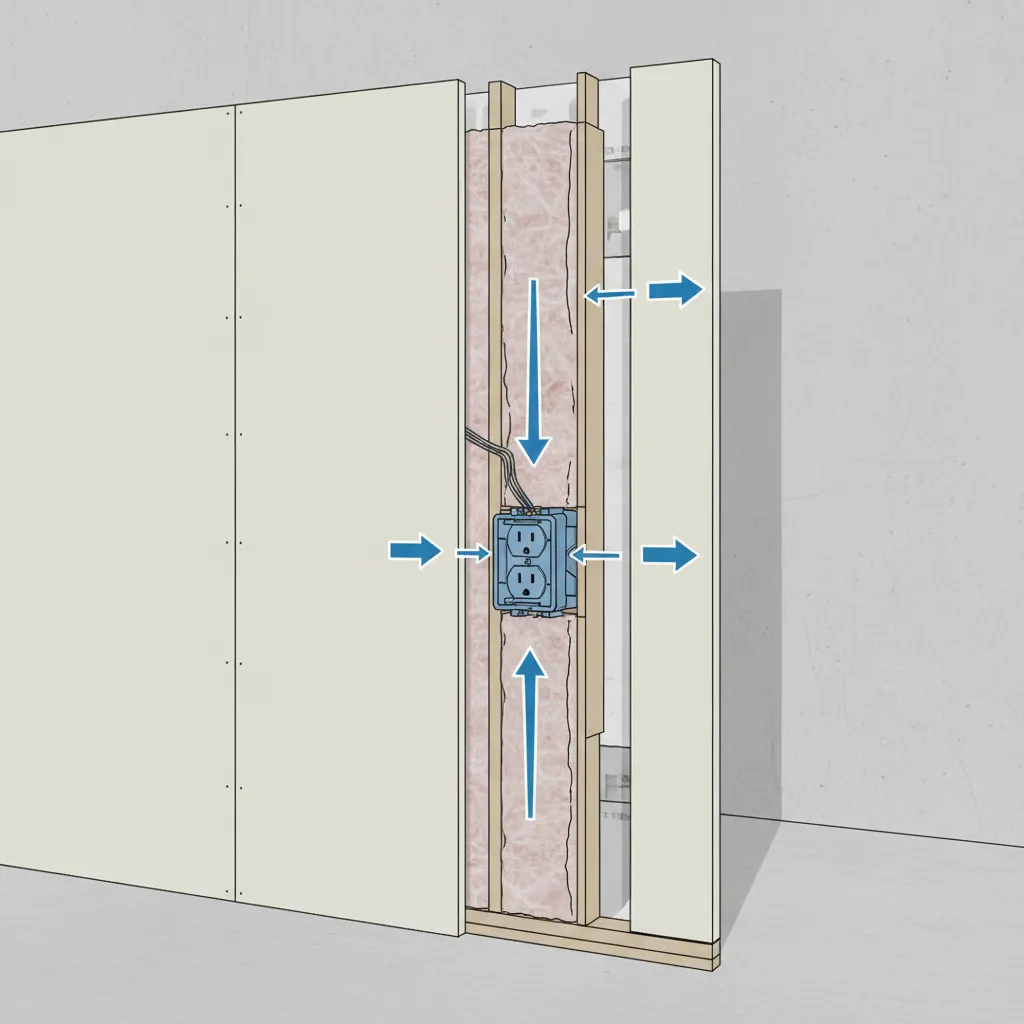

Draft and Air Leakage Issues

Key Insight: In many mobile homes, air leakage—not insulation—is the biggest comfort problem.

One mistake I see constantly during remodels is assuming insulation alone solves the issue. In reality, air infiltration is often the bigger culprit.

Manufactured homes are assembled in sections at the factory, which creates more seams and joints than site-built homes. Over time those seams can loosen or develop gaps.

Common air leakage points:

1. Electrical outlets on exterior walls
2. Baseboard trim gaps
3. Window framing seams
4. Wall-to-floor connection joints
5. Roof-to-wall intersections

During energy audits, blower door tests often reveal that air leakage contributes as much heat loss as missing insulation.

Sealing these areas with foam gaskets, caulking, and trim repairs can dramatically reduce drafts.

save pin

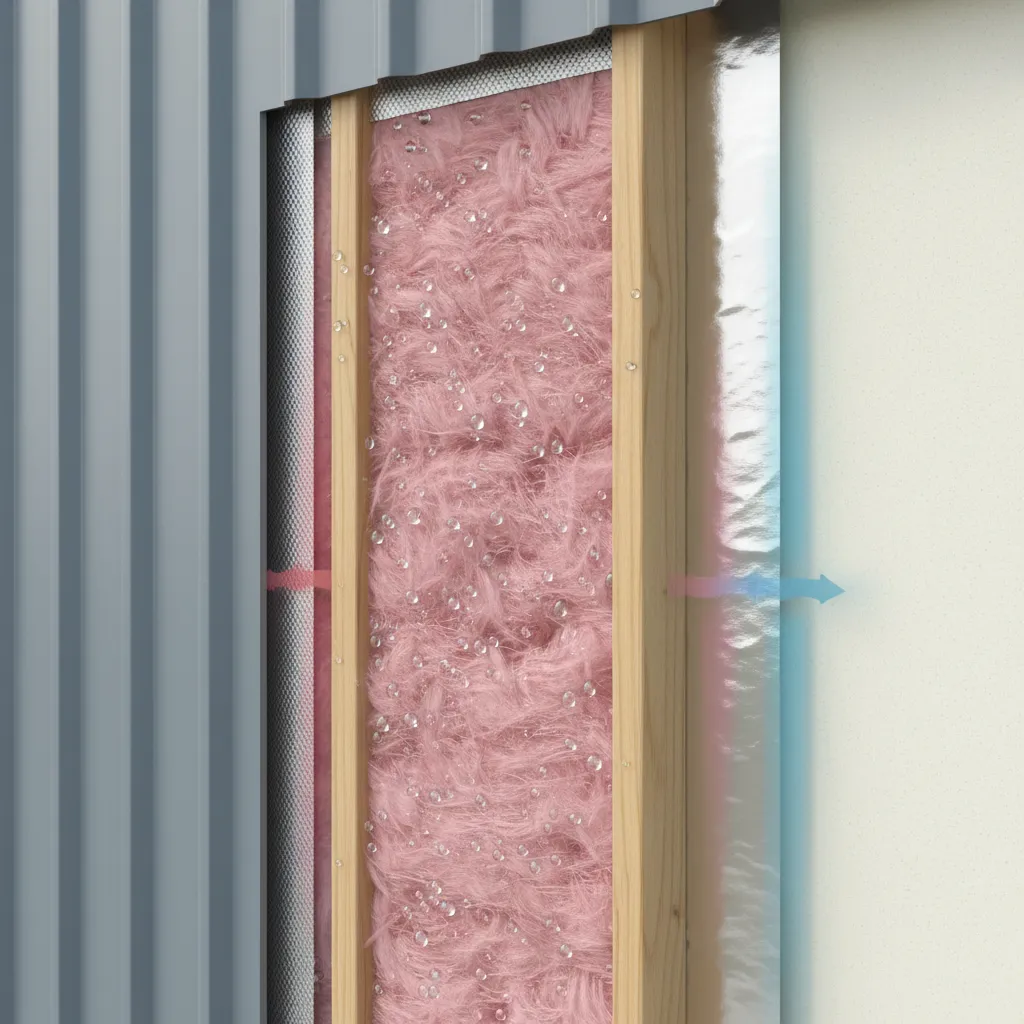

Moisture and Condensation Inside Exterior Walls

Key Insight: Thin walls can create condensation when indoor humidity meets cold exterior surfaces.

This is one of the more overlooked mobile home wall insulation problems.

When warm indoor air leaks into a poorly insulated wall cavity, it cools rapidly. Once the air temperature drops below its dew point, moisture forms.

Over time, this can lead to:

1. Damp insulation
2. Mold growth
3. Wood rot around studs
4. Soft drywall or wall panels

The issue becomes worse in homes that added insulation without proper vapor control layers.

Building science experts—including research published by Building Science Corporation—emphasize that insulation upgrades must always consider moisture flow, not just thermal performance.

Weak Sound Insulation Between Indoors and Outdoors

Key Insight: Thin wall assemblies reduce acoustic dampening, allowing outside noise to pass through easily.

Most manufactured homes were designed primarily for affordability and transport efficiency—not acoustic isolation.

Thin wall cavities and lightweight materials mean exterior sounds travel easily inside.

Common noise complaints include:

1. Traffic noise
2. Rain impact on siding
3. Wind noise through seams
4. Nearby neighbors or street activity

During several renovation projects near highways, I've seen noticeable improvement simply by adding dense insulation and sealing exterior sheathing gaps.

save pin

Answer Box

Thin mobile home exterior walls mainly cause heat loss, drafts, condensation, and noise transmission. These issues come from shallow insulation cavities, air leaks, and minimal structural mass. Most problems improve significantly through air sealing, insulation upgrades, and targeted wall retrofits.

Signs Your Mobile Home Walls Need Upgrades

Key Insight: Physical symptoms inside the home often reveal hidden wall performance problems.

Many homeowners don't realize their wall system is underperforming until obvious symptoms appear.

Warning signs to watch for:

1. Cold wall surfaces during winter
2. Paint bubbling or wall panel swelling
3. Condensation near electrical outlets
4. Higher than normal heating bills
5. Noticeable outside noise indoors

If multiple symptoms appear at once, the problem is rarely just insulation—it usually involves air leakage as well.

When planning renovations, it helps to visualize structural limitations first. This guide showing how to map structural wall layouts before renovationcan help homeowners understand where upgrades are most effective.

save pin

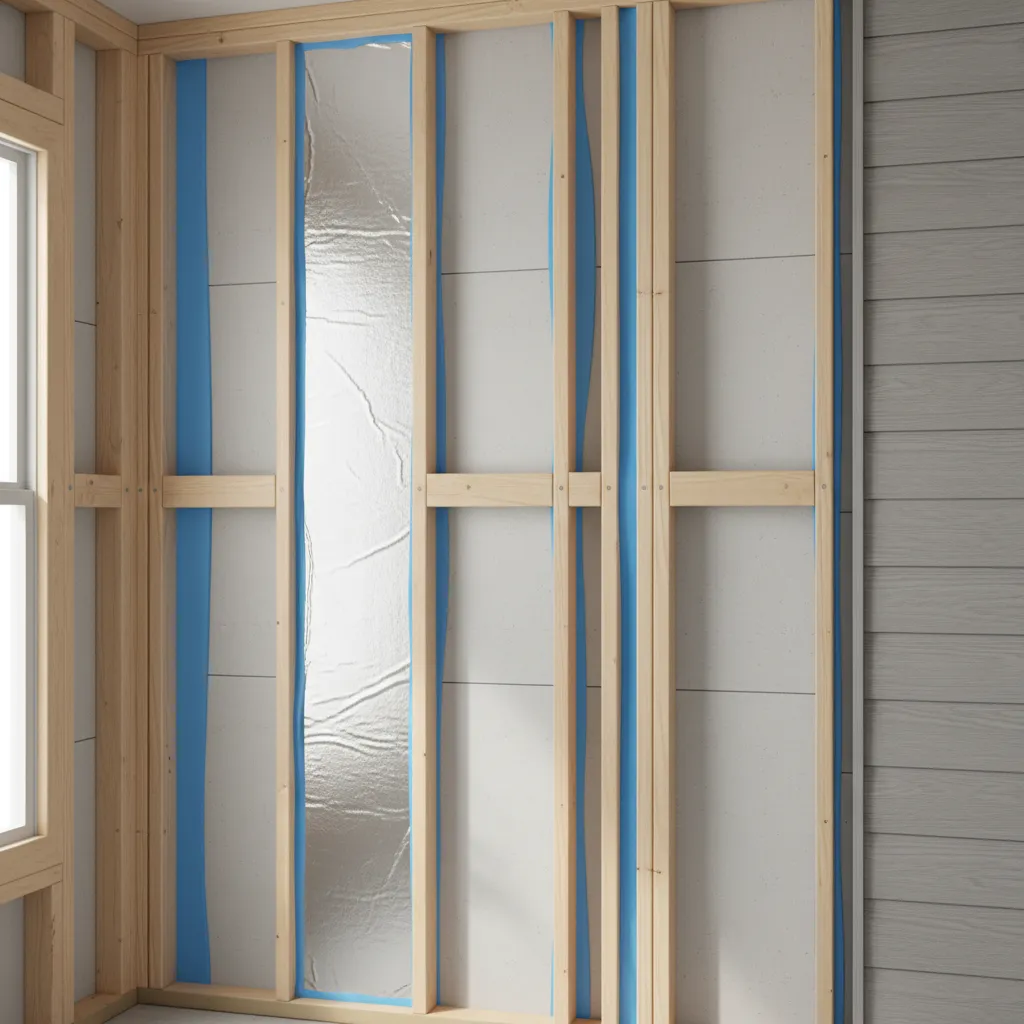

Quick Fixes Before Major Renovation

Key Insight: Several small upgrades can dramatically improve comfort before committing to full wall reconstruction.

In my experience, homeowners often assume they need to tear open every exterior wall. In reality, targeted improvements can solve most comfort problems.

High-impact quick fixes:

1. Seal outlet boxes with foam gaskets
2. Add interior wall insulation panels
3. Install insulated skirting to reduce air infiltration
4. Apply exterior foam board during siding replacement
5. Upgrade weather sealing around windows and trim

Even modest improvements can significantly reduce drafts and stabilize indoor temperatures.

If you're planning larger layout or insulation upgrades, reviewing design strategies that improve energy efficiency in compact homes can help prioritize changes that deliver the biggest comfort improvements.

Final Summary

1. Thin mobile home walls limit insulation capacity and cause temperature swings.
2. Air leakage through seams often creates stronger drafts than insulation gaps.
3. Poor insulation combined with humidity can cause wall condensation.
4. Lightweight wall assemblies allow outside noise to travel indoors.
5. Air sealing and targeted insulation upgrades solve many issues affordably.

FAQ

Why do mobile homes lose heat through walls?

Most manufactured homes use thinner wall cavities and lower insulation levels. This reduces thermal resistance and allows heat to escape faster than in conventional houses.

Are thin mobile home walls normal?

Yes. Many manufactured homes use 2x3 framing to reduce weight and cost. While structurally acceptable, this design limits insulation thickness.

Can thin walls cause condensation inside a mobile home?

Yes. When warm indoor air enters poorly insulated walls and cools quickly, condensation can form inside the wall cavity.

How do I fix drafty mobile home walls?

Start by sealing outlets, trim gaps, and wall seams. Air sealing usually reduces drafts more effectively than adding insulation alone.

Do mobile home wall insulation problems affect energy bills?

Yes. Poor insulation and air leaks increase heating and cooling demand, which raises energy costs.

Is it worth upgrading insulation in mobile home exterior walls?

In many cases, yes. Improvements like foam board sheathing or dense-pack insulation can significantly improve comfort.

Why are mobile home walls noisy?

Thin wall assemblies lack the mass needed to block sound waves, so outside noise transfers more easily.

Can mobile home walls be rebuilt thicker?

Yes, but it's usually done during major siding renovations. Many homeowners instead improve insulation and air sealing.

References

U.S. Department of Energy – Residential Insulation Guidelines

Building Science Corporation – Moisture Control in Wall Assemblies

HUD Manufactured Home Construction Standards
