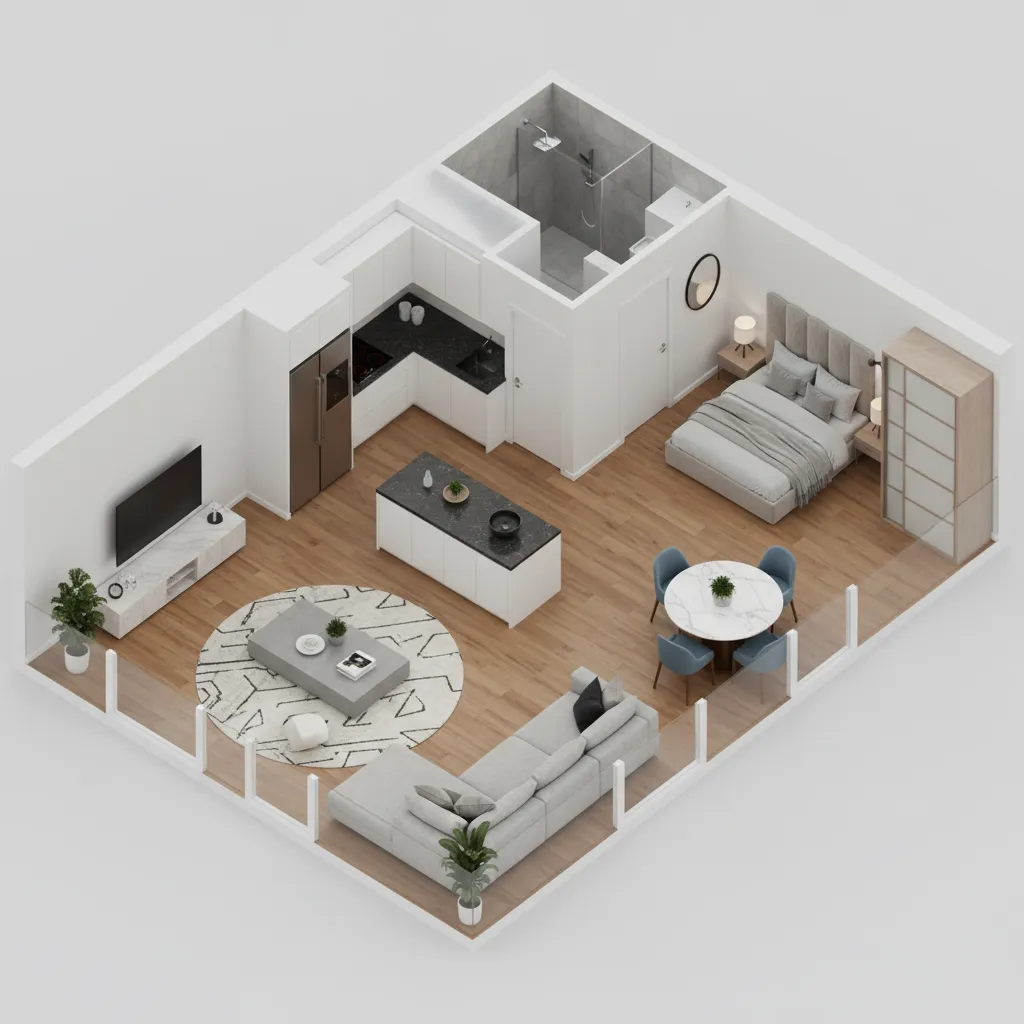

Common Problems in 3D Isometric Floor Plan Rendering and How to Fix Them: Practical fixes designers use to correct distortion, lighting, scale, and export issues in isometric floor plan renders.

Direct Answer

Most 3D isometric floor plan rendering problems come from incorrect camera setup, inconsistent object scaling, poor lighting balance, or texture mapping errors. Fixing these issues usually requires adjusting the orthographic camera angle, correcting texture scale, standardizing object dimensions, and exporting at higher render resolution.

Quick Takeaways

1. Incorrect camera angles are the most common reason isometric floor plans look distorted.
2. Texture scaling problems usually come from imported materials not matching real-world dimensions.
3. Lighting should be soft and evenly distributed to avoid unrealistic shadows.
4. Export resolution below 3000px wide often causes blurry marketing visuals.
5. Consistent object scale prevents furniture from appearing oversized or miniature.

Introduction

After producing hundreds of marketing visuals for real estate and interior design projects, I've learned that 3D isometric floor plan rendering problems rarely come from complex modeling mistakes. They usually come from small technical settings that many designers overlook.

I see this constantly when reviewing client submissions. The layout might be perfect, but something feels off: walls look tilted, furniture appears stretched, or textures look strangely oversized. These issues can make an otherwise professional floor plan look amateur.

If you're still learning how isometric layouts actually work, it helps to first understand the basics of building accurate 3D floor plan layouts step by stepbefore diving into rendering adjustments.

In this guide, I'll walk through the most common rendering mistakes I encounter in production work—and the exact fixes we apply in professional visualization pipelines.

save pin

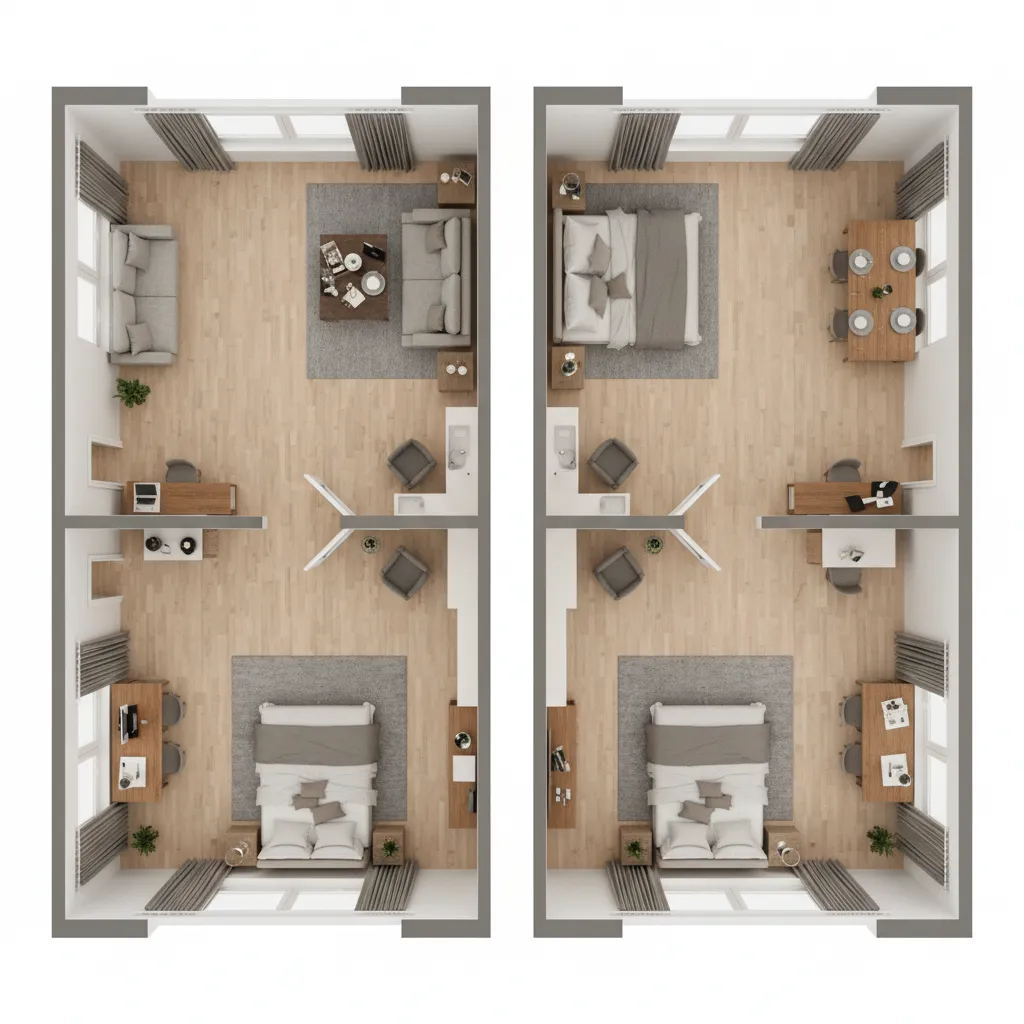

Why 3D Isometric Floor Plans Sometimes Look Distorted

Key Insight: Distortion usually happens when perspective cameras are used instead of true isometric (orthographic) projection.

Many designers accidentally render isometric floor plans using a perspective camera. Perspective introduces depth convergence, which causes walls and furniture to taper slightly toward the horizon. In an isometric view, that should never happen.

In real projects, I typically set the camera before modeling furniture to avoid composition problems later.

How to identify distortion quickly:

1. Parallel walls appear slightly angled toward each other
2. Furniture closer to camera looks larger
3. Room edges don't align perfectly

Correct camera setup:

1. Use orthographic camera mode
2. Rotate camera roughly 45° horizontally
3. Tilt vertically around 30–35°
4. Disable perspective distortion

Most architectural visualization studios standardize these camera presets because even small deviations can ruin the illusion of an isometric view.

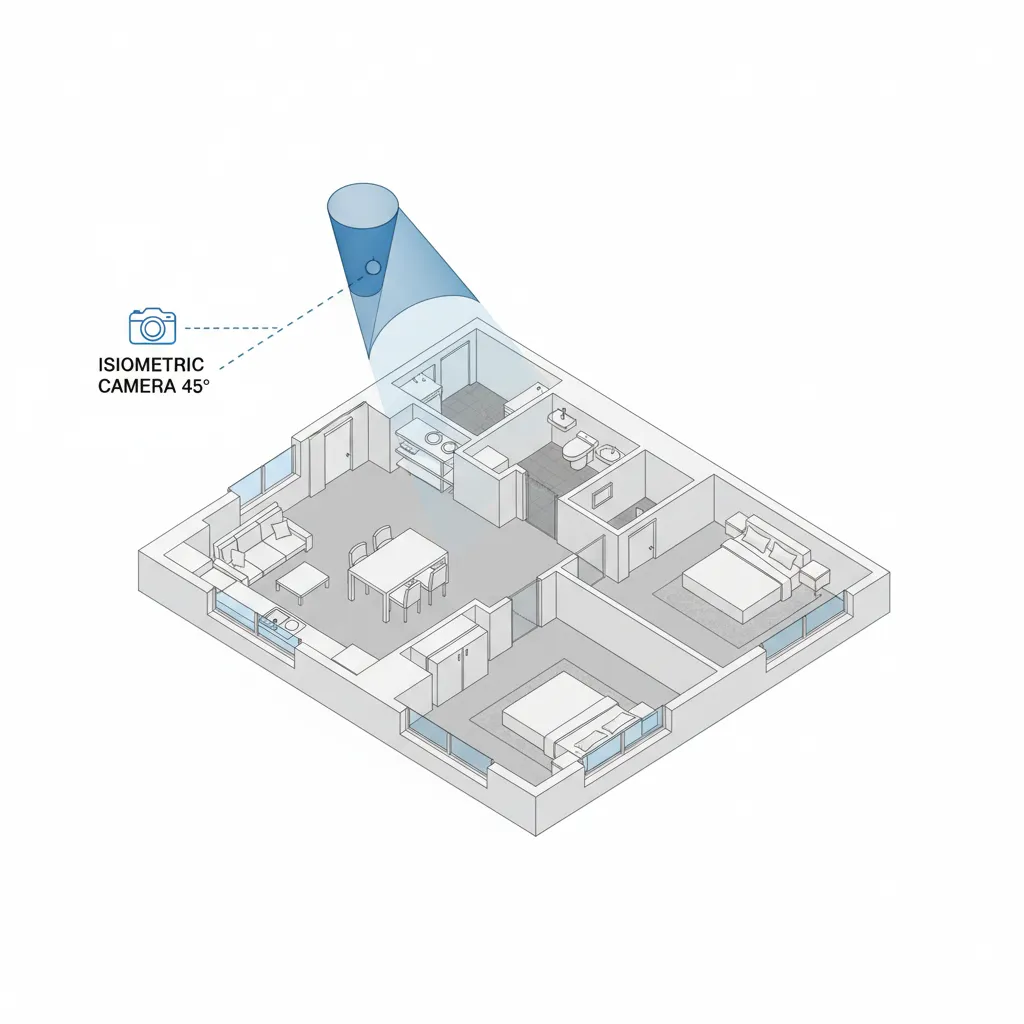

Fixing Incorrect Camera Angle in Isometric Rendering

Key Insight: The classic isometric look depends on precise angle relationships between the camera and floor grid.

The most stable setup I've used across multiple tools is a 45-degree rotation on the horizontal axis combined with about 35.264 degrees vertically. This produces the mathematically correct isometric projection where all axes scale equally.

Step-by-step camera correction:

1. Switch the camera to orthographic mode.
2. Align camera rotation to 45° horizontally.
3. Set vertical tilt between 30–35°.
4. Center the camera on the building footprint.
5. Lock the camera to prevent accidental movement.

Many professionals now prototype layouts using tools designed for structured spatial alignment, such as platforms that help designers generate accurate floor layouts with automated planning tools. These systems maintain consistent camera and grid relationships automatically.

save pin

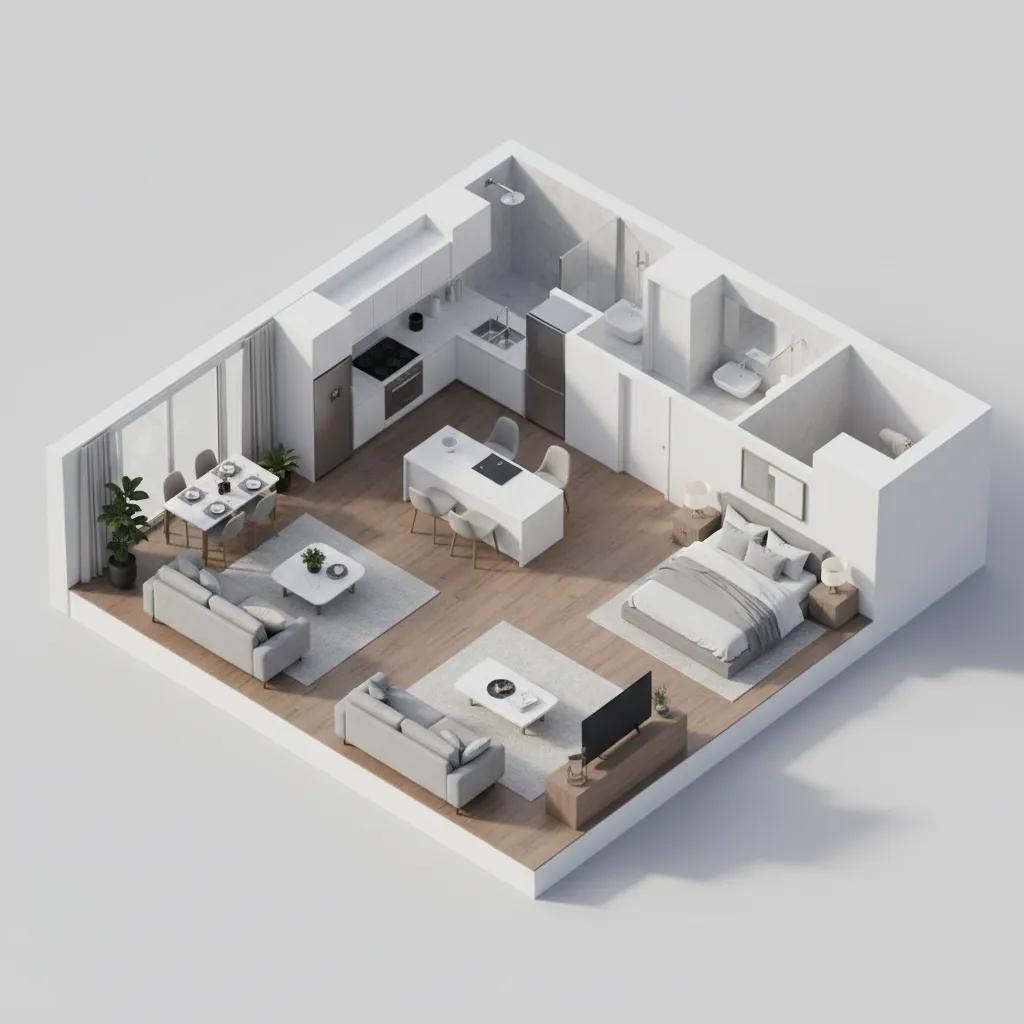

Common Lighting Problems in Isometric Floor Plans

Key Insight: Isometric renders need balanced ambient lighting rather than dramatic directional lighting.

A mistake I see frequently is using cinematic lighting setups designed for interior renderings. That approach creates heavy shadows that hide furniture details when viewed from above.

For floor plans, clarity matters more than drama.

Lighting setup that works best:

1. One soft overhead directional light
2. Global illumination or ambient light
3. Low shadow intensity
4. Neutral color temperature (around 5000–6000K)

Large real estate platforms prefer evenly lit floor plans because they remain readable on mobile screens.

save pin

Texture Scaling Issues and How to Correct Them

Key Insight: Texture scale errors happen when material UV sizes don't match real-world dimensions.

This is one of the most overlooked issues in floor plan visualization. For example, wood flooring might repeat every 30 cm instead of 120 cm, which makes the room look miniature.

I've seen this mistake even in professional marketing renders.

Typical scaling mistakes:

1. Oversized tiles
2. Microscopic wood grain
3. Overly repetitive carpet patterns

Quick correction checklist:

1. Confirm real-world material size
2. Adjust UV scale accordingly
3. Test materials in one room before applying globally
4. Use texture randomization when possible

Interior visualization pipelines often maintain a material library with standardized scale values to avoid these problems.

Export Quality Problems in Floor Plan Renders

Key Insight: Low export resolution is the main reason isometric floor plan renders appear blurry online.

Many designers render at 1080p because it feels sufficient on screen. But once images are uploaded to listing sites or marketing pages, compression destroys detail.

Recommended export settings:

1. Minimum width: 3000–4000 px
2. PNG for marketing visuals
3. High anti-aliasing settings
4. Shadow quality set to medium

For real estate marketing, renders often need to work alongside photorealistic visuals. If you're producing marketing assets, studying examples of high quality 3D home rendering for property listings can help set a proper quality benchmark.

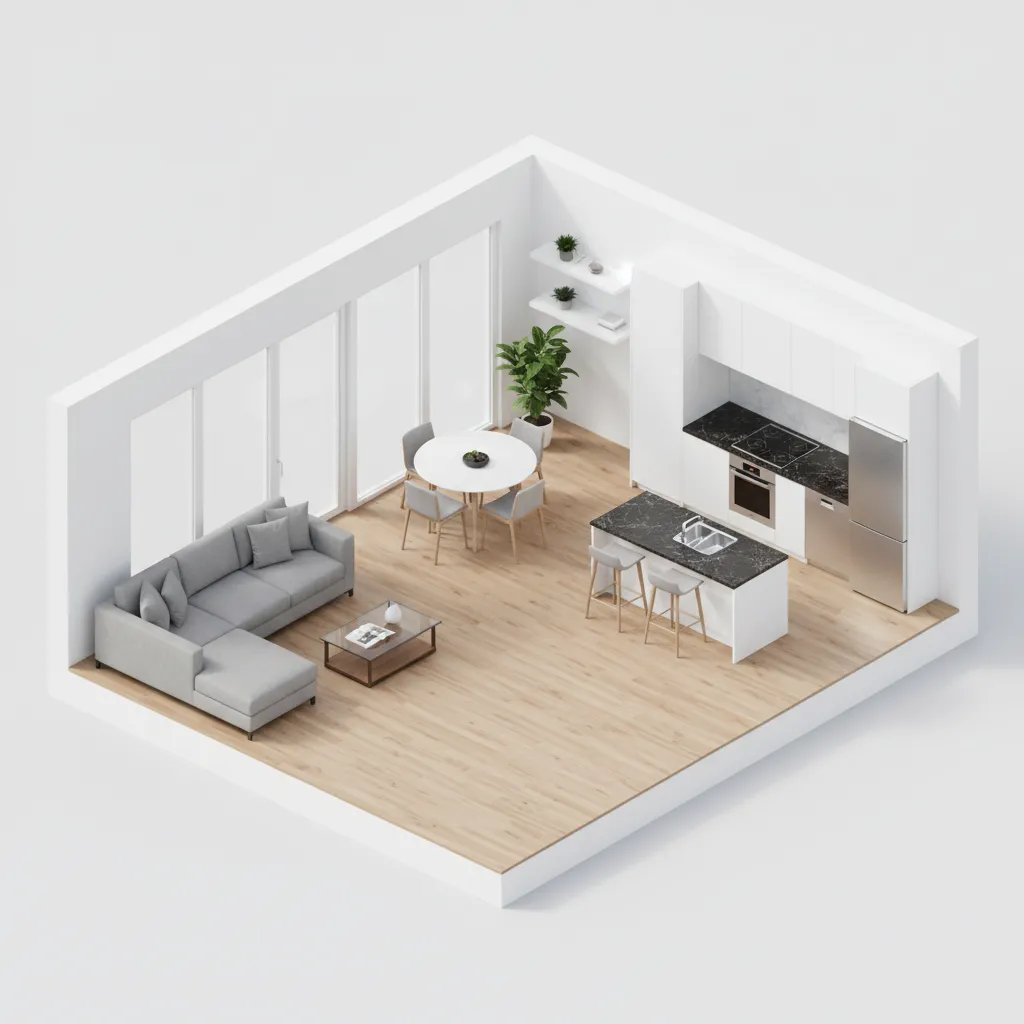

How to Maintain Consistent Object Scale

Key Insight: Inconsistent object scale is usually caused by importing furniture models from different libraries.

I once audited a developer marketing package where dining chairs were 15% larger than the table. It wasn't obvious until the isometric render exposed the proportion error.

Common scale mismatches:

1. Oversized sofas
2. Miniature appliances
3. Doors shorter than standard height

Standard residential reference sizes:

1. Door height: ~80 inches
2. Kitchen counter: ~36 inches
3. Dining table: ~30 inches high
4. Sofa depth: ~35–40 inches

Keeping these reference values nearby during modeling prevents most scale errors.

save pin

Best Practices to Avoid Rendering Errors

Key Insight: Most rendering problems disappear when designers standardize a repeatable workflow.

After years working with visualization teams, the studios with the cleanest output always follow a consistent production pipeline.

Reliable workflow used by many studios:

1. Build layout using accurate measurements.
2. Lock orthographic camera early.
3. Apply scaled materials from a verified library.
4. Add neutral lighting.
5. Check object scale against real-world references.
6. Export at high resolution.

Answer Box

The majority of isometric floor plan rendering problems come from four issues: perspective cameras, incorrect texture scaling, inconsistent object dimensions, and low export resolution. Correcting these settings produces cleaner, more professional floor plan visuals.

Final Summary

1. Orthographic cameras are essential for true isometric rendering.
2. Balanced lighting improves readability more than dramatic shadows.
3. Correct texture scaling prevents miniature-looking rooms.
4. Consistent furniture scale maintains realistic proportions.
5. High resolution exports preserve detail for marketing use.

FAQ

Why does my isometric floor plan look distorted?

Most distortion comes from using a perspective camera instead of orthographic projection.

What is the correct camera angle for isometric floor plans?

A horizontal rotation of 45 degrees and a vertical tilt around 35 degrees typically produces a true isometric view.

Why do textures look too large in my 3D floor plan?

This usually happens when material UV scaling does not match real-world material dimensions.

What resolution should I export isometric floor plans?

Export images at least 3000 pixels wide to maintain clarity on websites and marketing platforms.

How do I fix lighting in isometric floor plan rendering?

Use soft ambient lighting and avoid strong directional shadows that hide furniture details.

What causes furniture scale problems in 3D floor plans?

Mixing assets from different model libraries often results in inconsistent object scale.

What software is best for troubleshooting 3D floor plan rendering?

Most modern visualization platforms include orthographic camera controls, scalable materials, and high resolution export settings.

How can I prevent isometric floor plan rendering problems in future projects?

Use a consistent workflow that locks camera settings early and standardizes materials and object dimensions.
