Common Problems in 5x12 Bathroom Layouts and How to Fix Them: Practical fixes designers use to make a long narrow bathroom feel functional instead of cramped

Direct Answer

The most common problems in a 5x12 bathroom layout come from poor fixture sequencing, door swing conflicts, and inadequate clearance between the vanity, toilet, and shower. The solution is usually not expanding the space but reorganizing fixture placement, improving circulation paths, and choosing the right door and storage strategies.

With the right layout adjustments, even a narrow 5x12 bathroom can feel surprisingly functional and comfortable.

Quick Takeaways

1. Most 5x12 bathroom layout problems come from poor fixture order, not lack of square footage.
2. Pocket or sliding doors often solve circulation conflicts instantly.
3. Placing the shower at the far end usually improves movement flow.
4. Narrow vanities and wall-mounted fixtures free up critical clearance space.
5. Lighting and ventilation must be layered to avoid a tunnel-like feeling.

Introduction

In more than a decade of residential design projects, the 5x12 bathroom layout has probably been the narrow bathroom size clients struggle with the most. On paper, 60 square feet seems reasonable. But once a toilet, vanity, shower, and door all compete for the same narrow corridor, the room can start to feel awkward very quickly.

The mistakes I see are rarely dramatic. Instead, they are small layout decisions that compound into daily frustration: a door hitting the vanity, a shower blocking natural light, or a toilet squeezed into an uncomfortable corner.

Many homeowners start by experimenting with different layout configurations using tools like a simple online floor plan creator to test narrow bathroom layouts before renovation. Seeing fixture spacing visually often reveals problems that aren’t obvious on paper.

In this guide, I’ll break down the most common 5x12 bathroom layout mistakes I encounter during remodel consultations—and more importantly, the practical fixes that actually work.

save pin

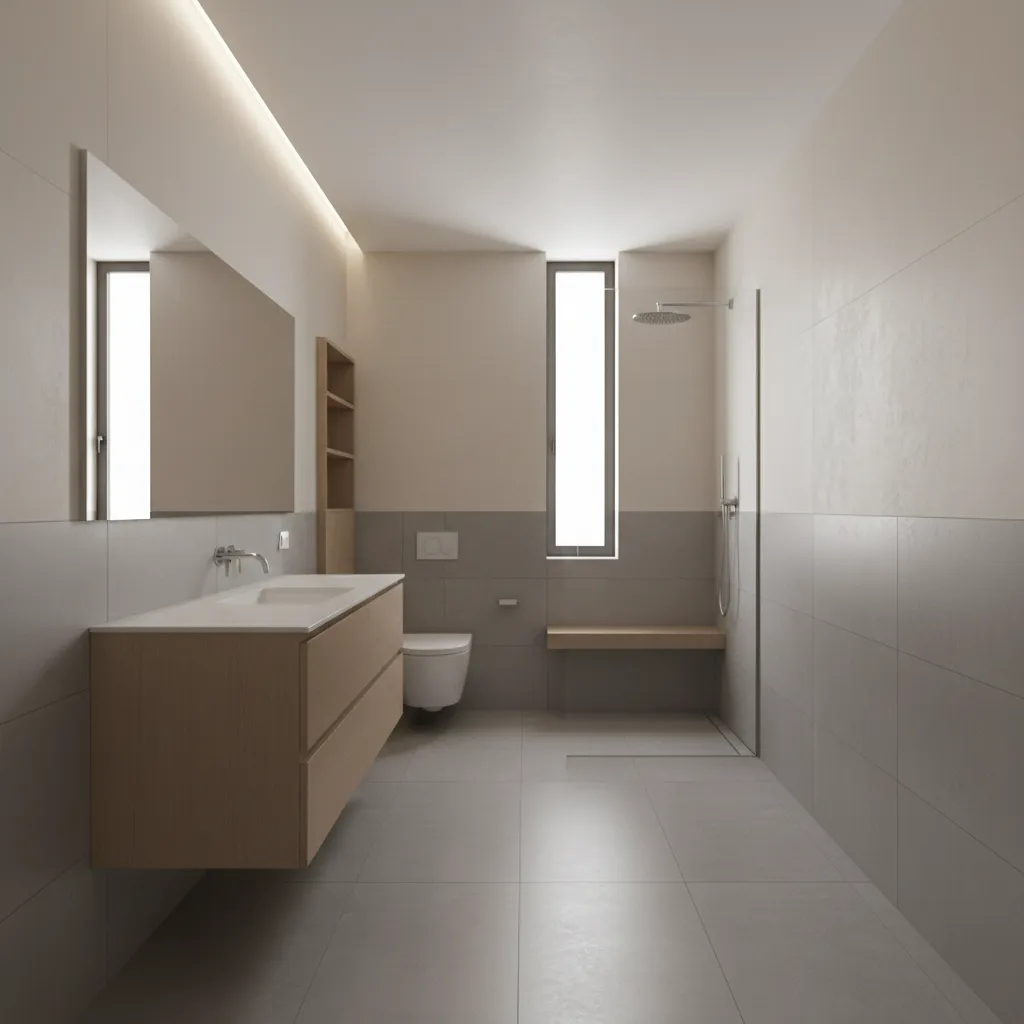

Why 5x12 Bathroom Layouts Often Feel Cramped

Key Insight: A 5x12 bathroom usually feels cramped because fixtures are placed side‑by‑side instead of arranged along a logical movement path.

In narrow bathrooms, width is your biggest limitation. When too many fixtures compete for that width, the room loses its circulation flow. The result is a hallway that feels blocked instead of functional.

After reviewing hundreds of small bathroom remodels, I’ve noticed one pattern: homeowners focus on fitting everything in rather than prioritizing movement.

Common layout pattern that causes problems:

1. Door opens directly into vanity
2. Toilet positioned in middle of walkway
3. Shower placed beside entry blocking visual depth
4. No visual endpoint in the room

A better sequencing strategy:

1. Entry zone: vanity
2. Middle zone: toilet
3. End zone: shower or tub

This linear arrangement aligns with how people naturally move through a narrow space.

Door Swing Conflicts and How to Solve Them

Key Insight: Door swing conflicts are one of the most overlooked design failures in narrow bathrooms.

A standard hinged door needs roughly 30 inches of clearance to open comfortably. In a 5‑foot‑wide room, that swing can easily collide with the vanity, toilet, or shower glass.

During remodel planning, this is often the first thing I change.

Three solutions designers commonly use:

1. Pocket door – slides into the wall and removes swing conflict completely
2. Outward swinging door – opens toward the hallway instead of inside the bathroom
3. Sliding barn-style door – useful when wall cavities can't accommodate pocket doors

According to the National Kitchen & Bath Association planning guidelines, maintaining clear floor space around fixtures significantly improves accessibility and safety.

Changing the door alone can make a cramped bathroom feel dramatically larger.

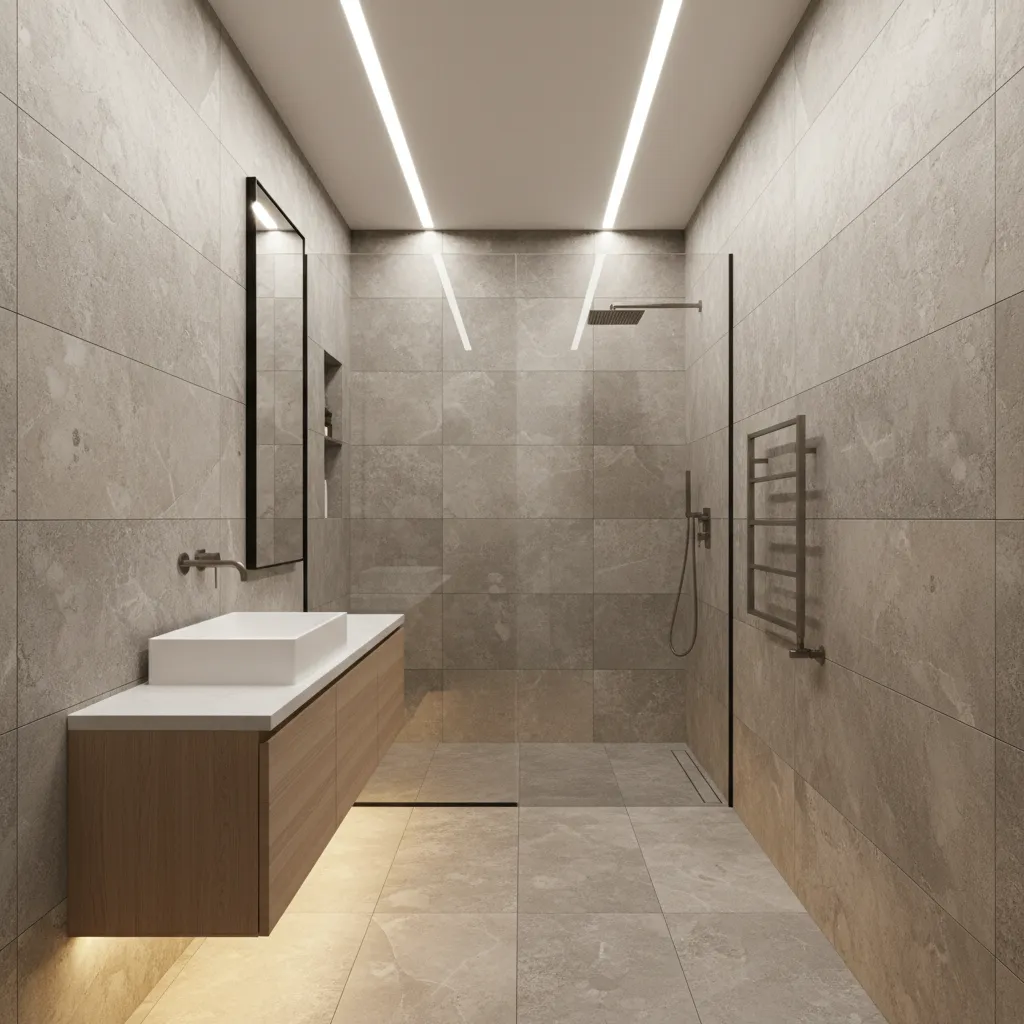

Poor Shower Placement Problems

Key Insight: The shower location determines whether a 5x12 bathroom feels like a narrow hallway or a balanced space.

One of the most common 5x12 bathroom layout mistakes is placing the shower near the entry. This creates visual clutter immediately when entering the room.

In most successful layouts I’ve designed, the shower sits at the far end of the room.

Benefits of end-of-room shower placement:

1. Creates a visual focal point
2. Allows uninterrupted circulation
3. Makes the room appear longer
4. Improves plumbing efficiency along one wall

When homeowners experiment with different configurations using interactive bathroom layout planning tools for small spaces, they often realize how dramatically shower placement affects the entire layout.

save pin

Vanity and Toilet Clearance Issues

Key Insight: Clearance problems usually come from oversized vanities rather than poor toilet placement.

Many homeowners try to install a 36‑inch vanity in a bathroom that really needs something closer to 24–30 inches.

Once the vanity grows too wide, the walkway shrinks and the toilet feels squeezed.

Recommended clearance guidelines:

1. Toilet side clearance: at least 15 inches from centerline
2. Front clearance: minimum 21 inches
3. Vanity walkway: ideally 30 inches or more

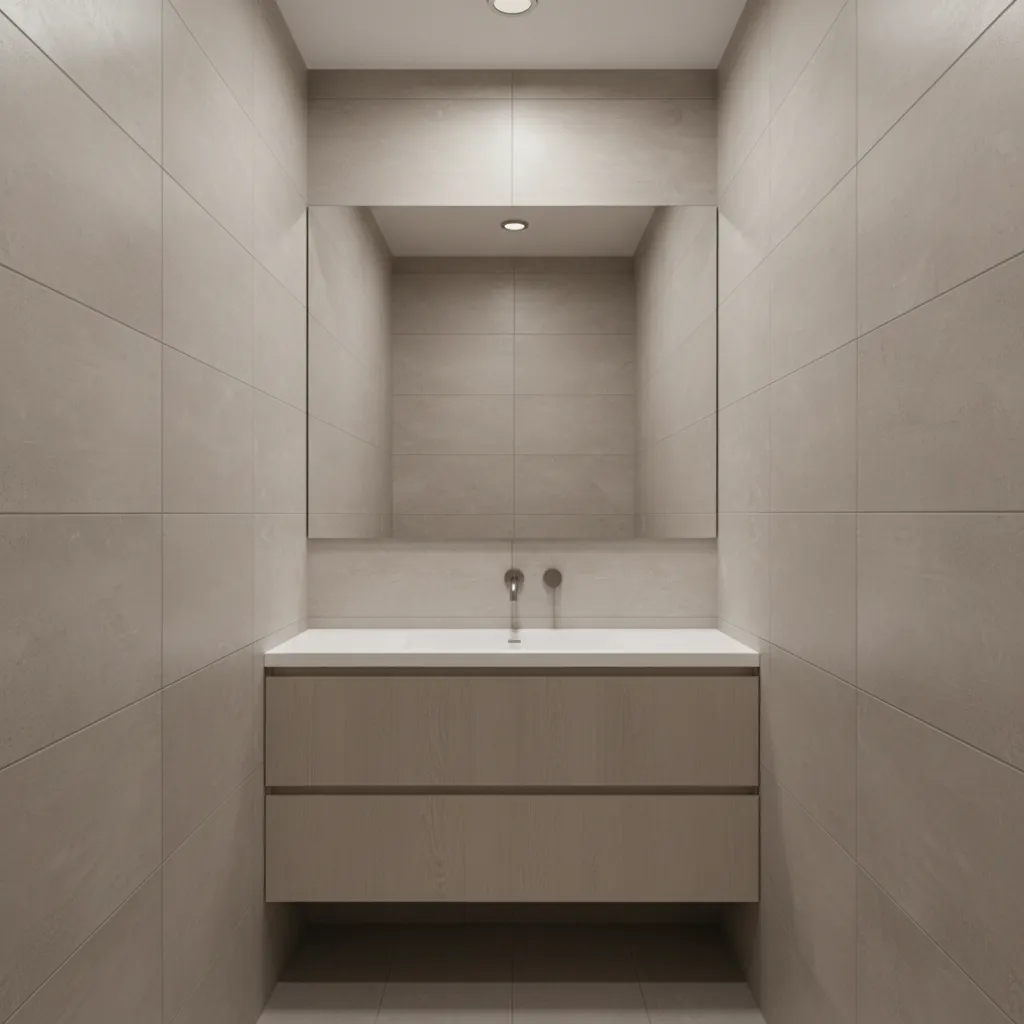

Smart vanity alternatives for narrow bathrooms:

1. Wall-mounted floating vanities
2. 20–24 inch compact cabinets
3. Open shelf vanities
4. Integrated sink countertops

Floating vanities are particularly effective because visible floor area makes the room feel wider.

save pin

Lighting and Ventilation Problems in Long Bathrooms

Key Insight: Long bathrooms often feel darker because lighting is concentrated in only one part of the room.

Many narrow bathrooms rely on a single ceiling light above the vanity. The shower area and back of the room then become dim, creating a tunnel-like effect.

A better lighting strategy includes three layers:

1. Vanity lighting for grooming tasks
2. Ceiling ambient lighting across the room
3. Shower lighting for safety and visibility

Ventilation is equally important. Long bathrooms trap humidity at the far end, especially when the fan sits near the entry.

Positioning the exhaust fan closer to the shower area improves moisture removal significantly.

Simple Layout Adjustments That Improve Functionality

Key Insight: Small adjustments in fixture scale and alignment can transform a dysfunctional 5x12 bathroom layout.

Most renovations don’t require structural changes. Instead, the biggest improvements come from smarter spacing.

Design adjustments I often recommend:

1. Replace bulky vanity with a narrow floating model
2. Move shower to the end wall
3. Install pocket door
4. Align plumbing fixtures along one wall
5. Add recessed wall storage instead of cabinets

Before committing to construction, many designers now test multiple arrangements using a visual room planner that simulates narrow bathroom layouts. Seeing clearances in 3D often reveals improvements that aren’t obvious in traditional floor plans.

Answer Box

The most effective way to fix a problematic 5x12 bathroom layout is improving fixture sequence, reducing vanity size, and eliminating door swing conflicts. Strategic lighting and end‑wall shower placement can dramatically improve comfort and usability.

Final Summary

1. Most narrow bathroom problems come from poor fixture sequencing.
2. Door swing conflicts waste valuable circulation space.
3. End-wall shower placement improves visual depth.
4. Compact vanities solve many toilet clearance issues.
5. Layered lighting prevents tunnel-like bathrooms.

FAQ

Is a 5x12 bathroom considered small?

Yes. A 5x12 bathroom is classified as a narrow full bathroom. The challenge is width rather than square footage, which makes layout planning critical.

What is the best layout for a 5x12 bathroom?

The most efficient 5x12 bathroom layout typically places the vanity near the entrance, the toilet in the middle, and the shower at the far wall.

Can a tub fit in a 5x12 bathroom?

Yes. A standard 60‑inch tub fits along the 5‑foot wall, though it may reduce layout flexibility compared with a shower.

What size vanity works best in a narrow bathroom?

Vanities between 24 and 30 inches wide usually work best in a 5x12 bathroom because they preserve walkway clearance.

How much clearance does a toilet need?

Most building guidelines recommend at least 15 inches from the toilet centerline to adjacent walls and 21 inches of front clearance.

Can you have double sinks in a 5x12 bathroom?

It’s possible but rarely practical. Double sinks typically reduce circulation space and create a cramped layout.

What causes most small bathroom layout problems?

The most common small bathroom layout problems include oversized vanities, poorly positioned showers, and door swing conflicts.

How can I test a 5x12 bathroom layout before remodeling?

Many homeowners use digital planning tools to visualize clearances and fixture placement before starting a bathroom renovation.

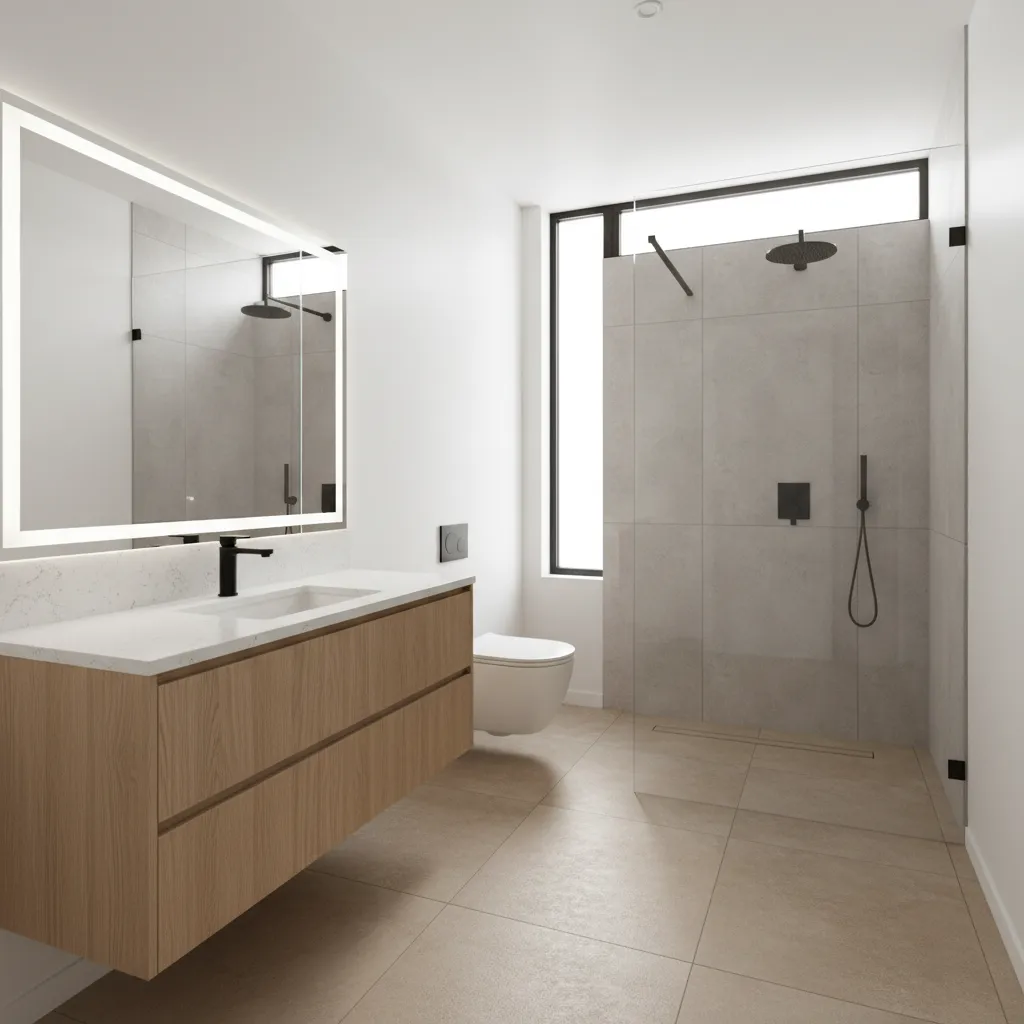

Featured Image

fileName: 5x12-bathroom-layout-problems-fixes.jpg

size: 1920x1080

alt: long narrow 5x12 bathroom layout showing optimized fixture placement

caption: Smart layout fixes can transform a narrow bathroom.
