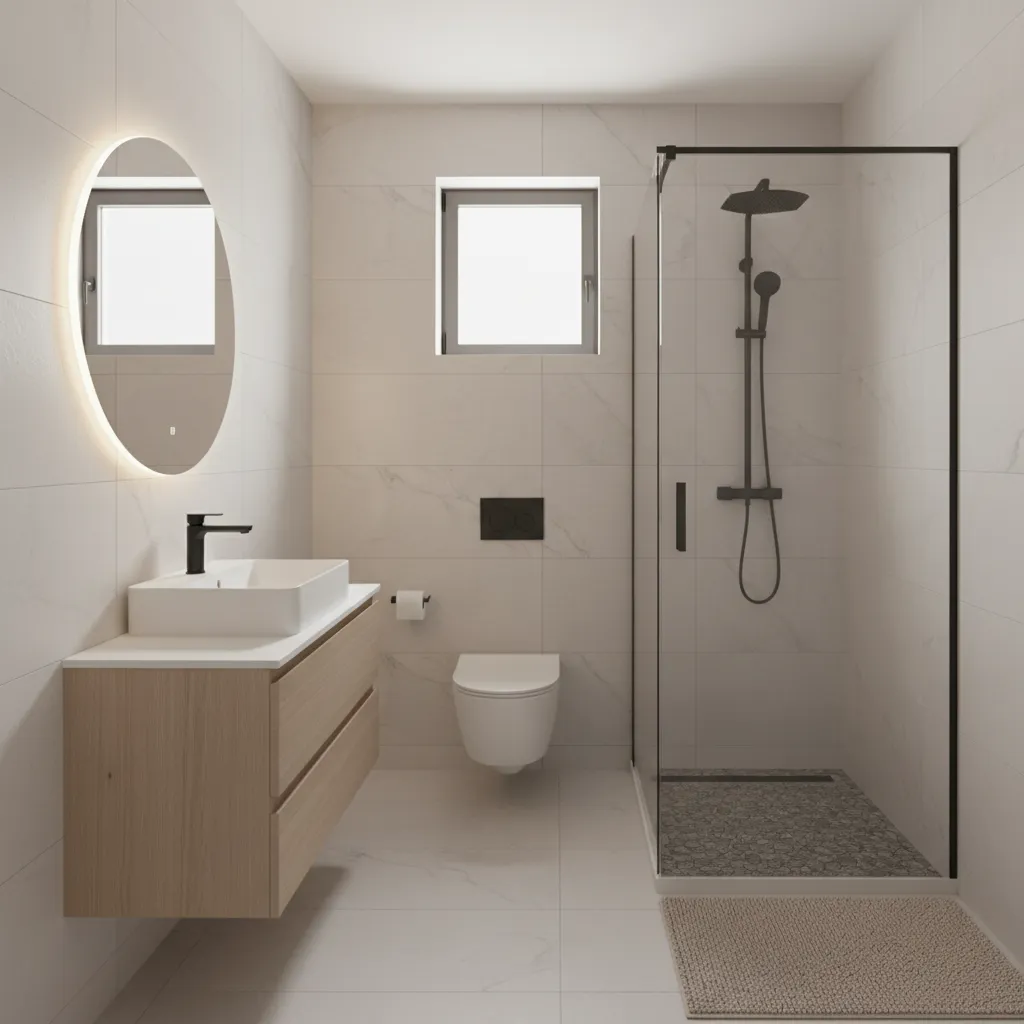

Common Problems in a 5x9 Bathroom Layout and How to Fix Them: Design mistakes, clearance issues, and smart fixes that make a 5x9 bathroom layout actually work in real homes.

Direct Answer

A 5x9 bathroom layout often feels cramped because fixture clearances, door swings, and plumbing placement compete for the same limited space. Most problems come from poor fixture alignment rather than room size. By adjusting vanity depth, shower door type, and toilet spacing, a tight 5x9 bathroom can function comfortably.

Quick Takeaways

1. Most 5x9 bathroom layout problems come from poor fixture placement, not the room size itself.
2. Switching to sliding or pivot shower doors often solves entry conflicts.
3. Vanities deeper than 21 inches frequently block natural movement paths.
4. Keeping plumbing walls aligned can dramatically reduce renovation costs.
5. Lighting and mirror placement often determine whether a small bathroom feels cramped.

Introduction

After working on dozens of small bathroom renovations, I’ve noticed something interesting: a 5x9 bathroom layout is rarely too small. The real issue is usually how the fixtures are arranged.

Homeowners often assume the room itself is the problem. But in reality, awkward toilet clearances, oversized vanities, and poorly placed shower doors create the feeling of a cramped space.

I’ve redesigned many bathrooms exactly this size—especially in older homes where plumbing locations were never intended for modern fixtures. When the layout is corrected, a 5x9 bathroom can feel surprisingly functional.

If you're planning a redesign, it helps to visualize the room first. Many homeowners start by experimenting with interactive room layout tools to test different bathroom configurationsbefore touching any plumbing.

In this guide, I’ll walk through the most common problems I see in 5x9 bathrooms and the practical design fixes that actually solve them.

save pin

Why 5x9 Bathroom Layouts Sometimes Feel Too Tight

Key Insight: A 5x9 bathroom usually feels tight because circulation paths overlap with fixture clearances.

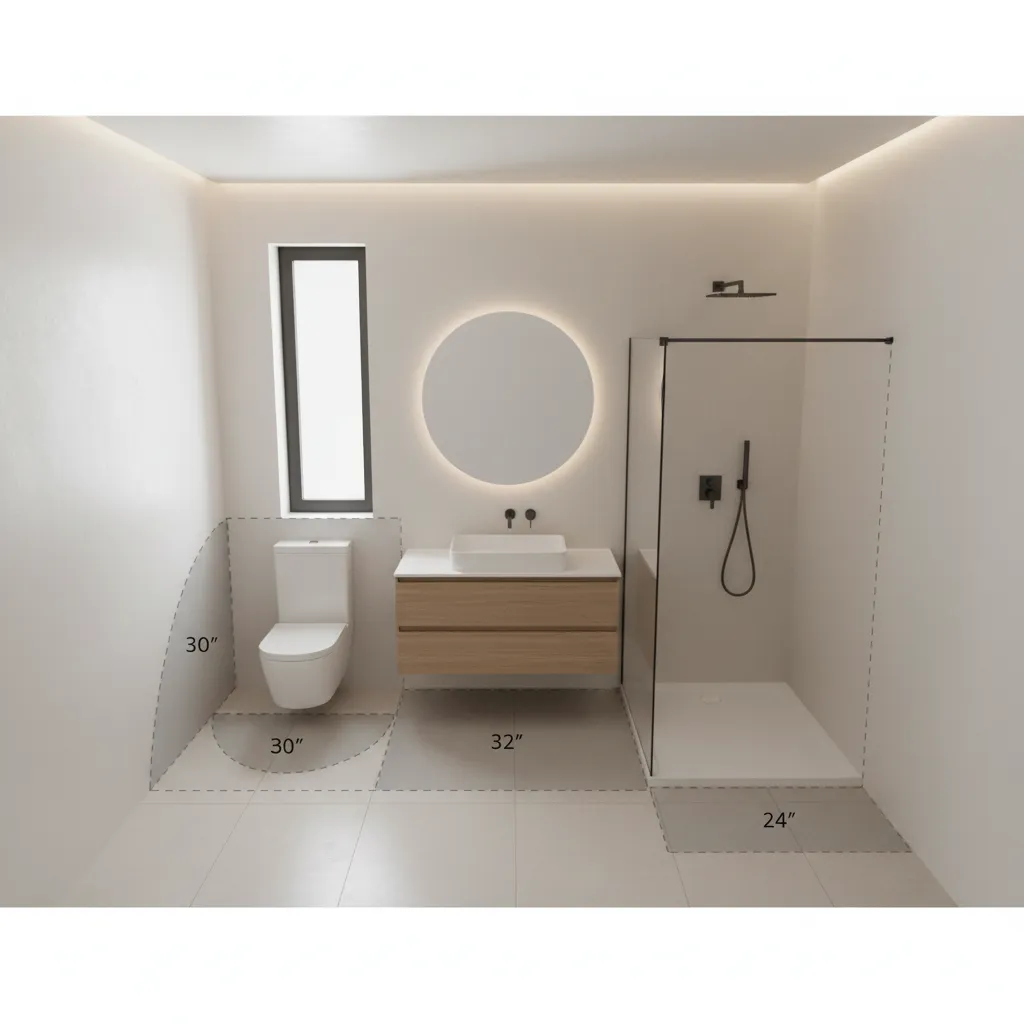

In many small bathrooms, three critical zones compete for the same floor space: the toilet clearance zone, vanity standing area, and shower entry. When these overlap, movement becomes awkward.

According to the National Kitchen and Bath Association (NKBA), recommended clearances include:

1. 30 inches minimum width for toilets
2. 21 inches clearance in front of fixtures
3. 30 inches recommended vanity standing space

When a vanity is too deep or a toilet is slightly misaligned, these zones collide.

Common hidden layout mistakes:

1. Oversized 24-inch-deep vanities
2. Bathtub replacements without adjusting entry space
3. Doors swinging into fixture clearance zones

A better layout often places the vanity first along the entry wall, with toilet and shower aligned along the plumbing wall.

save pin

Toilet Clearance Problems and Fixes

Key Insight: Toilets feel cramped in small bathrooms when side clearances are ignored during layout planning.

The most common 5x9 bathroom layout problem I encounter is a toilet squeezed between the vanity and shower. Even if it technically fits, daily use becomes uncomfortable.

Minimum toilet spacing guidelines:

1. 15 inches from centerline to each side wall
2. 21 inches clearance in front
3. 30 inches total width recommended

Practical fixes I often use in renovation projects:

1. Wall-mounted toilets that reduce depth
2. Narrow vanities (18–20 inches deep)
3. Offset toilet placement by a few inches

Even shifting a toilet 3–4 inches during renovation can dramatically improve comfort.

Shower Door and Entry Conflicts

Key Insight: Shower doors are responsible for many movement problems in small bathrooms.

In tight layouts, a swinging glass door often collides with the toilet or vanity. This is one of the most overlooked design errors.

Better shower door options for 5x9 bathrooms:

1. Sliding glass doors
2. Bi-fold shower doors
3. Fixed panel walk-in showers
4. Curtain systems for tubs

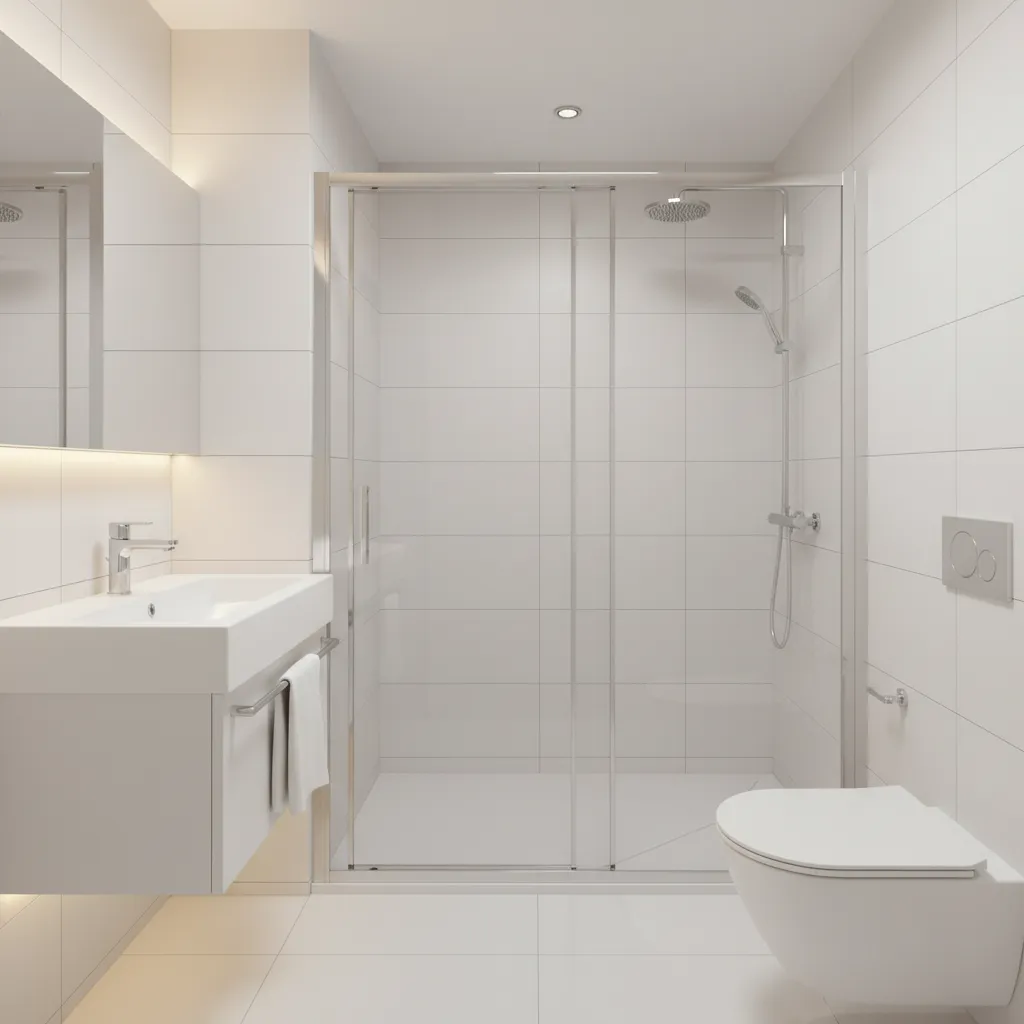

In many of my projects, simply replacing a swinging door with a sliding one instantly frees up two to three square feet of usable movement space.

save pin

Vanity Placement That Blocks Movement

Key Insight: Oversized vanities are one of the biggest reasons a small bathroom layout fails.

Homeowners often choose vanities based on storage instead of scale. A 36-inch vanity might look great in a showroom, but in a 5x9 bathroom it often blocks the natural walking path.

Recommended vanity sizing for small bathrooms:

1. Width: 24–30 inches
2. Depth: 18–21 inches
3. Wall-mounted styles for more floor visibility

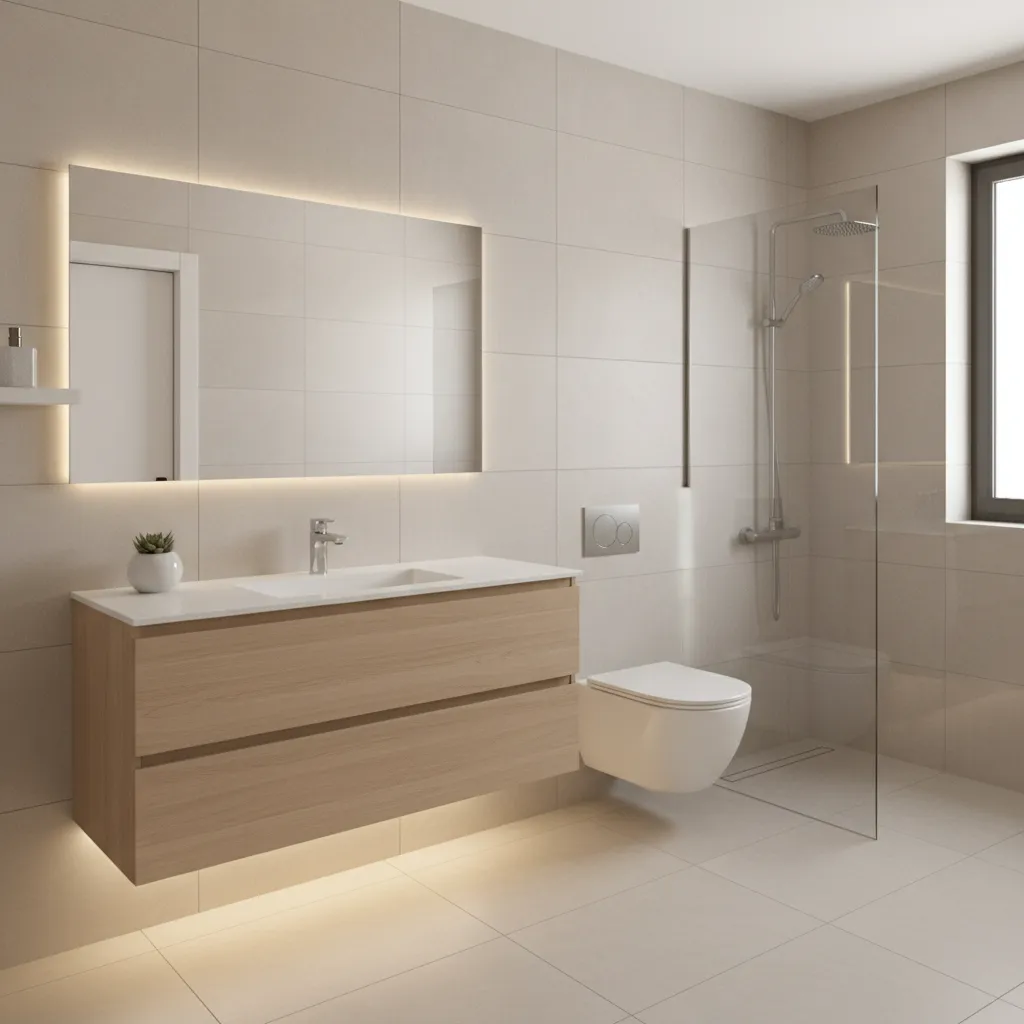

Floating vanities are particularly effective because they visually expand the room and create usable floor space underneath.

If you're experimenting with layouts, you can test fixture placement using a digital bathroom layout planner for small spaces before committing to cabinetry sizes.

Poor Lighting and Mirror Placement Issues

Key Insight: Lighting placement can make a small bathroom feel twice as tight—or twice as open.

One surprising issue I often see is mirrors installed too high or too narrow. When the mirror fails to reflect light across the room, the space visually shrinks.

Better lighting strategies for compact bathrooms:

1. Wide mirrors spanning the vanity
2. Side sconces instead of single overhead lights
3. Light-colored wall finishes
4. LED lighting around mirrors

Professional designers frequently rely on reflective surfaces to visually extend tight rooms.

save pin

Answer Box

The most effective way to fix a cramped 5x9 bathroom layout is optimizing fixture placement rather than expanding the room. Narrower vanities, sliding shower doors, and corrected toilet spacing can significantly improve usability without structural changes.

Plumbing Location Constraints in Small Bathrooms

Key Insight: Moving plumbing is often possible—but it’s usually the most expensive change in a small bathroom renovation.

In older homes, plumbing stacks dictate where fixtures must go. Moving a toilet drain even a few feet may require opening floors or ceilings.

Typical plumbing constraints include:

1. Main drain stack location
2. Vent pipe placement
3. Floor joist direction
4. Existing water line routing

Because of these constraints, the smartest approach is usually working with the plumbing wall instead of against it.

When evaluating new layouts, I often show clients photorealistic previews using realistic 3D bathroom visualization before renovation begins. Seeing the layout at scale helps catch spacing problems early.

Final Summary

1. Most 5x9 bathroom layout problems come from fixture placement errors.
2. Sliding shower doors solve many movement conflicts.
3. Narrower or floating vanities improve circulation.
4. Correct toilet clearances dramatically improve comfort.
5. Working with existing plumbing often saves major renovation costs.

FAQ

Is a 5x9 bathroom considered small?

A 5x9 bathroom is considered a standard full bathroom in many homes. The challenge is not the size but how efficiently the fixtures are arranged.

What is the best layout for a 5x9 bathroom?

The most efficient 5x9 bathroom layout places the vanity near the entrance, with the toilet and shower aligned along the same plumbing wall.

How much clearance should a toilet have in a small bathroom?

At least 15 inches from the centerline to each side and 21 inches in front. More space improves comfort.

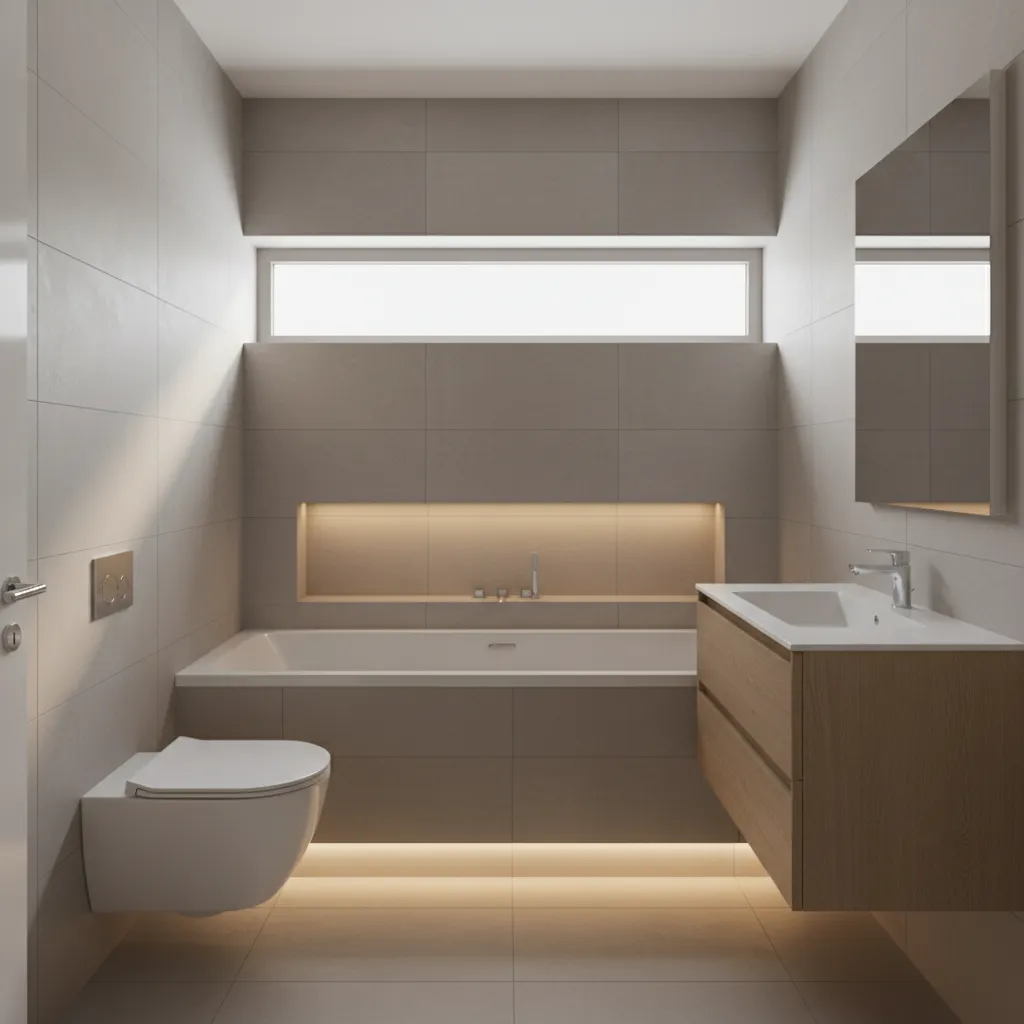

Can a 5x9 bathroom fit a bathtub?

Yes. A standard 60-inch tub fits along the 5‑foot wall, which is common in many small bathroom designs.

What vanity size works best in a 5x9 bathroom?

Most designers recommend a vanity between 24 and 30 inches wide and no deeper than 21 inches.

How do you make a cramped bathroom feel bigger?

Use floating vanities, wide mirrors, better lighting, and minimize door swing conflicts.

What are common 5x9 bathroom renovation mistakes?

Common mistakes include oversized vanities, incorrect toilet spacing, and installing swing shower doors in tight spaces.

Can plumbing be moved in a small bathroom remodel?

Yes, but it increases renovation cost significantly. Designers often adjust fixture sizes instead.
