Common Problems in Small Cinema Hall Design and How to Fix Them: Practical solutions from real cinema layout projects to fix sightlines, acoustics, screen size, and circulation issues in compact theaters

Direct Answer

Small cinema hall design problems usually come from poor proportions between seating layout, screen size, acoustics, and circulation space. The most effective fixes involve correcting seating rake angles, aligning projection distance with screen size, improving acoustic absorption, and reorganizing entry flow. When these elements are balanced, even a compact cinema can deliver a professional theater experience.

Quick Takeaways

1. Most small cinema hall design problems come from incorrect room proportions rather than limited space.
2. Sightlines fail when seating rake angles are too shallow or row spacing is too tight.
3. Acoustic issues often result from parallel walls and insufficient sound absorption.
4. Screen size must match viewing distance, not just wall width.
5. Lobby congestion is usually caused by poor circulation planning, not small area.

Introduction

I have worked on several compact entertainment venues over the past decade, and one pattern keeps repeating: small cinema hall design problems rarely come from the size of the room itself. They come from design decisions made too early without considering how viewers actually experience the space.

A small cinema hall might be only 80–150 square meters, but it still needs to support projection geometry, sound distribution, audience sightlines, and safe circulation. If just one of these elements is miscalculated, the entire viewing experience suffers.

One of the most effective ways to prevent these issues is visualizing the layout before construction. Many designers now test seating geometry and spatial flow using tools like a visual room layout planning workflow for compact entertainment spacesso potential problems appear long before the build phase.

In this guide, I'll break down the most common small theater layout mistakes I see in real projects and explain how to correct them without rebuilding the entire venue.

save pin

Why Compact Cinema Halls Often Face Design Challenges

Key Insight: Small cinema halls fail when designers compress every function into the same footprint instead of prioritizing viewing geometry.

When space is limited, many projects try to maximize seating capacity first. Unfortunately, this often sacrifices projection distance, aisle width, and sound performance.

In practice, compact cinemas succeed when the design prioritizes three spatial relationships:

1. Viewer eye height relative to the screen
2. Projection distance relative to screen width
3. Clear circulation paths for audience entry and exit

The Society of Motion Picture and Television Engineers (SMPTE) recommends viewing angles that keep the screen within comfortable horizontal and vertical limits. Ignoring these guidelines is one of the fastest ways to create an uncomfortable theater.

In many renovation projects I've reviewed, fixing layout proportions improved audience comfort more than increasing seat count ever could.

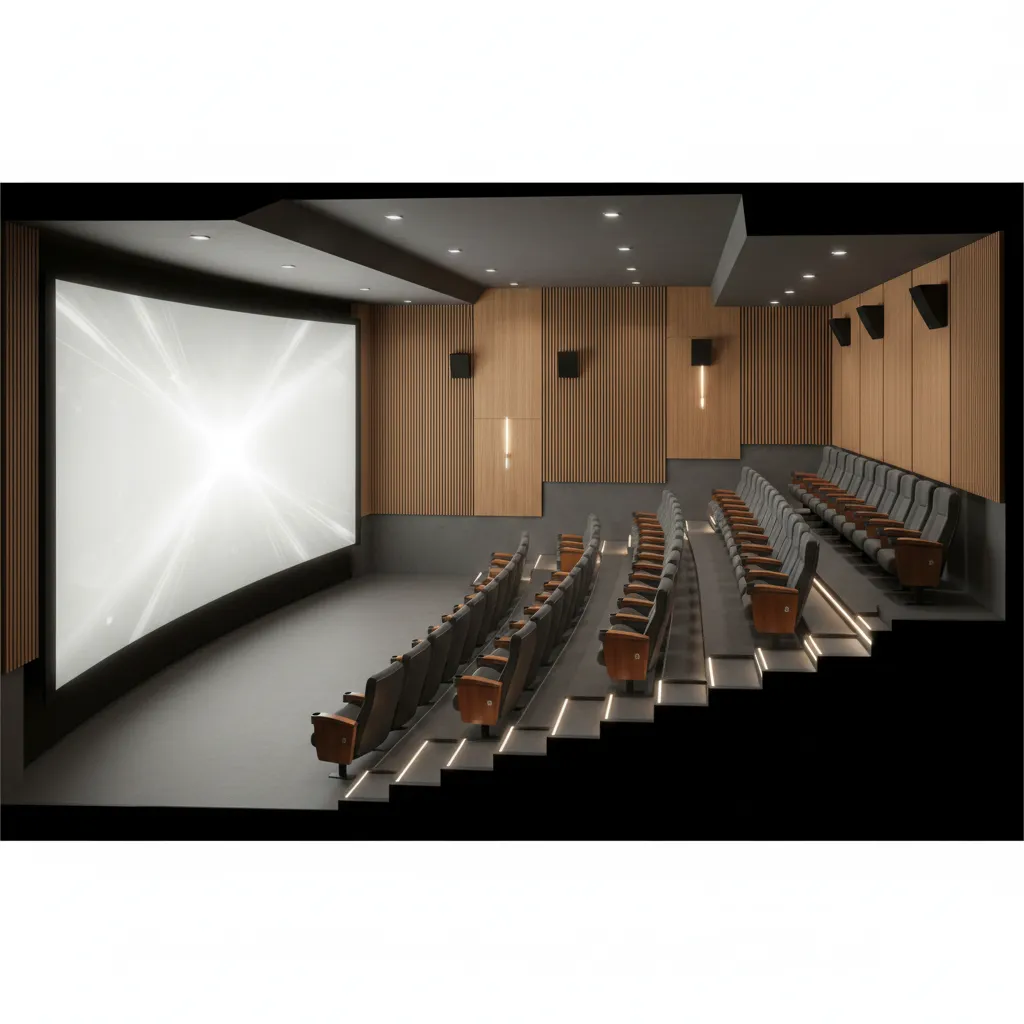

Poor Sightlines and How to Correct Seating Angles

Key Insight: Sightline problems usually happen when the seating rake is too flat or row spacing is miscalculated.

In a compact theater, even a small miscalculation can block the view of the screen for several rows.

The most common mistakes include:

1. Row elevation increases that are too small
2. Seats placed too close to the screen
3. Insufficient vertical clearance between rows

A reliable correction method follows these steps:

1. Establish the eye height of a seated viewer (about 1.15 m).
2. Calculate the top and bottom screen visibility lines.
3. Raise each row 12–16 cm depending on seat spacing.
4. Maintain row spacing between 1.0–1.2 meters.

When I redesign small cinemas, I usually simulate these viewing angles using a 3D floor layout simulation for theater seating visibility. Seeing the viewing cone in three dimensions immediately reveals blocked views.

save pin

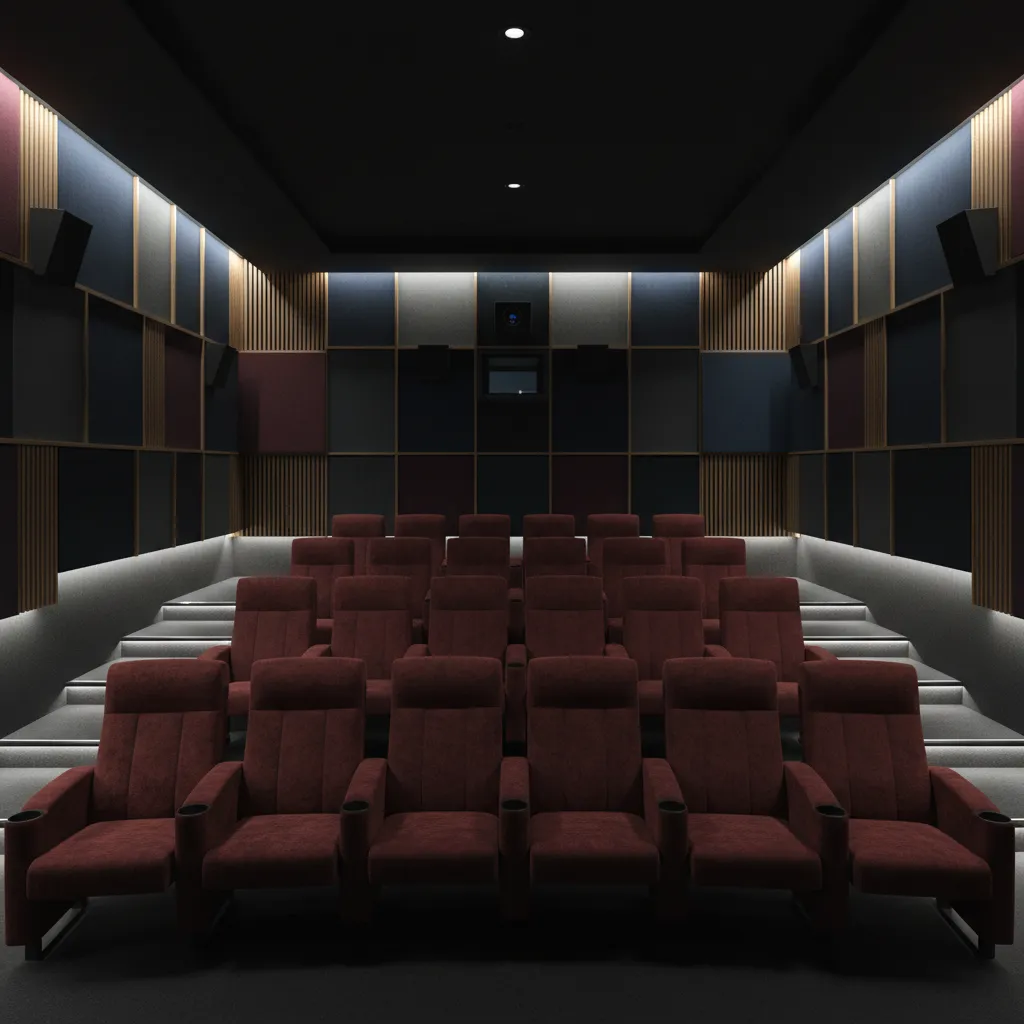

Acoustic Problems in Small Theater Rooms

Key Insight: The biggest acoustic issues in small cinema rooms come from sound reflection rather than insufficient speakers.

Compact theaters amplify acoustic flaws because sound waves bounce quickly between walls.

The three most common acoustic issues are:

1. Echo caused by parallel side walls
2. Bass buildup in rear corners
3. Dialogue clarity loss from reflective surfaces

Professional fixes typically include:

1. Acoustic wall panels along the first reflection points
2. Bass traps in rear corners
3. Fabric wall finishes instead of hard surfaces
4. Acoustic ceiling panels above seating rows

According to Dolby cinema acoustic guidelines, early reflection control is essential for clear dialogue. Even modest acoustic treatment dramatically improves sound performance in smaller rooms.

save pin

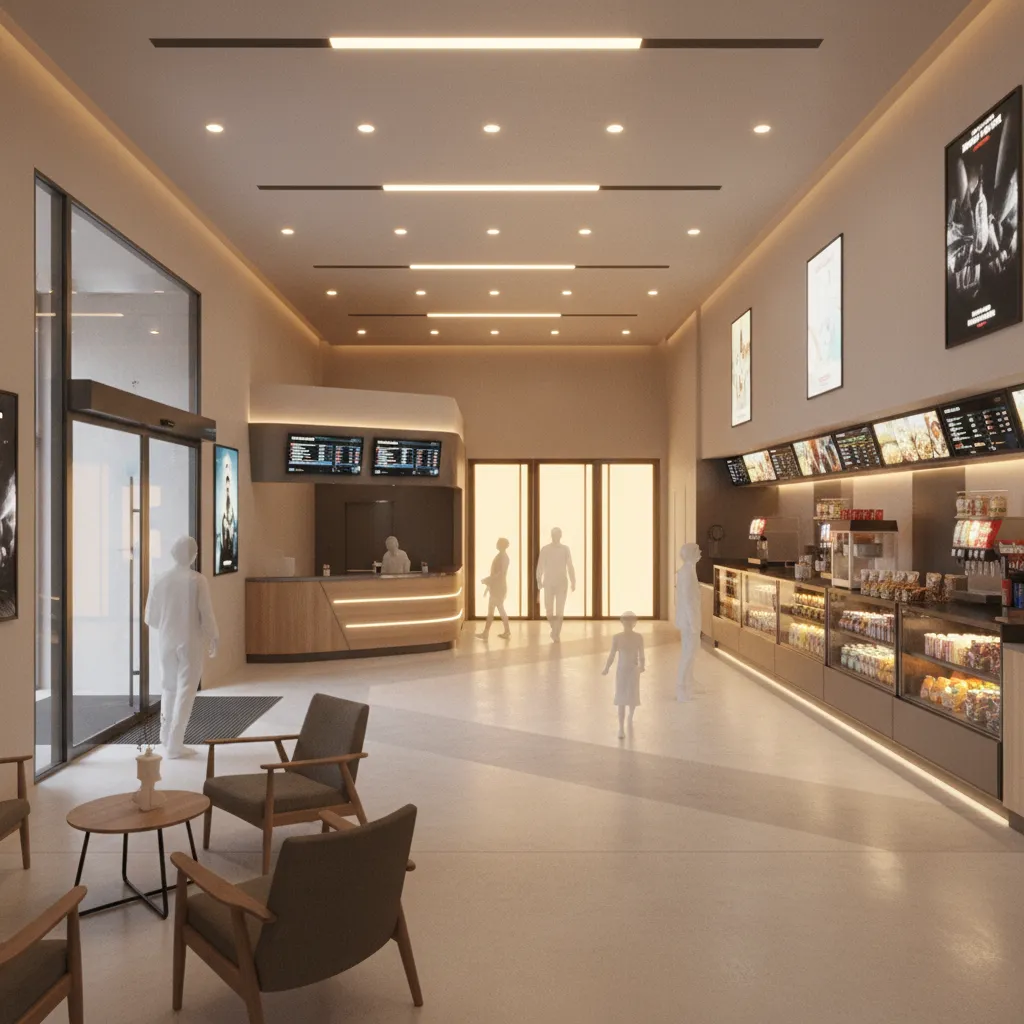

Overcrowded Lobby and Circulation Issues

Key Insight: Most small cinema lobby problems are caused by poorly designed movement paths rather than insufficient space.

Designers often underestimate how audiences move before and after a screening. Ticketing, concessions, and theater entry can easily collide in a small foyer.

Effective circulation design usually follows this layout logic:

1. Ticketing located near the entrance
2. Concessions placed along the side wall
3. Direct pathway toward auditorium doors
4. Separate exit route where possible

I often recommend mapping these flows visually with a high‑detail spatial rendering workflow for public interior circulation. It quickly exposes bottlenecks that floor plans alone cannot reveal.

save pin

Screen Size Mismatch With Room Dimensions

Key Insight: Choosing the largest possible screen often makes viewing worse in small theaters.

This is one of the most overlooked small theater layout mistakes.

If the screen is too large:

1. Front rows experience neck strain
2. Image distortion becomes noticeable
3. Projection brightness drops

A practical rule used in cinema design:

1. Optimal viewing distance: 1.5–2.5 × screen width
2. Maximum viewing angle: about 36° horizontally

When these ratios are respected, even a modest screen feels immersive without overwhelming viewers.

Fixing Projection and Viewing Distance Problems

Key Insight: Projection issues often originate from incorrect projector placement rather than equipment quality.

In compact theaters, projector throw distance becomes extremely sensitive. Even a small deviation can produce blurry edges or keystone distortion.

Correct projection setup requires aligning:

1. Projector throw ratio
2. Screen width
3. Mounting height
4. Lens offset

In renovation projects, repositioning the projector or switching to a short‑throw lens often solves cinema projection distance problems without replacing the entire system.

Answer Box

The most common small cinema hall design problems involve sightline obstruction, acoustic reflections, mismatched screen size, and poor audience circulation. These issues are usually solved by correcting seating geometry, adding acoustic treatments, and aligning projection distance with screen width.

Final Summary

1. Most small cinema design failures come from incorrect spatial proportions.
2. Sightlines improve dramatically with proper row elevation.
3. Acoustic treatment is more important than adding speakers.
4. Screen size must match viewing distance, not wall size.
5. Audience circulation planning prevents lobby congestion.

FAQ

What are the most common small cinema hall design problems?

The most frequent issues include poor sightlines, acoustic reflections, incorrect screen size, and circulation bottlenecks in the lobby.

How do you fix poor sightlines in a movie theater?

Increase seating rake angles, ensure proper row spacing, and calculate viewer eye lines relative to the screen.

Why do small cinema rooms have acoustic problems?

Parallel walls and hard surfaces reflect sound repeatedly, causing echo and unclear dialogue.

What is the ideal viewing distance for a cinema screen?

Typically between 1.5 and 2.5 times the screen width depending on seating layout.

How can I avoid small theater layout mistakes?

Simulate seating geometry and circulation flow before construction to detect conflicts early.

Do small cinemas need acoustic treatment?

Yes. Acoustic panels and bass traps are essential for maintaining sound clarity in compact rooms.

What causes cinema projection distance problems?

Incorrect projector placement, incompatible lens ratios, or screens that are too large for the room.

How do you design a small movie theater correctly?

Balance seating geometry, screen size, acoustics, and circulation flow rather than maximizing seat count.
