Common Problems in Ultra-Narrow 7x4 Bathroom Layouts and How to Fix Them: Practical layout fixes designers use to solve circulation conflicts and cramped fixtures in 7‑by‑4 bathrooms

Direct Answer

The most common problems in a 7x4 bathroom layout are door collisions, poor circulation, tight toilet clearances, and badly positioned showers. These issues happen because every inch matters in an ultra‑narrow footprint. The solution usually involves micro‑zoning fixtures, adjusting door strategy, and choosing compact plumbing layouts designed specifically for narrow bathrooms.

Quick Takeaways

1. Most 7x4 bathroom layout problems come from door swing conflicts and poor circulation paths.
2. Wall‑aligned fixtures and linear planning prevent movement bottlenecks.
3. Micro‑zoning keeps toilet, sink, and shower functions from overlapping.
4. Sliding or pocket doors often recover 6–9 inches of usable space.
5. Compact fixtures can improve usability without reducing functionality.

Introduction

Designing a functional 7x4 bathroom layout is harder than most homeowners expect. I have worked on dozens of ultra‑small bathrooms in apartments, ADUs, and narrow townhomes, and the same complaints appear again and again: doors hitting sinks, toilets squeezed into corners, and showers that make the whole room feel blocked.

What makes this layout tricky is not the size alone—it is the proportion. A 7‑foot length gives you options, but the 4‑foot width severely limits circulation. If the fixtures are placed in the wrong sequence, the entire room becomes awkward to use.

Many homeowners try to fix these issues by simply shrinking fixtures. In reality, layout logic matters more than fixture size. I often recommend experimenting with spatial arrangements using tools that let you sketch and test ultra‑small bathroom layouts before renovation. Seeing circulation paths early prevents expensive plumbing changes later.

In this guide, I will walk through the most common layout failures I see in 7‑by‑4 bathrooms and the design strategies professionals use to solve them.

save pinOpen in 3D Planner Processing...

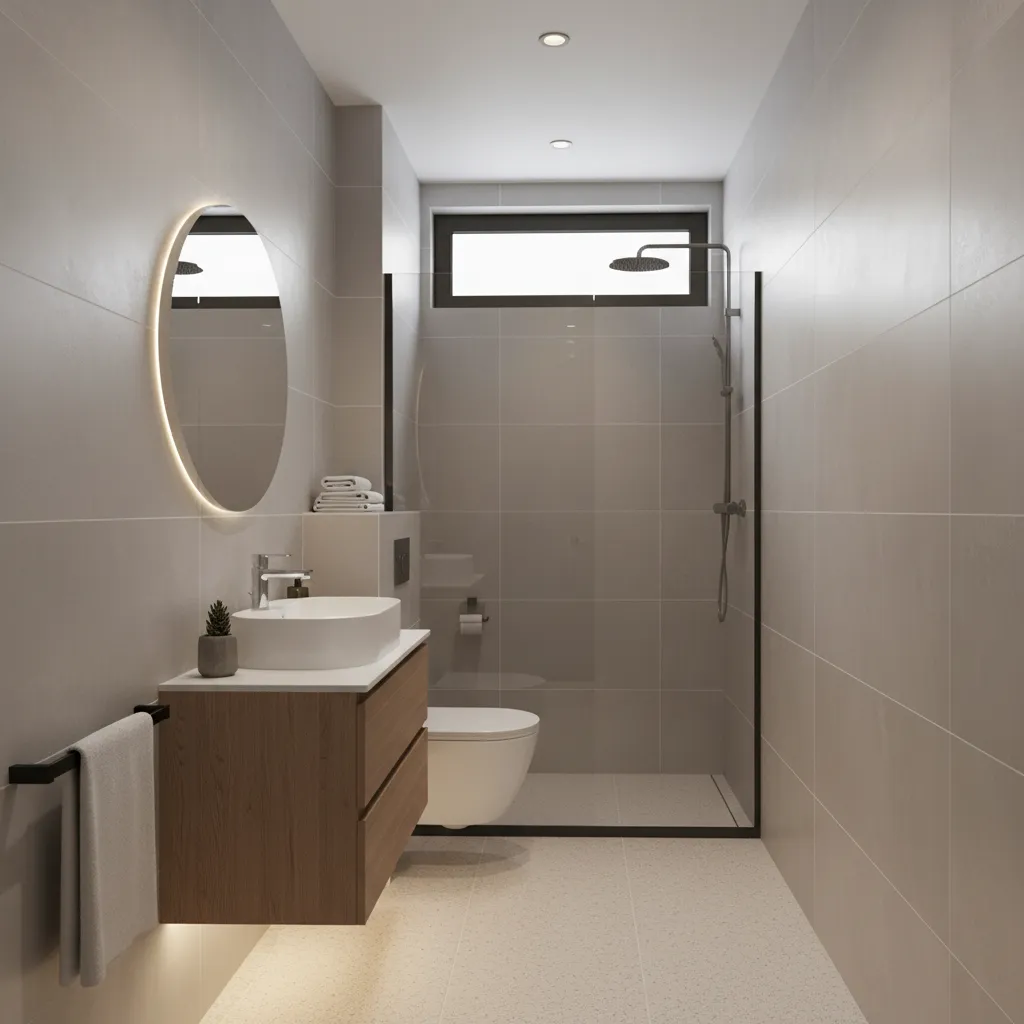

Typical Spatial Conflicts in a 7x4 Bathroom

Key Insight: Most spatial conflicts in a 7x4 bathroom occur because fixtures compete for the same movement corridor.

In a room only four feet wide, you realistically have about 30–32 inches of clear walking space once walls and fixtures are accounted for. If a toilet, vanity, or shower edge intrudes into that path, the room immediately feels cramped.

After reviewing dozens of renovation plans, I see three repeating conflict patterns:

1. Overlapping fixture zones – Sink and toilet clearance areas intersect.
2. Blocked entry space – Door swing eliminates usable standing space.
3. Shower encroachment – Shower footprint cuts into circulation.

Professional designers typically organize narrow bathrooms into a single linear flow:

1. Entry
2. Sink
3. Toilet
4. Shower

This sequence keeps circulation predictable and prevents overlapping functional zones.

save pinOpen in 3D Planner Processing...

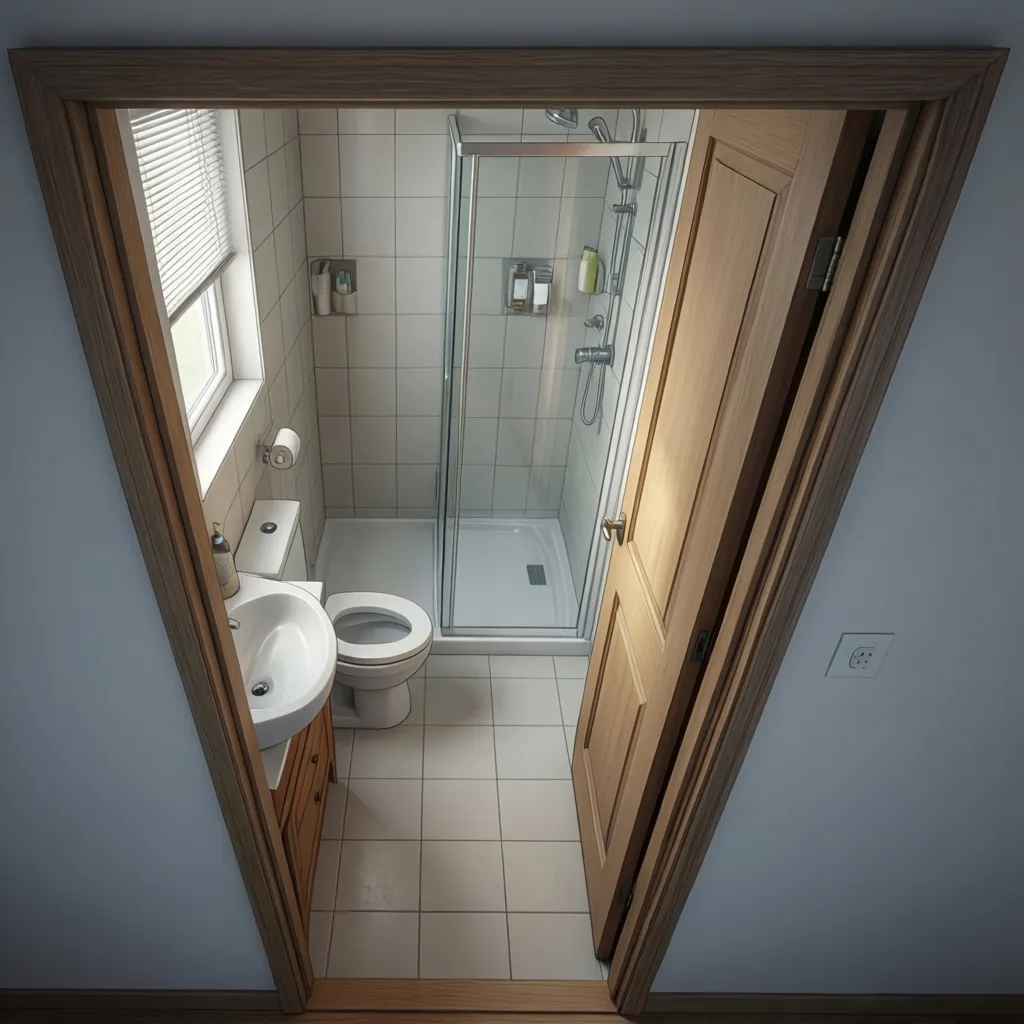

Door Swing and Circulation Problems

Key Insight: The wrong door type can waste up to 15% of usable space in a 7x4 bathroom.

Standard hinged doors are surprisingly destructive in narrow layouts. When the door opens inward, it often collides with the vanity or blocks the toilet approach.

In projects I redesign, the door is frequently the first change we make.

Better door strategies include:

1. Pocket doors
2. Sliding barn‑style doors
3. Outward‑swing doors

Pocket doors are usually the best solution because they eliminate swing space completely. However, they require a suitable wall cavity.

When space planning, I often test circulation scenarios using tools that help designers simulate tight bathroom circulation paths and fixture placement. Visualizing movement inside the room quickly reveals whether the door blocks key zones.

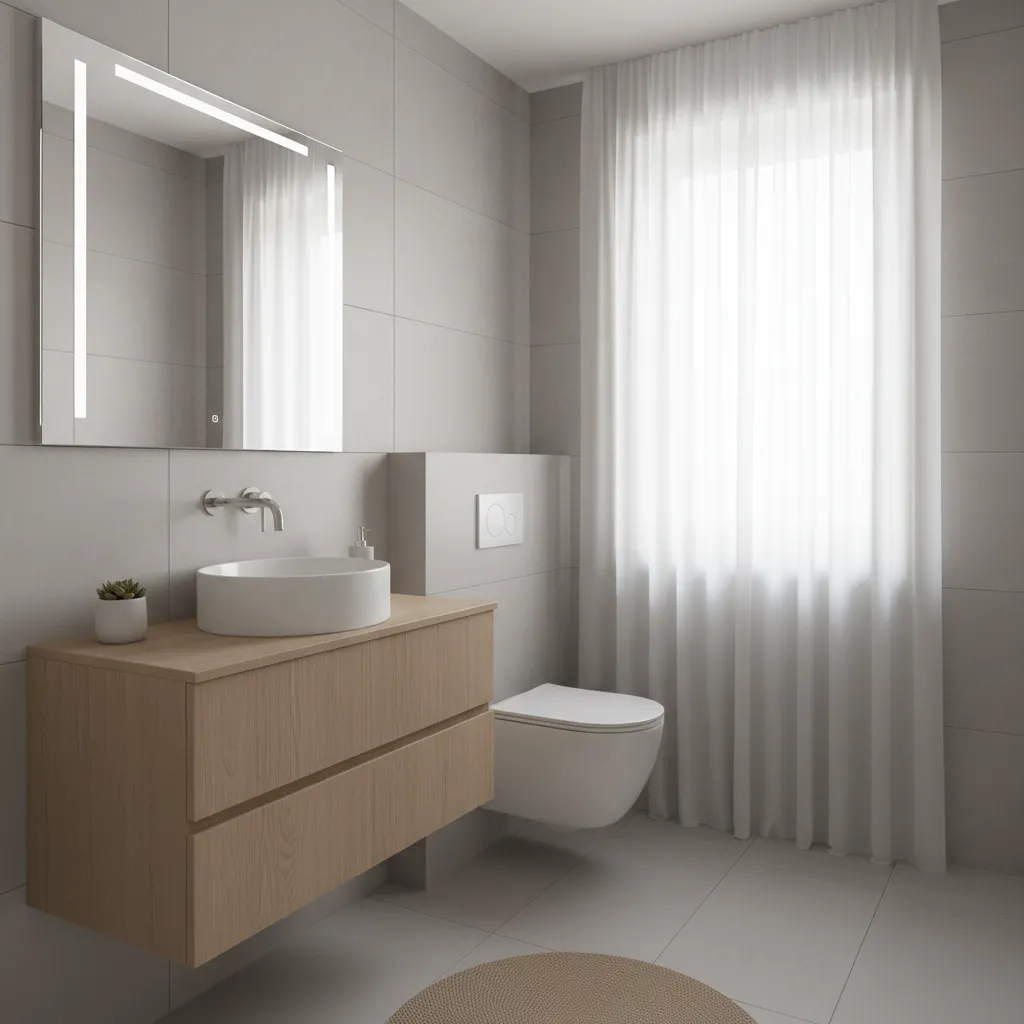

Toilet and Sink Clearance Issues

Key Insight: Clearance problems occur when designers treat fixture dimensions as the only requirement instead of planning the human movement around them.

Building codes often require around 15 inches from toilet centerline to each side wall. In a 4‑foot wide room, that leaves very little flexibility.

Typical mistakes include:

1. Vanities that extend too far into the walking path
2. Toilets positioned directly beside the door
3. Sinks that overlap toilet clearance zones

Better fixture strategies:

1. Use wall‑mounted sinks or floating vanities
2. Choose short‑projection toilets (24–26 inches deep)
3. Align sink and toilet along the same wall

Floating fixtures are particularly effective because they visually open the floor area, which psychologically reduces the cramped feeling.

save pinOpen in 3D Planner Processing...

Shower Placement Constraints

Key Insight: In a 7x4 bathroom, the shower should almost always occupy the far end of the room.

Placing the shower in the center is one of the biggest layout mistakes I encounter. It breaks circulation and forces people to navigate around glass or walls.

The most efficient configurations are:

1. End‑wall shower (30–36 inches deep)
2. Walk‑in linear shower with glass partition
3. Curbless shower that visually extends the room

Glass partitions are particularly effective because they maintain visual depth. Opaque shower walls often make narrow bathrooms feel even smaller.

Fixing Layout Bottlenecks with Micro-Zoning

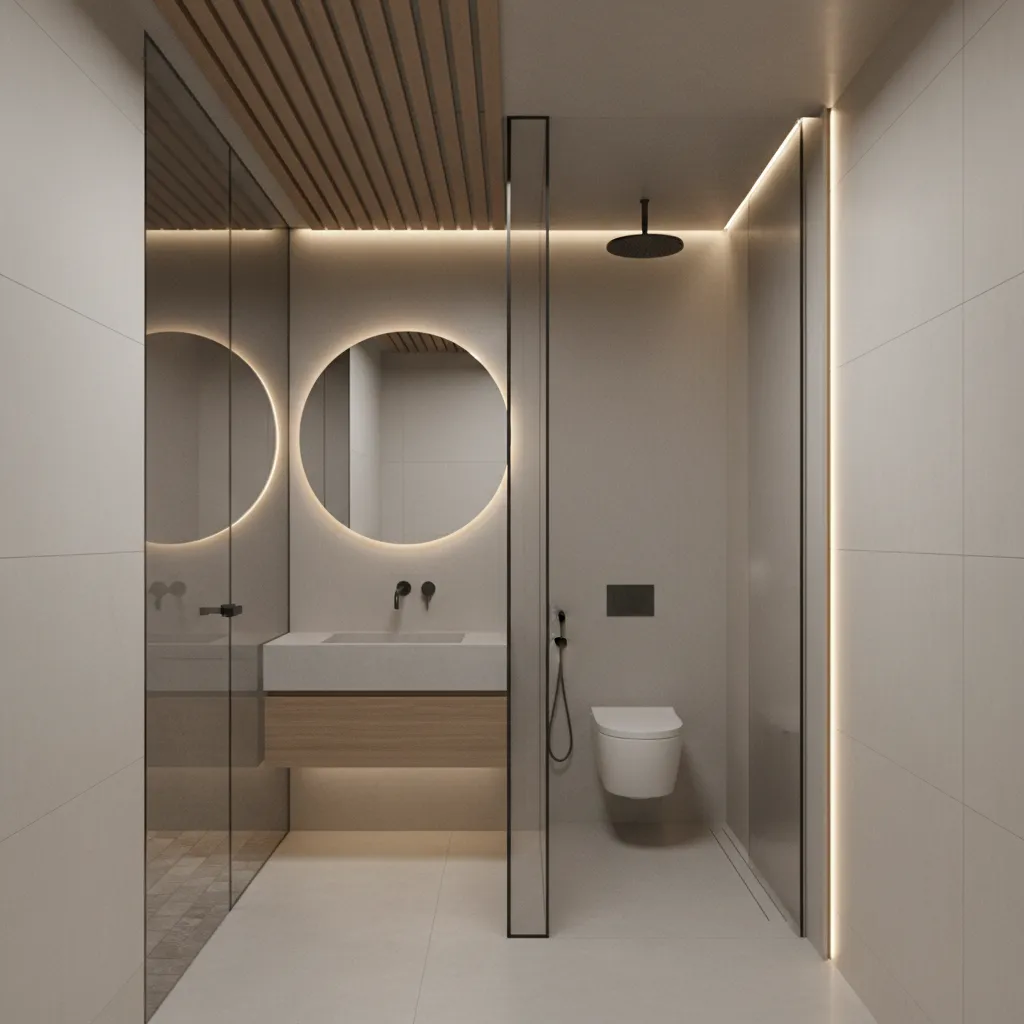

Key Insight: Micro‑zoning divides a tiny bathroom into functional segments that prevent spatial overlap.

This approach is common in compact urban apartments and high‑efficiency housing. Instead of thinking of the room as one open area, we divide it into three narrow zones.

A typical micro‑zoning layout:

1. Zone 1 – Entry and vanity
2. Zone 2 – Toilet clearance area
3. Zone 3 – Shower compartment

Each zone gets a dedicated function and clearance space. When implemented correctly, circulation becomes intuitive even in extremely small rooms.

Designers often visualize these zones using tools that can generate realistic small bathroom layout previews, which helps homeowners understand spacing before construction begins.

save pinOpen in 3D Planner Processing...

Design Adjustments That Preserve the Interface Concept

Key Insight: The best narrow bathrooms behave like a functional interface—each element supports the next in a predictable flow.

I often describe a good 7x4 layout as "interface design for physical space." Every fixture has a clear role and sequence.

Effective adjustments include:

1. Aligning fixtures along a single plumbing wall
2. Using visual continuity like large tiles
3. Reducing bulky cabinetry
4. Maintaining a straight movement corridor

These design decisions not only improve usability but also simplify plumbing and construction costs.

Answer Box

The biggest problems in a 7x4 bathroom layout come from circulation conflicts and poorly sequenced fixtures. The most effective fix is organizing the room into a linear flow—sink, toilet, then shower—while minimizing door swing and using compact fixtures.

Final Summary

1. 7x4 bathrooms fail when circulation paths overlap with fixtures.
2. Door strategy can recover critical usable space.
3. Linear fixture placement improves movement flow.
4. Micro‑zoning prevents spatial conflicts.
5. Compact fixtures help but layout logic matters more.

FAQ

1. What is the biggest problem with a 7x4 bathroom layout?

Circulation conflicts are the most common issue. Doors, sinks, and toilets often compete for the same walking space.

2. Is a 7x4 bathroom too small?

No. With the right layout sequence and compact fixtures, a 7x4 bathroom can function comfortably.

3. What door works best for a narrow bathroom?

Pocket doors or sliding doors are ideal because they eliminate swing space.

4. How do you fix a cramped 7 by 4 bathroom?

Reorganize fixtures into a linear layout, reduce vanity depth, and place the shower at the far end.

5. Can a shower fit in a 7x4 bathroom layout?

Yes. A 30–36 inch deep end‑wall shower is the most efficient solution.

6. What are common 7x4 bathroom layout problems?

Door collisions, tight toilet clearances, and showers blocking circulation are the most common issues.

7. Should the toilet be next to the sink in a narrow bathroom?

Often yes. Aligning them on the same wall preserves the central walking path.

8. How can I visualize a micro bathroom layout before renovating?

Use digital layout planners that allow you to test different fixture placements and circulation paths.
