Common Problems When Building a 1500 Sq Ft Container Home and How to Fix Them: Real construction challenges designers see in large container homes and practical ways to prevent expensive structural and comfort mistakes

Direct Answer

Building a 1500 sq ft container home often runs into structural reinforcement issues, insulation failures, condensation buildup, and foundation miscalculations. Most problems occur when multiple containers are combined without proper structural planning or climate control layers. The good news is that nearly all of these issues can be prevented with correct cutting methods, insulation strategy, and load distribution planning before construction begins.

Quick Takeaways

1. Most container home construction problems appear after large wall sections are removed.
2. Condensation is the most underestimated issue in steel container houses.
3. Poor insulation planning can double heating and cooling costs.
4. Foundation design must account for concentrated corner loads.
5. Strategic structural reinforcement prevents long‑term deformation.

Introduction

Over the past decade working on modular and container-based residential projects, I've noticed something interesting about the typical 1500 sq ft container home: the design stage often looks simple, but the construction stage exposes hidden engineering problems many homeowners never anticipate.

Shipping containers were designed to carry cargo across oceans, not to function as large open-plan homes. When you start combining six, seven, or eight containers to reach around 1500 square feet, structural behavior changes dramatically.

I’ve seen projects where cutting too much steel caused wall flexing, homes where insulation failed within the first winter, and beautiful designs ruined by moisture buildup behind drywall. Most of these mistakes are avoidable if the planning phase considers structure, airflow, and thermal performance together.

If you're still planning your layout, it helps to first explore realistic space configurations using a visual planning approach that maps container layouts before construction begins. It reveals structural gaps long before any metal gets cut.

Below are the most common container home construction problems I encounter on projects around this size—and the fixes that actually work in real builds.

save pin

Structural Challenges When Combining Multiple Containers

Key Insight: The biggest structural mistake in large container homes is removing too much load‑bearing steel without replacing it with engineered reinforcement.

Shipping containers are strong because of their corrugated walls and corner posts. Once large sections are removed to create open living areas, the container loses a significant portion of its structural rigidity.

In a 1500 sq ft container home, designers typically combine multiple 40‑foot containers side by side. That often requires cutting entire side walls out. Without reinforcement beams, the structure can slowly sag over time.

Common structural risks

1. Roof deflection after wall removal
2. Floor vibration in wide open spaces
3. Stress concentration at container joints
4. Misalignment between stacked containers

Typical reinforcement solutions

1. Steel I‑beams replacing removed walls
2. Box frame reinforcement around large openings
3. Welded perimeter frames joining containers
4. Load transfer beams across merged modules

According to structural guidance from the International Code Council's modular construction recommendations, removing structural panels requires equivalent load-bearing replacement. In practice, that usually means welded steel framing integrated into the container skeleton.

Insulation Problems in Large Container Homes

Key Insight: Insulation failures in container houses usually come from choosing the wrong insulation type rather than insufficient thickness.

Steel transfers heat extremely fast. That means a poorly insulated container home behaves almost like an outdoor environment.

The most common mistake I see is using traditional fiberglass batts. They simply don't perform well against metal surfaces because condensation forms between the insulation and steel wall.

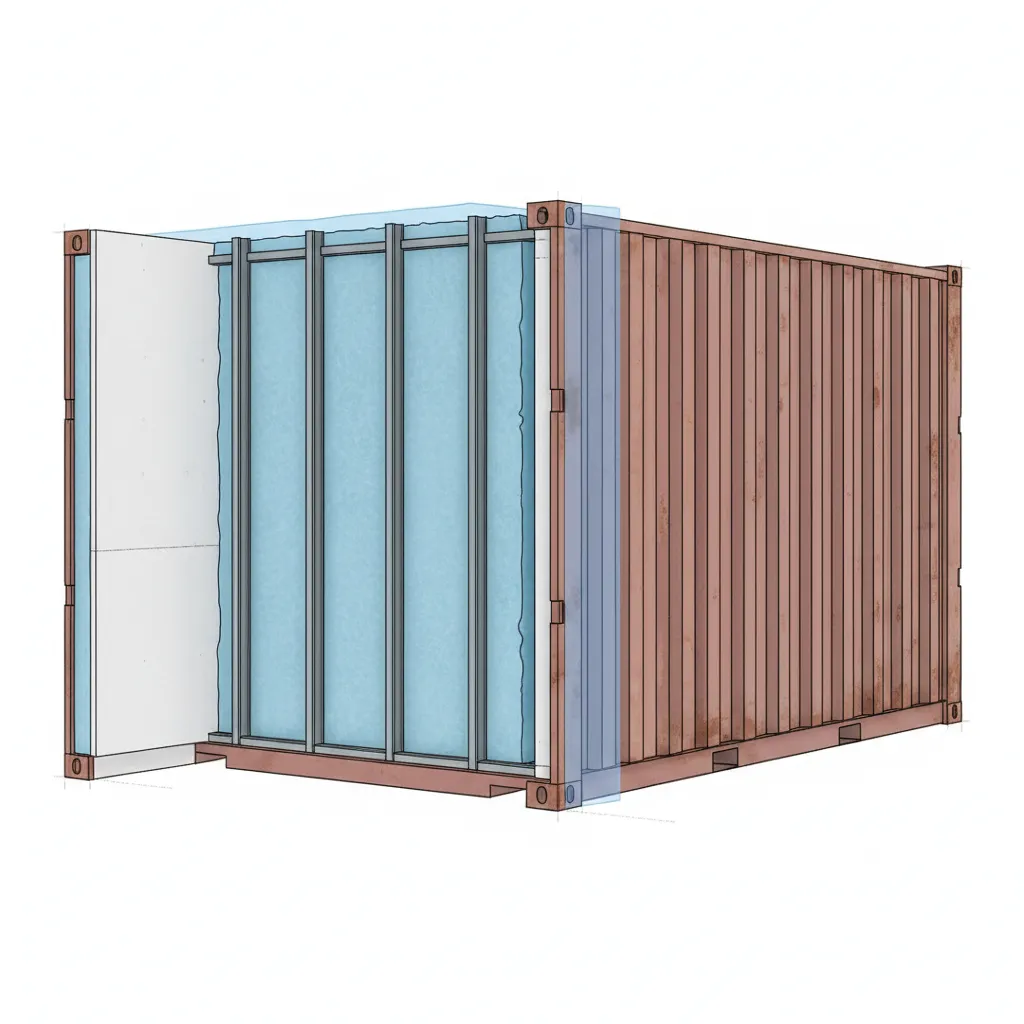

Better insulation options

1. Closed‑cell spray foam (best air seal)
2. Rigid foam board with vapor barrier
3. Mineral wool with interior air gap

Insulation comparison

1. Fiberglass: cheap but moisture prone
2. Spray foam: excellent seal but higher cost
3. Rigid panels: balanced performance and control

In colder climates especially, spray foam often becomes the most reliable option because it acts as insulation, air barrier, and moisture barrier simultaneously.

save pin

Moisture and Condensation Issues

Key Insight: Condensation forms inside container walls when warm interior air meets cold steel surfaces without proper vapor control.

This is one of the least discussed container home construction problems, yet it causes some of the most expensive damage.

Steel containers behave differently from wood structures. Temperature changes happen rapidly, which encourages moisture accumulation.

Warning signs of condensation problems

1. Mold forming behind drywall
2. Rust developing inside wall cavities
3. Musty indoor air
4. Wet insulation layers

Effective prevention strategies

1. Continuous vapor barrier installation
2. Closed‑cell spray foam insulation
3. Mechanical ventilation systems
4. Thermal break layers between steel and interior finishes

Building science research from the U.S. Department of Energy consistently emphasizes airtight envelopes paired with controlled ventilation. Container homes require this even more than traditional houses.

Cutting Containers Without Weakening the Structure

Key Insight: Every cut in a container should be planned like a structural opening in a steel building.

Windows, doors, and open connections between containers require cutting through corrugated steel walls. The mistake many DIY builders make is cutting openings first and reinforcing later.

That approach can cause warping while construction is underway.

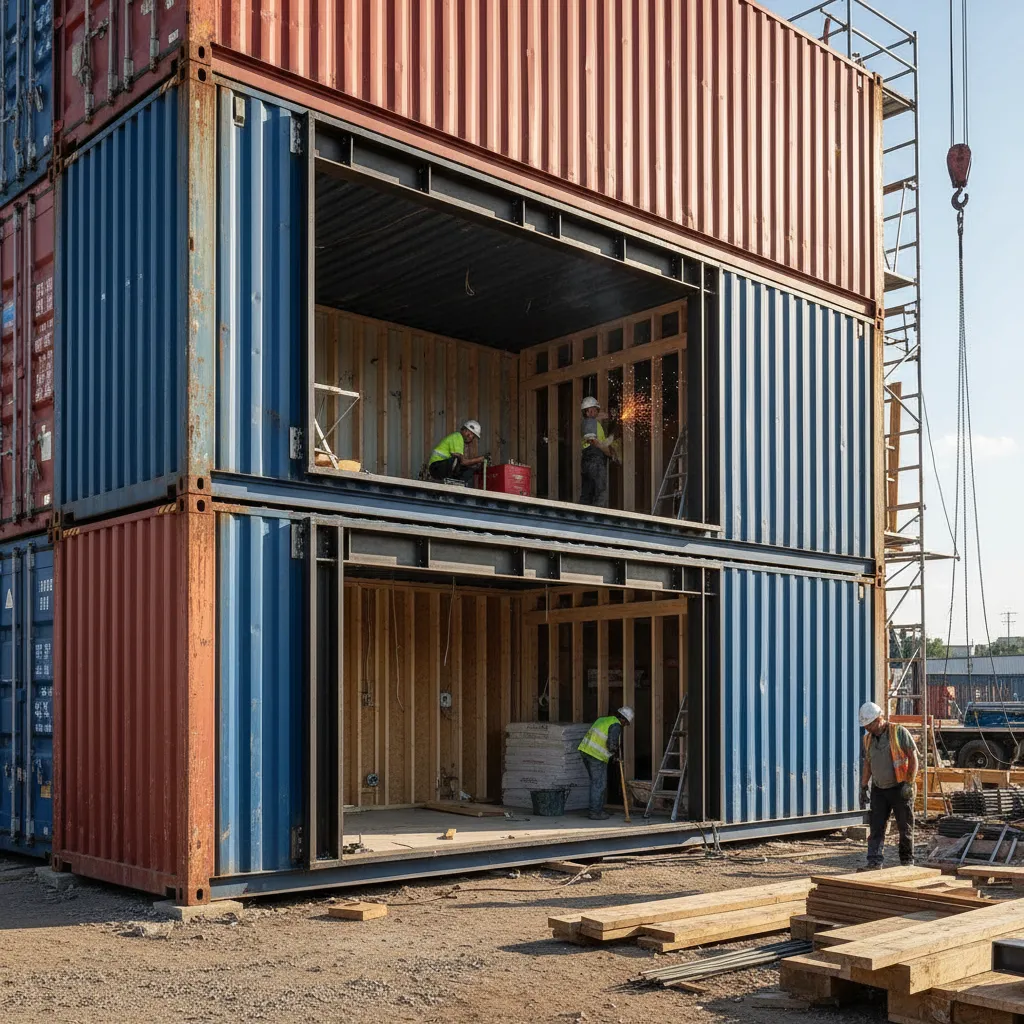

Recommended cutting process

1. Mark structural openings during the design phase
2. Install reinforcement frames before full removal
3. Cut steel panels gradually
4. Weld perimeter supports around the opening

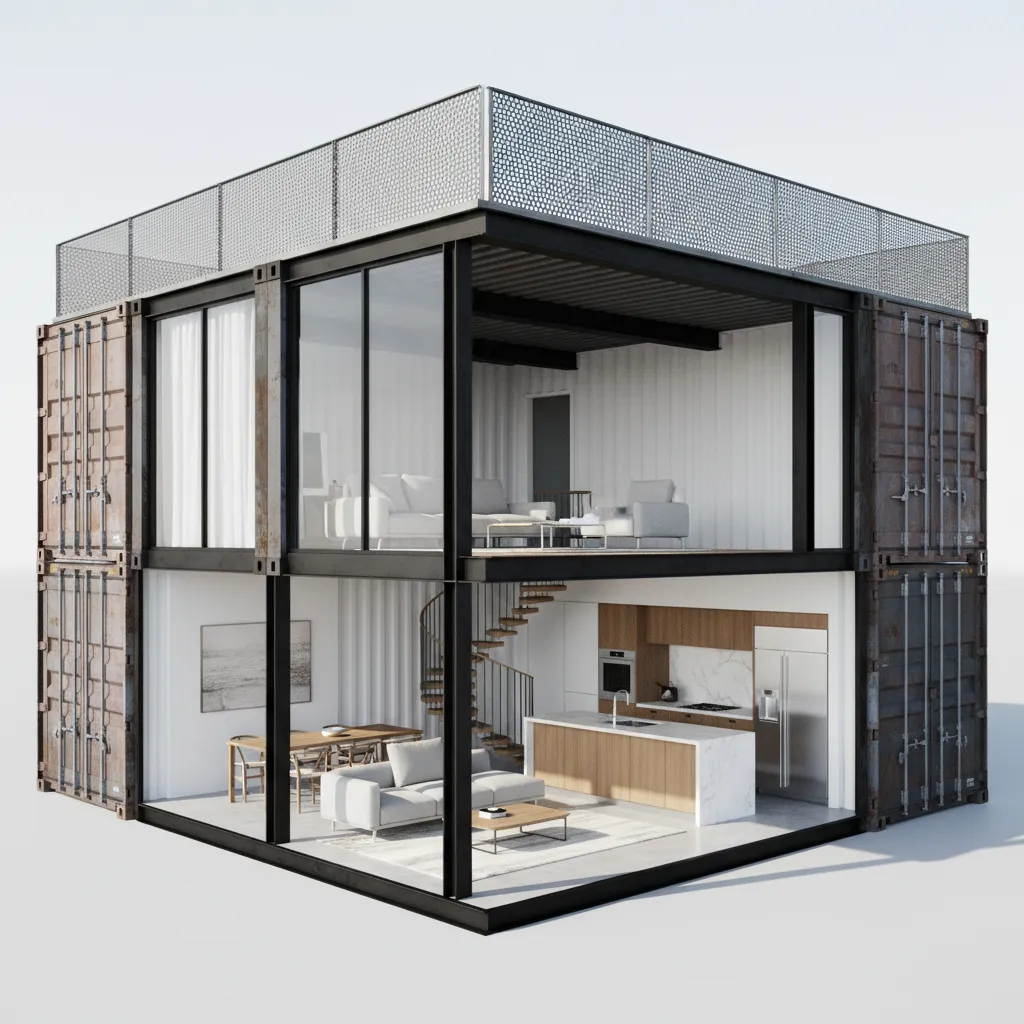

When I'm planning these modifications, I typically model openings using a 3D layout visualization that shows how multiple containers connect structurally. It prevents situations where large openings accidentally align and weaken the same structural axis.

save pin

Foundation and Weight Distribution Problems

Key Insight: Container homes concentrate structural loads at their corner posts, which makes foundation planning very different from conventional houses.

A typical wood-frame home spreads weight evenly across walls. Shipping containers, however, are designed to transfer loads primarily through the corner castings.

If foundations ignore this detail, floors may settle unevenly.

Common foundation types for container homes

1. Pier foundations
2. Concrete slab foundations
3. Strip footings under container edges
4. Pile foundations for unstable soil

Typical mistakes

1. Insufficient support under merged containers
2. Ignoring soil bearing capacity
3. Poor leveling before container placement

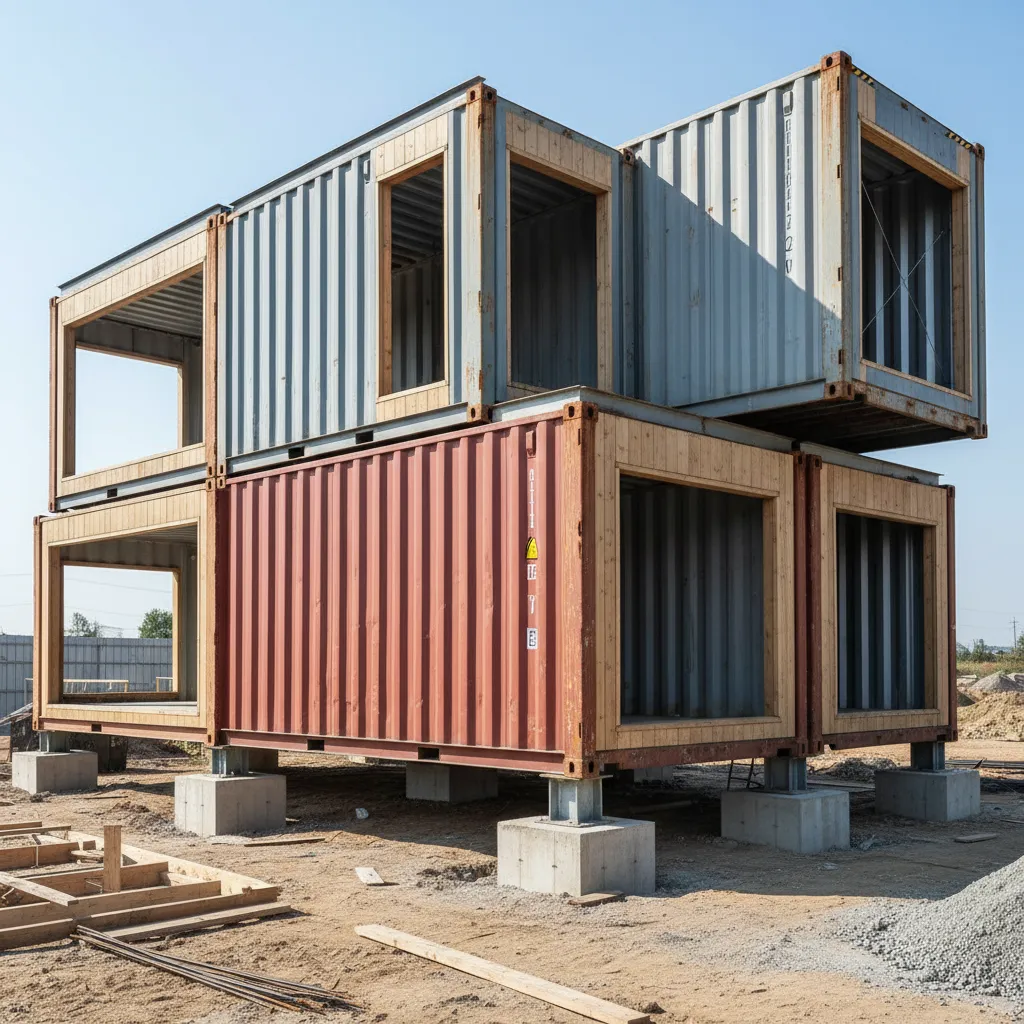

Engineers often recommend placing reinforced concrete pads directly under each corner post. This mirrors how containers carry loads in shipping environments.

Answer Box

The most critical problems in a 1500 sq ft container home involve structural reinforcement, moisture control, and proper foundation design. Addressing these early in the design phase prevents most long‑term failures. Planning layout, insulation, and ventilation together is the most reliable strategy.

Practical Fixes and Prevention Strategies

Key Insight: Most container home building mistakes happen during planning, not construction.

After working on numerous modular housing projects, I've learned that early visualization and structural planning eliminate the majority of expensive corrections.

Smart prevention checklist

1. Plan structural reinforcements before cutting steel
2. Choose insulation that also manages moisture
3. Design foundations based on corner load transfer
4. Integrate ventilation systems from the beginning
5. Model container connections before construction

If you're still refining your home layout, using a step‑by‑step container home layout planning workflowhelps reveal spacing conflicts, circulation issues, and structural gaps early in the process.

save pin

Final Summary

1. Removing container walls requires engineered structural reinforcement.
2. Closed‑cell spray foam is the most reliable insulation solution.
3. Condensation control is essential in steel structures.
4. Foundation design must support container corner loads.
5. Early layout planning prevents most construction mistakes.

FAQ

Is a 1500 sq ft container home structurally safe?

Yes, when reinforced properly. Structural beams and welded frames replace removed walls and maintain rigidity.

What is the biggest container home construction problem?

Condensation inside steel walls is often the most damaging issue if insulation and vapor barriers are not installed correctly.

How many containers make a 1500 sq ft container home?

Most designs use six to eight 40‑foot containers depending on layout and ceiling height adjustments.

Do container homes need special foundations?

Yes. Foundations must support corner loads where the container structure transfers weight.

What insulation works best for container homes?

Closed‑cell spray foam performs best because it seals air gaps and prevents condensation.

Can cutting containers weaken the structure?

Yes. Large openings remove structural steel and require reinforcement frames to maintain strength.

How do you prevent rust and condensation in container homes?

Use vapor barriers, airtight insulation, proper ventilation, and protective coatings on steel surfaces.

Are container homes cheaper to build?

Not always. Structural reinforcement, insulation, and foundation work can increase construction costs.
