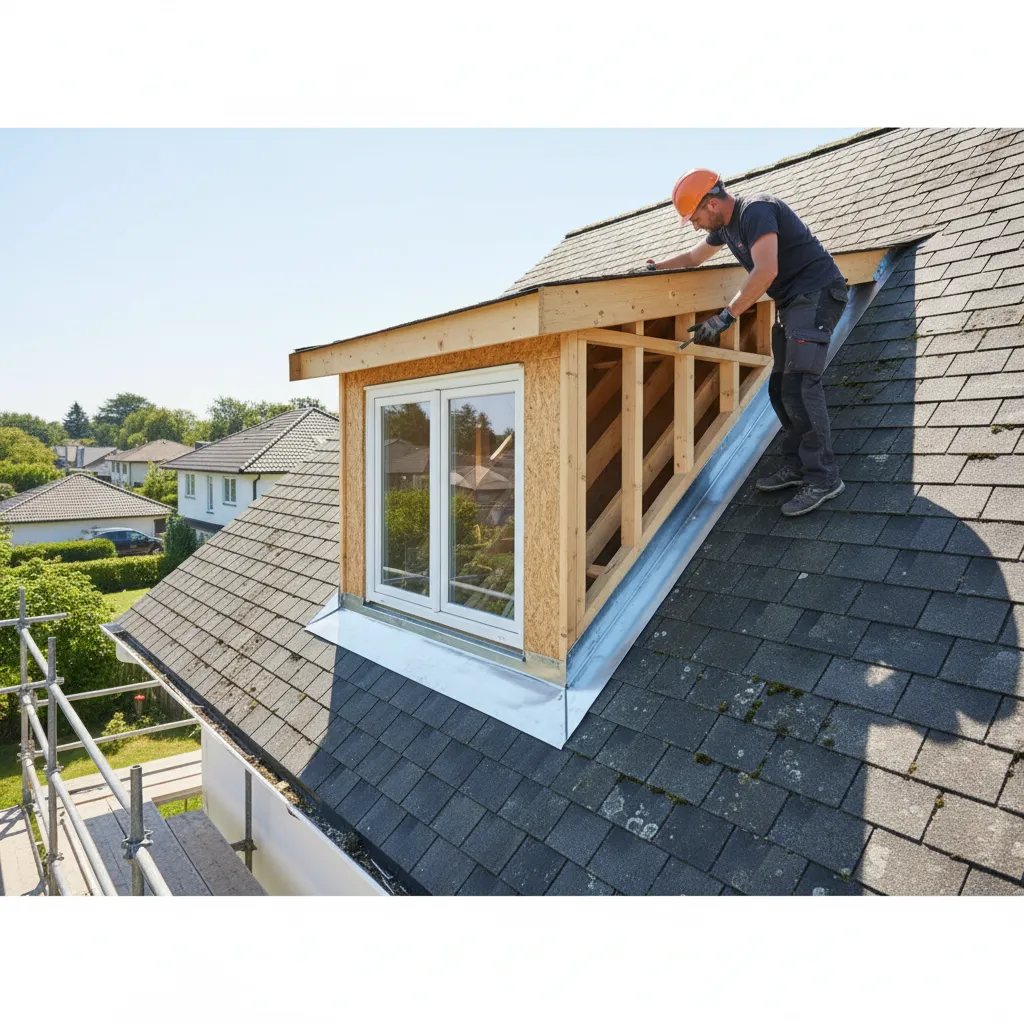

Common Problems When Building a Dormer on an Existing Roof: Real construction issues homeowners face when adding a dormer and how experienced builders diagnose and fix them before damage spreads.

Direct Answer

Common problems when building a dormer on an existing roof usually come from structural cuts, poor flashing, and weak waterproofing layers. When rafters are altered without reinforcement or flashing is installed incorrectly, leaks, roof sagging, and long‑term structural stress can quickly develop.

Quick Takeaways

1. Most dormer failures start with structural cuts made without proper rafter reinforcement.
2. Flashing mistakes are the leading cause of dormer roof leaks.
3. Improper waterproofing layers allow slow water intrusion that may appear months later.
4. Roof sagging often occurs when load paths are not redistributed after cutting rafters.
5. Early inspection prevents minor framing errors from turning into structural repairs.

Introduction

Building a dormer on an existing roof looks simple on paper, but in real construction it is one of the most failure‑prone roof modifications. Over the past decade working with residential remodels, I’ve seen many projects where a dormer addition created more problems than the space it added.

The biggest issue is that a dormer interrupts a structure that was never designed to be cut open. Rafters get removed, load paths change, and water suddenly has new seams to find its way through. That combination is why problems adding a dormer to an existing roof show up months or even years after construction.

Homeowners planning dormer additions often start by mapping the structure carefully. Tools that help visualize structural layouts—like this guide on planning accurate roof and floor layouts before remodeling—can prevent many early mistakes that lead to structural issues later.

In this article I’ll break down the most common dormer construction problems I’ve seen on real projects, why they happen, and how professionals diagnose and repair them before they compromise the entire roof system.

save pin

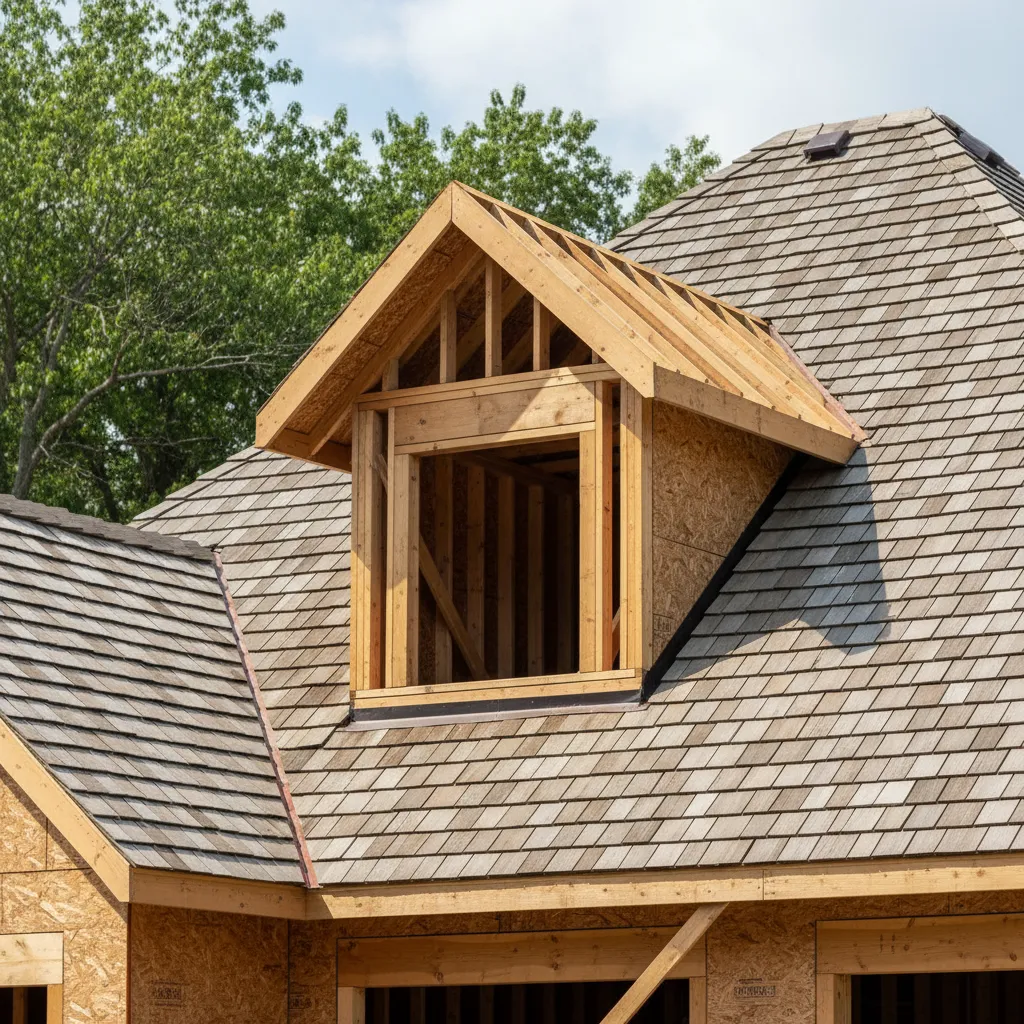

Why Dormer Construction Often Causes Roof Problems

Key Insight: Dormers fail when builders treat them like a cosmetic addition instead of a structural roof alteration.

Adding a dormer means cutting into an existing roof structure. That changes how weight travels from the roof to the walls. If the load path isn't redesigned properly, the roof system can weaken over time.

Typical structural disruptions caused by dormers include:

1. Removing load‑bearing rafters
2. Changing roof slope transitions
3. Introducing multiple new water joints
4. Adding concentrated weight to a localized area

The National Association of Home Builders notes that roof modifications frequently cause long‑term structural stress when reinforcement headers and double rafters are skipped during framing.

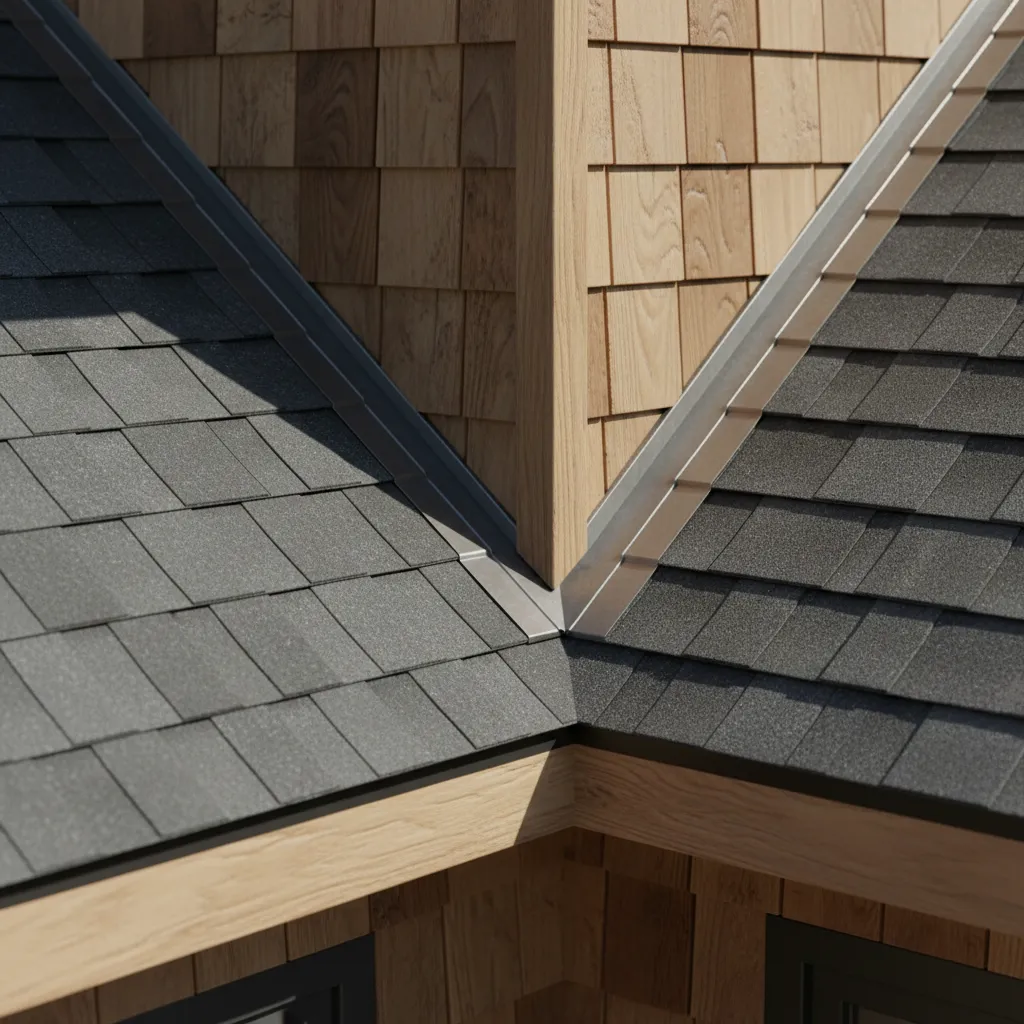

Roof Leaks Around the Dormer and How to Fix Them

Key Insight: Most dormer leaking around flashing occurs where the dormer wall meets the existing roof plane.

Dormers introduce multiple intersections: roof-to-wall joints, sidewall transitions, and valley channels. Each of these needs layered flashing protection.

Common leak points include:

1. Step flashing installed incorrectly
2. Missing kick‑out flashing
3. Roof valleys that funnel water toward the dormer wall
4. Nail penetrations through flashing layers

Fixing a dormer roof leak usually involves removing surrounding shingles and reinstalling layered flashing systems.

Professional repair typically includes:

1. Removing shingles around the dormer
2. Inspecting step flashing alignment
3. Installing ice and water shield beneath the joint
4. Reinstalling proper counter flashing

save pin

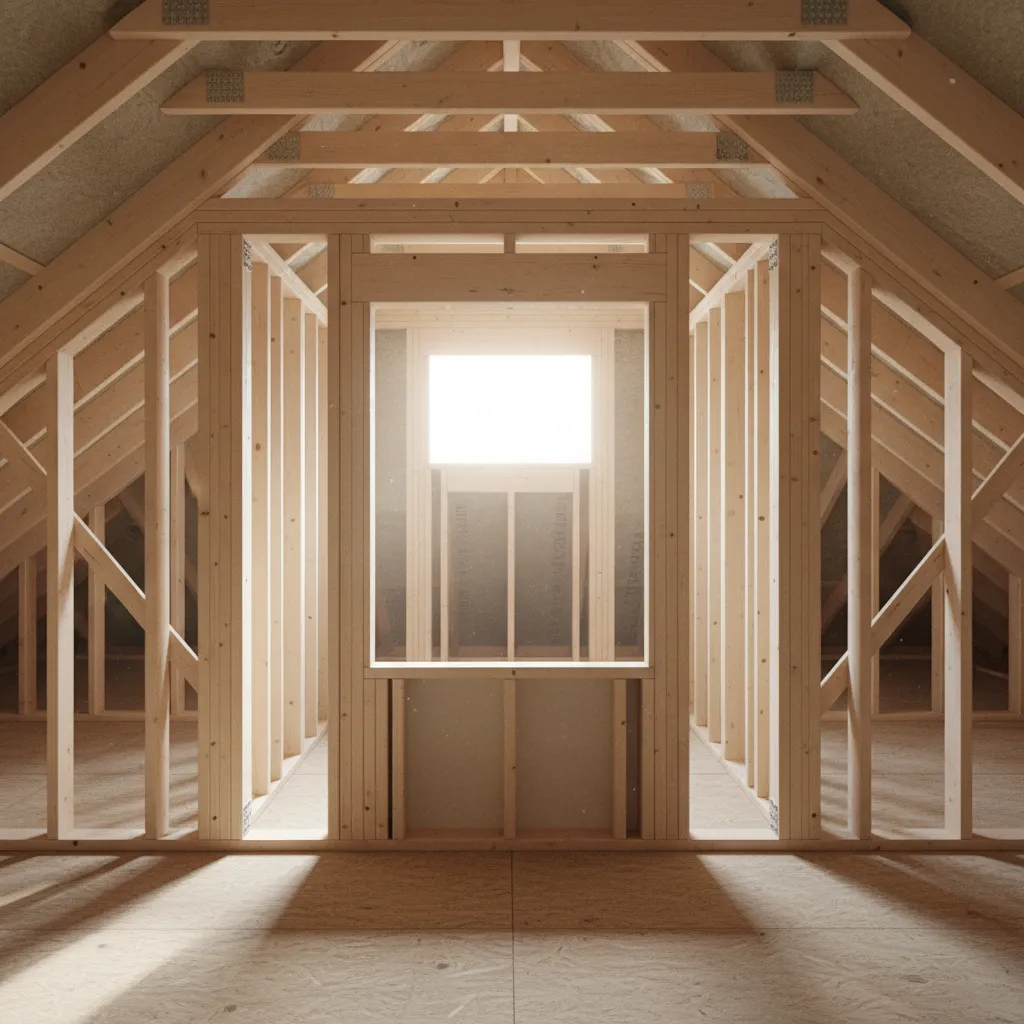

Framing Alignment Issues and Structural Weakness

Key Insight: Dormer framing mistakes often happen when builders fail to properly transfer roof loads to doubled rafters and headers.

When rafters are cut to create the dormer opening, those loads must be redirected. If headers or trimmer rafters are undersized, the roof structure slowly shifts.

Typical warning signs include:

1. Cracks in drywall near the dormer
2. Doors or windows sticking nearby
3. Uneven roof lines visible from outside

Structural correction often requires reinforcing the dormer frame from inside the attic with:

1. Doubled headers
2. Sistered rafters
3. Additional load‑bearing supports

On several renovation projects I’ve worked on, these framing issues only appeared a year after installation when seasonal roof loads started stressing the altered rafters.

Incorrect Flashing Installation

Key Insight: Flashing failures are responsible for the majority of dormer waterproofing problems.

Many installers rely only on sealants instead of layered flashing systems. Sealants eventually crack, especially under roof expansion and contraction.

Proper dormer flashing includes three layers:

1. Ice and water shield membrane
2. Step flashing integrated with shingles
3. Counter flashing integrated into siding

Visualization tools used in design planning—such as guides that demonstrate how finished roof structures and exterior joints appear in realistic 3D house renderings—help homeowners understand where these protective layers should exist.

save pin

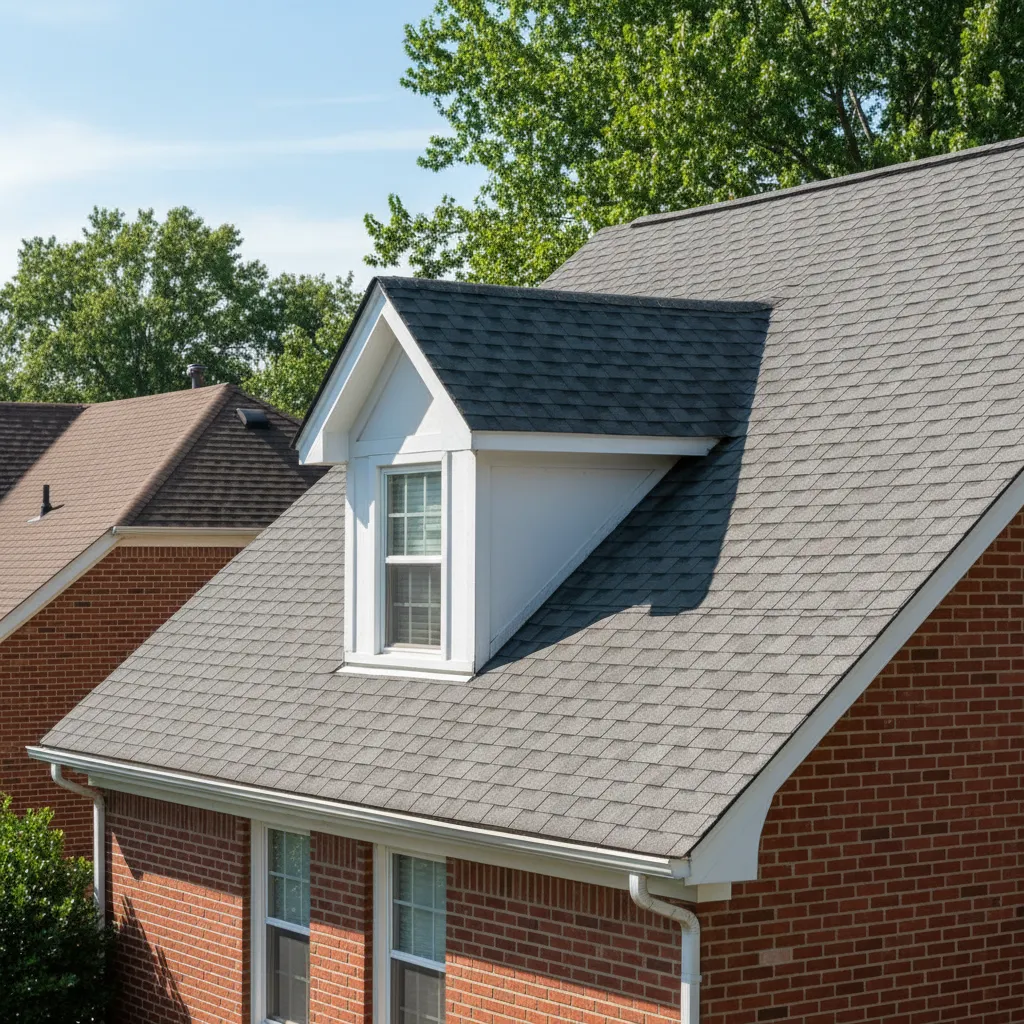

Sagging Roof Sections After Cutting Rafters

Key Insight: Roof sagging after dormer installation usually means the original roof structure lost critical support when rafters were removed.

When a dormer opening is cut, rafters that previously carried roof loads are removed. Without reinforcement, the surrounding rafters absorb additional weight.

This often leads to:

1. Roof dips around the dormer
2. Interior ceiling cracks
3. Slow structural movement during snow loads

Professional structural fixes include:

1. Installing LVL headers
2. Adding jack rafters
3. Installing ridge reinforcement

Waterproofing and Underlayment Mistakes

Key Insight: Dormer leaks sometimes come from underlayment gaps rather than visible flashing errors.

Underlayment must extend beneath the dormer walls and overlap properly with the existing roof system.

Common installation mistakes:

1. Membrane not extending high enough on sidewalls
2. Underlayment seams facing water flow
3. Missing valley waterproofing near dormers

Careful planning of roof geometry helps avoid these situations. For example, designers frequently analyze roof intersections using tools similar to those used for visualizing structural layouts before cutting into an existing roof, which helps identify complex water paths.

save pin

How to Inspect and Repair Dormer Construction Errors

Key Insight: Early inspection of dormer additions can identify structural or waterproofing issues before they require major roof reconstruction.

A professional dormer inspection typically focuses on three areas:

Exterior inspection

1. Flashing alignment
2. Roof plane consistency
3. Valley drainage direction

Attic inspection

1. Rafter reinforcement
2. Signs of moisture intrusion
3. Structural movement

Interior inspection

1. Drywall cracks
2. Staining near dormer walls
3. Uneven ceiling surfaces

Answer Box

The most common dormer construction problems involve structural framing errors, flashing installation mistakes, and inadequate waterproofing layers. These issues often appear months after installation but can usually be repaired if caught early during inspection.

Final Summary

1. Dormer additions frequently fail due to structural cuts made without reinforcement.
2. Flashing installation errors are the leading cause of dormer roof leaks.
3. Roof sagging indicates missing load redistribution after rafter removal.
4. Underlayment gaps often cause hidden water intrusion.
5. Early inspection dramatically reduces long‑term repair costs.

FAQ

Why is my dormer leaking around flashing?

Dormer leaking around flashing usually occurs when step flashing is installed incorrectly or counter flashing is missing. Water follows roof shingles and enters gaps at roof‑to‑wall intersections.

What causes roof sagging after dormer installation?

Roof sagging after dormer installation usually happens when rafters were removed without installing structural headers or doubled support rafters.

Are dormers prone to leaks?

Dormers can be leak‑prone because they create several new roof joints. Proper flashing and waterproofing layers are essential to prevent water intrusion.

How do you fix a dormer roof leak?

Fixing a dormer roof leak typically requires removing surrounding shingles, reinstalling step flashing, and adding waterproof membrane underlayment.

Can a poorly built dormer damage the entire roof?

Yes. Structural dormer framing mistakes can redistribute roof loads incorrectly, leading to sagging or long‑term roof deformation.

How long after construction do dormer leaks appear?

Some dormer waterproofing problems appear months later, especially after heavy rain or seasonal expansion of roofing materials.

Do dormers require structural engineering?

For major roof alterations, structural evaluation is recommended to ensure rafters, headers, and load paths remain safe.

What is the most common mistake when adding a dormer?

The most common issue is poor flashing installation, which leads to persistent dormer roof leaks.
