Common Problems When Converting 2D Floor Plans to 3D in AutoCAD: Practical fixes for extrusion failures, broken geometry, and visualization errors when turning AutoCAD 2D drawings into 3D models

Direct Answer

The most common problems when converting a 2D floor plan to 3D in AutoCAD come from incomplete geometry, open polylines, incorrect elevations, and layer conflicts. If walls or boundaries are not closed shapes, the Extrude command cannot generate solids. Cleaning geometry, fixing elevations, and simplifying layers usually resolves most 2D‑to‑3D modeling failures.

Quick Takeaways

1. Open polylines are the number one reason AutoCAD extrusion fails.
2. Objects sitting at different elevations often break 3D wall creation.
3. Messy imported CAD files frequently contain hidden geometry errors.
4. Cleaning a 2D drawing first saves hours during 3D modeling.
5. Visualization glitches are often display settings, not model errors.

Introduction

Converting a 2D floor plan to 3D in AutoCAD sounds straightforward, but in practice it's where many architectural models break down. After working on residential and commercial interiors for over a decade, I've noticed the same pattern: the problem almost never starts in the 3D tools. It starts in the 2D drawing.

Walls that look perfectly fine in plan view may actually be slightly disconnected lines, overlapping segments, or objects sitting at different elevations. The moment you try to extrude them, AutoCAD throws errors or produces strange geometry.

In many design studios I’ve worked with, teams now prototype layouts using tools like a visual workflow for building accurate 3D floor plans from scratchbefore finalizing CAD models. The reason is simple: cleaner geometry equals faster modeling.

In this guide I'll walk through the most common AutoCAD problems when converting 2D drawings into 3D models, how to diagnose them quickly, and the fixes I rely on in real projects.

save pin

Why 2D to 3D Conversion Often Fails in AutoCAD

Key Insight: Most AutoCAD 3D failures originate from imperfect 2D geometry rather than broken 3D commands.

Architectural drawings are often edited dozens of times before modeling begins. Lines get trimmed, copied, offset, and stretched. Over time this creates tiny gaps, duplicate lines, and overlapping edges that are invisible at normal zoom levels.

When AutoCAD tries to create a 3D solid, it requires clean closed boundaries. Even a gap of 0.01 units can break extrusion.

Common causes include:

1. Open wall boundaries
2. Duplicate overlapping lines
3. Lines drawn instead of polylines
4. Imported CAD blocks with messy geometry
5. Different Z elevations inside a "2D" drawing

In several apartment renovation projects I reviewed, over 60% of extrusion issues were traced back to imported consultant drawings rather than modeling mistakes.

Fixing Open Polylines and Broken Wall Boundaries

Key Insight: If walls cannot extrude, the first thing to check is whether the wall outline forms a completely closed polyline.

AutoCAD’s Extrude command only works on closed shapes. Unfortunately, many architectural plans are drawn using individual lines rather than continuous polylines.

Steps to repair wall outlines:

1. Use PEDIT and convert lines to polylines.
2. Use the JOIN command to connect adjacent segments.
3. Run the OVERKILL command to remove duplicate lines.
4. Use the BOUNDARY command to test if AutoCAD recognizes a closed region.

If the boundary tool cannot generate a region, the outline still contains gaps.

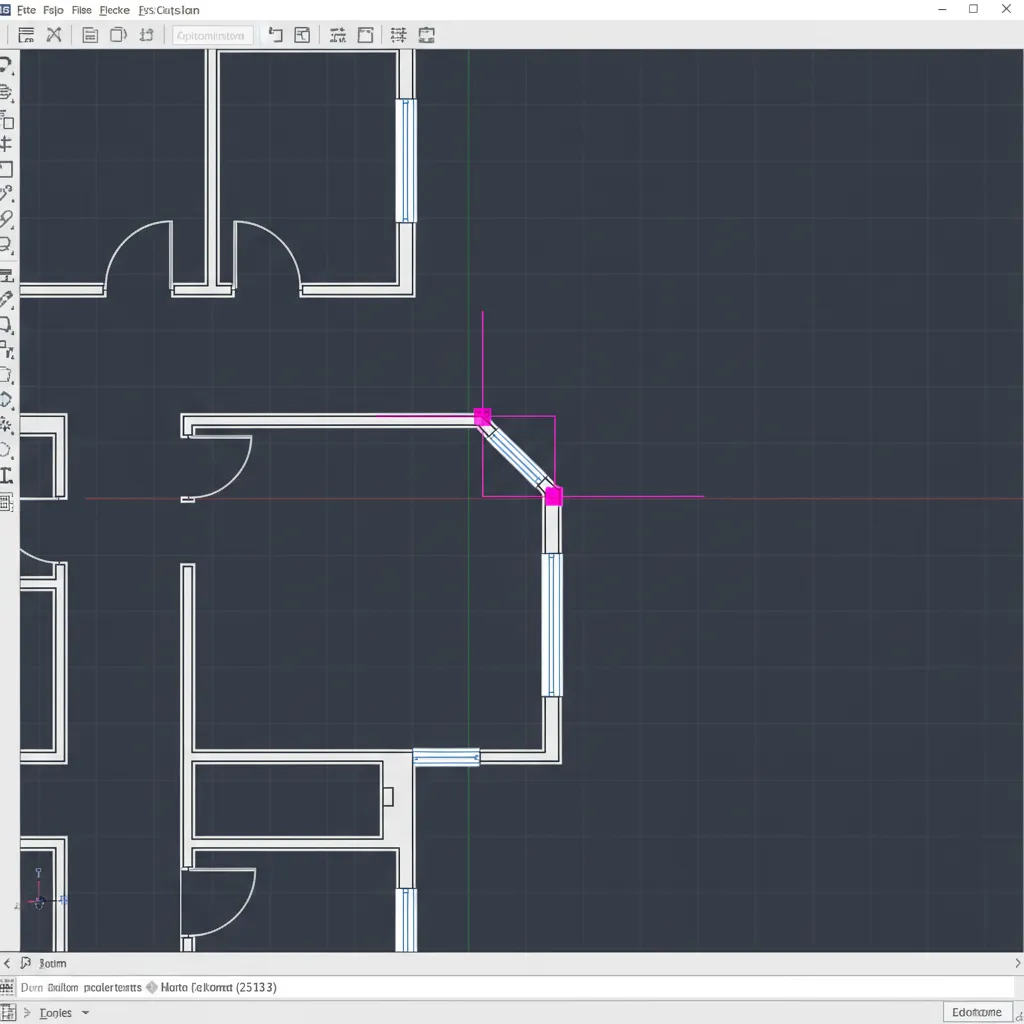

A trick many experienced CAD technicians use is zooming to 5000% around corners. Tiny breaks that are invisible at normal scale often appear immediately.

save pin

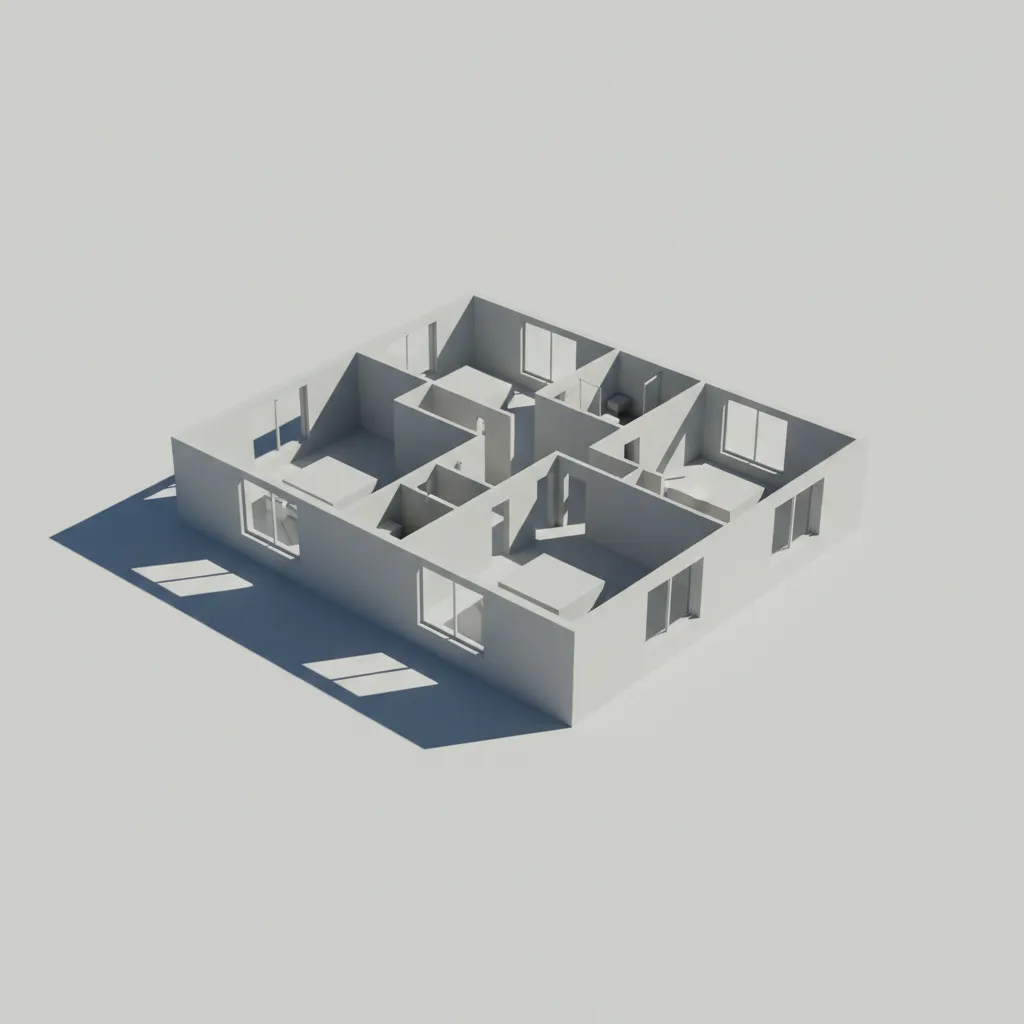

Resolving Extrude Command Errors

Key Insight: When the Extrude command fails, the underlying issue is usually invalid geometry rather than the command itself.

One of the most common search queries I see is "autocad extrude not working on floor plan." In most cases, AutoCAD simply cannot create a solid because the object isn't a valid closed profile.

Typical extrusion problems:

1. Open profiles
2. Self‑intersecting polylines
3. Mixed object types
4. Objects with elevation values

Quick troubleshooting workflow:

1. Convert geometry to REGION.
2. If region creation fails, inspect the boundary.
3. Flatten the drawing using FLATTEN.
4. Retry extrusion with a simple test height.

Many designers today also test early layouts using tools like an interactive floor layout generator that previews spatial volumes instantly. Seeing walls in volume early helps catch geometry problems before the CAD stage.

Correcting Layer and Object Elevation Problems

Key Insight: Objects that appear flat in plan view may actually sit at different Z heights, breaking 3D modeling.

This issue shows up frequently when drawings are imported from other software such as SketchUp, Revit exports, or consultant CAD files.

Symptoms include:

1. Extrusions appearing in the wrong location
2. Walls extruding from mid‑air
3. Profiles refusing to form regions

How to fix elevation problems:

1. Select all objects.
2. Check the Z value in the Properties panel.
3. Use FLATTEN to reset everything to elevation 0.
4. Ensure wall profiles sit on the same plane.

In large mixed‑discipline projects, elevation errors are one of the most overlooked causes of failed 3D modeling.

save pin

Repairing Geometry Before 3D Modeling

Key Insight: Cleaning the drawing before modeling often cuts 3D production time in half.

In professional studios, experienced CAD managers rarely start 3D modeling directly from raw drawings. Instead, they run a geometry cleanup pass.

Essential cleanup checklist:

1. Delete duplicate lines using OVERKILL
2. Purge unused blocks and layers
3. Convert lines into closed polylines
4. Remove tiny fragments and stray geometry
5. Ensure all walls form continuous loops

This preparation stage is one of the most underrated parts of architectural modeling. In my experience reviewing CAD packages for residential developers, messy geometry accounts for the majority of failed 3D conversions.

Debugging Display and Visualization Issues

Key Insight: Some "3D errors" are actually viewport or visual style issues rather than modeling problems.

Sometimes the model is perfectly fine, but the display mode makes it appear broken.

Typical visualization issues:

1. Hidden edges not displaying
2. Flat shading hiding geometry
3. Incorrect visual style
4. Hardware acceleration conflicts

Quick fixes:

1. Switch to Realistic or Conceptual visual style
2. Regenerate the model using REGEN
3. Check hardware acceleration settings
4. Reset UCS to world

For presentation stages, many designers export models to rendering environments or tools that support high quality interior visualization of home layouts, where lighting and materials are easier to evaluate.

Answer Box

The majority of AutoCAD 2D‑to‑3D conversion problems come from open boundaries, inconsistent elevations, or messy imported geometry. Cleaning the 2D drawing and ensuring closed profiles usually fixes extrusion failures immediately.

Final Summary

1. Most AutoCAD 3D errors originate in imperfect 2D drawings.
2. Closed polylines are essential for wall extrusion.
3. Elevation inconsistencies often break modeling workflows.
4. Cleaning geometry dramatically improves modeling reliability.
5. Some apparent modeling errors are only display issues.

FAQ

Why can't I extrude my AutoCAD floor plan?

The profile is likely not a closed shape. Check for gaps, overlapping lines, or mixed object types before using the Extrude command.

How do I convert a 2D floor plan to 3D in AutoCAD?

Create closed polylines for walls, convert them into regions if needed, and extrude them to the desired wall height.

Why does AutoCAD say the object cannot be extruded?

The object may contain gaps, self‑intersections, or inconsistent elevation values that prevent solid generation.

What command fixes broken polylines in AutoCAD?

Use PEDIT with the JOIN option to merge segments into a continuous polyline.

How do I fix elevation errors in a floor plan?

Select the geometry and use the FLATTEN command to reset all objects to Z=0.

Can messy imported drawings cause 3D modeling errors?

Yes. Imported CAD files often contain duplicate lines and fragmented geometry that prevent extrusion.

What is the fastest way to troubleshoot AutoCAD 3D modeling errors?

Check closed boundaries, remove duplicate geometry, flatten elevations, and test extrusion with a simple region.

Is converting a 2D floor plan to 3D in AutoCAD difficult?

The process is straightforward if the 2D drawing is clean. Most problems occur when the base geometry contains hidden errors.
