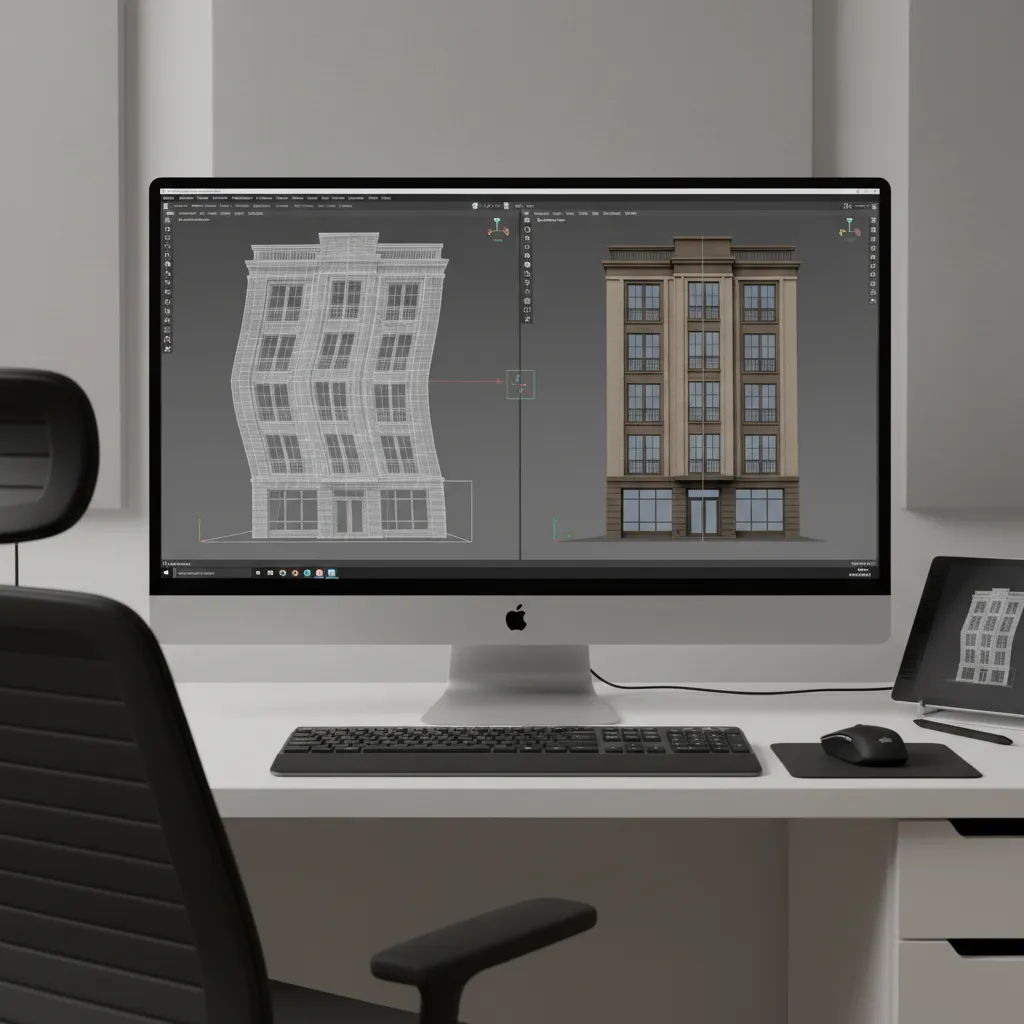

Common Problems When Converting 2D Images to 3D Models and How to Fix Them: Practical fixes designers use to correct distorted geometry, broken meshes, and texture problems during image to 3D conversion

Direct Answer

Most problems when converting 2D images to 3D models happen because a single image does not contain real depth information. As a result, algorithms must guess geometry, which often leads to distorted shapes, stretched textures, and broken meshes. The solution is improving source images, guiding depth estimation, and cleaning the mesh after generation.

Quick Takeaways

1. Most image‑to‑3D errors come from missing depth data in the original image.
2. Distorted geometry usually results from perspective mismatch or low‑quality reference images.
3. Texture stretching can be fixed with proper UV remapping after generation.
4. Broken meshes often require automatic mesh repair or retopology.
5. Better lighting and multiple angles dramatically improve depth accuracy.

Introduction

Converting a flat image into a usable 3D model sounds almost magical the first time you try it. But if you've experimented with image to 3D tools for real design work, you probably ran into the same problems my team did: warped walls, melted furniture shapes, textures that look like they were pulled like rubber.

After working on dozens of visualization projects and experimenting with different reconstruction tools, I've learned that most image to 3D conversion issues aren't random bugs. They're predictable side effects of how depth reconstruction actually works.

The good news is that most of these issues can be fixed once you understand the root cause. In this guide, I'll walk through the most common problems when converting 2D images to 3D models and the practical solutions designers use to repair them. If you're building visualization scenes or planning a full render pipeline, it's also helpful to understand how professionals create photorealistic interior scenes from simple layout referencesbefore pushing models into final rendering.

save pin

Why 2D Images Often Produce Poor 3D Geometry

Key Insight: A single image rarely contains enough depth cues to reconstruct accurate 3D geometry, forcing software to estimate shapes.

When software converts an image to a 3D model, it relies on visual hints like shadows, perspective lines, and object recognition. But those cues are incomplete. Even advanced neural reconstruction models are essentially predicting depth rather than measuring it.

From my experience testing multiple pipelines, geometry errors usually come from three sources:

1. Extreme perspective distortion that exaggerates depth.
2. Low image resolution that hides edge boundaries.
3. Complex overlapping objects that confuse segmentation.

A good rule we follow in visualization workflows is simple: if a human struggles to understand the spatial layout from the photo, the AI will struggle even more.

Practical fixes:

1. Use high‑resolution reference images (at least 1024px on the longest side).
2. Avoid wide‑angle distortion when capturing photos.
3. Choose images with clear lighting and shadow separation.
4. If possible, provide multiple angles.

Research from the IEEE Computer Vision community consistently shows that multi‑view reconstruction significantly improves geometry accuracy compared to single‑image generation.

Fixing Distorted Shapes in Generated 3D Models

Key Insight:Distorted geometry usually happens because perspective lines are misinterpreted during depth prediction.

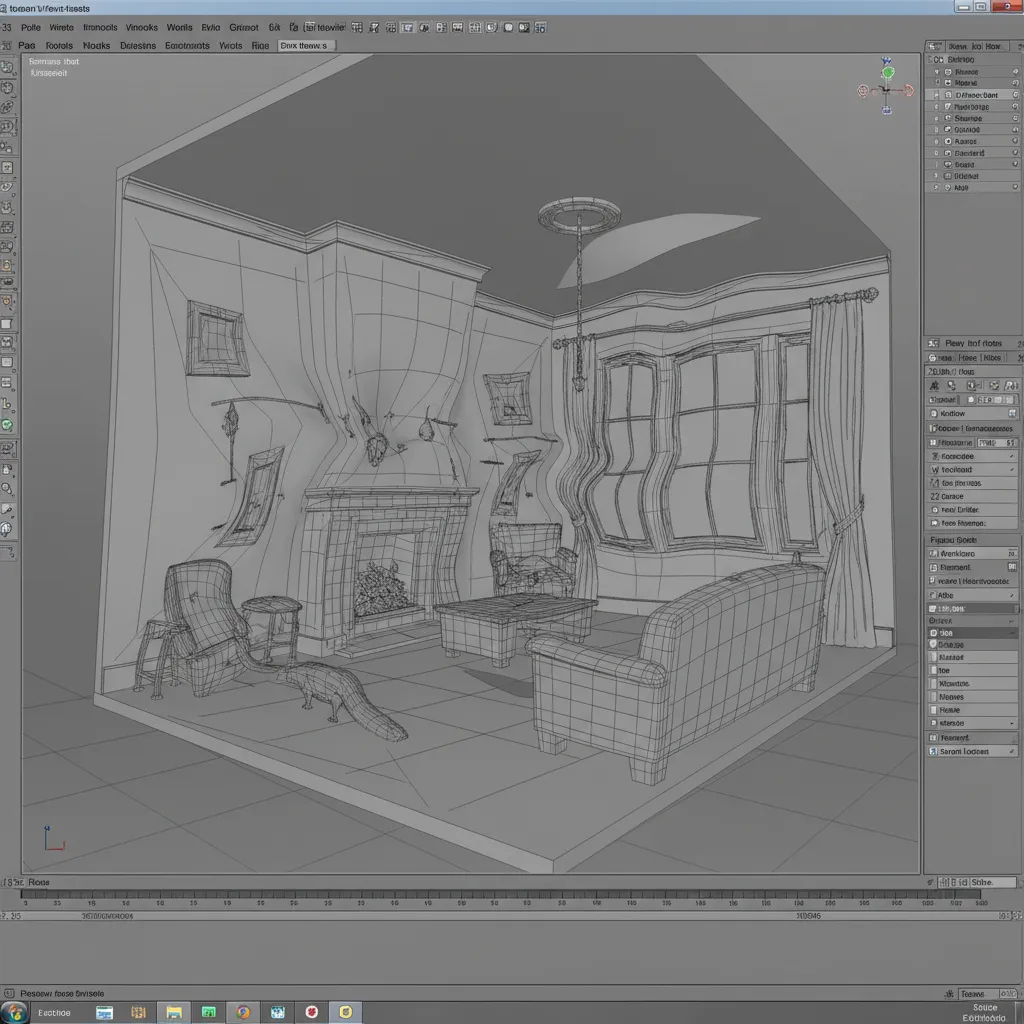

The most common complaint I hear is: "Why does my image to 3D model look melted or stretched?" In most cases, the software misreads perspective cues like floor lines, wall edges, or object proportions.

save pin

Common distortion symptoms:

1. Curved walls or warped surfaces
2. Furniture appearing inflated or flattened
3. Objects blending into each other

Steps to fix distorted models:

1. Re‑run the conversion using a cropped image focused on the object.
2. Manually adjust scale and orientation inside the 3D editor.
3. Use edge snapping or primitive replacement for structural elements.
4. Retopologize large surfaces like walls or floors.

Professional artists rarely rely entirely on generated geometry. Instead, they use AI output as a rough base and rebuild structural components with clean primitives.

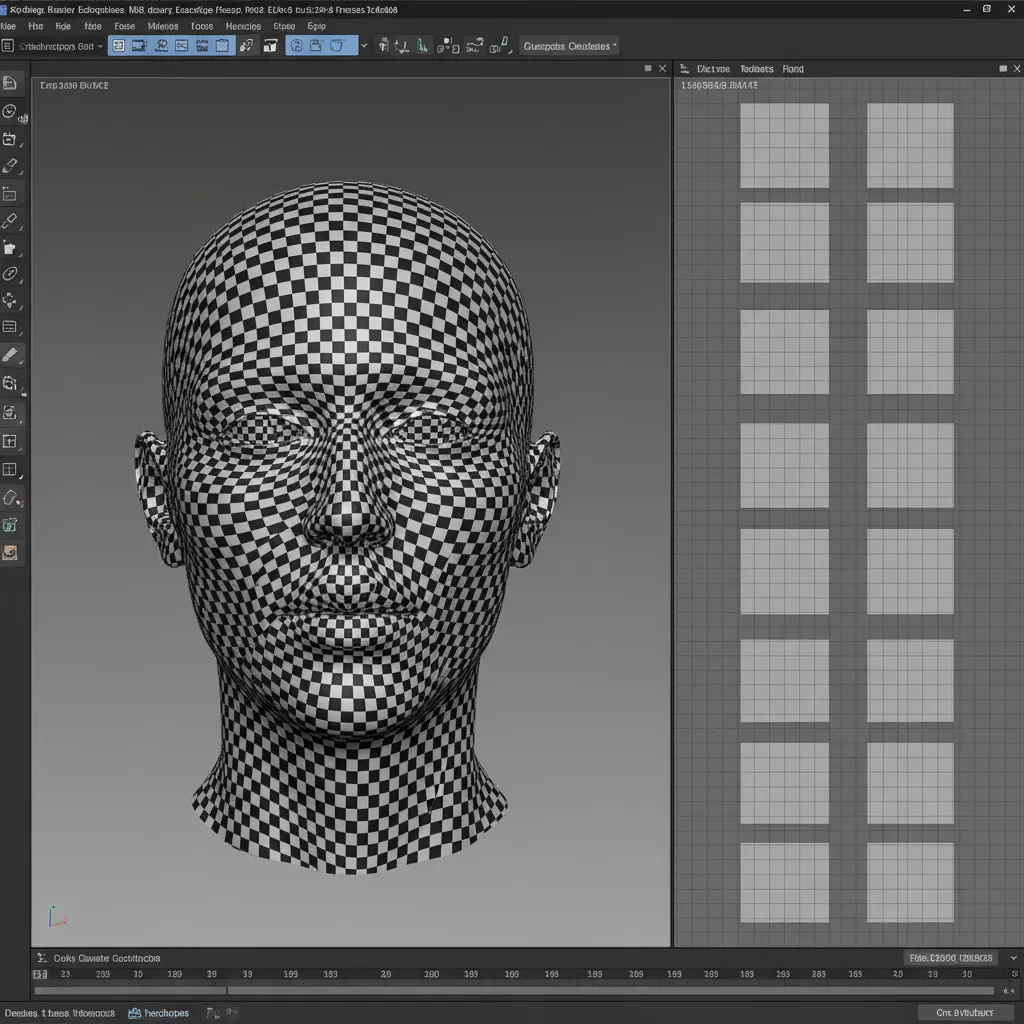

Solving Texture Stretching and UV Issues

Key Insight:Texture stretching occurs when UV coordinates don't match the reconstructed surface area.

Even when geometry looks acceptable, textures often look wrong. Floors appear blurry, fabrics stretch across edges, and surfaces smear.

This happens because automatic UV mapping struggles when topology is irregular.

save pin

Typical UV problems:

1. Textures stretched across large polygons
2. Misaligned material seams
3. Repeated pattern distortion

How professionals fix it:

1. Re‑unwrap UV maps using automatic angle‑based algorithms.
2. Split complex surfaces into separate UV islands.
3. Apply triplanar mapping for large surfaces.
4. Replace AI textures with high‑resolution materials.

If your end goal is interior visualization, it's often faster to rebuild materials inside a scene builder. Many designers instead generate layout structure first and then construct the final environment using tools designed for building accurate room layouts for visualization projects.

Repairing Broken or Non Manifold Meshes

Key Insight: Image‑generated models frequently contain mesh errors that must be repaired before rendering or 3D printing.

Another common problem in image to 3D conversion is mesh corruption. Faces may overlap, normals flip randomly, or holes appear in surfaces.

Typical mesh errors:

1. Non‑manifold edges
2. Intersecting faces
3. Missing polygons
4. Flipped normals

Standard repair workflow:

1. Run automatic mesh repair in software like MeshLab or Blender.
2. Use "merge by distance" to remove duplicate vertices.
3. Recalculate normals.
4. Apply decimation and retopology for cleaner topology.

According to Autodesk documentation on mesh processing, non‑manifold geometry is one of the most common issues preventing models from rendering correctly or exporting to game engines.

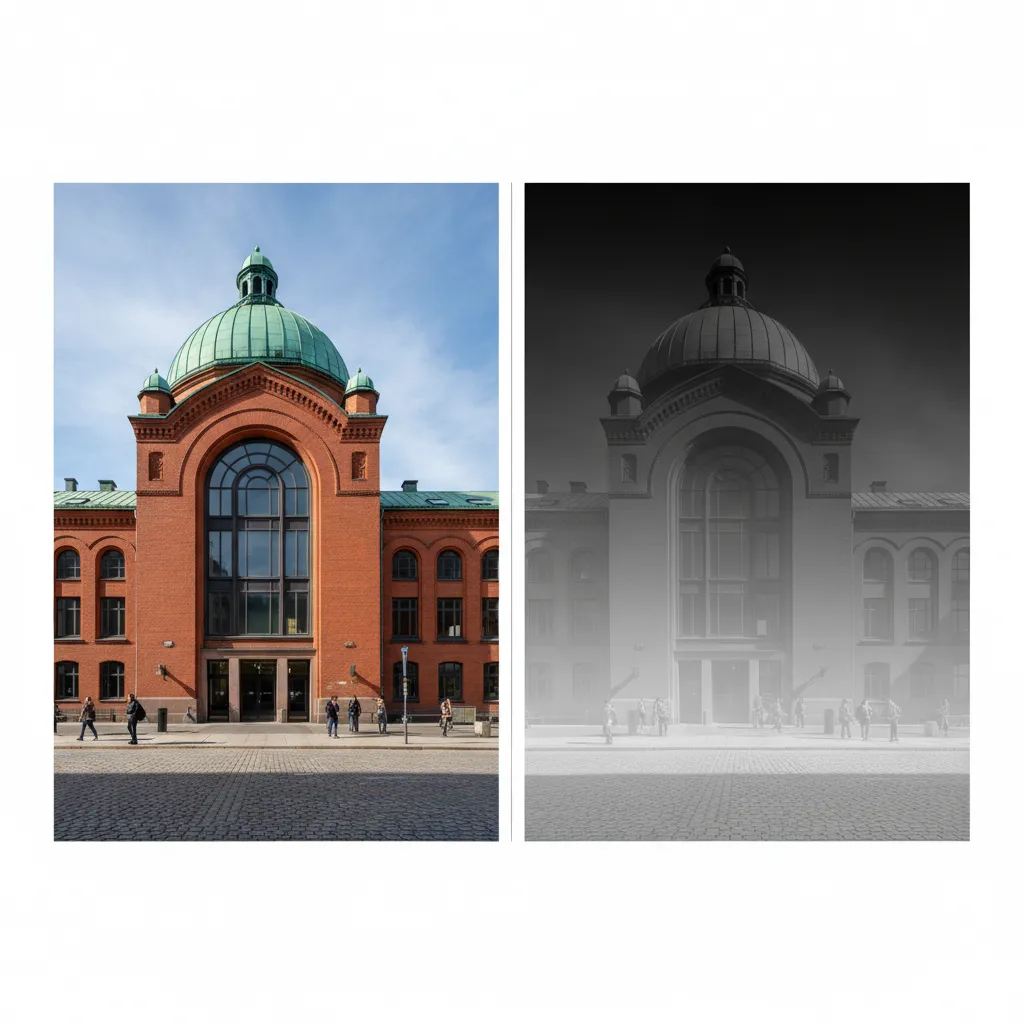

Improving Depth Accuracy from Flat Images

Key Insight:Better depth estimation requires clearer spatial cues and sometimes multiple reference images.

The biggest limitation of converting images to 3D models is depth ambiguity. A flat image simply doesn't tell the algorithm how far objects sit from the camera.

save pin

Ways to improve depth reconstruction:

1. Use photos with visible shadows and highlights.
2. Avoid images with uniform lighting.
3. Provide multiple reference angles if supported.
4. Use depth‑estimation preprocessing models.

In architecture visualization pipelines, we often combine reference images with measured layouts. That hybrid approach is far more reliable than relying on AI reconstruction alone. For example, designers often begin with a simple floor plan generation workflow before building detailed 3D spaces.

Best Practices to Avoid Conversion Errors

Key Insight: The quality of the input image matters more than the conversion software.

One mistake beginners make is assuming the tool is the problem. In reality, most failures start with poor source material.

Best practices we follow in production:

1. Use well‑lit images with clear edges.
2. Avoid motion blur or compression artifacts.
3. Prefer orthographic‑like perspectives when possible.
4. Separate objects from cluttered backgrounds.
5. Capture reference images from multiple angles.

In professional pipelines, AI conversion is rarely the final step. It's the starting point for modeling, cleanup, and refinement.

Answer Box

The most common problems when converting 2D images to 3D models are distorted geometry, stretched textures, broken meshes, and poor depth estimation. These issues are usually solved by improving the source image, repairing the mesh, and manually adjusting geometry after generation.

Final Summary

1. Image to 3D conversion errors usually come from missing depth information.
2. Distorted geometry can often be corrected with manual modeling adjustments.
3. Texture problems are typically solved through UV remapping.
4. Mesh repair tools are essential after automatic model generation.
5. Better source images dramatically improve final 3D model quality.

FAQ

Why does my image to 3D model look distorted?

Distortion usually happens because the algorithm misinterprets perspective lines. Cropping the image and reducing wide‑angle distortion can improve results.

How do I fix errors after converting a 2D image to a 3D model?

Use mesh repair tools, recalculate normals, fix UV maps, and manually rebuild structural geometry if necessary.

What causes texture stretching in generated 3D models?

Texture stretching happens when UV coordinates don't match the geometry. Re‑unwrap the UV map or use triplanar mapping.

Can a single image produce a perfect 3D model?

No. A single image rarely contains enough depth information. Multiple reference images greatly improve reconstruction accuracy.

What software helps repair mesh issues?

Blender, MeshLab, and Autodesk tools all include automatic mesh repair and retopology features.

How can I improve depth when converting images to 3D?

Use photos with strong lighting contrast, visible shadows, and clear object boundaries.

Are image to 3D tools reliable for professional work?

They are useful starting points but usually require manual cleanup before production use.

What is the most common problem in image to 3D modeling?

The most common problem is inaccurate geometry caused by missing depth information in the original image.
