Common Problems When Converting a Room into a Bathroom or Laundry: Real renovation issues with plumbing, drainage, ventilation, and layout—and how experienced designers solve them.

Direct Answer

When converting a room into a bathroom or laundry, the most common problems involve drainage slope, insufficient ventilation, electrical capacity, and layout limitations. These issues typically appear after construction begins because the original room was never designed for plumbing-heavy use. Solving them usually requires redesigning drainage routes, upgrading electrical circuits, and adjusting the layout to maintain functional clearances.

Quick Takeaways

1. Drainage slope is the number one hidden problem in bathroom and laundry conversions.
2. Improper ventilation quickly leads to mold and long‑term moisture damage.
3. Laundry appliances often require dedicated electrical circuits.
4. Small rooms frequently fail clearance requirements for fixtures and appliances.
5. Most conversion mistakes happen during planning, not installation.

Introduction

Converting a room into a bathroom or laundry sounds simple on paper. In reality, it’s one of the renovations where small technical mistakes become expensive problems later. After working on dozens of home renovations over the past decade, I’ve noticed the same pattern: homeowners focus on finishes and appliances first, but the real challenges are hidden behind walls and under floors.

The most frequent issues when converting a room into a bathroom or laundry involve drainage routing, ventilation planning, and electrical load capacity. These aren’t glamorous design topics, but they determine whether the space works—or slowly develops problems like slow drains, humidity damage, or tripped breakers.

Before clients finalize layouts, I usually walk them through a simple spatial study using a step‑by‑step floor plan planning guide for new bathroom or laundry layouts. Mapping plumbing paths and appliance clearance early prevents most structural surprises.

In this guide, I’ll break down the most common renovation failures I’ve seen in bathroom and laundry conversions, why they happen, and how to correct them before they become expensive rebuilds.

save pin

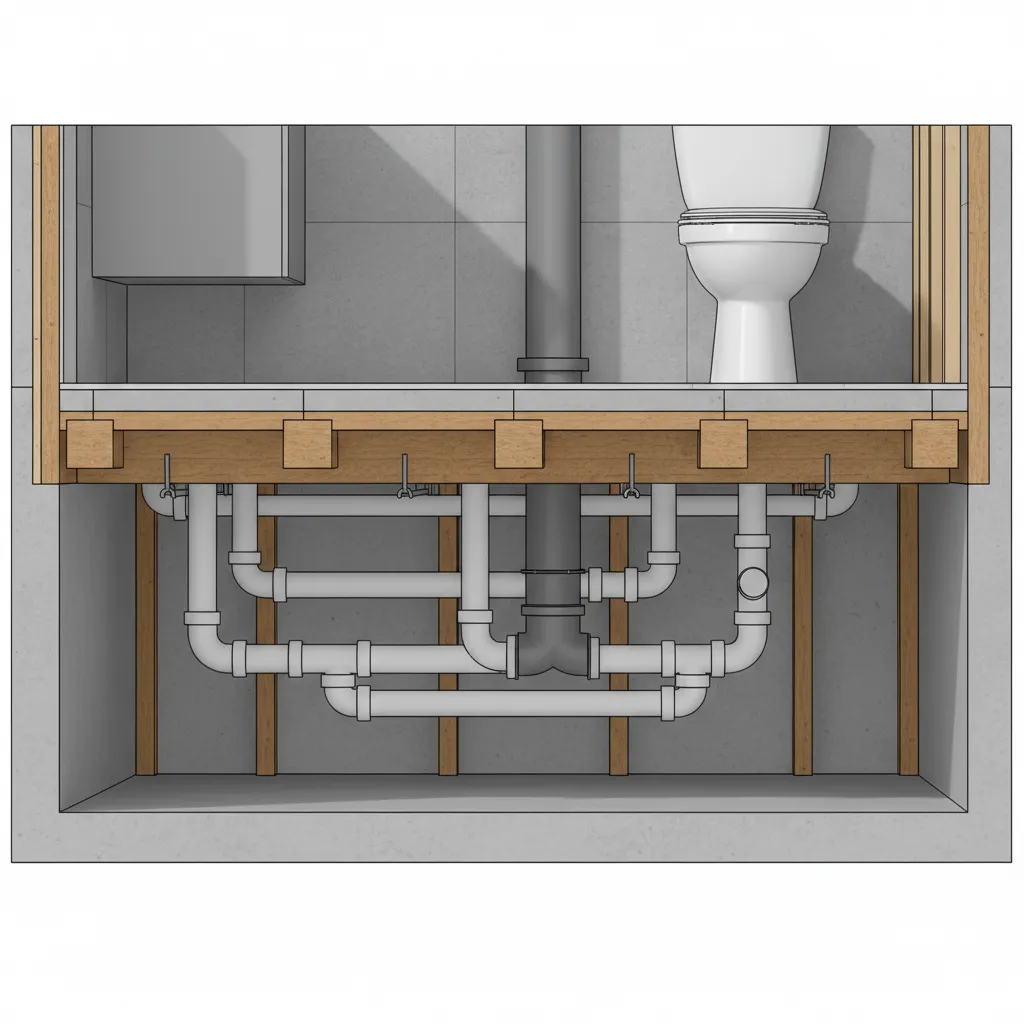

Drainage Problems in Bathroom and Laundry Conversions

Key Insight: Drainage slope limitations are the most common structural obstacle when converting a standard room into a wet space.

Bathrooms and laundry rooms depend on gravity‑based drainage systems. If the new room sits far from existing plumbing stacks—or on a slab foundation—the drain pipe may not achieve the required slope.

In practical terms, drains typically require about 1/4 inch of drop per foot of pipe. When a new bathroom is placed 15–20 feet from the main stack, that slope becomes difficult to hide within the floor structure.

Typical drainage issues I encounter include:

1. Slow draining showers or washing machines
2. Frequent clogging due to shallow pipe slope
3. Pipes that must run above the subfloor
4. Unexpected floor height changes

Real project example:In a Los Angeles bungalow renovation, a planned laundry room conversion failed inspection because the drain line dropped only half the required slope over 12 feet. The solution involved relocating the washing machine closer to the main plumbing wall.

save pin

Ventilation Issues That Cause Moisture Damage

Key Insight: Poor ventilation is the fastest way a bathroom or laundry conversion develops mold and structural moisture damage.

Many converted rooms rely on windows instead of mechanical ventilation, but that rarely works long term. Showers produce heavy humidity, and dryers release warm moisture even with proper venting.

Common ventilation mistakes:

1. No dedicated exhaust fan
2. Fans that vent into attic space
3. Undersized fans for room volume
4. Long duct runs that reduce airflow

According to recommendations from the Home Ventilating Institute, bathroom exhaust fans should provide roughly 1 CFM per square foot of floor area. Laundry spaces often need even stronger ventilation due to dryer heat.

The hidden cost here isn’t just mold—it’s insulation damage, ceiling stains, and long‑term drywall deterioration.

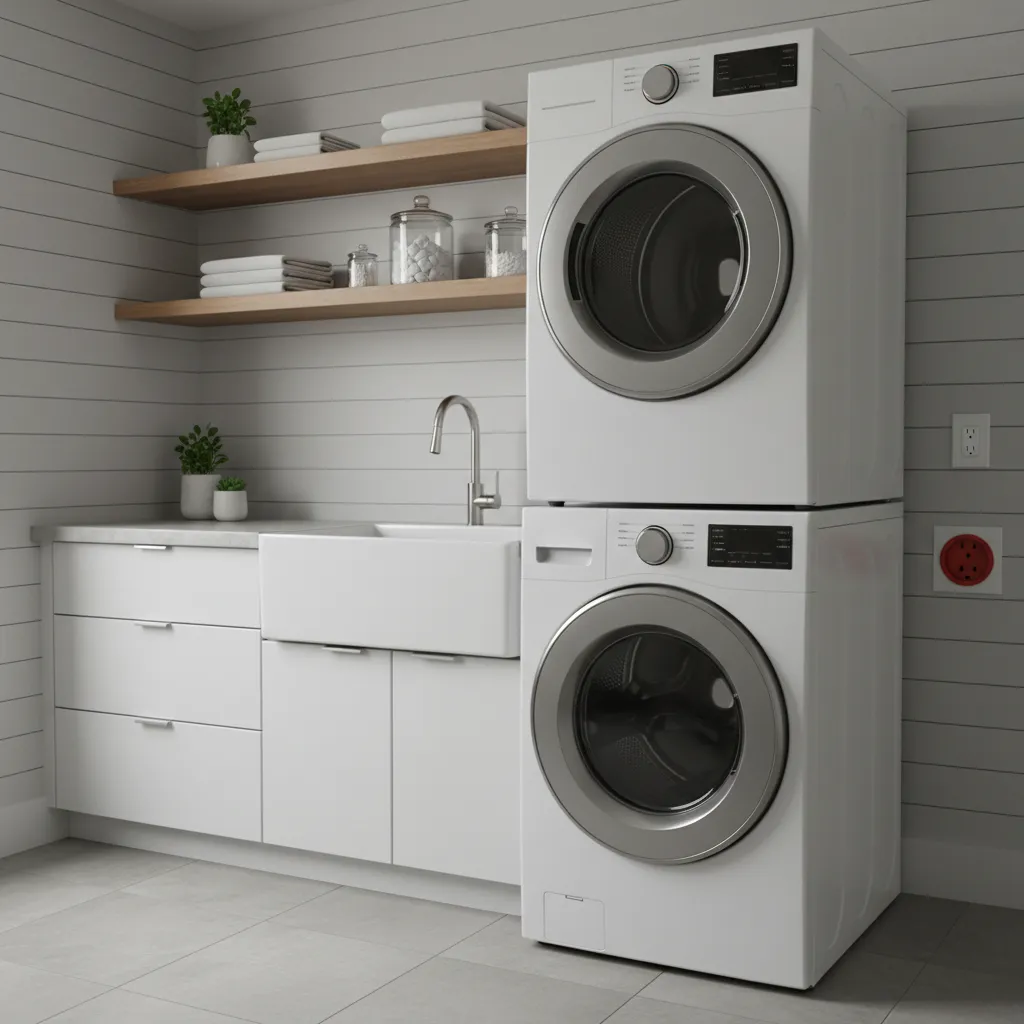

Electrical Capacity Problems with Laundry Appliances

Key Insight: Laundry appliances often exceed the electrical capacity of older rooms.

Standard bedrooms or storage rooms typically have minimal electrical load design. Once you add washing machines, dryers, and sometimes tankless water heaters, the circuit demand increases dramatically.

Typical electrical requirements include:

1. 120V dedicated circuit for washing machines
2. 240V outlet for electric dryers
3. GFCI protection in wet zones
4. Additional outlets for irons or small appliances

In homes built before the 1990s, the electrical panel itself sometimes lacks spare capacity. Upgrading a panel can add significant cost to what initially looked like a simple room conversion.

save pin

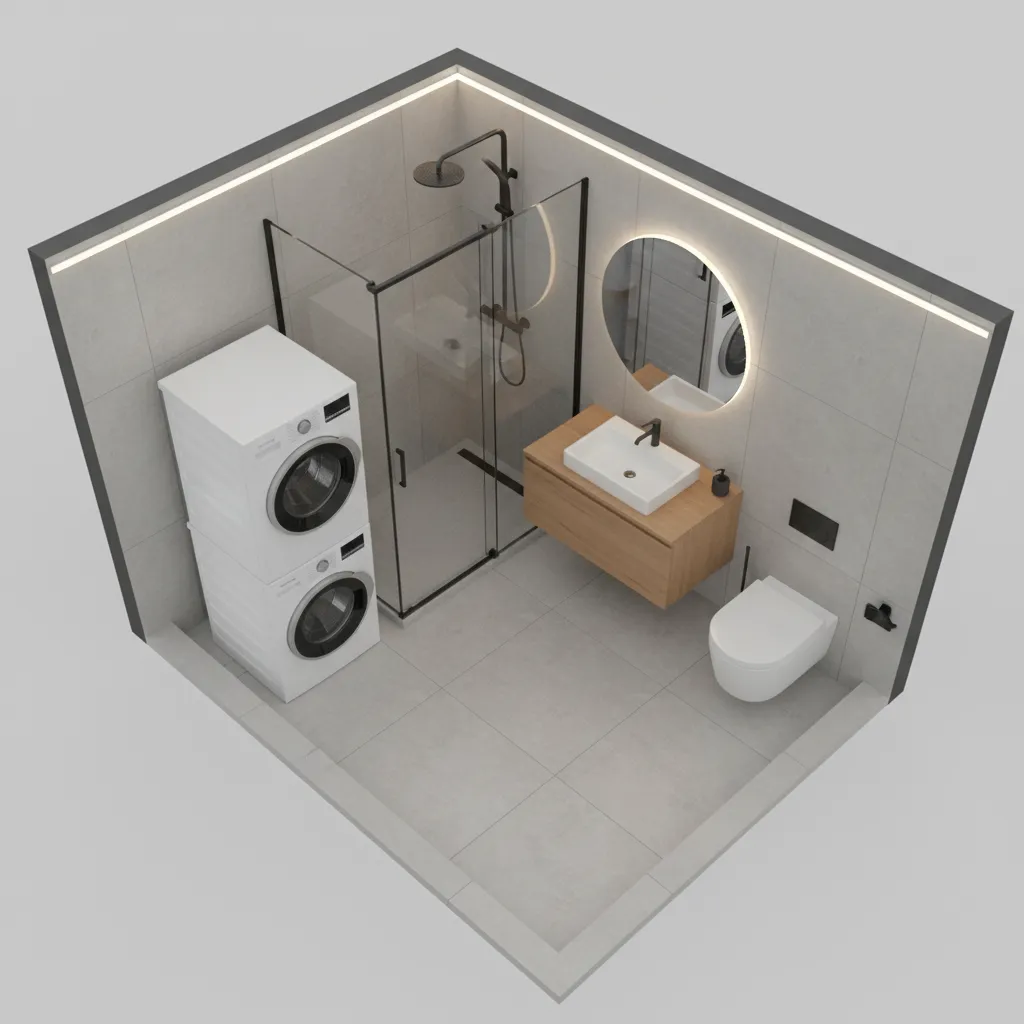

Space Constraints That Break Layout Plans

Key Insight: The biggest design mistake in room conversions is ignoring clearance requirements around fixtures and appliances.

A room may technically fit a washer or shower, but once code‑required clearance zones are added, layouts often fail.

Typical clearance guidelines:

1. 30 inches clearance in front of toilets
2. 24–30 inches in front of washing machines
3. Minimum shower interior of roughly 30 x 30 inches
4. Door swing clearance for appliances

When planning tight spaces, I usually test layout scenarios with a visual room layout simulator for bathroom and laundry conversions. Seeing the space in 3D quickly reveals conflicts that flat sketches miss.

save pin

How to Fix Common Conversion Mistakes

Key Insight: Most conversion problems can be corrected by adjusting layout location, mechanical routing, or ventilation early in the design phase.

If you're already encountering issues, these solutions usually resolve them:

Fix strategies used in professional renovations:

1. Relocate fixtures closer to existing plumbing stacks
2. Install macerating or pump‑assisted drainage systems
3. Add high‑capacity exhaust fans with short ducts
4. Upgrade electrical circuits before appliance installation
5. Reconfigure layout to maintain code clearance zones

One method I often recommend is visualizing the entire mechanical layout using a 3D home visualization workflow that previews plumbing and appliance layouts. It helps identify conflicts before contractors open walls.

Why Do Bathroom and Laundry Conversions Fail More Often Than Other Renovations?

Key Insight: These spaces combine plumbing, ventilation, electrical, and structural constraints in a small footprint.

Unlike living rooms or bedrooms, bathrooms and laundry rooms are mechanical spaces. Every fixture interacts with building systems.

Four systems must align simultaneously:

1. Water supply lines
2. Drainage and vent stacks
3. Electrical circuits
4. Air ventilation paths

When even one system conflicts with the building structure, the design must change. That’s why experienced planning makes such a dramatic difference in conversion projects.

Answer Box

The most common problems when converting a room into a bathroom or laundry involve drainage slope limitations, poor ventilation planning, insufficient electrical capacity, and unrealistic space layouts. Most issues can be avoided by designing plumbing routes and appliance clearances before construction begins.

Final Summary

1. Drainage slope is the most frequent technical challenge.
2. Ventilation mistakes cause long‑term moisture damage.
3. Laundry appliances often require electrical upgrades.
4. Layout failures usually come from ignoring clearance space.
5. Early planning prevents most costly renovation mistakes.

FAQ

1. What are the biggest problems converting a room to a bathroom?

Drainage slope, ventilation, plumbing distance, and fixture clearance are the most common issues in bathroom conversions.

2. Why does a converted laundry room drain slowly?

Laundry room conversion drainage issues usually occur when the drain pipe slope is too shallow or the line is too long.

3. Do I need special ventilation for a laundry room?

Yes. Laundry rooms should have mechanical ventilation or dryer venting that moves moisture outside the house.

4. Can any room become a bathroom?

Not always. The room must be close enough to plumbing stacks and large enough for fixture clearance.

5. Why do bathroom renovations sometimes fail inspection?

Improper drainage slope, missing GFCI outlets, or inadequate ventilation often cause inspection failures.

6. How much space is needed for a small laundry room?

Most layouts require at least 30 inches of appliance clearance plus additional space for door swing.

7. Are ventilation issues common in laundry rooms?

Yes. Ventilation issues in laundry rooms often occur when dryers vent into attics or ducts are too long.

8. What is the most common mistake in room conversions?

The most common mistake is planning layout before verifying plumbing and electrical infrastructure.

References

1. International Residential Code (IRC) plumbing guidelines
2. Home Ventilating Institute ventilation recommendations
3. U.S. Department of Energy appliance installation standards
