Common Problems When Converting Floor Plans to 2D Designs and How to Fix Them: A practical troubleshooting guide from real design workflows that explains why floor plan conversions fail and how professionals correct them quickly

Direct Answer

The most common floor plan to 2D conversion problems come from scale mismatches, poor image quality, layer misalignment, and incorrect wall interpretation. These errors usually appear when raster plans are traced without calibration or when automated vectorization misreads symbols. Fixing them requires verifying scale first, cleaning the source plan, and correcting layers before detailed drafting begins.

Quick Takeaways

1. Most conversion errors start with incorrect scale calibration before tracing.
2. Low‑resolution floor plan images cause distorted walls and missing symbols.
3. Layer management prevents alignment errors and overlapping geometry.
4. Wall thickness errors usually come from automated vectorization shortcuts.
5. Cleaning the source floor plan image reduces more than half of conversion mistakes.

Introduction

In real design studios, converting a floor plan to 2D drawings sounds straightforward but often turns messy. I have worked on projects where a simple scanned plan turned into hours of corrections because the conversion process introduced subtle but serious mistakes.

The most frequent issue with floor plan to 2D conversion is that people start tracing immediately without verifying scale or image clarity. That shortcut often leads to distorted walls, inconsistent measurements, and symbols that no longer match architectural standards.

If you are starting from a scanned drawing or image, it helps to understand how digital planning tools interpret layouts. For example, many designers now rely on tools that automatically generate layouts from sketches or scans. A good starting point is exploring a workflow that demonstrates how AI assisted floor plan generation can quickly transform rough layouts into structured plans, which helps avoid several manual conversion errors.

In this guide, I will break down the real problems that appear during conversion and how experienced designers fix them efficiently.

save pin

Why Floor Plan to 2D Conversion Errors Happen

Key Insight: Most conversion errors occur before drafting even begins because the original floor plan source is inaccurate or poorly prepared.

Many people assume the software causes problems, but in practice the source drawing is usually the culprit. Scanned blueprints, photographs of plans, and exported PDFs often contain distortions that the tracing process simply reproduces.

Common causes include:

1. Perspective distortion from photographed plans
2. Low resolution scans below 300 DPI
3. Uncalibrated image scaling
4. Symbol libraries that don't match architectural standards
5. Auto vectorization misinterpreting thin lines

According to documentation from Autodesk and several CAD training programs, accurate drafting always starts with scale calibration. Skipping that step can produce measurement errors exceeding 5–10% across the drawing.

Fixing Scale and Measurement Mismatches

Key Insight: Scale errors must be corrected before any detailed editing because every dimension depends on the base reference.

In practice, scale mismatches usually happen when a floor plan image is imported without defining a known measurement. I often see designers trace an entire layout only to realize the final plan is several feet off.

The professional fix is simple but often ignored.

Step‑by‑step correction process:

1. Identify a known dimension such as a doorway width.
2. Use the scale or calibration tool in the drafting software.
3. Adjust the drawing until the known measurement matches.
4. Lock the reference layer to avoid accidental resizing.
5. Only then begin tracing walls and structural elements.

Design schools emphasize this calibration step because once the base scale is wrong, every measurement including furniture placement and circulation space becomes unreliable.

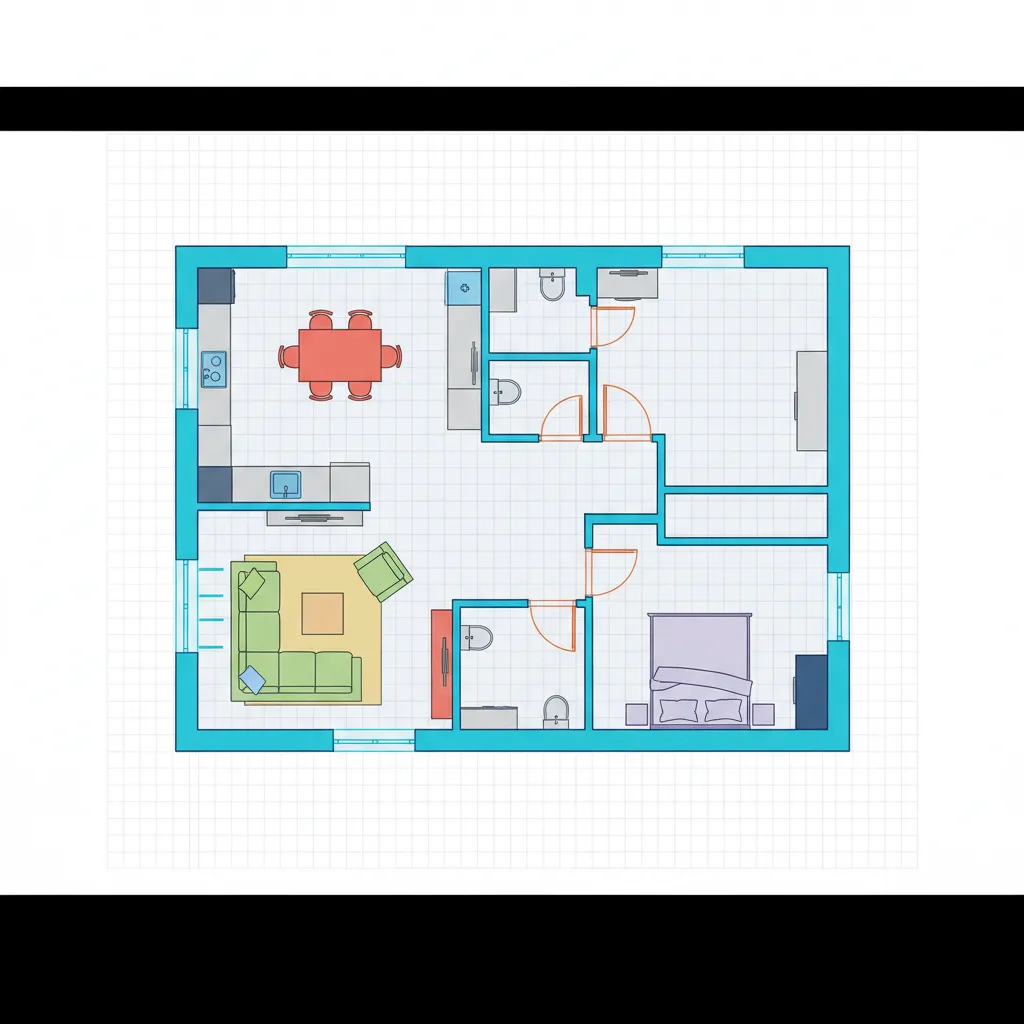

Resolving Line Alignment and Layer Issues

Key Insight: Misaligned lines usually come from messy layer management rather than drawing mistakes.

During conversion, walls, windows, dimensions, and furniture often end up on the same layer. When that happens, editing becomes chaotic and alignment errors spread throughout the drawing.

Professional layer structure typically looks like this:

1. Walls layer
2. Openings layer for doors and windows
3. Furniture layer
4. Annotations and dimensions
5. Reference image layer

Separating these layers prevents accidental movement and makes corrections far faster.

For example, when teams create layouts using structured planning workflows such as building spatial layouts with a professional 3D floor planning workflow, the software automatically separates structural and furniture layers. That simple organization prevents many alignment problems before they even appear.

save pin

Handling Low Quality or Blurry Floor Plan Images

Key Insight: Poor image quality is one of the biggest hidden causes of inaccurate floor plan tracing.

When the source image is blurry, the tracing process becomes guesswork. Walls appear thicker than they should be, symbols blend together, and small details disappear entirely.

Typical problems caused by low resolution images:

1. Walls appear double‑lined or uneven
2. Door swing symbols become unclear
3. Dimensions cannot be read accurately
4. Auto vectorization creates broken geometry

The best solution is preprocessing the image before importing it.

Recommended workflow:

1. Scan original plans at 300–600 DPI.
2. Increase contrast to highlight linework.
3. Remove shadows or background noise.
4. Crop unnecessary borders.

Even a few minutes of image cleanup can dramatically reduce tracing errors.

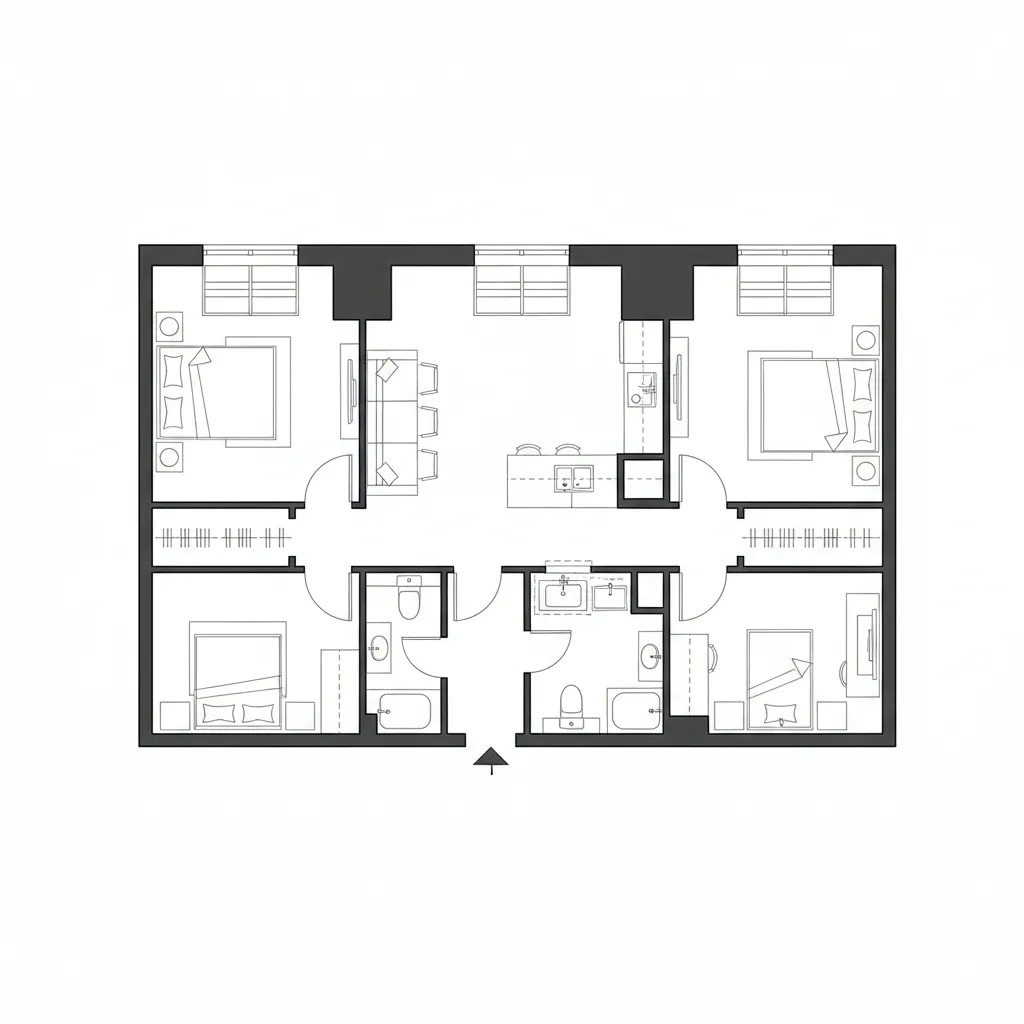

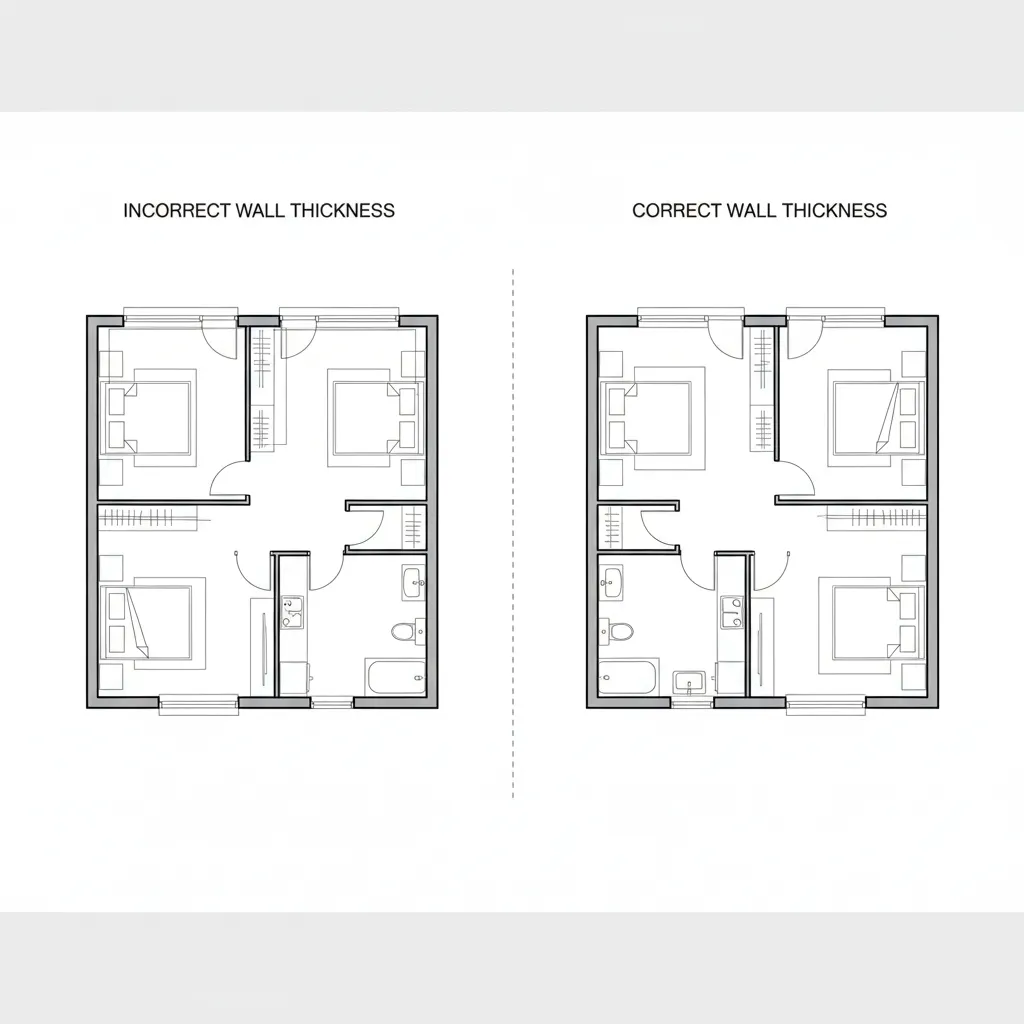

Correcting Wall Thickness and Symbol Errors

Key Insight: Automated vectorization often misreads architectural symbols, which leads to incorrect wall thickness and misplaced openings.

This is one of the most overlooked problems in automated conversions. Algorithms detect shapes but do not always understand architectural conventions.

Common symbol mistakes include:

1. Doors interpreted as walls
2. Columns converted into solid blocks
3. Windows missing from exterior walls
4. Interior partitions interpreted as structural walls

Professional designers usually verify three elements immediately after vectorization:

1. Wall thickness consistency
2. Door swing direction
3. Window placement alignment

save pin

Answer Box

The fastest way to fix floor plan to 2D conversion problems is to calibrate scale first, clean the source image, organize layers, and verify wall thickness before detailing. Most drafting errors originate from early workflow shortcuts.

Best Practices to Prevent Conversion Mistakes

Key Insight: Prevention is faster than correction, and structured workflows reduce most conversion errors dramatically.

After working on dozens of residential drafting projects, I noticed that consistent workflows eliminate the majority of mistakes.

Best practices professionals follow:

1. Always calibrate scale before tracing
2. Use clear layer structures from the start
3. Clean and preprocess floor plan images
4. Verify wall thickness early
5. Check door and window symbols before finalizing

If you are creating new layouts rather than converting messy scans, starting from a clean digital layout can save significant time. Many designers now prefer creating accurate layouts from scratch using a browser based floor plan creatorinstead of fixing heavily distorted scans.

save pin

Final Summary

1. Most floor plan conversion errors originate from incorrect scale calibration.
2. Low resolution plans create distorted walls and missing symbols.
3. Layer organization prevents many alignment issues.
4. Automated vectorization often misinterprets architectural symbols.
5. Structured workflows reduce correction time dramatically.

FAQ

Why is my floor plan to 2D conversion inaccurate?

The most common reason is incorrect scale calibration. If the drawing scale is not set using a known measurement, every dimension will be off.

How do I fix scale issues in floor plan tracing?

Use a known measurement such as a door width, calibrate the drawing scale, and lock the reference layer before tracing.

Why are my walls uneven after converting a floor plan?

Uneven walls usually come from low‑resolution images or auto‑vectorization errors that misinterpret line thickness.

What resolution should a floor plan scan be?

For accurate tracing, scan architectural plans at 300–600 DPI to preserve line clarity.

Can automated tools convert floor plans perfectly?

No. Automation speeds up the process, but manual verification is always necessary for symbols, wall thickness, and measurements.

How do I correct wall thickness in CAD floor plans?

Edit wall properties or redraw walls using the correct thickness based on the architectural standard used in the project.

Why do floor plan vectorization errors happen?

Vectorization algorithms detect shapes but do not fully understand architectural symbols, leading to misinterpreted elements.

How can I prevent alignment problems in 2D plans?

Use separate layers for walls, openings, furniture, and annotations so each element can be edited independently.
