Common Problems When Converting Floor Plans to 3D Elevations: Practical fixes designers use to solve scale, proportion, and layout errors when turning 2D plans into accurate 3D elevations

Direct Answer

The most common problems when converting floor plans to 3D elevations come from missing dimensional data, incorrect scale interpretation, wall height assumptions, and misplaced openings such as windows or doors. When a 2D plan lacks clear measurements or vertical information, 3D software must guess, which often leads to distorted elevations. Correcting scale, defining heights, and clarifying architectural elements typically resolves most issues.

Quick Takeaways

1. Most 3D elevation errors start with inaccurate or incomplete floor plan measurements.
2. Wall height assumptions often distort architectural proportions.
3. Window and door alignment errors usually come from missing elevation references.
4. Material mapping problems often appear when surfaces are undefined in the 2D plan.
5. Careful plan preparation prevents more issues than post‑model corrections.

Introduction

Converting a floor plan into a realistic elevation sounds straightforward. In reality, it's one of the most common places where architectural visualization goes wrong.

After working on residential design projects for more than a decade, I've noticed a pattern: when a 3D elevation looks "off," the problem almost never starts in the 3D software. It starts in the floor plan.

Many 2D plans simply don't contain enough vertical information to build a clean elevation model. Heights, window sill levels, roof relationships, and facade depth often aren't fully defined. When software tries to interpret those gaps automatically, distortions appear.

One effective way to avoid early modeling errors is starting from structured planning tools that clearly define spatial measurements. For example, many designers begin with a digital workflow that helps generate accurate floor plans before modeling, which significantly reduces elevation inconsistencies.

Below are the most common technical problems I see when translating floor plans into 3D elevations—and the practical fixes designers use to solve them quickly.

save pin

Why Floor Plans Sometimes Produce Incorrect 3D Elevations

Key Insight: Most incorrect elevations are caused by missing vertical information in 2D plans rather than modeling mistakes.

A floor plan primarily describes horizontal relationships—room layout, wall positions, and circulation paths. Elevations, however, require vertical data such as wall heights, roof slopes, window heights, and facade depth.

When these vertical elements are undefined, modeling tools rely on assumptions. Different tools use different defaults, which leads to inconsistent results.

Typical missing data includes:

1. Ceiling heights
2. Window sill height
3. Door head height
4. Roof pitch or parapet height
5. Facade offsets

According to architectural documentation standards from the American Institute of Architects, elevation drawings should include clear vertical dimensions specifically because floor plans alone cannot define building height relationships.

In practice, I always verify three critical vertical values before modeling:

1. Finished floor to ceiling height
2. Door head alignment across rooms
3. Window sill consistency

Without these three, most elevations will look proportionally wrong.

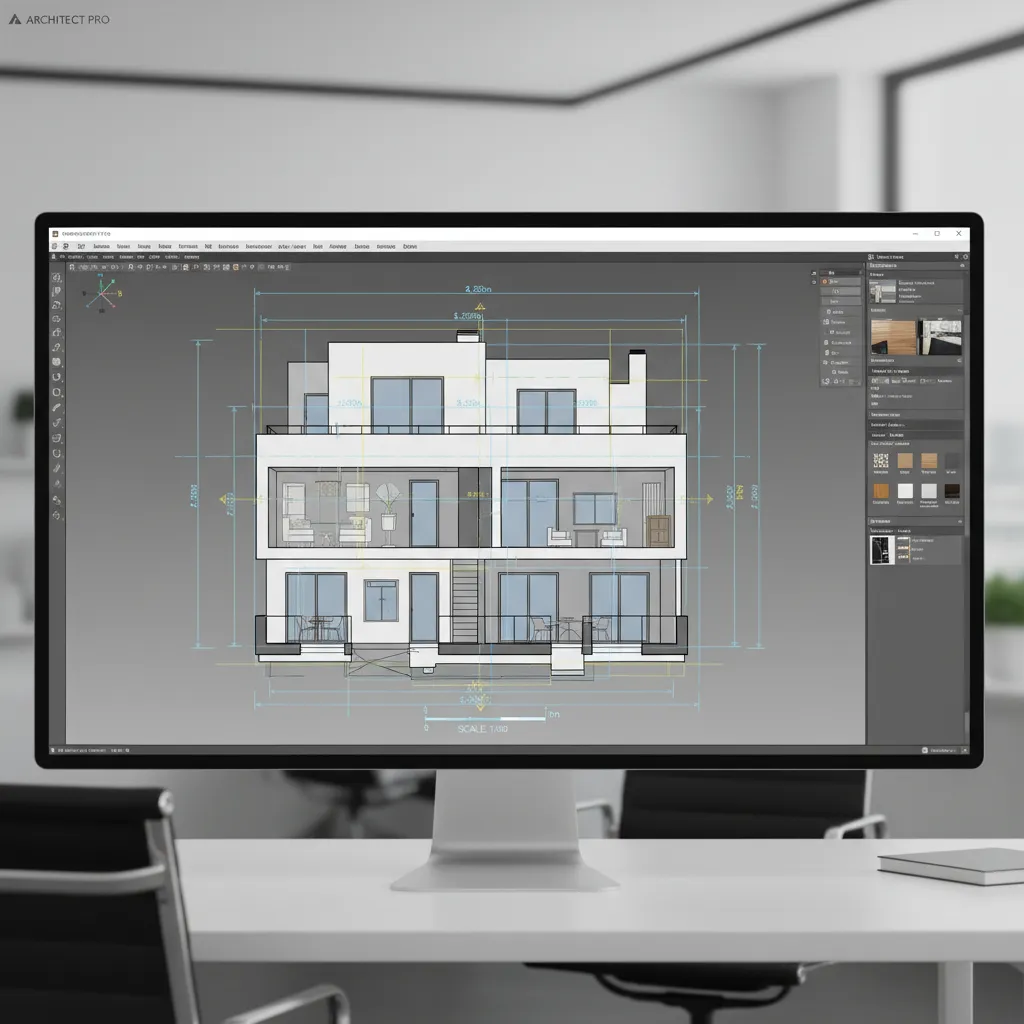

Fixing Scale and Measurement Errors

Key Insight: Incorrect scaling during floor plan import is one of the fastest ways to ruin a 3D elevation.

This happens frequently when a scanned drawing or PDF plan is imported into modeling software. If the scale reference is incorrect—even by a small amount—the entire building proportion becomes distorted.

Common scaling mistakes include:

1. Importing raster floor plans without calibration
2. Using incorrect unit conversions (feet vs meters)
3. Rounding dimensions during tracing

Professional workflow to fix scale issues:

1. Identify one known dimension in the floor plan.
2. Use that dimension as the calibration reference.
3. Lock the scale before tracing walls.
4. Confirm room dimensions after import.

Designers who work with accurate modeling environments often rely on tools built specifically for spatial layout generation, such as platforms designed for building 3D floor plan layouts that maintain correct architectural scale. These workflows reduce manual calibration errors dramatically.

save pin

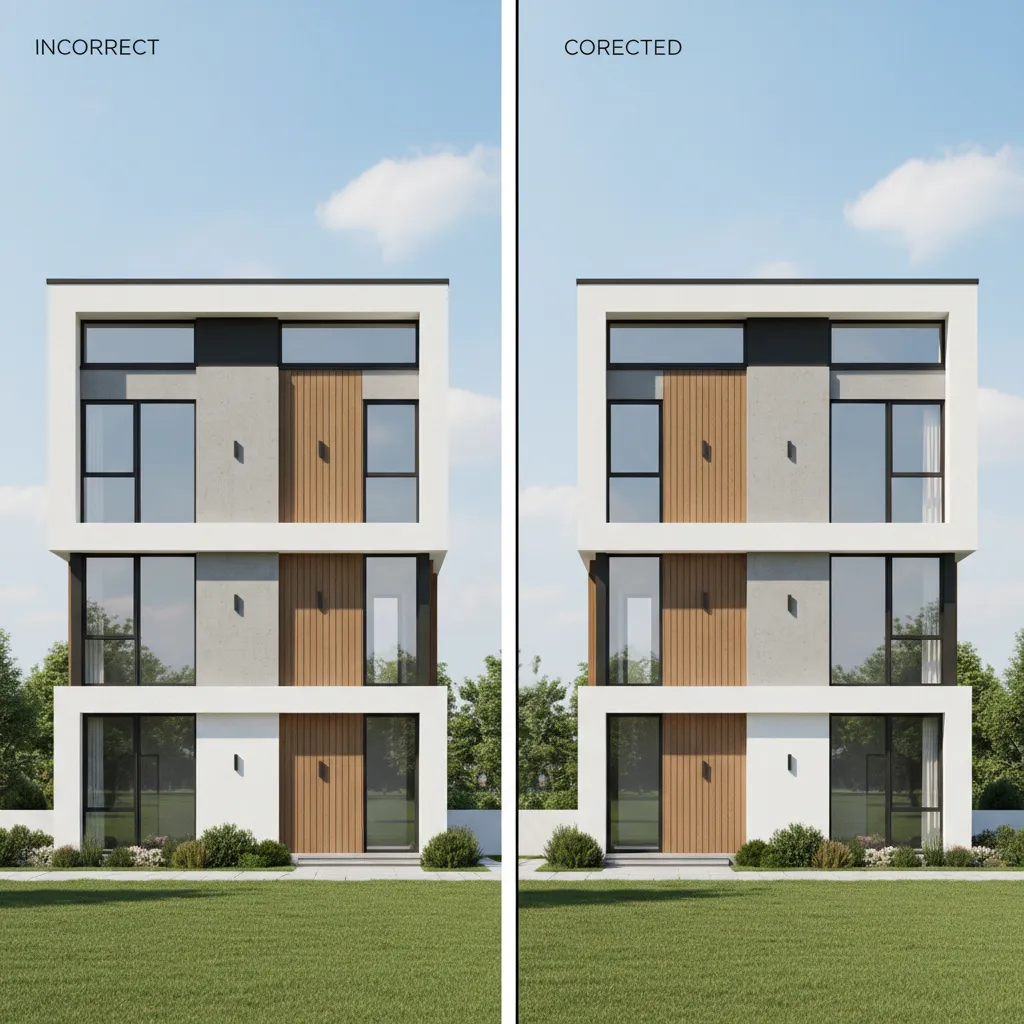

Resolving Wall Height and Proportion Problems

Key Insight: Wall height assumptions are the most overlooked cause of unrealistic elevations.

Many modeling tools apply a default wall height automatically—often around 8 or 9 feet. But in real residential projects, ceiling heights vary widely:

1. 8 ft older homes
2. 9–10 ft modern houses
3. 12+ ft open living spaces
4. Variable heights with tray ceilings

If you model every wall at the same height, the elevation loses architectural rhythm.

Common fixes include:

1. Define standard wall height before modeling
2. Create separate height groups for different spaces
3. Align window head heights across rooms
4. Adjust parapets or roof edges early

In several residential projects I've worked on, adjusting wall heights alone corrected nearly 70% of elevation proportion issues without changing the floor layout.

save pin

Correcting Window and Door Placement Issues

Key Insight: Windows and doors look misaligned in elevation when their vertical reference points are inconsistent.

Floor plans usually mark openings as symbols within walls, but they rarely include detailed vertical positioning. When converted to 3D, this missing information causes windows to float too high or too low.

Typical placement mistakes:

1. Different sill heights for similar windows
2. Door heads not aligned
3. Windows placed too close to ceiling
4. Facade symmetry ignored

Quick alignment method designers use:

1. Set a global door head height (commonly 80 or 84 inches).
2. Define standard window sill heights.
3. Use alignment guides across exterior walls.
4. Check facade symmetry in elevation view.

Once these references are set, elevation views instantly become more architectural and less random.

Handling Incomplete or Ambiguous Floor Plan Details

Key Insight: Ambiguity in the floor plan forces the 3D modeler to guess—and guesses often create inaccurate elevations.

This issue appears frequently in early concept drawings or client-provided sketches.

Missing details often include:

1. Exterior wall thickness
2. Roof style
3. Balcony depth
4. Facade offsets
5. Material transitions

Professional designers solve this by building a clarification checklist before modeling:

1. Confirm exterior wall construction thickness
2. Define roof structure early
3. Mark facade projections
4. Specify balcony or terrace depth

This simple step dramatically reduces revision cycles.

Answer Box

The majority of floor plan to 3D elevation errors come from incomplete vertical information, incorrect scaling, and inconsistent opening heights. Establishing accurate measurements and alignment references before modeling prevents most visual distortions.

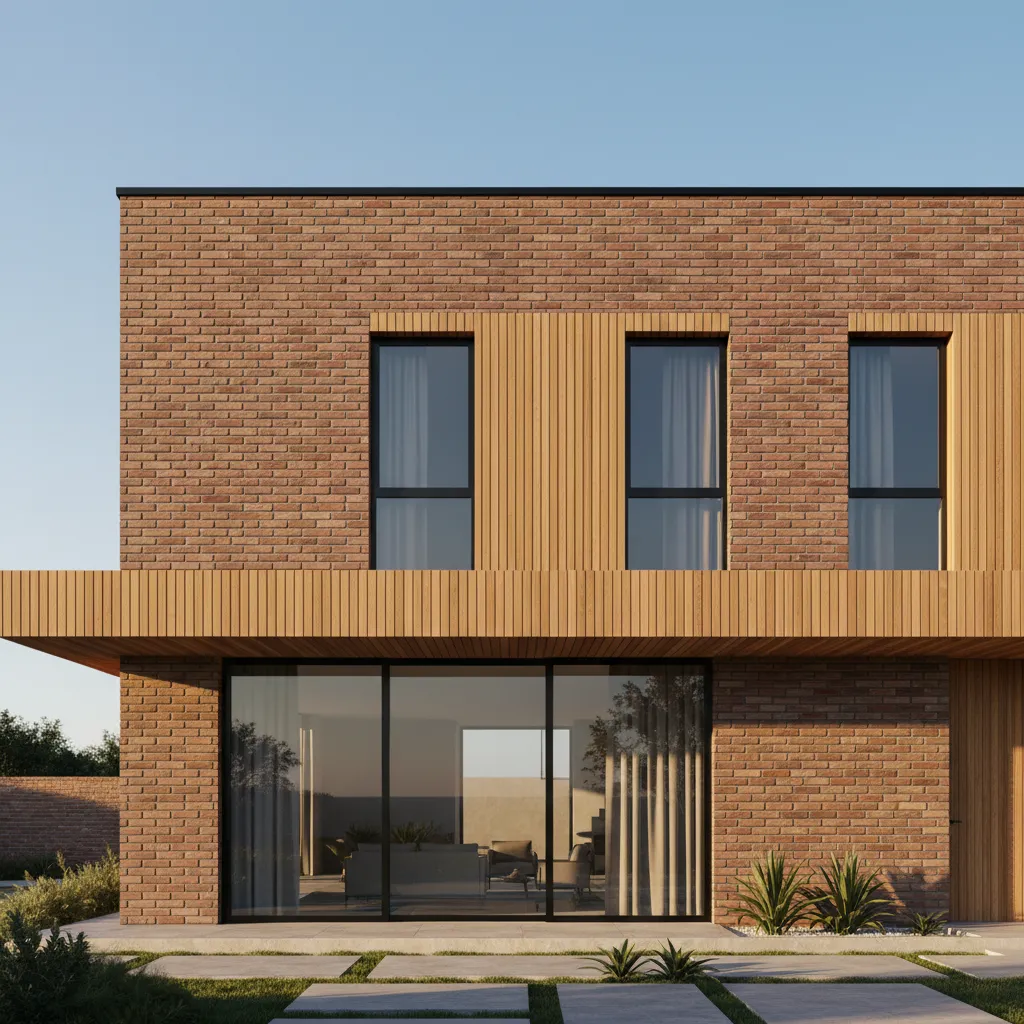

Troubleshooting Texture and Material Mapping

Key Insight: Texture errors usually occur because surfaces were not defined clearly during the modeling stage.

When materials appear stretched, misaligned, or unrealistic in elevations, the issue typically originates from surface mapping rather than rendering quality.

Common material problems:

1. Incorrect UV scale
2. Unassigned wall faces
3. Overlapping geometry
4. Wrong texture orientation

Practical fixes include:

1. Reset surface mapping coordinates
2. Apply materials per wall face
3. Use real‑world material dimensions
4. Check facade seams and edges

When preparing final visuals, many designers refine facade appearance using workflows designed for creating photorealistic architectural renderings from 3D models, which improves material accuracy and lighting realism.

save pin

Final Summary

1. Most elevation errors originate from missing vertical data in floor plans.
2. Incorrect scale during plan import distorts the entire model.
3. Wall height assumptions frequently break architectural proportions.
4. Window and door alignment requires consistent vertical references.
5. Material problems usually come from incorrect surface mapping.

FAQ

Why does my 3D elevation look wrong from a floor plan?

Most issues occur because the floor plan lacks vertical information such as wall heights, window sill levels, or roof details.

How do I fix scale issues in 3D elevation modeling?

Use a known dimension in the plan to calibrate the imported drawing before tracing walls or placing objects.

What wall height should I use when creating a 3D elevation?

Standard residential wall heights are typically 8–10 feet, but always verify the intended ceiling height for accuracy.

Why are my windows misplaced in elevation views?

Window sill heights and head heights are often undefined in floor plans, so the modeling software assigns incorrect defaults.

Can incomplete floor plans cause 3D elevation errors?

Yes. Missing roof types, wall thicknesses, and facade details force the modeler to guess dimensions.

How do I correct wall height in 3D architectural models?

Define consistent ceiling heights and adjust wall parameters before placing openings or facade elements.

What causes texture stretching in elevation renders?

This usually results from incorrect UV mapping or surfaces that were not properly defined during modeling.

Is troubleshooting 3D elevation from 2D plan common?

Yes. Even experienced designers regularly adjust scale, heights, and openings when converting floor plans into 3D models.
